Frigidaire GHSC39EE User manual

Product No. GHSC39EEPB3 GHSC39EEPW3
Series counter depth counter depth
Color black white
Volts 115 115
Wiring Diagram 241638600 241638600
Owner's Guide 241540301 241540301
Market North America North America
Energy Guide 241607586 241607586
Service Data Sheet 241639000 241639000
N58L00001.eps N58FCFBGA0.eps N58RCFCHA0.eps N58BABAAD2.eps
N58SDDLBE1.eps N58TBAAAB2.eps N58CACBAA3.eps N58XEAAAA0.eps
N58YDAAAC0.eps N58I115T.eps W241638600.eps S241638600.eps
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995446704
05/08/31
(EN/SERVICE/WC)
357
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GHSC39EE
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995446704 GHSC39EE
08/05 2
FREEZER DOOR
68
5
22C
22A
21A
13A
11
4B
4B
N58FCFBGA0
1
21C
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
5

GHSC39EE Publication No: 5995446704
# Functional Parts 3 08/05
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A - Gasket-frzr door, black, magnetic
1 # 241510202 - B Gasket-frzr door, white, magnetic
4B 241511606 A B Bin-door, pseudo, frzr
5 241545001 A B Bin-tilt out, tilt-out
11 241668172 A - Door-frzr, black, complete assy
11 241668123 - B Door-frzr, white, complete assy
13A 240537106 A - Door Stop, black, frzr
13A 240537102 - B Door Stop, white, frzr
18 240359108 A - Handle-door, black, LH
18 240359106 - B Handle-door, white
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B Screw, #8-18 x 3/4
22A 240328204 A - Bearing-hinge(frz), black, closer
22A 240328202 - B Bearing-hinge(frz), closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge, natural, upper
37 240359203 A - Trim-handle, 30.13", black, lower
37 240359201 - B Trim-handle, 30.13", white, lower
68 241525101 A B Chute-ice
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500
* 240352102 A B Connector-water, straight
* 240552102 A B Harness-wiring, door
* 5303918256 A B Dispenser heater kit

Publication No: 5995446704 GHSC39EE
08/05 4
REFRIGERATOR DOOR
70
49A
49
48
7
6
5
21A
22
13
15
22B
2
N58RCFCHA0
50
21
21
21
21C
21C
21
74
74
74
72
72
73
73
73
18
37
12
27A

GHSC39EE Publication No: 5995446704
# Functional Parts 5 08/05
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A - Gasket-refr door, black, magnetic
2 # 241510201 - B Gasket-refr door, white, magnetic
5 241516102 A B Rack-can
6 241515901 A B Lug-dairy compartment
7 241515601 A B Door-dairy
12 240449710 A - Nameplate
12 240449708 - B Nameplate
13 240537105 A - Door Stop, black, ref
13 240537101 - B Door Stop, white, ref
15 241534505 A - Door-refr, black, complete assy
15 241534504 - B Door-refr, white, complete assy
18 240359103 A - Handle-door, black, RH
18 240359101 - B Handle-door, white
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
21C 240521302 A B Screw, #8-18 x 3/4
22 240328203 A - Bearing-hinge, black, closer
22 240328201 - B Bearing-hinge(ref), closer
22B 240328403 A - Bearing-hinge, black, upper
22B 240328401 - B Bearing-hinge(ref), natural, upper
27A 240396102 A B Retainer, tall bottle
37 240359203 A - Trim-handle, 30.13", black, lower
37 240359201 - B Trim-handle, 30.13", white, lower
48 241511704 A B Bin-door, ref
49 241505304 A B Bin-door, 2-liter
49A 241505504 A B Bin-door, gallon
50 241508401 A B Cover-magnet
70 241515801 A B Compartment-dairy, removable
72 240421701 A B Button-handle mtg, dovetail
73 218396700 A B Block-handle mtg, dovetail
74 215503200 A B Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995446704 GHSC39EE
08/05 6
CABINET
100
92
92
90
89
83
82
81
81
72
66
54
53
52
50
47
45
45
45
45
45
45
45
43
42
42
41
38
38A
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAD2
14A
21C
21C
40
40A

GHSC39EE Publication No: 5995446704
# Functional Parts 7 08/05
* Non-Illustrated Parts
CABINET
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
10 241509802 A B Cover-air duct
10A 240475907 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - Plate-door closer
22 240457701 - B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603701 A B Bracket-lower hinge, ref
30A 241603702 A B Bracket-lower hinge
37 240337603 A - Trim-cabinet corner, black, (2)
37 240337601 - B Trim-cabinet corner, white, (2)
38 240327201 A B Bracket-upper hinge
40 240327007 A - Cover-upper hinge, black
40 240327005 - B Cover-upper hinge, white
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578901 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B Roller Assy, adjustable, front, (2)
45 241500301 A B Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B Channel-shelf mtg, side, (2)
50 241511102 A B Board-main power
50* 241532501 A B Clip-harness
54 241532401 A B Channel
58 218781100 A B Screw, pan head, 8-18 x 0.625
66 241513601 A B Damper Assy
72 241521610 A - Grille/Kickplate, black
72 241521608 - B Grille/Kickplate, white
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B Cover access
90 218249808 A B Seal-coil cover
92 216850900 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
* 240479601 A B Plug, button, cab liner holes, (2)
* 241591701 A B Louver
* 5303305345 A - Paint, touch-up, black
* 5303305324 - B Paint, touch-up, white

Publication No: 5995446704 GHSC39EE
08/05 8

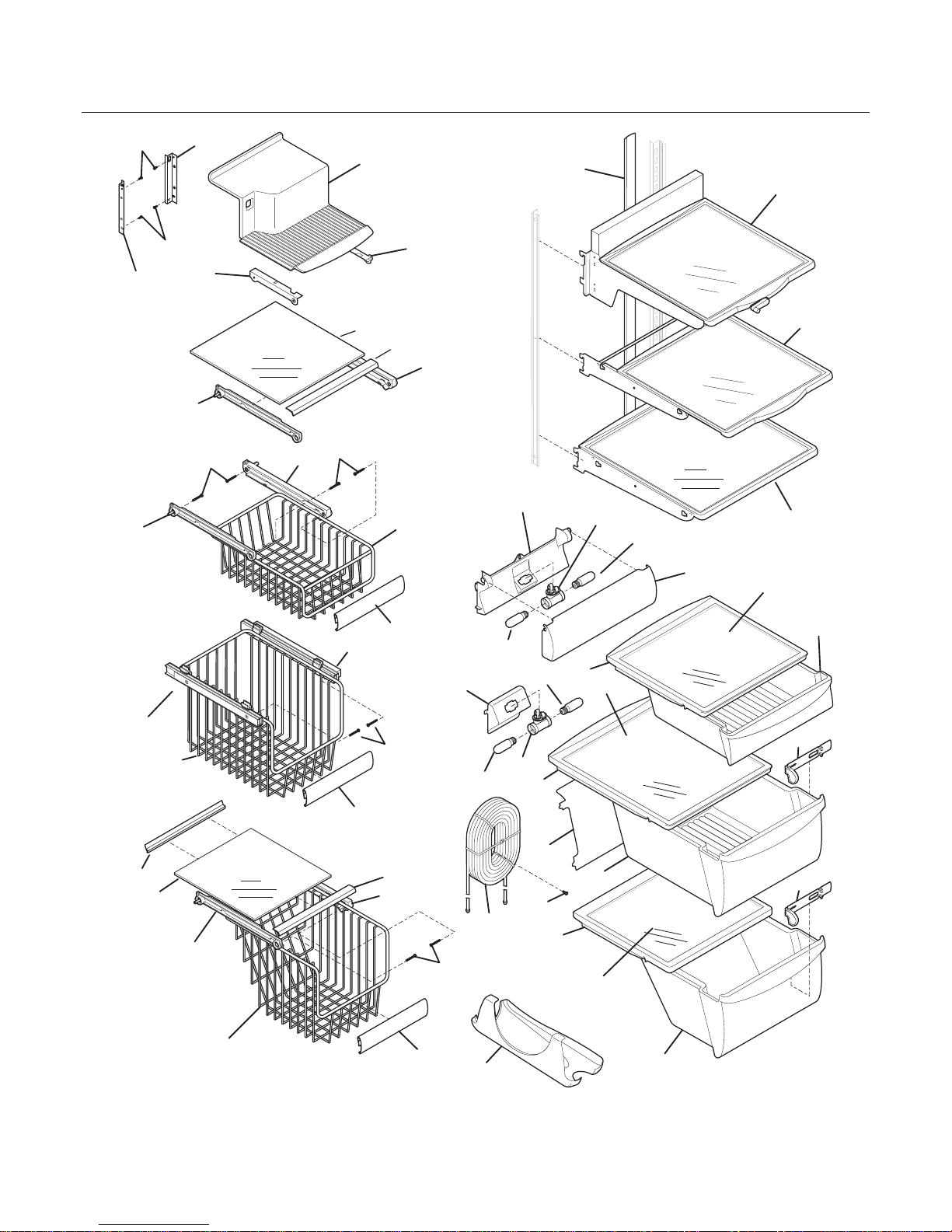

SHELVES
51A
140
136
126
126
122
121
120
109
108
107
101 101
101
100
97
81
81
62
60
52B
52A
52
52
51B
51
51
49B
49A
49
47B
47A
47
27A
27
26A
26
25B
25A
25
24C
24B
24
81
16
16
15
15
15
15
2
2
2
N58SDDLBE1
39
11
41
11A
39

GHSC39EE Publication No: 5995446704
# Functional Parts 9 08/05
* Non-Illustrated Parts
SHELVES
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
2 241510605 A B Trim-basket
11 240443353 A B Shelf-freezer, glass, lower
11A 240443354 A B Shelf-freezer, glass, upper
15 241552801 A B Light Bulb
16 241507803 A B Socket-light
16* 241513101 A B Harness-wiring
24 240355239 A B Shelf-"Spill-Safe", fixed
24B 240350126 A B Shelf-"Spill-Safe", cantilever, sliding
24C 240424607 A B Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240599301 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
25B 240599801 A B Cover-meat pan
26 240351021 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26* 240423101 A B Channel-divider
26* 240423201 A B Retainer
26* 240423301 A B Divider-crisper pan
26A 241638201 A B Control-humidity
26A* 241552401 A B Frame-humidity control, upper
26A* 241638101 A B Frame-humidity control
27 240351218 A B Pan-crisper, lower
27A 240362201 A B Control-humidity
39 240367603 A B Trim-shelf, 11.65", front
41 241637601 A B Baffle-air
47 240350602 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
47B 240443352 A B Insert-pan cover, glass
49 241515001 A B Basket-sliding
49A 241528001 A B Basket-sliding, upper, half
49B 241514901 A B Basket-sliding, upper, full
51 241514501 A B Hanger-basket, RH
51A 241514701 A B Hanger-shelf glass, RH
51B 240579803 A B Hanger-basket, RH
52 241514601 A B Hanger-basket, LH
52A 241514801 A B Hanger-shelf glass, LH
52B 240579804 A B Hanger-basket, LH
60 5303207328 A B Screw, hex washer head, 8-15A x 1.000, (2)
62 240599704 A B Pan-meat
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 A B Water Tank
100 241549901 A B Cover-water tank
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
107 241513401 A B Shield-light, crisper
108 241513301 A B Cover-wiring, crisper light
109 241513202 A B Base-crisper light socket
120 241504501 A B Shelf-ice cream
121 241504701 A B Rail-ice cream shelf, LH
122 241504702 A B Rail-ice cream shelf, RH
126 241630701 A B Channel, auger mtg, LH
126 241630702 A B Channel, auger mtg, RH
136 240424502 A B Dispenser-can, clear
140 240430505 A B Channel, wtr tube cover

Publication No: 5995446704 GHSC39EE
08/05 10
CONTROLS
201
199
198
151
149
139
138
137
116
115
81
81
81
75
61
60
23
22
21
17
16
15
15
14
13
9
8
5
N58TBAAAB2
54
50

GHSC39EE Publication No: 5995446704
# Functional Parts 11 08/05
* Non-Illustrated Parts
CONTROLS
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241518301 A B Bushing, motor mounting
13 241509401 A B Motor, evaporator fan
13* 241510501 A B Seal-diffuser
14 241517701 A B Clip, evap fan motor
15 241552801 A B Light Bulb
16 241507803 A B Socket-light
17 241516201 A B Box-control, front
17* 241510801 A B Harness-wiring
21 # 240596701 A B Control, electronic
22 240597201 A B Sensor
23 241512901 A B Cover-sensor
50 241511102 A B Board-main power
50* 241524801 A B Seal-Mother Board Housing
54 241532401 A B Channel
60 241510401 A B Diffuser-air, top
61 241511201 A B Cover
75 241517801 A B Shield-light
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
115 241518501 A B Damper, motorized
116 241518601 A B Seal-damper, foam
137 240396401 A B Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B Bypass, water filter, Optional Part
138 240397301 A B Button-filter release
139 240396002 A B Base-water filter
139* 240526901 A B O-ring, wtr filter base
149 241517601 A B Shroud-evap fan mtg
149* 241528301 A B Seal, foam, evap fan assy
151 241505001 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
201 241544902 A B Switch-membrane
* 3205266 A B Edge Protector, wiring harness
* 240388601 A B Elbow-water tube

Publication No: 5995446704 GHSC39EE
08/05 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
45
45
44
41
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA3
50

GHSC39EE Publication No: 5995446704
# Functional Parts 13 08/05
* Non-Illustrated Parts
SYSTEM
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 241636201 A B Harness-wiring, machine compt
6 # 241516901 A B Cord-service
6* 241510801 A B Harness-wiring
6* 241519901 A B Harness-wiring
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330008 A B Base-compressor mtg
22* 218252200 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491501 A B Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 241637301 A B Pan-defrost drain
29 # 241547601 A B Compressor, w/electricals
30 241577501 A B Invertor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555001 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 A B Housing-control, apollo lighting
50* 241641501 A B Screw
57 240542601 A B Clip-wiring harness
58 240433201 A B Screw, hex washer head, 8-18 x 0.375
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359401 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 # 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240553501 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* # 5303918300 A B Heat Exchanger Kit, suction line
* 5303918222 A B Hot Tube Repair Kit, service

Publication No: 5995446704 GHSC39EE
08/05 14
ICE & WATER DISPENSER

GHSC39EE Publication No: 5995446704
# Functional Parts 15 08/05
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976912 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 5304422012 A - Cover-module, black
4 5304421822 - B Cover-module, white
8 5304424549 A - Module-dispenser
8 5304421823 - B Module-dispenser, white
10 5304426649 A B Spring-torsion
14 240323969 A - Label-module cover, black
14 240323967 - B Label-module cover, white
17 5304421619 A B Screw
23 241649003 A - Drip Tray, black
23 241649001 - B Drip Tray, white
24 5304433613 A - Actuator-water, black
24 5304433615 - B Actuator-water, white
24A 5304433610 A - Actuator-ice, black
24A 5304433612 - B Actuator-ice, white
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
36 5304421824 A B Carrier
38 5304433619 A B Board-power
38A# 5304421617 A B Switch-micro, single pole, double throw
38C 5304433609 A B Board-control
38C* 5304430811 A B Harness-ribbon cable
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw, plask h/l, #6 x 3/8
56 5304421830 A B Screw-micro switch, pan head
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
90 5304421831 A B Light Pipe, reflector
91 5304421850 A B Light Pipe, reflector, short
* 5303918256 A B Dispenser heater kit
* 5304426535 A B Insulator-electrical

Publication No: 5995446704 GHSC39EE
08/05 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
21
26
44
44
44
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC0

GHSC39EE Publication No: 5995446704
# Functional Parts 17 08/05
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
2 5304436634 A B Auger-ice
3 5304404343 A B Cam-drive
4 241515201 A B Container-ice, bucket only
6 5304404346 A B Drum-ice disp
7 241515301 A B Front-ice container
10 241624801 A B Bar-drive
13 5304404359 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 5304404345 A B Drive Blade
18 # 5304440392 A B Motor-auger
18* 241522901 A B Harness-wiring, icmkr/container
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
22 240597201 A B Sensor
22* 241519401 A B Clip, sensor
23 5304404347 A B Plate-front
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 215503200 A B Screw, cr pan hd, 10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade, round
35B 5304404352 A B Fixed Blade, square
37A 5304404348 A B Blade, crusher #1
37B 5304404350 A B Blade, crusher #2
37C 5304404356 A B Blade, crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw, pan head, 8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304436635 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304436702 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral, fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
58 5304404331 A B Screw-solenoid
70 241504601 A B Plate-mounting
* 240562101 A B Insulator
* 241504301 A B Ice Container Assy, w/moving parts
* 241551601 A B Screw, hex head, 8-18B x 0.875

Publication No: 5995446704 GHSC39EE
08/05 18
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T

GHSC39EE Publication No: 5995446704
# Functional Parts 19 08/05
* Non-Illustrated Parts
ICE MAKER
Model Index: AGHSC39EEP (GHSC39EEPB3)
BGHSC39EEP (GHSC39EEPW3)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976912 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
1* 241604801 A B Seal-water inlet, inlet valve, to ice maker
2 5304436616 A B Spring, torsion
4 3206301 A B Gear
5 5304436604 A B Plate-mounting
6 3206305 A B Screw-ground wire, 8-32 x 0.250
7 # 5304436619 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 5304436610 A B Detent
10 3206315 A B Clamp
11 # 5304436618 A B Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 A B Harness-wiring
13 5304436613 A B Thermostat, ICE MAKER
14 5304420652 A B Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B Switch, (3)
16 5304436609 A B Housing, control
17 # 5304436617 A B Mold-ice maker, with heater
18 5304436607 A B Ejector-ice
18*# 240352601 A B Wiring Harness, internal, with plug
19 5304436606 A B Cup-water inlet
20 5304408581 A B Screw, 8-32 x 0.375
21 5304436608 A B Ice Stripper
22 5304436602 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 5304404362 A B Screw, hex washer head, 8-32T x 0.375
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375, (4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop, 4-40 x 0.375
29 3206323 A B Screw, 4-24 x 0.750, (6)
30 3206341 A B Screw-timing adj, 8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304436615 A B Spring-thermostat
34 5304420655 A B Screw, plazscrew, 8-10, (3)
35 5304408585 A B Screw
36 5304436605 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B Clip, (2), tube mtg.
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
46 5303001193 A B Clamp, .50 ID, steel, water tube
51 241523502 A B Tube-water fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709100 A B Screw, hex head, 10-32 x 0.500
55* 240363601 A B Screw-shoulder

Publication No: 5995446704 GHSC39EE
08/05 20
ICE MAKER
45 45
42
51
46
64
29
7
6
16
67
20
21
19
22 66
60
18
17
9
10
23
23
34
28
34
34
11
29
14
30
27 13
26
26
15 15
2
15
31
32
36
4
35
5
33
8
24
25
12
1
55 INSTALLATION PARTS
N58I115T
