Frigidaire GHSC39EGP User manual

E23CS75DSS0.eps N58FFDBGA1.eps N58RFDCHA2.eps N58BABAAC2.eps
N58SDDLBE22.eps N58TBAAAB4.eps N58CACBAA3.eps N58XEAAAA1.eps
N58YDAAAC1.eps n58I115T1.eps W241638600.eps S241638600.eps
Product No. GHSC39EGPB0 GHSC39EGPW0
Series counter depth counter depth
Color black (smooth) white (smooth)
Volts 115 115
Wiring Diagram 241638600 241638600
Owner's Guide 241694601 241694601
Market North America North America
Energy Guide 241649282 241649282
Service Data Sheet 241639000 241639000
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995467072
06/06/02
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
GHSC39EG
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995467072 GHSC39EG
06/06 2
FREEZER DOOR
68
55
5
22C
22A
21A
13A
11
4B
4B
N58FFDBGA1
1
18
79
79 80
80

GHSC39EG Publication No: 5995467072
# Functional Parts 3 06/06
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
1 # 241510204 A - Gasket-frzr door, black, magnetic
1 # 241510202 - B Gasket-frzr door, white, magnetic
4B 241511606 A B Bin-door, pseudo, frzr
5 241545001 A B Bin-tilt out, tilt-out
11 241526790 A - Door-frzr, black, complete assy
11 241526789 - B Door-frzr, white, complete assy
13A 240581906 A - Door Stop, black, frzr
13A 240581902 - B Door Stop, white, frzr
18 240536810 A - Handle-door, black
18 240536809 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
22A 240328204 A - Bearing-hinge(frz), black, closer
22A 240328202 - B Bearing-hinge(frz), closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge, natural, upper
68 241525101 A B Chute-ice
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting
* 240352102 A B Connector-water, straight
* 240552102 A B Harness-wiring, door
* 5303918256 A B Dispenser heater kit

Publication No: 5995467072 GHSC39EG
06/06 4

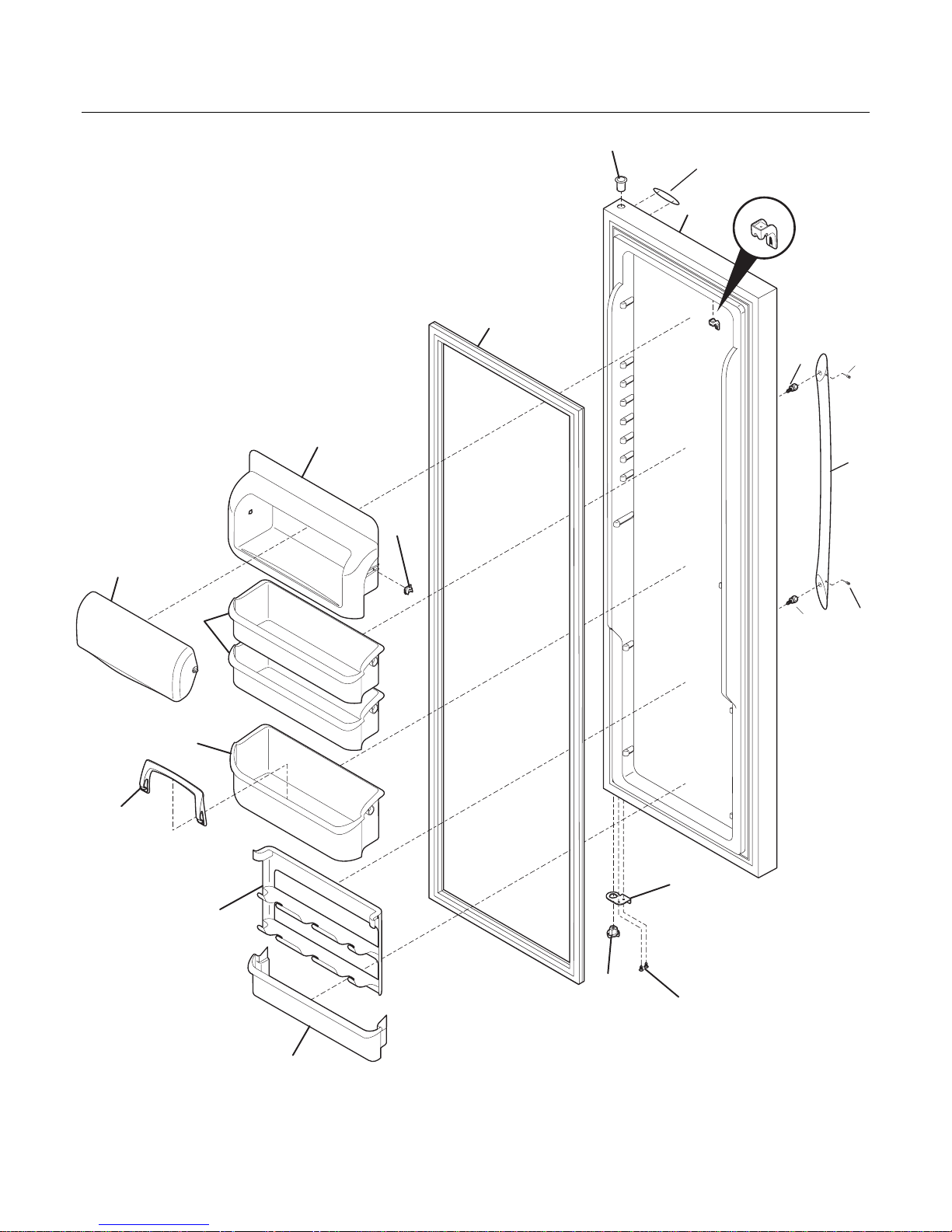

REFRIGERATOR DOOR
27A
N58RFDCHA2
70
50
49A
49
48
22B
22
21A
15
13
7
6
5
2
18
79
79
80
80
12

GHSC39EG Publication No: 5995467072
# Functional Parts 5 06/06
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
2 # 241510203 A - Gasket-refr door, black, magnetic
2 # 241510201 - B Gasket-refr door, white, magnetic
5 241516102 A B Rack-can
6 241515901 A B Lug-dairy compartment
7 241515601 A B Door-dairy
12 240449710 A - Nameplate
12 240449708 - B Nameplate
13 240581905 A - Door Stop, black, ref
13 240581901 - B Door Stop, white, refr
15 241534585 A - Door-refr, black, complete assy
15 241534584 - B Door-refr, white, complete assy
18 240536810 A - Handle-door, black
18 240536809 - B Handle-door, white
21A 240598402 A B Screw, 10-32 x 1/2
22 240328203 A - Bearing-hinge, black, closer
22 240328201 - B Bearing-hinge(ref), closer
22B 240328404 A - Bearing-hinge, black, upper
22B 240328402 - B Bearing-hinge, natural, upper
27A 240396102 A B Retainer, tall bottle
48 241511704 A B Bin-door, ref
49 240430321 A B Bin-door, 2-liter
49A 240430322 A B Bin-door, gallon
50 241508401 A B Cover-magnet
70 241515801 A B Compartment-dairy, removable
79 218755402 A B Screw-set, 10-32 x 0.375
80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995467072 GHSC39EG
06/06 6

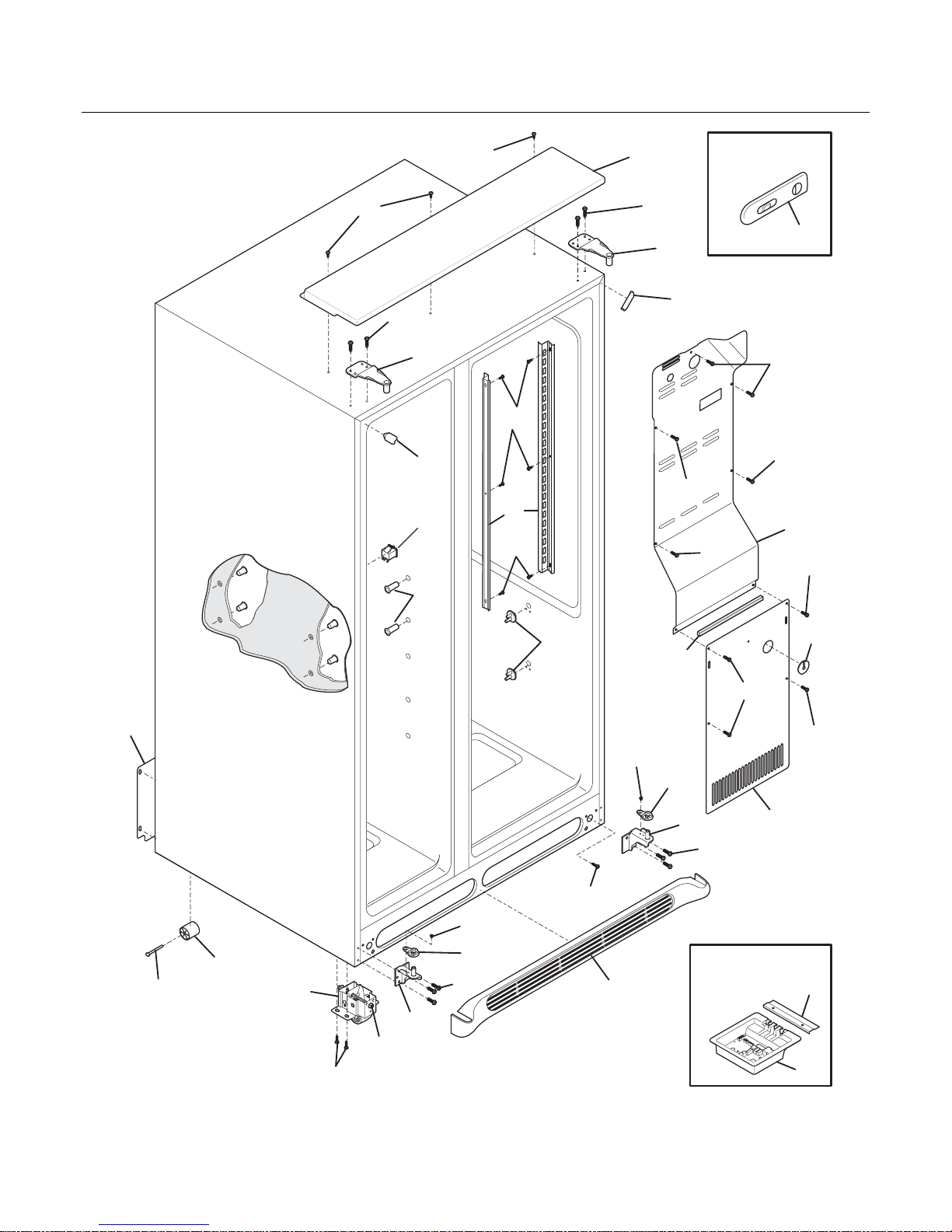

CABINET
100
92
92
90
89
83
82
81
81
72
66
58
58
54
50
47
45
45
45
45
45
45
45
43
42
42
41
40
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BABAAC2
14A

GHSC39EG Publication No: 5995467072
# Functional Parts 7 06/06
* Non-Illustrated Parts
CABINET
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
10 241509804 A B Cover-air duct
10A 240475911 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 240457702 A - Plate-door closer
22 240457701 - B Plate-door closer
23 240402702 A B Screw-#10-32 x 1/4 flat hd
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 A B Bracket-lower hinge, ref
30A 241603704 A B Bracket-lower hinge
37 240337603 A - Trim-cabinet corner, black, (2)
37 240337601 - B Trim-cabinet corner, white, (2)
38 240327207 A B Bracket-upper hinge
40 241555103 A - Cover-hinge, black
40 241555101 - B Cover-hinge
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 A B Roller Assy, adjustable, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 0.500
47 241513001 A B Channel-shelf mtg, side, (2)
50 241511102 A B Board-main power
50* 241524802 A B Seal, housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
58 241595402 A B Screw-#10-32 X 3/4
66 241513601 A B Damper Assy
72 241521610 A - Grille/Kickplate, black
72 241521608 - B Grille/Kickplate, white
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574602 A B Cover access
90 218249808 A B Seal-coil cover
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
* 241591701 A B Louver
* 5303321321 A - Paint, touch-up, black
* 5303321319 - B Paint, touch-up, white

Publication No: 5995467072 GHSC39EG
06/06 8
SHELVES
51A
140
136
126
126
122
121
120
109
108
107
101 101
101
100
97
81
81
62
60
52B
52A
52
81
52
51B
51
51
49B
49A
49
47B
47A
47
27A
27
26A
26
25B
25A
25
24C
24B
24
21
16
16
15
15
15
15
2
2
2
N58SDDLBE22
11A
39
41
11

GHSC39EG Publication No: 5995467072
# Functional Parts 9 06/06
* Non-Illustrated Parts
SHELVES
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
2 241510605 A B Trim-basket
11 241711213 A B Shelf-freezer, glass, lower
11A 241711214 A B Shelf-freezer, glass, upper
15 241552801 A B Light Bulb
16 241622802 A B Socket-light
16* 241513102 A B Harness-wiring
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 240355239 A B Shelf-"Spill-Safe", fixed
24B 240350126 A B Shelf-"Spill-Safe", cantilever, sliding
24C 240424607 A B Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240599301 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover-crisper
25A 240350902 A B Cover-crisper pan, lower
25B 240599801 A B Cover-meat pan
26 240351021 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan-crisper
26* 240423101 A B Channel-divider
26* 240423201 A B Retainer
26* 240423301 A B Divider-crisper pan
26A 241638201 A B Control-humidity
26A* 241638101 A B Frame-humidity control
27 240351218 A B Pan-crisper, lower
27A 240362201 A B Control-humidity
39 240367603 A B Trim-shelf, 11.65", front
41 241637601 A B Baffle-air
47 240350602 A B Insert-pan cover, glass
47A 240350603 A B Insert-pan cover, glass
47B 240443352 A B Insert-pan cover, glass
49 241515001 A B Basket-sliding
49A 241528001 A B Basket-sliding, upper, half
49B 241514901 A B Basket-sliding, upper, full
51 241514501 A B Hanger-basket, RH
51A 241514701 A B Hanger-shelf glass, RH
51B 240579803 A B Hanger-basket, RH
52 241514601 A B Hanger-basket, LH
52A 241514801 A B Hanger-shelf glass, LH
52B 240579804 A B Hanger-basket, LH
60 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599704 A B Pan-meat
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 A B Water Tank
100 241549901 A B Cover-water tank
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
107 241513401 A B Shield-light, crisper
108 241513301 A B Cover-wiring, crisper light
109 241513202 A B Base-crisper light socket
120 241691701 A B Shelf-ice cream
121 241504701 A B Rail-ice cream shelf, LH
122 241504702 A B Rail-ice cream shelf, RH
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
136 240424502 A B Dispenser-can, clear
140 240430505 A B Channel, wtr tube cover

Publication No: 5995467072 GHSC39EG
06/06 10

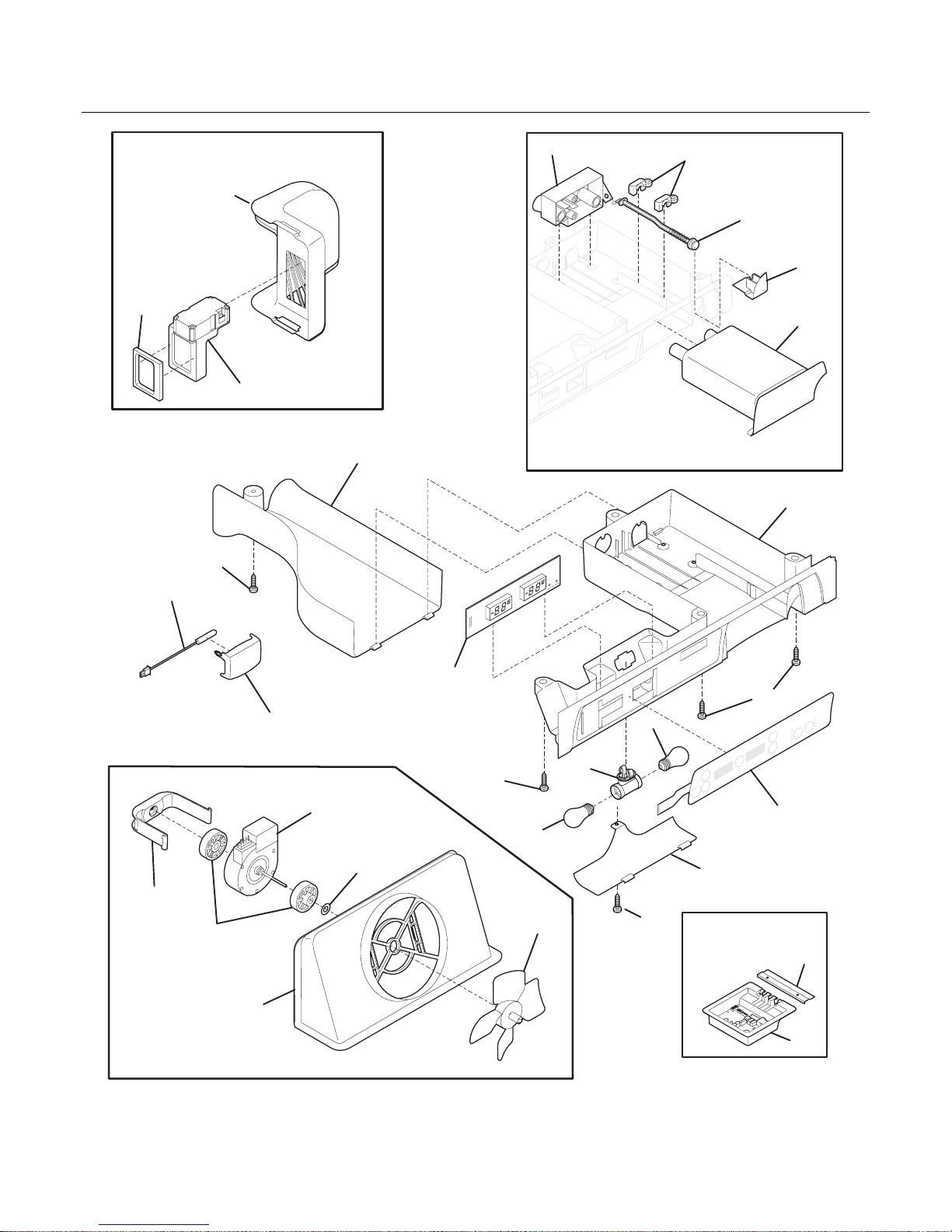

CONTROLS
201
199
198
151
149
139
138
137
116
115
81
81
75A
75
75A
60
23
22
21
17
16
15
15
14
13
9
8
5
N58TBAAAB4
54
50

GHSC39EG Publication No: 5995467072
# Functional Parts 11 06/06
* Non-Illustrated Parts
CONTROLS
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
5 # 5308000010 A B Fan Blade, red, evaporator fan
8 215474201 A B Washer, "slinger", nylon, evap fan shaft
9 241518301 A B Bushing, motor mounting
13 241509402 A B Motor, evaporator fan
13* 241510501 A B Seal-diffuser
14 241517701 A B Clip, evap fan motor
15 241552801 A B Light Bulb
16 241622802 A B Socket-light
17 241516201 A B Box-control, front
17* 241510802 A B Harness-wiring
21 # 240596701 A B Control, electronic
22 240597201 A B Sensor
23 241512901 A B Cover-sensor
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
50 241511102 A B Board-main power
50* 241524802 A B Seal, housing
50* 241532501 A B Clip-harness
54 241532401 A B Channel
60 241510301 A B Diffuser-air
75 241517801 A B Shield-light
75A 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625, 21
115 241518501 A B Damper, motorized
116 241518601 A B Seal-damper, foam
137 240396401 A B Filter, water, carbon cassette, front, with o'rings
137* 240396701 A B Bypass, water filter, Optional Part
138 240397301 A B Button-filter release
139 240396002 A B Base-water filter
139* 240526901 A B O-ring, wtr filter base
149 241517601 A B Shroud-evap fan mtg
149* 241528304 A B Seal, foam, evap fan assy
151 241505001 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
201 241544902 A B Switch-membrane

Publication No: 5995467072 GHSC39EG
06/06 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
45
45
44
41
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA3
50

GHSC39EG Publication No: 5995467072
# Functional Parts 13 06/06
* Non-Illustrated Parts
SYSTEM
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
1 240333603 A B Condenser
3 218679607 A B Block-evap coil, styrofoam, (2)
4 # 218944001 A B Drier-filter, R134a System
6 # 241516901 A B Cord-service
6* 241510802 A B Harness-wiring
6* 241519902 A B Harness-wiring
6* # 241636203 A B Harness-wiring, machine compt
14 # 240316107 A B Heater-defrost
15 # 5303918284 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater, aluminum, (2)
21 5303918214 A B Thermostat-defrost, kit
22 240330011 A B Base-compressor mtg
22* 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B Grommet-compr mtg, (4)
25 240491503 A B Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241637301 A B Pan-defrost drain
29 # 241547601 A B Compressor, w/electricals
30 241577501 A B Invertor
34 240405201 A B Grommet, rubber, black, cond tube/wire
41 240555002 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 A B Housing-control, apollo lighting
50* 241641501 A B Screw
57 240542601 A B Clip-wiring harness
58 240433203 A B Screw, hex washer head, 8-18 x 3/8
59 240315502 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal, shroud
59* 240359403 A B Screw-fan shroud, (2)
59A 240346501 A B Bracket-support, cond mtr, (3)
59B 240346601 A B Grommet-bracket, (3)
60 # 241584301 A B Motor-condenser fan
61 241639501 A B Blade-condenser fan
62 240429402 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain, lower
85 240553501 A B Tube-connector, suction
86 240409302 A B Spacer-cond tube, black
* 5303918222 A B Hot Tube Repair Kit, service
* # 5303918327 A B Heat Exchanger Kit, suction line

Publication No: 5995467072 GHSC39EG
06/06 14
ICE & WATER DISPENSER
N58XEAAAA1
43
41
87
87A
35 17
56
38A
17
8
38
38C
1
17
24
24A
23
82
4
14
30
30A
30B
30C
39
10
90
91
36

GHSC39EG Publication No: 5995467072
# Functional Parts 15 06/06
* Non-Illustrated Parts
ICE & WATER DISPENSER
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976917 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
4 241678703 A - Cover-module, black
4 241678701 - B Cover-module, white
8 5304424549 A - Module-dispenser
8 5304421823 - B Module-dispenser, white
10 5304426649 A B Spring-torsion
14 240323969 A - Label-module cover, black
14 240323967 - B Label-module cover, white
17 5304455697 A B Screw
23 241649003 A - Drip Tray, black
23 241649001 - B Drip Tray, white
24 5304433613 A - Actuator-water, black
24 5304433615 - B Actuator-water, white
24A 5304433610 A - Actuator-ice, black
24A 5304433612 - B Actuator-ice, white
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
36 5304421824 A B Carrier
38 5304433619 A B Board-power
38A# 5304455698 A B Switch-micro, single pole, double throw
38C# 241708307 A B Board-control
38C* 5304430811 A B Harness-ribbon cable
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 5304455699 A B Screw, plask h/l, #6 x 3/8
56 5304455700 A B Screw-micro switch, pan head
82 240363402 A B Screw-#8-18 X 1/2, #6 hd plask
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
90 5304421831 A B Light Pipe, reflector
91 5304421850 A B Light Pipe, reflector, short
* 5303918256 A B Dispenser heater kit
* 5304426535 A B Insulator-electrical

Publication No: 5995467072 GHSC39EG
06/06 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
21
26
44
44
44
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC1
39

GHSC39EG Publication No: 5995467072
# Functional Parts 17 06/06
* Non-Illustrated Parts
ICE CONTAINER
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
2 241684701 A B Auger-ice
3 241685201 A B Cam-drive
4 241515201 A B Container-ice, bucket only
6 241685101 A B Drum-ice disp
7 241515301 A B Front-ice container
10 241624801 A B Bar-drive
13 241685301 A B Gate
15 241555401 A B Light Bulb
16 241559801 A B Socket-light
17 241684501 A B Drive Blade
18 # 241676202 A B Motor-auger, 115V
18* 241522901 A B Harness-wiring, icmkr/container
20 241675502 A B Cover-motor
21 215285101 A B Nut-drive
22 240597201 A B Sensor
22* 241519401 A B Clip, sensor
23 241684001 A B Plate-front
25 241690701 A B Screw, hex washer head, 8-32T x 0.375
26 215503205 A B Screw, cr pan hd, 10-16 x 0.500
33 241684801 A B Spacer
34 241689801 A B Spacer
35A 241684301 A B Fixed Blade, round
35B 241684201 A B Fixed Blade, square
37A 241684101 A B Blade, crusher #1
37B 241684102 A B Blade, crusher #2
37C 241684103 A B Blade, crusher #3
39 241690501 A B Screw
41 241685601 A B Housing-crusher
44 218359202 A B Screw, pan head, 8-32 x 0.250
45 241675701 A B Solenoid Assy, 115V
45A 241675901 A B Spring-solenoid
45B 241676001 A B E-Ring-solenoid
45C 241676101 A B Actuator-solenoid
45D 241675801 A B Solenoid, 115V
46 241684402 A B Control Rod
47 241690101 A B Spring-control rod
48 241684602 A B Bracket-control rod
49 241676501 A B Rail Assy
50 241675601 A B Guide-solenoid
51 241676301 A B Rotation Stop
52 241684901 A B Spacer-fixed blades
53 241690402 A B Pin-spiral, fixed blades
54 241685001 A B Nut-auger
55 241690306 A B Washer
56 241690201 A B E-ring
70 241504601 A B Plate-mounting
70* 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16
70* 241551601 A B Screw, hex head, 8-18B x 0.875
* 241504302 A B Ice Container Assy, w/moving parts

Publication No: 5995467072 GHSC39EG
06/06 18

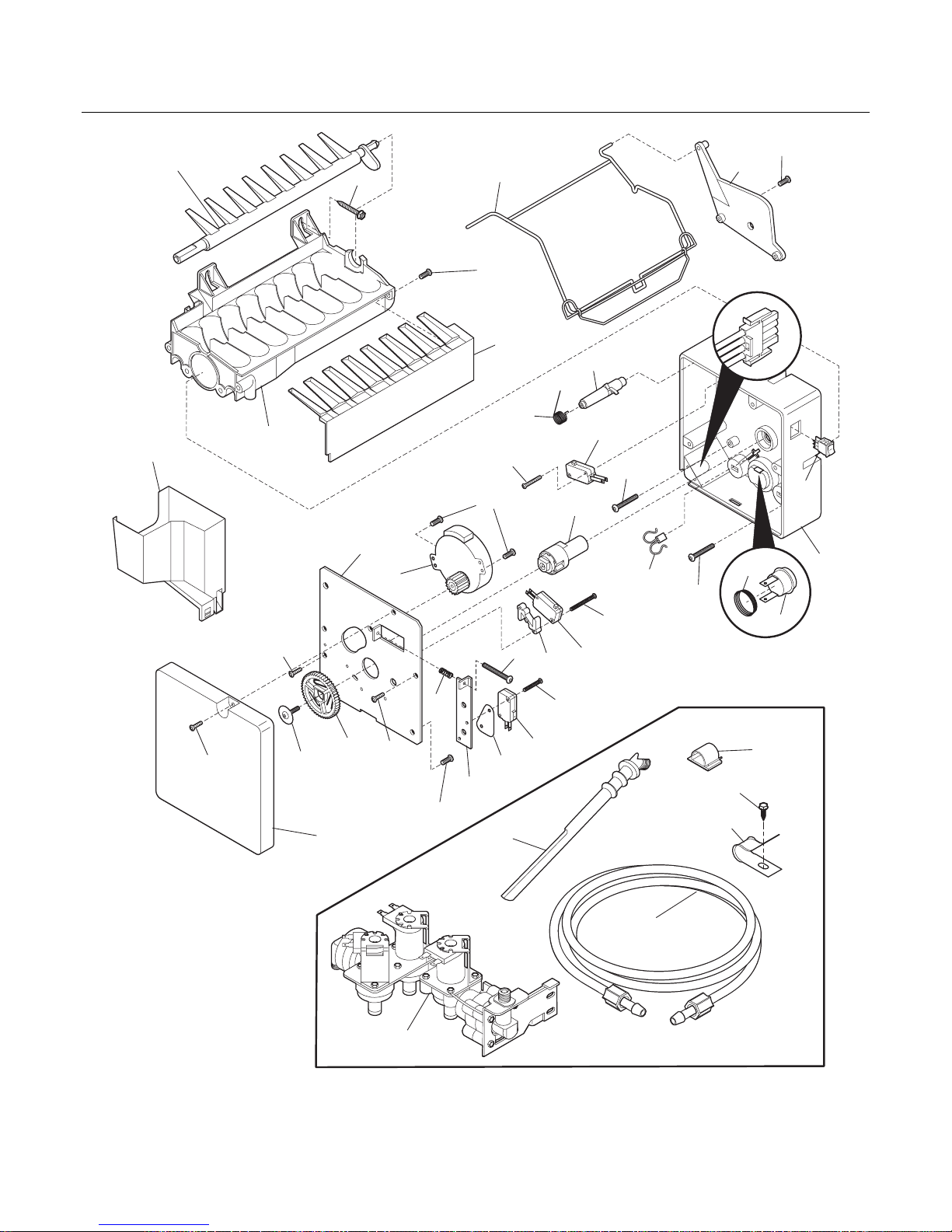

ICE MAKER
45
51
64
6
6
7
6
16
67
20
21
19
22 66
60
18
17
3
2
23
23
34
34
34
11
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115T1
15
14
12
13
33
42

GHSC39EG Publication No: 5995467072
# Functional Parts 19 06/06
* Non-Illustrated Parts
ICE MAKER
Model Index: AGHSC39EG (GHSC39EGPB0)
BGHSC39EG (GHSC39EGPW0)
POS. NO PART NO. DESCRIPTION
1 218976409 A B Tube-water-DOOR
1* 218976901 A B Tube-water inlet, inlet valve, to ice maker
1* 218976903 A B Tube-water inlet, inlet valve, to filter
1* 218976917 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve, to ice maker
2 5304436616 A B Spring, torsion
3 5304436610 A B Detent
4 3206301 A B Gear
5 5304436604 A B Plate-mounting
6 5304455670 A B Screw, taptite, 8-32 x 1/4
7 # 5304436619 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
11 # 5304436618 A B Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 A B Harness-wiring
13 5304436613 A B Thermostat, ICE MAKER
14 5304455676 A B Screw, plask, 4-14 x 3/4
15 # 3206324 A B Switch, (3)
16 5304436609 A B Housing, control
17 # 5304436617 A B Mold-ice maker, with heater
18 5304436607 A B Ejector-ice
18* 5304455843 A B Harness-wiring
19 5304436606 A B Cup-water inlet
20 5304455677 A B Screw, 8-32 x 3/8
21 5304436608 A B Ice Stripper
22 5304436602 A B Shut-off Arm
23 5304455678 A B Screw, 8-32 x 7/8, mold-to-support
27 5304455681 A B Screw, taptite, 4-40 x 1.000, hold switch mtg, (2)
29 5304455845 A B Screw, 4-24 x 0.750, (6)
30 5304455682 A B Screw, type 23, 8-32 x 1.00
31 3206342 A B Insulator
32 5304455683 A B Plate-valve switch
33 5304436615 A B Spring-thermostat
34 5304455684 A B Screw, plazscrew, 8-10 x 1/2, (3)
35 5304455685 A B Screw
36 5304436605 A B Cover-ice maker
37 5304408583 A B Spring-timing adj
42 218515402 A B Clip, (2), tube mtg.
45 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile
51 241523502 A B Tube-water fill, extension
55 # 240531101 A B Valve-water, triple solenoid
55* 218709101 A B Screw, hex head, 10-32 x 0.500
55* 240363602 A B Screw-shoulder
55* 240542901 A B Cap-water valve
60 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
64 5303001549 A B Clamp, 0.31 ID, steel, copper wtr line
66 5304436611 A B Bracket-ice maker
67 5304436612 A B Switch, on/off
* 218888001 A B Adapter-water supply, nut & sleeve, compression ftg
* 241583301 A B Deflector-air, ICE MAKER
* # 241696501 A B Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995467072 GHSC39EG
06/06 20
WIRING SCHEMATIC
DC DAMPER MOTOR
NTC-FF
U.I DISPLAY
TDO
RD1 COM
+5
J1-2 J1-1 J1-3
J1-4
RED
GRN
BLK
NATURAL
BARE
J1-7
J1-8
J1-9
J1-10
J1-11
J1-12
GRAY CABLE
RD1 TDO
COM
+5
SHEILD
NTC-AMBIENT
ALARM
DEFROST JUMPER OPEN=ADC SHORT-TIMER
J1
A
M
1
2
3
4
A
A
RED/YEL
BLK/YEL
BRN/YEL
WHT/YEL
GRY
GRY
J1-1
J1-2
J1-3
J1-4
J1-5
J1-6
NTC-FREEZER
AIR FILTER FAN
EVAPORATOR FAN
GRY
GRY
J2-9
J2-8
RED
BLK
WHT/RED
BLK/RED
DK. BLU/WHT
RED/WHT
YEL/WHT
BRN/WHT
RED/BLK
BLK
FG
VCC+12V
VS
COM
RED BLK
VARIBLE SPEED DC CONTROLLEDLO-VOLT DC
VCC COMPRESSOR
(N) WHT
(L) PUR
A/C
LT.BLU
BLK
INPUT
J2-7
J2-6
J2-10 J2-5
J2-4
J2-3
J2-2
J2-1
J2
+5
LO-VOLT DC
HI-VOLT AC
DTT
BRN
DEFROST HEATER J3-7
J3-8 J3-6
J3-3
J3-5
J3-1
J3-4 J3-2
BLK
YEL/GRY
LT. BLU YEL/PNK
ORG/WHT
L1
FF LIGHTS
N
FREEZER LIGHT SENSE
FROM IWD. FAST ICE/FREEZE
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
HI-VOLT AC
DEFROST CURRENT SENSE
3A
J3 VCC
COMPRESSOR ONLY
STANDARD COMPRESSOR ONLY
M
M
5
6
7
8
5
6
7
8
5
4
3
2
1
5
4
3 2
1
6
5
4
3
2
1
6
5
4
3
2
1
CATCH
LATCH
CATCH
LATCH
CATCH
LATCH
12 11
10
9
8
7
10
9
8
7
6
1
2
3
4
YEL/BLK
YEL/GRY
OPEN
YEL/PNK
YEL/RED
APOLLO LIGHTING CONTROL
FZ LIGHTS
YEL/RED
YEL/BLK
LT. BLU
J1
J2
J2-3 J2-2 J2-1 J1-3 J1-2 J1-1
2
1
3
3
2
1
WHEN APOLLO NOT PRESENT CONNECT THESE TOGETHER
