Frigidaire FRS23HF5A User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
FRS23HF5AB1 FRS23HF5A R134a black 115
FRS23HF5AQ1 FRS23HF5A R134a bisque 115
FRS23HF5AW1 FRS23HF5A R134a white 115
MARKET
North America
Publication No.
5995356994
010802
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
FRS23HF5A
©2001 White Consolidated Industries, Inc.
All rights reserved
WIRING DIAGRAM - 240389604
OWNER’S GUIDE - 240389302
SERVICE DATA SHEET - 240389604
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

08/01 2
Publication No. FRS23HF5A
5995356994
FREEZER DOOR

# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
FRS23HF5A Publication No.
5995356994
FREEZER DOOR
A = FRS23HF5A (FRS23HF5AB1)
B = FRS23HF5A (FRS23HF5AQ1)
C = FRS23HF5A (FRS23HF5AW1)
POS. NO PART NO DESCRIPTION
1 # 240390608 A - - Gasket-frzr door,black ,magnetic
1 240390604 - B C Gasket-door,white
4A 240367301 A B C Bin-door,frzr-upper
4B 240359001 A B C Bin-door
11 240451828 A - - Door-frzr,black ,complete assy
11 240451826 - B - Door-frz,bisque ,complete assy
11 240451820 - - C Door-frzr,white ,complete assy
13A 240456906 A - - Door Stop,black ,frzr
13A 240456904 - B - Door Stop,bisque ,frzr
13A 240456902 - - C Door Stop,white ,frzr
18 240359108 A - - Handle-door,black
18 240359109 - B - Handle-door,bisque
18 240359106 - - C Handle-door
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22A 240328202 A B C Bearing-hinge,closer
22C 240328404 A - - Bearing-hinge,black ,upper
22C 240328402 - B C Bearing-hinge,upper
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
68 240465801 A B C Chute-ice
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
* 240323201 A B C Wiring Harness
* 240352101 A B C Connector-water,straight
* 5303918256 A B C Dispenser heater kit

08/01 4
Publication No. FRS23HF5A
5995356994
REFRIGERATOR DOOR

# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
FRS23HF5A Publication No.
5995356994
A = FRS23HF5A (FRS23HF5AB1)
B = FRS23HF5A (FRS23HF5AQ1)
C = FRS23HF5A (FRS23HF5AW1)
POS. NO PART NO DESCRIPTION
2 # 240390607 A - - Gasket-refr door,black ,magnetic
2 # 240390603 - B C Gasket-refr door,white ,magnetic
4 240363701 A B C Bin-door,2-liter
7 240338303 A B C Door-dairy
13 240456905 A - - Door Stop,black ,ref
13 240456903 - B - Door Stop,bisque ,ref
13 240456901 - - C Door Stop,white ,ref
15 240451919 A - - Panel-refr door,black ,complete assy
15 240451917 - B - Panel-refr door,bisque ,complete assy
15 240451913 - - C Door-refr,white ,complete assy
18 240359103 A - - Handle-door,white
18 240359104 - B - Handle-door,bisque
18 240359101 - - C Handle-door
21A 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
21C 218781100 A B C Screw,pan head ,8-18 x 0.625
22 240328201 A B C Bearing-hinge,closer
22B 240328403 A - - Bearing-hinge,upper
22B 240328401 - B C Bearing-hinge,upper
37 240359203 A - - Trim-handle,30.13" ,black ,lower
37 240359204 - B - Trim-handle,30.13" ,bisque ,lower
37 240359201 - - C Trim-handle,30.13" ,white ,lower
49 240324501 A B C Bin-door,gallon
72 240421701 A B C Button-handle mtg,dovetail
73 218396700 A B C Block-handle mtg,dovetail
73A 240339101 A B C Clip-trim
74 215503200 A B C Screw,cr pan hd ,10-16 x 0.500
96 240345504 A - - Plug-foam hole,black
96 240345503 - B C Plug-foam hole,white
REFRIGERATOR DOOR

08/01 6
Publication No. FRS23HF5A
5995356994
CABINET

# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
FRS23HF5A Publication No.
5995356994
A = FRS23HF5A (FRS23HF5AB1)
B = FRS23HF5A (FRS23HF5AQ1)
C = FRS23HF5A (FRS23HF5AW1)
POS. NO PART NO DESCRIPTION
10 240435901 A B C Cover-air duct
10A 240475901 A B C Cover-evap coil,lower
11 5303208309 A B C Plug-hole,factory test
14 # 240413601 A B C Switch-light/lamp
14A# 215486600 A B C Switch-light/lamp
21C 218252200 A B C Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B C Plate-door closer
23 240402701 A B C Screw-#10-32 x 1/4 flat hd
28 240335501 A B C Bolt-roller adj,hex wshr hd, 1/4-20 x 4.020,(2) ,special
30 240419101 A B C Bracket-lower hinge, ref
30A 240419102 A B C Bracket-lower hinge
37 240337603 A - - Trim-cabinet corner,black
37 240337604 - B - Trim-cabinet corner,bisque ,(2)
37 240337601 - - C Trim-cabinet corner,white ,(2)
38 240327201 A B C Bracket-upper hinge
40 240327003 A - - Cover-upper hinge,black
40 240327002 - B - Cover-upper hinge,bisque
40 240327001 - - C Cover-hinge
41 240358701 A B C Grommet-shelf mtg,1.40" long
41* 240358801 A B C Grommet-shelf mtg,.875" long
42 240315301 A B C Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 A B C Roller Assy,front ,(2)
45 241500301 A B C Screw,#8 18 x .500 ,(3)
47 240349401 A B C Channel-shelf mtg,side ,(2)
58 218749600 A B C Screw,#10 pan hd ,8-18 x .5
66 240470201 A B C Cover-damper
66A 240470301 A B C Damper-meat keeper
66B 240355901 A B C Insulation-damper
72 240324405 A - - Grille/Kickplate,black
72 240324403 - B - Grille/Kickplate,bisque
72 240324401 - - C Grille/Kickplate,white
81 5308016566 A B C Screw,hex washer hd, 8-15A x 0.625, low profile
82 5304418225 A B C Roller,compressor base ,rear ,(2)
83 5303316859 A B C Rivet,flat head ,1/4 OD x 1-3/4, roller pin
89 240326103 A B C Cover-access,w/label
90 218249807 A B C Seal-coil cover
91 240380101 A B C Duct-ice maker
92 5303001479 A B C Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 A B C Support-crspr cover,(4)
100* 240350802 A B C Support-crspr cover,(4)
150 240368701 A B C Guide-control bulb
* 240396801 A B C Clamp,tube/wiring ,nylon ,black/natural
* 5303305345 A - - Paint,touch-up ,black
* 5304414035 - B - Paint,touch-up ,bisque
* 5303305324 - - C Paint,touch-up ,white
CABINET

08/01 8
Publication No. FRS23HF5A
5995356994
SHELVES

# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
FRS23HF5A Publication No.
5995356994
A = FRS23HF5A (FRS23HF5AB1)
B = FRS23HF5A (FRS23HF5AQ1)
C = FRS23HF5A (FRS23HF5AW1)
POS. NO PART NO DESCRIPTION
2 240434601 A B C Trim-basket
11 240338801 A B C Shelf-freezer,flip-up
11A 240338703 A B C Shelf-freezer,fixed wire
24 240355211 A B C Shelf-"Spill-Safe",fixed
24A 240355209 A B C Shelf-"Spill-Safe",fixed
24B 240350107 A B C Shelf-"Spill-Safe",cantilever ,sliding
25 240354501 A B C Cover-crisper pan,upper
25* 240362101 A B C Clip-slide,cover-crisper
25A 240354601 A B C Cover-crisper pan,lower
26 240354705 A B C Pan-crisper,upper
26* 240349801 A B C Clip-slide,pan-crisper
26A 240351101 A B C Control-humidity
27 240354805 A B C Pan-crisper,lower
39 240430705 A B C Trim-shelf,front
39A 240430701 A B C Trim-shelf,front
42 240356501 A B C Hanger-meat pan,RH
42A 240349701 A B C Hanger-meat pan,LH
42A* 240349901 A B C Block-meat pan rail,LH
42A* 240350001 A B C Spring-meat pan rail
42A* 240356701 A B C Seal-meat pan
47 240350635 A B C Insert-pan cover,glass
47A 240350614 A B C Insert-pan cover,glass
49 240338401 A B C Basket-sliding
49B 240338501 A B C Basket-sliding,upper ,half
51 240343001 A B C Hanger-basket,RH
52 240343101 A B C Hanger-basket,LH
54 240351901 A B C Plug-hanger,right hand
55 240352001 A B C Plug-hanger,left hand
62 240355505 A B C Pan-meat
81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile
97 240453003 A B C Water Tank Assy,with tubes
100 240326301 A B C Cover-water tank
101 218493100 A B C Screw,hex washer head ,8-18AB x 1-3/4
123 215005100 A B C Screw-roller/hanger,8-10 x 0.438
126 218867401 A B C Channel,auger mtg ,LH
126 218867402 A B C Channel,auger mtg ,RH
SHELVES

08/01 10
Publication No. FRS23HF5A
5995356994

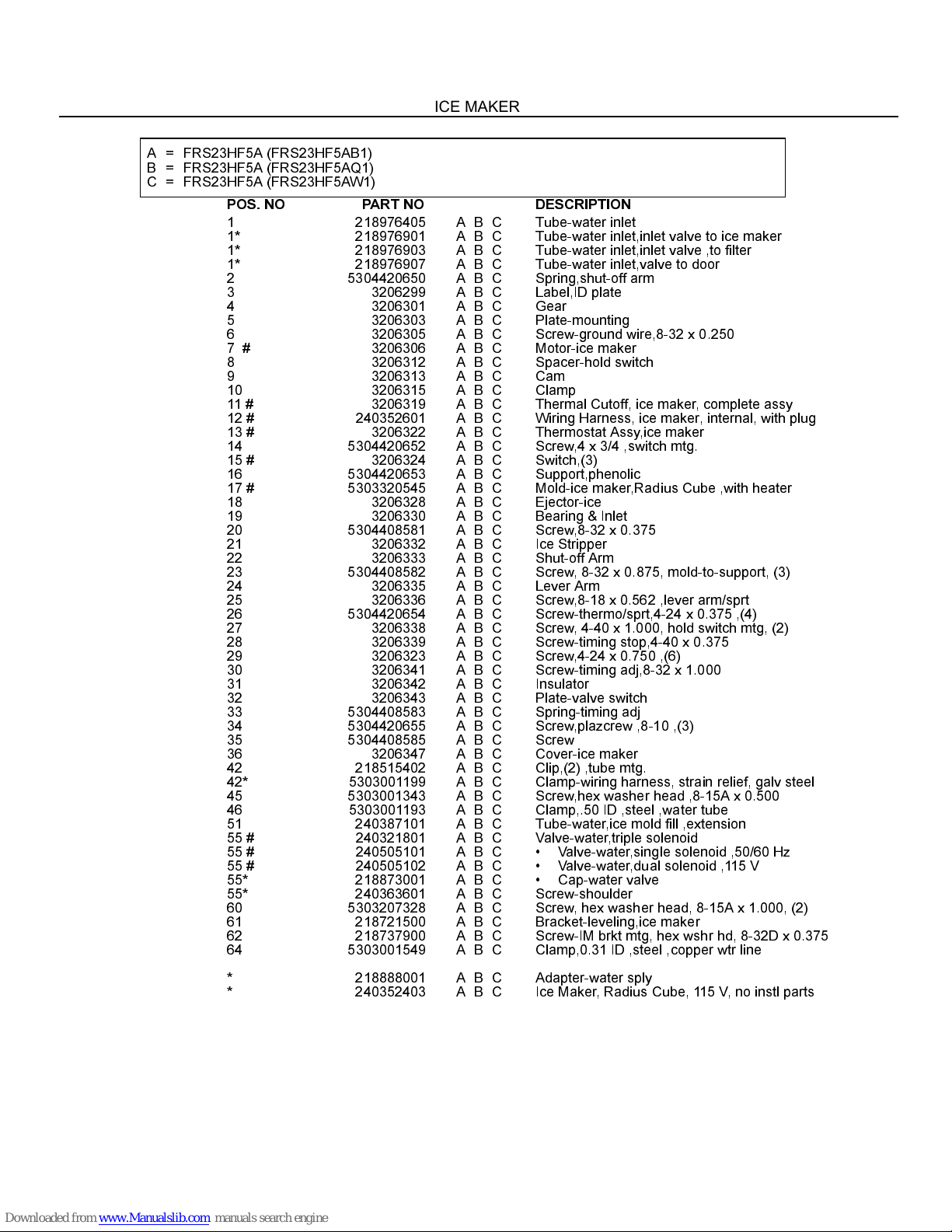

CONTROLS
