Frigidaire GLHS239ZC User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLT
GLHS239ZCB0 GLHS239ZC R134a Gallery black 115
GLHS239ZCW0 GLHS239ZC R134a Gallery white 115
MARKET
North America
Publication No.
5995390076
030505
-EN/SERVICE/KHB
357
SIDE BY SIDE
REFRIGERATOR
Model No.
GLHS239ZC
©2003 Electrolux Home Products, Inc.
All rights reserved
ENERGY GUIDE - 240592213
OWNER’S GUIDE - # 240389311
SERVICE DATA SHEET - #240389610
ELECTROLUX HOME PRODUCTS, INC.
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

05/03 2
Publication No. GLHS239ZC
5995390076

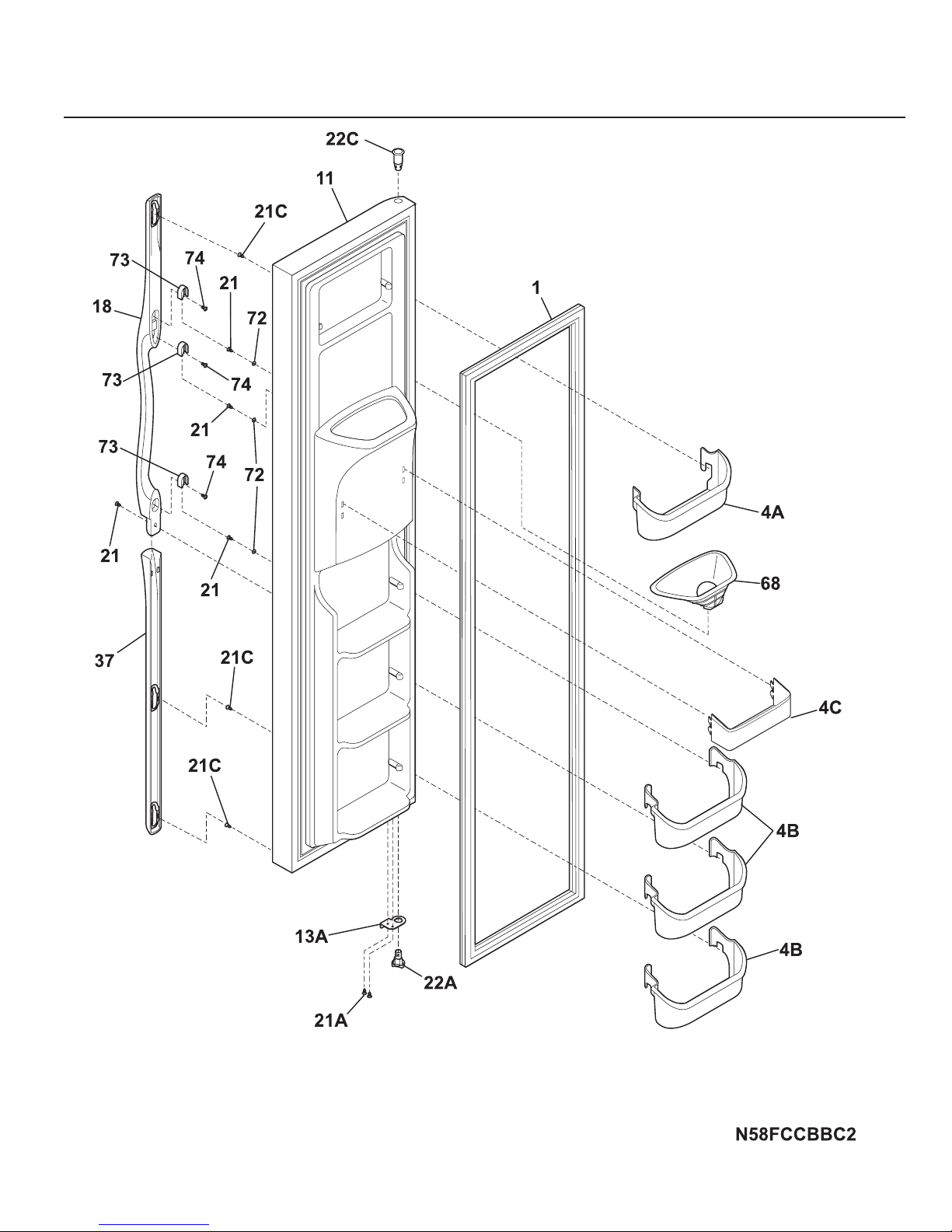

FREEZER DOOR

# = Fast-moving Parts 3 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
FREEZER DOOR
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
1 # 240390608 A - Gasket-frzr door, black, magnetic
1 240390604 - B Gasket-frzr door, white
4A 240367302 A B Bin-door, frzr-upper
4B 240359002 A B Bin-door
4C 240358402 A B Bin-door, frzr-dispenser
11 240451833 A - Panel-frzr door, black, complete assy
11 240451823 - B Panel-frzr door,white, complete assy
13A 240537106 A - Door Stop, black, frzr
13A 240537102 - B Door Stop, white, frzr
18 240359108 A - Handle-door, black ,LH
18 240359106 - B Handle-door, white
21 218781100 A B Screw, pan head, 8-18 x 0.625
21A 5308016566 A B Screw, hex washer hd, 8-15A x 0.625, low profile
21C 240521302 A B Screw,#8-18 x 3/4
22A 240561602 A B Bearing-hinge, closer
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge,upper
37 240359203 A - Trim-handle,30.13" ,black ,lower
37 240359201 - B Trim-handle,30.13" ,white ,lower
68 240465801 A B Chute-ice
72 240421701 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
* 240470401 A B Connector-amp
* 240545101 A B Connector-water,straight
* 240552102 A B Harness-wiring,door
* 5303918256 A B Dispenser heater kit

05/03 4
Publication No. GLHS239ZC
5995390076
REFRIGERATOR DOOR

# = Fast-moving Parts 5 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
2 # 240390607 A - Gasket-refr door, black, magnetic
2 # 240390603 - B Gasket-refr door, white, magnetic
4 240363702 A B Bin-door,2-liter
7 240338303 A B Door, dairy, clear
12 240449707 A - Nameplate, black
12 240449705 - B Nameplate, white
13 240537105 A - Door Stop, black, ref
13 240537101 - B Door Stop, white, ref
15 240451919 A - Door-refr, black, complete assy
15 240451913 - B Door-refr, white, complete assy
18 240359103 A - Handle-door, black ,RH
18 240359101 - B Handle-door, white
21 218781100 A B Screw, pan head ,8-18 x 0.625
21A 5308016566 A B Screw,hex washer head ,8-15A x 0.625, low profile
21C 240521302 A B Screw,#8-18 x 3/4
22 240561601 A B Bearing-hinge,closer
22B 240328403 A - Bearing-hinge,upper
22B 240328401 - B Bearing-hinge,upper
27A 240396102 A B Retainer,tall bottle
37 240359203 A - Trim-handle,30.13" ,black ,lower
37 240359201 - B Trim-handle,30.13" ,white ,lower
49 240430310 A B Bin-door,gallon
72 240421701 A B Button-handle mtg,dovetail
73 218396700 A B Block-handle mtg,dovetail
74 215503200 A B Screw,cr pan hd ,10-16 x 0.500
REFRIGERATOR DOOR

05/03 6
Publication No. GLHS239ZC
5995390076

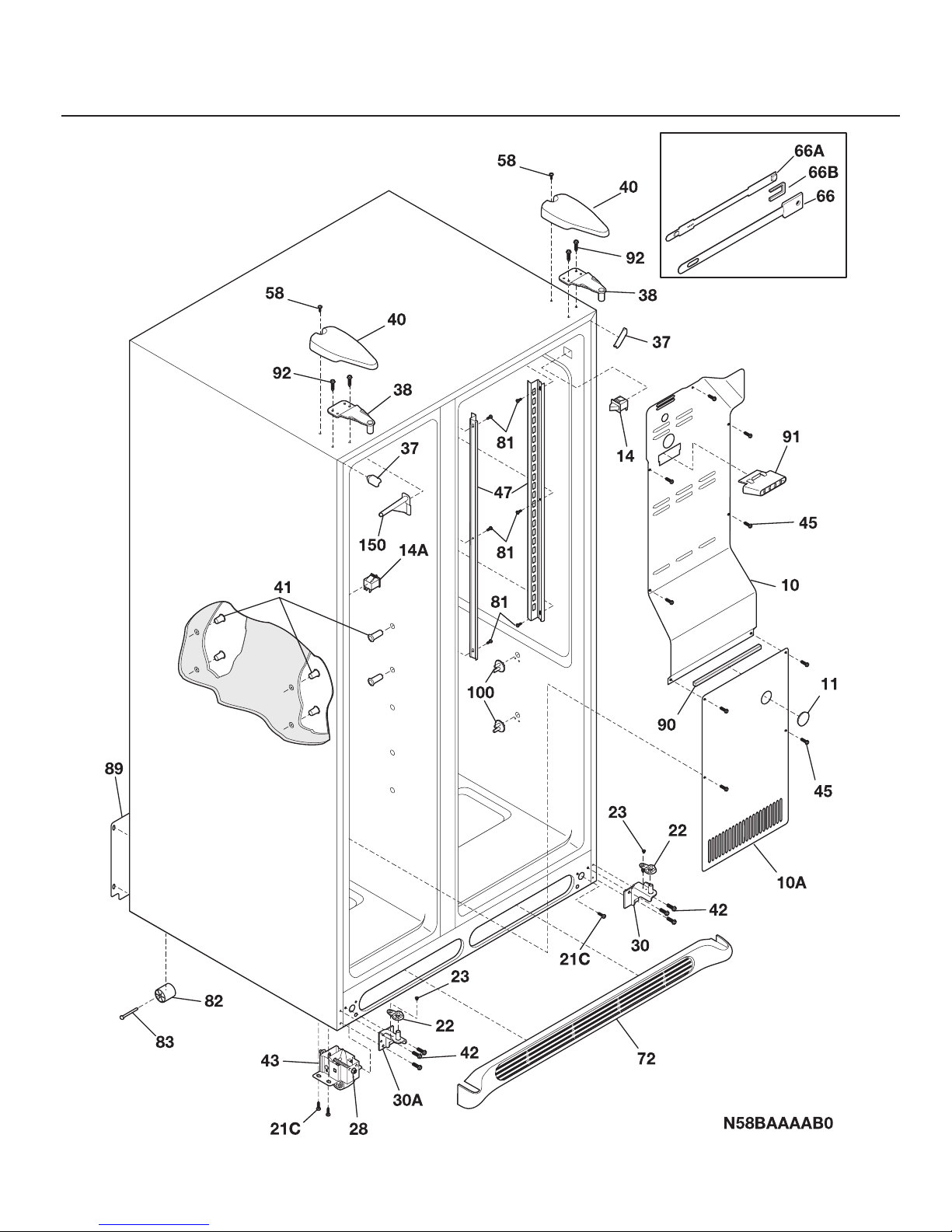

CABINET

# = Fast-moving Parts 7 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
10 240435901 A B Cover-air duct
10A 240475901 A B Cover-evap coil,lower
11 5303208309 A B Plug-hole,factory test
14 # 240505801 A B Switch,light/lamp
14A# 215486600 A B Switch-light/lamp
21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 A B Plate-door closer
23 240402701 A B Screw-#10-32 x 1/4 flat hd
28 240335501 A B Bolt-roller adj,hex wshr hd,1/4-20 x 4.020,(2),special
30 240419103 A B Bracket-lower hinge, ref
30A 240419104 A B Bracket-lower hinge
37 240337603 A - Trim-cabinet corner,black ,(2)
37 240337601 - B Trim-cabinet corner,white ,(2)
38 240327202 A B Bracket-upper hinge
40 240327007 A - Cover-upper hinge,black
40 240327005 - B Cover-upper hinge,white
41 240358701 A B Grommet-shelf mtg,1.40" long
41* 240358801 A B Grommet-shelf mtg,.875" long
42 240578901 A B Screw-hinge mtg,hex head ,1/4-20 x 5/8
43 240335003 A B Roller Assy,front ,(2)
45 241500301 A B Screw,hex washer head ,8-18AB x 0.500
47 240349402 A B Channel-shelf mtg,side ,(2)
58 218749600 A B Screw,#10 pan hd ,8-18 x .5
66 240504901 A B Cover-damper
66A 240505001 A B Damper-meat keeper
66B 240355901 A B Insulation-damper
66B* 240518802 A B Pin-push,push-in ,plastic
72 240324405 A - Grille/Kickplate,black
72 240324401 - B Grille/Kickplate,white
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326103 A B Cover, access, system compt ,with label
89* 240345702 A B Screw, truss hd, drill, #10-16 x 0 .500, #2 Pozi-drive
90 218249807 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 216850900 A B Screw, hex washer hd ,1/4 x 7/8, hinge mtg
100 240423701 A B Support, crisper cover, front, (4)
100* 240350802 A B Support, crisper cover, rear, (4)
150 240368701 A B Guide-control bulb
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 240479601 A B Plug, button, cab liner holes
* 240481601 A B Shim-lower hinge
* 5303305345 A - Paint, touch-up, black
* 5303305324 - B Paint, touch-up, white
CABINET

05/03 8
Publication No. GLHS239ZC
5995390076
SHELVES

# = Fast-moving Parts 9 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
2 240434603 A B Trim-basket
11 240350648 A B Shelf-freezer, glass, lower
11A 240350647 A B Shelf-freezer, glass, upper
15 240588001 A B Light Bulb
15A 240436702 A B Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 240590401 A B Socket-light
16* 240587702 A B Harness-wiring
16A 218906801 A B Socket-light/lamp
24 240355201 A B Shelf-"Spill-Safe", fixed, (1)
24A 240350103 A B Shelf-"Spill-Safe", sliding, (2)
24B 240424603 A B Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240354502 A B Cover-crisper pan,upper
25* 240362101 A B Clip-slide,cover-crisper
25A 240354602 A B Cover-crisper pan,lower
26 240354716 A B Pan-crisper,upper
26* 240349801 A B Clip-slide,pan-crisper
26A 240351101 A B Control-humidity
27 240354817 A B Pan-crisper,lower
39 240367601 A B Trim-shelf,front
42 240356501 A B Track,meat pan hanger ,RH
42A 240349701 A B Hanger-meat pan,LH
42A* 240349901 A B Block-meat pan rail,LH
42A* 240350001 A B Spring-meat pan rail
47 240350613 A B Insert-pan cover,glass
47A 240350614 A B Insert-pan cover,glass
49 240564301 A B Basket-sliding
49A 240530501 A B Basket-sliding,upper ,half
49B 240530503 A B Basket-sliding,upper ,full
51 240343002 A B Hanger-basket, RH
51A 240395502 A B Hanger-basket, RH
51B 240579801 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
52A 240395602 A B Hanger-basket, LH
52B 240579802 A B Hanger-basket, LH
62 240355517 A B Pan-meat
81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile
97 240545303 A B Water Tank Assy, coiled tubing, front filter
100 240326301 A B Cover-water tank
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
109 240351301 A B Base-crisper light socket
120 240342902 A B Shelf-ice cream
123 215005100 A B Screw, hanger/rlr mtg, 8-10 x 0.438
126 218867405 A B Channel, auger mtg, LH
126 218867406 A B Channel, auger mtg, RH
136 240424501 A B Dispenser-can, white
140 240430501 A B Channel, wtr tube cover
140A 240430503 A B Channel, wtr tube cover
141 240585403 A B Bracket-light socket
142 240582701 A B Shield-light,deli pan
SHELVES

05/03 10
Publication No. GLHS239ZC
5995390076

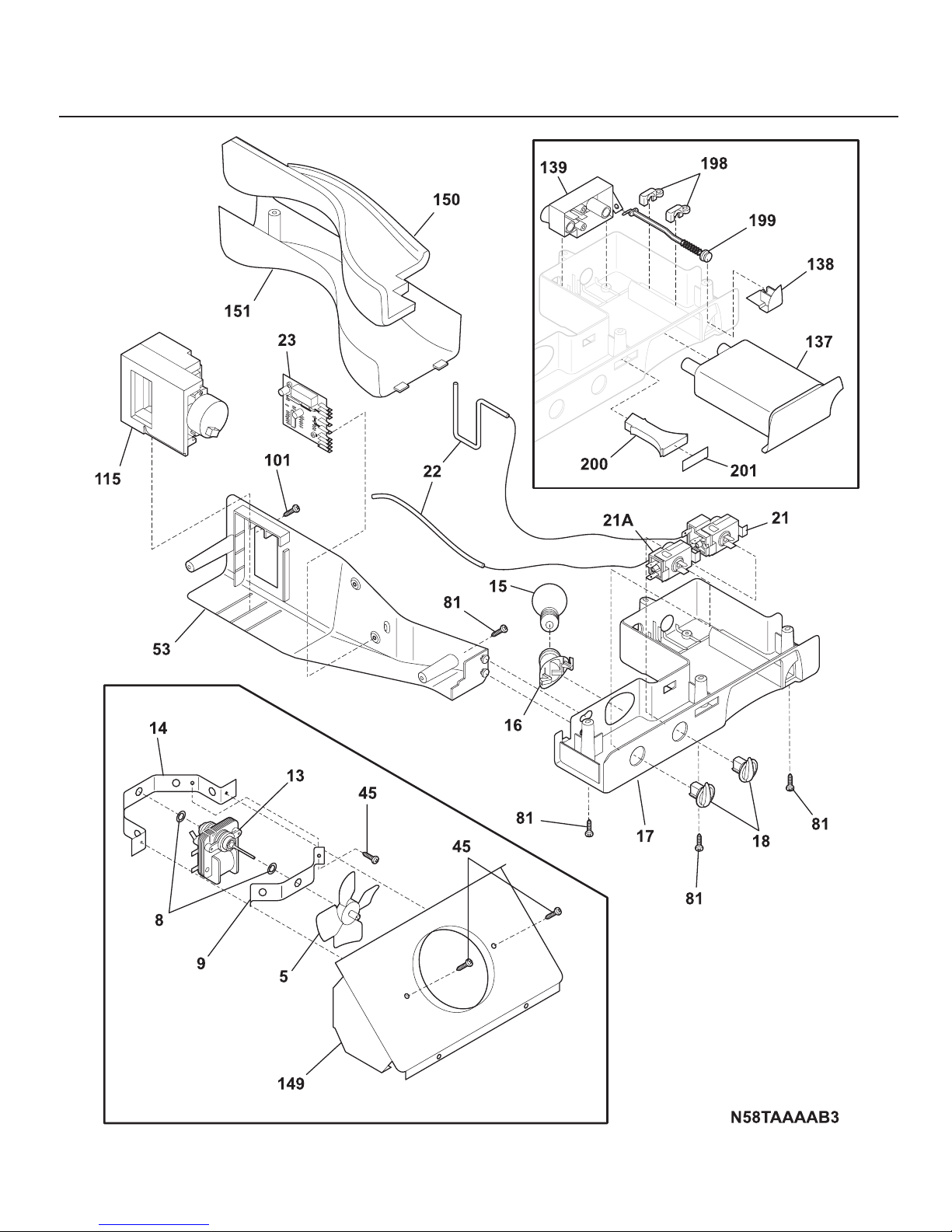

CONTROLS

# = Fast-moving Parts 11 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
5 # 5308000010 A B Fan Blade,red ,evaporator fan
8 5300157666 A B Bushing-motor mtg,(2)
9 5303292396 A B Bracket-motor mtg,front
13 # 240315802 A B Motor-evap fan
13* 215474201 A B Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 A B Bracket-motor mtg,rear
15 240436702 A B Light Bulb, A-15, clear, 40 W, 120 V, miniature
16 218906801 A B Socket-light/lamp
17 240374901 A B Box-control,front
17* 240439901 A B Wiring Harness,controls
18 240360801 A B Knob,temp control
21 240383703 A B Control-temperature
21A 5304421067 A B Control-temperature,frzr section
22 218660702 A B Tube-insulator
23 240554501 A B Control-defrost, adaptive timer, PC board
23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
45 241500301 A B Screw,hex washer head, 8-18AB x 0.500
53 240369501 A B Box-control
81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
101 218493100 A B Screw, hex washer head, 8-18AB x 1-3/4
115 240521103 A B Damper Assy,w/seal
137 240396401 A B Filter, water, front, cassette
137* 240396701 A B Bypass, water filter, Optional Part
138 240397301 A B Button-filter release
139 240396001 A B Base-water filter
139* 240526901 A B O-ring,wtr filter base
149 240331601 A B Shroud-fan orfice
150 240394203 A B Insulation-water tube cover
151 240373805 A B Cover-water tube
198 240397401 A B Retainer
199 240397501 A B Rod
199* 240398401 A B Spring-filter release rod
200 240397601 A B Light Pipe
201 240398509 A B Label-control box
* 3205266 A B Edge Protector,wiring harness
* 240427201 A B Heater-freezer control
* 240470401 A B Connector-amp
CONTROLS

05/03 12
Publication No. GLHS239ZC
5995390076
SYSTEM

# = Fast-moving Parts 13 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
1 240333602 A B Condenser
3 218679606 A B Block-evap coil,styrofoam ,(2)
4 # 218944001 A B Drier-filter,R134a System
6 240346402 A B Harness-wiring,machine compt
6* 240439901 A B Wiring Harness,controls
6* 240449601 A B Harness-wiring
14 # 5303918253 A B Defrost Heater Kit
15 # 5303918286 A B Evaporator Kit
16 5308000110 A B Strap-evap/heater,aluminum ,(2)
21 5303918214 A B Thermostat-defrost,kit
22 240330002 A B Plate-compr mtg
22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500
23 218513300 A B Grommet-compr mtg,(4)
25 240491501 A B Screw-compr mtg,1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B Pan-defrost drain
29 # 5303918251 A B Compressor,w/electricals
30 # 218721119 A B Starter,PTC
32 218973501 A B Clamp,elec cont mtg ,compressor
34 240405201 A B Grommet,rubber ,black ,cond tube/wire
41 240555001 A B Screw-#8-32 X 3/8
44 215174700 A B Clamp-service cord, strain relief, galv steel
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
55 # 216787800 A B Capacitor,run ,50/60 Hz ,220 VAC, 12 microfarad
57 240542601 A B Clip-wiring harness
58 215004600 A B Screw,hx wshr hd, 8-36 x 7/16, cond fan motor, (2)
59 240315501 A B Shroud-cond fan
59* 240346701 A B Tape-foam seal,shroud
59* 240359401 A B Screw-fan shroud,(2)
59A 240346501 A B Bracket-support,cond mtr ,(3)
59B 240346601 A B Grommet-bracket,(3)
60 # 240334001 A B Motor,condenser fan
61 # 240315401 A B Fan Blade,galv steel ,condenser fan
61A 215004700 A B Nut,speed
61B 215004800 A B Grommet-silencer
62 240429401 A B Trough-drain
70 218990801 A B Bracket-evap/cvr mtg
72 218397000 A B Button-handle mtg,dovetail
82 5304418225 A B Roller,compressor base ,rear ,(2)
83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 A B Tube-drain,lower
85 240346201 A B Tube-connector,suction
86 240409302 A B Spacer-cond tube,black
* # 5303918213 A B Heat Exchanger Kit,suction line
* # 5303918222 A B Hot Tube Repair Kit,Service
SYSTEM

05/03 14
Publication No. GLHS239ZC
5995390076

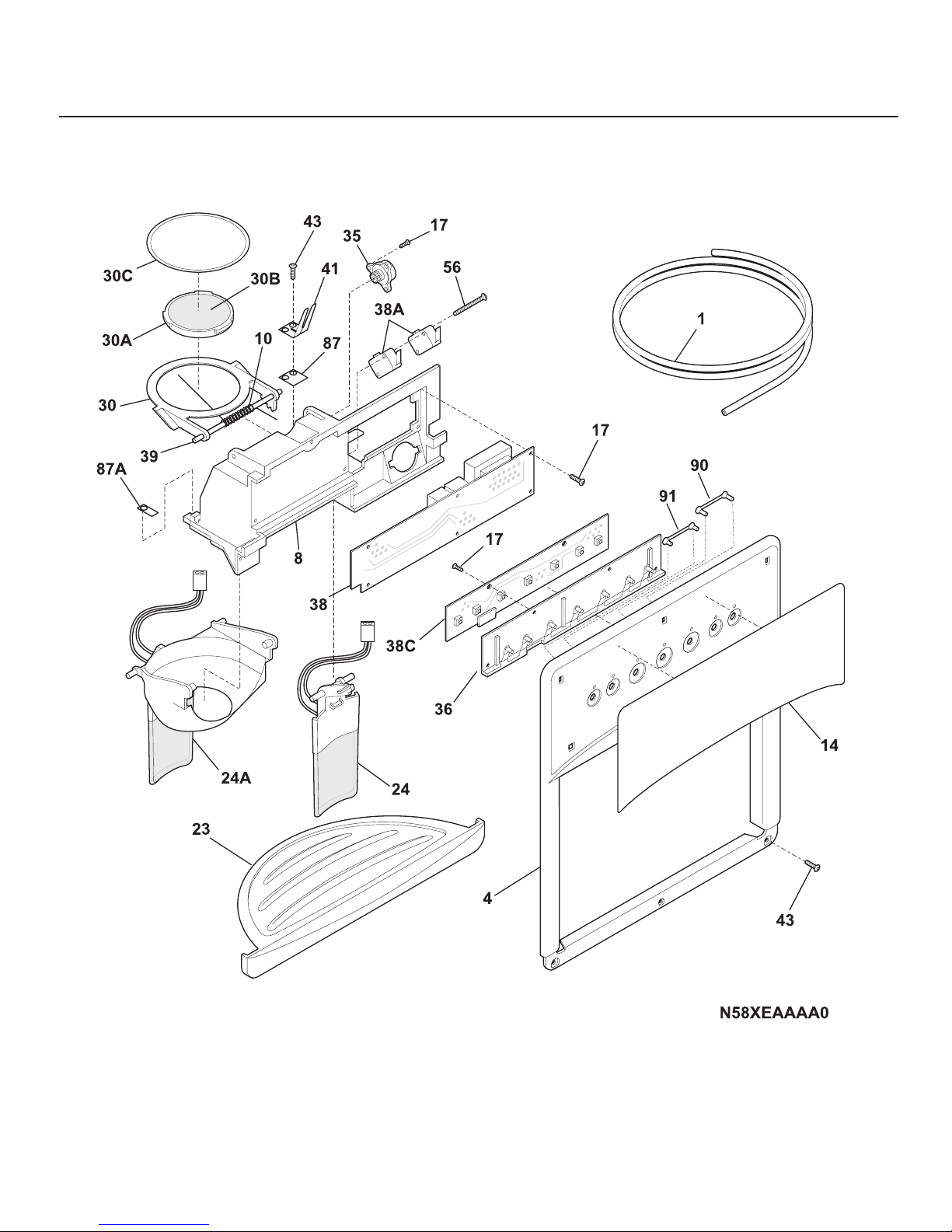

DISPENSER

# = Fast-moving Parts 15 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
4 5304422012 A - Cover-module, black
4 5304421822 - B Cover-module, white
8 5304433616 A - Module-dispenser
8 5304433618 - B Module-dispenser
10 5304426649 A B Spring-torsion
14 240323969 A - Label-module cover, black
14 240323967 - B Label-module cover, white
17 5304421619 A B Screw
23 240323603 A - Drip Tray, black
23 240323601 - B Drip Tray, white
24 5304433613 A - Actuator-water, black
24 5304433615 - B Actuator-water, white
24A 5304433610 A - Actuator-ice, black
24A 5304433612 - B Actuator-ice, white
30 5304421628 A B Door Assy-ice chute
30A 5304421624 A B Door center
30B 5304421625 A B Insulation-door
30C 5304421629 A B Door seal
35 5304421620 A B Damper-rotary
36 5304421824 A B Carrier
38 5304433619 A B Board-power
38A# 5304421617 A B Switch-micro, single pole, double throw
38C 5304433609 A B Board-control
38C* 5304430811 A B Harness-ribbon cable
39 5304421627 A B Pin-hinge
41 5304421829 A B Spring-actuator
43 215296300 A B Screw,plask h/l ,#6 x 3/8
56 5304421830 A B Screw-micro switch,pan head
87 5304421622 A B Bearing Plate
87A 5304421621 A B Bearing Plate
90 5304421831 A B Light Pipe,reflector
91 5304421850 A B Light Pipe,reflector ,short
* 5304426535 A B Insulator-electrical
* 5303918256 A B Dispenser heater kit
DISPENSER

05/03 16
Publication No. GLHS239ZC
5995390076
ICE CONTAINER

# = Fast-moving Parts 17 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
2 5304428402 A B Auger-ice
3 5304404343 A B Cam-drive
4 218815300 A B Container-ice,bucket only
6 5304404346 A B Drum-ice disp
7 5304422805 A B Front-ice container
10 5304404337 A B Bar-drive
13 5304404359 A B Gate
15 5303001179 A B Light Bulb/Lamp,40 W
16 5303289050 A B Socket-light/lamp
17 5304404345 A B Drive Blade
18 # 240326901 A B Motor-auger
18* 5304404335 A B Wiring Harness,auger motor
20 5304404332 A B Cover-motor
21 215285100 A B Nut-drive
23 5304404347 A B Plate-front
25 5304404362 A B Screw,hex washer head ,8-32T x 0.375
26 215503200 A B Screw,cr pan hd ,10-16 x 0.500
33 5304404351 A B Spacer
34 5304404349 A B Spacer
35A 5304404353 A B Fixed Blade,round
35B 5304404352 A B Fixed Blade,square
37A 5304404348 A B Blade,crusher #1
37B 5304404350 A B Blade,crusher #2
37C 5304404356 A B Blade,crusher #3
39 5304404365 A B Screw
41 5304404358 A B Housing-crusher
44 218359200 A B Screw,pan head ,8-32 x 0.250
45 # 5304404333 A B Solenoid Assy
45A 5304406816 A B Spring-solenoid
45B 5304406817 A B E-Ring-solenoid
45C 5304406818 A B Actuator-solenoid
45D 5304406819 A B Solenoid
46 5304404341 A B Control Rod
47 5304404342 A B Spring-control rod
48 5304404340 A B Bracket-control rod
48* 5304404364 A B Screw-bracket
49 5304404329 A B Rail Assy
50 5304404334 A B Guide-solenoid
51 5304404336 A B Rotation Stop
52 5304404354 A B Spacer-fixed blades
53 5304404355 A B Pin-spiral,fixed blades
54 5304404357 A B Nut-auger
55 5304404360 A B Washer
56 5304404361 A B E-ring
58 5304404331 A B Screw-solenoid
* 240323806 A B Ice Container Assy,w/moving parts
ICE CONTAINER

05/03 18
Publication No. GLHS239ZC
5995390076
ICE MAKER

# = Fast-moving Parts 19 05/03
* = Non-Illustrated Parts
GLHS239ZC Publication No.
5995390076
A = GLHS239ZC (GLHS239ZCB0)
B = GLHS239ZC (GLHS239ZCW0)
POS. NO PART NO DESCRIPTION
1 218976409 A B Tube-water
1* 218976901 A B Tube-water inlet, inlet valve to ice maker
1* 218976903 A B Tube-water inlet, inlet valve to filter
1* 218976907 A B Tube-water inlet, valve to door
1* 240561701 A B Seal-water inlet, inlet valve to ice maker
2 5304420650 A B Spring,shut-off arm
3 3206299 A B Label,ID plate
4 3206301 A B Gear
5 3206303 A B Plate-mounting
6 3206305 A B Screw-ground wire,8-32 x 0.250
7 # 3206306 A B Motor-ice maker
8 3206312 A B Spacer-hold switch
9 3206313 A B Cam
10 3206315 A B Clamp
11 # 3206319 A B Thermal Cutoff, ice maker, complete assy
12 # 240352601 A B Wiring Harness, ice maker, internal, with plug
13 # 3206322 A B Thermostat Assy,ice maker
14 5304420652 A B Screw, 4 x 0.750, switch mtg.
15 # 3206324 A B Switch, (3)
16 5304420653 A B Support, phenolic
17 # 5303320545 A B Mold-ice maker, Radius Cube, with heater
18 3206328 A B Ejector-ice
19 3206330 A B Bearing & Inlet
20 5304408581 A B Screw, 8-32 x 0.375
21 3206332 A B Ice Stripper
22 3206333 A B Shut-off Arm
23 5304408582 A B Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 A B Lever Arm
25 3206336 A B Screw, 8-18 x 0.562, lever arm/sprt
26 5304420654 A B Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 A B Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 A B Screw-timing stop,4-40 x 0.375
29 3206323 A B Screw,4-24 x 0.750 ,(6)
30 3206341 A B Screw-timing adj,8-32 x 1.000
31 3206342 A B Insulator
32 3206343 A B Plate-valve switch
33 5304408583 A B Spring-timing adj
34 5304420655 A B Screw,plazscrew ,8-10 ,(3)
35 5304408585 A B Screw
36 3206347 A B Cover-ice maker
42 5303001199 A B Clamp-wiring harness, strain relief, galv steel
42* 218515402 A B Clip,(2) ,tube mtg.
45 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile
45* 5303001343 A B Screw,hex washer head ,8-15A x 0.500
46 5303001193 A B Clamp,.50 ID ,steel ,water tube
46* 5308000133 A B Clamp,nylon ,.625 ID
51 240387101 A B Tube-water,ice mold fill ,extension
55 # 240531101 A B Valve-water,triple solenoid
55* 218709100 A B Screw,hex head ,10-32 x 0.500
55* 240363601 A B Screw-shoulder
55* 240542901 A B Cap-water valve
60 5303207328 A B Screw,hex washer head, 8-15A x 1.000, (2)
61 218721500 A B Bracket-leveling,ice maker
62 218737900 A B Screw-IM brkt mtg,hex washer head,8-32D x 0.375
64 5303001549 A B Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 A B Adapter-water supply, nut & sleeve, compression ftg
* 240352411 A B Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

05/03 20
Publication No. GLHS239ZC
5995390076
WIRING SCHEMATIC
