Frigidaire GLRT13TE User manual

Product No. GLRT13TEB0 GLRT13TEK0 GLRT13TEQ0 GLRT13TES0 GLRT13TEW0
Series Gallery/R134a Gallery/R134a Gallery/R134a Gallery/R134a Gallery/R134a
Color black stainless (LH) bisque stainless (RH) white
Volts 115 115 115 115 115

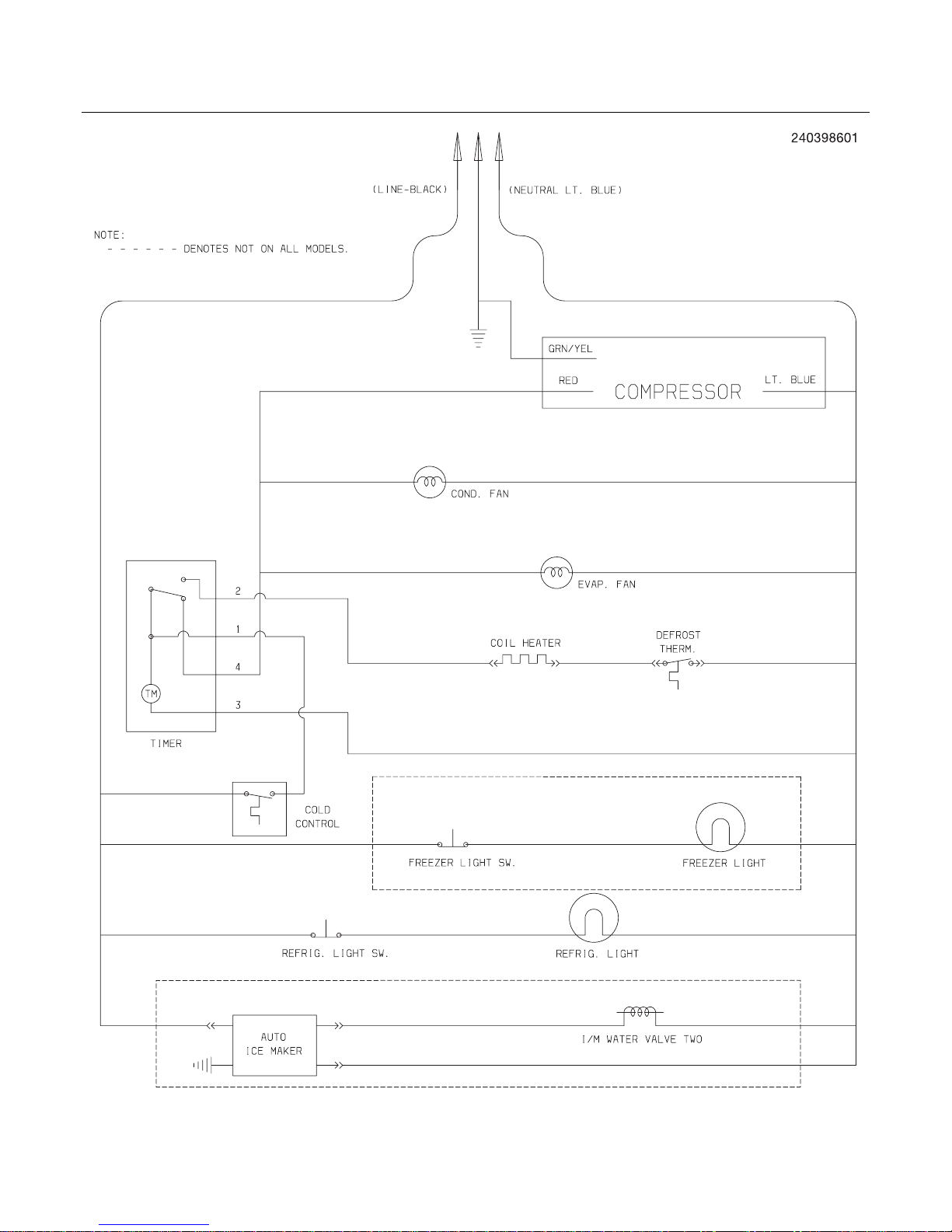

Wiring Diagram 240398801 240398801 240398801 240398801 240398801
Owner's Guide 240400112 240400112 240400112 240400112 240400112
Market North America North America North America North America North America
Energy Guide 241615404 241615404 241615404 241615404 241615404
Service Data Sheet 240379014 240379014 240379014 240379014 240379014
Installation Instructions 240568300 240568300 240568300 240568300 240568300
N05L00003.eps N05DCDBCA1.eps N05BAAABA1.eps N05SABAFI1C.eps
N05CABBAB11.eps 240398801.eps 240398601.eps
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995427613
05/01/28
(EN/SERVICE/KHB)
390
TOP-MOUNT
REFRIGERATOR
Model No.
GLRT13TE
Copyright ©2005 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995427613 GLRT13TE
01/05 2

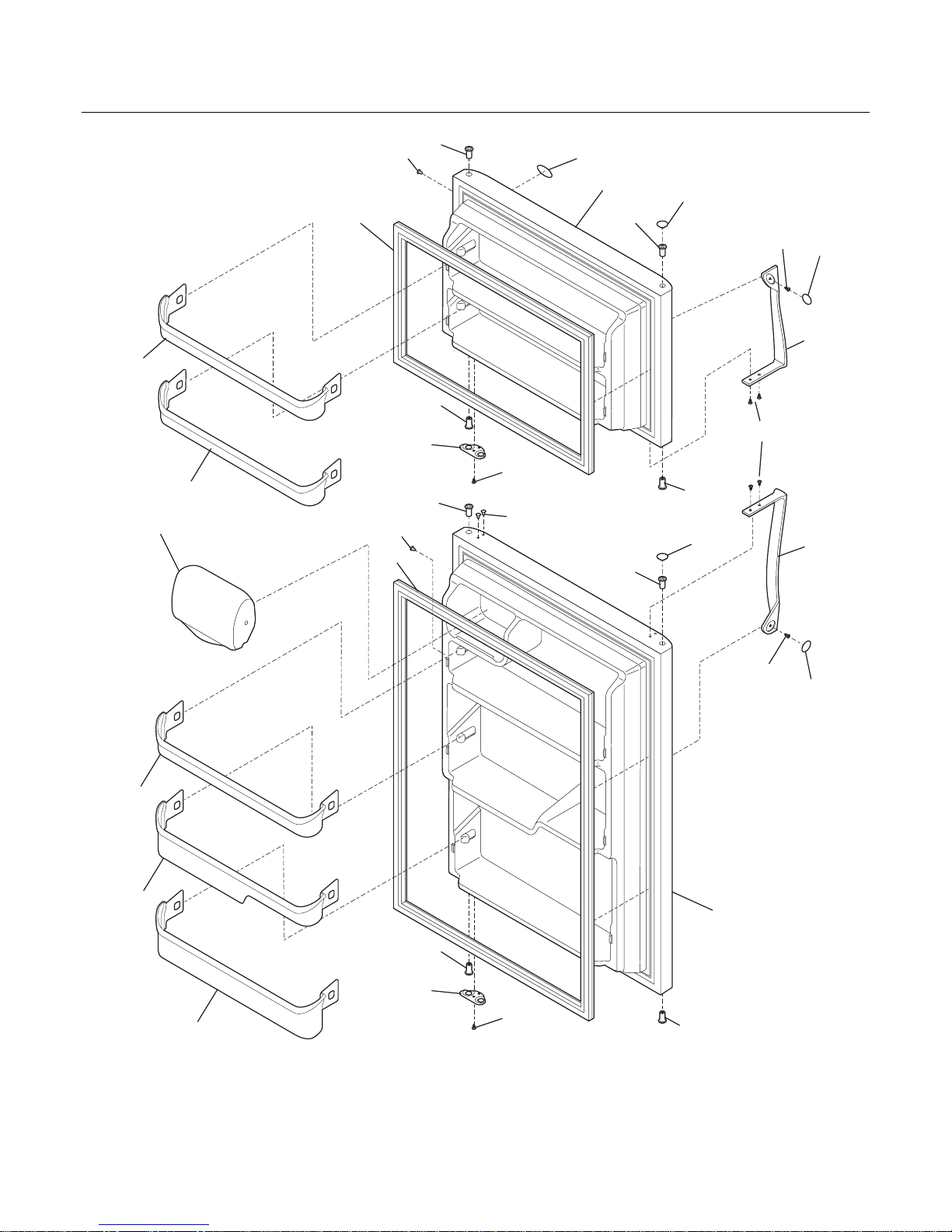

DOOR
14
14
48
48A
48B
10
22
22
11
12
22
22
22
13A
13
21C
21C
10
22
14
22
1
7
2
22
N05DCDBCA1
15
21 14B
21
14B
18
21
18A
49
49

GLRT13TE Publication No: 5995427613
# Functional Parts 3 01/05
* Non-Illustrated Parts
DOOR
Model Index: AGLRT13TE (GLRT13TEB0)
BGLRT13TE (GLRT13TEK0)
CGLRT13TE (GLRT13TEQ0)
DGLRT13TE (GLRT13TES0)
EGLRT13TE (GLRT13TEW0)
POS. NO PART NO. DESCRIPTION
1 # 240514611 A B - D - Gasket, seal, black, frzr door, magnetic
1 # 240514607 - - C - E Gasket, seal, white, frzr door, magnetic
2 # 240514612 A B - D - Gasket, seal, black, refr door, magnetic
2 # 240514608 - - C - E Gasket, seal, white, refr door, magnetic
7 240337703 A B C D E Door-dairy, w/o graphics, clear
10 240381303 A - - - - Plug-button, black, hinge brg hole
10 240381302 - - C - - Plug-button, bisque, hinge brg hole, (2)
10 240381301 - - - - E Plug-button, white, hinge brg hole, (2)
11 240450312 A - - - - Door, frzr, black
11 240450365 - B - - - Door, frzr, stainless steel, LH
11 240450306 - - C - - Door, frzr, bisque
11 240450366 - - - D - Door, frzr, stainless steel
11 240450302 - - - - E Door, frzr, white
12 240449703 A B - D - Nameplate, black
12 240449702 - - C - - Nameplate, bisque
12 240449701 - - - - E Nameplate, white
13 240312405 A B - D - Door Stop, black, refr
13 240312401 - - C - E Door Stop, refrig, plated
13A 240312406 A B - D - Door Stop, black, frzr
13A 240312402 - - C - E Door Stop, freezer, plated
14 240494003 A - - - - Plug-button, black
14 240494002 - - C - - Plug-button, bisque
14 240494001 - - - - E Plug-button, white
14B 240383603 A B - D - Plug-button, black, door handle
14B 240383602 - - C - - Plug-button, bisque, door handle
14B 240383601 - - - - E Plug-button, white, door handle
15 240450412 A - - - - Door, refr, black
15 240450479 - B - - - Door, refr, stainless steel, LH
15 240450406 - - C - - Door, refr, bisque
15 240450478 - - - D - Door, refr, stainless steel, RH
15 240450402 - - - - E Door, refr, white
18 240339203 A B - D - Handle-door, black
18 240339204 - - C - - Handle-door, bisque
18 240339201 - - - - E Handle-door, white
18A 240339208 A B - D - Handle-door, black
18A 240339209 - - C - - Handle-door, bisque
18A 240339206 - - - - E Handle-door, white
21 240383401 A B C D E Screw, truss hd quad, #10-16 x .500
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 240527102 A B - D - Bearing-hinge, black
22 240527101 - - C - E Bearing-hinge, natural color
48 240338101 A B C D E Bin-door, pseudo, bottom
48A 240337901 A B C D E Bin-door, refr
48B 240338001 A B C D E Bin-door, pseudo, gallon, refr
49 240495804 A B C D E Bin-door, pseudo, frzr
* 218490901 - B - D - Cleaner, stainless steel

Publication No: 5995427613 GLRT13TE
01/05 4

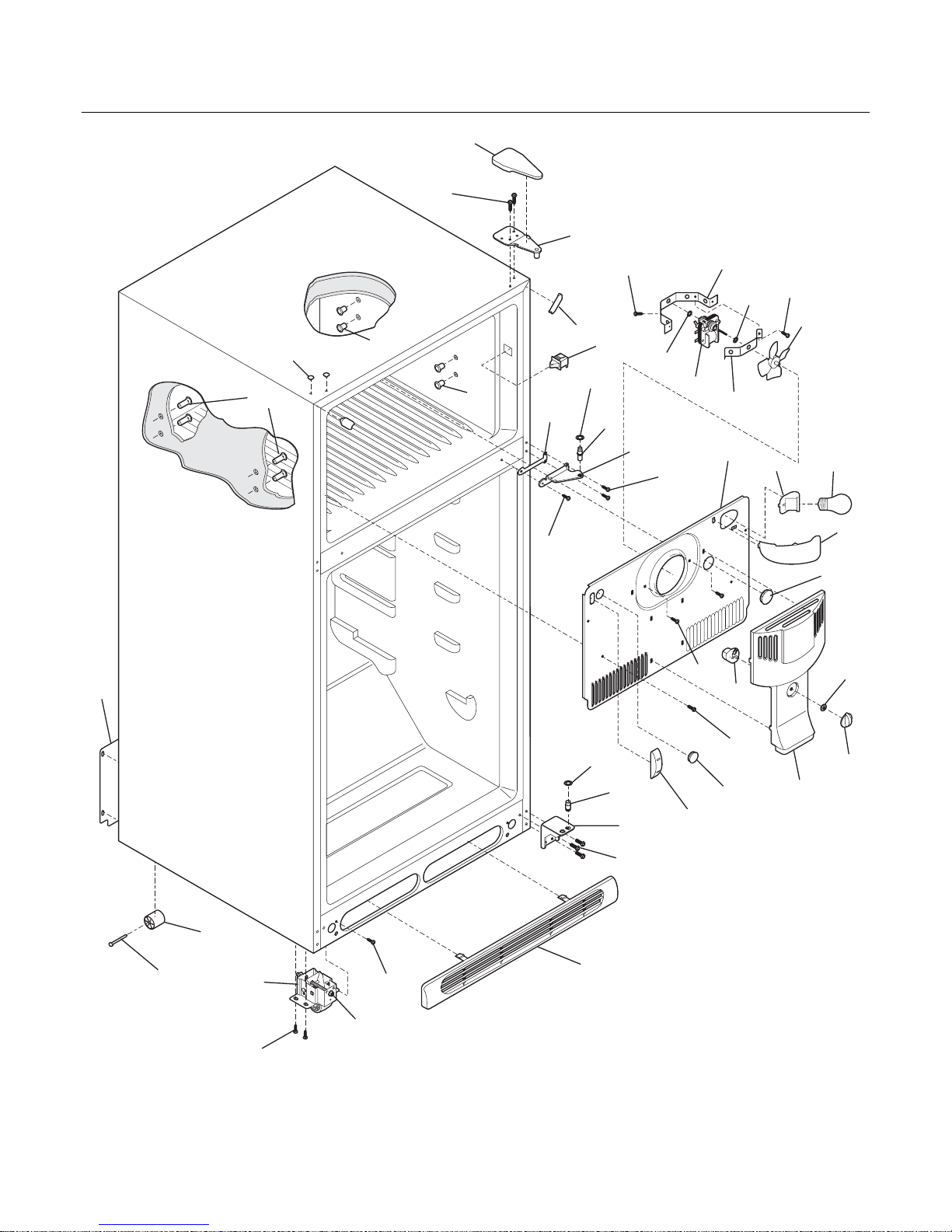

CABINET
83
82
89
11
10
1
12
12A
81
4
58
2
3
40
92
38
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABA1
43
28
21C
21C
41
41
41
8
8
9
14
81
34
22
15
16
74
114

GLRT13TE Publication No: 5995427613
# Functional Parts 5 01/05
* Non-Illustrated Parts
CABINET
Model Index: AGLRT13TE (GLRT13TEB0)
BGLRT13TE (GLRT13TEK0)
CGLRT13TE (GLRT13TEQ0)
DGLRT13TE (GLRT13TES0)
EGLRT13TE (GLRT13TEW0)
POS. NO PART NO. DESCRIPTION
1 240355402 A B C D E Cover-fan
2 240367001 A B C D E Knob-damper control
3 5303001028 A B C D E Nut, push-on
4 241523701 A B C D E Damper-fan cover
5 # 5308000010 A B C D E Fan Blade, red, evaporator fan
8 5300157666 A B C D E Bushing-motor mtg, (2)
9 5303292396 A B C D E Bracket-motor mtg, front
10 240313609 A B C D E Cover-evap coil, w/light
10* 240568606 A B C D E Seal-coil cover
10*# 241537701 A B C D E Wiring Harness, freezer section, with light
11 5303208309 A B C D E Plug-hole, factory test
12 241557601 A B C D E Plug-ice maker harness, rectangular
12* 218843800 A B C D E Screw, hex wshr hd, 8-15A x 0.500
12A 240374401 A B C D E Plug-wtr inlet tube, round, 1"
12A* 241586701 A B C D E Plug-foam-wtr-inlet, round
13 # 240369702 A B C D E Motor-evap fan
13* 218931001 A B C D E Clamp-motor wiring, nylon, w/adhesive tape
14 5303292397 A B C D E Bracket-motor mtg, rear
14* 240433201 A B C D E Screw, hex washer head, 8-18 x 0.375
15 215812200 A B C D E Light Bulb/Lamp, 25W
16 # 241513901 A B C D E Socket-light
21C 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
22 215774918 A B - D - Plug-button, black, upr hinge holes
22 215774919 - - C - - Plug-button, bisque, upr hinge holes
22 215774901 - - - - E Plug-button, white, upr hinge holes
28 240335501 A B C D E Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 240314003 A B - D - Bracket-lower hinge, black
30 240314001 - - C - E Bracket-lower hinge, zinc
34 240311301 A B C D E Washer, hinge, nylon, (2)
34 240311303 A B C D E Washer, hinge, nylon, (2)
35 240313803 A B - D - Bracket-ctr hinge, black
35 240313801 - - C - E Bracket-ctr hinge, zinc
35A 240336802 A B C D E Spacer-hinge, center
36 240516401 A B C D E Pin-center hinge
37 240337603 A B - D - Trim-cabinet corner, black, (2)
37 240337604 - - C - - Trim-cabinet corner, bisque, (2)
37 240337601 - - - - E Trim-cabinet corner, white, (2)
38 240313701 A B C D E Bracket-upper hinge
40 240354404 A B - D - Cover-upper hinge, black
40 240354403 - - C - - Cover-upper hinge, bisque
40 240354401 - - - - E Cover-upper hinge, white
41 5308009759 A B C D E Grommet, shelf mtg, 1.25", LH, (4)
42 240578901 A B C D E Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335003 A B C D E Roller Assy, front, (2)
56 240516501 A B C D E Pin-lower hinge
58 218897002 A B C D E Screw, hex washer head, 8-32 x 0.375

Publication No: 5995427613 GLRT13TE
01/05 6
CABINET
83
82
89
11
10
1
12
12A
81
4
58
2
3
40
92
38
37
13
5
58
35A 36
34
35
59
59
56
42
30
72
N05BAAABA1
43
28
21C
21C
41
41
41
8
8
9
14
81
34
22
15
16
74
114

GLRT13TE Publication No: 5995427613
# Functional Parts 7 01/05
* Non-Illustrated Parts
CABINET
Model Index: AGLRT13TE (GLRT13TEB0)
BGLRT13TE (GLRT13TEK0)
CGLRT13TE (GLRT13TEQ0)
DGLRT13TE (GLRT13TES0)
EGLRT13TE (GLRT13TEW0)
POS. NO PART NO. DESCRIPTION
59 240442703 A B - D - Screw-#10-32 X 3/4, black
59 240442701 - - C - E Screw-#10-32 X 3/4, zinc
72 240368207 A B - D - Grille/Kickplate, black
72 240368206 - - C - - Grille/Kickplate, bisque
72 240368205 - - - - E Grille/Kickplate, white
74 240354301 A B C D E Shield-light, frzr
81 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241574607 A B C D E Cover-access, w/label
89* 241500301 A B C D E Screw, hex washer head, 8-18AB x 0.500
92 216850900 A B C D E Screw, hex washer hd, 1/4 x 7/8, hinge mtg
114 240505801 A B C D E Switch, light/lamp
* 218990901 A B C D E Clip-wire
* 240479601 A B C D E Plug, button, cab liner holes, (2)
* 5303305345 A B - D - Paint, touch-up, black
* 5304414035 - - C - - Paint, touch-up, bisque
* 5303305324 - - - - E Paint, touch-up, white

Publication No: 5995427613 GLRT13TE
01/05 8
SHELVES

GLRT13TE Publication No: 5995427613
# Functional Parts 9 01/05
* Non-Illustrated Parts
SHELVES
Model Index: AGLRT13TE (GLRT13TEB0)
BGLRT13TE (GLRT13TEK0)
CGLRT13TE (GLRT13TEQ0)
DGLRT13TE (GLRT13TES0)
EGLRT13TE (GLRT13TEW0)
POS. NO PART NO. DESCRIPTION
10 215667501 A B C D E Tray, ice cube, plastic
11 240358003 A B C D E Shelf, freezer, full-width, wire
12 240545901 A B C D E Diffuser-air, top
13 240362601 A B C D E Diffuser, air, bottom
14 # 241554901 A B C D E Switch-light/lamp
15 240436702 A B C D E Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 241559801 A B C D E Socket-light
17 240368101 A B C D E Control Box
17*# 240388701 A B C D E Wiring Harness, control box
18 240360801 A B C D E Knob, temp control
21 5304445058 A B C D E Control-temperature
22A 5303916855 A B C D E Tube, sensor sleeve, plastic, clear
23 # 215846606 A B C D E Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min
23* 5303001259 A B C D E Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
24 240358921 A B C D E Shelf-"Spill-Safe", sliding
24A 240358922 A B C D E Shelf-"Spill-Safe", sliding, w/pan hanger
25 240364718 A B C D E Cover-crisper pan
25B 240361201 A B C D E Control-humidity
25C 240361301 A B C D E Damper, humidity cont.
26 240343803 A B C D E Pan, crisper, (2)
31 240530903 A B C D E Pan-meat, w/o graphics, clear
34 240385201 A B C D E Container, ice bin
47 240443301 A B C D E Panel, pan cover, glass
58 5308016566 A B C D E Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995427613 GLRT13TE
01/05 10

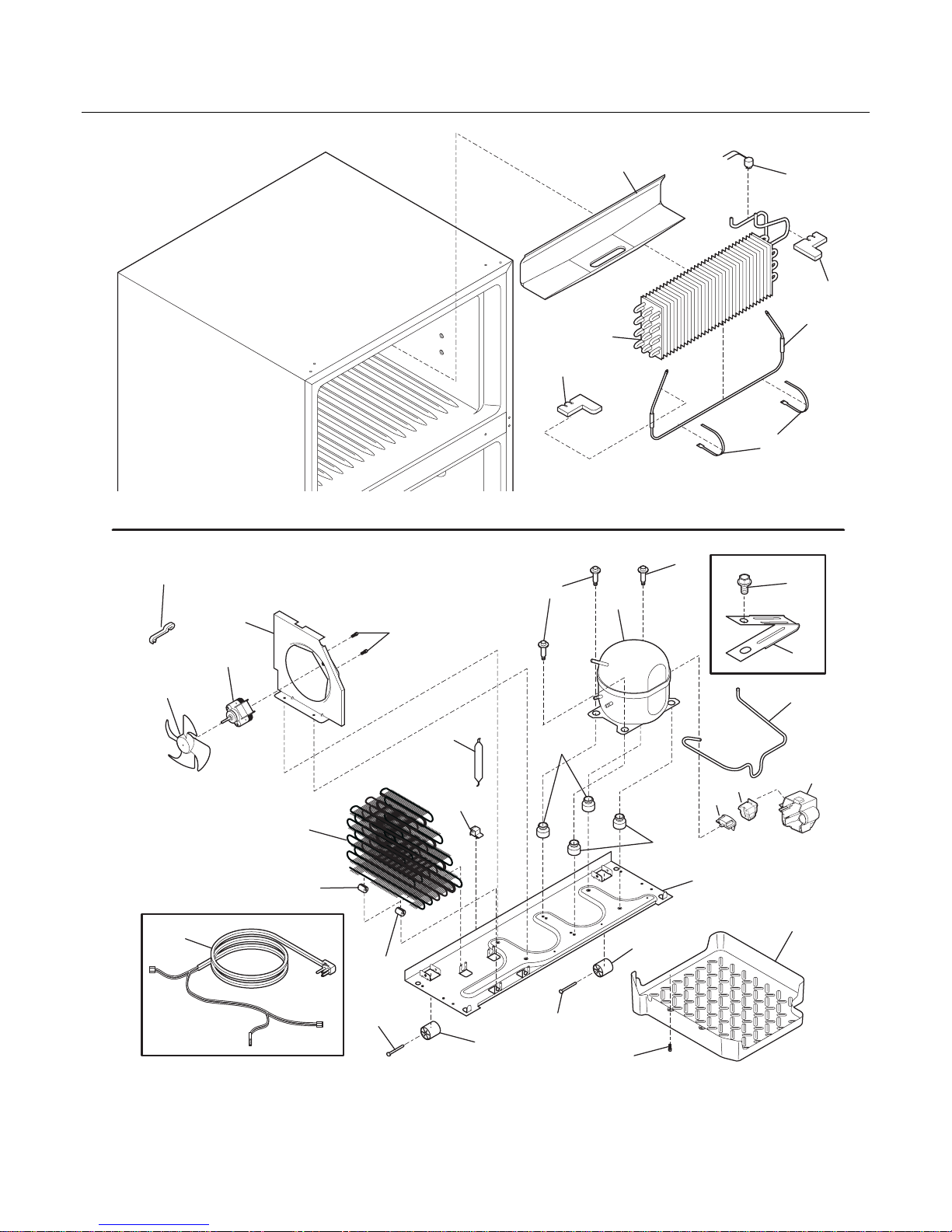

SYSTEM
17
21
15
20
14
20
16
60
59
61
58
1
34
34
83
44
41
82
83
82
N05CABBAB11
22
23
23
85
4
6
29
26
56
45
57
25
25
30
31
86

GLRT13TE Publication No: 5995427613
# Functional Parts 11 01/05
* Non-Illustrated Parts
SYSTEM
Model Index: AGLRT13TE (GLRT13TEB0)
BGLRT13TE (GLRT13TEK0)
CGLRT13TE (GLRT13TEQ0)
DGLRT13TE (GLRT13TES0)
EGLRT13TE (GLRT13TEW0)
POS. NO PART NO. DESCRIPTION
1 # 240444401 A B C D E Condenser, dynamic
4 # 218944001 A B C D E Drier-filter, R134a System
6 # 240581701 A B C D E Harness-wiring, machine compt
6* 241537701 A B C D E Wiring Harness, freezer section, with light
6* # 240388701 A B C D E Wiring Harness, control box
6* # 240581801 A B C D E Harness-wiring, compressor
14 # 5303918247 A B C D E Defrost Heater Kit
15 # 5303918274 A B C D E Evaporator Kit
16 5308000110 A B C D E Strap-evap/heater, aluminum, (2)
17 241551801 A B C D E Trough-drain
20 241551902 A B C D E Insulation Block
21 # 5303918202 A B C D E Thermostat-defrost, kit
22 241602001 A B C D E Base-compressor
22* 218252200 A B C D E Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 A B C D E Grommet-compr mtg, (4)
25 240491501 A B C D E Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF
26 240332602 A B C D E Pan-defrost drain
29 # 5303918297 A B C D E Compressor, w/electricals
30 # 5304433579 A B C D E Relay
31 # 5304433578 A B C D E Overload Protector
34 240405201 A B C D E Grommet, rubber, black, cond tube/wire
41 240555001 A B C D E Screw-#8-32 X 3/8
44 215174700 A B C D E Clamp-service cord, strain relief, galv steel
45 241500301 A B C D E Screw, hex washer head, 8-18AB x 0.500
56 240582001 A B C D E Cover-terminal
57 240542601 A B C D E Clip-wiring harness
58 218897002 A B C D E Screw, hex washer head, 8-32 x 0.375
59 5304430246 A B C D E Bracket-cond motor assy
59* 240346701 A B C D E Tape-foam seal, shroud
59* 240359401 A B C D E Screw-fan shroud, (2)
60 240525402 A B C D E Motor, condensor fan
61 # 240524101 A B C D E Fan Blade, galv steel, condenser fan
82 5304418225 A B C D E Roller, compressor base, rear, (2)
83 5303316859 A B C D E Rivet, flat head, 1/4 OD x 1-3/4, roller pin
85 240493101 A B C D E Tube-connector, suction
86 240409302 A B C D E Spacer-cond tube, black
* 240396801 A B C D E Clamp, tube/wiring, nylon, black/natural
* 240409301 A B C D E Spacer-cond tube, black
* 5303918210 A B C D E Heat Exchanger Kit, suction line
* # 5304421289 A B C D E Hot Tube Repair Kit, service

Publication No: 5995427613 GLRT13TE
01/05 12
WIRING SCHEMATIC

GLRT13TE Publication No: 5995427613
# Functional Parts 13 01/05
* Non-Illustrated Parts
WIRING DIAGRAM
