Frigidaire PLHS280ZA User manual

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS
PLHS280ZAB3 PLHS280ZA R134a stain/black 115
MARKET
North America
Publication No.
5995374534
020618
-EN/SERVICE/DCS
357
SIDE BY SIDE
REFRIGERATOR
Model No.
PLHS280ZA
©2002 Electrolux Home Products, Inc.
All rights reserved
WIRING DIAGRAM - 240389607
OWNER’S GUIDE - 240389306
SERVICE DATA SHEET - 240389607
ELECTROLUX HOME PRODUCTS, INC
P.O. BOX 212378, Augusta, GA 30917
FACTORY
PARTS CATALOG

06/02 2
Publication No. PLHS280ZA
5995374534

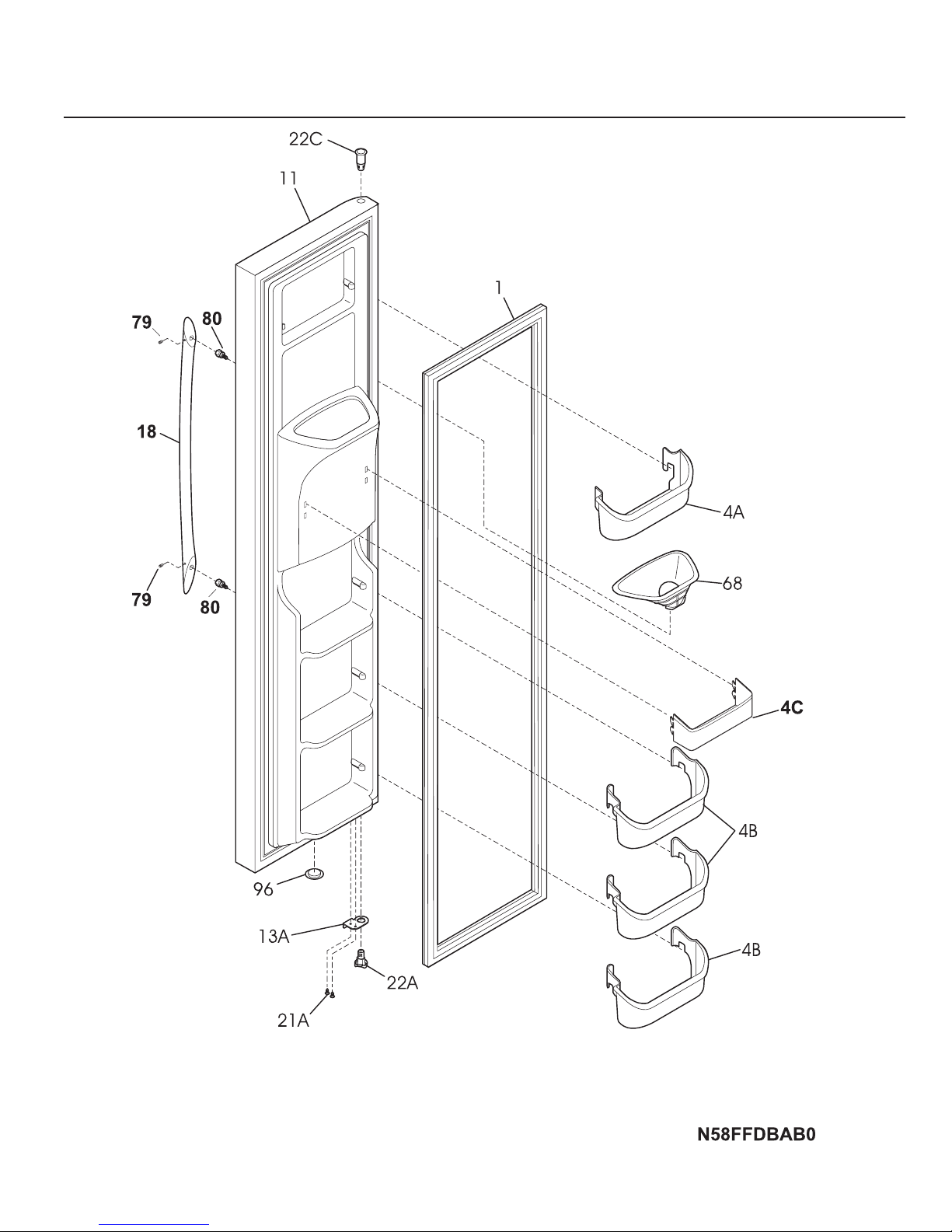

FREEZER DOOR

# = Fast-moving Parts 3 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
FREEZER DOOR
POS. NO PART NO DESCRIPTION
1 # 240390606 Gasket-frzr door,black ,magnetic
4A 240334206 Bin-door,frzr-upper
4B 240351606 Bin-door
4C 240351706 Bin-door,frzr-dispenser
11 240451816 Panel-frzr door,stainless steel, complete assy
13A 240537106 Door Stop,black ,frzr
18 240536801 Handle-door, stainless steel, with insert
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
22A 240328202 Bearing-hinge,closer
22C 240328404 Bearing-hinge,black ,upper
68 240467701 Chute-ice
79 218755402 Screw-set,10-32 x 0.375
80 218755503 Screw-shoulder,#10 AB ,handle mounting
96 240345506 Plug,door foam hole ,black
* 218490900 Cleaner,stainless steel
* 240323202 Harness-wiring,door
* 240352101 Connector-water,straight
* 240470401 Connector-amp
* 5303918256 Dispenser heater kit

06/02 4
Publication No. PLHS280ZA
5995374534
REFRIGERATOR DOOR

# = Fast-moving Parts 5 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
2 240390605 Gasket-refr door,black ,magnetic
4 240323006 Bin-door,2 ltr
7 240326209 Door-dairy,aeg aqua
12 240449704 Nameplate,satin nickel
13 240537105 Door Stop,black ,ref
15 240451909 Panel-refr door, stainless steel, complete assy
18 240536801 Handle-door, stainless steel, with insert
21A 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
22 240328201 Bearing-hinge, closer
22B 240328403 Bearing-hinge, upper
27A 240396105 Retainer, tall bottle
49 240430307 Bin-door, gallon
79 218755402 Screw-set,10-32 x 0.375
80 218755503 Screw-shoulder,#10 AB ,handle mounting
96 240345506 Plug,door foam hole ,black
* 218490900 Cleaner,stainless steel
REFRIGERATOR DOOR

06/02 6
Publication No. PLHS280ZA
5995374534
CABINET

# = Fast-moving Parts 7 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
10 240435902 Cover-air duct
10A 240475902 Cover-evap coil,lower
11 5303208309 Plug-hole,factory test
14 # 240505801 Switch,light/lamp
14A# 215486600 Switch-light/lamp
21C 218252200 Screw,#8 truss hd ,10-32CA x 0.500
22 240457701 Plate-door closer
23 240402701 Screw-#10-32 x 1/4 flat hd
28 240335501 Bolt-roller adj,hex washer head, 1/4-20 x 4.020, (2), special
30 240419103 Bracket-lower hinge, ref
30A 240419104 Bracket-lower hinge
37 240337603 Trim-cabinet corner,black
38 240327202 Bracket-upper hinge
40 240327007 Cover-upper hinge,black
41 240358701 Grommet-shelf mtg,1.40" long
41* 240358801 Grommet-shelf mtg,.875" long
42 240315301 Screw-hinge mtg,hex head ,1/4-20 x 0.75
43 240335003 Roller Assy,front ,(2)
45 241500301 Screw,hex washer head ,8-18AB x 0.500
47 240349401 Channel-shelf mtg,side ,(2)
58 218749600 Screw,#10 pan hd ,8-18 x .5
66 240504901 Cover-damper
66A 240505001 Damper-meat keeper
66B 240355901 Insulation-damper
66B* 240518802 Pin-push,push-in ,plastic
72 240324406 Grille/Kickplate,black
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base ,rear ,(2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 240326104 Cover,access ,system compt ,with label
90 218249808 Seal-coil cover
91 240380101 Duct-ice maker
92 5303001479 Screw-hinge mtg,hex hd ,1/4-20 x 0.875
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
150 240368701 Guide-control bulb
* 218515401 Clip
* 240396801 Clamp, tube/wiring, nylon, black/natural
* 240479601 Plug, button, cab liner holes
* 240481601 Shim-lower hinge
* 5303305345 Paint, touch-up, black
CABINET

06/02 8
Publication No. PLHS280ZA
5995374534
SHELVES

# = Fast-moving Parts 9 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
2 240434604 Trim-basket
11 240350668 Shelf-freezer,glass ,lower
11A 240350667 Shelf-freezer,glass ,upper
11C 240324101 Shelf-pizza
15A 5303001179 Light Bulb/Lamp,40 W
16A 218906801 Socket-light/lamp
24 240355203 Shelf-"Spill-Safe",fixed
24B 240350106 Shelf-"Spill-Safe", cantilever, sliding
24C 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete
25 240350702 Cover-crisper pan,upper
25* 240362101 Clip-slide,cover-crisper
25A 240350902 Cover-crisper pan,lower
26 240351018 Pan-crisper,upper
26* 240349801 Clip-slide,pan-crisper
26A 240422904 Control-humidity
27 240351215 Pan-crisper,lower
27A 240362205 Control-humidity
39 240367602 Trim-shelf,front
42 240356501 Hanger-meat pan,RH
42A 240349701 Hanger-meat pan,LH
42A* 240349901 Block-meat pan rail,LH
42A* 240350001 Spring-meat pan rail
47 240350602 Insert-pan cover,glass
47A 240350603 Insert-pan cover,glass
49 240530402 Basket-sliding
49A 240530502 Basket-sliding,upper ,half
49B 240530504 Basket-sliding,upper ,full
51 240343002 Hanger-basket,RH
51A 240395502 Hanger-basket,RH
52 240343102 Hanger-basket,LH
52A 240395602 Hanger-basket,LH
54 240351901 Plug-hanger,right hand
55 240352001 Plug-hanger,left hand
62 240342813 Pan-meat
81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
97 240545303 Water Tank Assy,coiled tubing, front filter
100 240326302 Cover-water tank
101 218493100 Screw, hex washer head ,8-18AB x 1-3/4
101* 215005000 Screw, hex wshr hd, 8-18AB x 0.750, gusset/hanger
109 240351301 Base-crisper light socket
120 240342905 Shelf-ice cream
123 215005100 Screw,hanger/rlr mtg ,8-10 x 0.438
126 218867401 Channel,auger mtg ,LH
126 218867402 Channel,auger mtg ,RH
136 240424505 Dispenser-can,auqa
140 240430501 Channel,wtr tube cover
SHELVES

06/02 10
Publication No. PLHS280ZA
5995374534
CONTROLS

# = Fast-moving Parts 11 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
5 # 5308000010 Fan Blade,red ,evaporator fan
8 5300157666 Bushing-motor mtg,(2)
9 5303292396 Bracket-motor mtg,front
13 # 240315802 Motor-evap fan
13* 215474201 Washer,"slinger" ,nylon ,evap fan shaft
14 5303292397 Bracket-motor mtg,rear
15 240436702 Light Bulb/Lamp, A-15, clear, 40 W, 120 V, miniature
16 218906801 Socket-light/lamp
17 240317701 Box-control,front
17*# 240439901 Wiring Harness,controls
18 240360801 Knob,temp control
21 240448303 Control-temperature
21A 5304421768 Control-temperature
22 218660702 Tube-insulator
23 # 240545403 Control-defrost, adaptive timer, PC board
45 5303001343 Screw,hex washer head, 8-15A x 0.500
53 240369501 Box-control
81 5308016566 Screw,hex washer head, 8-15A x 0.625, low profile
115 240521103 Damper Assy,w/seal
137 240396401 Filter,water ,front ,cassette
137* 240396701 Bypass,water filter ,Optional Part
138 240397301 Button-filter release
139 240396001 Base-water filter
139* 240526901 O-ring,wtr filter base
149 240331602 Shroud-fan orfice
150 240394204 Insulation-water tube cover
151 240373806 Cover-water tube
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
200 240397601 Light Pipe
201 240398502 Label-control box
* 3205266 Edge Protector,wiring harness
* 240427201 Heater-freezer control
* 240470401 Connector-amp
CONTROLS

06/02 12
Publication No. PLHS280ZA
5995374534
SYSTEM

# = Fast-moving Parts 13 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil,styrofoam ,(2)
4 # 218944001 Drier-filter,R134a System
6 240346402 Harness-wiring,machine compt
6* 240439901 Wiring Harness,controls
6* 240449601 Harness-wiring
14 # 5303918253 Defrost Heater Kit
15 # 5303918216 Evaporator Kit
16 5308000110 Strap-evap/heater,aluminum ,(2)
21 5303918214 Thermostat-defrost,kit
22 240330003 Base-compressor
23 218513300 Grommet-compr mtg,(4)
25 240491501 Screw-compressor mtg,1/4-28 x 1.16,shoulder,typ CF
26 240332602 Pan-defrost drain
29 # 5303918254 Compressor,w/electricals
30 # 218721119 Starter,PTC
32 218973501 Clamp, elec cont mtg, compressor
34 240405201 Grommet, rubber, black, cond tube/wire
41 218897001 Screw, hex washer head, 8-32 x 1/4
44 215174700 Clamp-service cord, strain relief, galv steel
44* 5303001199 Clamp-wiring harness, strain relief, galv steel
45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile
55 # 218909901 Capacitor-run,220 VAC ,15 microfarad
57 240403601 Clip-wiring harness
58 215004600 Screw, hx serr wshr hd, 8-36 x 7/16, cond fan motor,(2)
59 240315501 Shroud-cond fan
59* 240346701 Tape-foam seal,shroud
59* 240359401 Screw-fan shroud,(2)
59A 240346501 Bracket-support,cond mtr ,(3)
59B 240346601 Grommet-bracket,(3)
60 # 240334002 Motor-condenser fan
61 # 240315401 Fan Blade,galv steel ,condenser fan
61A 215004700 Nut,speed
61B 215004800 Grommet-silencer
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
72 218397000 Button-handle mtg,dovetail
82 5304418225 Roller,compressor base ,rear ,(2)
83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain,lower
85 240346201 Tube-connector,suction
86 240409302 Spacer-cond tube,black
* # 5303918213 Heat Exchanger Kit,suction line
* # 5303918222 Hot Tube Repair Kit,Service
SYSTEM

06/02 14
Publication No. PLHS280ZA
5995374534

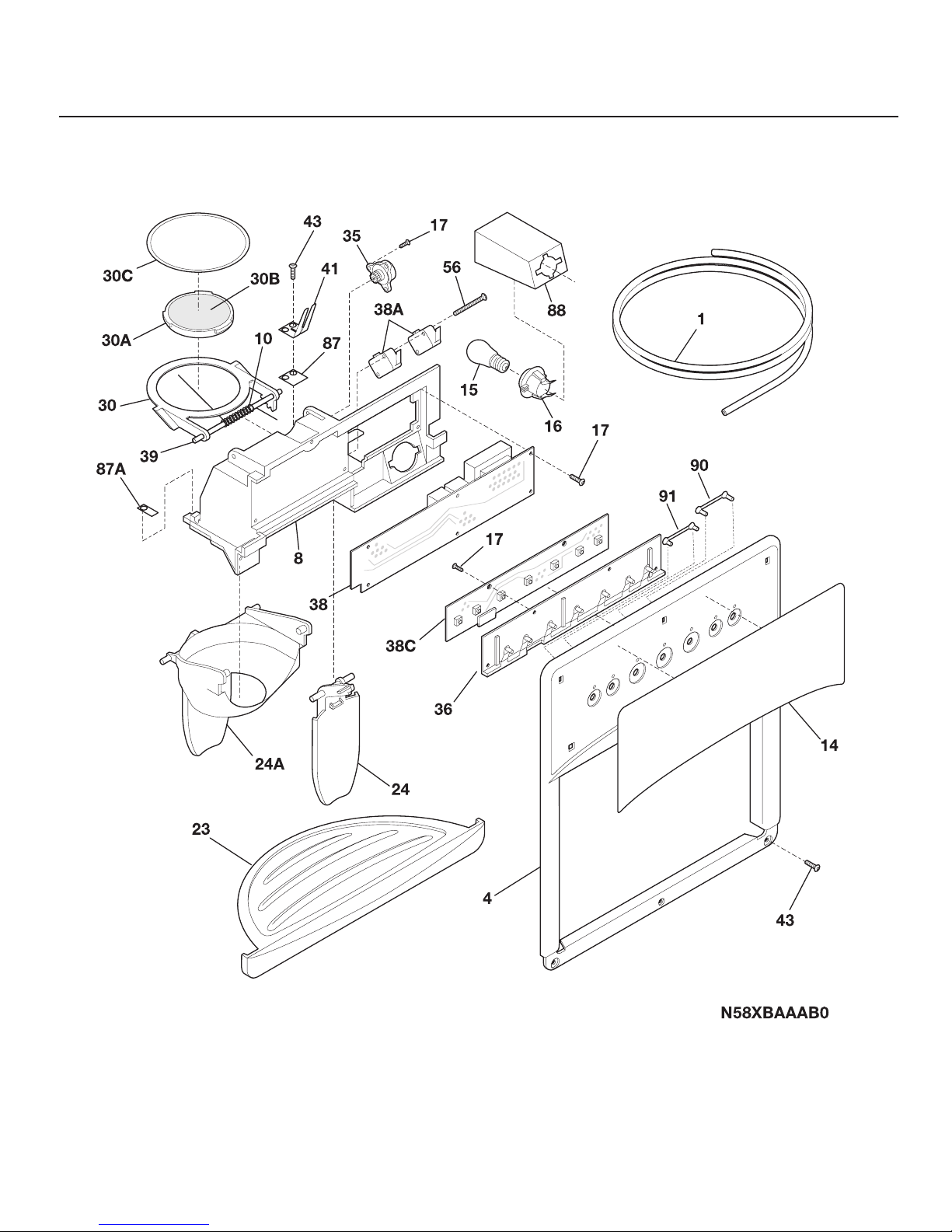

DISPENSER

# = Fast-moving Parts 15 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976903 Tube-water inlet,inlet valve ,to filter
1* 218976907 Tube-water inlet,valve to door
4 5304422012 Cover-module,black
8 5304422013 Module-dispenser
10 5304421626 Spring-torsion
14 240323936 Label-module cover,black
15 5304421616 Light Bulb/Lamp
16 215284900 Socket-light/lamp
17 5304421619 Screw
23 240323603 Drip Tray,black
24 5304425585 Actuator-water,black
24A 5304425584 Actuator-ice,black
30 5304421628 Door Assy-ice chute
30A 5304421624 Door center
30B 5304421625 Insulation-door
30C 5304421629 Door seal
35 5304421620 Damper-rotary
36 5304421824 Carrier
38 5304422632 PC Board,power
38A# 5304421617 Switch-micro,single pole ,double throw
38C 5304426008 Board-control
39 5304421627 Pin-hinge
41 5304421829 Spring-actuator
43 215296300 Screw,plask h/l ,#6 x 3/8
56 5304421830 Screw-micro switch,pan head
87 5304421622 Bearing Plate
87A 5304421621 Bearing Plate
88 5304421615 Shield-light
90 5304421831 Light Pipe,reflector
91 5304421850 Light Pipe,reflector ,short
* 5303918256 Dispenser heater kit
DISPENSER

06/02 16
Publication No. PLHS280ZA
5995374534

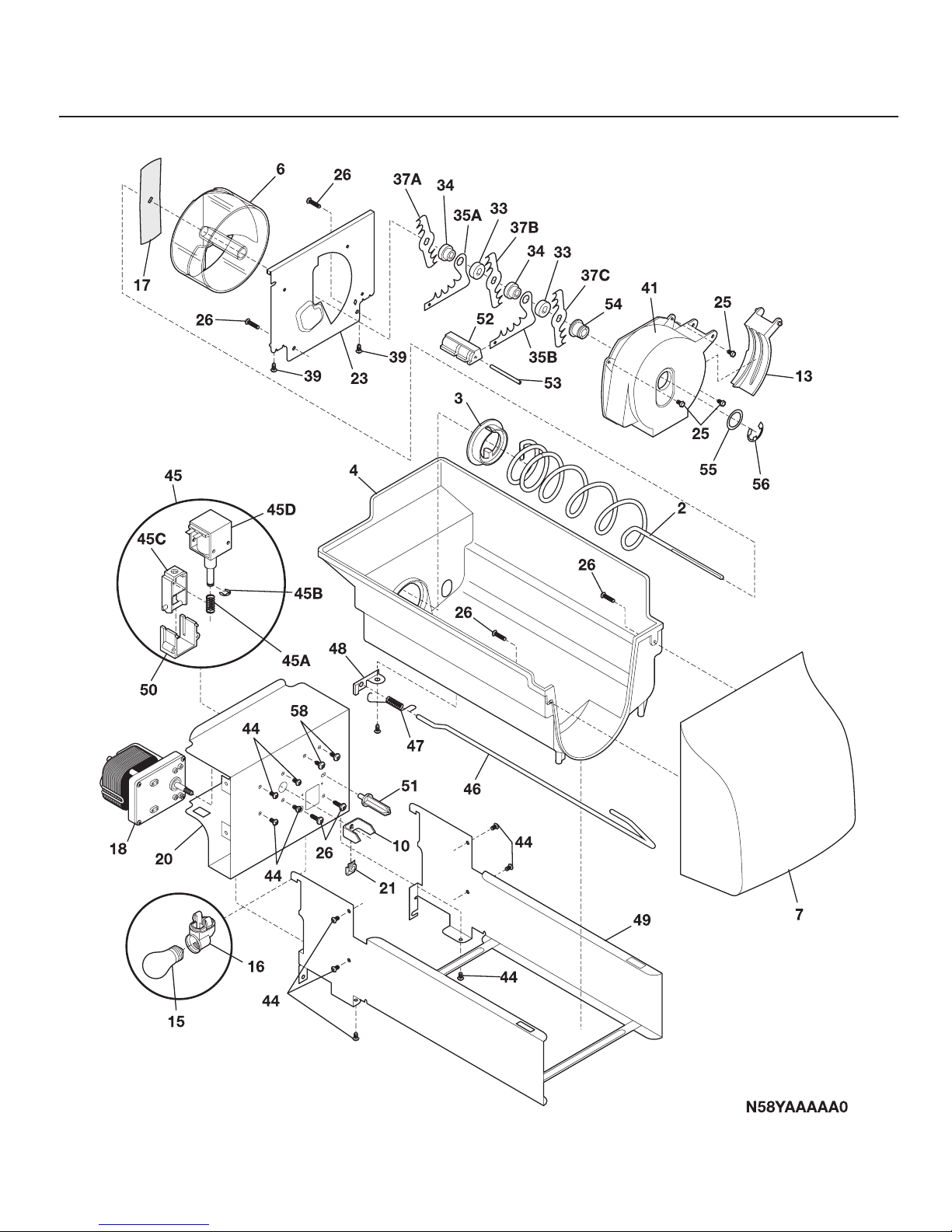

ICE CONTAINER

# = Fast-moving Parts 17 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
2 5304428402 Auger-ice
3 5304404343 Cam-drive
4 218815300 Container-ice,bucket only
6 5304404346 Drum-ice disp
7 5304422805 Front-ice container
10 5304404337 Bar-drive
13 5304404359 Gate
15 5303001179 Light Bulb/Lamp,40 W
16 5303289050 Socket-light/lamp
17 5304404345 Drive Blade
18 # 240326903 Motor-auger
18* 5304404335 Wiring Harness,auger motor
20 5304404332 Cover-motor
21 215285100 Nut-drive
23 5304404347 Plate-front
25 5304404362 Screw,hex washer head ,8-32T x 0.375
26 215503200 Screw,cr pan hd ,10-16 x 0.500
33 5304404351 Spacer
34 5304404349 Spacer
35A 5304404353 Fixed Blade,round
35B 5304404352 Fixed Blade,square
37A 5304404348 Blade,crusher #1
37B 5304404350 Blade,crusher #2
37C 5304404356 Blade,crusher #3
39 5304404365 Screw
41 5304404358 Housing-crusher
44 218359200 Screw,pan head ,8-32 x 0.250
45 # 5304404333 Solenoid Assy
45A 5304406816 Spring-solenoid
45B 5304406817 E-Ring-solenoid
45C 5304406818 Actuator-solenoid
45D 5304406819 Solenoid
46 5304404341 Control Rod
47 5304404342 Spring-control rod
48 5304404340 Bracket-control rod
48* 5304404364 Screw-bracket
49 5304404329 Rail Assy
50 5304404334 Guide-solenoid
51 5304404336 Rotation Stop
52 5304404354 Spacer-fixed blades
53 5304404355 Pin-spiral,fixed blades
54 5304404357 Nut-auger
55 5304404360 Washer
56 5304404361 E-ring
58 5304404331 Screw-solenoid
* 240323806 Ice Container Assy,w/moving parts
ICE CONTAINER

06/02 18
Publication No. PLHS280ZA
5995374534
ICE MAKER

# = Fast-moving Parts 19 06/02
* = Non-Illustrated Parts
PLHS280ZA Publication No.
5995374534
POS. NO PART NO DESCRIPTION
1 218976409 Tube-water
1* 218976901 Tube-water inlet, inlet valve to ice maker
1* 218976903 Tube-water inlet,inlet valve ,to filter
1* 218976907 Tube-water inlet,valve to door
2 5304420650 Spring,shut-off arm
3 3206299 Label,ID plate
4 3206301 Gear
5 3206303 Plate-mounting
6 3206305 Screw-ground wire,8-32 x 0.250
7 # 3206306 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
10 3206315 Clamp
11 # 3206319 Thermal Cutoff, ice maker, complete assy
12 # 240352601 Wiring Harness, ice maker, internal, with plug
13 # 3206322 Thermostat Assy,ice maker
14 5304420652 Screw, 4 x 0.750, switch mtg.
15 # 3206324 Switch, (3)
16 5304420653 Support,phenolic
17 # 5303320545 Mold-ice maker, Radius Cube, with heater
18 3206328 Ejector-ice
19 3206330 Bearing & Inlet
20 5304408581 Screw, 8-32 x 0.375
21 3206332 Ice Stripper
22 3206333 Shut-off Arm
23 5304408582 Screw, 8-32 x 0.875, mold-to-support, (3)
24 3206335 Lever Arm
25 3206336 Screw, 8-18 x 0.562 ,lever arm/sprt
26 5304420654 Screw-thermo/sprt, 4-24 x 0.375 ,(4)
27 3206338 Screw, 4-40 x 1.000, hold switch mtg, (2)
28 3206339 Screw-timing stop,4-40 x 0.375
29 3206323 Screw,4-24 x 0.750 ,(6)
30 3206341 Screw-timing adj,8-32 x 1.000
31 3206342 Insulator
32 3206343 Plate-valve switch
33 5304408583 Spring-timing adj
34 5304420655 Screw, plazscrew, 8-10, (3)
35 5304408585 Screw
36 3206347 Cover-ice maker
42 5303001199 Clamp-wiring harness, strain relief, galv steel
42* 218515402 Clip,(2) ,tube mtg.
45 5303001343 Screw,hex washer head ,8-15A x 0.500
46 5303001193 Clamp,.50 ID ,steel ,water tube
46* 5308000133 Clamp,nylon ,.625 ID
51 240387101 Tube-water,ice mold fill ,extension
55 # 240321801 Valve-water,triple solenoid
55* 240363601 Screw-shoulder
55* 240542901 • Cap-water valve
55*# 240508101 • Valve-water (Service),single solenoid
55*# 240508102 • Valve-water (Service),dual solenoid, 115 V
60 5303207328 Screw, hex washer head, 8-15A x 1.000, (2)
61 218721500 Bracket-leveling,ice maker
62 218737900 Screw-IM brkt mtg, hex washer head, 8-32D x 0.375
64 5303001549 Clamp,0.31 ID ,steel ,copper wtr line
* 218888001 Adapter-water supply, nut & sleeve, compression ftg
* 240352407 Ice Maker, Radius Cube, 115 V, no instl parts
ICE MAKER

06/02 20
Publication No. PLHS280ZA
5995374534
WIRING SCHEMATIC
