Frigidaire FPWD2785KFA Owner's manual

ing (Cleaning Cna_) ....................._,_ 7
www,frJgJdaire,com USA 1-800-944-9044 www.frigidaire,ca Canada 1-800-265-8352

Product Registration
Register Your Product
ThePRODUCT
REGISTRATION CARD
should be filled in completely,
signed and returned to
Electrolux Home Products.
Serial Plate Location
Serial Plate
Location
Please record your model and serial numbers
below for future reference,
Model Number:
Serial Number:
Purchase Date:
Si desea obtener una copia en espa_ol de este Manual
del Usuado, drvase escribir a la direcci6n que se
Congratulations on your purchase of a new appliance! At
Electrolux Home Products, we are very proud of our
product and are completely committed to providing you
with the best service possible. Your satisfaction isour
number one priority.
We know you'll enjoy your new appliance and Thank You
for choosing our product. We hope you consider us for
future purchases.
PLEASE CAREFULLY READ AND SAVE THESE
TNSTRUCTIONS
This Use & Care Manual contains general operating
instructions for your appliance and feature information
for several models. Your product may not have all
the described features. The graphics shown are
representative. The graphics on your appliance may not
look exactly like those shown. These instructions are not
meant to cover every possible condition and situation
that may occur. Common sense and caution must be
practiced when installing, operating and maintaining any
appliance.
Please attach sales receipt here for future reference.
incluye a continuaci6n. Solicite la P/N 318201024E.
Spanish Use & Care Manual
Electrolux Home Products
R O. Box 212378
© 2009 Electrolux Canada Corp,
All rights reserved
Printed in United States

Read all instructions before using this appliance.
Save these instructions for future reference.
DEFINITIONS
Thisisthe safetyalertsymbol.Itisused toalert
you to potentialpersonalinjuryhazards.Obey aftsafely
messages thatfollowthissymbol toavoidpossibleinjury
ordeath.
eAll Warmer Drawers can tip.
o Injury to persons could result.
• Install anti=tip device packed with warmer drawer.
oSee Installation Instructions.
This symbol will help alert you to situations
that may cause serious bodily harm, death or
This symbol will help alert you to situations that
may cause bodily injury or property damage.
To reduce the risk of tipping of the Warmer Drawer,
the drawer must be secured by properly installed
anti=tip locking provided with the drawer. To
check if the locking plates are installed properly,
grasp the handle of the open drawer and see if
the drawer will slide out of the opening. Refer
to the installation instructions for proper locking
plate installation.
IMPORTANT indicates instaflation, operation or
maintenance information which is important but not
hazard=related.
- Remove all tape and packaging before using the
appliance. Destroy the carton and plastic bags
after unpacking the appliance. Never allow children
to play with packaging material. Do not remove the
model/serial plate attached to the appliance.
•Proper Installation--Be sure your appliance is
properly installed and grounded by aqualified
technician in accordance with the National
Electrical Code ANSI/NFPA No. 70=latest edition
in the U. S. A., or CSA C22.1, Part 1in Canada,
and local code requirements. Install only per
installation instructions provided in this manual.
• In case of an emergency, know how to
disconnect the electrical power to the appliance
atthe circuit breaker or fuse box.
- User Servicing--Do not repair or replace
any part of the appliance unless specifically
recommended in the manuals. All other servicing
should be done only by a qualified technician. This may
reduce the risk of persona! injury and damage to the
cooktop.
- Never modify or alter the construction of the
appliance by removing panels, wire covers,
locking plates, or any other part of the product.
Do not use the warmer drawer for storage,
Stepping, leaning or sitting on the drawer can
result in serious injuries and may also cause
damage to the warmer drawer. Do not allow
children to climb or play around the drawer. An
open drawer, when hot, may cause burns.
, Storage on Appliance=Flammable materials
should not be stored in the drawer, This includes
paper, plastic and cloth items, such as cookbooks,
plasticware and towels, as well as flammable liquids.
Do not store explosives, such as aerosol cans, in or
near the drawer. Flammable materials may explode and
result in fire or property damage.
Do not leave children alone--Children should not
be left alone or unattended in the area where an
appliance is in use, They should never be allowed to
sit or stand on any part of the appliance.
., DO NOT TOUCH INTERIOR SURFACES OF THE
WARHER DRAWER. Surfaces may be hot even though
they are not dark in color.During and after use, do not
touch or let clothing or other flammable materials touch
these areas untit they have had sufficient time to cool.
•Wear Proper ApparelmLoose=fitting or hanging
garments should never be worn while using the
appliance, Do not let clothing or other flammable
materials contact hot surfaces.

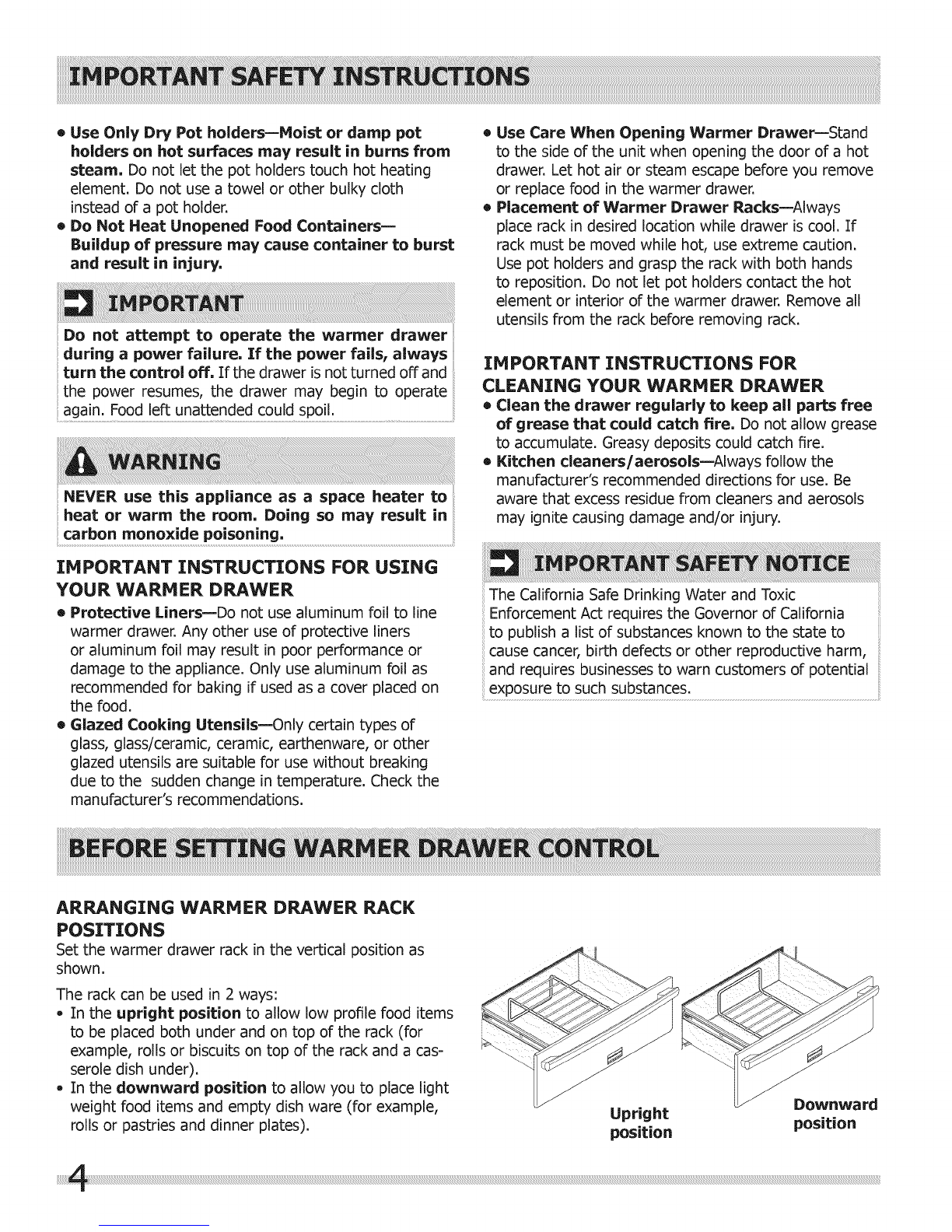

•Use Only Dry Pot holders=Moist or damp pot
holders on hot surfaces may result in burns from
steam. Do not let the pot holders touch hot heating
element. Do not use a towel or other bulky cloth
instead of a pot holder.
•Do Not Heat Unopened Food Containers=
Buildup of pressure may cause container to burst
and result in injury.
Do not attempt to operate the warmer drawer
during apower failure. If the power fails, always
turn the control off, If the drawer is not turned off and
the power resumes, the drawer may begin to operate
NEVER use this appliance as a space heater to
heat or warm the room. Doing so may result in
carbon monoxide poisoning.
IMPORTANT INSTRUCTIONS FOR USING
YOUR WARMER DRAWER
•Protective Liners=Do not use aluminum foil to line
warmer drawer. Any other use of protective liners
or aluminum foil may result in poor performance or
damage to the appliance. Only use aluminum foil as
recommended for baking if used as a cover placed on
the food.
•Glazed Cooking Utensils=Only certain types of
glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for use without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations.
®
®
Use Care When Opening Warmer Drawer=Stand
to the side of the unit when opening the door of a hot
drawer. Let hot air or steam escape before you remove
or replace food in the warmer drawer.
Placement of Warmer Drawer Racks=Always
place rack in desired location while drawer is coo!. If
rack must be moved while hot, use extreme caution.
Use pot holders and grasp the rack with both hands
to reposition. Do not let pot holders contact the hot
element or interior of the warmer drawer. Remove all
utensils from the rack before removing rack.
IMPORTANT INSTRUCTIONS FOR
CLEANING YOUR WARMER DRAWER
•Clean the drawer regularly to keep all parts free
of grease that could catch fire, Do not allow grease
to accumulate. Greasy deposits could catch fire.
•Kitchen cleaners/aerosols=Always follow the
manufacturer's recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and/or injury.
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state to
cause cancer, birth defects or other reproductive harm,
and requires businesses to warn customers of potential
exposure to such substances.
ARRANGING WARMER DRAWER RACK
POSITIONS
Set the warmer drawer rack in the vertica! position as
shown.
The rack can be used in 2 ways:
o In the upright position to allow low profile food items
to be placed both under and on top of the rack (for
example, roils or biscuits on top of the rack and a cas-
serole dish under).
In the downward position to allow you to place light
weight food items and empty dish ware (for example,
rolls or pastries and dinner plates). Downward
Upright
position position

TO OPERATE THE WARMER DRAWER
The purpose of the warmer drawer isto keep hot cooked
foods at serving temperature. Always start with hot food.
It is not recommended to heat cold food in the warmer
drawer. All food placed in the warmer drawer should be
covered with a lid or aluminum foil to maintain moisture
and softness. Do not cover crisp foods.
Do not use plastic wrap to cover food. Plastic may
melt onto the drawer and be very difficult to clean.
Use only dishware, utensils and cookware recommended
for oven use in the warmer drawer.
Always use potholders or oven mitts when removing food
from the warmer drawer as cookware and plates will be
hot.
Indicator Light
The indicator light is located below the thermostat control
knob. It turns on when the control isset, and stays on
until the control isturned off. Make sure indicator light is
off when removing food from drawer.
WARHER DRAWER HUMIDITY
CONTROLLER FEATURE
This feature may be used to control humidity in the
Warmer Drawer. The control knob is located on the inner
front panel of the Warmer Drawer.
For dry heat-" Slide the humidity control knob in the
direction of (less moist) _ (Figure 1). This allows
more of the moist heat to escape and provides a dryer
environment for the food in the Warmer Drawer.
For moist heat-` Slide the humidity control knob in the
direction of (more moist) _ (Figure 2). This will help
keep the food in the Warmer Drawer from drying out.
Both heat and moisture will be applied to the Warmer
Drawer cavity.
Figure 1Figure 2
TO SET THE TEMPERATURE CONTROL
The Temperature Control is located on the inside right
panel of the warmer drawer. The temperature range is
from 80 °F to 210 °F, and the temperature settings are
approximate from LO to HI throughout the range. Set the
control to LO, MED, HI or anywhere in between.
1 To set the temperature, push in and turn the control
to the desired setting.
2 For best results, preheat the drawer before adding
food. An empty drawer will reach the LO setting in
about 12 minutes, the MED setting in about 15 min-
utes, and the HI setting in about 18 minutes.
3 When done warming, turn the temperature control to
OFF.
Use the warmer drawer to keep hot foods hot
such as: vegetables, gravies, meats, casseroles,
biscuits and rolls, pastries and heated dinner
plates.
WARHER DRAWER
OFF
reed
bread
J
The warmer drawer isequipped with acatch which
may require asmall amount of force when opening
and closing the drawer.

TEM PERATU RE SELECTION
Refer to the chart for recommended settings. If a
particular food is not listed, start with the medium
setting. If more crispness is desired, remove the lid or
aluminum foil from the food. Most foods can be kept at
serving temperatures by using the medium setting. When
a combination of foods are to be kept warm (for instance,
a meat with 2 vegetables and rolls), use the high setting.
Refrain from opening the warmer drawer while in use
to eliminate loss of heat from the drawer. Open only for
adding or removing food.
TO WARM SERVING BOWLS AND PLATES
Heat bowls and plates on the LO setting. Race empty
dishes on the rack to raise them off drawer bottom. To
further heat dishes or to heat fine china, check with the
manufacturer for maximum heat tolerance.
PREPARING BREAD DOUGH FOR THE
WARMER DRAWER
The Warmer Drawer has a Bread Proof feature that can
be used to help prepare bread dough. The recommended
length of time to keep bread dough in the Warmer
Drawer is about 45-60 minutes. Be sure however to
follow the recipe's recommended times.
The unrisen bread dough should be placed in a large
bowl since the dough will nearly double in volume. Race
the Warmer Drawer Rack in the downward position.
Before placing in the Warmer Drawer, cover the bowl with
a moist cloth or use wax paper that has been coated with
a non-stick type cooking spray.
Bacon HI
Biscuits MED
Casseroles MED
Eggs MED
Empty Dinner Rate LO
Fish, Seafood MED
Fried Foods HI
Gravies, creams, sauces MED
Ham MED
Hamburger Patties HI
Pancakes, Waffles HI
Pastries MFD
Pies MFD
Pizza HI
Pork chops HI
Potatoes (baked) HI
Potatoes (mashed) MED
Poultry HI
Roasts (beef, pork, lamb) MED
Rolls, soft LO
Rolls, hard MED
Vegetables MFD
The bread proof function uses low warming
temperature which could happen to be lower than
your room temperature. The drawer will not work
as a cooling device and will not be able to lower the
temperature under the ambient temperature.

CLEANING VARIOUS PARTS OF YOUR WARMER DRAWER
Before cleaning any part of the appliance, be sure the contro! isturned OFF and the warmer drawer isCOOL. REMOVE
SPILLOVERS AND HEAVYSOILING AS SOON AS POSSIBLE. REGULARCLEANING WILL REDUCETHE NUMBER OF
MAJOR CLEANING LATER.
Plastic To remove control knob, turn to the OFF position; grasp firmly and pu!l straight off the
shaft. Clean with a cloth soaked insoapy water. Rinse with a clean water and a dishcloth.
To replace knob after cleaning, line up the fiat sides of both the knob and the shaft;
then push the knob into place. Note: Humidity controller knob cannot be removed.
Stainless Steel Clean stainless steel with hot, soapy water and a dishcloth. Rinse with clean water
and a cloth. Do not use cleaners with high concentrations of chlorides or
chlorines, Do not use harsh scrubbing cleaners. Only use kitchen cleaners that are
especially made for cleaning stainless steel. Always be sure to rinse the cleaners
from the surface as bluish stains may occur during heating that cannot be removed.
Porcelain Enamel Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary, cover difficult spots with
an ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and
a damp cloth, and then scrub with a soap-filled scouring pad. Rinse and wipe dry
with a clean cloth or paper towel. Remove all cleaners or the porcelain may become
damaged during future heating. DO NOT use spray oven cleaners on the cooktop.
Warmer Drawer Rack The rack may be removed for cleaning. If removed, clean by using a mild, abrasive
...... cleaner following manufacturer's instructions. Rinse with clean water and dry.

TO REMOVE AND REPLACE WARMER DRAWER
Turn power off before removing the warmer drawer.
To Remove Warmer Drawer
1 Open the drawer to the fully opened position.
2 Locate the latches on both sides of the warmer
drawer.
3Pull up on the left glide latch and push down on the
right glide latch.
4 Pull the drawer away from the appliance.
5To clean warmer drawer, gently scour with a soapy
scouring pad, this will remove most spots. Rinse with a
1:1 solution of clear water and ammonia. If necessary,
cover difficult spots with an ammonia-soaked paper
towel for 30 to 40 minutes. Rinse with clean water and
a damp cloth. Remove all cleaners or the porcelain may
become damaged during future heating. DO NOT use
spray oven cleaners on the cooktop.
To Replace Warmer Drawer
1 Align the glide latches on both sides of the drawer with
the slots on the drawer.
2 Push the drawer back into the appliance.
Turn the warmer drawer control knob to OFF before
removing the drawer. DO NOT touch the warmer drawer
element. The element may still be hot enough to cause
burns, even if it is dark in color.
Pull up latch
with finger
Push down latch
with finger Right Glide
Electrical Shock Hazard can occur and
result in serious injury or death. Disconnect
appliance from electric power before cleaning
and servicing the warmer drawer.

Beforeyou call for service, review this list. It may save you time and expense. The list includes common
workmanship or materials in this appliance.
Be sure cutout bottom is strong and stable enough to adequately support drawer (and
wall oven, if applicable).
Cannot move appliance Cabinets not square or are built in too tightly. Contact builder or installer to make
easily. Appliance must be appliance accessible.
accessible for service.
Warmer drawer does not Make sure cord/plug is plugged tightly into outlet.
berate. Service wiring is not complete. Contact Sears or another qualified servicer.
Power outage. Check house lights to be sure. Call your local electric company for
service.
An error at power up (or after a power failure) could happen if the contro! knob was
left on the ON position. :If a power failure should occur, be sure to set the contro!
knob to the OFF position. This will reset the electronic controls.
Once the contro! knob has been set to the OFF position, the electronic controls
should return to normal operation.

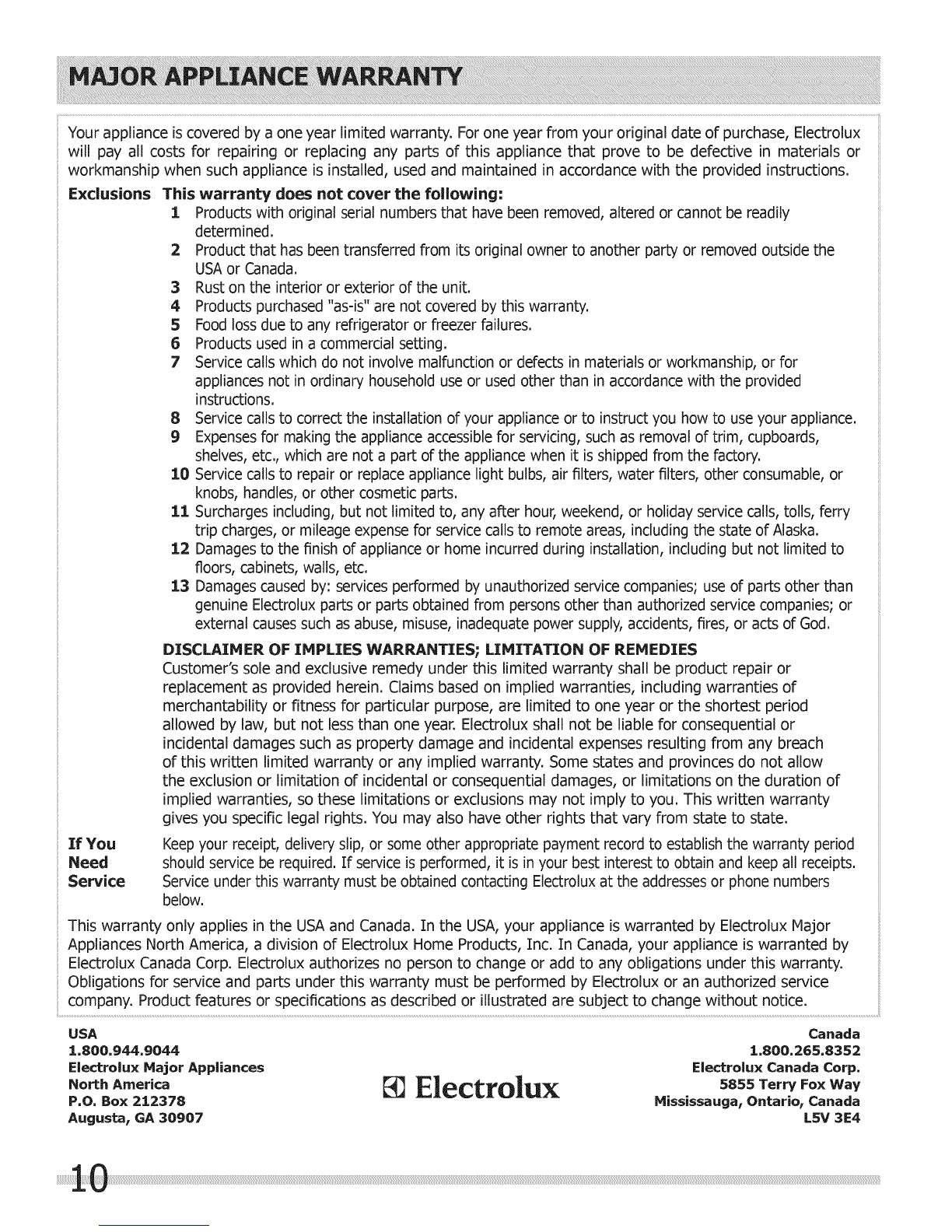

Yourapplianceiscoveredbyaoneyearlimitedwarranty.Foroneyearfromyouroriginaldateofpurchase,Electrolux
will payallcostsfor repairingor replacinganypartsofthisappliancethat proveto bedefectivein materialsor
workmanshipwhensuchapplianceisinstalled,usedandmaintainedinaccordancewiththeprovidedinstructions.
Exclusions This warranty does not cover the following:
1 Products with original serial numbers that have been removed, altered or cannotbe readily
determined.
2 Product that has been transferred from its original owner to another party or removed outside the
USAorCanada.
3 Rust on the interior or exterior of the unit.
4 Products purchased "as-is" are not covered by this warranty.
5Food loss due to any refrigerator or freezer failures.
6Products used in a commercial setting.
7 Service calls which do not involve malfunction or defects in materials or workmanship, or for
appliances not in ordinary household use or used other than in accordance with the provided
instructions.
8 Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
9 Expensesfor making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10 Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumable, or
knobs, handles, or other cosmetic parts.
11 Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry
trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
12 Damages to the finish of appliance or home incurred during installation, including but not limited to
floors, cabinets, walls, etc.
13 Damages caused by: services performed by unauthorized service companies; use of parts other than
genuine Electrolux parts or parts obtained from persons other than authorized service companies; or
external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIES WARRANTIES; LIMITATION OF REMEDIES
Customer's sole and exclusive remedy under this limited warranty shall be product repair or
replacement as provided herein. Claims based on implied warranties, including warranties of
merchantability or fitness for particular purpose, are limited to one year or the shortest period
ii allowed by law, but not less than one year. Electrolux shall not be liable for consequential or
ii incidental damages such as property damage and incidental expenses resulting from any breach
of this written limited warranty or any implied warranty. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, or limitations on the duration of
implied warranties, so these limitations or exclusions may not imply to you. This written warranty
gives you specific legal rights. You may also have other rights that vary from state to state.
ii
If You Keepyour receipt, delivery slip, or some other appropriate payment record to establish the warranty period
Need should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.
Service Service under this warranty must be obtained contacting Electrolux at the addresses or phone numbers
ii below.
ii This warranty only applies in the USAand Canada. In the USA, your appliance is warranted by Electrolux Major
Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by
Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
ii Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service
ii company. Product features or specifications as described or illustrated are subject to change without notice.
USA
1.800.944.9044
Electrolux Major Appliances
North America
P.O. Box 212378
Augusta, GA 30907
Electrolux
Canada
:L800.265.8352
Electrolux Canada Corp.
5855 Terry Fox Way
Hississauga, Ontario, Canada
LSV 3E4
