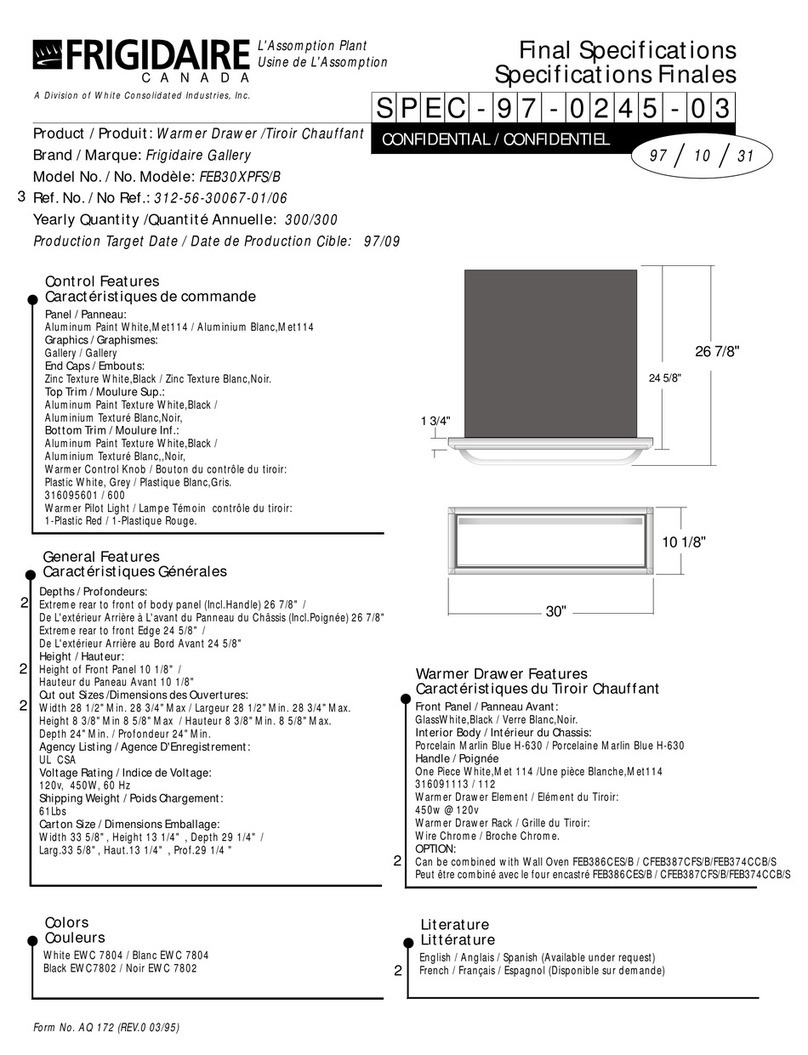

Frigidaire FEB30XPF User manual

PRODUCT NO. FACTORY NO. COLOR MARKET
FEB30XPFSA 3125630067011 WHITE U.S.A.
FEB30XPFBA 3125630067061 BLACK U.S.A.
WARMER DRAWER
Model No.
FEB30XPF
©1998 White Consolidated Industries,
Inc.
FACTORY PARTS CATALOG
STAND ALONE WARMER DRAWER
WIRING DIAGRAM # - 318049900
OWNER’S GUIDE # - 318153001
FRIGIDAIRE HOME PRODUCTS
7075 ORDAN DRIVE
MISSISSAUGA, ONTARIO
CANADA, L5T 1K6
TEL: [phone] Publication No.
5995314027
981020
-EN/SERVICE
377

Publication No. FEB30XPF
5995314027
10/98 2
BODY
200
201
209
196
203
205
205A
207
204
212A
215
215
214 214
210
202
209
211
212
216
216 216
216
36A
203A
198
86
84
197
84A
195
81
206
46
54B
199
14
200
LA23CW001-1
NOTE: Item # 200 installed
with wall oven only.

FEB30XPF Publication No.
5995314027
# = Functional Part 310/98
* = Non-Illustrated Part
BODY
A=FEB30XPF (FEB30XPFSA)
B=FEB30XPF (FEB30XPFBA)
POS. NO PART NO DESCRIPTION
14 5303051533 A B Pilot light
36A 318165101 A-Knob-warmer, white
36A 318165103 -BKnob-warmer, gray
46 5308006417 A B Lens-light
54B 316095500 A B Switch-warmer
81 # 316093100 A B Element warmer drawer
84# 318005103 A B Thermostat
84A# 318005104 A B Thermostat-safety
86 316095800 A B Clip-hold down, warmer
195 318078701 A B Plate service cord
196 318100101 A B Cover access
197 318144000 A B Service cord
198 08008009 A B Bushing
199 5303324184 A B Screw (8X5/16)
200 318091201 A B Bracket installed with wall oven only
201 318145101 A B Wrapper upper
202 318121601 A B Wrapper lower
203 318025711 A B Bracket side panel
203A 318025701 A B Bracket side panel
204 318021902 A-Decorative plate white
204 318021901 -BDecorative plate black
205 318123711 A B Side panel RH
205A 318123701 A B Side panel LH
206 5304407910 A B Strain relief
207 318143601 A B Panel wires
209 318162401 A B Bracket wall
210 318145901 A B Support top trim
211 318145801 A B Support bottom trim
212 318145703 A B Support side trim RH
212A 318145701 A B Support side trim LH
214 318083501 A-Top & bottom trim white
214 318083500 -BTop & bottom trim black
215 318083511 A-Side trim LH &RH white
215 318083510 -BSide trim Lh & RH black
216 318070801 A-End Cap-trim white
216 318070800 -BEnd Cap-trim black
* 5303211311 A B Screw #8 X ½
* 5303323140 A B Screw ground 10-32 X 3/8
* 5304400796 A B Plug

FEB30XPF Publication No.
5995314027
10/98 4
DRAWER
13
13A
1
124A
124
122
123
39
20
20
121
120
85
80
10
10
LA23CD019-2

FEB30XPF Publication No.
5995314027
510/98
DRAWER
A=FEB30XPF (FEB30XPFSA)
B=FEB30XPF (FEB30XPFBA)
POS. NO PART NO DESCRIPTION
1 318142500 A B Drawer-warmer
10 3051070 A B Screw 10-24 X 7/16
13 316094900 A B Rail-drawer RH outer
13A 316094901 A B Rail-drawer RH outer
20 318014301 A-Spacer-handle white
20 318014300 -BSpacer-handle black
39 316091111 A-Handle-door white
39 316091113 -BHandle-door black
80 318052700 A B Seal-door, warmer drawer
85 316093600 A B Rack, warmer drawer
120 318051701 A-Glass drawer, white
120 318051700 -BGlass drawer, black
121 318100201 A B Front panel drawer
122 318135201 A B Interior-panel
123 318088601 A-Bracket glass, white
123 318088600 -BBracket glass, black
124 316096500 A B Channel-drawer RH
124A 316096501 A B Channel-drawer LH

Publication No. FEB30XPF
5995314027
10/98 6

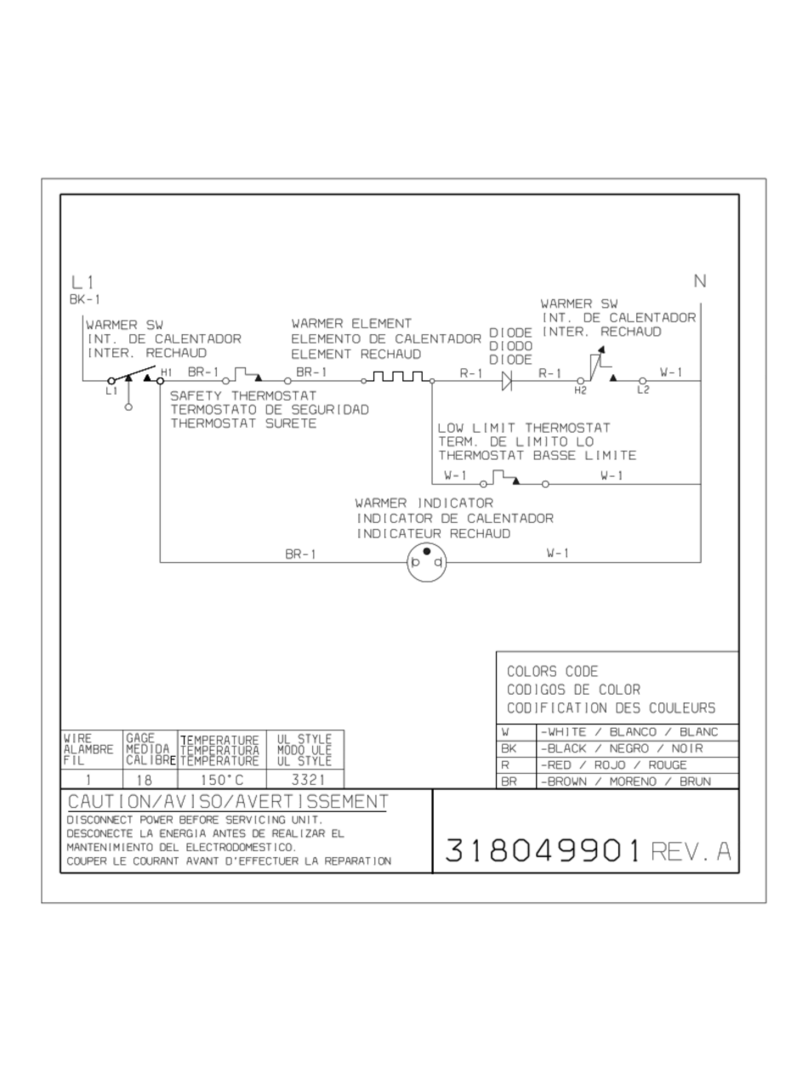

WIRING DIAGRAM
