TABLE OF CONTENTS
137337200B (1202)

2
IMPORTANT SAFETY INSTRUCTIONS
Read all instructions before using this appliance. This
book contains valuable information about:
• Operation
• Care
• Service
Keep it in a safe place.
Record Your Model and Serial Numbers
The model and serial numbers of your washer are found
on the washer serial plate located on the inside of the
door. Record and retain these numbers.
Model Number _____________________
Serial Number _____________________
Purchase Date _____________________
This Use and Care Guide provides general operating
instructions for your washer. It also contains information
about features for several other models. Your washer
may not have every feature included.
Use the washer only as instructed in this Use & Care
Guide .
Product Record
Save these instructions for
future reference.
ÍNOTE
The instructions appearing in this Use and Care
Guide are not meant to cover every possible condition
and situation that may occur. Common sense and cau-
tion must be practiced when installing, operating and
maintaining any appliance.
WARNING
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
IMPORTANT
IMPORTANT indicates installation, operation or
maintenance information which is important but not
hazard-related.
DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
Definitions
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury
or death.
CAUTION
CAUTION indicates a potentially hazardous situation
which, if not avoided, may result in minor or moderate
injury.
WARNING
Please read all instructions before using this washer.
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:

3
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic
warnings listed below. Failure to comply with these warnings could result in serious personal injuries.
You can be killed or seriously injured if you don’t follow these Important Safety Instructions:
PREVENT FIRE
• Do not wash items that have been previously cleaned
in, soaked in, or spotted with gasoline, cleaning sol-
vents, kerosene, cooking oils, waxes, etc. Do not store
these items on or near the washer. These substances
give off vapors or chemical reactions that could ignite
or explode.
• Do not put oily or greasy rags or clothing on top of the
washer. These substances give off vapors that could
ignite the materials.
• Do not add gasoline, cleaning solvents, or other flam-
mable or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
• Under certain conditions, hydrogen gas may be pro-
duced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE.
If the hot water system has not been used for such a
period, before using the washer, turn on all hot water
faucets and let the water flow from each for several
minutes. This will release any accumulated hydrogen
gas. Hydrogen gas is flammable; do not smoke or use
an open flame during this time.
• Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
• Failure to comply with these warnings could result in
fire, explosion, serious bodily injury and/or damage to
the rubber or plastic parts of the washer.
PROTECT CHILDREN
• Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer
is used near children. As children grow, teach them the
proper, safe use of all appliances.
• Destroy the carton, plastic bag and other packing ma-
terials after the washer is unpacked. Children might use
them for play. Cartons covered with rugs, bedspreads
or plastic sheets can become airtight chambers.
• Keep laundry products out of children’s reach. To pre-
vent personal injury, observe all warnings on product
labels.
• Before the washer is removed from service or dis-
carded, remove the washer door to prevent accidental
entrapment.
• Failure to comply with these warnings could result in
serious personal injuries.

4
IMPORTANT SAFETY INSTRUCTIONS
Grounding type
Grounding type
wa
wa
ll receptacl
ll receptacle
Po
Po
wer cord with
wer cord with
3-prong
3-prong
gr
gr
ounded plug
ounded plug
Do not,
Do not,
under
under
an
an
y cir
y cir
cumstances,
cumstances,
cut,
cut,
remo
remo
ve
ve,
or b
or b
ypass th
ypass the
gr
gr
ounding pr
ounding pr
ong.
ong.
PREVENT INJURY
• To prevent shock hazard and assure stability during
operation, the washer must be installed and electrically
grounded by a qualified service person in accordance
with local codes. Installation instructions are packed in
the washer for installer’s reference. Refer to
INSTAL-
LATION INSTRUCTIONS for detailed grounding
procedures. If the washer is moved to a new location,
have it checked and reinstalled by a qualified service
person.
• To prevent personal injury or damage to the washer,
the electrical power cord of the washer must be
plugged into a properly grounded and polarized
3-prong outlet. The third grounding prong must never
be removed. Never ground the washer to a gas pipe.
Do not use an extension cord or an adaptor plug.
• Follow package directions when using laundry products.
Incorrect usage can produce poisonous gas - resulting
in serious injury or death.
• Do not combine laundry products for use in 1 load un-
less specified on the label.
• Do not mix chlorine bleach with ammonia or acids such
as vinegar.
PREVENT INJURY AND DAMAGE TO THE WASHER
To prevent serious personal injury and damage to the
washer:
• All repairs and servicing must be performed by an
authorized servicer unless specifically recommended
in this Use & Care Guide. Use only authorized factory
parts.
• Do not tamper with controls.
• Do not install or store the washer where it will be ex-
posed to the weather.
• Do not install on carpet. Install washer on a solid floor.
It may be necessary to reinforce the floor to prevent
vibration or movement.
• Do not sit on, step on or stand on the washer. Do not
rest heavy loads on top. The washer is not meant to
support weight.
• To reduce the risk of electric shock, disconnect this
appliance from the power supply before attempting
any user maintenance. Turning the controls to the OFF
position does not disconnect this appliance from the
power supply.
• To prevent injury, do not reach into the washer while
parts are moving. Before loading, unloading or add-
ing items, push in the cycle selector knob and allow
the drum to coast to a complete stop before reaching
inside.
• This washer is equipped with an electrical overload pro-
tector. The motor will stop if it becomes overheated.
• Failure to comply with these warnings could result in
serious personal injuries.
WARNING
FIRE/ELECTRICAL SHOCK HAZARD
Avoid fire hazard or electrical shock. Do not use an
adaptor plug or extension cord or remove grounding
prong from electrical power cord. Failure to follow this
warning can cause serious injury, fire or death. WARNING
HARMFUL VAPOR HAZARD
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
cause serious injury or death.

5
FEATURES
As an ENERGY STAR®Partner, Electrolux
Major Appliances has determined that this
product meets the ENERGY STAR®guidelines
for energy efficiency.
Control Lock
Door Latch with
Safety Lock
Cycle Selector
Laundry Product
Dispenser Drawer
Cascading
Wash Vanes
Stainless Steel
Wash Drum
Adjustable
Leveling Legs
LED Display
Door Striker
Vent Latch
Inner glass with small
article redistribution ramp

6
OPERATING INSTRUCTIONS
CAUTION
Abnormal, on-going sounds may be an indication of a
pending washer failure and should be investigated by a
qualified technician.
Normal Operating Sounds
You may or may not hear the following sounds from your
new washer:
A. DRAIN HOSE The washer has a flexible drain hose
to carry water from the washer to the stand pipe of
your home. You will hear water flowing into your stand
pipe. This is a normal part of the operation of the
washer.
B. WATER VALVES/DISPENSER As water enters
the dispenser system, it is common to hear a water
flowing sound. This normal sound will vary slightly
based on the water pressure in your home.
C. DRAIN PUMP Your washer is equipped with a high
velocity drain pump. It is normal to hear humming and
gurgling sounds as water is pumped from the washer.
Both of these sounds are normal and indicate that
your pump is functioning correctly.
D. HIGH SPEED MOTOR A powerful motor is used to
drive the drum to high spin speeds to extract water
from your load. You will hear a sound associated with
these higher spin speeds. This sound is normal and
will vary slightly as the spin speed varies with load size
and cycle selected.
A
B
C
D

7
OPERATING INSTRUCTIONS
Operating Your Washer
WARNING
To reduce the risk of fire, electric shock or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS in
this Use and Care Guide before operating your washer.
W
H
I
T
E
S
C
A
S
U
A
L
C
O
L
O
R
S
T
O
W
E
L
S
(Mesh bag not included.)

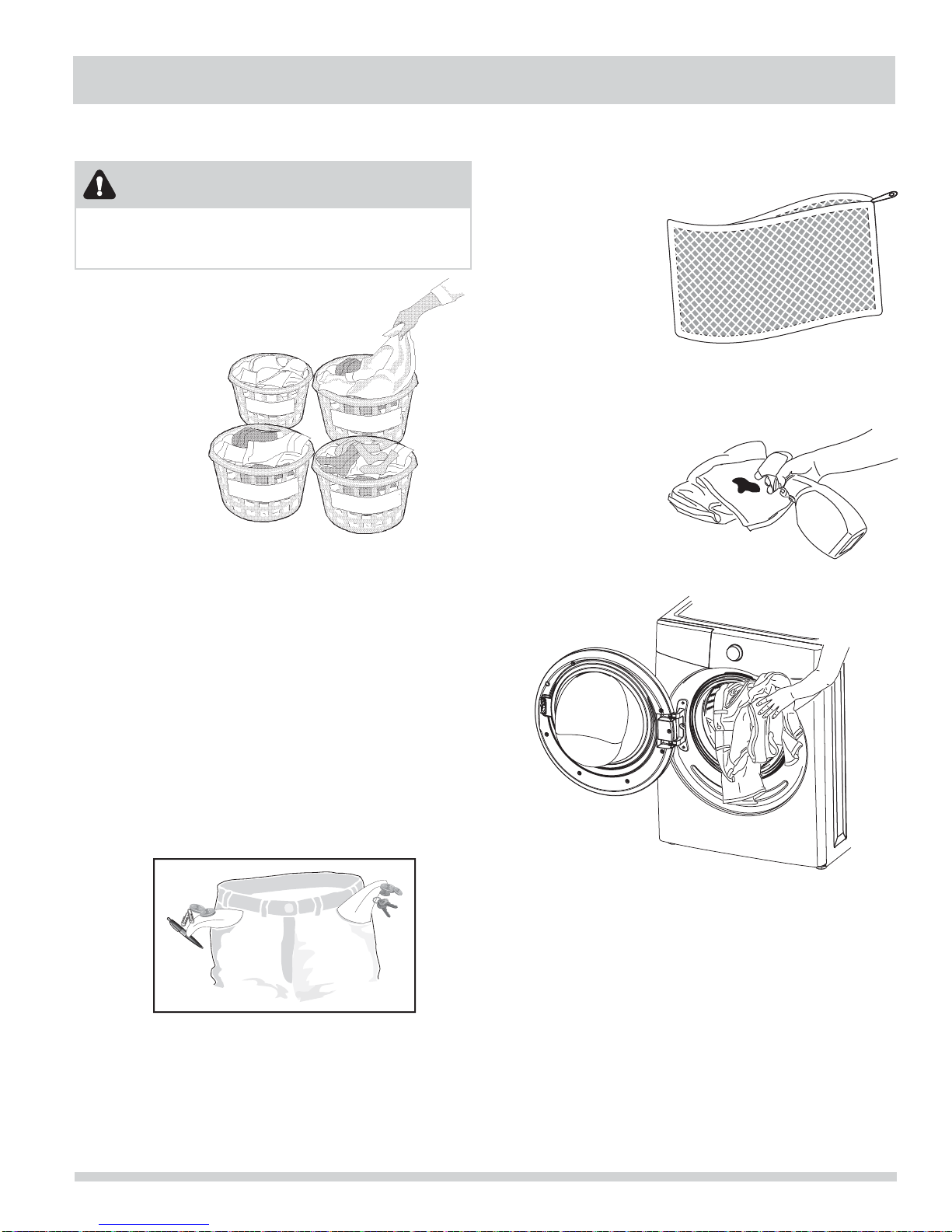

1Sort laundry into loads that can
be washed together.
• Sort items
by recom-
mended cycle
and water temperature.
• Separate white, light and colorfast items from dark
and non-colorfast items.
• Separate items that shed lint from items that at-
tract lint. Casual, synthetic, knit, and corduroy
items will pick up lint from towels, rugs, and che-
nille bedspreads.
• Separate heavily soiled items from lightly soiled
items.
• Separate lacy, sheer, loosely knit, or delicate items
from durable items.
• Do not machine wash items containing fiberglass.
Small particles of fiberglass left in the drum may
transfer to fabrics in other loads and cause skin
irritation.
2 Prepare items for washing.
• Empty pockets.
• Brush off lint and dirt. Shake out rugs and beach
towels.
• Close zippers, fasten hooks, tie strings and sashes,
and remove non-washable trims and ornaments.
• Mend rips and tears to prevent further damage
during washing.
• Turn knit items inside out to prevent pilling.
• Place delicate and small items such as bras, hosiery
and baby socks in a mesh bag.
• Combine large and small items in a load.
• Load large items first. Large items should not be
more than half the total wash load.
• Washing single items such as a sweater, towel or
jeans is inefficient and may cause an out-of-bal-
ance load. Add 1 or 2 similar items to help balance
the load.
• Wash a single heavy item such as a king-sized
comforter, bedspread or sleeping bag separately.
• The washer can be fully loaded, but the items
should not be tightly packed. The door should close
easily.
3 Pretreat stains and heavy soil.
• See Stain Removal Guide in this guide
for safe, success-
ful stain removal
instructions.
4 Add laundry load to washer.

8
OPERATING INSTRUCTIONS

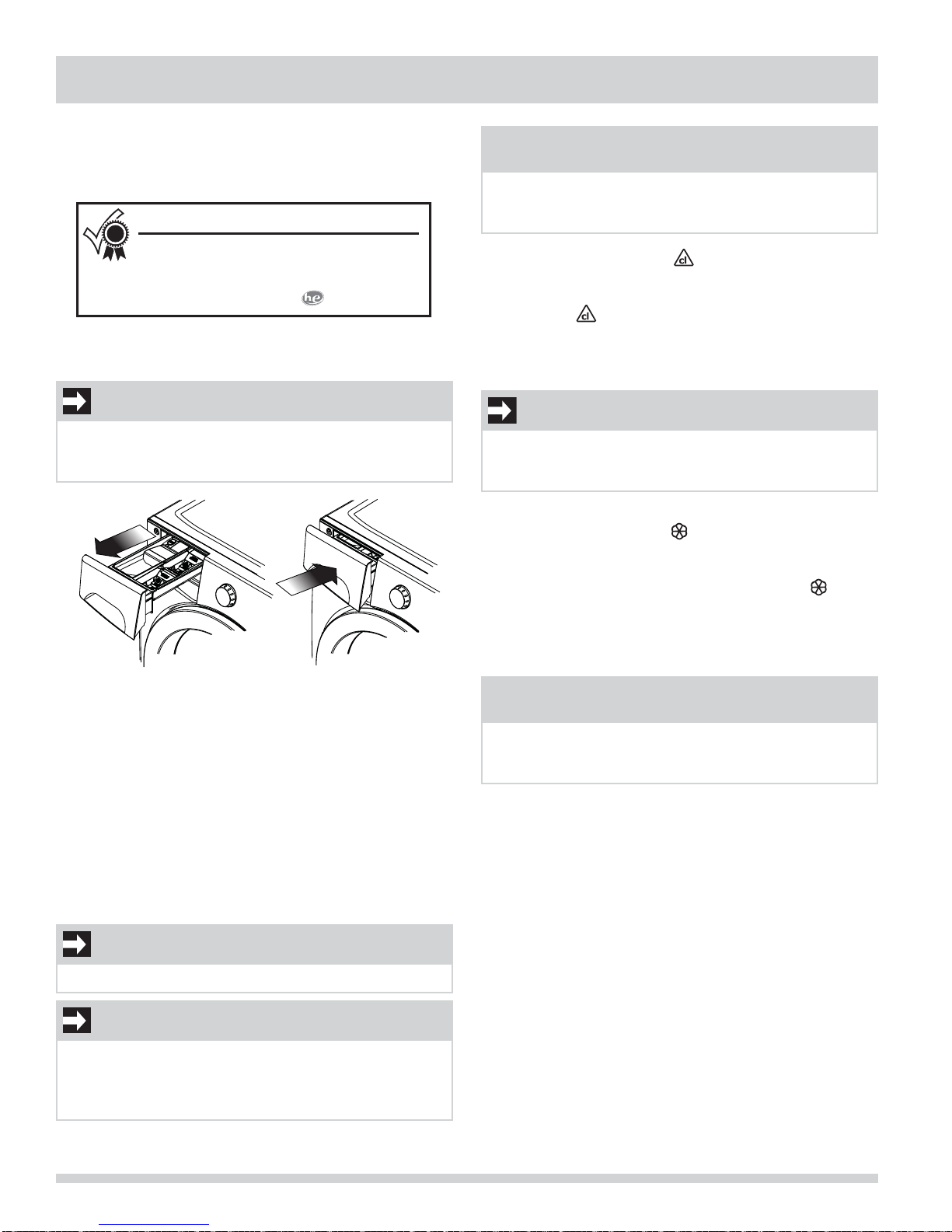

5Add laundry products to the dispenser.
Use a low-sudsing, high efficiency
detergent to prevent oversudsing in
front load washers. Look for this symbol
on the detergent label:
For best results
Detergent, liquid chlorine bleach and liquid fabric soft-
ener will be dispensed at the proper times in the cycle.
Operating Your Washer, continued ÍNOTE
From time to time you may see water in the “LIQUID
BLEACH” and “FABRIC SOFTENER” chambers. This is
part of the normal operation of the washer.
IMPORTANT
To prevent fabric damage, do not overfill the “LIQUID
BLEACH” chamber or pour liquid chlorine bleach
directly onto the load.
ÍNOTE
To prevent staining, do not overfill the “FABRIC
SOFTENER” chamber or pour liquid fabric softener
directly on the wash load.
IMPORTANT
Use of multi-product (detergent plus softener) sheets
or color-absorbing sheets NOT recommended. They
could disable your machine and result in unwarranted
repair costs.
IMPORTANT
Open and close the dispenser drawer slowly. Closing
the drawer too quickly could result in early dispensing
of the bleach or fabric softener.
Liquid or Powder Detergent
• Use the cap or scoop provided by the detergent
manufacturer to measure the amount recommended.
• Detergent dosage may need to be adjusted for
water temperature, water hardness, load size and
soil level.
Other Wash Products
Color-safe bleach, water conditioner, detergent booster
and enzyme products may be added with the deter-
gent. Put liquid products with liquid detergent in the
“DETERGENT WASH” chamber or powder products with
powder detergent in the DETERGENT WASH” chamber.
Liquid Chlorine Bleach
• If desired, add liquid chlorine bleach to the cham-
ber labeled “LIQUID BLEACH” and marked with this
symbol .
• Fill to the MIN line for small loads or the MAX line
for large loads.
• DO NOT fill above the maximum fill line.
IMPORTANT
Do not mix liquids and powders.
• Add color-safe bleach with the detergent.
Liquid Fabric Softener
• If desired, pour the recommended amount of liquid
fabric softener into the chamber labeled “FABRIC
SOFTENER” and marked with this symbol .
• Fill to the MIN line for small loads or the MAX line
for large loads.
• DO NOT fill above the maximum fill line.
• Use of a fabric softener-dispensing ball is not rec-
ommended in tumble action washers.
6 Select the appropriate cycle and settings for
the load.
• Turn the cycle selector knob in either direction to
select the cycle desired.
• The estimated cycle time, suitable wash and rinse
water temperatures, final spin speed, soil level, and
options for each cycle will be indicated for the cycle
selected. See the “Washer Settings Chart” for more
details.
• To change the settings, press the Temp, Spin
Speed and Soil Level buttons to scroll to the
desired settings.

9
OPERATING INSTRUCTIONS
Operating Your Washer, continued
ÍNOTE
To provide the best care for your laundry, not every
setting or option is available with every cycle. If a
setting or option is not available for the cycle selected,
the indicator will not light. ÍNOTE
If the cycle is interrupted during spin, it will take
approximately 2-3 minutes for the door lock to release.
DO NOT force open the door.
Follow the fabric care label instructions
on items to be washed.
For best results
• A signal will sound at the end of the cycle if the
Chime option has been selected.
• Remove items from the washer when the cycle
ends and place in dryer, line dry or dry flat as di-
rected on the fabric care label.
• Excess wrinkling, color transfer or odors may de-
velop in items left in the washer after the cycle has
ended, if not removed promptly.
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
delay

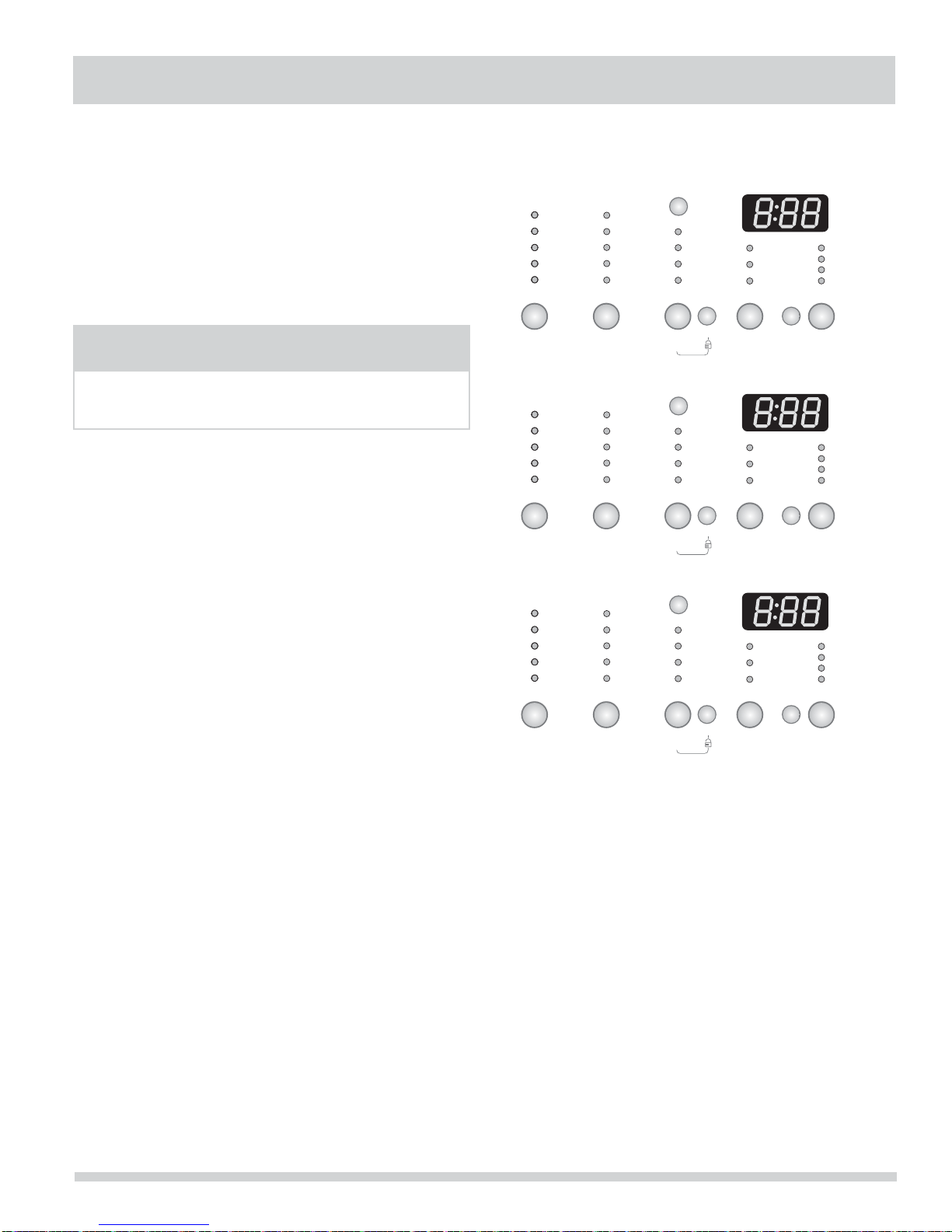

start To return to factory
settings, press these
two buttons at the
same time and
hold until the signal
sounds.
• To select or delete an option, press Options; then,
while the indicator is blinking, press Select. The
indicator will light when the option has been se-
lected. It will no longer be lighted when the option
has been deleted.
• Adjustments to a cycle will be remembered and re-
called each time that cycle is selected in the future.
• If changes to the settings or options are attempted
after the cycle starts, you will hear several beeps
when the buttons are pressed. To change the set-
tings or options, press Pause, make the new selec-
tions and press Start again.
• To change the cycle once the cycle has begun,
press Cancel, select a new cycle, and press Start
again. Just turning the cycle selector knob will not
change the cycle.
• To stop the cycle, press Cancel.
CAUTION
ENTRAPMENT and TIP-OVER HAZARD
Do not leave the door open if there are small children
or pets present. An open door could entice children to
hang on the door or crawl inside the washer. If there
are no small children present, you may leave the door
ajar to prevent odor build up.
7 Start the washer.
• Close the door and press Start. The washer will
not operate with the door open. “ PAU ” will be
displayed as a reminder to close the door.
• Select Delay Start to delay the beginning of the
cycle, if desired.
• As a safety measure, the door will automatically
lock during the entire wash cycle and the Door
Lock indicator will be lighted.
• “Touch Pause to Add a Garment”
To add a forgotten item to the wash drum, press
Pause and open the door. “ PAU ” will be displayed
alternately with the estimated remaining cycle
time. Add the item, close the door and press Start
to resume the cycle.

10
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
sanitize
warm
hot
cold
cold water
clean
max
medium
high
low
no spin
energy saver
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
allergy
quick wash
casual
delicates
heavy/
bulky
rinse &
spin
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
energy saver
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
bulky
delicates
casual
rinse & spin
heavy
spin only
hot
cool
warm
cold
cold water
clean
OPERATING INSTRUCTIONS
Turn the cycle selector in either direction to the cycle
desired. To change the cycle once it has begun, press the Cancel button before selecting a new cycle. Just turning the
cycle selector knob to another selection will not change
the cycle. If the selection is changed after the cycle
starts, the indicator lights will blink, the signal will beep
and “ Err ” will be displayed. The signal will beep and the
status lights will flash, but the original cycle will continue.

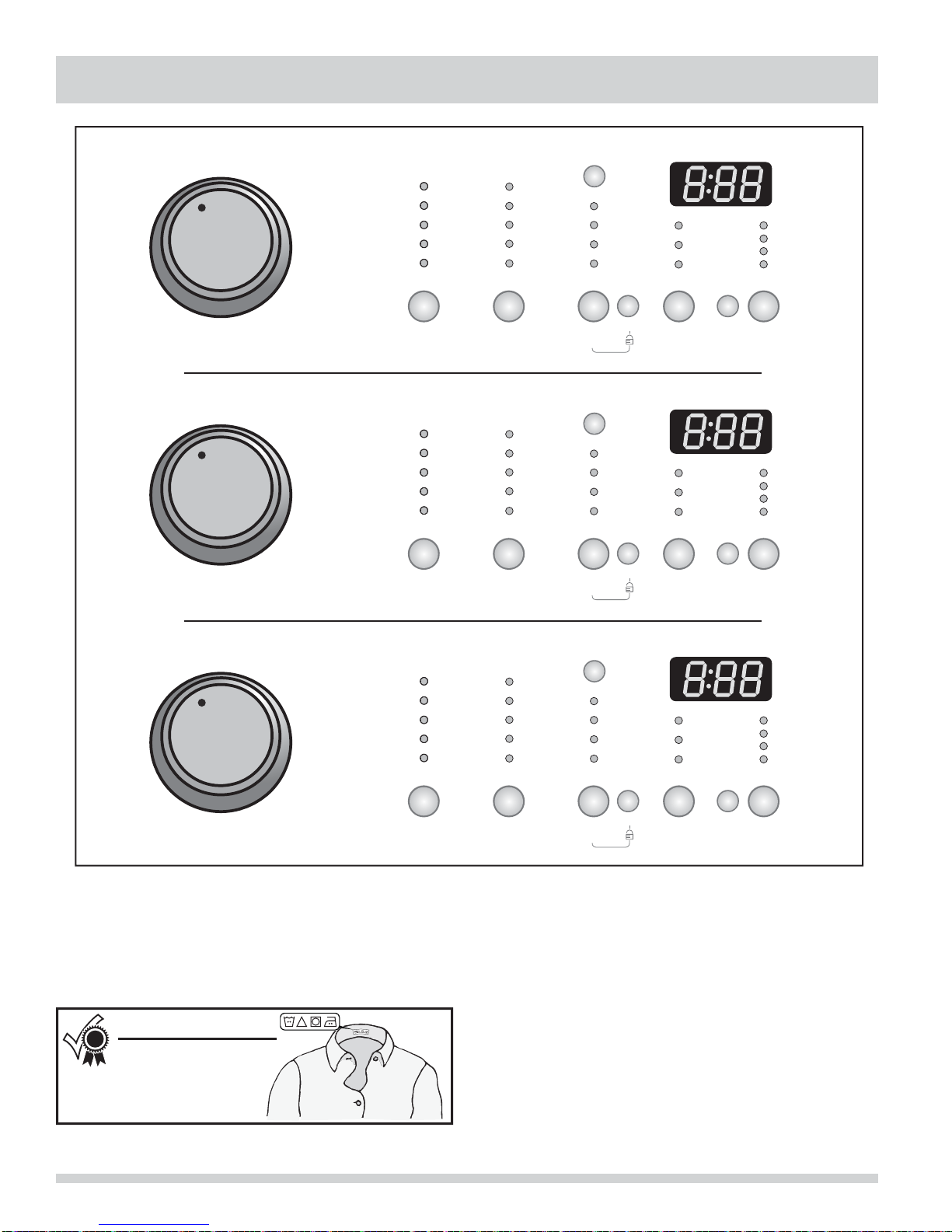

Cycle Selection
This manual covers many models and not all cycles, options, or features listed are available on every model. Console shown
above for reference only. Your model may differ.
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
extended spin
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
bulky
delicates
casual
rinse & spin hot
cool
warm
cold
cold water
clean
Follow the fabric care
label instructions on
items to be washed.
For best results

11
OPERATING INSTRUCTIONS
Cycle Selection, continued
NSF Protolcol P351
Allergen Reduction Performance
of Residential and Commercial,
Family-Sized Clothes Washers
ÍNOTE
This cycle has been certified by NSF International,
an independent third party testing and certification
organization dedicated to public health, safety and
environmental protection.
Whitest Whites (on select models)
Use this cycle for white fabrics and lightly colored
clothing. Refer to fabric care label for use of liquid
chlorine bleach.
Heavy (on select models)
Use this cycle for heavily soiled, durable garments - ex.
towels, sports gear, or fabric tote bags. For best soil
and stain removal, use the hottest water safe for the
fabrics being washed.
Heavy/Bulky (on select models)
Use this cycle for heavily soiled, durable garments - ex.
towels, sports gear, or fabric tote bags. For best soil
and stain removal, use the hottest water safe for the
fabrics being washed.
Bulky (on select models)
This cycle is designed for bulky items such as
comforters, blankets, mattress pads, sleeping bags and
similar items.
Allergy (on select models)
If you have asthma or allergy sufferers in your home,
use this cycle to combine hot water temperature
(boosted with internal heater), fast speed tumbling and
multiple rinses to help ensure the destruction of dust
mites and removal of pet dander.
Normal
Use this load for cotton, linen, towels, shirts, sheets,
denims and mixed loads.
Casual
Use this cycle for cottons and blends with a permanent
press or no-iron finish.
Quick Wash (on select models)
Quickly wash a small, lightly soiled load.
Delicates
Use this cycle for lightly soiled knits and delicates which
require gentle washing.
Rinse & Spin
Select Rinse & Spin for loads that need a cold water
rinse or to add fabric softener that may have been
omitted in a regular cycle. Add the fabric softener
to the dispenser chamber. Select the spin speed
appropriate for the load.
Spin Only (on select models)
Use the Spin Only cycle anytime you want to drain
water from the washer and spin out the load or as a
follow-up to a No Spin selection. Select the spin speed
appropriate to the load.
The Allergy cycle will kill all dust mites and eliminate
at least 95% of pet dander. Since higher temperatures
are required, please check fabric care labels to prevent
damage. Sanitize and Hot temperatures settings are
available.

12
OPERATING INSTRUCTIONS
ÍNOTE
To change the temperature once the cycle has begun,
press the Pause button, make the new selection and
press Start again.
Auto Temp wash water temperatures are automatically
regulated to maximize detergent effectiveness and
improve washing performance. The water heater setting
and its distance from the washer, water usage in other
parts of the home, and seasonally low ground water
temperature in some geographic areas can affect water
temperature.
Sanitize (on select models)
This setting sanitizes heavily soiled colorfast fabrics
such as towels, bedding, and children’s clothing by
killing 99.9% of bacteria using wash water heated with
a boost heater to 152° F (67° C). Cold water is used to
cool and rinse the load.
NSF Protocol P172
Sanitization Performance of Residential
and Commercial, Family-Sized Clothes
Washers
Hot
Use this setting for heavily soiled white or colorfast
cottons and blends.
Warm
Use this setting for normally soiled white or colorfast
cottons or blends.
Cool (on select models)
Use this setting for normally soiled sheets, casual items
and washable woolens.
Cold
Some warm water will automatically blend with cold
tap supply to achieve a precise Auto Temp Cold. Use
this setting for lightly soiled non-colorfast items, knits,
delicates, and hand washables.
Cold Water Clean
Wash and rinse temperatures are equivalent to
temperature of cold tap supply. Use this selection for
fabrics and colors that are prone to dye transfer. For
use with cold water detergents.
SPIN SPEED
SOIL LEVEL
Maximum, High, Medium and Low spin speeds are
available for each cycle. The spin speed and/or duration
of final spin vary from model to model and cycle to cycle.
Increasing the spin speed will extract more water,
decrease drying time and conserve energy. Decreasing
the spin speed will reduce wrinkling.
Select Low spin speed to gently spin items that should
be line dried.
Use No Spin to omit the final spin at the end of the
cycle. The load will be very wet. Remove items from the
wash drum to drip dry or select a Spin Only or Rinse
and Spin cycle to remove excess water at a more
convenient time.
Adjust the wash time based on the soil level of each load.
Heavy, Normal, and Light Soil Levels are available.
ÍNOTE
Only sanitizing cycles have been designed to meet the
requirements of NSF P172 protocol for sanitization
efficacy.
Cycle Settings
WASH WATER TEMPERATURE
Follow the fabric care label instructions
on items to be washed.
For best results
To change the temperature, press the Temperature button
to scroll to the desired setting. Select a wash water
temperature according to fiber content, colorfastness and
soil level. A cold water rinse saves energy and reduces
wrinkling.
To protect your fabrics, not all temperatures are available
with every cycle. The indicator will not light if the setting
is not available with that cycle. The temperature selected
for the cycle will be remembered and recalled each time
that cycle is selected in the future.
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
delay
start To return to factory
settings, press these
two buttons at the
same time and
hold until the signal
sounds.

13
OPERATING INSTRUCTIONS
To select or delete the Chime, Stain Clean, Energy
Saver, or Fresh Water Rinse, press Options until the
blinking light indicates the desired option. Then, while
it is blinking, press Select. The indicator will light when
the option has been selected. It will no longer be lighted
when the option has been removed.
Not all options are available on every model or are
compatible with every cycle. The indicator will not light if
the option is not available with that cycle.
The options selected for the cycle will be remembered
and recalled each time that cycle is selected in the future.
To return to factory settings, press the Start/Pause and
Select buttons at the same time and hold until the signal
sounds.
Chime
A signal will sound at the end of the cycle if this option
is selected. The signal has an adjustable volume level
or can be turned off.
Stain Clean
Use the Stain Clean option to add a 5-minute soak in
the middle of the wash portion of any cycle except
Quick Wash and Delicates.
Energy Saver (on select models)
The Energy Saver option reduces the warm water
temperature a few degrees to save energy and also
extracts more water to reduce drying time.
Extended Spin (on select models)
Use this option to add minutes to the final spin at the
selected Spin Speed. This will improve water extraction,
decrease drying time and save energy.
Freshwater Rinse
Use this option when additional rinsing is desired to
remove excess dirt and detergent. It is recommended
for heavily soiled loads or if household members have
sensitive skin.
Cycle Options
ÍNOTE
To change the options once the cycle has begun, press
the pause button, make the new selection and press
start again.
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
extended spin
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
hot
cool
warm
cold
cold water
clean
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
energy saver
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
hot
cool
warm
cold
cold water
clean
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
extended spin
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
hot
cool
warm
cold
cold water
clean

14
OPERATING INSTRUCTIONS
Other Features
Delay Start
Press delay start to select a wash time convenient to
your schedule or during off peak energy hours. The delay
time selected will be displayed and begin counting down
when you select START.
Control Lock
To avoid having someone accidentally start the washer,
press options and select at the same time and hold
for 10 seconds until “ LOC ” is displayed alternately with
the estimated cycle time. To unlock the controls, press
Options and Select at the same time and hold 10 seconds
until “ LOC ” is no longer displayed.
Status Display/Status Lights
The estimated total cycle time will be displayed when
the cycle is selected. The time may increase if water
pressure is low, oversudsing occurs or the load becomes
unbalanced. The estimated remaining cycle time is
displayed during the cycle. The following indicators may
be lighted during the cycle:
• Door Lock
• Sensing
• Wash
• Touch Pause to Add a Garment
Vent Latch
Help prevent odor buildup and mildew between washes
by utilizing your washer’s vent latch feature. To apply the
vent latch, (1) open the door slightly, (2) lift the latch
arm and then (3) press the arm down onto the plastic
door strike, snapping it in place.
The vent latch can be released either of two ways - by
pulling door out and manually returning latch arm to
lower position or by pushing door shut and allowing latch
arm to continue its pivot upward.
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
delay
start
Press and hold both for ten seconds
to lock or unlock the controls.
ÍNOTE
The vent latch may become dislodged from hinge point
if door closure is attempted while latch arm is not in
an acceptable closing position. The latch arm can be
snapped back in at the hinge location. Washer will still
operate without latch arm installed.
1
2
3
SNAP
HINGE
IMPORTANT
Do not attempt to close door if vent latch arm is
disengaged and arm is in an outward position. Return
latch arm to lower position before closing and latching
the door.

15
OPERATING INSTRUCTIONS
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
extended spin
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
bulky
delicates
casual
rinse & spin hot
cool
warm
cold
cold water
clean
These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles:
Bulky Normal Casual Delicates Rinse & Spin
Auto Temp
Hot 99
Warm 9999
Cool 9999
Cold 9999
Cold Water Clean 99999
Spin Speed
Max 99 9
High 999 9
Medium 99999
Low 99999
No Spin 9999
Soil Level
Heavy 99
Normal 9999
Light 999
Options
Chime 99999
Stain Clean 9999
Extended Spin 9
Freshwater Rinse 99999
Delay Start 99999
9Available selections
Shaded areas represent factory presets.

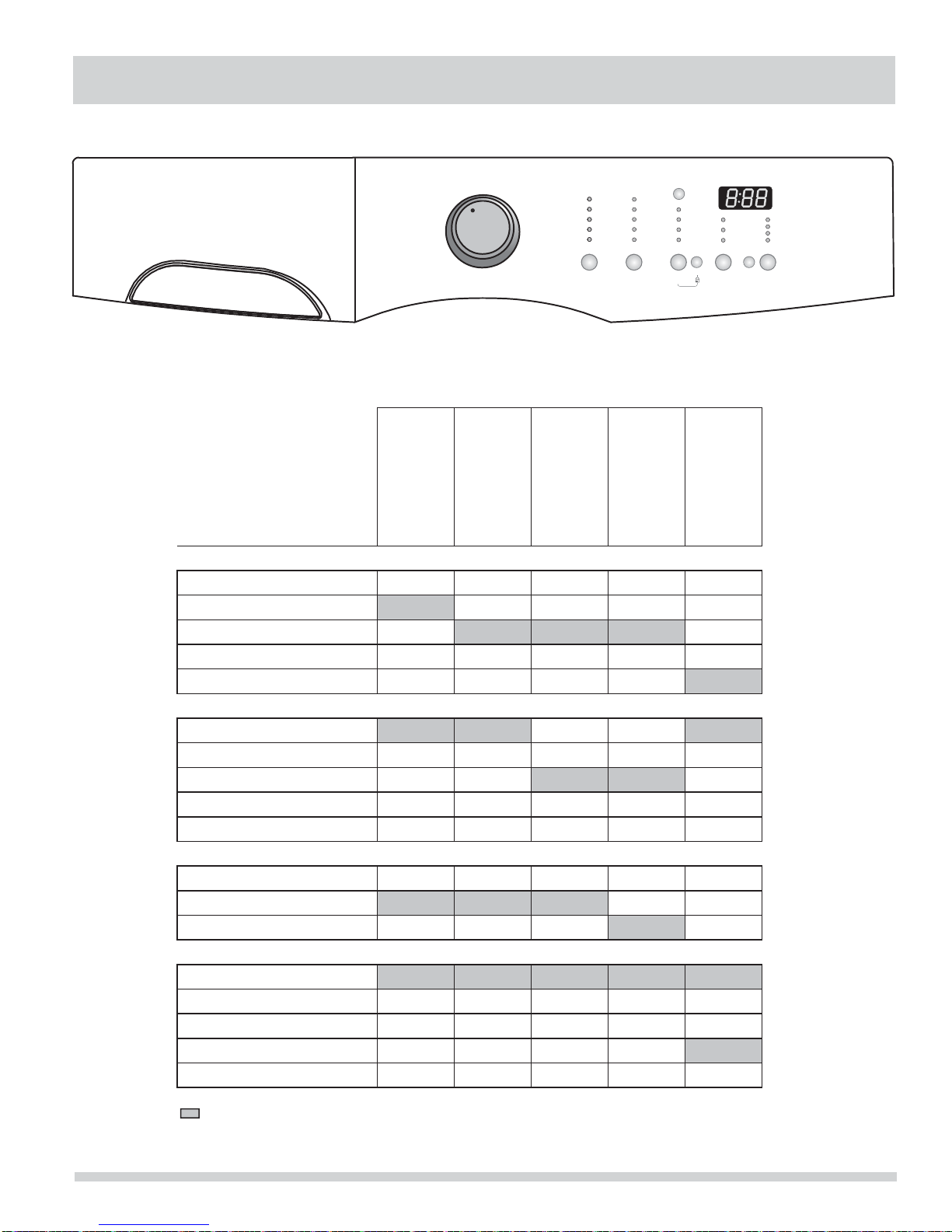

Washer Settings Chart

16
OPERATING INSTRUCTIONS
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
max
medium
high
low
no spin
energy saver
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
bulky
delicates
casual
rinse & spin
heavy
spin only
hot
cool
warm
cold
cold water
clean
These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles:
Heavy Bulky Normal Casual Delicates Rinse & Spin Spin Only
Auto Temp
Hot 999
Warm 99999
Cool 99999
Cold 99999
Cold Water Clean 999999
Spin Speed
Max 999 99
High 9999 99
Medium 9999999
Low 999999
No Spin 99999
Soil Level
Heavy 999
Normal 99999
Light 999
Options
Chime 9999999
Stain Clean 99999
Energy Saver 99
Freshwater Rinse 999999
Delay Start 9999999
9Available selections
Shaded areas represent factory presets.

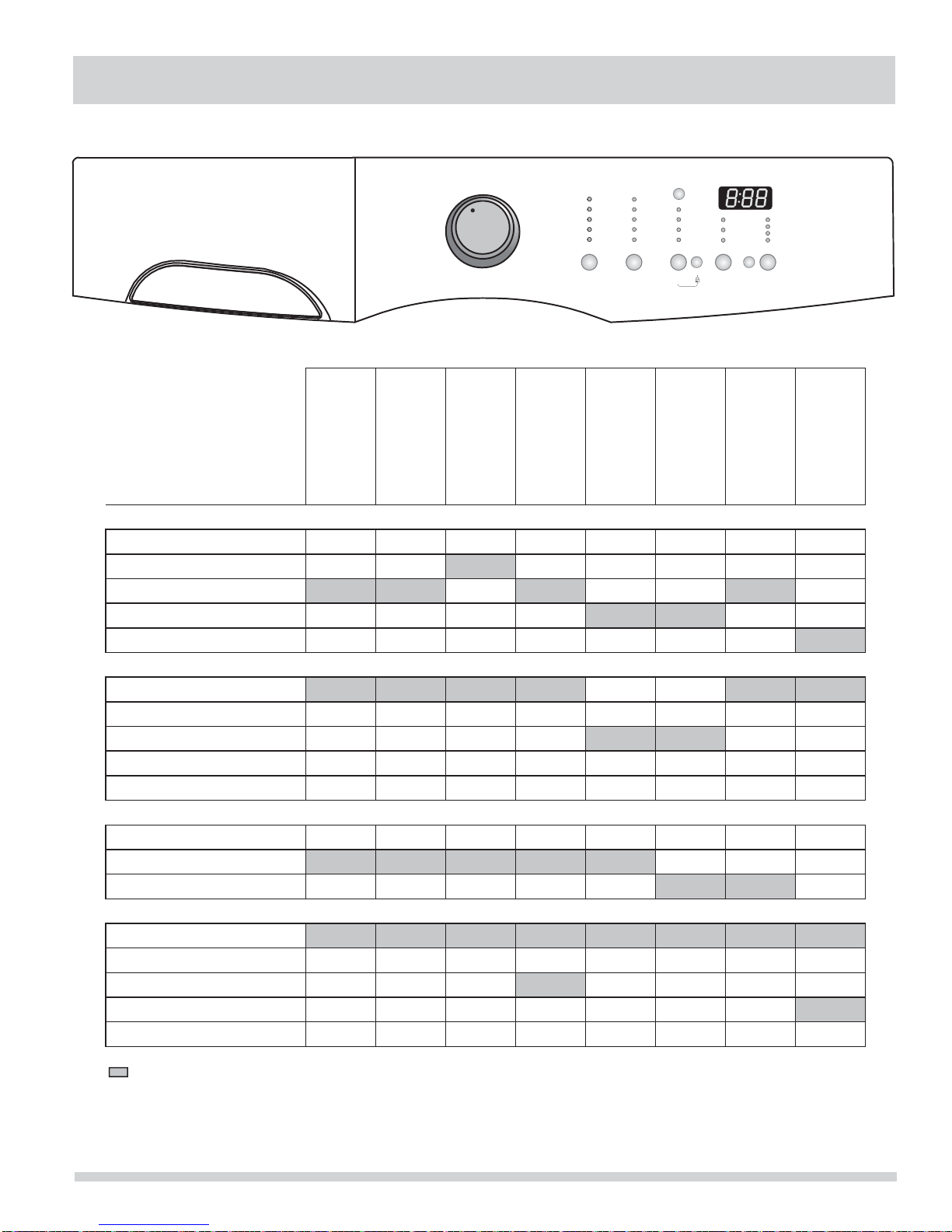

Washer Settings Chart

17
OPERATING INSTRUCTIONS
heavy
normal
light
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
sanitize
warm
hot
cold
cold water
clean
max
medium
high
low
no spin
energy saver
stain clean
freshwater
rinse
chime
door lock
sensing
wash
touch pause
to add a garment
delay
start
normal
allergy
quick wash
casual
delicates
heavy/
bulky
rinse &
spin
These Temperature, Spin Speeds, Soil Levels and Options are available with the following cycles:
Whitest Whites (on select models) Heavy/Bulky Allergy Normal Casual Delicates Quick Wash Rinse & Spin
Auto Temp
Sanitize 99
Hot 9999
Warm 99 9999
Cold 99 9999
Cold Water Clean 99 99999
Spin Speed
Max 9999 99
High 99999 99
Medium 999999 9
Low 9999 9
No Spin 999 9
Soil Level
Heavy 9999
Normal 999999
Light 9999
Options
Chime 99999999
Stain Clean 9999999
Energy Saver 99 9
Freshwater Rinse 99999999
Delay Start 99999999
9Available selections
Shaded areas represent factory presets.
Washer Settings Chart

18
STAIN REMOVAL GUIDE
Follow the fabric care label instructions
on items to be washed.
For best results
Safe Stain Removal Procedures
To reduce the risk of fire or serious injury to persons or
property, comply with the basic warnings listed below:
• Read and comply with all instructions on stain re-
moval products.
• Keep stain removal products in their original labeled
containers and out of children’s reach.
• Thoroughly wash any utensils used.
• Do not combine stain removal products, especially
ammonia and chlorine bleach. Dangerous fumes can
result.
• Never wash items which have been previously
cleaned in, washed in, soaked in or spotted with
gasoline, dry cleaning solvents or other flammable
or explosive substances because they give off vapors
that could ignite or explode.
• Never use highly flammable solvents, such as gaso-
line, inside the home. Vapors can explode on contact
with flames or sparks.
For Successful Stain Removal:
• Remove stains promptly.
• Determine the kind of stain, then follow the recom-
mended treatment in the stain removal chart on the
next page.
• To pretreat stains, use a prewash product, liquid
detergent, or a paste made from powder detergent
and water.
• Use cold water on unknown stains as hot water can
set stains.
• Consult care label instructions for treatments to avoid
on specific fabrics.
• Check for colorfastness by testing stain remover prod-
ucts on an inside seam.
• Rinse and wash items after stain removal.
WARNING
HARMFUL VAPOR HAZARD
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
cause serious injury or death.

19
STAIN REMOVAL GUIDE
STAIN TREATMENT
Adhesive tape, chewing
gum, rubber cement Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with pre- wash stain remover or nonflammable dry cleaning fluid.
Baby formula, dairy
products, egg Use product containing enzymes to pretreat or soak stains. Soak for 30 minutes or more. Wash.
Beverages (coffee, tea,
soda, juice, alcoholic
beverages)
Pretreat stain. Wash using cold water and bleach safe for fabric.
Blood Rinse with cold water. Rub with bar soap. Or, pretreat or soak with product containing
enzymes. Wash using bleach safe for fabric.
Candle wax, crayon Scrape off surface wax. Place stain face down between paper towels. Press with warm
iron until wax is absorbed. Replace paper towels frequently. Treat remaining stain with
prewash stain remover or nonflammable dry cleaning fluid. Hand wash to remove sol-
vent. Wash using bleach safe for fabric.
Chocolate Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Collar or cuff soil, cos-
metics Pretreat with prewash stain remover or rub with bar soap.
Dye transfer on white
fabric Use packaged color remover. Wash using bleach safe for fabric.
Grass Pretreat or soak in warm water using product containing enzymes. Wash using bleach
safe for fabric.
Grease, oil, tar (but-
ter, fats, salad dressing,
cooking oils, car grease,
motor oils)
Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy
stains and tar, apply nonflammable dry cleaning fluid to back of stain. Replace towels
under stain frequently. Rinse thoroughly. Wash using hottest water safe for fabric.
Ink Some inks may be impossible to remove. Washing may set some inks. Use prewash stain
remover, denatured alcohol or nonflammable dry cleaning fluid.
Mildew, scorch Wash with chlorine bleach if safe for fabric. Or, soak in oxygen bleach and hot water
before washing. Badly mildewed fabrics may be permanently damaged.
Mud Brush off dry mud. Pretreat or soak with product containing enzymes.
Mustard, tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Nail polish May be impossible to remove. Place stain face down on paper towels. Apply nail pol-
ish remover to back of stain. Repeat, replacing paper towels frequently. Do not use on
acetate fabrics.
Paint, varnish WATER BASED: Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it
cannot be removed. OIL BASED AND VARNISH: Use solvent recommended on can label.
Rinse thoroughly before washing.
Perspiration Use prewash stain remover or rub with bar soap. Rinse. Wash using nonchlorine bleach
in hottest water safe for fabric.
Rust, brown or yellow
discoloration Use rust remover safe for fabric. Do not use chlorine bleach because it may intensify discoloration.
Shoe polish LIQUID: Pretreat with a paste of powder detergent and water. PASTE: Scrape residue
from fabric. Pretreat with prewash stain remover or nonflammable dry cleaning fluid.
Rinse. Rub detergent into dampened area. Wash using bleach safe for fabric.
Tomato Pretreat with prewash stain remover. Wash using bleach safe for fabric.
Urine, vomit, mucus,
feces Pretreat or soak in product containing enzymes. Wash using bleach safe for fabric.
Wine Pretreat or soak in cold water. Wash in hottest water and bleach safe for fabric
Stain Removal Suggestions

20
CARE AND CLEANING
Inside Routine Cleaning (Preventive)
WARNING
HARMFUL VAPOR HAZARD
Do not use or mix liquid chlorine bleach with other
household chemicals such as toilet cleaners, rust
removers, acid or products containing ammonia. These
mixtures can produce dangerous fumes which can
cause serious injury or death.
To help prevent odors, mold or mildew, leave the door
open for a few hours after use or whenever the washer is
not in use.
TO REFRESH OR CLEAN INSIDE OF WASHER
To clean and freshen the washer, perform the system
clean cycle. For best results use the system clean cycle
once a month. To begin the cycle, press and hold the
spin speed and options buttons simultaneously for 10
seconds until the display changes to “CLn” .
REMOVE ALL ITEMS FROM WASH DRUM before filling
the detergent chamber with one (1) cup of liquid chlorine
bleach OR one (1) pouch of TIDE®WASHING MACHINE
CLEANER. DO NOT use both. Press START to begin.
ÍNOTE
If the system clean cycle is cancelled or paused
during the cycle, the washer will go through 2 rinse
cycles to clean the drum of any residual bleach before
unlocking the door.
Immediately follow up with a rinse &
spin cycle. Select fresh rinse on max
spin speed with no detergent or bleach
to help clear any residual bleach left
after the system clean cycle.
For best results
IMPORTANT
Items left in washer while performing the system
clean cycle will cause a severe out-of-balance situation
that could damage the washing machine.
CAUTION
ENTRAPMENT and TIP-OVER HAZARD
Do not leave the door open if there are small children
or pets present. An open door could entice children to
hang on the door or crawl inside the washer. If there
are no small children present, you may leave the door
ajar to prevent odor build up.
cancel
spin
speed
START
pause
soil
level
options
select
auto
temp
delay
start
Press and hold both for ten seconds
to enter system clean cycle.
