Table of Contents
Important Instructions . . . . . . . . . . . . . . . . . . . . . 6
1 FRITZ!Fon M2 at a Glance . . . . . . . . . . . . . . . . . . . 8
1.1 Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.2 Keys and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.3 Icons in the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.4 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2 Starting Operation of the FRITZ!Fon M2 . . . . . . . 13
2.1 Inserting the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2 Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.3 Registering FRITZ!Fon M2 with the Base Station . . . . . . . . 15
2.4 Navigating in the Menus . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3 Making Telephone Calls . . . . . . . . . . . . . . . . . . . 19
3.1 Dialing Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.2 Accepting Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.3 Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.4 Switching Off Ring Tone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.5 Hands-Free Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.6 Muting the Microphone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.7 Switching the Keylock On and Off. . . . . . . . . . . . . . . . . . . . 23
3.8 Finding FRITZ!Fon M2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Handbuch_FRITZ!Fon M2-en.fm Seite 2 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 3
4 Using the Telephone Book and Call Lists . . . . . . 25
4.1 Prerequisite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.2 Setting Up a Telephone Book . . . . . . . . . . . . . . . . . . . . . . . 25
4.3 Dialing from the Telephone Book . . . . . . . . . . . . . . . . . . . . 26
4.4 Dialing from Call Lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.5 Finding a Telephone Book Entry . . . . . . . . . . . . . . . . . . . . . 29
4.6 Saving a New Telephone Book Entry. . . . . . . . . . . . . . . . . . 31
4.7 SavingNumbers from the Call List in the Telephone Book. . 31
5 Convenience Functions for Telephone Calls. . . . 33
5.1 Making Internal Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5.2 Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.3 CLIR for One Call (Case by Case) . . . . . . . . . . . . . . . . . . . . . 39
5.4 Alternating Between Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.5 Three-party Conference Call . . . . . . . . . . . . . . . . . . . . . . . . 41
5.6 Call Diversion. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6 Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.1 Setting Up the Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.2 Switching the Alarm On and Off . . . . . . . . . . . . . . . . . . . . . 45
7 Baby Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Handbuch_FRITZ!Fon M2-en.fm Seite 3 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 4
8 Receiving and Sending E-mail. . . . . . . . . . . . . . . 47
8.1 Setting Up an E-mail Account . . . . . . . . . . . . . . . . . . . . . . . 47
8.2 Reading E-mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
8.3 Sending E-mail. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
9 Receiving RSS Feeds . . . . . . . . . . . . . . . . . . . . . . 50
9.1 Setting Up RSS Feeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
9.2 Reading RSS Feeds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
10 Receiving Podcasts . . . . . . . . . . . . . . . . . . . . . . . 52
10.1 Setting Up a Podcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10.2 Listening to a Podcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
11 Receiving Web Radio . . . . . . . . . . . . . . . . . . . . . . 54
11.1 Setting Up a Web Radio Station . . . . . . . . . . . . . . . . . . . . . 54
11.2 Listening to a Web Radio Station . . . . . . . . . . . . . . . . . . . . 55
12 Opening New Messages . . . . . . . . . . . . . . . . . . . 56
13 Setting Up FRITZ!Fon M2 . . . . . . . . . . . . . . . . . . . 57
13.1 “Settings” Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
13.2 Settings in the FRITZ!Box User Interface. . . . . . . . . . . . . . . 58
13.3 DECT Eco: Switch Off Radio When Idle . . . . . . . . . . . . . . . . 60
Handbuch_FRITZ!Fon M2-en.fm Seite 4 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 5
14 Updating the Firmware . . . . . . . . . . . . . . . . . . . . 61
14.1 Preparation: Updating the FRITZ!Box Firmware . . . . . . . . . 61
14.2 Updating the FRITZ!Fon Firmware . . . . . . . . . . . . . . . . . . . . 62
15 Switching WLAN of the FRITZ!Box On and Off. . . 63
16 Customer Service. . . . . . . . . . . . . . . . . . . . . . . . . 64
16.1 Support from the Support Team . . . . . . . . . . . . . . . . . . . . . 64
16.2 Manufacturer’s Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Legal Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Declaration of CE Conformity . . . . . . . . . . . . . . . 67
Disposal Information. . . . . . . . . . . . . . . . . . . . . . 68
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Handbuch_FRITZ!Fon M2-en.fm Seite 5 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 6
Important Instructions
Symbols in this Manual
Safety Instructions
When working with the FRITZ!Fon M2, follow the instructions below to
protect yourself and the device from damage.
Note for Hearing Aid Users
If you wear a hearing aid, FRITZ!Fon can cause unpleasant noises.
These are caused by radio signals coupled into the hearing aid.
This symbol indicates important instructions that must be
observed to avoid malfunctions.
This symbol marks useful hints and tips.
Never let liquids get inside the FRITZ!Fon M2. Otherwise,
electric shocks or short circuits may result.
Do not leave the FRITZ!Fon M2 lying in the sun for longer
periods.
Handbuch_FRITZ!Fon M2-en.fm Seite 6 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 7
Operation Requirements
For operation of FRITZ!Fon M2 the following requirements must be
fulfilled:
•You need a DECT base station that is connected with a tele-
phone line or the Internet and supports the DECT standard.
•The complete range of functions of the FRITZ!Fon M2 is avail-
able when it is used with a FRITZ!Box model that offers DECT
support.
All of the devices involved must have the latest firmware.
Handbuch_FRITZ!Fon M2-en.fm Seite 7 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 8
FRITZ!Fon M2 at a Glance
FRITZ!Fon M2 8
1 FRITZ!Fon M2 at a Glance
FRITZ!Fon M2 is a cordless telephone with which you can make tele-
phone calls on the Internet and the fixed-line network. FRITZ!Fon was
developed especially for the FRITZ!Box, but can be used with other
DECT base stations.
Telephone calls over the Internet can be conducted with FRITZ!Fon in
HD to enjoy natural sound quality.
FRITZ!Fon supports DECT Eco “No Emission”. If all cordless tele-
phones support DECT Eco, your FRITZ!Box can switch off DECT trans-
mission whenever the telephones are on standby.
1.1 Package Contents
•FRITZ!Fon M2
•Charging station
•Power supply unit
•Rechargeable battery
•Printed manual
Handbuch_FRITZ!Fon M2-en.fm Seite 8 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 9
Keys and Functions
FRITZ!Fon 9
1.2 Keys and Functions
Speaker
(speaker for hands-free
calling on reverse)
Display
Right select key
Hang up key
end call
FRITZ!Fon switch on/off
cancel function
Microphone
Left select key
Call list
Navigate
Internal calls
Navigate
Speaker phone key
Call key
accept call
dial call
redialing
Notification key, flashes for
new calls
new messages on the
answering machine
new e-mail, podcasts, RSS
new firmware updates
Menu key
OK key
0 key
open Internet services (press and hold)
for text entry: spaces, special characters
* key
Do Not Disturb (press and hold)
or text entry: special characters
# key
key lock
for text entry: special characters,
capitals (press and hold)
Volume
Navigate
Telephone book
Volume
Navigate
Handbuch_FRITZ!Fon M2-en.fm Seite 9 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 10
Icons in the Display
FRITZ!Fon M2 10
1.3 Icons in the Display
Icon Meaning
Connection established
Connection cleared
Answering machine enabled
Call diversion active
Alarm active
Keypad locked
Do Not Disturb enabled
Hands-free calling enabled
Call in HD
Deletes the last entry
Missed call, message on the answering machine,
firmware update, e-mail, RSS feed or podcast
Quality of connection with base station
Battery state of charge
Handbuch_FRITZ!Fon M2-en.fm Seite 10 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 11
Technical Specifications
FRITZ!Fon 11
1.4 Technical Specifications
•DECT wireless standard
•Free-field range of up to 300 m
•Range in buildings of up to 40 m
•Standby time up to up to 240 hours
•Talking time up to up to 15 hours
•Display: 112 x 65 pixels, monochrome
•Keypad with function keys, control keys and number keys
•2 charging contacts on the bottom
•On/off switch using the hang-up key
•Loudspeaker/microphone
•Dimensions: approx. 145 x 48 x 18 mm
•Weight: 106 g
•Supply voltage of the charging station: 230 V / 50 Hz
•1 battery pack, 750 mAh, 3.7 V
–charging station: charge time about 6 hours
at 10°C to 30°C
–deep discharge protection
Handbuch_FRITZ!Fon M2-en.fm Seite 11 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 12
Technical Specifications
FRITZ!Fon M2 12
•Ambient conditions
–operating temperature: 0 °C – 35 °C
–storage temperature: -20 °C – 45 °C
–relative humidity: 5% – 95%, no condensation
•DECT Eco: with suitable DECT base station, DECT transmission
can be switched off on standby
•Conforms to CE standards
Handbuch_FRITZ!Fon M2-en.fm Seite 12 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 13
Starting Operation of the FRITZ!Fon M2
FRITZ!Fon 13
2 Starting Operation of the FRITZ!Fon M2
2.1 Inserting the Battery

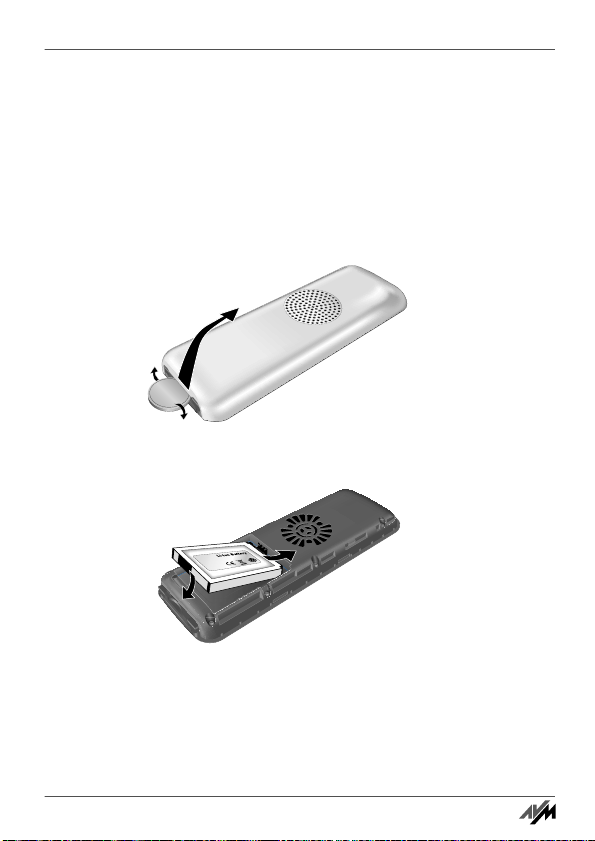

The battery compartment is located on the back of the FRITZ!Fon M2.
1. Place a coin in the slot on the battery cap. Rotate the coin until
the battery cap pops open and lift up the battery cap.
2. Insert the battery so that the conductors are in contact with
each other.
Handbuch_FRITZ!Fon M2-en.fm Seite 13 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 14
Charging the Battery
FRITZ!Fon M2 14
3. Close the battery compartment
2.2 Charging the Battery
Proceed as follows to charge the battery:
1. Connect the power supply unit to the FRITZ!Fon M2 charging
station.
2. Plug the other end into a power outlet.
3. Place the FRITZ!Fon M2 in the charging station. The battery will
be charged.
Handbuch_FRITZ!Fon M2-en.fm Seite 14 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 15
Registering FRITZ!Fon M2 with the Base Station
FRITZ!Fon 15
2.3 Registering FRITZ!Fon M2 with the Base Station
Register FRITZ!Fon M2 at your FRITZ!Box or another base station
(DECT). The base station connects FRITZ!Fon M2 with the telephone
line.
Register FRITZ!Fon M2
Press the hang-up button. The FRITZ!Fon M2 is
switched on.
Only if “Register” appears over the right selection but-
ton: Press the selection button.
Press the DECT button (search or paging button) on
your base station.
Press and hold down the DECT button until FRITZ!Fon
M2 is successfully registered.
If FRITZ!Fon M2 asks for the PIN, enter the system PIN
of the base station. Press “OK”.
Upon delivery, the system PIN of the FRITZ!Box is
“0000”.
PIN
Handbuch_FRITZ!Fon M2-en.fm Seite 15 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 16
Registering FRITZ!Fon M2 with the Base Station
FRITZ!Fon M2 16
Registering FRITZ!Fon M2 at Multiple Base Stations
You can register your FRITZ!Fon at up to four base stations, and
change base stations quickly as needed.
It is not possible to use multiple base stations at the same time.
Press the “Menu” key.
Select “Settings” and then press “OK”.
Select “Registration” and then press “OK”.
Select “Register” and press “OK”.
Select a base station and press “OK”.
Press and hold down the DECT key until FRITZ!Fon M2
displays that registration has been successful.
If FRITZ!Fon M2 requests the PIN, enter the system PIN
of the base station (“0000” upon delivery) and press
“OK”.
PIN
Handbuch_FRITZ!Fon M2-en.fm Seite 16 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 17
Registering FRITZ!Fon M2 with the Base Station
FRITZ!Fon 17
Switching Base Stations
If your FRITZ!Fon is registered at multiple base stations, you can
switch base stations as follows:
Deregistering from a Base Station
Press the “Menu” key.
Select “Settings” and then press “OK”.
Select “Registration” and then press “OK”.
Select “Select Base” and then press “OK”.
Select the desired base station and click “OK”.
FRITZ!Fon connects with the base station and is ready
for operation as soon as the device name appears in
the display.
Press the “Menu” key.
Select “Settings” and then press “OK”.
Select “Registration” and then press “OK”.
Select “Deregister” and press “OK”.
Select the base station from which the FRITZ!Fon is to
deregister. Confirm with “OK”.
Handbuch_FRITZ!Fon M2-en.fm Seite 17 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon 18
Navigating in the Menus
FRITZ!Fon M2 18
2.4 Navigating in the Menus
Navigate through the menus of FRITZ!Fon with the navigation keys:
•Select entry: Navigate up or down.
•Open entry: Navigate to the right or press “OK”.
•Return to higher-level menu: Navigate to the left or press
“Back”.
Navigation Keys
Select key / Options
Confirm / OK
Select key / Back
Further in menu
Back in menu
Down
Up
Handbuch_FRITZ!Fon M2-en.fm Seite 18 Mittwoch, 10. Oktober 2012 1:39 13

FRITZ!Fon M2 19
Making Telephone Calls
FRITZ!Fon 19
3 Making Telephone Calls
Function Keys for Making Phone Calls
Hang up
Confirm / OK
Telephone book
Call list
Call key
Redial
Select party
Up
Select party
Down
Handbuch_FRITZ!Fon M2-en.fm Seite 19 Mittwoch, 10. Oktober 2012 1:39 13
