Fronteq FS0507T User manual

Aerial Work Platform
Operation And Maintenance Manual
Original Instruction
Fronteq(Changzhou)Machinery Co.,Ltd
www.fronteqlift.com
No.243 Central Huayuan, Chunjiang Town, Xinbei
District, Changzhou City, Jiangsu, China
607110000162

FS0507T PN 60711000162
Contents
1.Safety ...........................................................................................................................1
1.1 Notes Before Operation...................................................................................................... 2
1.2 Precautions in the work ...................................................................................................... 5
1.3 Precautions when renting................................................................................................. 10
1.4 Precautions when moving................................................................................................. 11
1.5 Precautions after operation.............................................................................................. 11
1.6 Precautions during check and maintenance..................................................................... 11

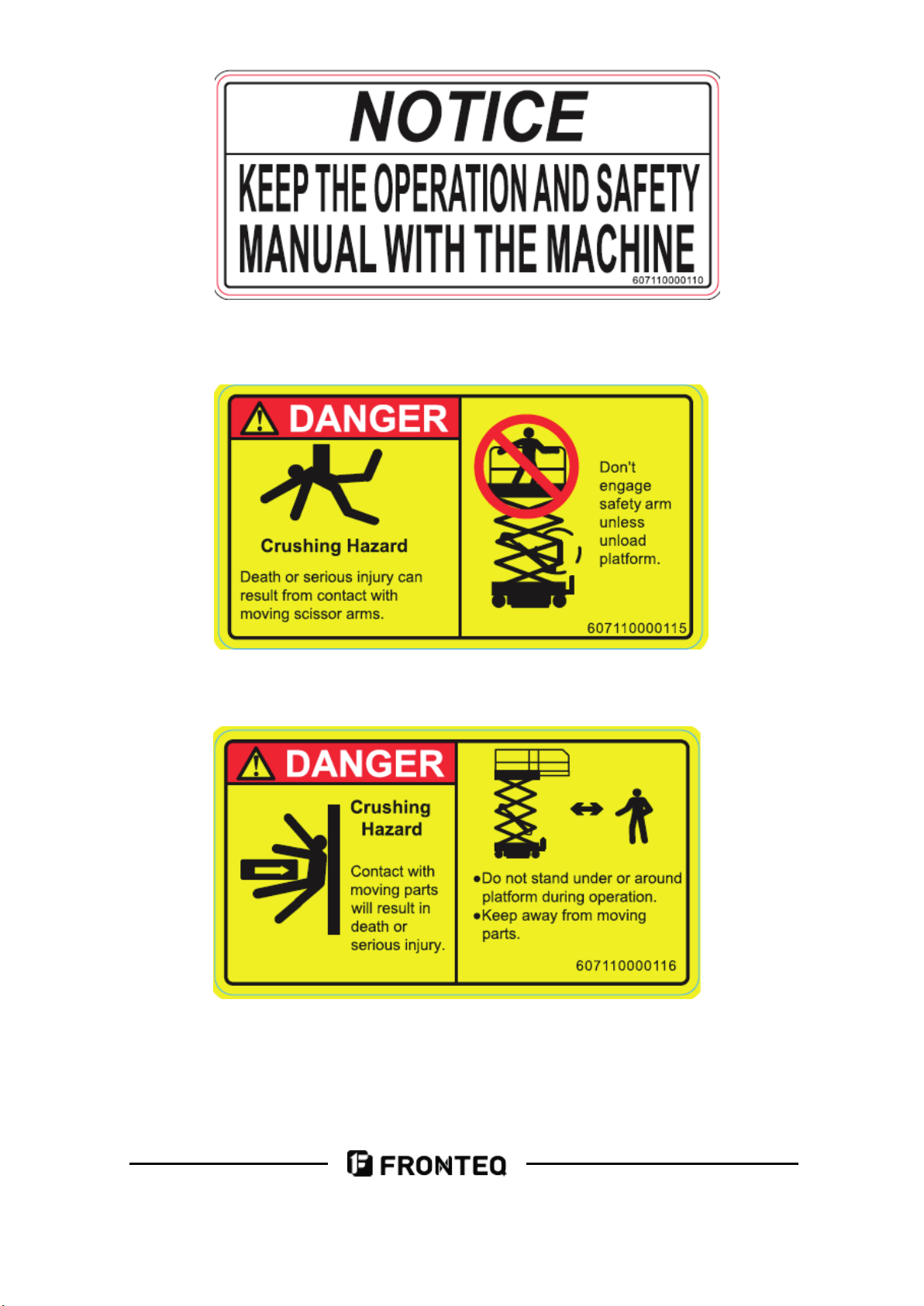

1.7 Safety warning nameplate ................................................................................................ 15
2.The name of each part ..............................................................................................18
3. Handling....................................................................................................................19
3.1 Precautions when handling............................................................................................... 19
3.2 Lift and hang down ........................................................................................................... 20
4. Operation .................................................................................................................................23
4.1 Operation Handle..............................................................................................................23
4.2 Safety device..................................................................................................................... 27
5. Regular inspection and maintenance.......................................................................30
5.1 Relevant checkpoints and inspections..............................................................................30
5.2 Daily checkpoint................................................................................................................ 31
5.3 Replace parts Regularly..................................................................................................... 32
5.4 Grease ............................................................................................................................... 33
5.5 Battery charging method .................................................................................................. 34
5.6 Adjustment of the walking device .................................................................................... 39
6. Maintenance.............................................................................................................40
7. Storage of the Machine ............................................................................................40
7.1 Daily Storage ..................................................................................................................... 40
7.2 Long-term Storage ............................................................................................................ 41
8. Storage......................................................................................................................42
8.1 Specifications .................................................................................................................... 42
8.2 Dimensions........................................................................................................................ 43
9. Warranty and After-sales Service.............................................................................45
9.1 Warranty ........................................................................................................................... 45
9.2 Warranty ........................................................................................................................... 45
9.3 After-sales service............................................................................................................. 45
Please contact us：
：
Website：www.fronteqlift.com
Mailbox：[e-mail]

FS0507T PN 60711000162
First , sincerely thank you for purchasing Eurocrane（
（
Changzhou）
）
products.
◆In order to make full use of the performance of this machine, this manual carries out
the correct use method and daily inspection and maintenance methods.
◆In order to make the machine safe to use, the operator should have sufficient
knowledge and necessary skills.
◆Please fully understand the contents of the operation, checkpoint, and maintenance
described in this manual before using this machine. And on this basis,
Implement "safe operation, correct management".
Please observe the safety precautions described in this manual. Slacking this
precaution will result in injury or even death.
◆Please keep this instruction manual at hand of operators or maintenance personnel
so that you can read it at any time.
◆When this manual is lost or damaged, please order it from a nearby dealer
immediately.
◆When this machine is transferred, please attach this manual to the next owner.
◆Due to the improvement of the product, some details of the contents of this
manual may be inconsistent with this machine. If unknown, Please consult your nearest
dealer.
◆When inquiring about the machine, please indicate the MODEL and manufacturing
number of the machine (SER.NO.）.

FS0507T PN 60711000162
1. Safety
In order to ensure the safety of operations during operation, inspection,
maintenance, installation, movement, and transportation, this manual describes
general precautions and safety precautions.
Please use this machine on the basis of fully understanding the contents of these
precautions. In order to facilitate the understanding of the safety precautions indicated
in this manual and the products, as well as the hazard levels of the effects of the body,
use the "Danger", "Warning", "Attention" and other signs, and attach the attention to
the following, the difference is as follows Show.
When you see these labels, follow the instructions to implement preventive measures
and perform “safe operation and proper mechanical management”.
Please follow the instructions in this manual. In addition, this manual does not
describe all matters related to safety. In addition to the items already documented,
Indicates an imminent danger of causing death or significant harm.
Indicates a potential hazard that could result in death or major
injury.
Indicates a potential hazard that could result in minor or
moderate injury and indicates damage to the item.
Indicates matters that should be known in advance about the
maintenance and safety of this machine.
It shows the basic items that must be known when using this
machine and performing work.
In addition, for the classification of injury / damage degree, please refer to the
following content.
Δ Serious injury: blindness, injury, burns, electric shock, fractures, poisoning, etc. will
leave sequential, as well as injuries that require hospitalization or long-term regular
hospital treatment.
Δ Mild or moderate degree of injury: no need for hospitalization or long-term regular
hospital injury.
!Danger
!
Warning
!Attention
Impor
tance
K
nowledge

FS0507T PN 60711000162
please be careful that the operation or maintenance personnel themselves pay careful
attention to safety.
1.1 Notes Before Operation
Important Prior consultation before the operation
●For safe work, please strictly observe the following items when planning your work
plan.
●Develop an operation plan that is appropriate for the
condition of the work site and the type and capability of the
aerial work vehicle.
●Work according to the job plan.
●Clear work methods and operating procedures.
●Let the relevant operators know the work plan and work
method.
●Designate the job commander and perform the job command according to the work
plan.
●Danger Restricted use
●Use this unit between 0 and 40C ambient temperature.
●This machine is subject to regulations and is not allowed to walk on general roads.
●This unit is an indoor special machine. Do not use it outdoors.
●Do not use it in a place with strong winds even indoors. There is a possibility of a
rollover.
Warning Read this manual thoroughly and follow its instructions and
warnings
●Before using this machine, please read this manual thoroughly and use it
based on the full understanding of its contents. Please understand this
manual and the safety signs and warnings posted on this machine for safe
operation. Unintended use is the cause of personal or material damage.
●Keep this manual in a fixed location so that all personnel who operate the
machine can confirm it at any time. In addition, please be sure to attach this
manual when the machine is borrowed.
●Keep this manual and the security label in a state where you can read them
at any time. When the damage cannot be read or lost, please order from the
seller.
Important Preparation of safety equipment
●Prepare for the occurrence of injuries, accidents, and fires.

FS0507T PN 60711000162
●Prepare emergency teaching boxes and fire extinguishers, and formulate fire and
accident handling methods.
●Please familiarize yourself with the operation and use of fire extinguishers.
●Determine the storage place of the emergency education box, check it regularly, and
replenish its contents if necessary.
●Please write down the emergency contact number of the medical institution, fire
station (emergency train).
Warning Safe operation quality assurance
●When performing the operation, inspection, and
maintenance of this machine, please observe all the rules of
beauty safety. Precautions. Operating procedures, etc.
●Please do not do it sharply. Rough operation.
●When any abnormality or danger occurs during the
operation, stop the operation immediately. In addition, the
judgment of the job suspension shall be determined by the
judgment of the job leader.
●When you feel that there is an abnormality in the machine,
immediately stop the operation to ensure safety, and the well is quickly contacted with
the manager. When you restart your work, use the repairs and repair them.
Warning Safe wear of clothing and protective gear
●When working, wear a suitable fit and fit clothing, and wear a safety helmet (helmet)
and safety boots.
●Seat belts are designed to prevent falling accidents. Please
choose a suitable body and use a seat belt when working on
the work platform.
●Fat clothing and necklaces and other decorations may be
caught by the operating levers and protrusions, which may
hinder the work. Please do not wear them.
●Wear safety glasses, protective gloves, dust masks,
soundproofing appliances, and safety belts that are necessary
for safety.
●Please confirm the function of various protective equipment
before use. Do not use if there is any abnormality.
Also, please do not wear clothing with flaming oil or banana water.

FS0507T PN 60711000162
Danger Confirmation of the workplace, prohibition
of the workplace
●At the job site, please pay attention to the general staff and
operators and the surrounding conditions, and pay attention to
ensure safety.●Please use the fence that is prohibited from
entering, and the scope of work should be properly enclosed
so that non-related personnel cannot enter. When someone
approaches the work area, stop the work and issue a warning to respond.
●Please confirm the hazardous materials and obstacles in the working area and take
safety measures.
●When other working vehicles are approaching during work, please be careful to avoid
contact accidents. If necessary, please configure the guidance personnel to explore
security measures such as guidance, attention, and notice.
Warning Precautions when working together
●When operating the machine, set a fixed signal in order to ensure reliable contact
between the operator on the work platform and the operator when operating the work
platform outside the work platform. And take necessary measures such as the
designated person to send signals.
●When you work together or set up a guide person, please discuss the contents of the
work beforehand, set a fixed signal, and work with the specified signal. Please specify
the person who sent the signal as one person. Simultaneous signals from several
people can cause confusion and cause accidents.
●To ensure safety, please do not use radios, headphones, etc. that interfere with
signals and reports.
Warning Prohibition of fatigue and drinking operations
●Do not work when you are over-fatigued and drinking, or when taking hypnotic
drugs.
Warning Check before working
●Before starting the job, be sure to check the machine before starting the job to
confirm that there is no abnormality in the machine.
●Do not use the machine in the event of malfunction or damage. And repair
immediately.
Attention Surrounding
●Scattered tools, garbage, parts, and attached oil, mud, snow, etc. may risk tripping or

FS0507T PN 60711000162
slipping under the feet. Initiating an unexpected operational error that causes an
incident. Please organize, rectify, and clean the work to keep it clean.
●When entering the work platform, please remove the mud and oil from the soles
beforehand.
Warning Attention when going up and down
●When going up and down the work platform, please take the posture facing the
machine.
Use the railings and pedals to support the body
in three places (two hands and one foot or one
hand and two feet).
●Please do not hold items up and down.
●Please do not jump or jump.
●After you have landed on the work platform, be sure to close and lock the door.
Warning Emergency stop action confirmation
●Please perform an emergency stop operation during walking and lift operation to
confirm whether it can be stopped.
1.2 Precautions in the work
Attention Forbidden to use outdoors (indoor special machine)
●This machine is an indoor special machine. Please do not use it outdoors.
●Do not use it in a place with strong winds even indoors. A rollover may occur.
Danger Confirmation of surrounding conditions
●At the job site, please pay attention to the general personnel and operators and the
surrounding conditions, and pay attention to ensure safety.
●When someone approaches the work area, please stop the work and issue a warning
to respond.
●When other working vehicles are approaching during operation, please work
cautiously to avoid contact accidents.
●If necessary, please configure the guide personnel to take safety measures such as
guidance, caution, and warning.
Danger Pay attention to electric shock accident
●This unit is not insulated. Do not touch the wires or touch the
wires.
●This unit cannot be connected as a grounding wire.
●When using this machine, keep a safe distance from the wires
(see the table below for the specific distance).
●In the event of an electric shock, do not approach the mechanical

FS0507T PN 60711000162
and electric shock personnel who have an electric shock.
To prevent secondary damage, check if the power has been turned off.
Circuit voltage Spacing distance
Low pressure 0~600V 1m or more
High pressure 600~7000V 1.2m Or more
UHV 7000~60000V 2m or more
More than 60,000V 0.2m increase for each additional
10000V
Warning Do not remove the work platform railings
●Please do not carry out the work after removing the work platform railing, otherwise
there is a danger of falling.
Note It is forbidden to push or pull with walking and lifting machines.
●Please do not use walking or lift operation, push or pull power lines or buildings, etc.
Warning Precautions when setting.
●This machine is not allowed to walk on the general
road according to the regulations.
●Please use it on a flat and sturdy ground.
●When working and walking on uneven ground or
weak ground, there will be the danger of rollover.
●It will be extremely unstable when lifting the
working platform, so please confirm the flatness and
no height Work or walk after the step.
●The ground where the machine is used is inclined,
weak, uneven, and sloped. etc. Please avoid using it.
There is a danger of accidents such as rollovers.
●This unit is forbidden to be used near steps,
inclined surfaces, and openings. May cause
Falling into the steps, slopes, and openings caused
the machine to roll over. If it must be above
When using it in an occasion, please configure the monitor.
●When crossing the steps, please use the slope. The angle of the slope should be
controlled below 7°.
●This machine can ensure that the inclination of safe walking is 7°or less, and it may
cause the machine to roll over when walking above this inclination.
●When walking on a slope of more than 7 degrees, remove the upper control panel
and connect it to the machine via the control line to remotely control the unit.
Warning It is forbidden to board outside the work platform and transfer

FS0507T PN 60711000162
from the work platform.
●When carrying out work, please do not take the part other than the work platform.
●Please do not take the railing to the work platform, do not transfer from the work
platform to other places, and extend the body to work in an unreasonable position.
●Never remove the railings.
●Do not use foot pads or ladders in the work platform
Put the railing door down during work.
Warning No overload
●Do not use beyond the load weight, performance and capability, and use beyond the
main purpose, as this may cause an accident or mechanical failure.
Note Pay attention to the protrusion of the carrier
●Place the object in the center of the work platform, taking care not to protrude from
the work platform.
Danger Overturning attention (no horizontal overload load)
●Do not apply lateral heavy loads during work. There is a danger of rollover.
When the machine presses or pulls in the horizontal direction, it may cause the
machine to sway greatly, causing the machine to roll over.
●The machine is shaken due to the lateral load, and the machine has the possibility of
Rollover when the alarm sounds. Please stop the job at this
time.
Note Confirmation around walking before walking
●Check the surroundings before walking. Please check the surrounding directions
(front, back, left and right, head) and operate.
Warning Attention when walking

FS0507T PN 60711000162
●When the machine is walking, in order to prevent the machine from rolling over,
please lower the machine platform to the bottom of the operation.
●When the working platform slides in the extended state of the table, when walking
with the direction is changed, the extension of the table will occur more than expected,
and there is a risk of accidents due to collision with surrounding equipment or houses.
●When starting the machine, please walk at low speed and adjust the walking speed
according to the road surface condition. Do not start urgently, stop suddenly, or make
sharp turns. Do not start urgently, stop suddenly, or make sharp turns.
Warning Attention when walking on a sloping ground
●When the machine is walking, in order to prevent the machine from rolling over,
please lower the machine platform to the bottom of one person operation.
●When walking on an inclined floor, in order to prevent rollover, do not extend the
extension platform and walk in the forward direction.
●When walking on a sloping ground (downhill), make sure that the parking brake is
valid and must travel at a low speed.
●Do not carry cargo when walking on an inclined floor. It may cause the goods to
move,or may lose balance and cause unexpected accidents.
●The unit may be tilted sharply when entering the inclined floor. When driving into a
sloping ground, please walk at a low speed.
●Be sure to use a wheel stop when parking on a sloping road.
●Do not enter the inclined floor when the operating platform is raised. When the
operating platform is raised, it is no longer possible to walk on tilt ground and the
machine will stop automatically.
●When crossing the steps, please set the slope. Please control the angle of the slope
below 7 degrees.
●When the inclined road surface is V-grooved or concave-convex, the crawler will float
and there is a danger of halving the brake effect. Please do not walk.
●If you go straight downhill from the uphill slope, the unit may be tilted sharply. Please
drive into the flat ground first, and bring the fuselage to a stable speed and then enter
the slope at low speed. In this case, make sure that the length of the flat ground
exceeds the total length of the unit (1390m).
●When walking on a slope of more than 7 degrees, remove the upper operation panel
and connect it to the machine through the control line to remotely control the unit.
Warning Attention when lifting
●Before lifting the machine, check if there are any obstacles on the top of the head
and make sure that the machine can stop in time.
●In order to prevent the ceiling from coming up during the ascent operation, stop the
rise early.
●When the machine operating platform rises, it is absolutely not allowed to enter the
bottom of the operating platform. Also, do not place objects under the scissor bar.

FS0507T PN 60711000162
●After the operating platform rises, do not move between the operating platform and
The building. There may be a sharp change in the center of gravity that causes the
machine to roll over.
●After the operating platform rises, do not lift or unload items from the platform,
which may cause the machine to roll over.
●When the operating platform is lowered, please confirm if anyone is below.
●When the operating platform descend, please make sure that there are any obstacles
below.
Note Pay attention to the falling objects falling from the work platform
●Please do not drop the tools and materials on the work platform during work. Keep
the storage condition when you move it up and down, and use a hanging net or a sling.
Also, do not load longer items that will protrude from the work platform.
Warning Pay attention to the walking under the extended platform of
the working platform
●Please pay attention to this type of working, please prepare a monitor or guide if
necessary.When walking with the slide table of the work platform, when the direction
is changed, the extension of the table surface may occur more than expected, and
there is a risk of accidents due to collision with surrounding equipment or houses.
Note When leaving the equipment
●When the work is temporarily interrupted, leave the
Work platform back to the storage position. Remove the
power key from the switch. And, confirm that the brake
is effective and advance Line stop.
●The above measures should also be taken when the machine is temporarily stored
due to abnormality, and the contents of the "Failure, Prohibition of Use" are known to
the responsible person and the user. Please indicate the abnormal content, the
responsible person, the contact number, and the retention period.
Note About sorting, rectification, cleaning and management of items
●Scattered tools, garbage, parts, and attached oil, mud, snow, etc., may cause the risk
of tripping or slipping under the feet.Accidents caused by mistakes in operation and
operation. In particular, it is necessary to organize, rectify, and clean the work platform
and pedals. Please keep the machinery and work site clean and tidy.
Warning Use in winter/cold areas
●Please pay attention to the following items during winter when the outdoor climate is
low or when freezing.
•Please do not work on the frozen road. There is a danger of rollover. Or the risk of
accidents caused by a collision with other work vehicles.

FS0507T PN 60711000162
•Because it is slippery, please pay attention when going up and down the platform.
•When freezing or mechanically attaching ice, etc., do not remove it by hot water.
Resin pouring hot water such as operation parts and instruments may be deformed,
which may cause malfunction of the instrument.
•When the operation is finished, to prevent freezing, take measures such as covering
the operation unit and instruments.
Note Smoking and flames prohibited
●This machine has a risk of ignition when it is close to fireworks,
which is the cause of personal accidents or fires.
●No smoking near hydraulic fuel tanks and batteries. Sparks or other
pyrotechnics are prohibited Close.
●When performing sparking work such as sanding and welding, please
avoid items that may be ignited to the distance.
●When combustibles (wild grass, fallen leaves, paper, cloth, etc.) are deposited on or
near the machine, please remove before use.
Warning Being sucked in and caught
●When working near the rotating part, be careful not
to get involved, and don't let the item is near the
circumference of the rotating part.
●Please do not place the body or part of the body in
the gap and running part of the machine.
1.3 Precautions when renting
Attention to long-term rental, rental attention
●The leasing industry should implement the following measures when renting this
machine.
•Check the machine in advance, and make repairs and other necessary preparations
when abnormalities are found.
•Please also lend this manual to the institution that rented the machine.
•Please rent out on the basis of the qualifications of the business unit that has rented
the machine.
●Please implement the following measures when renting this machine from the rental
company.
•Please use it based on the contents of this manual borrowed from the rental
company.
•Please rent this machine to confirm the following items and give notice to the
person who operates the machine.
•Operate the machine to qualify for the necessary driving operations.
1.4 Precautions when moving

FS0507T PN 60711000162
Note Attention when loading and unloading
●When transporting this machine, please load and unload the truck in a flat and
sturdy place. When using springboards, fills, and temporary cabinets, make sure that
they are full length, width, strength, and proper slope.
1.5 Precautions after homework
Note Safety confirmation after operation
●When leaving the machine after the end of the work,
please return the work platform to the storage position,
and unplug the power key from the switch. Also, confirm that the brake is valid and
fix the wheel.
1.6 Precautions during check and maintenance
Important Regular check implementation
●Regarding the implementation essentials of inspection, inspection and maintenance,
labor safety and hygiene rules have been stipulated.
In addition, the specific self-inspection must be carried out by the holder of the
qualifications prescribed by the Ministry of labor or by the registered inspection
company.
Warning Check and maintain in a flat place
●Please check on a solid horizontal, no-load operation, and
storage position.
Warning Display in check maintenance
●At the time of inspection or maintenance, there is a danger
of causing a major personal injury if someone besides the
operator touch the operation switch or the joystick.
Therefore, please let the person in charge and the user
know about it and make it clear.
Warning Safety measures during check operations
●When checking and maintaining, turn off the main power.
●Check and maintenance are performed by two or more
people. Please keep in touch with each other while the
power can be off at any moment.
●Do not place your body or part of your body in the gaps and running parts of this
machine due to the risk of serious personal accidents.
●In the repair and inspection, when the work platform is raised and raised, in order to

FS0507T PN 60711000162
prevent the work platform from accidentally falling, please use the safety pillar and
the safety block. When repairing, please specify the operation commander to
monitor the use of safety pillars and safety blocks, etc. while determining the
operating procedures and command operations.
●When working near the rotating part, be careful not to get caught, and do not let the
item near the rotating part.
●When the defect is found by the inspection site, please report it to the mechanical
unit or the responsible person promptly and apply to the company for processing.
Since personal judgment may cause a major accident or malfunction, please consult
the company if you cannot judge the severity of the defect.
Danger Pay attention to the electric shock accident during the check
●When the unit is in the startup state, do not touch the internal electronic
components of the machine with your hands. When it is necessary to check and
repair, you need to use insulated gloves to cut off the power.
Note Unplug the battery cable during maintenance of the electrical
system
●When the battery cable ("-" connector) is removed and the electrical system is
inspected and maintained, the short circuit may cause burns or damage to the
electrical and electronic equipment. Please unplug the battery cable on the side of
the “—” connector.
Warning Pay attention to high oil temperature and high oil pressure
●When performing inspection and maintenance of hydraulic equipment, piping, and
filters,
check that the hydraulic fluid has cooled sufficiently before operating. High
temperature
hydraulic oil can scald on your body.
●When high-pressure hydraulic oil enters the skin or eyes, there is a danger of serious
injury to
the human body. When checking the oil leakage of hydraulic equipment, piping, etc.,
wear protective glasses and protective gloves. Do not use light to confirm. Use thick
paper.
●When removing hydraulic equipment, piping, filters, etc., the internal pressure must
be released and the work is performed.
●When high pressure oil enters your skin or eyes, receive medical attention
immediately.
Warning Use the right tools
●Please use the right tools correctly. Please do not use tools that are deformed or

FS0507T PN 60711000162
damaged, and use other than the original purpose.
Note Use genuine parts
●Failure to use genuine parts can pose a safety and functional barrier. When you need
to replace parts, you must use the manufacturer's designated genuine parts.
Note Prohibition of transformation
●Do not modify this machine without the written commitment of the company.
Retrofitting can
have a negative impact on strength and safety and undermine safety.
●The company is not responsible for personal accidents and malfunctions caused by
unauthorized modifications.
Note Pay attention to the use of liquids and fire
●There is a danger of fire when the fire is close to the oil. In addition,
the battery generates hydrogen gas, and the battery solution contains
dilute sulfuric acid. Incorrect use can cause a personal accident to cause
a fire. Please strictly observe the following items.
·Do not smoke near the hydraulic tank and battery, and be close to
sparks or other fires.
·When replenishing the oil and the battery replenishing solution, please
do so in a place where there is no fire and turn off the main power. In
addition, do not mistake the type and capacity when replenishing.
Incorrect supply can cause malfunction or damage.
·Oil or battery solution may cause inflammation when it enters the eyes and contacts
the skin. Use protective goggles or protective gloves when using. In addition, you must
not drink it by mistake. Please wash away immediately when entering the eyes or
touching the skin. Please consult a doctor if you accidentally drink or burn.
·Please cover the lid after replenishment and wipe it clean when spilled.
·When using lighting equipment for inspection, maintenance, and replenishment, use
explosion-proof specifications and keep them away from the machine.
·When using a sander or welding that may cause sparks, keep objects that may catch
fire to a distance.
·When combustibles (wild grass, fallen leaves, paper, cloth, etc.) are deposited on or
near the machine, please remove them before use.
·Do not weld or cut the hose or piping. In particular, there is internal pressure in the
Hydraulic circuit, please be careful. When checking and maintaining hoses and piping,
please release the internal pressure beforehand.
·In order to prevent short circuit of the electrical system and leakage of the piping,
check the wiring and piping before use.
·Store the oil in a well-ventilated, fixed place that is not accessible to non-related
personnel.

FS0507T PN 60711000162
·When discharging the waste liquid from this machine, please put it in the container,
and never let it flow to the ground or discard it in rivers, lakes, oceans, etc. Industrial
waste disposal operators should be requested when disposing.
Warning Attention when charging the battery
●When charging, unplug the charger cable (the same reel and extension cable) to
prevent the charging cable from overheating.
●When using the reel and extension cable, please confirm the allowable capacity of
the cable beforehand to avoid overcurrent. In the worst case, it may cause a fire.
●Please charge in a well ventilated area.
●Do not charge near an open flame.
●Check the battery capacity before charging. When the liquid level is lower than
LOWER, please replenish the battery liquid.
●Charging in the absence of battery fluid can cause toxic gases to cause poisoning or
corrode metals in the vicinity of the battery. If this happens, stop charging
immediately.
●When charging, switch the power switch to “Off”.
Note Battery use note
●When checking or replacing the battery, you need to switch the power switch to
“OFF”to cut off the power circuit. The battery terminal must be removed from the
ground side (“-”connector side), and the installation must start from the “+”
connector side.
●Battery fluid (dilute sulfuric acid) poses a risk of blindness or burns. Use protective
glasses, protective gloves, and long-sleeved clothes when using the battery.
●Hydrogen gas is generated in the battery. If the operation is wrong, it will cause a fire
and explosion, so please do not get close to the open flame.
Note Do not wash
●After the electrical system is flooded, it may cause malfunction due to malfunction or
malfunction. For operating panels, solenoid valves, sensors, etc., do not perform
steam cleaning or water washing. If it is necessary to wash the water, please turn off
the main power, fully dry and then turn on the power.
1.7 Safety warning nameplate
1.7.1 Safety warning nameplate list
The following nameplate is posted on the machine.
Please clean these nameplates frequently and keep them clean. If it is damaged or
peeled off, please immediately place it by ordering it at the nearest dealer's or service
center with the part number at the bottom right of the nameplate.

FS0507T PN 60711000162

FS0507T PN 60711000162
1.7.2 Posting position of nameplate.

FS0507T PN 60711000162
2. Names of each part
