Fry's Electronics FR-54RTR User manual

iFR-54RTR User Manual
Fry’s reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes.
Manual Revisions
Trademarks
Fry’s and the Fry’s logo are trademarks or registered trademarks of Fry’s Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2009 by Fry’s Electronics, Incorporated.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from Fry’s
Electronics, Incorporated.
Revision Date Description
1.0 June 9, 2009 FR-54RTR Revision D1 with rmware version 1.0
Preface

iiFR-54RTR User Manual
Table of Contents
Preface...........................................................................i
Product Overview ........................................................ 1
Package Contents ................................................... 1
System Requirements ............................................. 2
Introduction.............................................................. 3
Features .................................................................. 4
Hardware Overview ................................................. 5
Connections....................................................... 5
LEDs .................................................................. 6
Installation.................................................................... 7
Before you Begin ..................................................... 7
Wireless Installation Considerations........................ 8
Connect to Cable/DSL/Satellite Modem .................. 9
Connect to Another Router .................................... 10
Getting Started ...................................................... 12
Conguration............................................................. 13
Web-based Conguration Utility ............................ 13

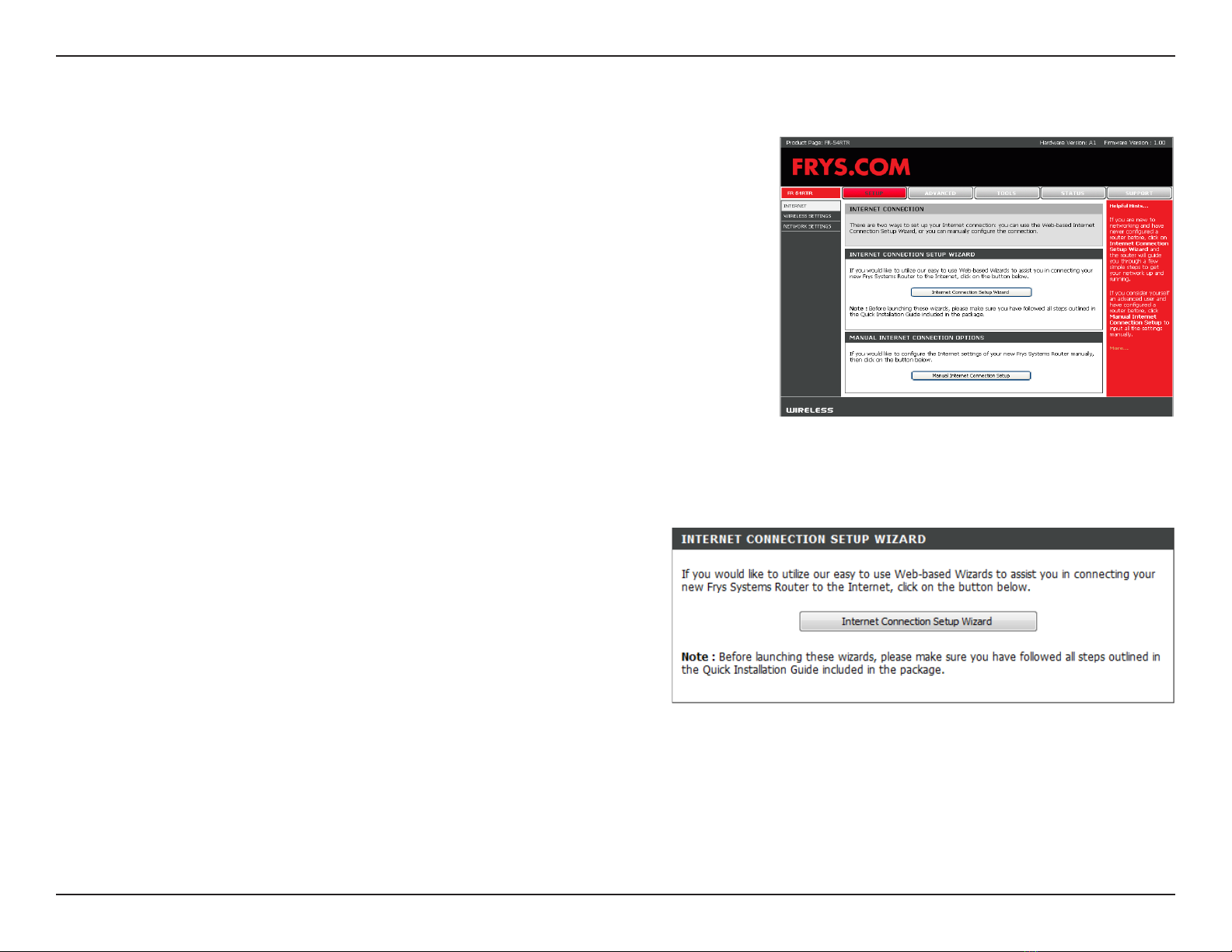

Setup Wizard ................................................... 14

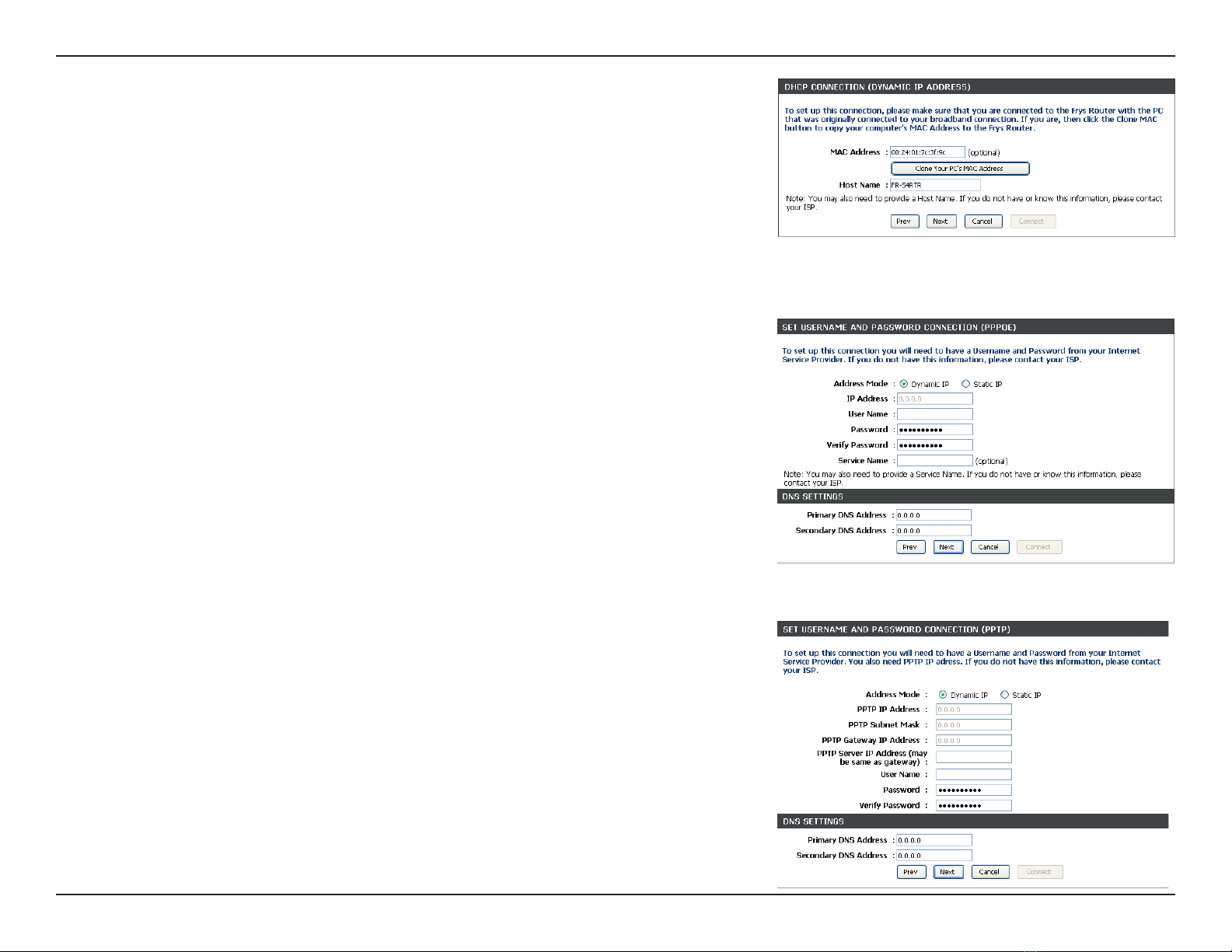

Internet Setup .................................................. 18
Dynamic (Cable) .......................................... 18
PPTP............................................................ 21
L2TP............................................................. 23
Static (assigned by ISP)...............................25
Wireless Settings ............................................. 26
Manual Wireless Settings ................................ 27
Network Settings.............................................. 28
DHCP Server Settings ..................................... 29
DHCP Reservation........................................... 30
Virtual Server ................................................... 32
Port Forwarding Rules .....................................33
Application Rules ............................................. 34
QOS Engine..................................................... 35
Network Filter................................................... 36
Access Control................................................. 37
Access Control Wizard.................................38
Website Filter ................................................... 41
Firewall Settings .............................................. 42
Routing ........................................................... 44
Advanced Wireless Settings ............................45
Advanced Network Settings............................. 46
Administrator Login Name:........................... 47
Administrator Password: .............................. 47
Administrator Settings...................................... 47
Time Settings ................................................... 49
System Log...................................................... 50
Enable Logging to Syslog Server:................50
Enable Email Notication: ............................ 51
From Email Address:.................................... 51
To Email Address: ........................................ 51
SMTP Server Address:................................. 51
Enable Authentication: ................................. 51
Account Name:............................................. 51
Table of Contents

iiiFR-54RTR User Manual
Table of Contents
Password: .................................................... 51
Email Settings.................................................. 51
System Settings............................................... 52
Firmware Upgrade ........................................... 53
Dynamic DNS .................................................. 54
System Check.................................................. 55
Schedules ........................................................ 56
Device Information........................................... 57
Log................................................................... 58
Statistics .......................................................... 59
Internet Sessions ............................................. 60
Routing Table................................................... 62
Support ............................................................ 63
Wireless Security....................................................... 64
What is WEP? .......................................................64
What is WPA?........................................................ 65
Congure WEP...................................................... 66
Congure WPA/WPA2 Personal ............................ 67
Congure WPA/WPA2 (RADIUS) .......................... 68
Connect to a Wireless Network................................ 69
Using Windows Vista® ..............................................................................69
Congure Wireless Security ............................ 70
Connect to a Wireless Network................................ 72
Using Windows®XP............................................... 72
Congure WEP ................................................ 73
Congure WPA/WPA2 ..................................... 75
Troubleshooting ........................................................ 77
Wireless Basics ......................................................... 81
What is Wireless?.................................................. 82
Tips ........................................................................ 84
Wireless Modes ..................................................... 85
Networking Basics .................................................... 86
Check your IP address ..........................................86
Statically Assign an IP address.............................. 87
Technical Specications........................................... 88
Contacting Technical Support.................................. 90
Warranty .....................................................................91

1FR-54RTR User Manual
Section 1 - Product Overview
Product Overview
Package Contents
Note: Using a power supply with a different voltage rating than the one included with the FR-54RTR will cause damage and void the warranty for this product.
Fry’s FR-54RTR
RangeBooster G™
Router
Power Adapter
Ethernet Cable
CD-ROM

2FR-54RTR User Manual
Section 1 - Product Overview
System Requirements
Network Requirements
• An Ethernet-based Cable or DSL modem
• IEEE 802.11b/g wireless clients
• 10/100 Ethernet
Web-based Conguration
Utility Requirements
Computer with the following:
• Windows®, Macintosh®, or Linux-based operating system
• An installed Ethernet adapter
Browser Requirements:
• Internet Explorer 6.0 or higher
• Mozilla 1.7.12 or higher
• Firefox 2.0 or higher
• Safari 1.0 or higher (with Java 1.3.1 or higher)
• Chrome 1.0 or higher
• Opera 6.0 or higher
Windows®Users: Make sure you have the latest version of Java
installed. Visit www.java.com to download the latest version.
CD Installation Wizard
Requirements
Computer with the following:
• Windows®XP with Service Pack 2 or Windows Vista®
• An installed Ethernet adapter
• CD-ROM drive

3FR-54RTR User Manual
Section 1 - Product Overview
Introduction
Fry’s introduces another breakthrough in wireless connectivity. The Fry’s Wireless G FR-54RTR Router which is
capable of transferring data with a maximum wireless signal rate of up to 54Mbps* in the 2.4GHz frequency — the
same wireless frequency as 802.11b. The Fry’s FR-54RTR Wireless Router also offers four Ethernet ports to support
multiple computers.
The advanced wireless technology built into the FR-54RTR Wireless Router offers data transfer speeds with a maximum
wireless signal rate of up to 54Mbps* through its wireless channels allowing streaming videos and other high bandwidth
applications, such as online gaming events, to operate without the hassle of Ethernet cables. The ability to use high
bandwidth applications also makes streaming real-time programs more enjoyable and more efcient.
With the FR-54RTR Wireless Router’s built-in advanced rewall, threats of hackers penetrating your network are
minimized. Some rewall features include functions that allow or disallow certain ports to be open for certain applications.
Features like content ltering, MAC ltering, URL blocking, and domain blocking are useful tools to prevent other
unwanted intruders from connecting to your network or browsing restricted sites.
The easy-to-use conguration wizard takes only minutes to setup and guides users step-by-step through conguring
the FR-54RTR. With all the versatile features and an user-friendly utility, the FR-54RTR Wireless Router provides an
enhanced networking experience.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.

4FR-54RTR User Manual
Section 1 - Product Overview
• Faster Wireless Networking - The FR-54RTR provides up to 54Mbps* wireless connection with other
802.11g wireless clients. This capability allows users to participate in real-time activities online, such as
video streaming, online gaming, and real-time audio. The performance of this 802.11g wireless router
gives you the freedom of wireless networking at speeds 5x faster than 802.11b.
• Compatible with 802.11b and 802.11g Devices - The FR-54RTR is still fully compatible with the IEEE
802.11b standard, so it can connect with existing 802.11b PCI, USB and Cardbus adapters.
• Advanced Firewall Features - The Web-based user interface displays a number of advanced network
management features including:
• Content Filtering - Easily applied content ltering based on MAC Address, URL, and/or
Domain Name.
• Secure Multiple/Concurrent Sessions - The FR-54RTR can pass through VPN sessions. It
supports multiple and concurrent IPSec and PPTP sessions, so users behind the FR-54RTR
can securely access corporate networks.
• User-friendly Setup Wizard - Through its easy-to-use Web-based user interface, the FR-54RTR lets
you control what information is accessible to those on the wireless network, whether from the Internet or
from your company’s server. Congure your router to your specic settings within minutes.
* Maximum wireless signal rate derived from IEEE Standard 802.11g specications. Actual data throughput will vary. Network conditions and
environmental factors, including volume of network trafc, building materials and construction, and network overhead, lower actual data throughput
rate. Environmental conditions will adversely affect wireless signal range.
Features

5FR-54RTR User Manual
Section 1 - Product Overview
Hardware Overview
Connections
The Auto MDI/MDIX WAN
port is the connection for
the Ethernet cable to the
Cable or DSL modem.
LAN Ports
Connect Ethernet devices such as
computers, switches, and hubs.
Pressing the Reset Button restores
the router to its original factory
default settings.
Receptor for the Power Adapter.

6FR-54RTR User Manual
Section 1 - Product Overview
Hardware Overview
LEDs
Internet Wireless
A solid light indicates connection
on the WAN port. This LED blinks
during data transmission.
Ethernet
A solid light indicates a connection
to an Ethernet-enabled computer
.This LED blinks during data
transmission.
Status LED
A blinking light indicates that the
FR-54RTR is ready.
Power LED
A solid light indicates a proper
connection to the power supply.

7FR-54RTR User Manual
Section 2 - Installation
Before you Begin
Installation
This section will walk you through the installation process. Placement of the router is very important. Do not place the
router in an enclosed area such as a closet, cabinet, or in the attic or garage.
• Please congure the router with the computer that was last connected directly to your modem.
• You can only use the Ethernet port on your modem. If you were using the USB connection before using
the router, then you must turn off your modem, disconnect the USB cable and connect an Ethernet cable
to the Internet port on the router, and then turn the modem back on. In some cases, you may need to
call your ISP to change connection types (USB to Ethernet).
• If you have DSL and are connecting via PPPoE, make sure you disable or uninstall any PPPoE software
such as WinPoet, Broadjump, or Enternet 300 from your computer or you will not be able to connect to
the Internet.
• When running the Setup Wizard from the Fry’s CD, make sure the computer you are running the CD
from is connected to the Internet and online or the wizard will not work. If you have disconnected any
hardware, re-connect your computer back to the modem and make sure you are online.

8FR-54RTR User Manual
Section 2 - Installation
Wireless Installation Considerations
The Fry’s wireless router lets you access your network using a wireless connection from virtually anywhere within the
operating range of your wireless network. Keep in mind, however, that the number, thickness and location of walls,
ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary depending
on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing
wireless range is to follow these basic guidelines:
1. Keep the number of walls and ceilings between the Fry’s router and other network devices to a minimum
- each wall or ceiling can reduce your adapter’s range from 3-90 feet (1-30 meters.) Position your devices
so that the number of walls or ceilings is minimized.
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a
45-degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree angle it looks over 42 feet
(14 meters) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead
of at an angle) for better reception.
3. Building Materials make a difference. A solid metal door or aluminum studs may have a negative effect on
range. Try to position access points, wireless routers, and computers so that the signal passes through
drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water
(sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical devices or appliances that
generate RF noise.
5. If you are using 2.4GHz cordless phones or X-10 (wireless products such as ceiling fans, lights, and
home security systems), your wireless connection may degrade dramatically or drop completely. Make
sure your 2.4GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.

9FR-54RTR User Manual
Section 2 - Installation
If you are connecting the router to a cable/DSL/satellite modem, please follow the steps below:
1. Place the router in an open and central location. Do not plug the power adapter into the router.
2. Turn the power off on your modem. If there is no on/off switch, then unplug the modem’s power adapter. Shut down
your computer.
3. Unplug the Ethernet cable (that connects your computer to your modem) from your computer and place it into the
WAN port on the router.
4. Plug an Ethernet cable into one of the four LAN ports on the router. Plug the other end into the Ethernet port on your
computer.
5. Turn on or plug in your modem. Wait for the modem to boot (about 30 seconds).
6. Plug the power adapter to the router and connect to an outlet or power strip. Wait about 30 seconds for the router
to boot.
7. Turn on your computer.
8. Verify the link lights on the router. The power light, WAN light, and the LAN light (the port that your computer is
plugged into) should be lit. If not, make sure your computer, modem, and router are powered on and verify the cable
connections are correct.
9. Skip two pages to the Getting Started section to congure your router.
Connect to Cable/DSL/Satellite Modem

10FR-54RTR User Manual
Section 2 - Installation
If you are connecting the Fry’s router to another router to use as a wireless access point and/or switch, you will have
to do the following before connecting the router to your network:
• Disable UPnP™
• Disable DHCP
• Change the LAN IP address to an available address on your network. The LAN ports on the router cannot
accept a DHCP address from your other router.
To connect to another router, please follow the steps below:
1. Plug the power into the router. Connect one of your computers to the router (LAN port) using an Ethernet cable.
Make sure your IP address on the computer is 192.168.0.xxx (where xxx is between 2 and 254). Please see the
Networking Basics section for more information. If you need to change the settings, write down your existing settings
before making any changes. In most cases, your computer should be set to receive an IP address automatically in
which case you will not have to do anything to your computer.
2. Open a web browser and enter http://192.168.0.1 and press Enter. When the login window appears, set the user
name to admin and leave the password box empty. Click OK to continue.
3. Click on Advanced and then click Advanced Network. Uncheck the Enable UPnP checkbox. Click Save Settings
to continue.
4. Click Setup and then click Network Settings. Uncheck the Enable DHCP Server server checkbox. Click Save
Settings to continue.
5. Under Router Settings, enter an available IP address and the subnet mask of your network. Click Save Settings to
save your settings. Use this new IP address to access the conguration utility of the router in the future. Close the
browser and change your computer’s IP settings back to the original values as in Step 1.
Connect to Another Router

11FR-54RTR User Manual
Section 2 - Installation
6. Disconnect the Ethernet cable from the router and reconnect your computer to your network.
7. Connect an Ethernet cable in one of the LAN ports of the router and connect it to your other router. Do not plug
anything into the WAN port of the Fry’s router.
8. You may now use the other 3 LAN ports to connect other Ethernet devices and computers. To congure your wireless
network, open a web browser and enter the IP address you assigned to the router. Refer to the Conguration and
Wireless Security sections for more information on setting up your wireless network.

12FR-54RTR User Manual
Section 2 - Installation
Getting Started
The FR-54RTR includes a Quick Router Setup Wizard CD. Follow the simple steps below to run the Setup Wizard to
guide you quickly through the installation process.
Insert the Quick Router Setup Wizard CD in the CD-ROM drive. The step-by-step instructions that follow are shown
in Windows®XP. The steps and screens are similar to those found in other Windows operating systems.
If the CD Autorun function does not automatically start on your computer, go to Start > Run. In the run box, type
“D:\FR-54RTR.exe” (where D: represents the drive letter of your CD-ROM drive).

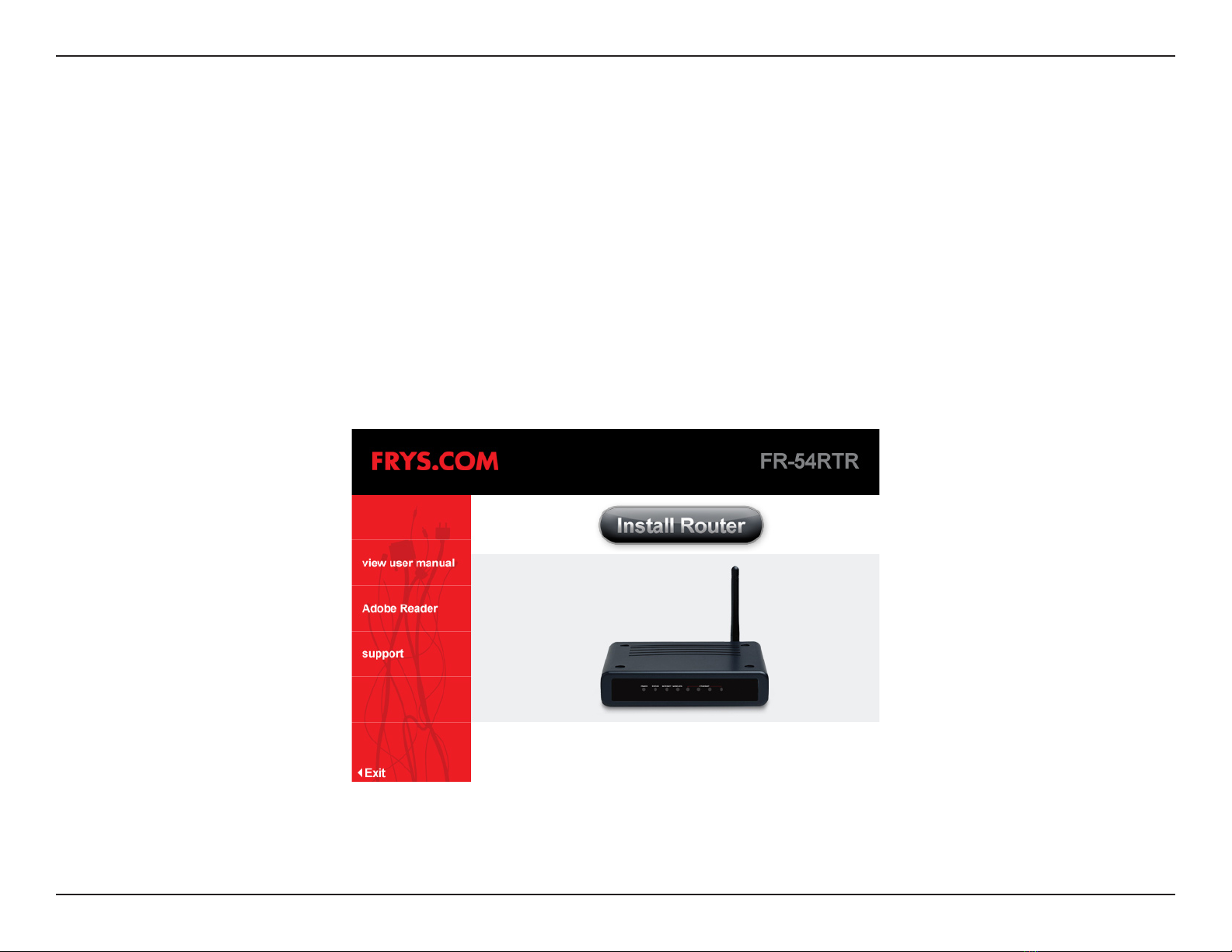

When the autorun screen appears, click INSTALL ROUTER.
Note: It is recommended to write down the login password on the provided CD holder.

13FR-54RTR User Manual
Section 3 - Conguration
Conguration
This section will show you how to congure your new Fry’s wireless router using the web-based conguration utility.
Web-based Conguration Utility
To access the conguration utility, open a web-browser
such as Internet Explorer and enter the IP address of
the router (192.168.0.1).
Enter the user name (admin) and your password. Leave
the password blank by default.
If you get a Page Cannot be Displayed error, please
refer to the Troubleshooting section for assistance.

14FR-54RTR User Manual
Section 3 - Conguration
Setup Wizard
You may run the setup wizard to quickly setup your router. Click Setup
Wizard to launch the wizard.
Click Launch Internet Connection Setup Wizard to begin.

15FR-54RTR User Manual
Section 3 - Conguration
Click Next to continue.
Create a new password and then click Next to continue.
Select your time zone from the drop-down menu and then click Next
to continue.
Select the type of Internet connection you use and then click Next
to continue.

16FR-54RTR User Manual
Section 3 - Conguration
If you selected Dynamic, you may need to enter the MAC address of the
computer that was last connected directly to your modem. If you are currently
using that computer, click Clone Your PC’s MAC Address and then click
Next to continue.
The Host Name is optional but may be required by some ISPs. The default
host name is the device name of the Router and may be changed.
If you selected PPPoE, enter your PPPoE username and password. Click
Next to continue.
Select Static if your ISP assigned you the IP address, subnet mask,
gateway, and DNS server addresses.
Note: Make sure to remove your PPPoE software from your computer. The
software is no longer needed and will not work through a router.
If you selected PPTP, enter your PPTP username and password. Click
Next to continue.
