Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 1 -
ATLAS 64 Version en_1.1 (Fte maximal)
1. Product introductions
1.1.Safety Rules
Please read the manual carefully before using the device. You will receive a lot of information to use this
product correctly and you will prevent incidents. Please keep the manual on a safe place.
This sign warns you about
high voltages, with risk of
electric shock
Caution: Do not open the housing of
this device. Repairs can only be
made by professionals authorized
by Fte maximal. If not, warranty will
not be valid anymore.
This sign informs about
special information which is
important to know.
Caution: Keep this device far away from liquids. Do not place it on placements close to water like flowers vases,
wash basin, aquariums or pools. A high risk of electric shock exists when water or high humidity filters inside the
devices. Never place other devices on it; they can overheat the devices as well as daring fire risk.
Please read carefully this manual and do not hesitate to contact to professional help if you have any doubt.
Opening the device housing will mean a warranty void.
1.- Never place the equipment close to hot sources.
2.- Never expose the equipment to temperatures that exceed the level of operation of the device.
3.- Do not expose the equipment to dripping or splashing.
4.- Do not place objects filled with liquids on the equipment.
5.- Respect ventilation slots of this equipment. Avoid covering them with any object.
6.- Keep clean and without obstacles a minimum radius of 15 cm around this equipment.
7.- Avoid place with possibilities of spilling liquids on the inside of the device, and with important changes of
temperature.
8.- Use the device only in moderate climates (not in tropical climates).
9.- When you take the device from a cold to a warm place, please wait until the device gets the same
temperature as the new environment, in order to avoid problems of humidity condensation.
10.-Never open the equipment yourself due to electric risk. In case of problems, check with qualified technicians.
11.-Never, under any circumstances, open the equipment connected to the electrical net.
12.-During the handling it is better to disconnect the equipment of the electrical net.
13.-Respect the electricity security rules during the assembling. Use materials that obey the current law.
14.-The connecting plug must be accessible in a fast and simple way to have a fast disconnection.
15.-Never touch the plug with wet hands. Also, disconnect always the device before handling the connections.
16.-Never put any heavy object over the device, as it could get damaged.
17.- If the equipment is going to remain some time without use, it is recommendable to disconnect it from the
electrical net.
18.- Within the warranty time all the repairing processes should be done by Fte Maximal technical staff.
Otherwise, the warranty voids.
RISK OF ELEKTRIC SHOCK
DO NOT OPEN
CAUTIONR

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 2 -
ATLAS 64 Version en_1.1 (Fte maximal)
2. Package contents
When open the package the first time, you can find the following context:
Quick installation Guide
Compat Headend Transmodulator Atlas 64
Power cord
1 load type F 75 Ω isolated
3. Description and connections
3.1.Description
The compact transmodulator headend of ATLAS 64, allows to receive up to 6 transponder of
satellite signals (DVB-S / S2), through its tuners. Each tuner can receive the signal from any of
the 4 available RF inputs. Atlas 64 is able to decode pay-per-view services when a professional
CAM is inserted in any of the 2 slots C.I. Each output mux can combine free or decoded
services, coming from several tuners. The services of the 4 mux can be modulated according to
the DVB-T or DVB-C standard in their RF output. The equipment has the following additional
functions:
•Allow add new channels in the coaxial RF network.
•It is possible combine several headend Atlas 64 to do a complete headend.
•Option to increase the LNB power in 1 volt to compensate the electrical loss in the
installation. For example, a high value of electrical resistance in long cable.
•Priority system for the output services to management the overflow error in the outputs
mux.
•Support LNC and PID filtering
•Easy configuration using the Web interface.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 3 -
ATLAS 64 Version en_1.1 (Fte maximal)
3.2.Connections
1 Mains connector. It is the mains connection. Connect the power cord here.
2 CAM1, CAM 2: The 2 slots C.I. to insert CAM and decrypt PAY TV services. The number
of service can be decrypted depend of the type of CAM inserted.
3 RF IN 1: Input 1 of signal DVB-S/S2. The RF input can supply remote device as LNB
4 RF IN 2: Input 2 of signal DVB-S/S2. The RF input can supply remote device as LNB
5 RF IN 3: Input 3 of signal DVB-S/S2. The RF input can supply remote device as LNB
6 RF IN 4: Input 4 of signal DVB-S/S2. The RF input can supply remote device as LNB
7 LED POWER: Power indicator. The light is green when the device is on.
8 RESET: It is the reset button. It is needed enter a tool to press the buttons for example a
clip for paper. If hold the button reset 2 seconds the headend will be rebooting and the
led ALARM will be turn on in red color. If hold the button more than 5 seconds, the
headend load the factory values. All the custom settings, IP configuration and password
will be cleared. The password will be “admin”. The light ALARM blink in green color to
know the factory values will be loaded.
9 LED ALARM: This light has several state and to indicate the next events:
•Red: The Headend will be starting the boot stage.
•Red blinking: Alarm an error is detected. For example remove an input. Another
means is the boot is in the second stage.
•Blue blinking: The headend is loading a configuration or the headend is in the
last stage of the boot.
•Green: The button Reset was hold 5 seconds and the factory value are loaded.
•OFF: No alarm detected or the boot stage is finish.
10 LAN: Allow programming the device using the web interface.
11 MIX RF: Input to mix terrestrial signal from another device in the headend.
12 RF OUT: This is the output connector of the transmodulator. The 4 mux modulate in
DVB-T or DVB-C will be mixed with all terrestrial signal received in the input MIX RF.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 4 -
ATLAS 64 Version en_1.1 (Fte maximal)
4. Installation
When the device is installed in a wall, keep clean and without obstacles a minimum radius of 15
cm around this equipment for proper ventilation. Connect the cables, from the LNB or
multiswitch to the input RF IN 1 to RF IN 4. The output signals in the RF output can be mixing
with the output terrestrial signals of other headend equipments using the MIX RF connector
before to distribute in the building. If the MIX RF input is not used connect the load 75 Ωisolated
included. To programming the headend, connect a patch cord between the LAN connector and
the computer or connect the both device using a switch or router.
Always remember to turn off the ATLAS 64 headend before to install or remove the CAM to
avoid damage in the headend or the CAM. Before to install, check the side of the logo of the
CAM must be orientating to the back side of the headend.
5. Configuring the compact headend ATLAS 64
5.1.First steps
After finish the installation of the headend Atlas 64 is ready to connect the power. Wait until the
led alarm is off again. This time could be more than three minutes. To configure the
transmodulator is necessary a computer or a mobile device with a web browser. For example:
Google Chrome, Firefox, Opera and Internet Explorer 9. In this guide is explaining the steps to
configure the Atlas 64 from one computer with Windows operative system using the network
interface Ethernet.
Connect the LAN port of the transmodulator and the interface Ethernet of the computer directly
using a patch cord or use a switch or router between the both devices connecting with 2 patch
cords. By default, the Atlas 64 is configured to obtain the IP address by DHCP.
Windows 10
Click in the Windows start button Settings Network and Internet Ethernet 
Change Adapter Settings. Right click on “Local Area Connection” and then select “Properties” in
the contextual menu.
Follow the next steps to set the properties of the Internet protocol Version 4. Double click on
“Internet Protocol Version 4 (TCP/IPv4)” to enter the IP settings of your adaptor.
Configuring the protocol TCP/IPV4 to Obtain an IP address from DHCP
In the computer Select obtain an IP address automatically and Obtain DNS server address
automatically.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 5 -
ATLAS 64 Version en_1.1 (Fte maximal)
Press OK and close the windows.
Configuring the protocol TCP/IPV4 to with a fixed address
The set before the IP static address of Atlas 64 headend with a fixed IP address for example
192.168.5.101.
Set the IP address of the computer in the same IP range and subnet of the headend. In the
example, the computer will be configuring in the IP address 192.168.5.77. Remember copy the
current configuration before to do any change, if need restore the current configuration of the
Ethernet interface.
Check the radio button “Use the following IP address” and enter an IP and subnet mask.
You can leave the Default gateway and DNS settings empty.
Press OK and close the windows.
6. Web interface
Open the web browser and type http://start in the address bar.
The Web interface of Atlas 64 will be showing, and you must be showing the overview.
Select in the left menu the option Login.
In the dialog Authentication required type the password. By default, the password is admin and
confirmed pressing the button Log In.
After that show the full menu can change the headend configuration.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 6 -
ATLAS 64 Version en_1.1 (Fte maximal)
6.1.Menú Device
6.1.1.Overview
Show the information of the output mux and CAM
6.1.2. Information
Show information about the software and hardware version and the device features.
6.1.3. Preferences
Select the power units. It is possible choice between dBm and dBµV. Press Apply to update the
changes.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 7 -
ATLAS 64 Version en_1.1 (Fte maximal)
6.1.4.Management Port
Using this menu is possible update the IP configuration, the password of the Web interface
and a remote access.
•Management Port
Hostname: Allow change the hostname of the device
by default is start. Remember to connect again must be
type http://new_value_of_ hostname.
IP Settings: Change the IP settings. If Obtain IP
address from DHCP is not checked it is necessary set
the value of the IP Address, Subnet mask and the
Default gateway.
Press the button Apply to update the new settings.
•Web Interface:
Use this option to change the password. Type the
current and the new password and press Apply to
update the change. The current session will be close
and you must be login with the new password to
continue.
•Dynamic DNS.
This option is designed to permit remote connection with the
device when we have a dynamic IP address from our service
provider.
6.1.5. Firmware upgrade
Use this option to upgrade the firmware of the device. Select the file in the option Upload
firmware pressing the button Select file. A dialog appears and must be choose the file .upg with
the new firmware. Press Upgrade to start the upgrade procedure. Show the screen a follow the
instructions to do the upgrade. Please, don’t turn off the device while it is upgrading to avoid
damage.
6.1.6.Configuration
Choose in the list Active Configuration the type of the output modulation between DVB-T and
DVB-C. Press the button Apply to confirm. The device will be rebooting, and the devices
settings will be cleared.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 8 -
ATLAS 64 Version en_1.1 (Fte maximal)
6.1.7.Device Settings
This menu allows save and load a configuration in the device.
In the section Upload Setting File (exp) press the
button Select file. A dialog is showing and it must be
used to choose the settings file with extension exp.
After confirming the file in the dialog window, press
the button import to upload the new configuration to
the device. Wait until the process finish.
Press the button Export, to save the current devices
settings in a file.
6.1.8.Reset Device
In this option, it is possible choose the type of reset. In the list Select reset level choose an
option and press the button Apply to confirm.
Options available:
Reboot device: Restart the device.
Reset IP settings: Load the factory settings for IP
configuration
Reset Device Settings: Delete all device settings
except the IP configuration, password and the
device configuration.
Factory Reset: Load the factory default. The device
configuration is not changed after the factory default
Reset CAM: Force a reset to the CAM
6.1.9. Logout
Close the current session.
6.2.Menú Input
6.2.1. LNB
Allow change the title and supply settings of the inputs.
Label: Edit the text to do a friendly identification of the input.
Voltage: Choose between OFF, 13V and 18V.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 9 -
ATLAS 64 Version en_1.1 (Fte maximal)
Extended: Mark the checkbox +1V to increase the supply voltage 1 volt. Use this option when
the input voltage in the remote device is low for example for a high value of electrical resistance
in long cables.
Tone: Select between OFF and 22 KHz.
DiSEqC: Choose between A, B, C and D.
Band: In this option select between Ku (Universal 9750/10600MHz) and C band.
Enable: If the option is checked the input is enabled.
Press the button Apply to update the change in the device.
6.2.2.Tuner
This section allows change the settings of the 6 tuners of the headend and show information of
the transponder tuned. First step is to choos the Tab of the tuner to change the settings.
Input Selection: Select in the list the RF between the 4 available inputs.
Frequency (MHz): Enter the frequency in MHz.
Baud Rate (KBd): Type the value of the Symbol rate.
Modulation: Choose in the list between DVB-S and DVB-S2.
Enable: Check this option to enable the tuner.
Press Apply to confirm. After tune the signal of the transponder in the screen appears the
information of the input level, the quality, the input network information and the service list.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 10 -
ATLAS 64 Version en_1.1 (Fte maximal)
6.3.Menú Output
6.3.1. MUX
In this section can be change the settings of the output modulation, Transport stream settings
and can be choose the output services of each mux.
Modulation Settings
DVB-T Settings
DVB-C Settings
Frequency (KHz)1:Type the centre frequency of the mux in KHz. For example the channel 21
will be 474000. See the Annex 1 in the page 15 for details.
Bandwidth1: Select in the list the bandwidth. The options available are 6, 7 and 8 MHz.
Constellation: Depending of the output modulation it is possible choose one option in the list.
DVB-T: QPSK, 16 QAM and 64-QAM.
DVB-C: 16-QAM, 32-QAM, 64–QAM, 128-QAM and 256-QAM.
Baud Rate (MBd)1(Option only for DVB-C): Choose the value of the baud rate (symbol rate).
Select between 1.000 until 7.0002.
Code rate (Option only for DVB-T): The values available are: 1/2, 2/3, 3/4, 5/6 and 7/8.
Guard Interval (Option only for DVB-T): The values can select in the list are: 1/4, 1/8, 1/16 and
1/32.
Level1: Select a value between 69 dBuV and 84 dBuV (-40 dBm to -25 dBm).
Press the button Apply to confirm the new adjustment.
Remark
1: The setting only can be changing in the Mux 1.
2The higher value could be under 7.000, if the bandwidth is lower than 8 MHz
Transport Stream Settings
Here can type the transport stream ID. The value is between 0-65535. Press
the button Apply to confirm.
Status
Show the output bandwidth of the mux.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 11 -
ATLAS 64 Version en_1.1 (Fte maximal)
Service Settings
Allow choose the output services in the outputs mux and their settings.
Add an output service.
Use the next settings to add an output service.
Tuner: Select in the list the number of tuner where it is received the service to add in the output.
Name: Choose in the list the name of service.
CI: Select the routing of the service. Choose between the next values: FTA, CAM1 and CAM2.
Priority: Allows prioritize some services to ensure the best quality on your TV, in the case of
overflow in the output, because the bandwidth in the output is limited. It is advisable not to
exceed 30% the total number of services to be prioritized in each multiplex.
New SID: In this option is possible change the service ID. If leave in blank keep the original
service ID after was added.
LCN: Type here the logical channel number to sort the channels in the compatible receivers
with this option.
Finally do a click in the image to add the service. If the service was added in this mux or
another mux appear a warning message and it can be not added again.
After add a service, it is possible edit the value of the CI, New SID and LCN. The option Enable
must be checked to permit the service in the output.
PID filtering
Click in the image V in the right side of the Enable. With that show the list of PID of the service.
If check the option Blocked in the same row of the PID, the PID will be not in the output. This
option could be permit save bandwidth removing for example teletext or other PID not used.
Click in the image to update the new settings of the service.
Do clock in the image to update the new settings in several services in the same time.
Delete services
To delete a service do click in the image .
To delete all service do click in the image .

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 12 -
ATLAS 64 Version en_1.1 (Fte maximal)

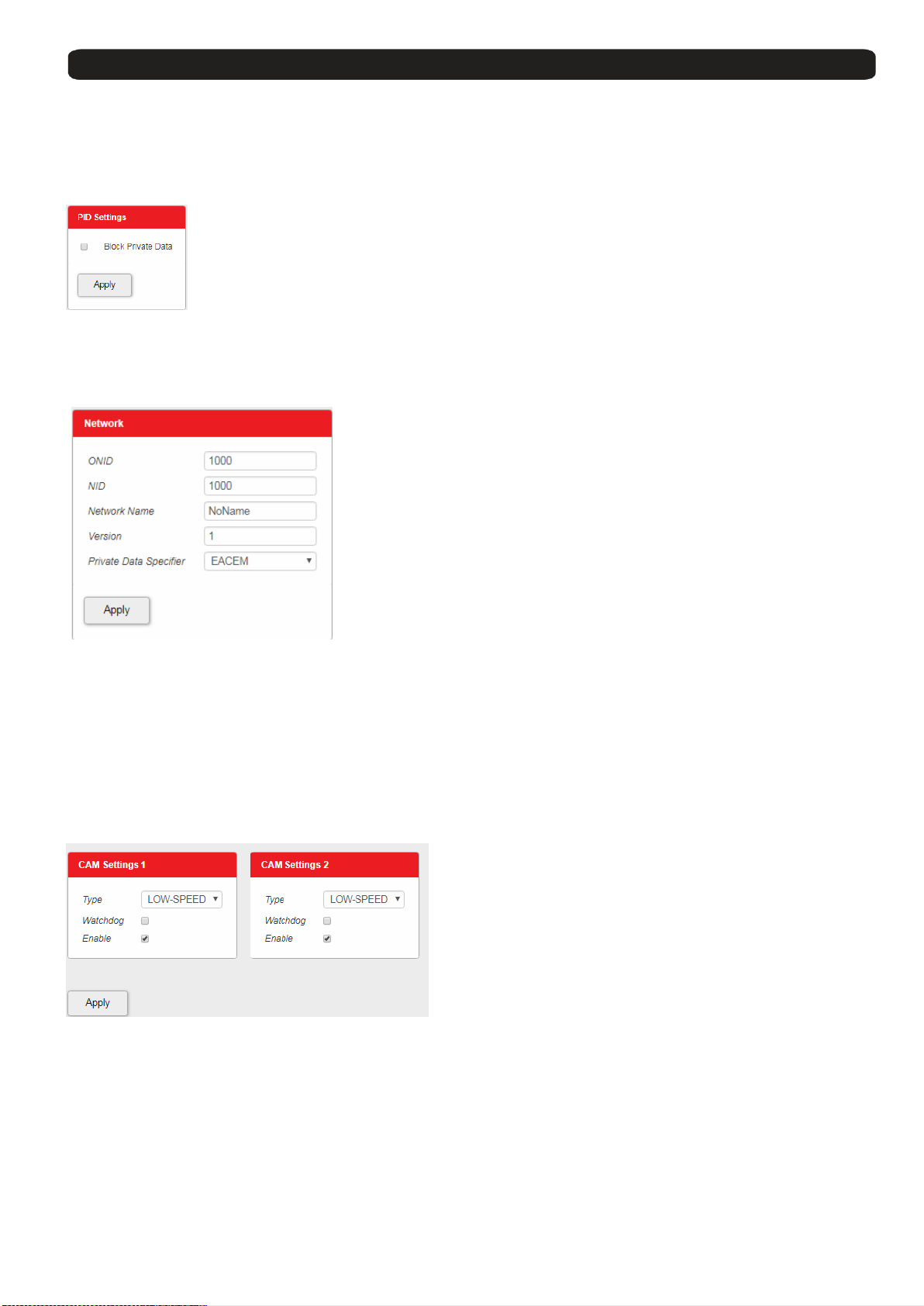

Pid Settings
When check the option Block Private Data, the headend block with irrelevant PID information.
Only allow in the output the PID as video, audios, CAS….
6.3.2. Network
In the network setting several settings of the Network could be modified as the ONID, NID, the
name, the version and Private Data Specifier.
ONID: In this option enter the value of original network ID.
The allowed values are between 1 and 65535.
NID: Type here the value of the Network ID. The allowed
values are between 1 and 65535.
Network Name: Type here the name of the network.
Version: Type the value of the network version. The allowed
values are between 1 and 31.
Private data Specifier: Select between the next values:
EACEM, ITC and Nordig.
Press Apply to confirm the new settings.
6.4.Menu CAM
6.4.1. Settings
Use this menu to change the settings of the CAM.
Type: Select the type of the CAM.
•Choose LOW-SPEED (option by default)
for first generation CAM. Theses models
only support 50 Mbps.
•Choose HIGH-SPEED for second
generation CAM. These models support
until 100 Mbps.
Watchdog: The watchdog monitoring the CAM and check all the services pass through the
CAM are decrypting. If one or several services are not decrypting the watchdog do a reset in
the CAM to try to decrypt again the services
Remark: The watchdog must be enabled only when all services are decrypting correctly by the CAM.
Enable: When this option is checked the CAM is enabled (default value).
Click the button Apply to confirm the new values.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 13 -
ATLAS 64 Version en_1.1 (Fte maximal)
6.4.2. Configuration
This menu allows associate the Reference Transponder and CAM menu.
Reference Transponder
It is needed check the enable option and selects the correct reference
tuner to decrypt services by the CAM. The reference tuner must be
one tuner where is received services any Pay TV compatible with the
CAM. Select enable and in the list reference choose one of the six
tuners of the device
Press the button Apply to confirm the new settings.
CAM Menu
Allow show and navigate in the CAM menu. To enter in one option do
click with the mouse. To return to the previous menu press the button
Return. To return directly to the main menu press Menu.

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 14 -
ATLAS 64 Version en_1.1 (Fte maximal)
7. Technical specification
Technical specification
Reference
ATLAS 64
Code
2008604
Description
Compact transmodulator headend 6 x DVB-S/S2 to 4 x DVB-T/ DVB-C
RF Input
Number of connectors
4
Number of tuners
6
Standard
DVB-S/S2
Frequency range
950-2150 MHz
Level
44 dBµV - 84 dBµV / ( -65 dBm to -25 dBm)
Bandwidth
36 MHz
LNB (remote power supply)
0V / 13V/ 18V/ 0-22kHz
Maximum current/ input
350 mA
DiseqC support 1.0
yes
Integrated multiswitch
Yes, allow routing from any input service to any output mux
CI Slot
2
RF Output
Number of connectors
1
Number of output mux
4
Standards
DVB-T / DVB-C
DVB-T
Frequency range
Mode
Bandwidth
Constellation
Guard interval
Code rate
Bitrate
47-862 MHz
2K
6, 7 and 8 MHz
QPSK, 16 QAM and 64 QAM
1/4, 1/8, 1/16 and 1/32
1/2, 2/3, .3/4. 5/6 and 7/8
Up to 31.667 Mbps / MUX
DVB-C
Frequency rage
Bandwidth
Constellation
Baud rate
Bitrate
47-1002 MHz
6, 7 and 8 MHz
16QAM, 32QAM, 64QAM, 128QAM and 256QAM
1.000-7.000 Mbd
Up to 51.6 Mbps/ MUX
Output level
84 dBµV / (-25 dBm )
regulation
15 dB (in step 1 dB)
MER
≥ 43 dB
MIX RF connector
1
Insertion loss MIX RF - RF OUT
≤2 dB
LAN (Only for programming)
Programming
Using Web interface
Type of connector
RJ 45
Interface speed
100 Mbits
Standard
IEEE 802.3 10/100 Base-T
GENERAL
Input power supply
100-240 Vac / 50-60Hz
Power
45 W
Dimensions
345 mm x 70 mm x 210 mm
Operative temperature range
0-50 ºC

Quick installation Guide ATLAS 64
We reserve the right to make technical changes without prior notice. The manufacturer accepts no liability arising from printing errors.
- 15 -
ATLAS 64 Version en_1.1 (Fte maximal)
ANNEX I Channel list
7.1.VHF Frequency table
Channel
Center
Frequency (KHz)
Frequency (KHz)
2
50500
47000 –54000
3
57500
54000 –61000
4
64500
61000 –68000
5
177500
174000 –181000
6
184500
181000 –188000
7
191500
188000 –195000
8
198500
195000 –202000
9
205500
202000 –209000
10
212500
209000 –216000
11
219500
216000 –223000
12
562000
223000 –230000
7.2.UHF Frequency table
Channel
Center
Frequency (KHz)
Frequency
(KHz)
Channel
Center
Frequency (KHz)
Frequency (KHz)
21
474000
470000 –478000
41
634000
630000 –638000
22
482000
478000 –486000
42
642000
638000 –646000
23
490000
486000 –494000
43
650000
646000 –654000
24
498000
494000 –502000
44
658000
654000 –662000
25
506000
502000 –510000
45
666000
662000 –670000
26
514000
510000 –518000
46
674000
670000 –678000
27
522000
518000 –526000
47
682000
678000 –686000
28
530000
526000 –534000
48
690000
686000 –694000
29
538000
534000 –542000
49
698000
694000 –702000
30
546000
542000 –550000
50
706000
702000 –710000
31
554000
550000 –558000
51
714000
710000 –718000
32
562000
558000 –566000
52
722000
718000 –726000
33
570000
566000 –574000
53
730000
726000 –734000
34
578000
574000 –582000
54
738000
734000 –742000
35
586000
582000 –590000
55
746000
742000 –750000
36
594000
590000 –598000
56
754000
750000 –758000
37
602000
598000 –606000
57
762000
758000 –766000
38
510000
606000 –614000
58
770000
766000 –774000
39
618000
614000 –622000
59
778000
744000 –782000
40
626000
622000 –630000
60
786000
782000 –790000

BCN DISTRIBUCIONES S.A.U.
Agustí Pi i Sunyer, 15
08192 Sant Quirze del Vallès
(Barcelona) España
Tel. [phone]
Fax. [phone]
[e-mail]
www.ftemaximal.com
Intelligent Digital Services GmbH
Maria-Goeppert-Str. 5
D-23562 Lübeck
Germany
Phone: [phone]
Fax: [phone]
eMail: [e-mail]
