Fuji Electric FJ Series User manual

62C1-E-0129c
MOTOR CONTROL
Contactors and Thermal Overload Relays
FJ Series

The FJ Series is compact, safety, environmental friendly and
the world's smallest magnetic contactors.
(applied motor capacity: 440 VAC, 2.2 to 45 kW)
Unit : mm
Motor rating
AC-3, 440V AC
FJ-B06 : 2.2kW
FJ-B09 : 4kW
FJ-B12 : 5.5kW
FJ-B18 : 7.5kW FJ-B25 : 11kW
FJ-B32 : 15kW
FJ-B40 : 18.5kW
FJ-B50 : 22kW
FJ-B65 : 30kW
FJ-B80 : 40kW
FJ-B95 : 45kW
Contactors
Type
FJ-B06
FJ-B09
FJ-B12
FJ-B18 FJ-B25
FJ-B32
FJ-B40
FJ-B50
FJ-B65
FJ-B80
FJ-B95
Thermal overload
relays
Type TK12B TK18B TK32B TK65B TK95B
World's
smallest
Floor mounting area Volume VolumeFloor mounting area
Compact

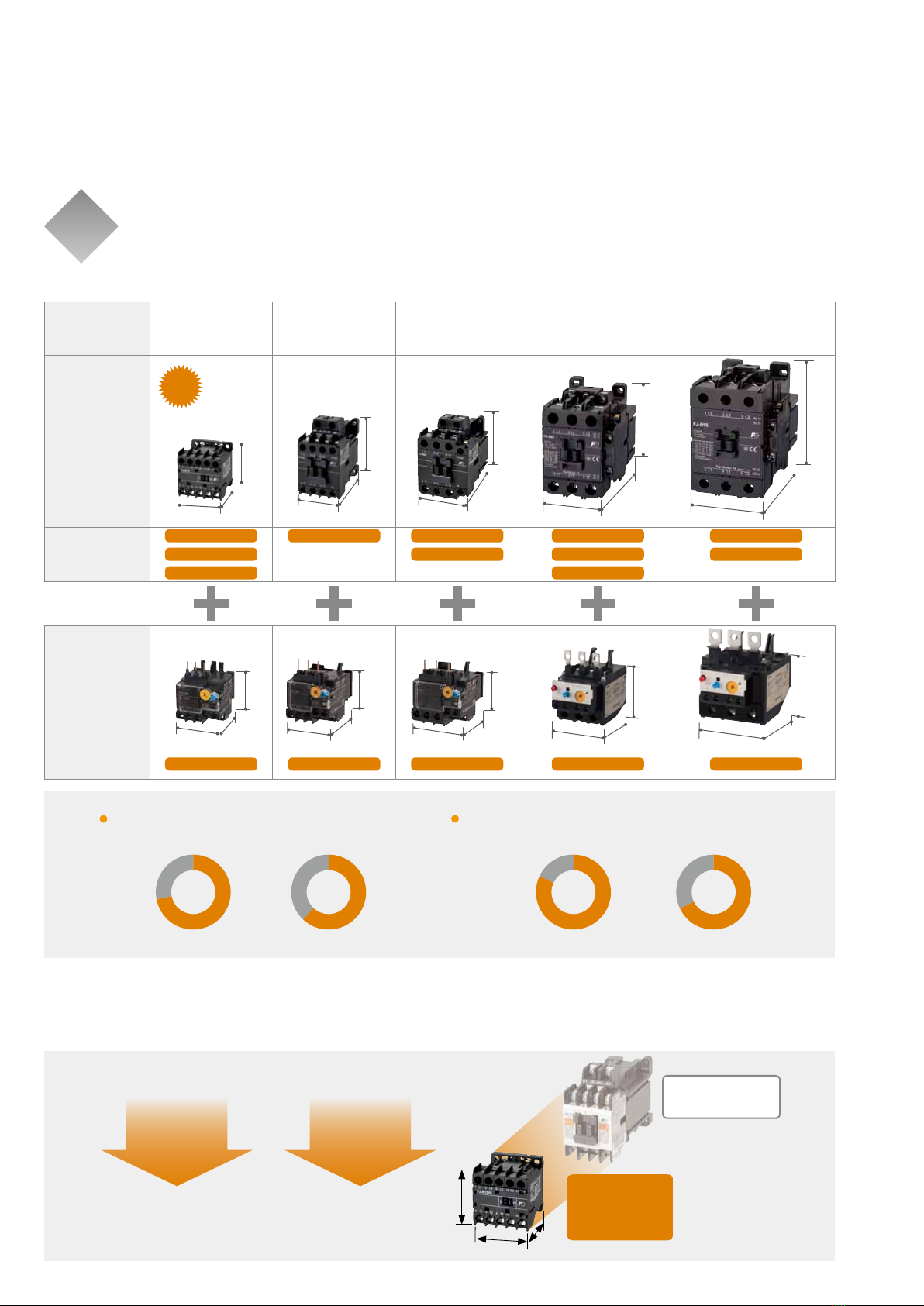

Compact and space-saving of magnetic contactor and thermal overload relay
81
43 80 53
81
81
45
48
49
Average of FJ-B06 to B95 types Average of models with thermal overload relay
72% of
previous
models
62% of
previous
models
82% of
previous
models
68% of
previous
models
45
49.5
50
48.5
45 61 53
50.5
61
Compact DC operated Contactor
6 to 12 A frame products have been made much smaller and lighter by adopting a newly developed electromagnet.
Previous
DC operated types
DC operated types
• FJ-B06/G
• FJ-B09/G
• FJ-B12/G
48
45 49
Volume ratio
72% DOWN
Weight ratio
68% DOWN
63.5
90
96
76.5
110
111
54
78.5
97 68
89.5
102.5
Compact
2

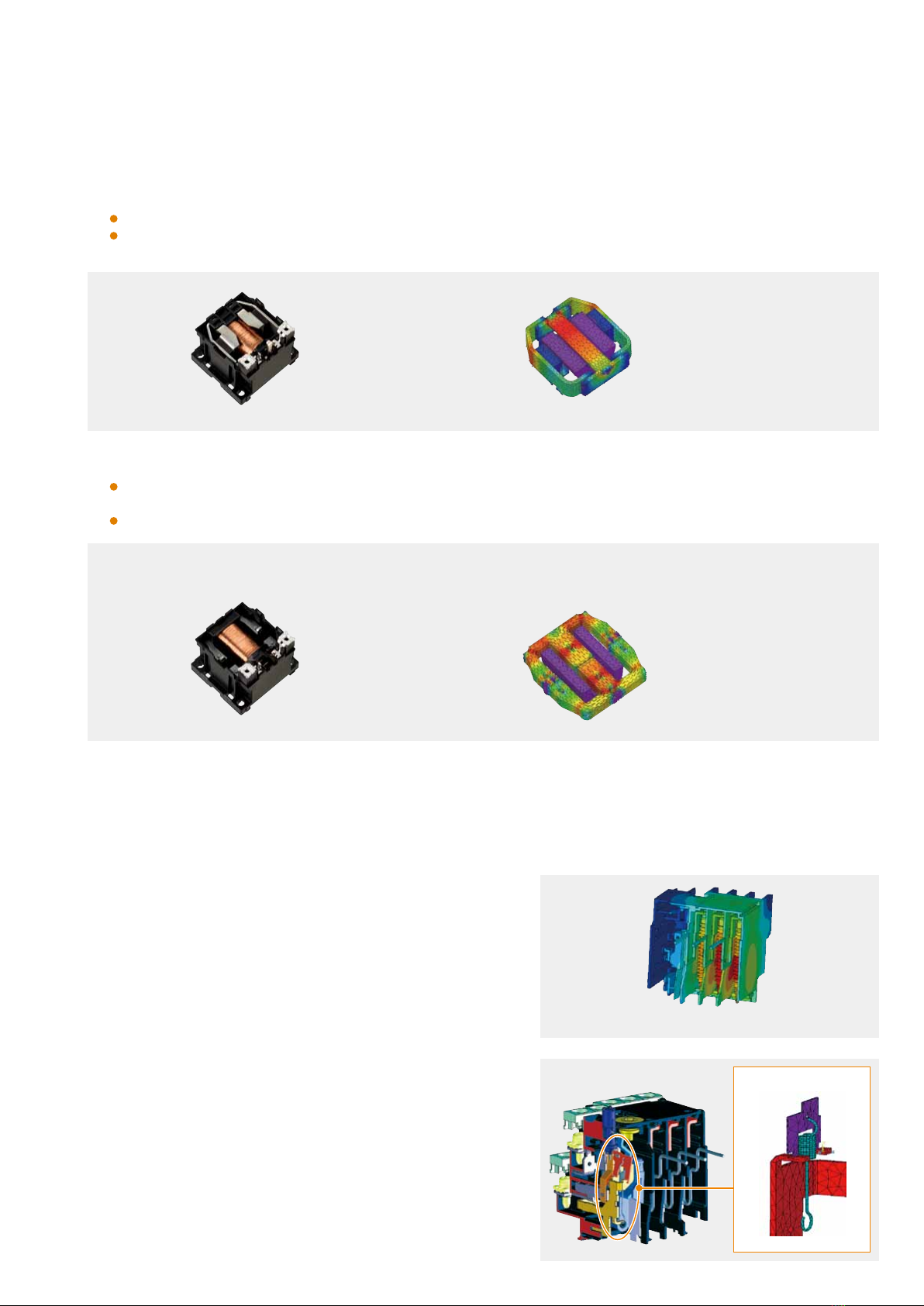

Optimization was achieved through 3D thermal analysis and inversion mechanism simulation.
Highly efficient electromagnet has been developed by using a computer simulation with 3D magnetic field analysis
so that AC and DC electromagnets have the same appearance. (FJ-B06, B09, and B12 types)
Developing DC electromagnet
Developing compact and highly efficient electromagnet by using permanent magnet and making use of coil energy
The DC electromagnet can be directly powered by 2.4 W through semiconductor output by minimizing the leaked magnetic flux, distributing
optimized magnetic flux, and satisfying demand for both less loss and smaller size.
DC operated electromagnet
(FJ-B06/G, B09/G, and B12/G types)
AC operated electromagnet
(FJ-B06, B09, and B12 types)
Analyzing electromagnet
(distribution of magnetic flux density
and magnetic flux flow)
Analyzing electromagnet
(distribution of magnetic flux density
and magnetic flux flow)
Inversion Mechanism Simulation
Inversion Mechanism
3D Thermal Analysis Simulation
3D thermal analysis simulation
The thermal element is explored through 3D thermal imaging analysis.
With the high efficiency heating and the stable bend of the bimetallic
strips, the product can be further miniaturized.
New inversion mechanism
The reversing mechanisms can be miniaturized and their stable
operation features can be achieved through the simulation
experiments of reversing mechanisms.
Developing AC electromagnet
Acompact electromagnet has been developed by optimizing the sectional area of each iron core part and excluding magnetic flux saturation and
not having a wasteful shape
The iron-core-fixing rivets are optimally arranged in order to remove the impact on magnetic flux route and the rivets can reduce eddy current loss.
This optimal design makes it possible to develop an energy saving electromagnet
that has 4.5 VA of electromagnetic capacity.
Contactors and Thermal Overload Relays
FJ Series
3

Safety
Magnetic contactor equipped with mirror contact
Mirror contact conforms to the requirement for auxiliary contact that is
intended to be included in the future amendment to IEC 60947-4-1.
Mirror contact : Normally closed auxiliary contact,which cannot be in
closed position simultaneously with the normally open main contact.
Terminal cover for finger protection
The terminal cover satisfies the requirements of Machinery Directive
EN60204-1 “Direct Contact Prevention” concerning mechanical safety.
Standards
Standard models of the FJ Series are certified by CCC and have
obtained a CE mark, and that is shown on the nameplate of the main
unit.
Ecology
Compliant with RoHS directive (Restriction of Hazardous Substances in the EU)
The materials used do not contain any of the six substances that are specified in the RoHS
Directive or have less than the specified content percentages of those substances.
China Energy Label

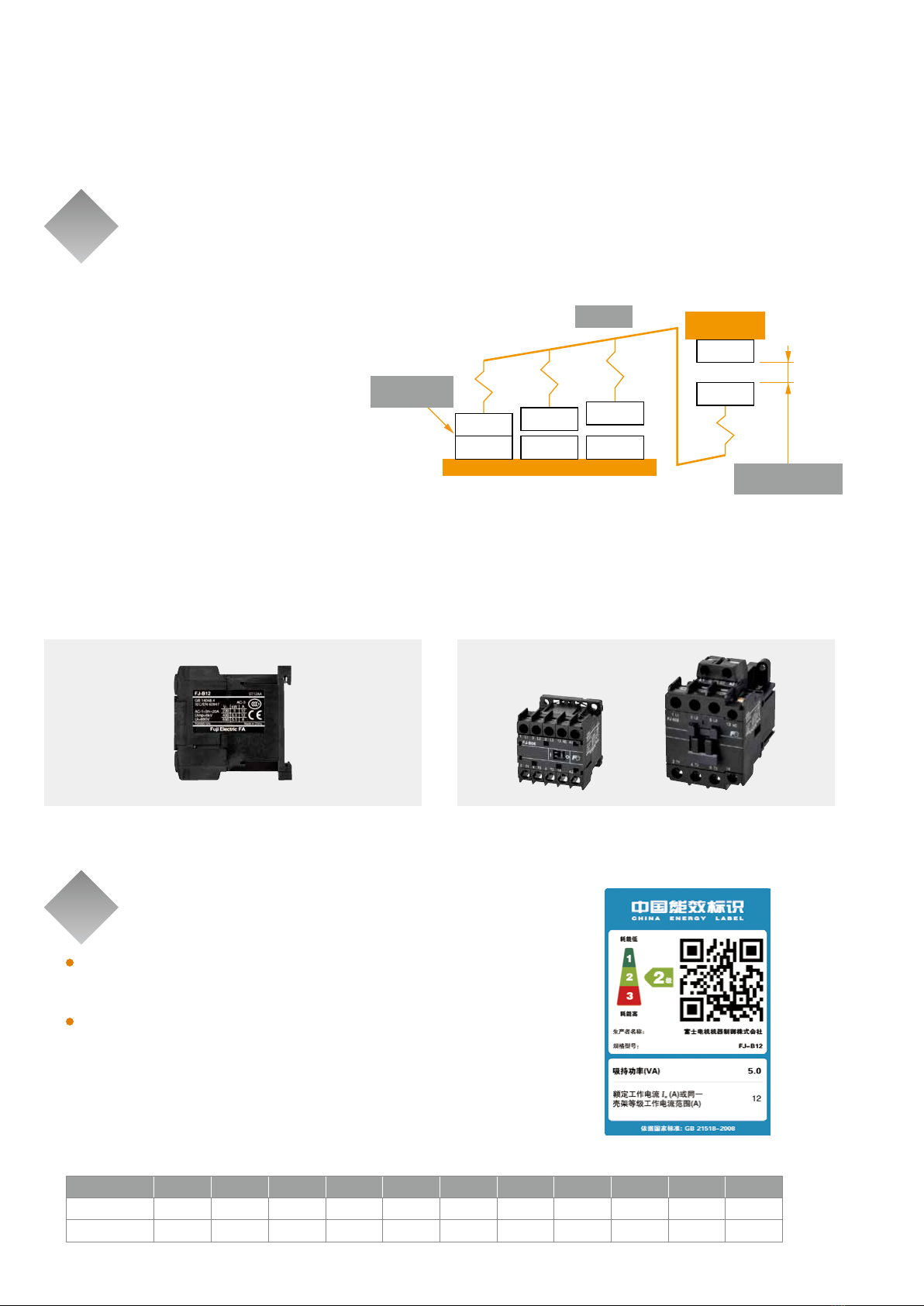

The FJ Series of magnetic contactors is highly energy efficient and they have met the
specified value defined by the Energy Efficiency Label Management Method. Especially,
FJ-B06, B09, B12, B40, B50, B65, B80 and B95 types are energy saving with an energy
efficiency class of 2.
Energy Efficiency Label
Frame 06 09 12 18 25 32 40 50 65 80 95
Sealed VA 4.5 4.5 4.5 9 9 9 12.7 12.7 12.7 13.4 13.4
Class 22233322222
Safety
Ecology
Moving
contact
Stationary
contact
Moving
contact
Stationary
contact
Main contact
Moving
contact
Moving
contact
Coil off
Stationary
contact
Stationary
contact
Main contact
welding
NC contact gap:
0.5 mm or more
Mirror contact IEC60947-4-1
NC auxiliary
contact
4

Many options
Options for FJ-B06 to B12 types
Options for FJ-B18 to B95 types
Front mounting
Side mounting
Top mounting
Auxiliary
contact block
(4 contacts)
Auxiliary
contact block
(2 contacts)
Auxiliary
contact block
(2 contacts)
Auxiliary
contact block
(2 contacts)
Coil-surge
suppression
unit
Interlock unit
Mechanical
interlock unit
Front mounting
Product name / Type Descriptions
Auxiliary contact block
(front mounting) Auxiliary contact block with
2-pole or 4-pole contacts
adopting a bifurcated contact.
Easy to mount on a magnetic
contactor.
SZ1FA□, SZ1KA□
Mechanical interlock unit
The mechanical interlock unit
is used to interlock two
contactors for reversing.
One size fits all contactors.
SZ1KRM
Power Connection Kit
for Reversing Cable kit for reversible circuit
between main circuit terminals
for two magnetic contactors.
SZ1KRW1W
Product name / Type Descriptions
Auxiliary contact block
(front mounting) Two and four auxiliary contact
blocks adopting a bifurcated
contact. Easy to mount on a
magnetic contactor.
SZ-A□
Auxiliary contact block
(side mounting) Auxiliary contact block with 2
(1NO1NC) contacts adopting
a highly reliable auxiliary
contact. Easy to mount on a
magnetic contactor.
SZ-A□
Mechanical interlock unit
Two magnetic contactors are
mechanically interlocked. Reversible
and easy to assemble.
SZ-RM
Coil-surge suppression unit
Built-in surge voltage
suppression elements
(varistor, CR) while the coil is
turned off.
SZ-Z□
Utility
Options
Auxiliary
contact block
(2 contacts, compact type)
Auxiliary
contact block
(2,4 contacts)
Contactors and Thermal Overload Relays
FJ Series
5

6
Catalog Disclaimer
The information contained in this catalog does not constitute an express or implied warranty of quality, any warranty of
merchantability of fitness for a particular purpose is hereby disclaimed.
Since the user's product information, specific use application, and conditions of use are all outside of Fuji Electric FA Components
& Systems'control, it shall be the responsibility of the user to determine the suitability of any of the products mentioned
for the user's application.
One Year Limited Warranty
The products identified in this catalog shall be sold pursuant to the terms and conditions identified in the
"Conditions of Sale" issued by Fuji Electric FA with each order confirmation.
Except to the extent otherwise provided for in the Conditions of Sale issued by Fuji Electric FA, Fuji Electric FA warrants that the
Fuji Electric FA products identified in this catalog shall be free from significant defects in materials and workmanship provided
the product has not been: 1) repaired or altered by others than Fuji Electric FA; 2) subjected to negligence, accident, misuse, or
damage by circumstances beyond Fuji Electric FA's control; 3) improperly operated, maintained or stored; or 4) used in other
than normal use or service. This warranty shall apply only to defects appearing within one (1) year from the date of shipment
by Fuji Electric FA, and in such case, only if such defects are reported to Fuji Electric FA within thirty (30) days of discovery
by purchaser. Such notice should be submitted in writing to Fuji Electric FA at 5-7, Nihonbashi Odemma-cho, Chuo-ku, Tokyo,
Japan.The sole and exclusive remedy with respected to the above warranty whether such claim is based on warranty, contract,
negligence, strict liability or any other theory, is limited to the repair or replacement of such product or, at Fuji Electric FA's
option reimbursement by Fuji Electric FA of the purchase price paid to Fuji Electric FA for the particular product. Fuji Electric
FA does not make any other representations or warranties, whether oral or in writing, expressed or implied, including
but not limited to any warranty regarding merchantability or fitness for a particular purpose. Except as provided in the
Conditions of Sale, no agent or representative of Fuji Electric FA is authorized to modify the terms of this warranty in writing or
orally.
In no event shall Fuji Electric FA be liable for special, indirect or consequential damages, including but not limited to, loss of
use of the product, other equipment, plant and power system which is installed with the product, loss of profits or revenues,
cost of capital, or claims against the purchaser or user of the product by its customers resulting from the use of information,
recommendations and descriptions contained herein. The purchaser agrees to pass on to its customers and users, in writing at
the time inquiries and orders are received by buyer, Fuji Electric FA's warranty as set forth above.
Safety Considerations
• Operate (keep) in the environment specied in the operating instructions and manual. High temperature, high humidity,
condensation, dust, corrosive gases, oil, organic solvents, excessive vibration or shock might cause electric shock, fire,
erratic operation or failure.
• For safe operation, before using the product read the instruction manual or user manual that comes with the product carefully
or consult the Fuji sales representative from which you purchased the product.
• Products introduced in this catalog have not been designed or manufactured for such applications in a system or equipment
that will affect human bodies or lives.
• Customers, who want to use the products introduced in this catalog for special systems or devices such as for atomic-energy
control, aerospace use, medical use, passenger vehicle, and traffic control, are requested to consult with Fuji Electric FA.
• Customers are requested to prepare safety measures when they apply the products introduced in this catalog to such systems
or facilities that will affect human lives or cause severe damage to property if the products become faulty.
• For safe operation, wiring should be conducted only by qualied engineers who have sufcient technical knowledge about
electrical work or wiring.
• Follow the regulations of industrial wastes when the product is to be discarded.
• For further questions, please contact your Fuji sales representative or Fuji Electric FA.

7
FJ Series
Contactors and Thermal Overload Relays
Page
List of Products................................................................................................................................................................8
Type number nomenclature ........................................................................................................................................... 10
Ratings ..........................................................................................................................................................................12
Operating coil characteristics ........................................................................................................................................13
General conditions of use..............................................................................................................................................14
Magnetic contactors ...................................................................................................................................................... 15
Types and ratings.........................................................................................................................................................15
Dimensions and wiring diagrams.................................................................................................................................16
Reversing magmetic contactors .................................................................................................................................... 18
Types and ratings.........................................................................................................................................................18
Dimensions and wiring diagrams.................................................................................................................................19
Thermal overload relays ................................................................................................................................................21
Dimensions and wiring diagrams.................................................................................................................................24
Optional units.................................................................................................................................................................26
Auxiliary relays .............................................................................................................................................................. 34

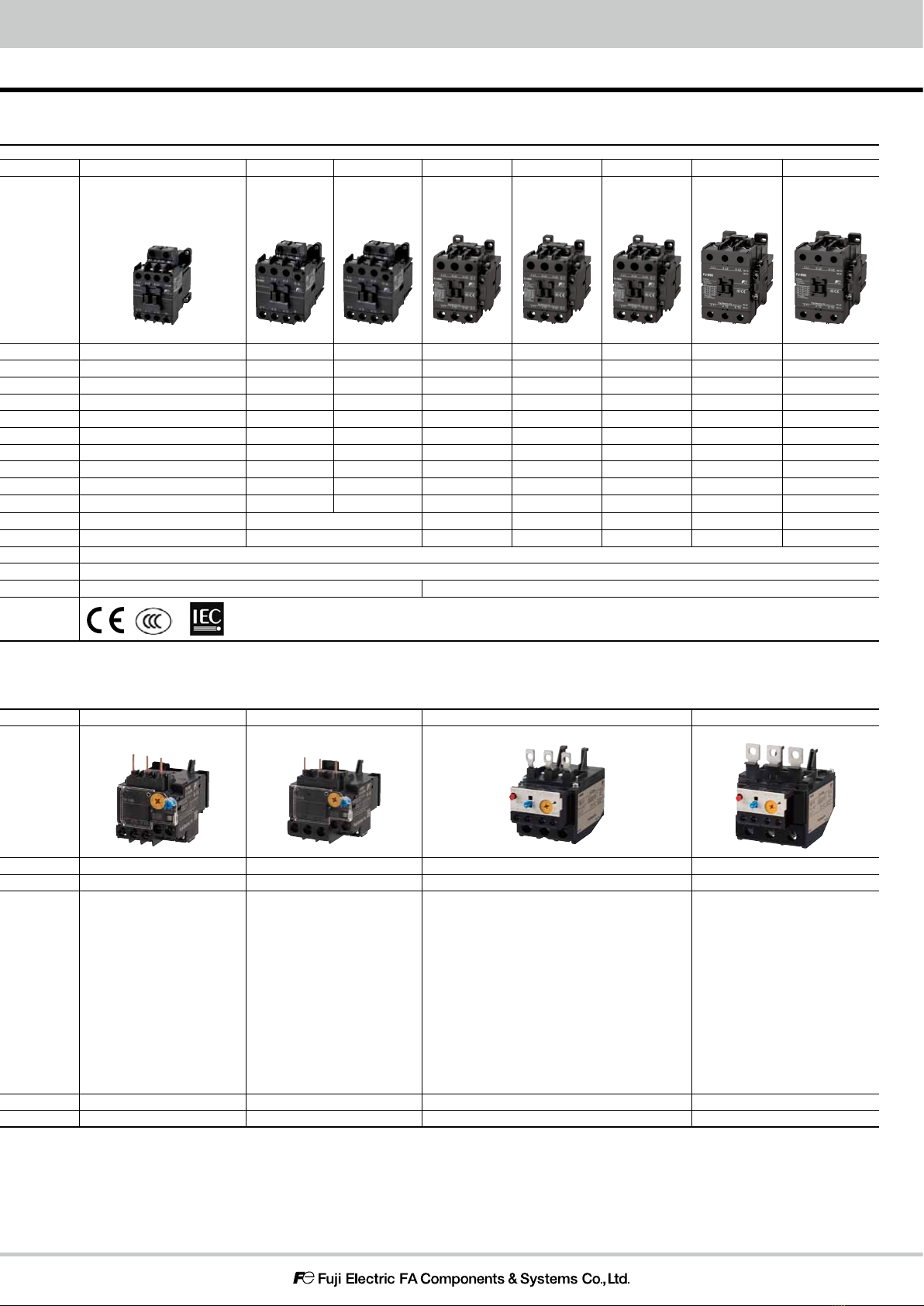

zMagnetic contactors
Series FJ Series
Frame 06 09 12 18 25 32 40 50 65 80 95
Appearance
Type AC operated type FJ-B06 FJ-B09 FJ-B12 FJ-B18 FJ-B25 FJ-B32 FJ-B40 FJ-B50 FJ-B65 FJ-B80 FJ-B95
DC operated type FJ-B06/G FJ-B09/G FJ-B12/G FJ-B18/G FJ-B25/G FJ-B32/G –––––
Max. motor capacity (kW)
AC-3, IEC60947-4-1
200/240V 1.5kW 2.2kW 3kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 25kW
380/440V 2.2kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 30kW 40kW 45kW
600/690V 2.7kW 4kW 5.5kW 7.5kW 7.5kW 7.5kW 11kW 15kW 22kW 30kW 37kW
Operational current (A) 200/240V 6A 9A 12A 18A 25A 32A 40A 50A 65A 80A 95A
380/440V 6A 9A 12A 18A 25A 32A 40A 50A 65A 80A 95A
600/690V 3A 5A 6A 7A 9A 10A 15A 19A 26A 38A 44A
Conventional free air thermal current (rated thermal current) Ith (A) 20A 20A 20A 25A 32A 40A 50A 60A 65A 100A 105A
Auxiliary contact arrangement 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC
Dimensions
W × H × D (mm)
AC operated type 45 × 48 × 49 43 × 81 × 80 53 × 81 × 81 63.5 × 90 × 96 63.5 × 90 × 96 63.5 × 90 × 96 76.5 × 110 × 111 76.5 × 110 × 111
DC operated type 43 × 81 × 107 53 × 81 × 108 –––––
Optional unit Auxiliary contact block Front mounting SZ1FA11 or SZ1FA11H, SZ1KA,SZ1KAHSZ-A(2pole or 4pole)
Side mounting – SZ-AS1
Coil surge suppression unit *1 –SZ-Z1 to Z9 SZ-Z31 to Z35
Standards
s
s
Note: *1. Attach “S” behind the built-in order model of coil surge suppression unit.
zThermal overload relays
Type TK12B-TK18B-TK32B- TK65B-TK95B-
Appearance
Protection function Overload Overload Overload Overload Overload
Tripping class 10A 10A 10A 10A 10A
Ampere setting range (A) / code 0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
13-18 [013]
0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
12-18 [012]
16-22 [016]
20-26 [020]
26-32 [026]
4-6 [004]
5-8 [005]
6-9 [006]
7-11 [007]
9-13 [009]
12-18 [012]
18-26 [018]
24-36 [024]
32-42 [032]
40-50 [040]
44-54 [044]
53-65 [053]
7-11 [007]
9-13 [009]
12-18 [012]
18-26 [018]
24-36 [024]
28-40 [028]
34-50 [034]
45-65 [045]
48-68 [048]
64-80 [064]
68-86 [068]
86-96 [086]
Applicable contactors FJ-B06, B09, B12 FJ-B18 FJ-B25, B32 FJ-B40, B50, B65 FJ-B80, B95
Dimensions W × H × D (mm) 45 × 49.5 × 50 45 × 48.5 × 61 53 × 50.5 × 61 54 × 78.5 × 97 68 × 89.5 × 102.5
Note: Replace the mark in the type number by the Ampere setting range code.
List of Products
Information subject to change without notice
8
Contactors and Thermal Overload Relays

zMagnetic contactors
Series FJ Series
Frame 06 09 12 18 25 32 40 50 65 80 95
Appearance
Type AC operated type FJ-B06 FJ-B09 FJ-B12 FJ-B18 FJ-B25 FJ-B32 FJ-B40 FJ-B50 FJ-B65 FJ-B80 FJ-B95
DC operated type FJ-B06/G FJ-B09/G FJ-B12/G FJ-B18/G FJ-B25/G FJ-B32/G –––––
Max. motor capacity (kW)
AC-3, IEC60947-4-1
200/240V 1.5kW 2.2kW 3kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 25kW
380/440V 2.2kW 4kW 5.5kW 7.5kW 11kW 15kW 18.5kW 22kW 30kW 40kW 45kW
600/690V 2.7kW 4kW 5.5kW 7.5kW 7.5kW 7.5kW 11kW 15kW 22kW 30kW 37kW
Operational current (A) 200/240V 6A 9A 12A 18A 25A 32A 40A 50A 65A 80A 95A
380/440V 6A 9A 12A 18A 25A 32A 40A 50A 65A 80A 95A
600/690V 3A 5A 6A 7A 9A 10A 15A 19A 26A 38A 44A
Conventional free air thermal current (rated thermal current) Ith (A) 20A 20A 20A 25A 32A 40A 50A 60A 65A 100A 105A
Auxiliary contact arrangement 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO or 1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC 1NO1NC
Dimensions
W × H × D (mm)
AC operated type 45 × 48 × 49 43 × 81 × 80 53 × 81 × 81 63.5 × 90 × 96 63.5 × 90 × 96 63.5 × 90 × 96 76.5 × 110 × 111 76.5 × 110 × 111
DC operated type 43 × 81 × 107 53 × 81 × 108 –––––
Optional unit Auxiliary contact block Front mounting SZ1FA11 or SZ1FA11H, SZ1KA,SZ1KAHSZ-A(2pole or 4pole)
Side mounting – SZ-AS1
Coil surge suppression unit *1 –SZ-Z1 to Z9 SZ-Z31 to Z35
Standards
s
s
Note: *1. Attach “S” behind the built-in order model of coil surge suppression unit.
zThermal overload relays
Type TK12B-TK18B-TK32B- TK65B-TK95B-
Appearance
Protection function Overload Overload Overload Overload Overload
Tripping class 10A 10A 10A 10A 10A
Ampere setting range (A) / code 0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
13-18 [013]
0.1-0.15 [P10]
0.13-0.2 [P13]
0.18-0.27 [P18]
0.24-0.36 [P24]
0.34-0.52 [P34]
0.48-0.72 [P48]
0.64-0.96 [P64]
0.8-1.2 [P80]
0.95-1.45 [P95]
1.4-2.1 [1P4]
1.7-2.6 [1P7]
2.2-3.4 [2P2]
2.8-4.2 [2P8]
4-6 [004]
5-7.5 [005]
6-9 [006]
7-10.5 [007]
9-13 [009]
12-18 [012]
16-22 [016]
20-26 [020]
26-32 [026]
4-6 [004]
5-8 [005]
6-9 [006]
7-11 [007]
9-13 [009]
12-18 [012]
18-26 [018]
24-36 [024]
32-42 [032]
40-50 [040]
44-54 [044]
53-65 [053]
7-11 [007]
9-13 [009]
12-18 [012]
18-26 [018]
24-36 [024]
28-40 [028]
34-50 [034]
45-65 [045]
48-68 [048]
64-80 [064]
68-86 [068]
86-96 [086]
Applicable contactors FJ-B06, B09, B12 FJ-B18 FJ-B25, B32 FJ-B40, B50, B65 FJ-B80, B95
Dimensions W × H × D (mm) 45 × 49.5 × 50 45 × 48.5 × 61 53 × 50.5 × 61 54 × 78.5 × 97 68 × 89.5 × 102.5
Note: Replace the mark in the type number by the Ampere setting range code.
Information subject to change without notice 9

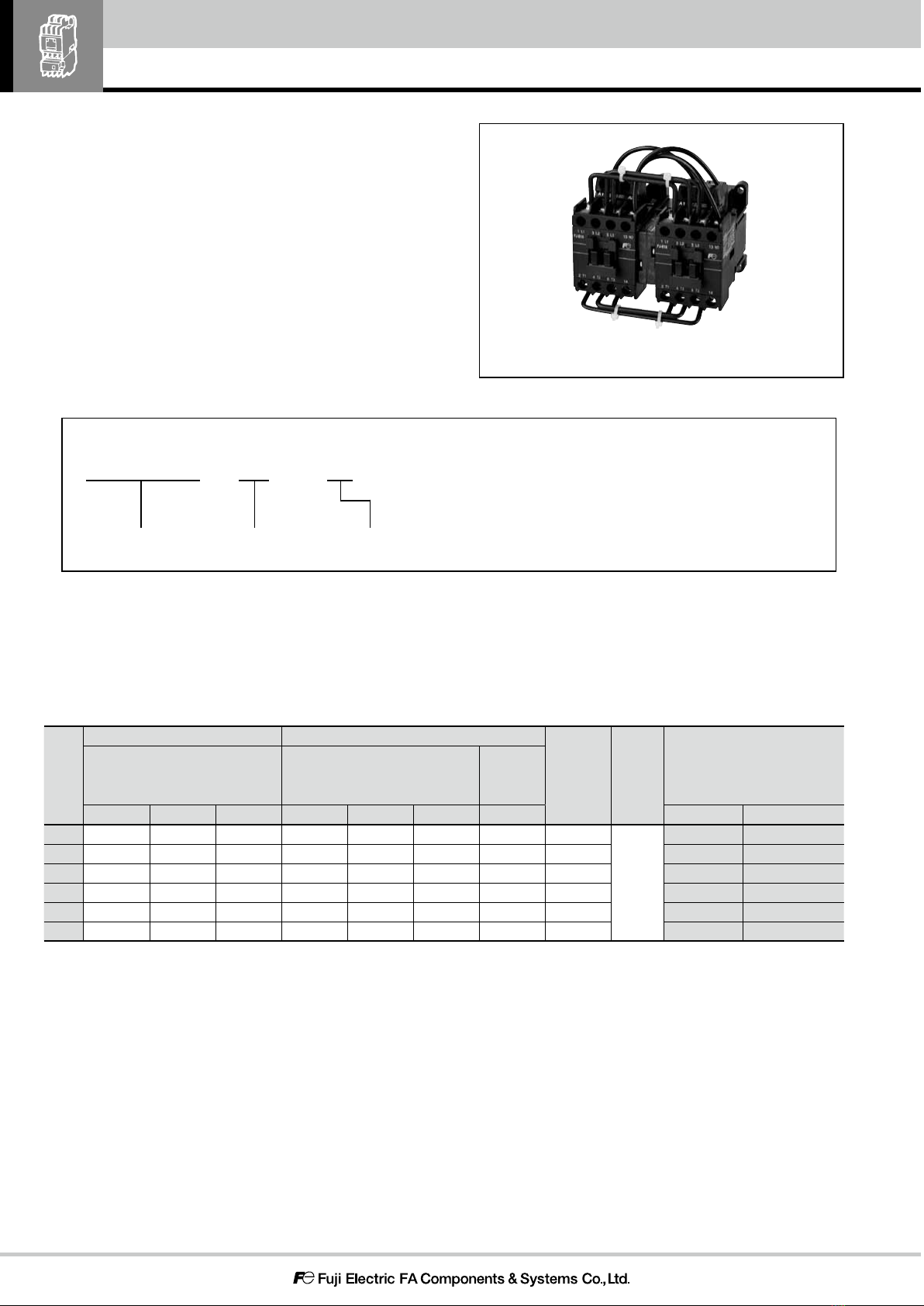

FJ Series

List of Products
Type Frame Size
06 09 12 18 25 32 40 50 65 80 95
Standard type
contactors
AC Operated FJ-B
DC Operated FJ-B/G  –––––
Reversing
contactors
AC Operated FJ-BRM  –––––
DC Operated FJ-BRM/G  –––––
Type number nomenclature
(1) Basic type Code
AC Contactor FJ-B
(2) Frame Size Code
6A 06
9A 09
12A 12
18A 18
25A 25
32A 32
40A 40
50A 50
65A 65
80A 80
95A 95
(3) Non-reversing or
reversing Code
Non-reversing Blank
Reversing RM
(4) Operating method Code
AC operated Blank
DC operated /G
FJ-B 12 RM /G SE01
(1) (2) (3) (4) (5) (6) (7)
Type number nomenclature
(7) Contact arrangement Code
Auxiliary contact 1NO 10
Auxiliary contact 1NC 01
Auxiliary contact 1NO1NC 11
(6) Rated voltage of AC coil Code
AC24V 50Hz E5
Ac110V 50Hz H5
AC220/230V 50Hz N5
AC380/400V 50Hz 45
(6) Rated voltage of DC coil Code
DC24V E
DC48V F
DC110V H
DC220V M
(5) Built-in coil surge Code
None Blank
Built-in (06, 09, 12 only) S
Information subject to change without notice
10
Contactors and Thermal Overload Relays

zThermal overload relays
zAuxiliary relays
TK 12B — 009
(1) (2) (3)
(2) Setting current (A) Applicable contactors Code
0.1 - 13 FJ-B06, B09, B12 12B
0.1 - 18 FJ-B18 18B
0.1 - 32 FJ-B25, B32 32B
4 - 65 FJ-B40, B50, B65 65B
7 - 96 FJ-B80, B95 95B
(3) Setting range (A) Code (3) Setting range (A) Code
0.1-0.15 P10 12-18 012
0.13-0.2 P13 13-18 013
0.18-0.27 P18 16-22 016
0.24-0.36 P24 18-26 018
0.34-0.52 P34 20-26 020
0.48-0.72 P48 24-36 024
0.64-0.96 P64 26-32 026
0.8-1.2 P80 28-40 028
0.95-1.45 P95 32-42 032
1.4-2.1 1P4 34-50 034
1.7-2.6 1P7 40-50 040
2.2-3.4 2P2 44-54 044
2.8-4.2 2P8 45-65 045
4-6 004 48-68 048
5-7.5 005 53-65 053
6-9 006 64-80 064
7-10.5 007 68-86 068
9-13 009 86-96 086
(Note) Depending on different types,
production may not be able to proceed.
Please refer to P.21.
SKH4 A B H — H5 22
(1) (2) (1) (3) (4) (5)
(1) Basic type Code
Contactor relay SKH4B
(2) Control coil Code
AC A
DC G
(3) Contact Structure Code
Double-contact None
Single-contact H
(5) Contact arrangement Code
4NO 40
3NO1NC 31
2NO2NC 22
(4) Rated voltage of AC coil Code
AC24V 50Hz/24-26V 60Hz E
AC100-110V 50Hz/110-120V 60Hz H
AC220-240V 50Hz/240-260V 60Hz P
AC380-400V 50Hz/400-440V 60Hz 4
(4) Rated voltage of DC coil Code
DC24V E
DC48V F
DC110V H
DC220V M
(1) Basic type Code
Thermal overload relays TK
Information subject to change without notice 11
FJ Series

Main circuit ratings
zIn accordance with the ratings of the IEC and GB standards (IEC60947-4-1 and GB14048.4)
Applicable
Type
Max. motor capacity [kW] Operational current Ie[A] Conventional free
air thermal current
(Rated thermal
current) [A]
Three-phase squirrel-cage motor (AC-3) Three-phase squirrel-cage motor (AC-3) Resistive load
(AC-1)
220/230V 380/400V 600/690V 220/230V 380/400V 600/690V Below 400V
FJ-B06 1.5 2.2 2.7 6 6 3 20 20
FJ-B09 2.2 4 4 9 9 5 20 20
FJ-B12 3 5.5 5.5 12 12 6 20 20
FJ-B18 4 7.5 7.5 18 18 7 25 25
FJ-B25 5.5 11 7.5 25 25 9 32 32
FJ-B32 7.5 15 7.5 32 32 10 40 40
FJ-B40 11 18.5 11 40 40 15 50 50
FJ-B50 15 22 15 50 50 19 60 60
FJ-B65 18.5 30 22 65 65 26 65 65
FJ-B80 22 40 30 80 80 38 100 100
FJ-B95 25 45 37 95 95 44 105 105
Auxiliary circuit ratings
zIn accordance with the ratings of the IEC and GB standards (IEC60947-5-1 and GB14048.5)
Type
Conventional free
air thermal current
(Rated thermal
current) [A]
Making and
breaking
current (AC)
[A]
Rated operational current [A]
Minimum
operating
voltage and
current *1
AC DC
Rated
operating
voltage [V]
AC-15
(Inductive
load)
AC-12
(Resistive
load)
Rated
operating
voltage [V]
DC-13 *2
(Inductive
load)
DC-12
(Resistive
load)
FJ-B06
to
FJ-B12
10 60 110V 6 10 24V 3 5
DC24V, 10mA
30 220/230V 3 8 48V 1.5 3
15 380/400V 1.5 5 110V 0.55 2.5
12 500/600V 1.2 5 220V 0.27 1
FJ-B18
to
FJ-B95
10 60 110V 6 10 24V 3 5
DC5V, 3mA
30 220/230V 3 8 48V 1.5 3
15 380/400V 1.5 5 110V 0.55 2.5
12 500/600V 1.2 5 220V 0.27 1
*1 The failure level is 10-7 for a normal environment without dust, dirt, or corrosive gas.
*2 Given the time constant L/R = 70ms
FJ Series
Ratings
Information subject to change without notice
12
Contactors and Thermal Overload Relays FJ Series

Operating coil characteristics
zAC-operated type
Type FJ-B06 FJ-B09 FJ-B12 FJ-B18 FJ-B25 FJ-B32 FJ-B40 FJ-B50 FJ-B65 FJ-B80 FJ-B95
Pick-up voltage range
(AC220/230V, 50Hz)
Making voltage [V]
120-152 120-152 120-152 126-150 126-150 126-150 120-150 120-150 120-150 126-150 126-150
Drop-out voltage [V]
73-95 73-95 73-95 84-118 84-118 84-118 90-120 90-120 90-120 90-130 90-130
Power consumption Inrush [VA] 22 22 22 90 90 90 120 120 120 180 180
Sealed [VA] 4.5 4.5 4.5 9 9 9 12.7 12.7 12.7 13.3 13.3
Loss Sealed [W] 1.5 1.5 1.5 2.7 2.7 2.7 3.6 3.6 3.6 4.5 4.5
Operating
times
Coil ON Contact ON [ms]
9-20 9-20 9-20 9-20 9-20 9-20 10-17 10-17 10-17 10-18 10-18
Coil OFF Contact OFF [ms]
5-15 5-15 5-15 4-20 4-20 4-20 6-13 6-13 6-13 8-18 8-18
z DC-operated type
Type FJ-B06/G FJ-B09/G FJ-B12/G FJ-B18/G FJ-B25/G FJ-B32/G
Pick-up voltage range
(DC24V)
Making voltage [V]
8-14 8-14 8-14 10-15 10-15 10-15
Drop-out voltage [V]
3-6 3-6 3-6 3-7 3-7 3-7
Power consumption Inrush [VA] 2.4 2.4 2.4 7 7 7
Sealed [VA] 2.4 2.4 2.4 7 7 7
Time constant Sealed [W] 20 20 20 50 50 50
Operating
times
Coil ON Contact ON [ms]
17-30 17-30 17-30 43-47 43-47 43-47
Coil OFF Contact OFF [ms]
5-15 5-15 5-15 10-24 10-24 10-24
Performance
Frame size 06 09 12 18 25 32 40 50 65 80 95
Type
AC-operated type FJ-B06 FJ-B09 FJ-B12 FJ-B18 FJ-B25 FJ-B32 FJ-B40 FJ-B50 FJ-B65 FJ-B80 FJ-B95
DC-operated type FJ-B06/G FJ-B09/G FJ-B12/G FJ-B18/G FJ-B25/G FJ-B32/G –––––
Rated insulation voltage Ui [V] 690 1000
Rated impulse voltage Uimp[kV] 6 8
Main
circuit
Making
current [A]
220/230V 60 90 120 180 250 320 400 500 650 800 950
380/400V 60 90 120 180 250 320 400 500 650 800 950
Breaking
current [A]
220/230V 48 72 96 144 200 256 320 400 520 640 760
380/400V 48 72 96 144 200 256 320 400 520 640 760
Operating cycles per hour AC-3 [times/hour]
1200 1200 1200 1200 1200 1200 600 600 600 600 600
FJ Series
Operating coil characteristics
Information subject to change without notice 13
Contactors and Thermal Overload Relays FJ Series

General conditions of use

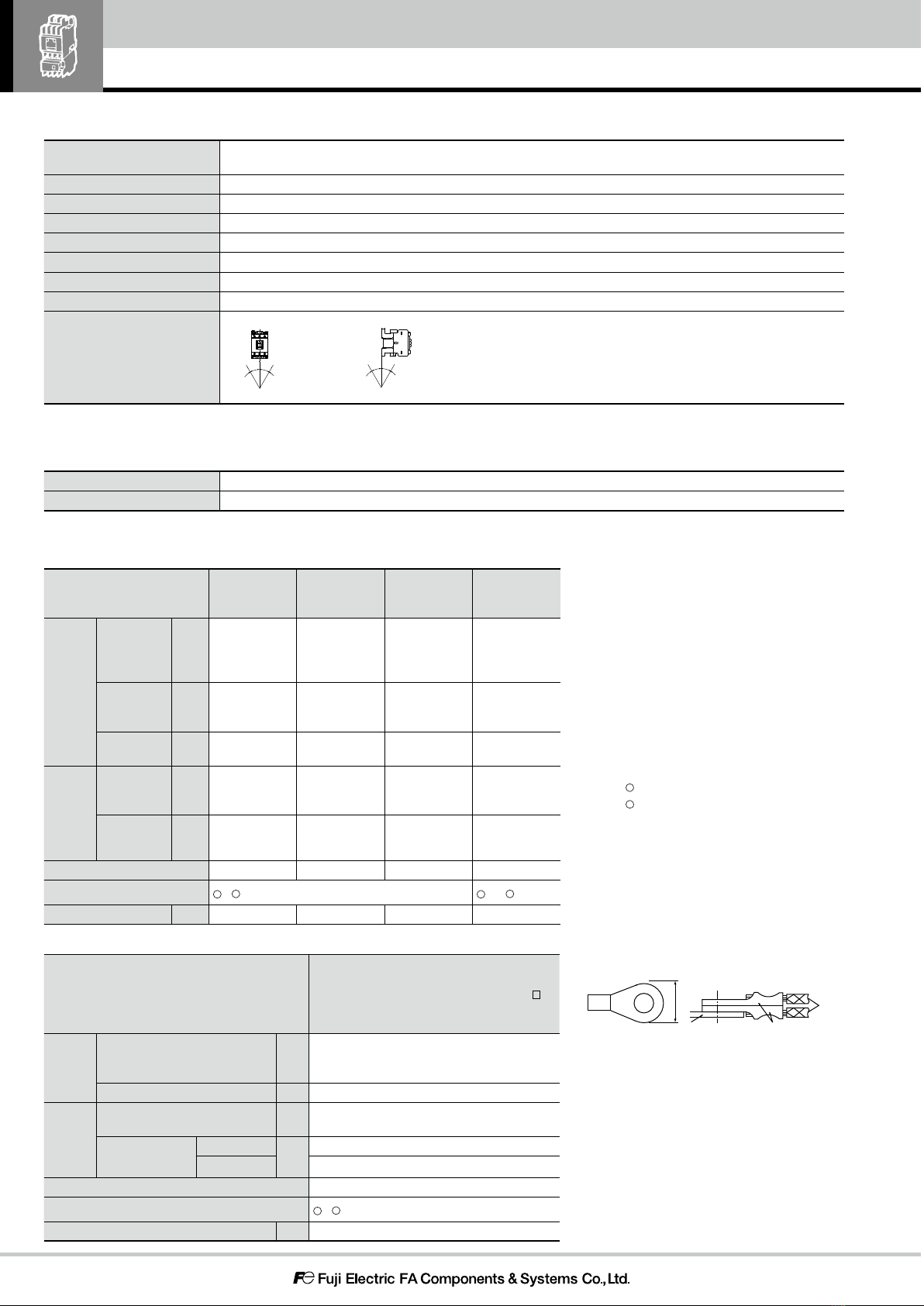

Ambient temperature *1-5 to +55 °C, with no sudden temperature changes resulting in condensation or icing (The average temperature
over a 24-hour period must not exceed 35°C.) *2
Relative humidity No more than 85%RH at 40 °C
Altitude 2,000m max.
Atmosphere Dust, smoke, corrosive gases, flammable gases, water vapour or salt is rarely contained in the air.
Storage temperature -40 to +65 °C
Vibration resistance 10 to 55Hz 15m/s2
Shock resistance 50m/s2
Mounting Mounting with screws or a standard guide rail of 35mm
Mounting angle
30°
30°
30°
30°
*1Ambient temperature refers to the ambient temperature when the product is being used.
*2The ambient temperature when the capacitor circuit is switched to the AC contactor is -5 to +40 °C.
Descriptions
Compliant descriptions GB14048, IEC 60947-4-1
Certification CCC (GB14048.4)
List of wire descriptions
zMain circuit
Type FJ-B06 FJ-B12
FJ-B09 FJ-B18
TK12B TK18B
FJ-B25
FJ-B32
TK32B
FJ-B40 FJ-B65
FJ-B50
TK65B
FJ-B80
FJ-B95
TK95B
Direct
connection
Single-core wire /
multi-strand wire
[Note 1] [Note 4]
(mm2) 1Set×(0.75 -2.5)
2Sets×(0.75 -1.5)
2Sets×(1.5 -2.5)
1 Set×(0.75-6)
2 Sets×(1-4)
2 Sets×(1.5-6)
1 Set×(0.75-6)
2 Sets×(0.75-1.5)
2 Sets×(1.5-4)
2 Sets×(4-6)
–
Multi-strand flexible
wire (with bushing)
[Note 1]
(mm2) 1 Set×(0.75-2.5)
2 Sets×(0.75-1.5)
2 Sets×(1.5-2.5)
1 Set×(0.75-4)
2 Sets×(1-4)
1 Set×(0.75-4)
2 Sets×(0.75-1.5)
2 Sets×(1.5-4)
–
Wire stripping
dimensions
(mm) 10 11 15 –
Connection
via crimp
terminals
Multi-strand wire
Multi-strand
flexible wire
(mm2) 0.75-4 0.75-10 2-22 2-38
Maximum width
of crimp terminal
[Note 2]
(mm) 7.7 9.7 12.4 16.7
Terminal screws size
M3.5 M4 M5 M6
Tightening tool
[Note 3]
+
2
–
+
3
–
1.2
Tightening torque
(N·m) 0.8-1 1.2-1.5 2-2.5 4-5
zControl circuit
Type FJ-B06 FJ-B18 FJ-B40 FJ-B80
FJ-B09 FJ-B25 FJ-B50 FJ-B95
FJ-B12 FJ-B32 FJ-B65 SKH4 B
TK12B TK18B TK32B TK65B
TK95B
Direct
connection
Single-core wire / multi-strand wire /
multi-strand flexible wire (with bushing)
[Note 1] [Note 4]
(mm2)
1 Set×(0.75-2.5)
2 Sets×(0.75-1.5)
2 Sets×(1.5-2.5)
Wire stripping dimensions
(mm)
10
Connection
via crimp
terminals
Multi-strand wire
Multi-strand flexible wire
(mm2)
0.75-2.5
Maximum width of
crimp terminal [Note 2]
Coil terminal (mm)
7.7
Auxiliary terminal
7.7
Terminal screws size M3.5
Tightening tool
[Note 3]
+
2
–
Tightening torque (N·m)
0.8-1
Figure 1 Figure 2
Terminal plate Crimp terminal
Wire
Maximum
[Note1]
[Note2]
[Note 3] 2: H2 cross screwdriver
: I-1×5.5×L B flat screwdriver
[Note 4]
[Note 5]
[Note 6]
[Note 7]
-
+
The multi-strand flexible wire without a bushing
shall not be used. If a multi-strand flexible wire
is used, before being used, it should be
crimped into a bushing (a metal ferrule).
Before an insulating protective bushing is
used, refer to the parameters provided by the
insulating protective bushing manufacturer for
the wire stripping dimensions. If the
multi-strand wire is 0.75~6mm2: the number of
strands shall be less than 7. Multi-strand
flexible wire: The wire with the strands more
than that of the above-mentioned wire.
Use the crimp terminals of the width less than
the maximum crimp terminal width. Refer to
Figure 1 For the maximum width of the circular
crimp terminal.
If two single-core wires are used for wiring, the
two single-core wires should be of same
descriptions.
Each terminal can be connected to 2 crimp
terminals. (Please refer to Figure 2)
Before use, screw up all terminal screws that
are not used for wiring.
After the wiring is completed, if the connected
wires are bent due to wiring or other reasons,
reconfirm whether the fastening torque is
proper.
General conditions of use
Information subject to change without notice
14
Contactors and Thermal Overload Relays FJ Series

Features
• The smallest one in the basic type series (6A, 9A, 12A rated
products)
• 6A, 9A and 12A rated products are small sized AC contactors of
AC and DC coil products with the same outline dimensions.
• DC coil products are low-power-consumption products that can be
driven directly by PLC. (FJ-B06/G to B12/G type DC24V coil)
• Energy-saving type with an energy efciency level of 2.
(6A, 9A, 12A, 40A to 95A rated products)
Types and ratings
zStandard-type (non-reversing)
Frame Max. motor capacity (kW)
AC-3, IEC60947-4-1
Operational current (A) Operational
current (A)
AC-1
Conventional
free air thermal
current (A)
Auxiliary
contact
arrangement
Type
AC
operated
DC
operated
200/240V 380/440V 600/690V 200/240V 380/440V 600/690V Under 440V
06 1.5 2.2 2.7 6 6 3 20 20
1NO or 1NC FJ-B06 FJ-B06/G
09 2.2 4 4 9 9 5 20 20
1NO or 1NC FJ-B09 FJ-B09/G
12 3 5.5 5.5 12 12 6 20 20
1NO or 1NC FJ-B12 FJ-B12/G
18 4 7.5 7.5 18 18 7 25 25
1NO or 1NC FJ-B18 FJ-B18/G
25 5.5 11 7.5 25 25 9 32 32
1NO or 1NC FJ-B25 FJ-B25/G
32 7.5 15 7.5 32 32 10 40 40
1NO or 1NC FJ-B32 FJ-B32/G
40 11 18.5 11 40 40 15 50 50 1NO1NC FJ-B40 –
50 15 22 15 50 50 19 60 60 1NO1NC FJ-B50 –
65 18.5 30 22 65 65 26 65 65 1NO1NC FJ-B65 –
80 22 40 30 80 80 38 100 100 1NO1NC FJ-B80 –
95 25 45 37 95 95 44 105 105 1NO1NC FJ-B95 –
(Note 1) The rated values meet the standards IEC60947-4-1 and GB14048.4.
zReversing-type
Frame Max. motor capacity (kW)
AC-3, IEC60947-4-1
Operational current (A) Operational
current (A)
AC- 1
Conventional
free air thermal
current (A)
Auxiliary
contact
arrangement
*1
Type
AC
operated
DC
operated
200/240V 380/440V 600/690V 200/240V 380/440V 600/690V Under 440V
06 1.5 2.2 2.7 6 6 3 20 20
1NC×2
or
1NO×2
*2
FJ-B06RM FJ-B06RM/G
09 2.2 4 4 9 9 5 20 20 FJ-B09RM FJ-B09RM/G
12 3 5.5 5.5 12 12 6 20 20 FJ-B12RM FJ-B12RM/G
18 4 7.5 7.5 18 18 7 25 25 FJ-B18RM FJ-B18RM/G
25 5.5 11 7.5 25 25 9 32 32 FJ-B25RM FJ-B25RM/G
32 7.5 15 7.5 32 32 10 40 40 FJ-B32RM FJ-B32RM/G
(Note 1) The rated values meet the standards IEC60947-4-1 and GB14048.4.
*1 In the auxiliary contact arrangement, "1NC" indicates the number of contacts of 1 AC contactor, while "×2" means the total values of 2 contactors. Please make
orders according to the codes of the auxiliary contacts of each piece of equipment.
*2 Auxiliary contact 1NO×2 is available on request. However, these contactors are not electrically interlocked. Be sure to arrange electrical interlock circuit externally to
avoid short-circuit accidents.
FJ-B12 FJ-B65
Magnetic contactors
FJ Series
Ordering information (Types)
zReversing magnetic contactor (FJ-B18RM Coil AC220/230V 50Hz when the auxiliary contact is 1NC×2)
FJ-B12 S N5 10
(1) Type (3) Coil voltage code (4) Contact arrangement (auxiliary contact 1NC×2: 01 Auxiliary contact 1NO×2: 10)
Please refer to Type number nomenclature in P10
(2) Built-in coil surge
Blank: None
S: Buit-in
Information subject to change without notice 15
Contactors and Thermal Overload Relays FJ Series

112(Mounting rail height: 15)
*1
*1
*2
*2
Coil terminal
M3.5
Auxiliary
terminal
M3.5
Main terminal
M6
Mounting hole
2-M4
Panel drilling
Wiring diagrams
Mounting dimension: mounting according to (1) or (2)
(1)…(55)~60×90
(2)…(55)~60×90
Mount it using the 2 holes on the diagonal line.
14.5
10.5
13138
81
43 23
(78)
53
7.7
28
91(Mounting rail height: 15)
81
61
8.5
*1 *2
2049
*1
35
60
34
1
2
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M4
Mounting hole
2-M4
Panel drilling
(48~)52 18.5(~20.5)
Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
14
135/L33/L21/L1
2/T1 4/T2 6/T3
A2A1
1/L1
2/T1
A1 A2
6/T34/T2
3/L2 5/L321
22
Mounting dimension: mounting according to (1) or (2)
(1)…35×60
(2)…34×(48~)52
Mount it using the 2 holes on the diagonal line.
7.7
6
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
61(Mounting rail height: 15)
36
49
48
31
45
8.7
Mount it using the 2 holes on the diagonal line.
Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
14
135/L33/L21/L1
2/T1 4/T2 6/T3
A2A1
1/L1
2/T1
A1 A2
6/T34/T2
3/L2 5/L3 21
22
Mounting hole
2-M4
40
35
Panel drilling
Mass: 0.14kg
Mass: 0.33kg
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
90 (Mounting rail height: 15)
(28)
80
7.7
10
61
43 23
8.5
(68)
81
43
14.5
18.5(~20.5)
35
(48~)52
60
34
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Mounting hole
2-M4
Panel drilling
Mounting dimension: mounting according to (1) or (2)
(1)…35×60
(2)…34×(48~)52
Mount it using the 2 holes on the diagonal line.
Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
22
215/L33/L2
4/T2 6/T3
A2A1
2/T1
1/L1
A1 A2
6/T34/T2 2/T1
1/L1 3/L2 5/L3 13
14
1
2
*2
*1
*1
Mass: 0.35kg
Mass: 0.54kg
Mass: 0.97kg

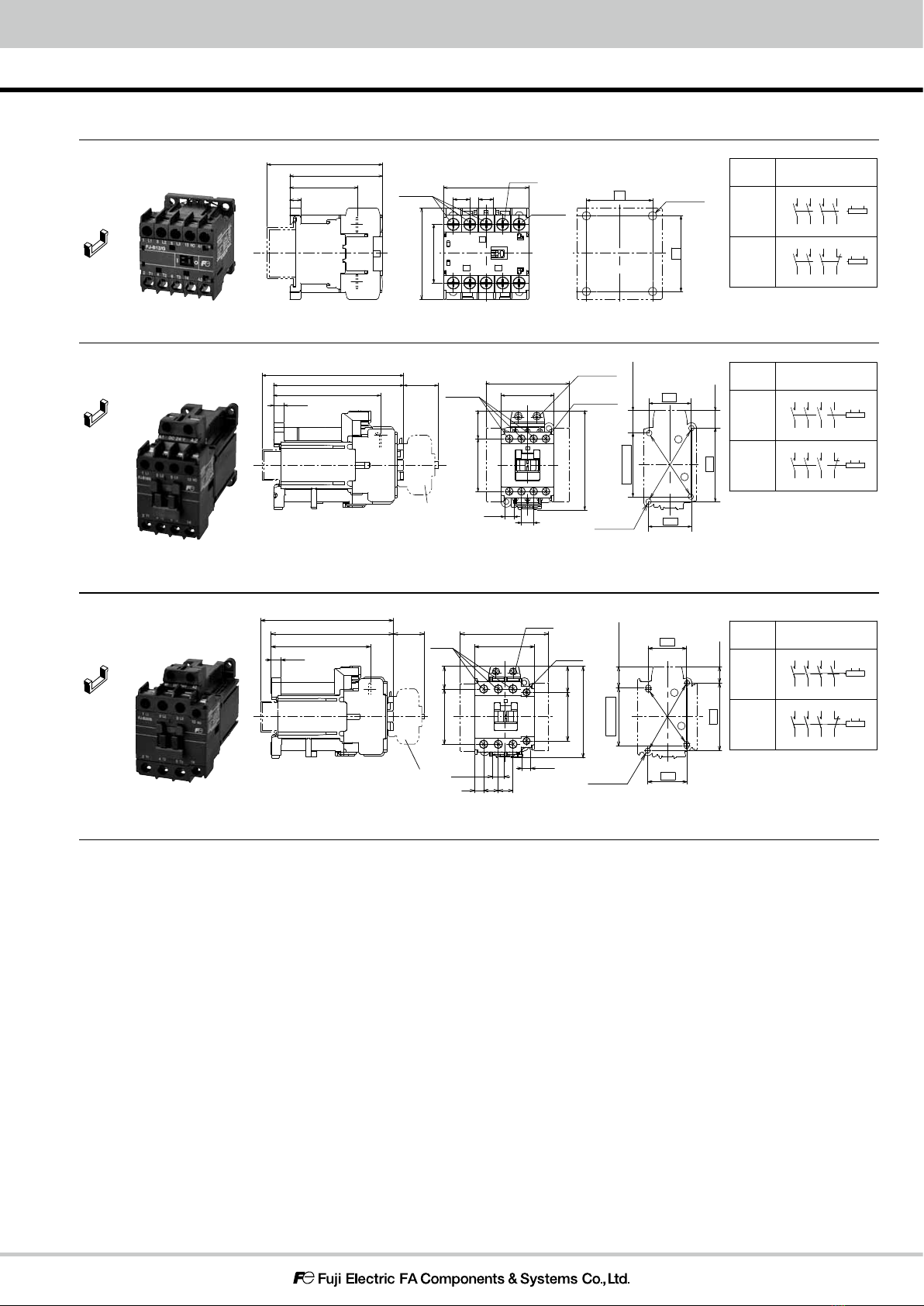

zMagnetic Contactor (AC operated)
FJ-B06
FJ-B09
FJ-B12
35mm
FJ-B18
35mm
FJ-B25
FJ-B32
35mm
FJ-B40
FJ-B50
FJ-B65
35mm
FJ-B80
FJ-B95
35mm
106 (Mounting rail height: 15)
*1
*2
*2
*1
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M5
Mounting hole
2-M4
Panel drilling
Wiring diagrams
Mounting dimension: mounting according to (1) or (2)
(1)…45×75
(2)…45(38~46)×52
Mount it using the 2 holes on the diagonal line.
Dimensions and wiring diagrams
Information subject to change without notice
16
Contactors and Thermal Overload Relays

zMagnetic Contactor (DC operated)
FJ-B06/G
FJ-B09/G
FJ-B12/G
35mm
FJ-B18/G
35mm
FJ-B25/G
FJ-B32/G
35mm
10
7.7
(28)
107
88
2343
18.5(~20.5)
14.5
8.5
(68)
81
43
35
60
(48~)52
34
*2
*1
*1
1
2
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Mounting hole
2-M4
Panel drilling
117(Mounting rail height: 15) Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
14
135/L33/L21/L1
2/T1 4/T2 6/T3
A2A1
1/L1
2/T1
A1 A2
6/T34/T2
3/L2 5/L3 21
22
Mounting dimension: mounting according to (1) or (2)
(1)…35×60
(2)…34×(48~)52
Mount it using the 2 holes on the diagonal line.
108
88
8.5
43 23 49 20
81
118(Mounting rail height: 15) *1
(28)
14.5
10.5
13138
(78)
53
7.7
*2
*1
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main
terminal
M4
Mounting hole
2-M4
Panel drilling
18.5(~20.5)
Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
35
60
(48~)52
34
1
2
14
135/L33/L21/L1
2/T1 4/T2 6/T3
A2A1
1/L1
2/T1
A1 A2
6/T34/T2
3/L2 5/L3 21
22
Mounting dimension: mounting according to (1) or (2)
(1)…35×60
(2)…34×(48~)52
Mount it using the 2 holes on the diagonal line.
7.7
6
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
61(Mounting rail height: 15)
36
49
48
31
45
8.7
(Note) Please note that the terminal of the control
coil has polarity.
Mount it using the 2 holes on the diagonal line.
Auxiliary
contact Wiring diagrams
1NO
(1a)
1NC
(1b)
14
135/L33/L21/L1
2/T1 4/T2 6/T3
(-)
A2
(+)
A1
(-)
A2
(+)
A1
1/L1
2/T1 6/T34/T2
3/L2 5/L3 21
22
Mounting hole
2-M4
40
35
Panel drilling
Mass: 0.17kg
Mass: 0.57kg
Mass: 0.59kg
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
*1 For front mounting aux. contact blocks mounted.
*2 For two side mounting aux. contact blocks mounted.
Information subject to change without notice 17
FJ Series

Types and ratings
zReversing AC contactor
Frame
Max. motor capacity (kW) Operational current (A) Conventional
free air
thermal
current (A)
Auxiliary
contact
arrangement
*
1
Type
Three-phase squirrel-cage motor
(AC-3)
Three-phase squirrel-cage motor
(AC-3)
Resistive
load(AC-1)
200/240V 380/440V 600/690V 200/240V 380/440V 600/690V Below 440V AC-operated DC-operated
06 1.5 2.2 2.7 6 6 3 20 20
1NC×2
or
1NO×2
*2
FJ-B06RM FJ-B06RM/G
09 2.2 4 4 9 9 5 20 20 FJ-B09RM FJ-B09RM/G
12 3 5.5 5.5 12 12 6 20 20 FJ-B12RM FJ-B12RM/G
18 4 7.5 7.5 18 18 7 25 25 FJ-B18RM FJ-B18RM/G
25 5.5 11 7.5 25 25 9 32 32 FJ-B25RM FJ-B25RM/G
32 7.5 15 7.5 32 32 10 40 40 FJ-B32RM FJ-B32RM/G
(Note 1) The ratings are in accordance with IEC60947-4-1 and GB14048.4.
*1 In the auxiliary contact arrangement, "1NC" represents the number of contacts of one AC contactor, and "×2" represents the total number of contacts of two AC
contactors. Please order the product according to the code of the auxiliary contact of each device.
*2 Since the main element of the AC contactor with the auxiliary contactor of 1NO has no electrical interlocking function, in order to prevent a short-circuit accident to
occur due to being simultaneously powered on during use, it is necessary to provide electrical interlock in the external control circuit.
Features
• In accordance with the GB and IEC standards.
• Suitable for the forward and reverse running of the motor.
• Equipped with mechanical interlock for standard conguration.
• The auxiliary contact can be easily added by adding an auxiliary
contact unit.
FJ-B18RM
Ordering information (Types)
zReversing magnetic contactor (FJ-B18RM Coil AC220/230V 50Hz when the auxiliary contact is 1NC×2)
FJ-B18RM N5 01
(1) Type (2) Coil voltage code (3) Contact arrangement (auxiliary contact 1NC×2: 01 Auxiliary contact 1NO×2: 10)
Please refer to Type Description in P.12
Reversing Magnetic contactors
Information subject to change without notice
18
Contactors and Thermal Overload Relays FJ Series

60
35
14.5
21 35
About 40 About 57
99
56
43 23
7.7
10
81
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Mounting hole
4-M4
Panel drilling
8.5
61
80 (28)
90(Mounting rail height: 15)
*1
*1
Mass: 0.7kg
10.5
13138
7.7
2049
81
43 23
About 58About 42
3135 35
60 14.5
119
66
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M4
Mounting hole
4-M4
Panel drilling
(28)
91(Mounting rail height: 15)
81
61
8.5
*1
*1
Mass: 0.75kg
Note: The interlock unit can be set separately.
*1 For front mounting aux. contact blocks mounted.
*1 For front mounting aux. contact blocks mounted.
Wiring diagramAuxiliary contact
Wiring diagram
Auxiliary contact
1NO×2
14
13
A2A1
6/T34/T22/T1
131/L1 3/L2 5/L3
A1 A2
14
1/L1 3/L2 5/L3
6/T34/T2
2/T1
1NC×2
2/T1 4/T2 6/T3 22
21
5/L3
3/L21/L1
22
A2A1
21
5/L33/L21/L1
2/T1 4/T2 6/T3
A1 A2
Mass: 0.32kg
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Panel drilling
56
68(Mounting rail height: 15)
About 32 About 30
90.5
10.77.78.7
31
48
6
36
40
80.5
Mounting
hole
4-M4
zReversing-type (AC operated)
FJ-B06RM
FJ-B09RM
FJ-B12RM
35mm
FJ-B18RM
35mm
FJ-B25RM
FJ-B32RM
35mm
Dimensions and wiring diagrams
Information subject to change without notice 19
Contactors and Thermal Overload Relays FJ Series

zReversing AC contactors (DCoperated type)
FJ-B06RM/G
FJ-B09RM/G
FJ-B12RM/G
35mm
FJ-B18RM/G
35mm
FJ-B25RM/G
FJ-B32RM/G
35mm
60
35
14.5
81
10
7.7
2343
56
99
About 57
21 35
About 40
(28)
8.5
88
107
117 (Height of slot rail: 15)
*1
*1
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Mounting hole4-M4
Mounting hole dimension drawing
10.5
13138
7.7
49
43
About 58About 42
14.560
3535 31
81
23
20
119
66
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M4
Mounting hole 4-M4
Mounting hole dimension drawing
*1
*1
(28)
118 (Height of slot rail: 15)
8.5
88
108
Wiring diagram
Auxiliary contact
Wiring diagram
Auxiliary contact
1NO×2
14
13
A2A1
6/T34/T22/T1
131/L1 3/L2 5/L3
A1 A2
14
1/L1 3/L2 5/L3
6/T34/T2
2/T1
1NC×2
2/T1 4/T2 6/T3 22
21
5/L3
3/L21/L1
22
A2A1
21
5/L33/L21/L1
2/T1 4/T2 6/T3
A1 A2
Weight: 1.18kg
Weight: 1.23kg
Note: The interlock unit can be set separately.
*1 represents the dimensions where the auxiliary contact unit is mounted on the top surface
*1 represents the dimensions where the auxiliary contact unit is mounted on the top surface
Dimensions and wiring diagrams
Mass: 0.32kg
Coil terminal
M3.5
Auxiliary terminal
M3.5
Main terminal
M3.5
Panel drilling
56
68(Mounting rail height: 15)
About 32 About 30
90.5
10.77.78.7
31
48
6
36
40
80.5
Mounting
hole
4-M4
Information subject to change without notice
20
Contactors and Thermal Overload Relays FJ Series
