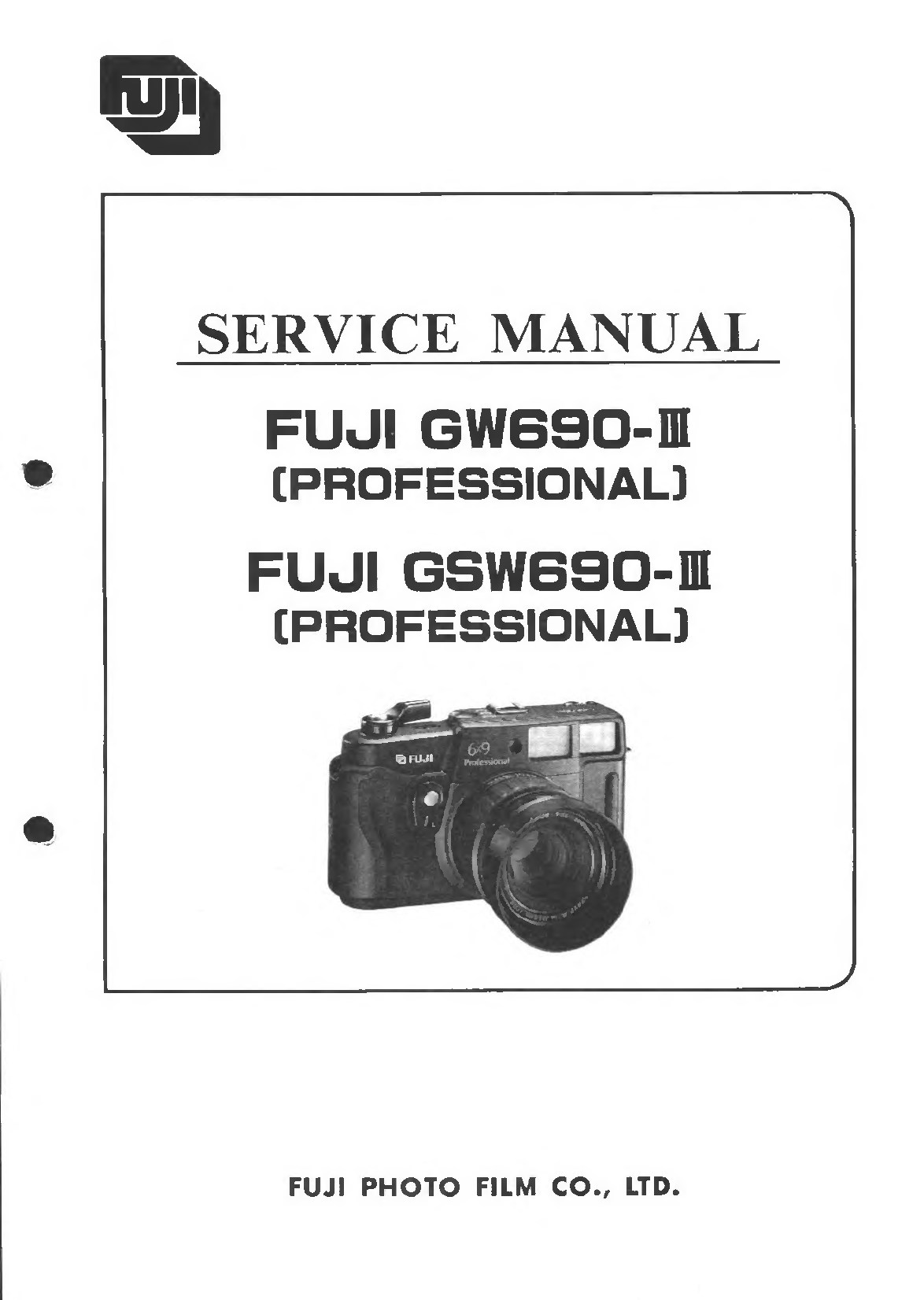

SERVICE MANUAL
FUJI GW690-m
[PROFESSIONAL]
FUJI GSW690-I
[PROFESSIONAL]
FUJI PHOTO FILM CO., LTD.

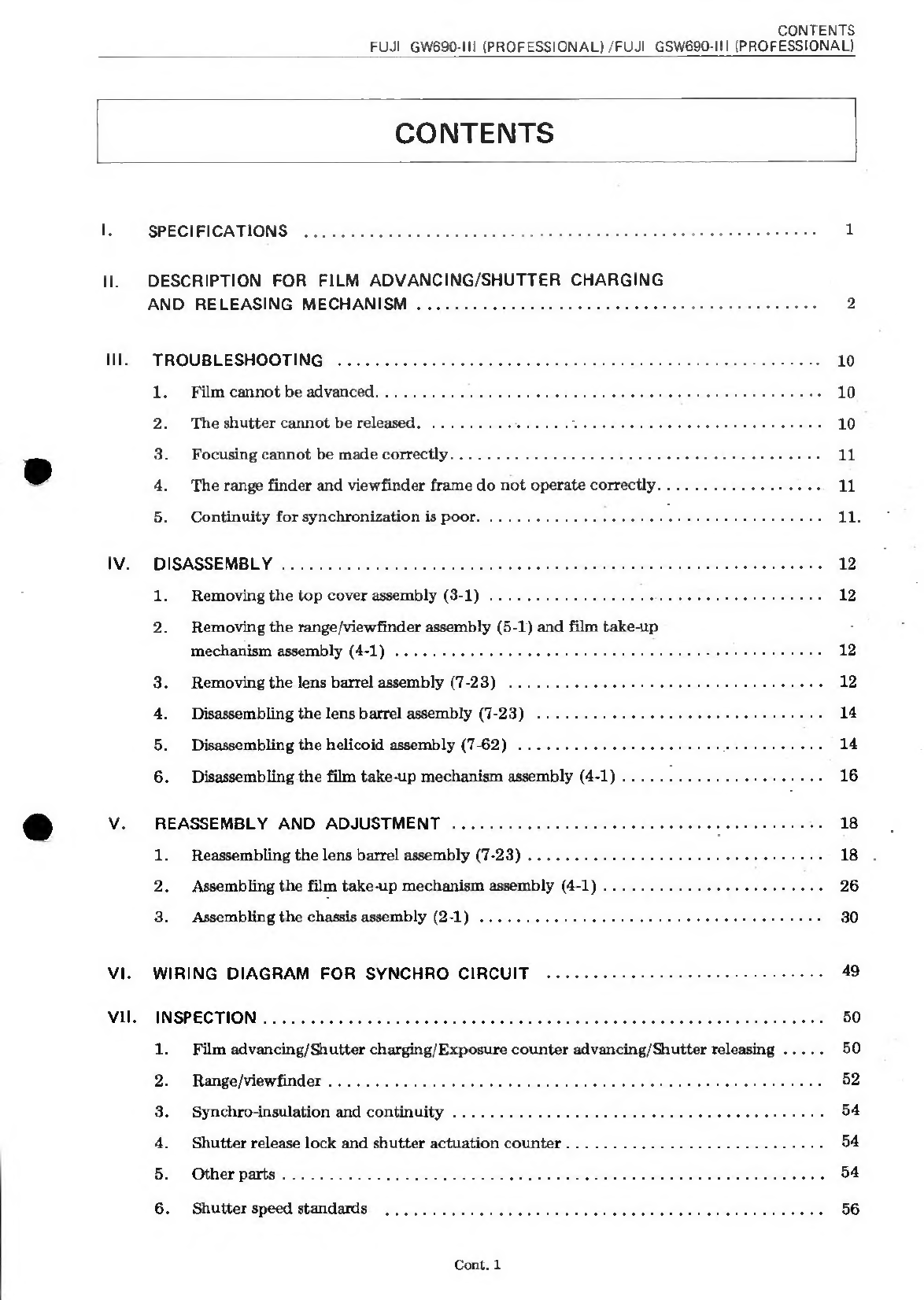

CONTENTS
FUJI GW690-III (PROFESSIONAL) /FUJI GSW690-III (PROFESSIONAL)
CONTENTS
I. SPECIFICATIONS . 1
II. DESCRIPTION FOR FILM ADVANCING/SHUTTER CHARGING
AND RELEASING MECHANISM. 2
III. TROUBLESHOOTING . 10
1. Film cannot be advanced. 10
2. The shutter cannot be released. 10
3. Focusing cannot be made correctly. 11
4. The range finder and viewfinder frame do not operate correctly. 11
5. Continuity for synchronization is poor. 11
IV. DISASSEMBLY. 12
1. Removing the top cover assembly (3-1). 12
2. Removing the range/viewfinder assembly (5-1) and film take-up
mechanism assembly (4-1). 12
3. Removing the lens barrel assembly (7-23) . 12

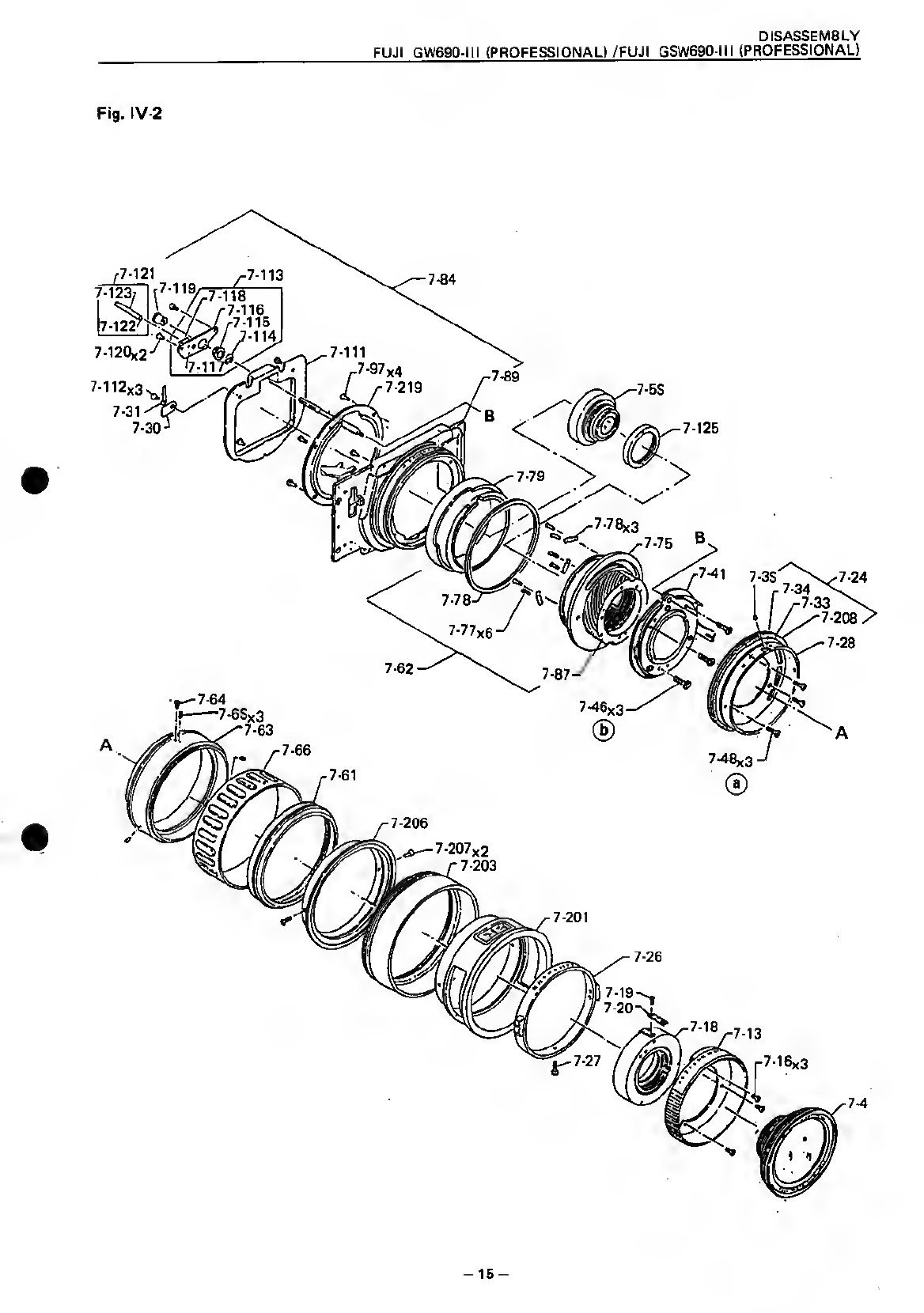

4. Disassembling the lens barrel assembly (7-23) . 14
5. Disassembling the helicoid assembly (7-62) . 14

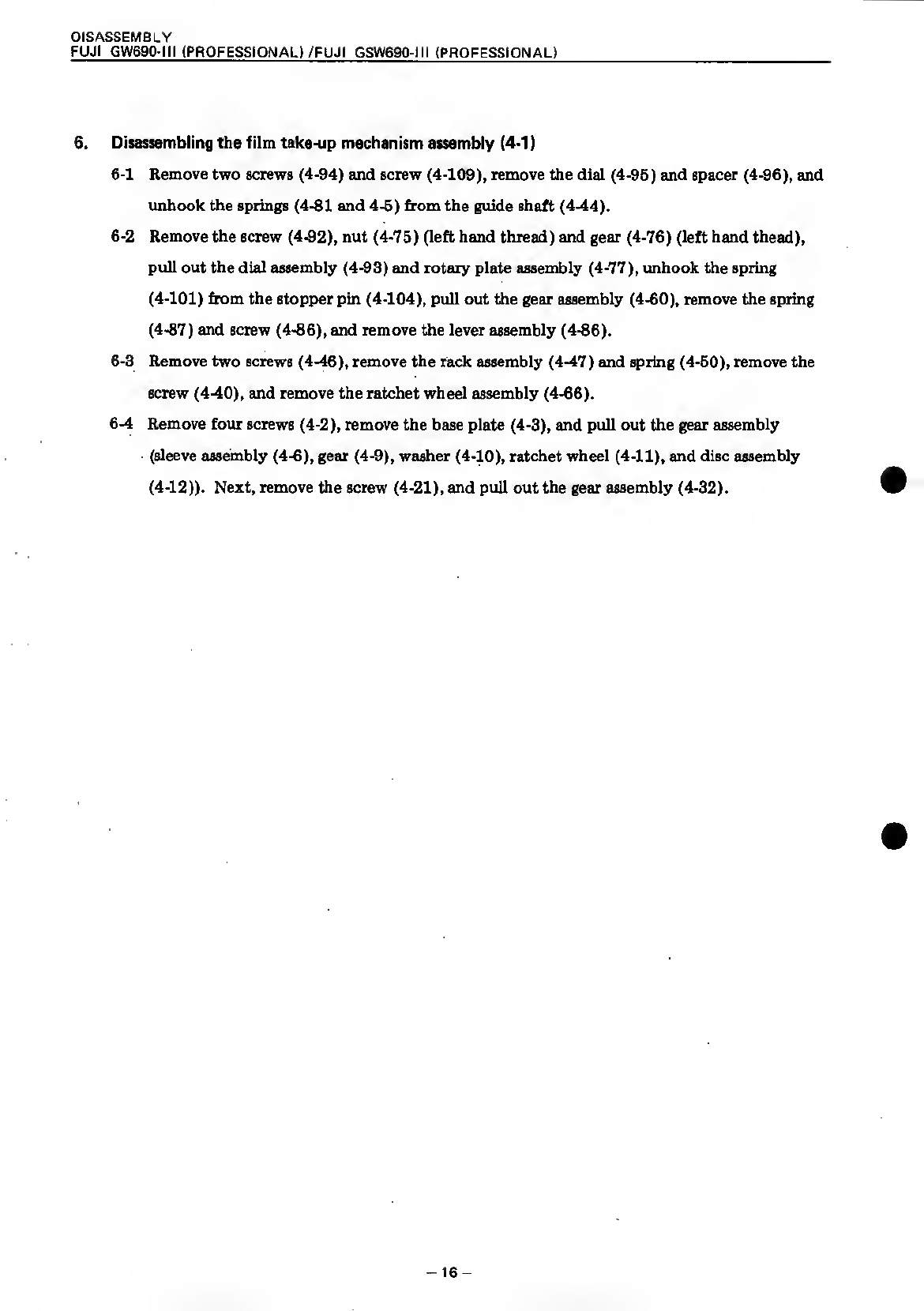

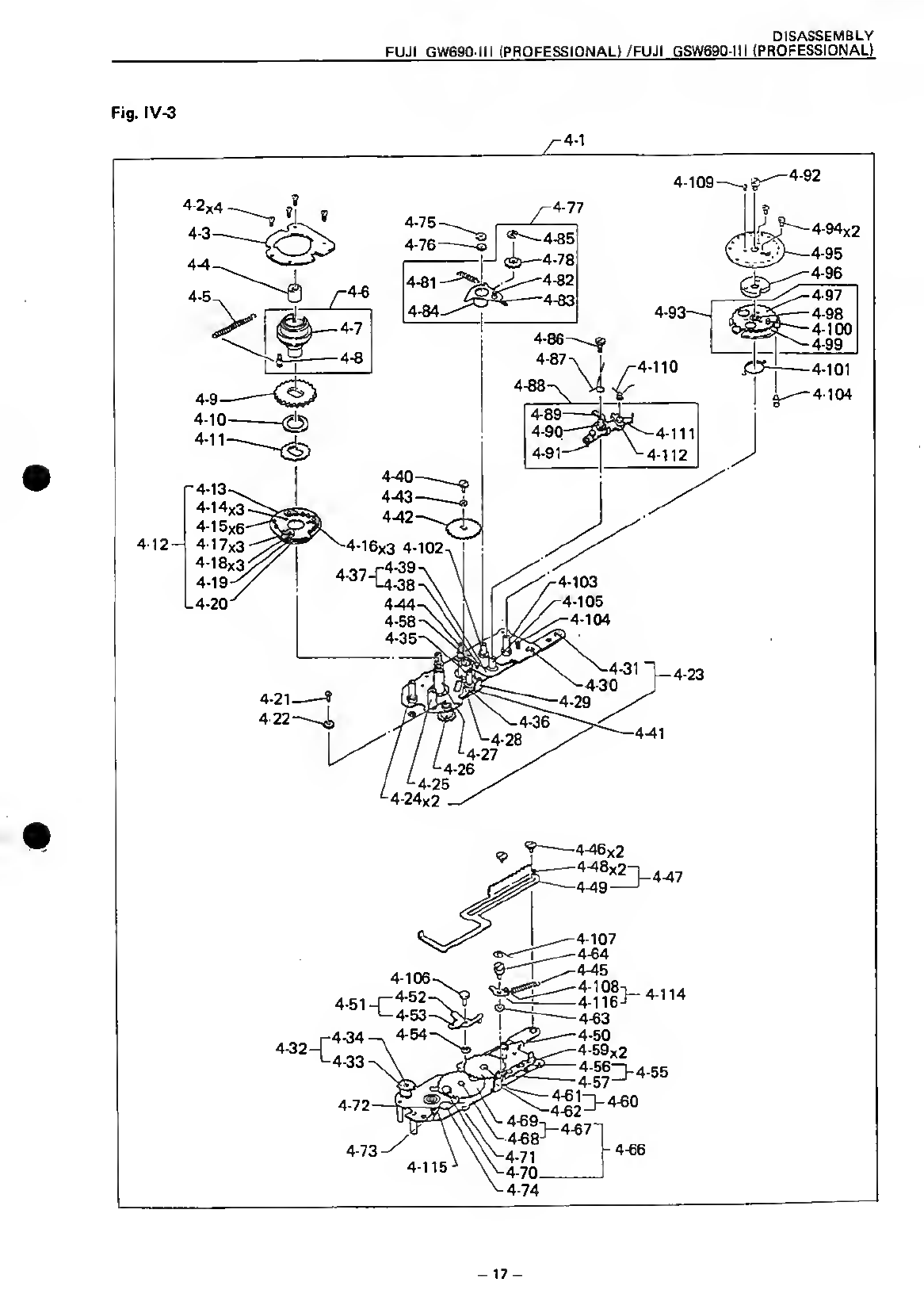

6. Disassembling the film take-up mechanism assembly (4-1). 16
V. REASSEMBLY AND ADJUSTMENT . 18
1. Reassembling the lens barrel assembly (7-23). 18
2. Assembling the film take-up mechanism assembly (4-1). 26
3. Assembling the chassis assembly (2-1). 30
VI. WIRING DIAGRAM FOR SYNCHRO CIRCUIT . 49
VII. INSPECTION. 50
1. Film advancing/Shutter charging/Exposure counter advancing/Shutter releasing. 50
2. Range/viewfinder. 52
3. Synchro-insulation and continuity. 54
4. Shutter release lock and shutter actuation counter. 54
5. Other parts. 54
6. Shutter speed standards . 56
Cont. 1

CONTENTS
FUJI GW690-III (PROFESSIONAL) /FUJI GSW690-III (PROFESSIONAL)
VIII. SPECIAL TOOL LIST. 57
IX. PARTS LIST
Fuji GW 690-III (PROFESSIONAL) . 59
Fuji GSW 690-III (PROFESSIONAL) . 99
Cont. 2

SPECIFICATIONS
FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL)

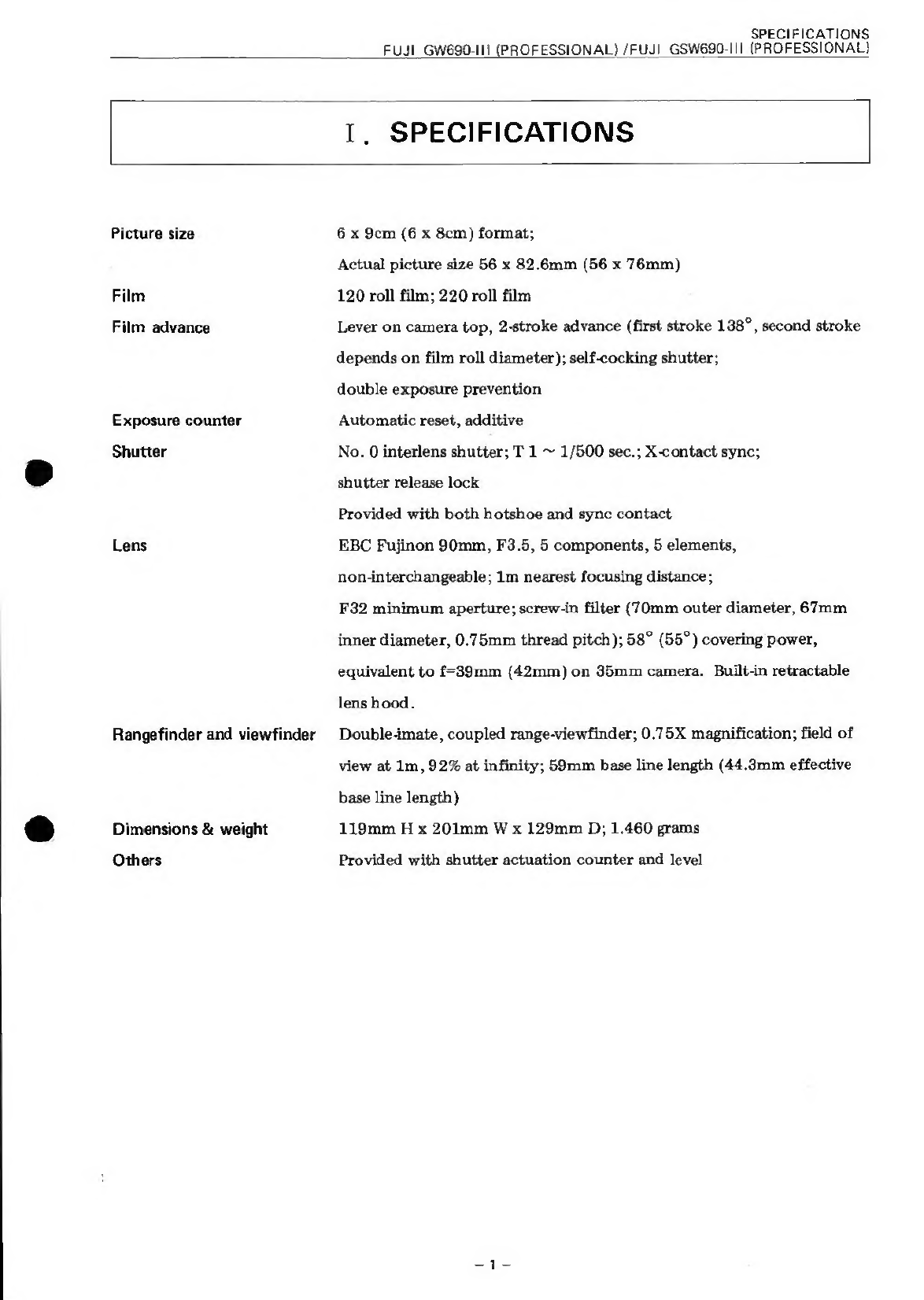

I. SPECIFICATIONS
Picture size
Film
Film advance
Exposure counter
Shutter
Lens
Rangefinder and viewfinder
Dimensions & weight
Others
6 x 9cm (6 x 8cm) format;
Actual picture size 56 x 82.6mm (56 x 76mm)
120 roll film; 220 roll film
Lever on camera top, 2-stroke advance (first stroke 138°, second stroke
depends on film roll diameter); self-cocking shutter;
double exposure prevention
Automatic reset, additive
No. 0 interlens shutter; T 1 ~ 1/500 sec.; X-contact sync;
shutter release lock
Provided with both hotshoe and sync contact
EBC Fujinon 90mm, F3.5, 5 components, 5 elements,
non-interchangeable; lm nearest focusing distance;
F32 minimum aperture; screw-in filter (70mm outer diameter, 67mm
inner diameter, 0.75mm thread pitch); 58° (55°) covering power,
equivalent to f=39mm (42mm) on 35mm camera. Built-in retractable
lens hood.
Double-imate, coupled range-viewfinder; 0.75X magnification; field of
view at lm, 92% at infinity; 59mm base line length (44.3mm effective
base line length)
119mm H x 201mm W x 129mm D; 1.460 grams
Provided with shutter actuation counter and level
- 1 -

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
FUJI GW690-111 (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL)_
II. D E SCRIPTIONS FOR FILM ADVANCING/SHUTTER
CHARGING AND RELEASING MECHANISM
1. When the camera is loaded with a film and camera back is closed, the return lever (4-39) is
pushed by the back cover, causing the rotary plate assembly (4-77) to turn. Then, the gear (4-79)
engages with the gear assembly (4-78). At this time, the head A of the lever assembly (4-88) is
slightly separated from the disc (4-99). Therefore, the pawl (4-36) disengages with the pawl
wheel (4-20) allowing the film advance lever to be wound up.
At the same time, the lock lever assembly (4-51) and lock lever assembly (2-26) turn, causing the
lock pin (2-25) to enter the space under the release lever (7-99), prohibiting the shutter releasing.
NOTE:
When these two lock levers (4-51 and 2-26) do no operate correctly (due to unhooked
spring, existence of dust, etc.), the shutter is not locked, allowing the shutter to be released
before the film is taken up one frame completely.
2. When the film advance lever is wound up, the gear (4-9) which turns simultaneously with the
sleeve assembly (4-6) causes the disc assembly (4-12) to turn through the pawl (4-18), and the
energy is transfered to the gear (4-22) and gear assembly (4-32) causing the film to be advanced.
At the same time, as the gear (4-42) turns, the rack assembly (4-47) is pulled up by the shaft
(4-71) of the ratchet wheel assembly (4-66) at the first wind up, the gear (7-119) is turned by the
teeth of the rack, and with the gear of set plate (7-42), the shutter is charged through the gear
(7-54). [Arrow ©in Fig. Ill]
Then, the hook^of the rack assembly (4-47) hooks on the hook (4-72), and its head enters the
space beneath the release lever.
At the same time, the lever assemly (4-114) which has been hooked on the ratchet is kicked by
the last projection of the ratchet, the lever assembly (4-55) enters the hook, the pawl disengages
with the ratchet, the interlock pin (4-57) moves away from the lever assembly (4-88), the head @
of the lever assembly (4-88) rides on the disc (4-99), the head@of the lever assembly (4-88)
further drops into the recess, and thus, the shutter is allowed to be released.
- 2 -

DESCRIPTIONS FOR FILM ADVANCING /SHUTTER CHARGING AND RELEASING MECHANISM
FUJI GW690-III (PROFESSIONAL) /FUJI GSW690-111 (PROFESSIONAL)
Shutter

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
FUJI GW690-111 (PROFESSIONAL) /FUJI GSW690-111 (PROFESSIONAL)

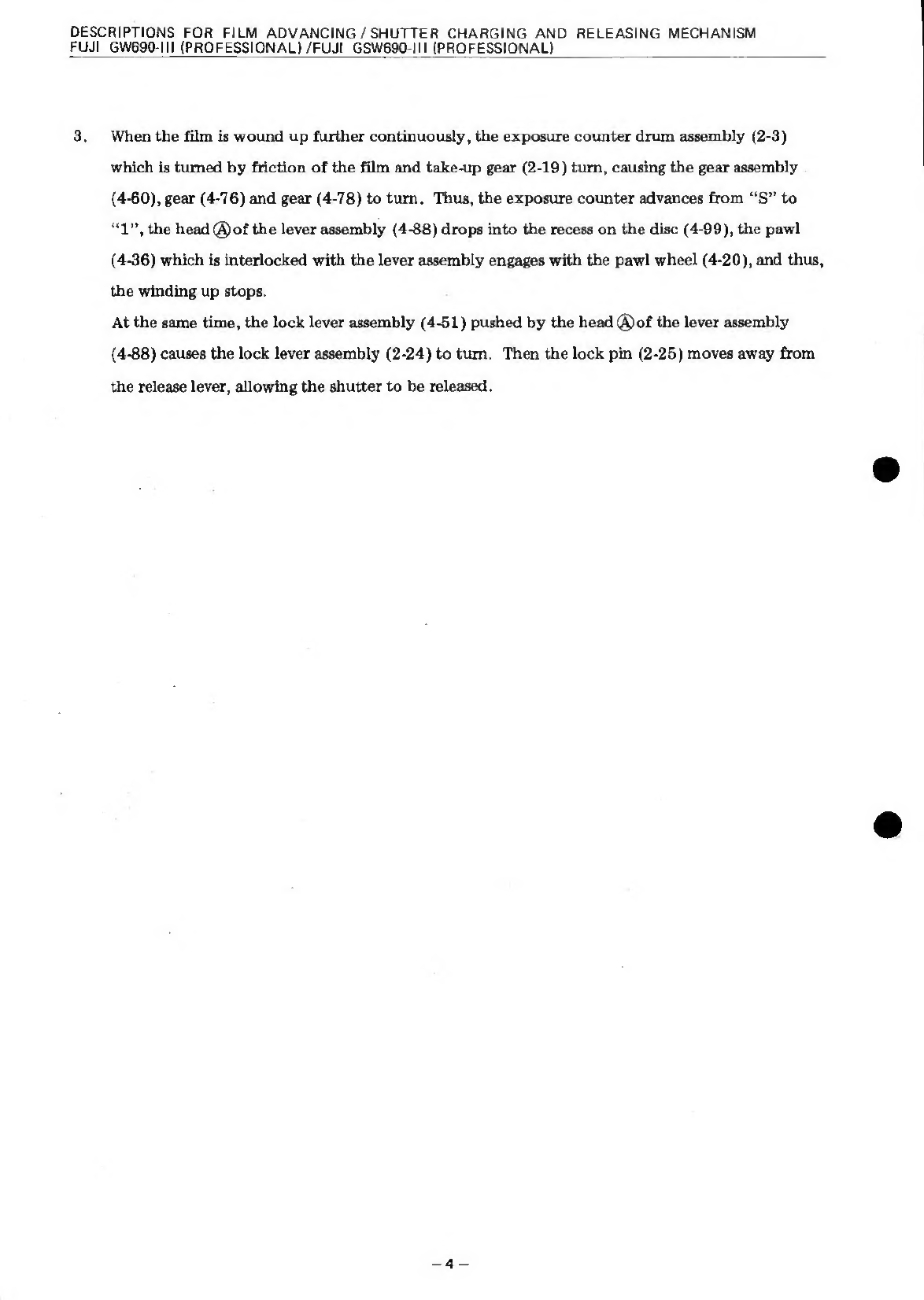

3. When the film is wound up further continuously, the exposure counter drum assembly (2-3)
which is turned by friction of the film and take-up gear (2-19) turn, causing the gear assembly
(4-60), gear (4-76) and gear (4-78) to turn. Thus, the exposure counter advances from “S” to
“1”, the head @of the lever assembly (4-88) drops into the recess on the disc (4-99), the pawl
(4-36) which is interlocked with the lever assembly engages with the pawl wheel (4-20), and thus,
the winding up stops.
At the same time, the lock lever assembly (4-51) pushed by the head@of the lever assembly
(4-88) causes the lock lever assembly (2-24) to turn. Then the lock pin (2-25) moves away from
the release lever, allowing the shutter to be released.
-4 -

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL) _

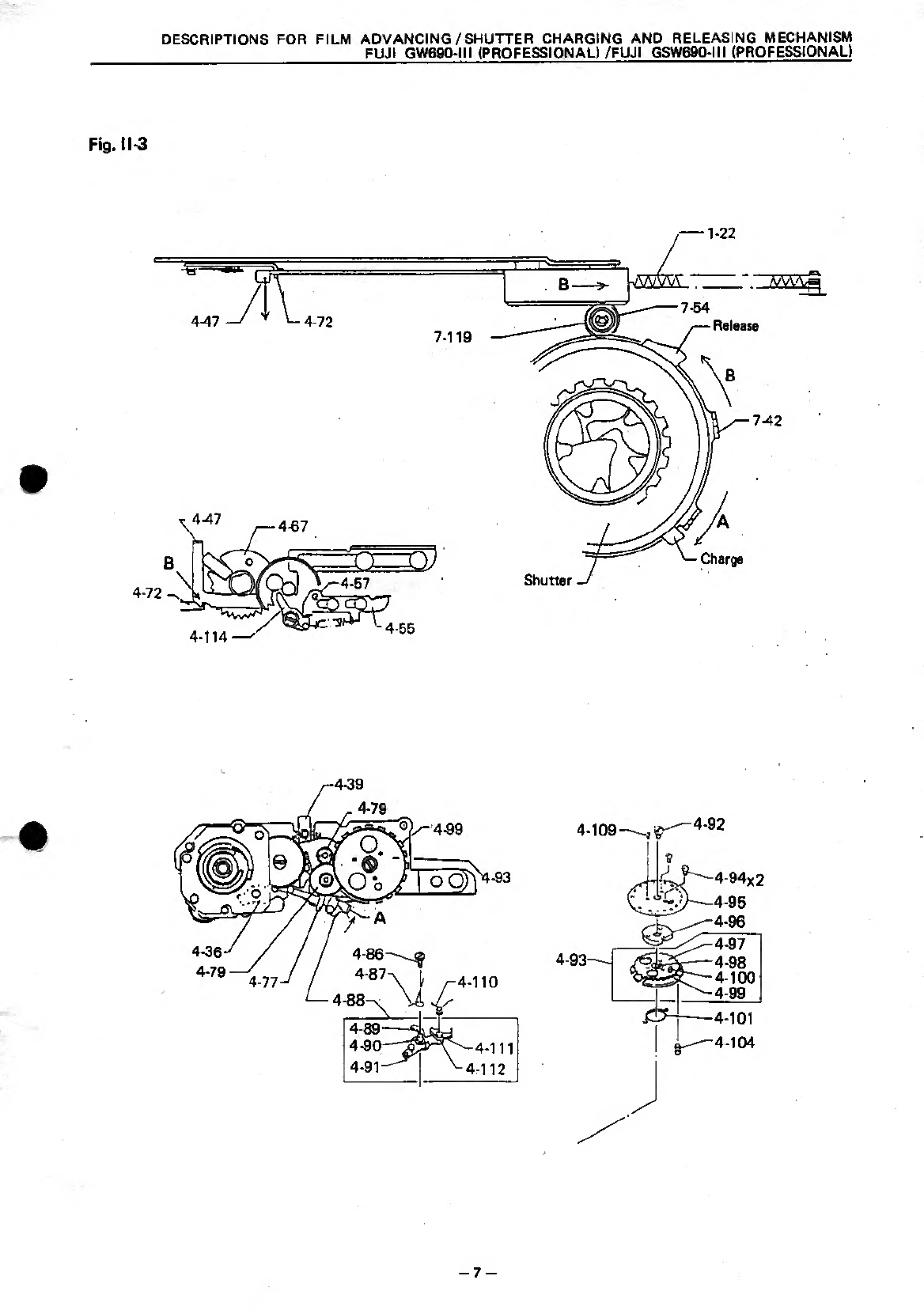

4. When the shutter release is depressed with the lock lever (1-29) so set that the red mark can be
seen (unlocked), the release lever assembly (7-98) is pushed by the shutter release shaft (1-20),
it further pushes the head of the rack (4-47) down, and thus, it is unhooked with the hook
(4-72).
The rack (4-47) pulled by the spring (1-22) moves rapidly, and causing the gear (7-119) to tum
reversely, the rack kicks the lever assembly (4-55), unhooking the lever assembly (4-114). The
rack further moves rapidly, turns the gear (7-54) causing the set plate (7-42) to tum, and thus,
the shutter is released.
5. As soon as the shutter is released, the lever (7-102) pushes the pawl (4-36), the pawl (4-36) moves
away from the ratchet, and the head A of the lever assembly (4-88) is pulled out from the recess
on the disc (4-99).
At the same time, the pin (4-57) on the lever assembly (4-55) kicked by the rack supports the
lever assembly (4-88).
Further, the lock levers (4-51 and 2-37) tum toward the locking direction, and when the shutter
release shaft returns as the shutter release is freed from the depression, the lock pin (2-25) enters
the space beneath the release lever, and thus, the shutter release is locked.
The lever assembly (4-114) is released, hooked on the ratchet wheel (4-66), and thus, the lever
assembly (4-114) functions to prevent reverse tum.
6. The lever assembly (4-114) functions to prevent reverse tum of the shutter charging mechanism
until the shutter is charged completely. Without this function, the shutter is not charged but the
film is advanced when the film advance lever is wound up gradually, and as the exposure counter
advances, the shutter is allowed to be released before it is charged completely in a middle
between frames, or the shutter cannot be released and the film is not wound up.
Note that the lever assembly (4-114) is important. If this lever assembly does not operate
smoothly, the camera does not operate correctly.
-6 -

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
_FUJI GW690-111 (PROFESSIONAL)/FUJI GSW690-111 (PROFESSIONAL)

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
FUJI GW690-III (PROFESSIONAL) /FUJI GSW690-III (PROFESSIONAL) _

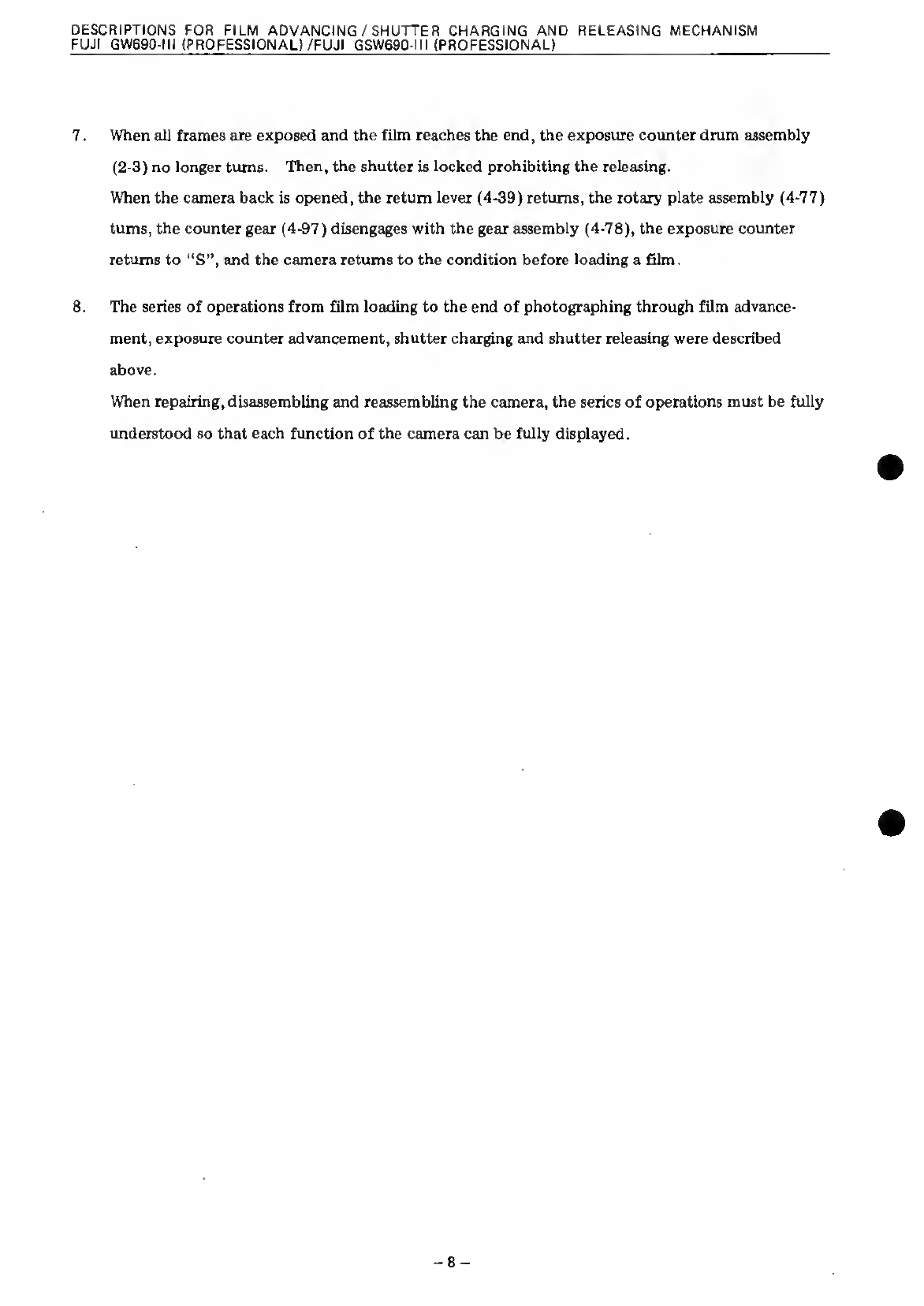

7. When all frames are exposed and the film reaches the end, the exposure counter drum assembly
(2-3) no longer turns. Then, the shutter is locked prohibiting the releasing.
When the camera back is opened, the return lever (4-39) returns, the rotary plate assembly (4-77)
turns, the counter gear (4-97) disengages with the gear assembly (4-78), the exposure counter
returns to “S", and the camera returns to the condition before loading a film.
8. The series of operations from film loading to the end of photographing through film advance¬
ment, exposure counter advancement, shutter charging and shutter releasing were described
above.
When repairing, disassembling and reassembling the camera, the series of operations must be fully
understood so that each function of the camera can be fully displayed.
-8 -

DESCRIPTIONS FOR FILM ADVANCING / SHUTTER CHARGING AND RELEASING MECHANISM
_FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-111 (PROFESSIONAL)

TROUBLESHOOTING
FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL)
III. TROUBLESHOOTING
1. Film cannot be advanced.
1-1 Pawl (4-36) does not disengage with pawl wheel (4-20).
Check the pawl (4-36), lever assembly (4-88), spring (4-87) and spring (4-110), and
repair as required.
1-2 Damaged film take-up mechanism assembly (4-1) and/or existence of foreign matters in the
assembly
Check and repair or replace.
1-3 Lock lever assembly (2-24) does not come out from the space under the release lever
assembly (7-98) causing the shutter not to be released. Further, the film cannot be taken up
to the next frame.
Check the lock lever assembly (2-24) and lock lever assembly (4-51) for deform.
Check the relative springs for installation. Repair as required.
1- 4 Exposure counter dial (4-95) is not advanced causing the shutter release to be locked. Then,
the shutter cannot be released and film cannot be taken up to the next frame.
Check the exposure counter drum (2-3) for smoothe operation.
Check the rotary plate assembly (4-77) for installation of the spring and deformed
spring.
Check the gears (4-78 and 4-99) for correct intermeshing. Repair as required.
2. The shutter cannot be released.
2- 1 The shutter cannot be set due to incorrect intermeshing of the gear (7-119) with the rack
assembly (4-47).
Check the gear for combination, and repair as required.
2-2 Check the set plate (7-42) for adjustment and deformed set plate.
Remove the front lens assembly (7-4) and shutter speed selector ring (7-13), and adjust
the release ring.
2-3 Check the lever assembly (4-114) for installation of the spring and sticked foreign matter.
Clean, repair or replace.
2-4 Deformed or unhooked spring (1-22)
Check and repair.
- 1 0 -

TROUBLESHOOTING
_ FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-111 (PROFESSIONAL)
3. Focusing cannot be made correctly.
3-1 The focusing ring (I) (7-63) is not positioned correctly due to loosen set screw (7-65).
Adjust focusing and retighten the set screw (7-65).
3-2 Loosen front lens assembly (7-4) and/or rear lens frame assembly (7-55).
Retighten.
3- 3 The range/viewfinder (5-1) does not work correctly. (Unmatching especially at 1.2 meters)
Adkist. Adjust the matching at 1.2m particularly accurately.
4. The range finder and viewfinder frame do not operate correctly.
4- 1 The interlock rod assembly (7-121) is not operating correctly.
Check the assembly for lubrication (grease), loosen screw of the positioning plate
assembly (7-113), etc., and repair as required.
4-2 The spring (5-33) is not installed correctly on the linkage assembly (5-43) or the spring is
deformed.
Repair.
4-3 Unhooked spring (5-62) or interlock lever (5-63) is not engaged with the interlock lever
assembly (5-47) correctly.
Proper bend the lever head to adjust the engagement.
4- 4 Intrusion of dust or foreign matter.
Clean.
5. Continuity for synchronization is poor.
5- 1 Unsatisfactory continuity of shoe seat assembly (3-16), contact (3-24) and/or contact
(3-26).
Remove the top cover, and check the lead wires for correct connection (soldering) or
breakdown, check the contacts for deformation, poor contact, etc., and repair as
required.
5-2 Unsatisfactory continuity or poor contact of synchrosocket assembly (7-37).
Remove the bottom cover and lens assembly, and check lead wires (7-36, 7-215, 7-216
and 7-217) for connection (soldering) and breakdown. Further, check the synchro¬
socket for damaging. Repair as required.
5-3 Unsatisfactory continuity of both shoe seat assembly and synchrosocket assembly.
Remove the front lens assembly (7 -4), and check the lead wire of the shutter assembly
(7-17) for connection (soldering) and synchro switch within the shutter for contact
and continuity. Repair as required.
- 11 -

DISASSEMBLY
FUJI GW690-111 (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL)
IV. DISASSEMBLY
1. Removing the top cover assembly (3-1)
1-1 Apply a piece of rubber sheet to the shutter release assembly (1-13) and turn it to remove,
and pull out the film advance lever (1-18), stopper (1-19), shutter release shaft (1-20).
1-2 Remove four screw (1-1), and remove the top cover assembly.
1- 3 Unsolder and disconnect the lead wires (3-36 and 3-38) from the individual contacts by
using a soldering iron. (Refer to Wiring diagram for flash circuit)
NOTE:
When removing the top cover, recommend the shutter be charged.
2. Removing the range/viewfinder assembly (5-1) and film take-up mechanism assembly (4-1)
2- 1 Set the helicoid assembly (7-62) to the close-up distance, remove three screws (1-3), discon¬
nect the lead wire, and remove the range/viewfinder assembly (5-1).
2- 2 Detach the spring (1-22) from the screw (2-54), remove four screws (1-4), set screw (1-21)
and washer (1-34), and remove the film take-up mechanism assembly (4-1).
3. Removing the lens barrel assembly (7-23)
3- 1 Remove three screws (1-8), and remove the bottom cover (1-35).
3-2 Peel off the rubber grip (1-10) carefully so as not to damage it, remove two screws (1-31),
and remove the front left grip assembly (1-23) and shutter release (1-9).
3-3 Peel off the leather (1-11) carefully so as not to damage it, remove two screws (1-43), and
remove the front right grip assembly (1-36) and cylinder (1-42).
3-4 Remove four screws (1-7) and remove the lens barrel assembly from the camera body.
- 1 2 -

DISASSEMBLY
FUJI GW690-111 (PROFESSIONAL) /FUJI GSW690-111 (PROFESSIONAL)

DISASSEMBLY
FUJI GW690-111 (PROFESSIONAL) /FUJI GSW690-111 (PROFESSIONAL)
4. Disassembling the lens barrel assembly (7-23)
4-1 Using a special lens removing tool, turn the front lens assembly (7-4) counterclockwise and
remove it. Next, remove three screws (7-16) and remove the shutter speed selector ring.
4-2 Pull out the interlock rod (7-123), remove two screws (7-120), and remove the positioning
plate assembly (7-113) together with the gear (7-119). Next, unsolder and disconnect four
lead wires from the PCB (7-30), remove three screws (7-112), and remove the light shielding
mask (7-111).
4-3 Remove four screws (7-97), and separate the front mask assembly (7-84) from the helicoid
assembly (7-62).
44 Using a special lens removing tool, remove the rear lens frame assembly (7-56), remove the
hold ring (7-125) with a pin face spanner, and remove the shutter assembly (I) (7-17).
4-5 Remove the screw (7-27), remove two screws (7-207), and remove the aperture selector ring
(7-26), protecting ring (7-201), hood (7-203) and stopper ring (7-206).
4-6 Remove the knurled ring (7-66), turn the focusing ring (II) (7-61) to the left to remove it,
remove three screws (746) (a) , and remove the index ring (7-24).
NOTE:
The steel ball (7-35) will come down. Be careful not to lose it.
4-7 Remove the screw (7-64) and three set screws (7-66), and remove the focusing ring (7-63).
Next, remove three screws (746) (b) , and take out the shutter frame assembly (7-41).
5. Disassembling the helicoid assembly (7-62)
5-1 Mark the male and female threads by means of a pen or scriber first. The combining posi¬
tions of the male helicoid (7-67) and female helicoid (helicoid ring assembly (7-75)) have
been set up.
Further, pull out the lead wires penerated through the lens barrel.
5-2 Feed the helicoid out toward the close-up distance side to remove the male helicoid (7-67).
Handle the helicoid carefully so as not to damage threads.
5-3 Remove three thrust plates (7-76), and remove the hold ring (7-79), helicoid ring assembly
(7-75) and ring (7-78).
- 14 -

DISASSEMBLY
(PROFESSIONAL)

DISASSEMBLY
FUJI GW690-III (PROFESSIONAL)/FUJI GSW690-III (PROFESSIONAL)
6. Disassembling the film take-up mechanism assembly (4-1)
6-1 Remove two screws (4-94) and screw (4-109), remove the dial (4-95) and spacer (4-96), and
unhook the springs (4-81 and 4-5) from the guide shaft (4-44).
6-2 Remove the screw (4-92), nut (4-75) (left hand thread) and gear (4-76) (left hand thead),
pull out the dial assembly (4-93) and rotary plate assembly (4-77), unhook the spring
(4-101) from the stopper pin (4-104), pull out the gear assembly (4-60), remove the spring
(4-87) and screw (4-86), and remove the lever assembly (4-88).
6-3 Remove two screws (4-46), remove the rack assembly (4-47) and spring (4-50), remove the
screw (4-40), and remove the ratchet wheel assembly (4-66).
6-4 Remove four screws (4-2), remove the base plate (4-3), and pull out the gear assembly
(sleeve assembly (4-6), gear (4-9), washer (4-10), ratchet wheel (4-11), and disc assembly
(4-12)). Next, remove the screw (4-21), and pull out the gear assembly (4-32).

DISASSEMBLY
FUJI GW690-111 (PROFESSIONAL)/FUJI GSW690-111 (PROFESSIONAL)
- 17 -
