Fujitsu Siemens Computers D2130 User manual

PRIMERGY
System board D2130
for RX220
Technical manual
Däschlein
Fujitsu Siemens Computers GmbH München
81730 Munich
e-mail: email: manual[email protected]
Tel.: [phone]
Fax: (++49) 700 / 372 00000
D2130 (RX220)
Sprachen: En
Edition September 2005

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Fax forms for sending us your comments are included in
the back of the manual.
There you will also find the addresses of the relevant
User Documentation Department.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademar s
Copyright © 2005 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

D2130 (RX220)
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.2 CE certificate . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Environment protection . . . . . . . . . . . . . . . . . . . . . 11
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3.3 Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
3.3.1 ISA bus resources . . . . . . . . . . . . . . . . . . . . . . . . 19
3.3.2 PCI resources . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . . 21
3.5 Temperature / system monitoring . . . . . . . . . . . . . . . . 22
3.6 Interfaces and connectors . . . . . . . . . . . . . . . . . . . . 23
3.6.1 External connectors . . . . . . . . . . . . . . . . . . . . . . . 24
3.7 Settings with jumpers . . . . . . . . . . . . . . . . . . . . . . 26
4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 29
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

D2130 (RX220) 5
1Introduction
This technical manual describes the system board D2130, which can be
equipped with one or two AMD Opteron™/Dual Core Opteron™ processors.
Further information about drivers is provided in the readme files on the hard
disk, on the supplied "ServerSupport" or "ServerStart" CDs.
You will find further information in the BIOS description "D2130 Setup Utility for
RX220".
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
italics indicates commands, menu items, file and path
names or software programs
fixed font indicate system output on the monitor
semi-bold fixed
font
indicates values to be entered through the keyboard
[Key symbol] indicates keys according to their representation on the
keyboard
If capital letters are to be entered explicitly, then the
Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time, then
this is shown by placing a hyphen between the two key
symbols.
“quotation marks” indicates names and terms that are being empha-
sized.
Êindicates an operation that to be performed
VCAUTION! indicates warnings, which, if ignored, will endanger
your health, destroy the system or lead to the loss of
data.
Iindicates additional information, notes and tips
Table 1: Notational conventions

D2130 (RX220) 7
2 Important notes
In this chapter you will find essential information regarding safety when working
with your server.
VCAUTION!
With the system board installed you must open the system to access the
system board. How to dismantle and reassemble the system is described
in the Options Guide accompanying your system.
2.1 Notes on safety
VCAUTION!
●The actions described in these instructions should only be performed
by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.
●Transport the device only in the antistatic original packaging or in
packaging that protects it from knocks and jolts.
●Only install expansions that are allowed for the system board. If you
install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are suitable can be
obtained from the customer service centre or your sales outlet.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.

8 D2130 (RX220)
Notes on safety Important notes
V●Components can become very hot during operation. Ensure you do
not touch components when making extensions to the system board.
There is a danger of burns!
●Transmission lines to peripheral devices must be adequately
shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Never connect or disconnect data transmission lines during a storm
(lightning hazard).
Batteries
VCAUTION!
●Incorrect replacement of lithium battery may lead to a risk of
explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.
It is essential to observe the instructions on page 29.

D2130 (RX220) 9
Important notes Notes on safety
Modules with electrostatic-sensitive components
Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:
Figure 1: ESD label
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before working.
●The equipment and tools you use must be free of static charges.
●Remove the power plug from the power socket before inserting or removing
boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install/deinstall the board.
●Place all components on a static-safe base.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

10 D2130 (RX220)
CE certificate Important notes
Notes about boards
●During installation/deinstallation of the system board, observe the specific
instructions described in the service manual for the server.
●Remove the plug from the mains outlet so that system and system board are
totally disconnected from the mains voltage.
●To prevent damage to the system board, the components and conductors on
it, please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the system board, or any other components,
for example EMI spring contacts
●Be careful with the locking mechanisms (catches, centring pins etc.) when
you replace the system board or components on it, for example memory
modules or processors.
●Never use sharp objects (screwdrivers) for leverage.
2.2 CE certificate
The shipped version of this board complies with the requirements
of the EEC directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PRIMERGY configuration.

D2130 (RX220) 11
Important notes Environment protection
2.3 Environment protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu Siemens
Computers standard for “environmentally friendly product design and devel-
opment”. This means that key factors such as durability, selection and labeling
of materials, emissions, packaging, ease of disassembly and recycling have
been taken into account.
This saves resources and thus reduces the harm done to the environment.
Notes on saving energy
Devices that do not have to be on permanently should not be switched on until
they need to be used and should be switched off during long breaks and on
completion of work
Notes on packaging
Please do not throw away the packaging. You may need it later for transporting
your system unit. If possible, the device should only be transported in its original
packaging.
Notes on dealing with consumables
Please dispose of printer consumables and batteries in accordance with local
government regulations.
Do not throw batteries and accumulators into the household waste. They must
be disposed of in accordance with local regulations concerning special waste.
All batteries containing pollutants are marked with a symbol (a crossed-out
rubbish bin on wheels). In addition, the marking is provided with the chemical
symbol of the heavy metal decisive for the classification as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead

12 D2130 (RX220)
Environment protection Important notes
Notes on labeling plastic housing parts
Please avoid attaching your own labels to plastic housing parts wherever
possible, since this makes it difficult to recycle them.
Returning, recycling and disposal
For details on take-back and reuse of devices and consumables within Europe,
see the manual „Returning used devices“ or contact your Fujitsu Siemens
Computers branch office/subsidiary or our recycling center in Paderborn:
Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn
Germany
Tel. [phone]
Fax [phone]
Internet: www.fujitsu-siemens.com/recycling
The device may not be disposed of with household rubbish. This
appliance is labelled in accordance with European Directive
2002/96/EC concerning used electrical and electronic appliances
(waste electrical and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling
of used appliances as applicable throughout the EU. To return your
used device, please use the return and collection systems available
to you. You will find further information on this at www.fujitsu-
siemens.com/recycling.

D2130 (RX220) 13
3 Features
3.1 Overview
Processors
– 1 or 2 x AMD Opteron™/Dual Core Opteron™ processors
– 2 processor sockets 940 for AMD Opteron™/Dual Core Opteron™
processors with 2.0 GT/ 1.6 GT HyperTransport bandwidth
Main memory
– 8 slots for main memory DDR1/400 MHz (registered),
SDRAM memory modules,
dual channel with 2 modules per channel with 512 MB, 1 and 2 Gbyte
– maximum 16 Gbyte of memory
– ECC multiple bit error detection and single bit error correction
– memory scrubbing function
Chips on the system board
– ServerWorks HT-2000 (Northbridge)
– ServerWorks HT-1000 (Southbridge)
– 2 embedded dual Broadcom Gigabit LAN controllers
– VGA controller (ATI Radeon 7000M) onboard with 16 MB SDRAM memory
– SATA controller Promise PDC20319u
– Super I/O controller (NS PC87417)
– Flash EPROM for:
–BIOS
–LAN
– Server Management (SM)
– server management with BMC (FSC System)
– thermal and system management controller (ADM1026)

14 D2130 (RX220)
Overview Features
Internal connectors
– panel connector to front panel
– 1 IDE connector (CD-ROM/DVD-ROM)
– Baseboard Management connector (for BMC)
– USB connector
– HDD activity connector
– IPMB connector
– 2 Serial ATA connectors
– auxiliary power connector for FSC RSBS2-LP card
– 8-pin ATX 12V connector
– 24-pin ATX power connector
– battery holder
– panel connector to fan backplane
– connectors for PWM fans (Puls Wide modulation)
External connectors
– 1 serial port (COM1) for system and BMC (shared)
– 2 PS/2 interfaces for keyboard and mouse
– 2 USB 2.0 ports with 480 Mbits/s
– 1 VGA port
– 2 LAN (RJ-45) ports
Slots
– 1 x PCI-X 133 MHz/64 Bits 184P (PCI-X 1.0)
– 1 x PCI Express x8 slot 98P (PCI Express 1.0a)

D2130 (RX220) 15
Features Overview
BIOS features
–AMIBIOS
–8Mb
– Special Hardware write protection
– Standards
– Green
–PnP
–DMI
– WfM 2.0
– ACPI 2.0a
–SMBIOS2.3
– USB Boot device
–FDD
–ZIP
– HDD
–CD
– USB stick
– HDT support
– Optional ROM for LAN x 2
– Shadow RAM in C, D, E segment with 4 KB alignment
– Console redirection support
Environmental protection
Battery in holder
Form factor
E-ATX (SSI) 12.4 x 13 in.

16 D2130 (RX220)
Main memory Features
3.2 Main memory
The system board supports up to 16 Gbyte main memory. Eight slots (four
memory banks with two slots each) are available for the main memory. Each
memory bank can be populated with two 512 Mbyte, 1 Gbyte or 2 Gbyte regis-
tered DDR1/400 MHz (PC-3200) memory modules.
ECC with memory scrubbing and with the Single Device Data Correction
(SDDC) function is supported.
Figure 2: Main memory
Module population
– The memory modules have to be populated in pairs.
– Each pair must consist of identical memory modules.
– The module capacity between pairs can differ: for example pair 1A/1B can
be populated with two 512 Mbyte modules and pair 2A/2B with two 1 Gbyte
modules.
DIMM_3B
DIMM_4B DIMM_3A
DIMM_4A
DIMM_2A
DIMM_1A
DIMM_2B
DIMM_1B
CPU1
CPU2

D2130 (RX220) 17
Features Main memory
Following table shows the possible module population:
X = populated
- = empty
For one CPU:
For two CPUs:
Memory
bank
DIMM
no.
color
1
DIMM
_1A
blue
2
DIMM
_2A
black
1
DIMM
_1B
blue
2
DIMM
_2B
black
DIMM
_3A
blue
DIMM
_4A
black
DIMM
_3B
blue
DIMM
_4B
black
Population
with
2 DIMMs
X-X-----
Population
with
4 DIMMs
XXXX ----
Memory
bank
DIMM
no.
color
1
DIMM
_1A
blue
3
DIMM
_2A
black
1
DIMM
_1B
blue
3
DIMM
_2B
black
2
DIMM
_3A
blue
4
DIMM
_4A
black
2
DIMM
_3B
blue
4
DIMM
_4B
black
Population
with
2 DIMMs
X-X-----
Population
with
4 DIMMs
X-X-X-X-
Population
with
6 DIMMs
XXXXX -X-
Population
with
8 DIMMs
XXXXXXXX

18 D2130 (RX220)
Slots Features
3.3 Slots

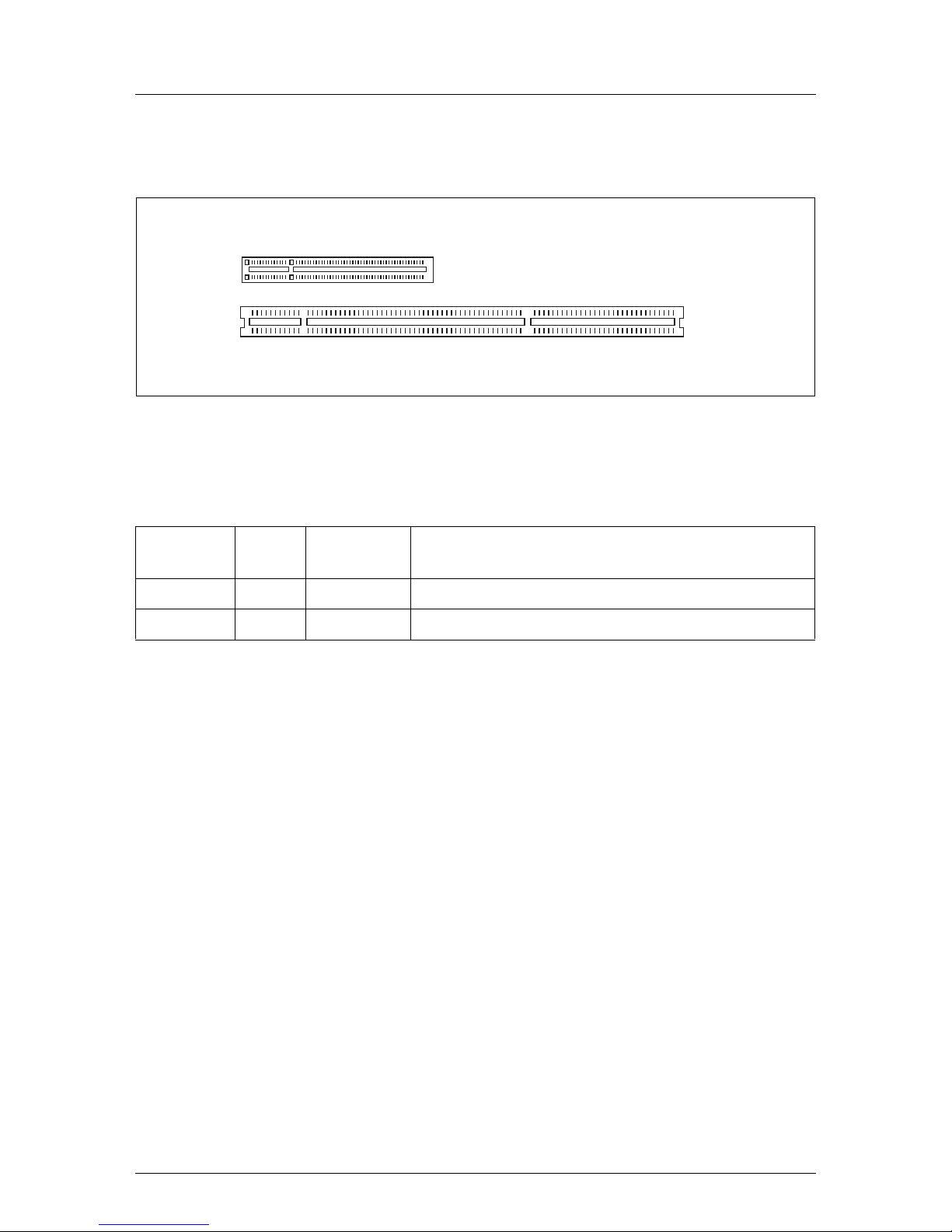

Figure 3: Slots
PCI slots
The following table shows an overview of the slots:
Slot 64 bit/
32 bit
Frequency
in MHz
Description
1 8x 100 8X PCI Express
2 64 bit 133 64-Bit PCI bus slot, full size or low profile
1
2

D2130 (RX220) 19
Features Slots
3.3.1 ISA bus resources
"IRQ" = interrupt assigned as shipped
"Address" = this address can be used for your particular device
"Address" = this DMA can be used for your particular device
Default settings are shown in bold print
Device IRQ Address DMA
Timer 0 040-043
Keyboard 1 060,064
Serial port COM1 4 3F8-3FF
Real-time clock (RTC) 8 070-071
Microsoft ACPI-compliant 9
Mouse controller 12
Numeric processor 13 0F0-0FE
IDE controller (primary) 14 1F0-1F7, 3F6

20 D2130 (RX220)
Slots Features
3.3.2 PCI resources
PCI IRQ Line x - Assignment of the PCI interrupts
PCI IRQ Line x defines which ISA interrupts are used for the PCI-X and PCI
Express slots.
If you select Auto in the BIOS setup, the interrupts are assigned automatically
and no further settings are required.
Multifunctional PCI boards or boards with an integrated PCI-to-PCI bridge can
use several PCI interrupts (INTA#, INTB#, INTC#, INTD#). Monofunctional PCI
boards (default) only use one PCI interrupt (INTA#) per PCI slot.
The PCI interrupts INTA#, INTB#, INTC# and INTD# are available for each PCI
slot.
The same interrupt can be assigned simultaneously to several PCI boards. You
should avoid this condition due to reduced performance.
If you use a setting other than Auto, the Plug&Play functionality of the system
BIOS for the corresponding PCI boards is deactivated.
Following table shows the PCI IRQ routing:
Auto The PCI interrupts are assigned automatically in accordance with
the Plug&Play guidelines.
Disabled No ISA interrupt is assigned to the PCI interrupt.
3, 4, 5, 7, 9, 11, 12, 14, 15
The selected ISA interrupt is assigned to the PCI interrupt. You
may not select an ISA interrupt that is used by a component on
the system board (e.g. controller) or an ISA board.
Device IDSEL PCI_IRQ REQ/GNT
VGA/Radeon
7000M
P3_AD21 PCIIRQ#8 P3REQ#0 /
P3GNT#0
