Fujitsu Siemens Computers D2352 User manual

PRIMERGY
System Board D2352
for TX600 S3/RX600 S3
Technical manual
Gottfried Staubach
Fujitsu Siemens Computers GmbH Paderborn
33094 Paderborn
e-mail: email: [email protected]
Tel.: 05251 / 14888-19
Fax: (++49) 700 / 372 00001
D2352 (TX600 S3/RX600 S3)
Sprachen: En
Edition December 2006

Comments…Suggestions…Corrections…
The User Documentation Department would like to
know your opinion of this manual. Your feedback helps
us optimize our documentation to suit your individual
needs.
Fax forms for sending us your comments are included in
the back of the manual.
There you will also find the addresses of the relevant
User Documentation Department.
Certified documentation
according to DIN EN ISO 9001:2000
To ensure a consistently high quality standard and
user-friendliness, this documentation was created to
meet the regulations of a quality management system
which complies with the requirements of the standard
DIN EN ISO 9001:2000.
cognitas. Gesellschaft für Technik-Dokumentation mbH
www.cognitas.de
Copyright and Trademarks
© cognitas. Gesellschft für Technik-Dokumentation mbH 2006 Pfad: D:\Daten\PS_Achim\2352th\thb-e.pdf\D2352_us.vor
Copyright © 2006 Fujitsu Siemens Computers GmbH.
All rights reserved.
Delivery subject to availability; right of technical modifications reserved.
All hardware and software names used are trademarks of their respective manufacturers.

D2352 (TX600 S3/RX600 S3)
D
o
k
usc
h
a
bl
onen
(OECB
oo
k)
V1
.
82
us
b
y
S
.
Th
ums
S
erv
i
ces
&T
oo
l
s
©
cogn
i
tas
G
m
bH
2002
-
2004
29. November 2006 Stand 10:02.55 Pfad: D:\Daten\PS_Achim\2352th\thb-e.pdf\D2352_us.ivz
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
2 Important notes . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.1 Notes on safety . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.2 CE Certificate . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Environment Protection . . . . . . . . . . . . . . . . . . . . . 7
3 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

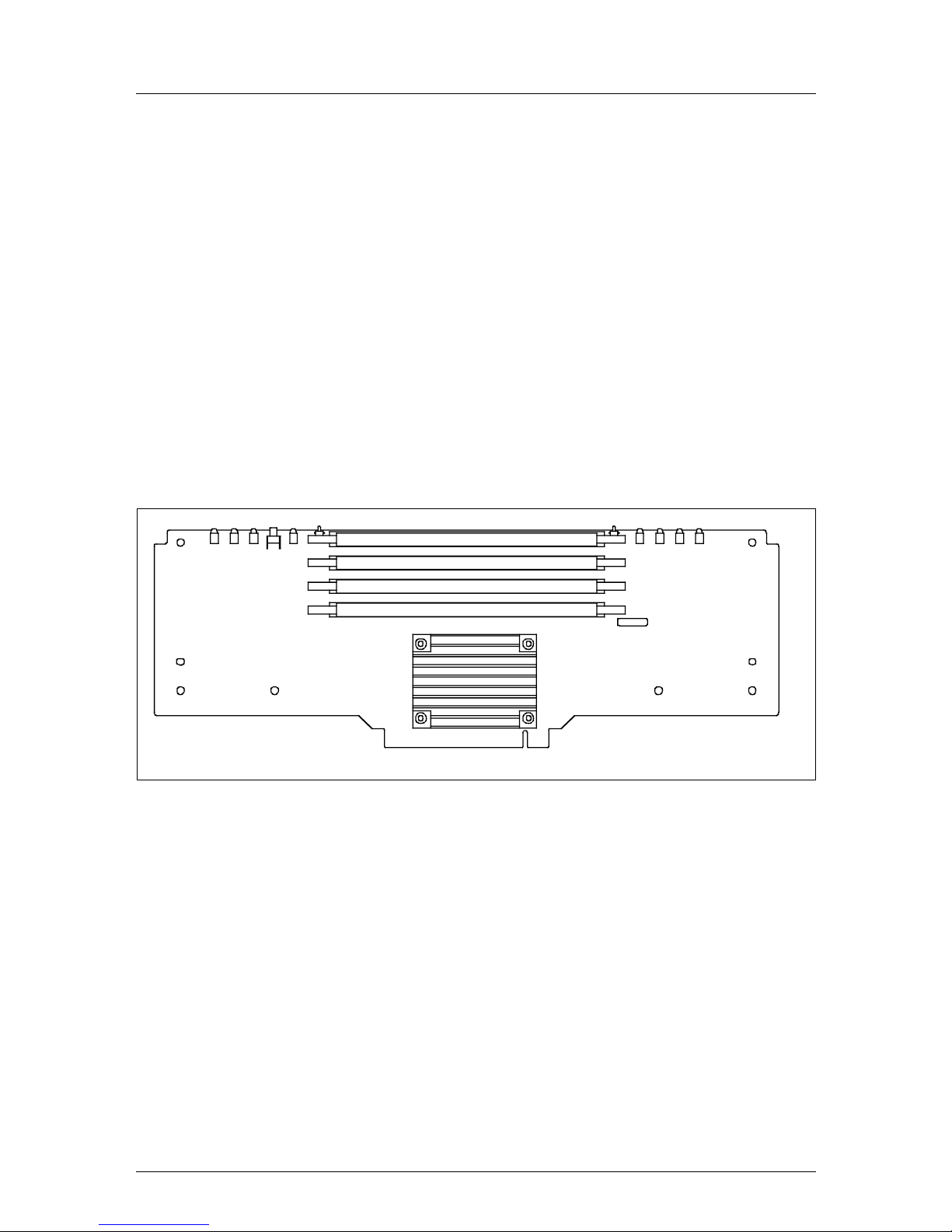

3.2 Main memory . . . . . . . . . . . . . . . . . . . . . . . . . . 14

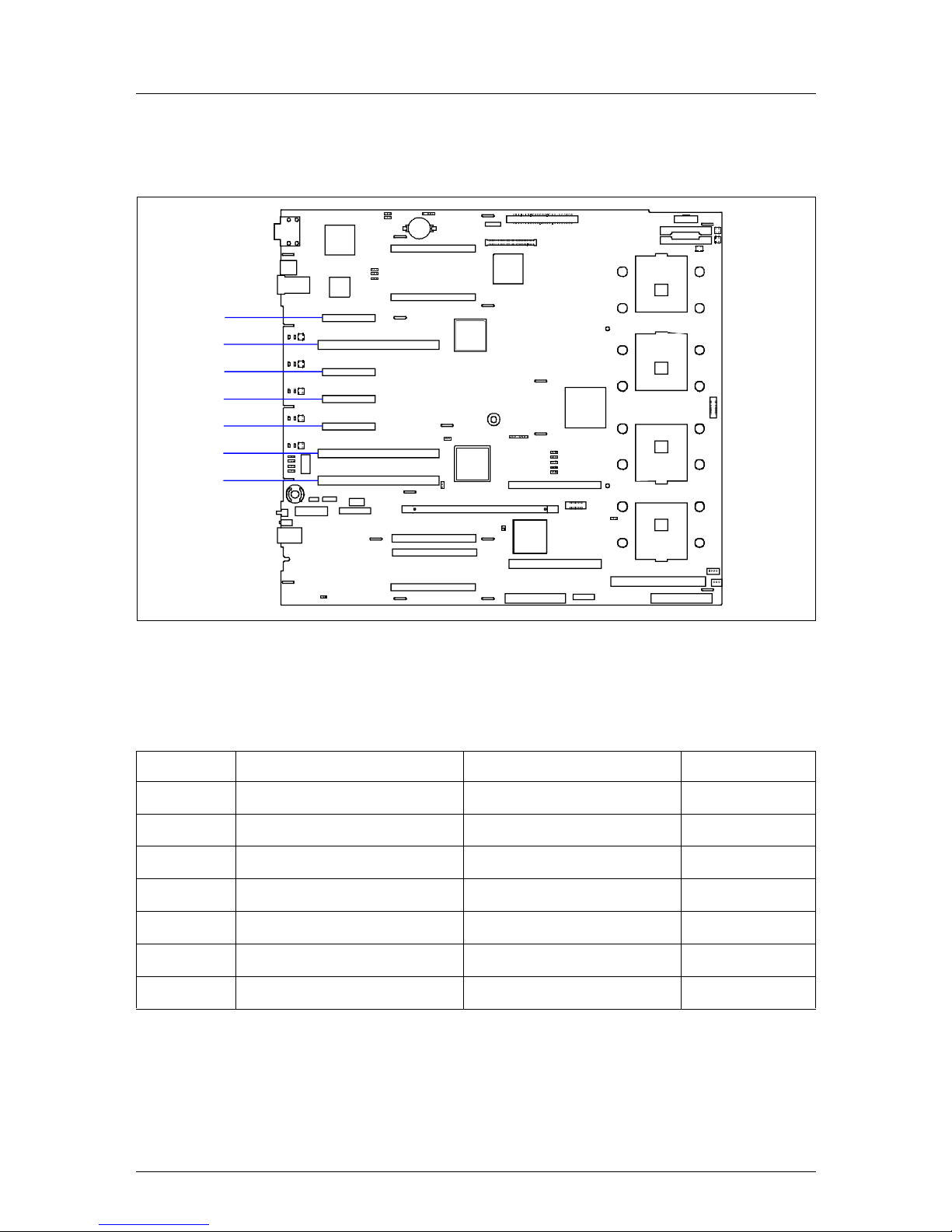

3.3 PCI bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.4 Screen resolution . . . . . . . . . . . . . . . . . . . . . . . 16
3.5 Temperature / system monitoring . . . . . . . . . . . . . . . 16
3.6 Connectors and jumpers . . . . . . . . . . . . . . . . . . . . 18
3.6.1 External connectors . . . . . . . . . . . . . . . . . . . . . . . 20
3.7 RoMB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4 Replacing the lithium battery . . . . . . . . . . . . . . . . . 23
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

D2352 (TX600 S3/RX600 S3) 1
1Introduction
This technical manual describes the system board D2352, which can be
equipped with up to four Intel®processors.
Further information about drivers is provided in the readme files on the supplied
ServerSupport or ServerStart CDs.
You will find further information in the manual "D2352 Setup Utility".
Notational conventions
The meanings of the symbols and fonts used in this manual are as follows:
italics indicates commands, menu items, file and path
names or software programs
fixed font indicate system output on the monitor
semi-bold fixed
font
indicates values to be entered through the keyboard
[Key symbol] indicates keys according to their representation on the
keyboard
If capital letters are to be entered explicitly, then the
Shift key is shown, e.g. [SHIFT] - [A] for A.
If two keys need to be pressed at the same time, then
this is shown by placing a hyphen between the two key
symbols.
“quotation marks” indicates names and terms that are being empha-
sized.
Êindicates an operation that to be performed
VCAUTION! indicates warnings, which, if ignored, will endanger
your health, destroy the system or lead to the loss of
data.
Iindicates additional information, notes and tips
Table 1: Notational conventions

D2352 (TX600 S3/RX600 S3) 3
2 Important notes
In this chapter you will find essential information regarding safety when working
with the system board.
VCAUTION!
With the system board installed you must open the system to access the
system board. How to dismantle and reassemble the system is described
in the Options Guide accompanying your system.
2.1 Notes on safety
VCAUTION!
●The actions described in these instructions should only be performed
by authorized, qualified personnel. Equipment repairs should only be
performed by qualified staff. Any failure to observe the guidelines in
this manual, and any unauthorized openings and improper repairs
could expose the user to risks (electric shock, fire hazards) and could
also damage the equipment. Please note that any unauthorized
openings of the device will result in the invalidation of the warranty
and exclusion from all liability.
●Transport the device only in the antistatic original packaging or in
packaging that protects it from knocks and jolts.
●Only install expansions that are allowed for the system board. If you
install other expansions, you may damage the requirements and rules
governing safety and electromagnetic compatibility or your system.
Information on which system expansions are suitable can be
obtained from the customer service centre or your sales outlet.
●The warranty expires if the device is damaged during the installation
or replacement of system expansions.

4 D2352 (TX600 S3/RX600 S3)
Notes on safety Important notes
V●Components can become very hot during operation. Ensure you do
not touch components when making extensions to the system board.
There is a danger of burns!
●Transmisson lines to peripheral devices must be adequately shielded.
●To the LAN wiring the requirements apply in accordance with the
standards EN 50173 and EN 50174-1/2. As minimum requirement
the use of a protected LAN line of category 5 for 10/100 MBps
Ethernet, and/or of category 5e for Gigabit Ethernet is considered.
The requirements of the specification ISO/IEC 11801 are to be
considered.
●Never connect or disconnect data transmission lines during a storm
(lightning hazard).
Batteries
VCAUTION!
●Incorrect replacement of lithium battery may lead to a risk of
explosion. The batteries may only be replaced with identical batteries
or with a type recommended by the manufacturer.
It is essential to observe the instructions in chapter “Replacing the
lithium battery” on page 23.
●Do not throw batteries into the trash can. They must be disposed of
in accordance with local regulations concerning special waste.
●The battery must be disposed of in accordance with local regulations
concerning special waste.
●All batteries containing pollutants are marked with a symbol (a
crossed-out garbage can). In addition, the marking is provided with
the chemical symbol of the heavy metal decisive for the classification
as a pollutant:
Cd Cadmium
Hg Mercury
Pb Lead

D2352 (TX600 S3/RX600 S3) 5
Important notes Notes on safety
Modules with electrostatic-sensitive components
Systems and components that might be damaged by electrostatic discharge
(ESD) are marked with the following label:
Figure 1: ESD label
When you handle components fitted with ESDs, you must observe the following
points under all circumstances:
●You must always discharge yourself of static charges (e.g. by touching a
grounded object) before working.
●The equipment and tools you use must be free of static charges.
●Remove the power plug from the power socket before inserting or removing
boards containing ESDs.
●Always hold boards with ESDs by their edges.
●Never touch pins or conductors on boards fitted with ESDs.
●Use a grounding cable designed for this purpose to connect yourself to the
system unit as you install/deinstall the board.
●Place all components on a static-safe base.
IYou will find a detailed description for handling ESD components in the
relevant European or international standards (EN 61340-5-1,
ANSI/ESD S20.20).

6 D2352 (TX600 S3/RX600 S3)
CE Certificate Important notes
Notes about boards
●During installation/deinstallation of the system board, observe the specific
instructions described in the service manual for the server.
●Remove the plug from the mains outlet so that system and system board are
totally disconnected from the mains voltage.
●To prevent damage to the system board, the components and conductors on
it, please take great care when you insert or remove boards. Take great care
to ensure that extension boards are slotted in straight, without damaging
components or conductors on the system board, or any other components,
for example EMI spring contacts
●Be careful with the locking mechanisms (catches, centring pins etc.) when
you replace the system board or components on it, for example memory
modules or processors.
●Never use sharp objects (screwdrivers) for leverage.
2.2 CE Certificate
The shipped version of this board complies with the requirements
of the EEC directive 89/336/EEC "Electromagnetic compatibility".
Compliance was tested in a typical PRIMERGY configuration.

D2352 (TX600 S3/RX600 S3) 7
Important notes Environment Protection
2.3 Environment Protection
Environmentally-friendly product design and development
This product has been designed in accordance with the Fujitsu Siemens
Computers standard for “environmentally friendly product design and devel-
opment”. This means that key factors such as durability, selection and labeling
of materials, emissions, packaging, ease of disassembly and recycling have
been taken into account.
This saves resources and thus reduces the harm done to the environment.
Notes on saving energy
Devices that do not have to be on permanently should not be switched on until
they need to be used and should be switched off during long breaks and on
completion of work
Notes on packaging
Please do not throw away the packaging. You may need it later for transporting
your system unit. If possible, the device should only be transported in its original
packaging.
Notes on dealing with consumables
Please dispose batteries in accordance with local government regulations.
Do not throw lithium batteries into the household waste. They must be disposed
of in accordance with local regulations concerning special waste.
Notes on labeling plastic housing parts
Please avoid attaching your own labels to plastic housing parts wherever
possible, since this makes it difficult to recycle them.

8 D2352 (TX600 S3/RX600 S3)
Environment Protection Important notes
Returning used electrical and electronic devices in EU countries
– Separate collection
Users of electrical and electronic devices are obligated to collect used
devices separately. Electrical (electronic) used devices may not be disposed
of together with unsorted household refuse. The separate collection is a
condition for reuse, recycling and utilisation of used electrical (electronic)
devices, which ensures the protection of resources.
– Return and collection systems
Electrical (electronic) used devices from private households can be returned
free of charge. To return your used device, please use the country-specific
return and collection systems available to you (see “Local contacts” on
page 9).
The return of used devices which pose a health or safety risk for human
beings due to soiling during use may be refused.
– Reuse, recycling and utilisation
By actively using the offered return and collection systems, you make your
contribution to the reuse, recycling and utilisation of electrical (electronic)
devices.
– Effects on the environment and human health
Electrical (electronic) used devices contain parts which must be handled
selectively according to the EU directive. Separate collection and selective
treatment are the basis for environment-friendly disposal and the protection
of human health.
– Meaning of the symbol "Crossed out rubbish bin on wheels"
Electrical (electronic) devices which are marked with one of the following
symbols may not be disposed of with household refuse in accordance with
the EU directive.
Figure 2: Symbols for electrical (electronic) devices

D2352 (TX600 S3/RX600 S3) 9
Important notes Environment Protection
Returning batteries
Batteries which are marked with one of the following symbols may not be
disposed of together with household refuse according to the applicable EU
directive.
Figure 3: Symbols for batteries
With batteries containing harmful substances, the chemical symbol for the
heavy metal contained is indicated below the waste bin.
Cd Cadmium
Hg Mercury
Pb Lead
The following applies to Germany:
– Private consumers can return batteries at the point of sale or the immediate
vicinity thereof free of charge (exception: starter batteries).
– The final consumer is obligated to return defective or used batteries to the
seller or to the return points established for this purpose.
Local contacts
For details on take-back and reuse of devices and consumables within Europe,
contact your Fujitsu Siemens Computers branch office/subsidiary or our
recycling center in Paderborn:
Fujitsu Siemens Computers
Recycling Center
D-33106 Paderborn
Germany
Tel. [phone]
Fax [phone]
Internet: www.fujitsu-siemens.com/recycling

D2352 (TX600 S3/RX600 S3) 11
3 Features
3.1 Overview
System board
●Up to four Intel®XEON MP dual-core processors
●Intel®E8501 chipset:
– Intel®E8501 chipset Northbridge (TNB): has two shared 64-bit FSB
interfaces configured for symmetric multiprocessing.
– External Memory Board (XMB): provides support for DDR-2 memory.
– PXH: provides support for PCI-X .
– Intel®IOP332 I/O processor with Intel XScale®Microarchitecture:
provides support for PCI-X and contains Intel XScale®technology to
support RoMB (RAID on Motherboard).
– Intel®82801EB I/O controller Hub 5 (Southbridge) provides support for
system BIOS, USB 2.0 and SATA.
●Advanced I/O architecture:
– One hot-plug x8 PCI-Express slot
– Three hot-plug x4 PCI-Express slots
– One hot-plug 133 MHz, 64-bit PCI-X slot
– Two 100 MHz, 64-bit PCI-X slots (not hot-plug)
●LSI Logic®53C1030 LVD SCSI controller:
– Dual independent U320 SCSI interfaces
– 64-bit PCI-X 100 Mhz interface
●Integrated ATI Technologies Inc®Radeon 7000M with 16 MB embedded
SDRAM

12 D2352 (TX600 S3/RX600 S3)
Overview Features
●USB 2.0 support:
– Two ports at the rear of the chassis
– Three ports at the front of the chassis
– One port onboard
Main memory
– Up to 4 hot-plug memory boards with each 4 slots for main memory PC2-
3200 DDRII/400 MHz, DIMM memory modules with 1 Gbyte, 2 Gbyte and
4 Gbyte
– Maximum 64 Gbyte of memory
– Memory mirroring function or memory RAID
– Optional hot-spare memory function
– Single Device Data Correction (SDDC) function (Chipkill™)
External connectors
– Front side (front panel):
3x USB 2.0 ports
1x VGA port (15 pin)
– Rear side (I/O shield):
2x USB 2.0 ports
1x VGA port (15 pin)
1x RS-232-C interface (serial 9 pin)
2x RJ45 LAN ports (onboard LAN)
1x RJ45 LAN port (presently not used, reserved for future development)
BIOS features
– Intel®Platform Innovation Framework EFI BIOS
– MultiProcessor Specification 1.4
– Server Hardware Design Guide 3.0
– WfM 2.0
– IPMI V1.5
– ACPI 1.0b support

D2352 (TX600 S3/RX600 S3) 13
Features Overview
– Intel®RoMB BIOS
– LSI SCSI BIOS
– SATA support
– USB keyboard/mouse
– boot possible from:
– CD/DVD-ROM
– USB drive
–LAN
– hard disk
– console redirection support
– OEM logo
– CPU, Memory disable
– memory mirroring/RAID/spare support
Environmental protection
Battery in holder
Form factor
16.4“ x 18.3“

14 D2352 (TX600 S3/RX600 S3)
Main memory Features
3.2 Main memory
The system board offers four slots for hot-plug memory boards. Each memory
board can be equipped with up to four memory modules (in two memory banks).
The slots for main memory can be populated with 1 Gbyte, 2 Gbyte or 4 Gbyte
DDR II/400 MHz DIMM memory modules. The maximum memory is 64 Gbyte.
ECC with memory scrubbing and with the Single Device Data Correction
(SDDC) function is supported.
IYou will find the descriptions how to install a memory board in the
Operating Manual of your server and how to install memory modules in
the Opttion Guide of your server.
Memory board population
Figure 4: Memory board population
– Start with memory bank 1 (DIMM1A/DIMM1B).
– Install the memory modules in pairs. All DIMMs in a pair must be of the same
type and size.
– The module capacity between pairs can differ: pair 2A/2B can be populated
with two 1 Gbyte modules and pair 1A/1B with two 2 Gbyte modules.
DIMM 1B
DIMM 1A
DIMM 2B
DIMM 2A

D2352 (TX600 S3/RX600 S3) 15
Features PCI bus
3.3 PCI bus
Figure 5: PCI slots
PCI slots
The following table shows an overview of the PCI slots:
Assignment of the PCI interrupts
The PCI interrupts are assigned automatically by the BIOS and no further
settings are possible.
PCI slot Transfer rate Description Hot-plug
12500 Mbyte/s PCI-Express x8 slot yes
21064 Mbyte/s PCI-X bus slot (133 MHz) yes
31250 Mbyte/s PCI-Express x4 slot yes
41250 Mbyte/s PCI-Express x4 slot yes
51250 Mbyte/s PCI-Express x4 slot yes
6800 Mbyte/s PCI-X bus slot (100MHz) no
7800 Mbyte/s PCI-X bus slot (100MHz) no
7
6
5
4
3
2
1

16 D2352 (TX600 S3/RX600 S3)
Screen resolution Features
3.4 Screen resolution
Depending on the operating system used the screen resolutions in the following
table refer to the screen controller on the system board. If you are using an
external screen controller, you will find details of supported screen resolutions
in the operating manual or technical manual supplied with the controller.
3.5 Temperature / system monitoring
Temperature and system monitoring aim to reliably protect the computer
hardware against damage caused by overheating. In addition, any unnecessary
noise is also prevented by reducing the fan speed, and information is provided
about the system status.
The temperature and system monitoring are controlled by an onboard controller.
The following functions are supported:
Temperature monitoring
Measurement of the processor temperature, measurement of the ambient
temperature by a temperature sensor on the LED board.
Screen resolution Refresh rate
(Hz)
Digital Display
(Hz)
Max. number of colours
640x480 200 75 16,7 Mio.
800x600 200 75 16,7 Mio.
1024x768 200 75 16,7 Mio.
1152x864 150 - 16,7 Mio.
1280x1024 130 75 16,7 Mio.
1600x1200 90 60 16,7 Mio.
