Fujitsu ABYG18KRTA User manual

AIR CONDITIONER
Ceiling type
SERVICE MANUAL
INDOOR
ABYG18KRTA
ABYG22KRTA
ABYG24KRTA
ABYG30KRTA
ABYG36KRTA
ABYG45KRTA
OUTDOOR
AOYG18KBTB
AOYG22KBTB
AOYG24KBTB AOYG30KBTB
AOYG36KBTB
AOYG45KBTB
SR_AB004EF_06
2020.12.09

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google Inc.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2020 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2020.11.16
SR_CH01_AB004EF_03

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-7
2. Dimensions................................................................................................01-10
2-1. Indoor unit ....................................................................................................................01-10
2-2. Outdoor unit..................................................................................................................01-14

1. Specifications
1-1. Indoor unit
Type Ceiling
Inverter heat pump
Model name ABYG18KRTA ABYG22KRTA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 5.2 6.0
Btu/h 17,700 20,500
Min.—Max. kW 0.9—5.9 0.9—6.7
Btu/h 3,100—20,100 3,100—22,900
Heating
Rated kW 6.0 7.0
Btu/h 20,500 23,900
Min.—Max. kW 0.9—7.5 0.9—8.0
Btu/h 3,100—25,600 3,100—27,300
Input power
Cooling Rated
kW
1.55 1.87
Max. 2.32 2.44
Heating Rated 1.62 1.95
Max. 2.41 2.60
Current Cooling Rated A 6.9 8.3
Heating 7.2 8.6
EER Cooling kW/kW 3.35 3.21
COP Heating 3.70 3.59
Power factor Cooling %97.6 98.1
Heating 97.9 98.5
Moisture removal L/h (pints/h) 2.0 (3.5) 2.5 (4.4)
Maximum operating current *1Cooling A12.1 12.6
Heating 12.1 12.6
Fan
Airflow rate
Cooling
HIGH
m3/h
840 900
MED 790 790
LOW 710 710
QUIET 650 650
Heating
HIGH 840 900
MED 790 790
LOW 710 710
QUIET 650 650
Type × Q'ty Sirocco × 2
Motor output W 50
Sound pressure level *2
Cooling
HIGH
dB (A)
38 42
MED 36 37
LOW 33 34
QUIET 31 31
Heating
HIGH 38 42
MED 36 37
LOW 33 34
QUIET 31 31
Heat exchanger type
Dimensions (H × W × D) mm 294 × 715 × 39.9
Fin pitch mm 1.30
Rows × Stages 3 × 14
Pipe type Copper
Fin type Aluminum
Enclosure
Material Steel sheet
Color White
Approximate color of Munsell N9.25/
Dimensions
(H × W × D)
Net mm 235 × 1,080 × 705
Gross 330 × 1,165 × 825
Weight Net kg 24
Gross 33
Connection pipe Size Liquid mm (in) Ø6.35 (Ø1/4) Gas Ø12.70 (Ø1/2)
Method Flare
Drain hose Material PVC
Tip diameter mm Ø25 (I.D.), Ø32 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller (Option) Wired remote controller, Wireless remote controller, Mobile app*3 (FGLair™)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
• This data is based on EN 14511 standard.
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for ErP Lot10
Model name ABYG18KRTA ABYG22KRTA
Energy efficiency class Cooling A++ A++
Heating (Average) A+A+
Pdesign Cooling kW 5.2 (35°C) 6.0 (35°C)
Heating (Average) 4.4 (-10°C) 4.8 (-10°C)
SEER Cooling kWh/kWh 6.2 6.1
SCOP Heating (Average) 4.1 4.0
Annual energy consumption QCE kWh/a 293 344
QHE (Average) 1,501 1,677
Sound power level Cooling HIGH dB (A) 53 57
Heating 53 57
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Ceiling
Inverter heat pump
Model name ABYG24KRTA ABYG30KRTA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 6.8 8.5
Btu/h 23,200 29,000
Min.—Max. kW 0.9—8.0 2.8—10.0
Btu/h 3,100—27,300 9,600—34,100
Heating
Rated kW 7.5 10.0
Btu/h 25,600 34,100
Min.—Max. kW 0.9—9.1 2.7—11.2
Btu/h 3,100—31,000 9,200—38,200
Input power
Cooling Rated
kW
2.14 2.65
Max. 2.92 4.14
Heating Rated 1.97 2.77
Max. 2.59 4.38
Current Cooling Rated A 9.5 11.7
Heating 8.7 12.2
EER Cooling kW/kW 3.18 3.21
COP Heating 3.81 3.61
Power factor Cooling %98.3 98.5
Heating 98.4 98.8
Moisture removal L/h (pints/h) 2.2 (3.9) 3.0 (5.3)
Maximum operating current *1Cooling A13.6 22.6
Heating 13.6 22.6
Fan
Airflow rate
Cooling
HIGH
m3/h
1,230 1,400
MED 990 1,120
LOW 860 980
QUIET 700 800
Heating
HIGH 1,230 1,400
MED 990 1,120
LOW 860 980
QUIET 700 800
Type × Q'ty Sirocco × 3
Motor output W 80
Sound pressure level *2
Cooling
HIGH
dB (A)
41 45
MED 36 40
LOW 32 35
QUIET 29 32
Heating
HIGH 41 45
MED 36 40
LOW 32 35
QUIET 29 32
Heat exchanger type
Dimensions (H × W × D) mm 294 × 1,025 × 39.9
Fin pitch mm 1.30
Rows × Stages 3 × 14
Pipe type Copper
Fin type Aluminum
Enclosure
Material Steel sheet
Color White
Approximate color of Munsell N9.25/
Dimensions
(H × W × D)
Net mm 235 × 1,390 × 705
Gross 330 × 1,475 × 825
Weight Net kg 31
Gross 41
Connection pipe Size Liquid mm (in) Ø6.35 (Ø1/4) Ø9.52 (Ø3/8) Gas Ø12.70 (Ø1/2) Ø15.88 (Ø5/8)
Method Flare
Drain hose Material PVC
Tip diameter mm Ø25 (I.D.), Ø32 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller (Option) Wired remote controller, Wireless remote controller, Mobile app*3 (FGLair™)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
• This data is based on EN 14511 standard.
1-1. Indoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for ErP Lot10
Model name ABYG24KRTA ABYG30KRTA
Energy efficiency class Cooling A++ A++
Heating (Average) A+A+
Pdesign Cooling kW 6.8 (35°C) 8.5 (35°C)
Heating (Average) 6.0 (-10°C) 8.0 (-10°C)
SEER Cooling kWh/kWh 6.2 6.1
SCOP Heating (Average) 4.1 4.0
Annual energy consumption QCE kWh/a 384 486
QHE (Average) 2,042 2,796
Sound power level Cooling HIGH dB (A) 56 60
Heating 56 60
1-1. Indoor unit - (01-4) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Ceiling
Inverter heat pump
Model name ABYG36KRTA ABYG45KRTA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 9.5 12.1
Btu/h 32,400 41,300
Min.—Max. kW 2.8—11.2 4.0—13.5
Btu/h 9,600—38,200 13,600—46,000
Heating
Rated kW 10.8 13.5
Btu/h 36,900 46,000
Min.—Max. kW 2.7—12.7 4.2—16.2
Btu/h 9,200—43,300 14,300—55,300
Input power
Cooling Rated
kW
2.96 4.22
Max. 4.52 4.79
Heating Rated 2.88 3.84
Max. 4.31 4.81
Current Cooling Rated A 13.1 18.6
Heating 12.7 16.9
EER Cooling kW/kW 3.21 2.87
COP Heating 3.75 3.52
Power factor Cooling %98.9 99.0
Heating 98.8 98.9
Moisture removal L/h (pints/h) 2.6 (4.6) 4.5 (7.9)
Maximum operating current *1Cooling A22.6 28.5
Heating 22.6 28.5
Fan
Airflow rate
Cooling
HIGH
m3/h
1,850 1,900
MED 1,470 1,510
LOW 1,300 1,380
QUIET 1,050 1,130
Heating
HIGH 1,800 1,850
MED 1,470 1,510
LOW 1,300 1,380
QUIET 1,050 1,130
Type × Q'ty Sirocco × 4
Motor output W 110
Sound pressure level *2
Cooling
HIGH
dB (A)
44 45
MED 40 41
LOW 37 39
QUIET 32 34
Heating
HIGH 44 45
MED 40 41
LOW 37 39
QUIET 32 34
Heat exchanger type
Dimensions (H × W × D) mm 294 × 1,335 × 39.9
Fin pitch mm 1.30
Rows × Stages 3 × 14
Pipe type Copper
Fin type Aluminum
Enclosure
Material Steel sheet
Color White
Approximate color of Munsell N9.25/
Dimensions
(H × W × D)
Net mm 235 × 1,700 × 705
Gross 330 × 1,785 × 825
Weight Net kg 38
Gross 48
Connection pipe Size Liquid mm (in) Ø9.52 (Ø3/8) Gas Ø15.88 (Ø5/8)
Method Flare
Drain hose Material PVC
Tip diameter mm Ø25 (I.D.), Ø32 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller (Option) Wired remote controller, Wireless remote controller, Mobile app*3 (FGLair™)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN adapter is also required. For details, refer to the setting manual.
• This data is based on EN 14511 standard.
1-1. Indoor unit - (01-5) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for ErP Lot10
Model name ABYG36KRTA
Energy efficiency class Cooling A++
Heating (Average) A+
Pdesign Cooling kW 9.5 (35°C)
Heating (Average) 8.7 (-10°C)
SEER Cooling kWh/kWh 6.37
SCOP Heating (Average) 4.21
Annual energy consump-
tion
QCE kWh/a 524
QHE (Average) 2,904
Sound power level Cooling HIGH dB (A) 59
Heating 59
1-1. Indoor unit - (01-6) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOYG18KBTB AOYG22KBTB
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 7.1 8.2
Fan
Airflow rate Cooling m3/h 2,160 2,240
Heating 1,830 1,960
Type × Q'ty Propeller × 1
Motor output W 49
Sound pressure level *1 Cooling dB (A) 50 51
Heating 50 51
Sound power level Cooling dB (A) 62 63
Heating 62 63
Heat exchanger type
Dimensions
(H × W × D) mm
Main1: 588 × 881 × 18.19
Main2: 588 × 851 × 18.19
Fin pitch 1.3
Rows × Stages 1 × 28
Pipe type Copper
Fin Type (Material) Aluminum
Surface treatment PC fin
Compressor Type DC Twin rotary
Motor output W 900 1,060
Refrigerant Type (Global warming potential) R32 (675)
Factory charge g 1,020 1,250
Refrigerant oil Type FW68S RmM68AF
Amount cm3350 400
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 632 × 799 × 290
Gross 692 × 940 × 375
Weight Net kg 36 38
Gross 40 42
Connection pipe
Size Liquid mm (in) Ø6.35 (Ø1/4)
Gas Ø12.70 (Ø1/2)
Method Flare
Pre-charge length
m
20
Max. length 30
Max. height difference 20 25
Operation range Cooling °C -15 to 46
Heating -15 to 24
Drain hose Material PP
Tip diameter mm Ø13.0 (I. D.), Ø16.0 to Ø16.8 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• This data is based on EN 14511 standard.
1-2. Outdoor unit - (01-7) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Inverter heat pump
Model name AOYG24KBTB AOYG30KBTB
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 8.4 11.1
Fan
Airflow rate Cooling m3/h 2,700 3,750
Heating 2,700 3,750
Type × Q'ty Propeller × 1
Motor output W 49 100
Sound pressure level *1 Cooling dB (A) 53 53
Heating 54 55
Sound power level Cooling dB (A) 65 68
Heating 66 69
Heat exchanger type
Dimensions
(H × W × D) mm
Main1: 672 × 881 × 18.19
Main2: 672 × 851 × 18.19
Main1: 756 × 905 × 18.19
Main2: 756 × 905 × 18.19
Fin pitch 1.30 1.45
Rows × Stages 1 × 32 1 × 36
Pipe type Copper
Fin Type (Material) Aluminum
Surface treatment PC fin Blue fin
Compressor Type DC Twin rotary
Motor output W 1,060 1,500
Refrigerant Type (Global warming potential) R32 (675)
Factory charge g 1,250 1,900
Refrigerant oil Type RmM68AF FW68D
Amount cm3400 600
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 716 × 820 × 315 788 × 940 × 320
Gross 776 × 961 × 450 966 × 1,027 × 445
Weight Net kg 42 52
Gross 46 60
Connection pipe
Size Liquid mm (in) Ø6.35 (Ø1/4) Ø9.52 (Ø3/8)
Gas Ø12.70 (Ø1/2) Ø15.88 (Ø5/8)
Method Flare
Pre-charge length
m
20 30
Max. length 30 50
Max. height difference 25 30
Operation range Cooling °C -15 to 46
Heating -15 to 24
Drain hose Material PP LDPE
Tip diameter mm Ø13.0 (I. D.), Ø16.0 to Ø16.7 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• This data is based on EN 14511 standard.
1-2. Outdoor unit - (01-8) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Inverter heat pump
Model name AOYG36KBTB AOYG45KBTB
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 13.0 18.6
Fan
Airflow rate Cooling m3/h 3,750 4,450
Heating 3,750 4,450
Type × Q'ty Propeller × 1
Motor output W 100 120
Sound pressure level *1 Cooling dB (A) 55 57
Heating 55 57
Sound power level Cooling dB (A) 70 71
Heating 70 71
Heat exchanger type
Dimensions
(H × W × D) mm
Main1: 756 × 905 × 18.19
Main2: 756 × 905 × 18.19
Main1: 966 × 905 × 18.19
Main2: 966 × 905 × 18.19
Sub: 966 × 543 × 18.19
Fin pitch 1.45
Rows × Stages 1 × 36 1 × 46
Pipe type Copper
Fin Type (Material) Aluminum
Surface treatment Blue fin
Compressor Type × Q'ty DC Twin rotary × 1
Motor output W 1,500 2,180
Refrigerant Type (Global warming potential) R32 (675)
Factory charge g 1,900 2,700
Refrigerant oil Type FW68D RmM68AF
Amount cm3600 800
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 788 × 940 × 320 998 × 940 × 320
Gross 966 × 1,027 × 445 1,176 × 1,027 × 445
Weight Net kg 52 67
Gross 60 75
Connection pipe
Size Liquid mm (in) Ø9.52 (Ø3/8)
Gas Ø15.88 (Ø5/8)
Method Flare
Pre-charge length
m
30
Max. length 50
Max. height difference 30
Operation range Cooling °C -15 to 46
Heating -15 to 24
Drain hose Material LDPE
Tip diameter mm Ø13.0 (I. D.), Ø16.0 to Ø16.7 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• This data is based on EN 14511 standard.
1-2. Outdoor unit - (01-9) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit

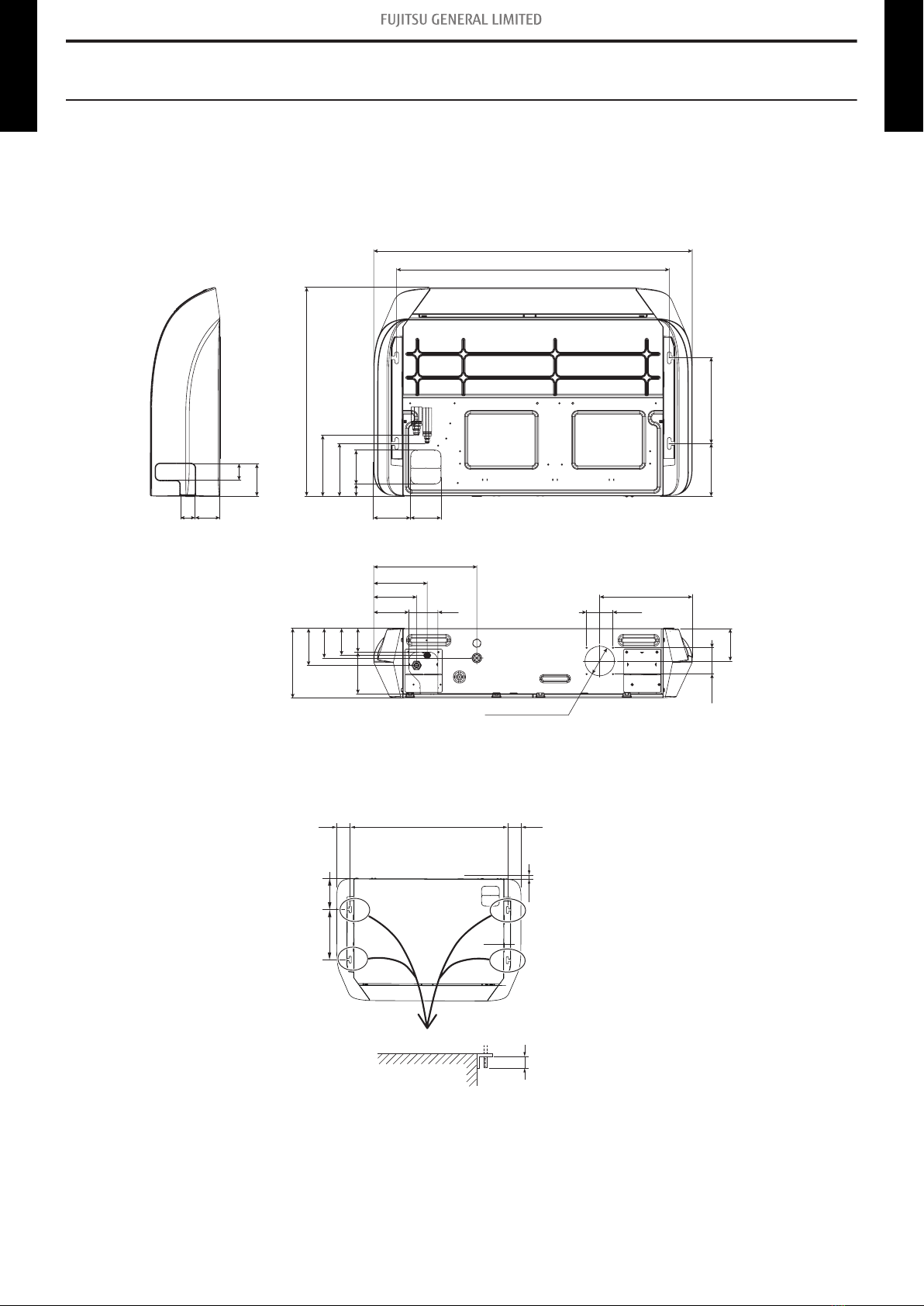

¢Models: ABYG18KRTA and ABYG22KRTA
Unit: mm
Side view Top view
Rear view
Suspension bolt pitch
923
Indoor unit (Top view)
Indoor unit
Dimensions
(Space required for installation)
The length of the bolt
here is 30 mm.
75
10
175290
75
49 84
55
110
923
1,080
145
181
349
119 98
125 103
235
100
125
91
80140
705
206
179
115
41
290178
313
89
ø100-mm hole
89
110
2-1. Indoor unit - (01-10) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

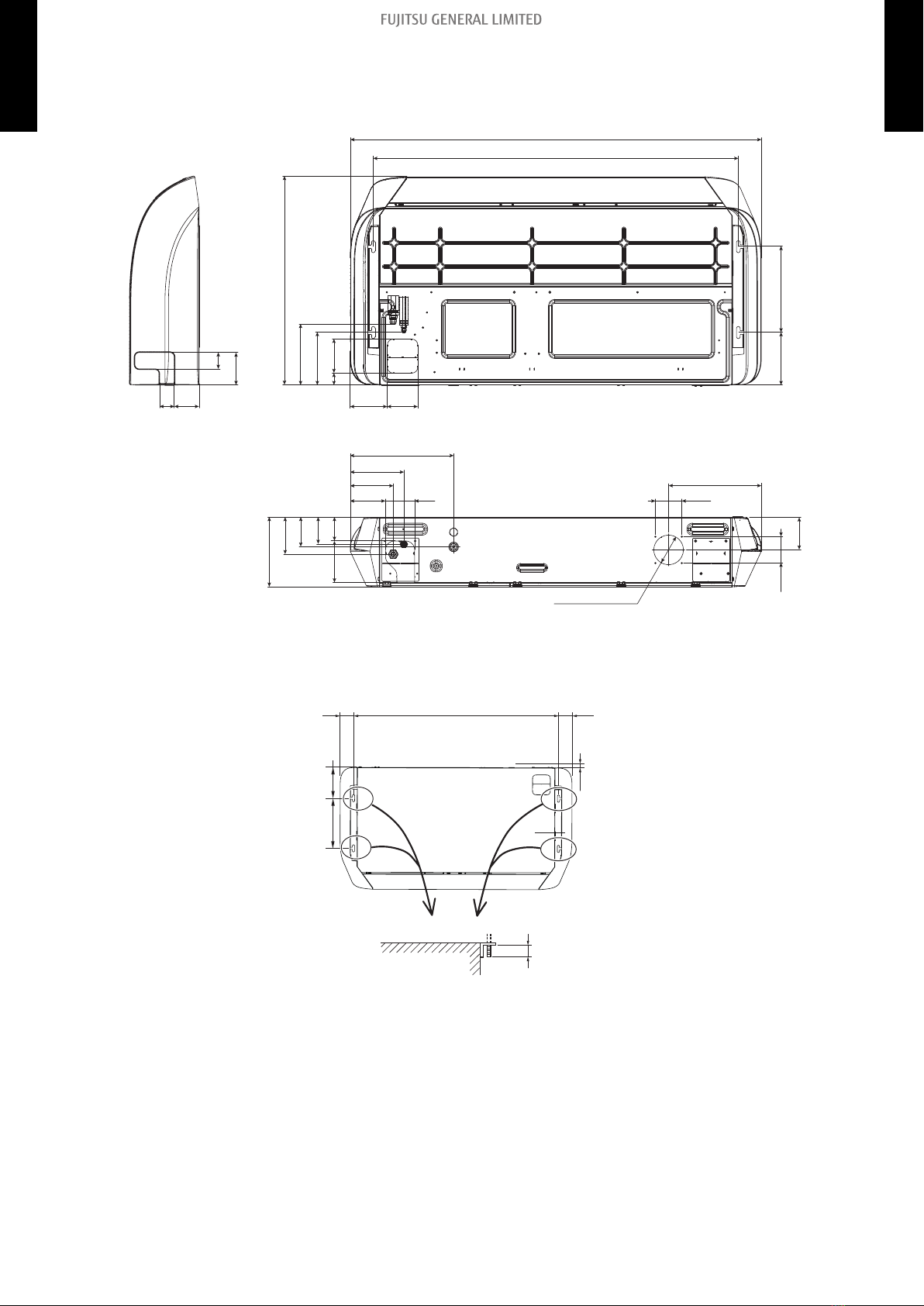

¢Models: ABYG24KRTA and ABYG30KRTA
Unit: mm
Top viewSide view
Rear view
Suspension bolt pitch
1,233
Indoor unit (Top view)
Indoor unit
Dimensions
(Space required for installation)
The length of the bolt
here is 30 mm.
75
10
175290
75
49 84
55
110
1,390
1,233
145
181
349
119 98
125 103
235
100
125
91
80140
705
206
179
115
41
290178
313
89
ø100-mm hole
89
110
2-1. Indoor unit - (01-11) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

¢Models: ABYG36KRTA and ABYG45KRTA
Unit: mm
Top viewSide view
Rear view
Suspension bolt pitch
1,543
Indoor unit (Top view)
Indoor unit
Dimensions
(Space required for installation)
The length of the bolt
here is 30 mm.
75
10
175290
75
49 84
55
110
1,543
1,700
705
206
179
115
41
125 103
349
119
145
181
98
313
89
235
100
125
91
80140
290178
ø100-mm hole
89
110
2-1. Indoor unit - (01-12) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

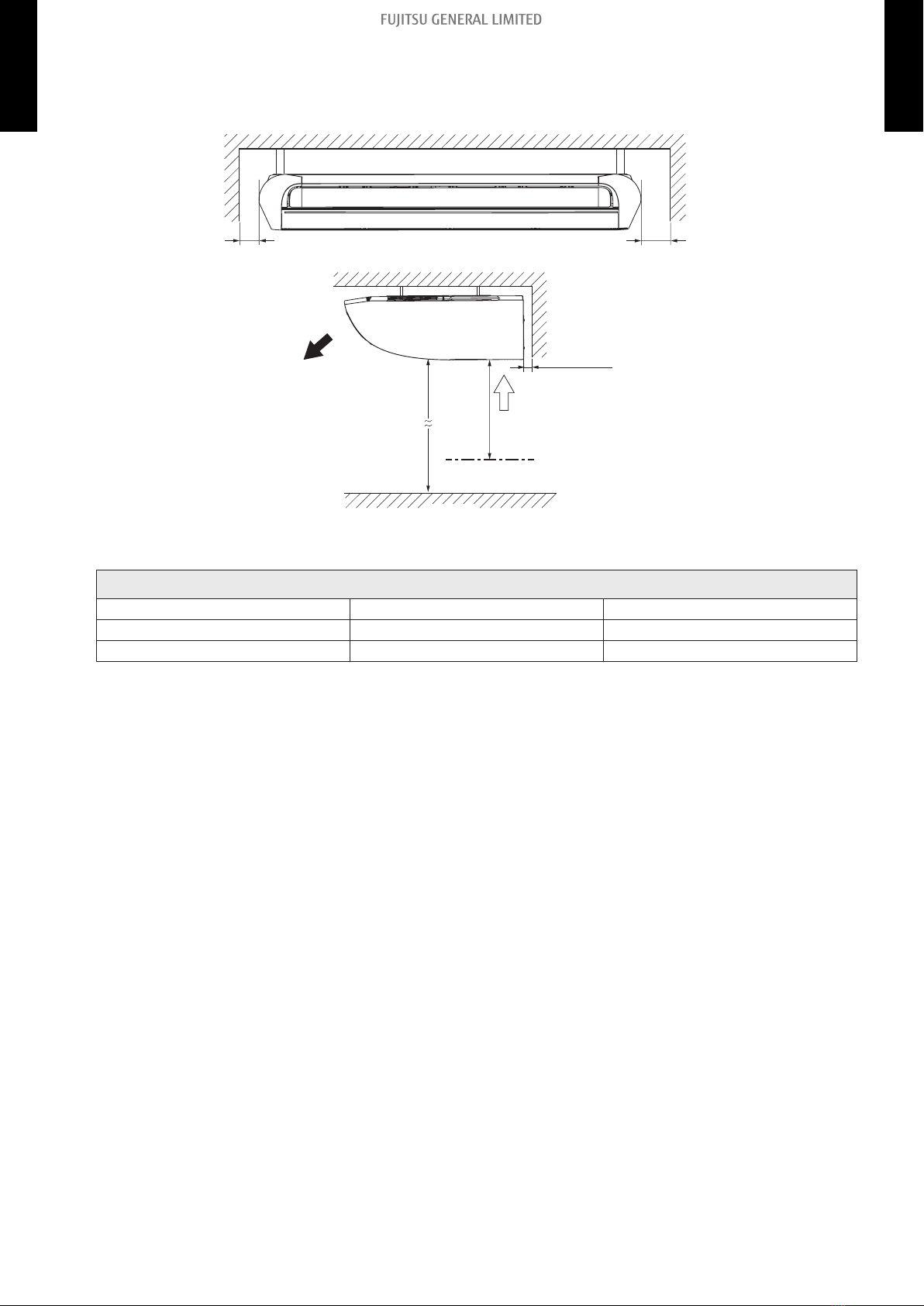

¢Installation space requirements
Unit: mm
Ceiling
Ceiling
30 or more
2,500 or more
1,000 or more
200 or more
0 or more
Obstruction
Floor
Indoor unit
Required ceiling height varies according to the ceiling mode setting of function setting No. 20.
Ceiling height (m)
Ceiling mode Standard High ceiling
18, 22, 24, and 30 models 2.7 3.5
36 and 45 models 3.5 4.3
2-1. Indoor unit - (01-13) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOYG18KBTB and AOYG22KBTB
Unit: mm
Side view
Side view Front view
Bottom view Side view (Valve part)
Top view
580
79919 68 16 290
33 30
109
353
632
20
330
Pitch of bolts for installation
Pitch of bolts for installation
4-
M1 0 hole
Airflow
Drain port Ø42
37
120
184
399 180
2-2. Outdoor unit - (01-14) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION
