Fujitsu ASYG07KMCF User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
INDOOR
ASYG07KMCF
ASYG09KMCF
ASYG12KMCF
ASYG14KMCF
OUTDOOR
AOYG07KMCC
AOYG09KMCC
AOYG12KMCC
AOYG14KMCC
SR_AS092EF_01
2023.01.31

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
“AIRSTAGE Mobile” is a trademark of FUJITSU GENERAL LIMITED.
Android and Google Play are trademarks of Google LLC.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under
license.
Copyright © 2023 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2023.01.31
SR_CH01_AS092EF_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type Wall mounted
Inverter, Heat pump
Model name ASYG07KMCF ASYG09KMCF ASYG12KMCF ASYG14KMCF
Power supply 230 V~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.0 2.5 3.4 4.2
Btu/h 6,800 8,500 11,600 14,300
Min.—Max. kW 0.9—3.0 0.9—3.2 0.9—3.9 0.9—4.4
Btu/h 3,100—10,200 3,100—10,900 3,100—13,300 3,100—15,000
Heating
Rated kW 2.5 2.8 4.0 5.4
Btu/h 8,500 9,500 13,600 18,400
Min.—Max. kW 0.9—3.4 0.9—4.0 0.9—5.3 0.9—6.0
Btu/h 3,100—11,600 3,100—13,600 3,100—18,000 3,100—20,500
Input power
Cooling Rated
kW
0.450 0.630 0.935 1.220
Min.—Max. 0.25—1.17 0.25—1.21 0.25—1.27 0.25—1.40
Heating Rated 0.555 0.620 0.960 1.410
Min.—Max. 0.25—1.21 0.25—1.26 0.25—1.52 0.25—1.73
Fan
HIGH
W
22.1 26.5 33.6
MED 15.1 16.0 20.0
LOW 10.0 6.4 11.8
QUIET 6.4 4.8 7.1
Current Cooling Rated A 2.6 3.4 4.8 5.8
Heating 3.0 3.4 5.1 6.8
Energy efficiency class Cooling A++
Heating (Average) A+
Pdesign Cooling kW 2.0 2.5 3.4 4.2
Heating (Average) 2.3 2.4 2.5 4.0
SEER Cooling kWh/kWh 7.4 7.3 6.9
SCOP Heating (Average) 4.1 4.4 4.1
Annual energy consumption QCE kWh/a 95 118 163 213
QHE (Average) 785 819 795 1,366
EER Cooling kW/kW 4.43 3.97 3.65 3.44
COP Heating 4.52 4.17 3.83
Sensible capacity Cooling kW 1.2 1.6 2.2 3.2
Power factor Cooling %75 81 88
Heating 80 79 87
Moisture removal L/h (pints/h) 1.0 (1.8) 1.3 (2.3) 1.8 (3.2) 2.1 (3.7)
Maximum operating current*1Cooling A6.5
Heating 9.0
Fan
Airflow rate
Cooling
HIGH
m3/h
650 700 770
MED 540 560 600
LOW 430 450
QUIET 270 280
Heating
HIGH 720 750 780 820
MED 580 610 640 660
LOW 460 470 520
QUIET 330 340
Type × Qty Crossflow fan × 1
Motor output W 27
Sound pressure level*2
Cooling
HIGH
dB (A)
38 40 43
MED 33 34 35 36
LOW 29 30
QUIET 20
Heating
HIGH 41 42 44
MED 35 36 38 39
LOW 31 33
QUIET 22 24
Sound power level Cooling HIGH dB (A) 54 55 57
Heating 56 57 58 59
Heat exchanger
Dimensions (H × W × D)
mm
Main 1: 210 × 670 × 26.6
Main 2: 112 × 670 × 20.0
Main 1: 210 × 670 × 26.6
Main 2: 112 × 670 × 20.0
Sub 1: 84 × 670 × 13.3
Fin pitch Main 1: 1.2
Main 2: 1.1
Main 1: 1.2
Main 2: 1.1
Sub 1: 1.4
Rows × Stages Main 1: 2 × 10
Main 2: 2 × 7
Main 1: 2 × 10
Main 2: 2 × 7
Sub 1: 1 × 4
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N9.25/
Dimensions
(H × W × D)
Net mm 270 × 834 × 222
Gross 277 × 914 × 332
Weight Net kg 10.0
Gross 12.5 13.0
Connection pipe Size Liquid mm (in) Ø6.35 (Ø1/4)
Gas Ø9.52 (Ø3/8)
Method Flare
Drain hose Material PP+HDPE
Tip diameter mm Ø13.8 (I.D.), Ø15 to Ø16.8 (O.D.)
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Type Wall mounted
Inverter, Heat pump
Model name ASYG07KMCF ASYG09KMCF ASYG12KMCF ASYG14KMCF
Operation range Cooling °C 18 to 32 %RH 80 or less
Heating °C 16 to 30
Remote controller Wireless (Option: Wired, Mobile app*3 [AIRSTAGE Mobile])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
– Heating: Indoor temperature of 20°CDB/15°CWB, and outdoor temperature of 7°CDB/6°CWB.
– Pipe length: 5.0 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum operating current is the total current of the indoor unit and the outdoor unit.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®.
• This data is based on EN 14511 standard.
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter, Heat pump
Model name AOYG07KMCC AOYG09KMCC AOYG12KMCC AOYG14KMCC
Power supply 230 V~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 3.0 3.4 5.1 6.8
Fan
Airflow rate Cooling m3/h 1,650 1,700 1,680
Heating 1,450 1,470 1,580
Type × Qty Propeller fan × 1
Motor output W 23
Sound pressure level * Cooling dB (A) 46 50
Heating 46 50
Sound power level Cooling dB (A) 61 65
Heating 61 62 65 66
Heat exchanger type
Dimensions
(H × W × D) mm 504 × 650 × 18.2 504 × 630 × 36.4 504 × 881 × 36.4
Fin pitch 1.3
Rows × Stages 1 × 24 2 × 24
Pipe type Copper
Fin type Type (Material) Corrugate (Aluminum)
Surface treatment Corrosion resistance
Compressor Type DC rotary
Motor output W 550 900
Refrigerant Type (Global warming potential) R32 (675)
Charge g 600 700 850
Refrigerant oil Type RB74AF RB68A
Amount cm3240 340
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 541 × 663 × 290 542 × 799 × 290
Gross 602 × 804 × 375 602 × 940 × 375
Weight Net kg 22 24 31
Gross 25 27 35
Connection pipe
Size Liquid mm (in) Ø6.35 (Ø1/4)
Gas Ø9.52 (Ø3/8)
Method Flare
Pre-charge length
m
15
Max. length 20
Max. height difference 15
Operation range Cooling °C -10 to 46
Heating -15 to 24
Drain hose Material Polypropylene
Tip diameter mm Ø13.0 (I.D.), Ø16.0 to Ø16.8 (O.D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27°CDB/19°CWB, and outdoor temperature of 35°CDB/24°CWB.
– Heating: Indoor temperature of 20°CDB/15°CWB, and outdoor temperature of 7°CDB/6°CWB.
– Pipe length: 5 m, Height difference: 0 m.
• Protective function might work when using it outside the operation range.
• *: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• This data is based on EN 14511 standard.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions

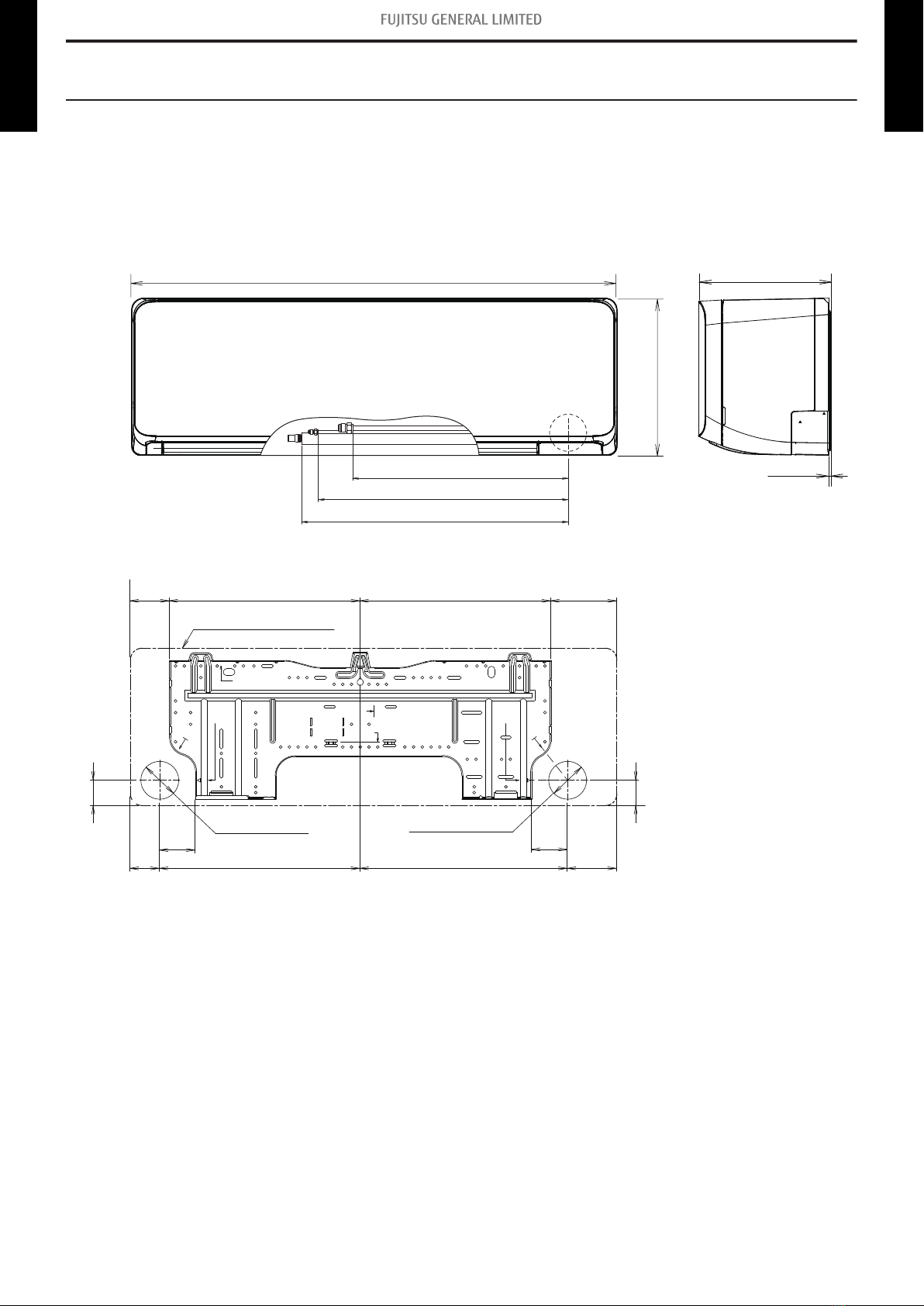

2-1. Indoor unit
¢Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and
ASYG14KMCF
Unit: mm
834
270
222
3.0
344 356
327 11332767
62
50
62
84
43
43
Outline of indoor unit
for pipe inlet Ø65 for pipe inlet Ø65
359
418
492
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
50 or more
71 or more
40 or more 70 or more
107 or more
1,500 or more
1,800 or more
183 or more
Wall hook bracket
Outline of the indoor unit
A
A: Install so that the flare connection part is outdoors.
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOYG07KMCC, AOYG09KMCC, and AOYG12KMCC
Unit: mm
Airflow
106450
19 663 68 16
33 30
290
353
330
Pitch of bolts for installation
4-
M1 0 hole
Bottom view Side view (Valve part)
Top view
Side view
Side view Front view
Pitch of bolts for installation
353
541
20
184
120
37
170
331
Drain port Ø42
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

¢Model: AOYG14KMCC
Unit: mm
580 109
330 353
Pitch of bolts for installation
Pitch of bolts for installation
Top view
4- M1 0 hole
Side viewSide view Front view
799 68 29016
33 30
19
542
20
Airflow
Bottom view Side view (Valve part)
37
399
Drain port Ø42
184
120
180
2-2. Outdoor unit - (01-7) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit - (01-8) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2023.01.31
SR_CH02_AS092EF_01

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1

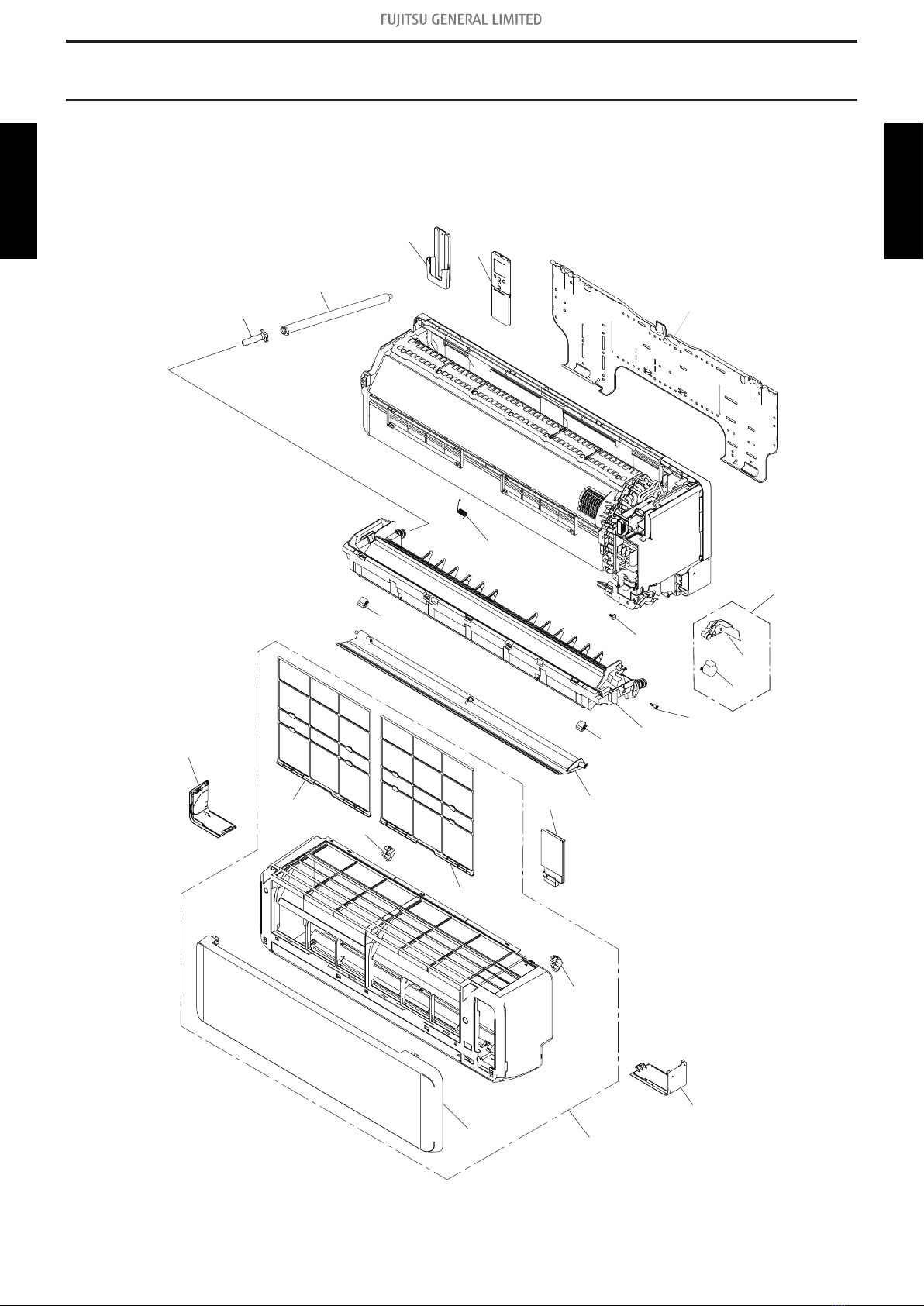

2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and ASYG14KMCF.............02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOYG07KMCC, AOYG09KMCC, and AOYG12KMCC ....................................02-6
3-2. Model: AOYG14KMCC.................................................................................................02-10
4. Accessories ...............................................................................................02-14
4-1. Indoor unit ....................................................................................................................02-14
4-2. Outdoor unit..................................................................................................................02-14
5. Optional parts ...........................................................................................02-15
5-1. Indoor unit ....................................................................................................................02-15
6. Refrigerant system diagrams...................................................................02-17
6-1. Models: AOYG07KMCC, AOYG09KMCC, and AOYG12KMCC ..................................02-17
6-2. Model: AOYG14KMCC.................................................................................................02-18
7. Wiring diagrams ........................................................................................02-19
7-1. Indoor unit ....................................................................................................................02-19
7-2. Outdoor unit..................................................................................................................02-20
8. PC board diagrams ...................................................................................02-21
8-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and ASYG14KMCF...........02-21
8-2. Models: AOYG07KMCC, AOYG09KMCC, AOYG12KMCC, and AOYG14KMCC........02-22

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Prior to beginning work on systems containing flammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimized. When repairing the refrigerant system,
refer to the precautions written in the installation manual of the products before you start ser-
vicing.
– Work shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
– All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out.
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Ensure that the conditions within the area have been made safe by control of flammable ma-
terial.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Checking for presence of refrigerant
– The area shall be checked with an appropriate refrigerant leak detector prior to and during
work, to ensure the technician is aware of potentially flammable atmospheres.
– Ensure that the leak detector being used is suitable for use with flammable refrigerants, i.e.
non-sparking, adequately sealed or intrinsically safe.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and
ASYG14KMCF
¢Exterior parts
16
1
a
b
4
5
6
7
8
11
14
2
15
13
15
10
3
12
17
18
9
7
19
20
2-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and ASYG14KMCF - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9388142012 Bracket panel ♦
2 9333951003 Louver spring ♦
3 9333608006 Bush ♦
4 9387714067 Stepping motor holder assy ♦
5 9901011092 Stepping motor ♦
6 9387590258 Drain pan total assy ♦
7 9387476002 Screw cover ♦
8 9387479041 Horizontal louver assy ♦
9 9387597066 Wire cover assy ♦
10 9387478068 Under cover R ♦
11 9384977052 Front panel total assy ♦
12 9333704005 Grille clamper R ♦
13 9323546004 Intake grille assy ♦
14 9333719009 Grille clamper L ♦
15 9387473018 Air filter ♦
16 9387477061 Under cover L ♦
17 9316177017 Drain cap ♦
18 9316904002 Drain hose assy ♦
19 9332453041 Remote controller holder ♦
20 9352446511 Remote controller ♦
a— Stepping motor holder —
b— Shaft cover —
2-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and ASYG14KMCF - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

¢Base, evaporator, and control
54
a
b
c
56
d
57
60
61
58
63
62
e
f
65
64
66
65
67
g
70
69
50
51
51
52
53
53
68
59
55
2-1. Models: ASYG07KMCF, ASYG09KMCF, ASYG12KMCF, and ASYG14KMCF - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
