This user’s guide contains information on using the Fujitsu Remote
Control with systems running Microsoft® Windows® XP Media
Center Edition as the operating system. The remote control can be
used with a system running Windows XP Media Center Edition,
whether the system has an internal TV tuner or not.
You are strongly advised to read this manual to familiarize yourself
with the features of the remote control.
Determining Your System Configuration
Your remote control can be used with your computer whether you
have a TV tuner or not. If you do not have a TV tuner, you can use
the remote control to operate the Windows XP Media Center
Edition features, such as playing DVDs, listening to music, or
viewing digital photo albums.
If you have a TV tuner installed, you can use the remote to control
the channel and volume, pause live TV, and record TV programs.
Figures 1, 2, and 3 illustrate the three ways your system can be
configured:
■No TV Tuner
■TV Tuner with direct signal
■TV Tuner with signal routed through set-top box
INSTRUCTIONS
Remote Control User’s Guide
Fujitsu Computer Systems
MCE Remote B6FH-7741-02EN-00.fm Page 1 Wednesday, February 15, 2006 2:55 PM

2
Figure 1. Configuration with no TV Tuner
Figure 2. Configuration with TV Tuner and Direct Signal
Remote
Control
To dedicated
USB port
Remote
Control
IR Receiver
Remote
Control
IR Receiver
Remote Control
To designated
USB port
RF Coaxial
cable to cable
connector
or antenna
Antenna
Adapter
Cable
MCE Remote B6FH-7741-02EN-00.fm Page 2 Wednesday, February 15, 2006 2:55 PM

3

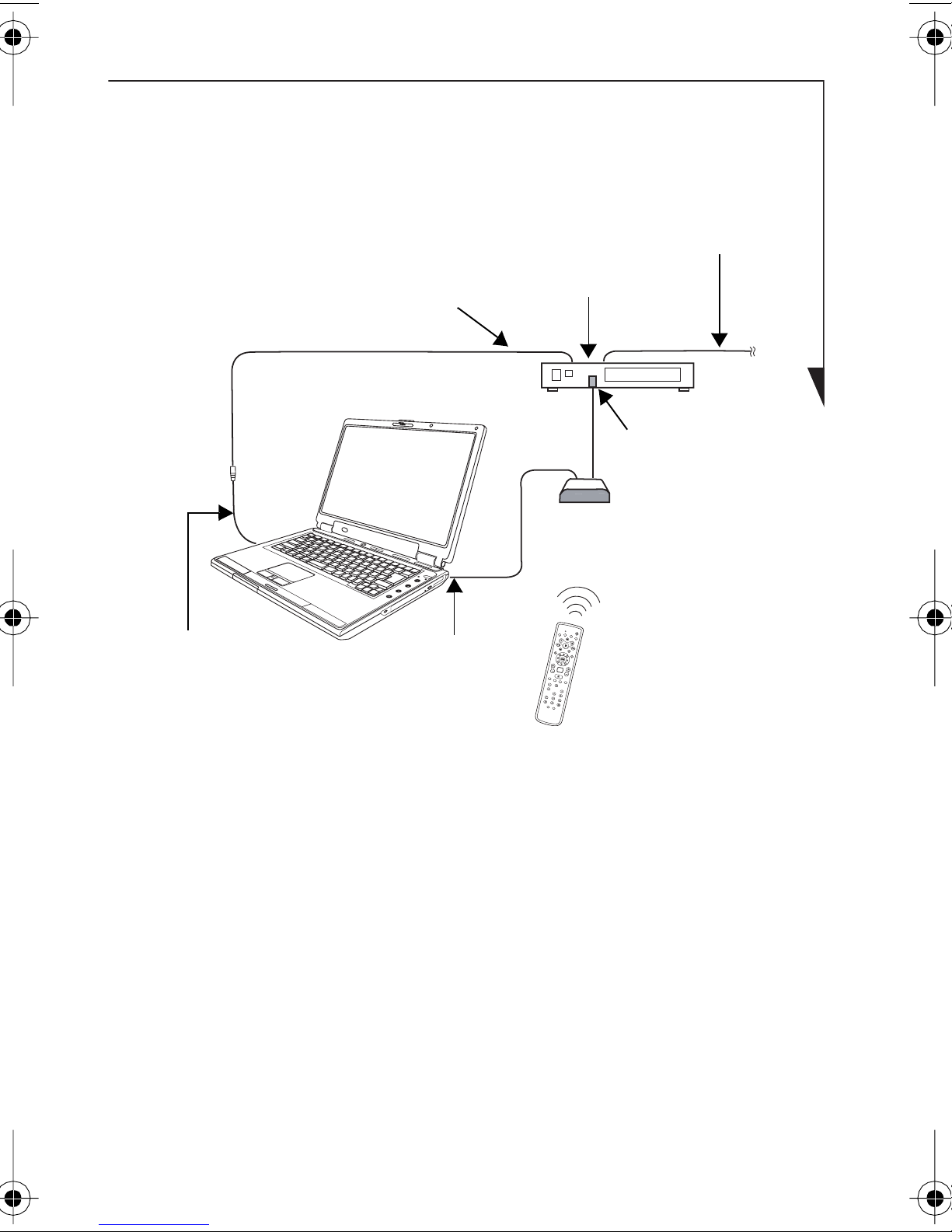

Figure 3. Configuration with TV Tuner and Routed Signal
Items included in Remote Control Package
Before using the remote control, make sure the following items are
included in the remote control package (Figure 4). Be sure to have
these items at hand before proceeding with use of Media Center
Edition:
■Remote control
■Two size AA alkaline batteries
■Optical remote control receiver
■IR Blaster cable (infrared control cable for set-top box users)
Remote
Control
To designated
USB port
Remote Control
IR Receiver
Infrared
Blaster
RF Coaxial cable to cable connector or antenna
Set-top box
RF Coaxial cable to
Antenna
Adapter
Cable
TV signal out jack
MCE Remote B6FH-7741-02EN-00.fm Page 3 Wednesday, February 15, 2006 2:55 PM

4

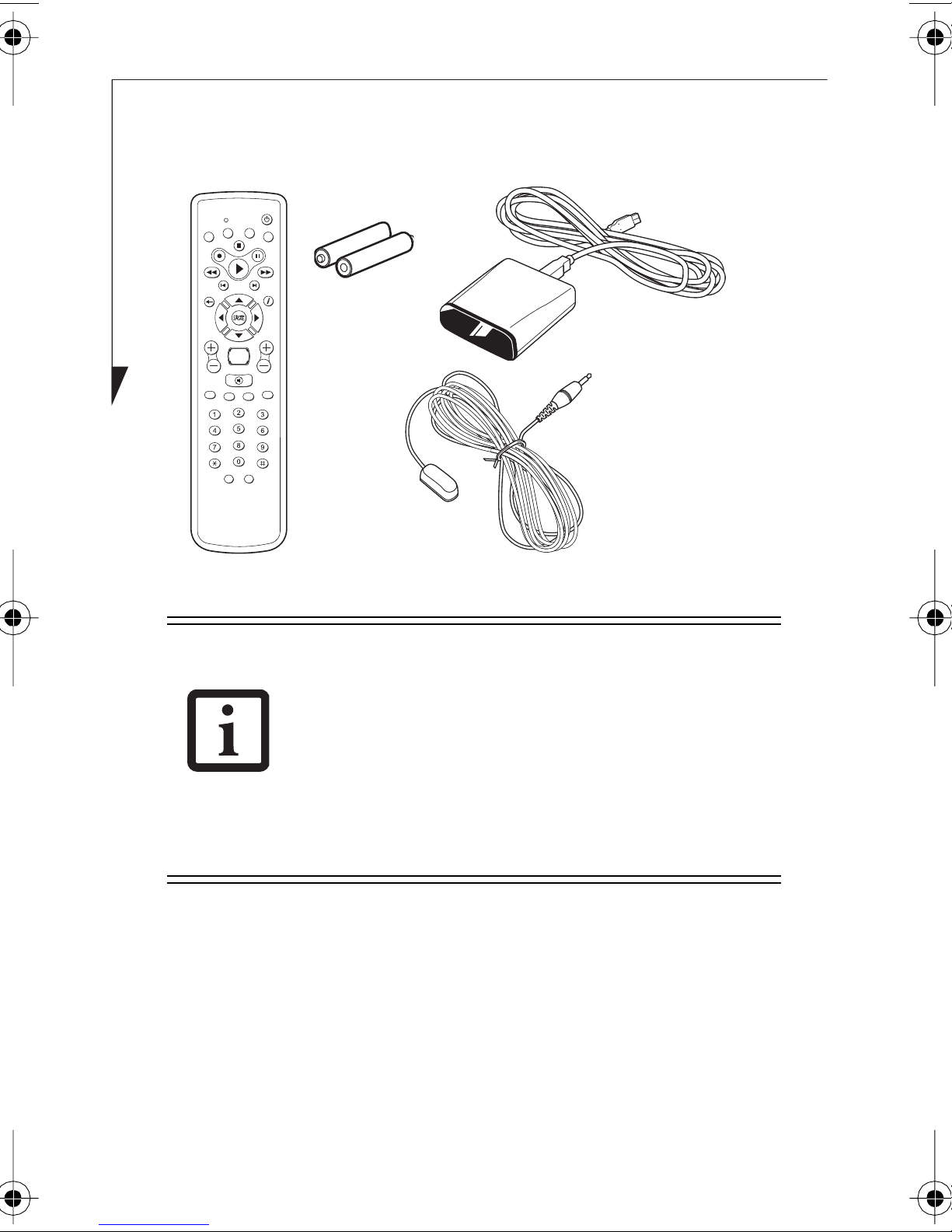

Figure 4. Remote Control and Accessories
Info
■Use only the remote control that came with
this package when operating Media Center
Edition.
■No cables or accessories other than those
shown in Figure 4 are included. Additional
accessories such as antenna cables, relay
connectors, video cable, S-video cable, or
audio cable are commercially available.
Remote
2 AA Alkaline
Batteries Optical Remote
Control IR Receiver
IR Blaster Cable
Control
MCE Remote B6FH-7741-02EN-00.fm Page 4 Wednesday, February 15, 2006 2:55 PM

5
Installing Batteries
1. Open the lid of the battery box on the bottom side of the remote
control by pushing the tab towards the lid.

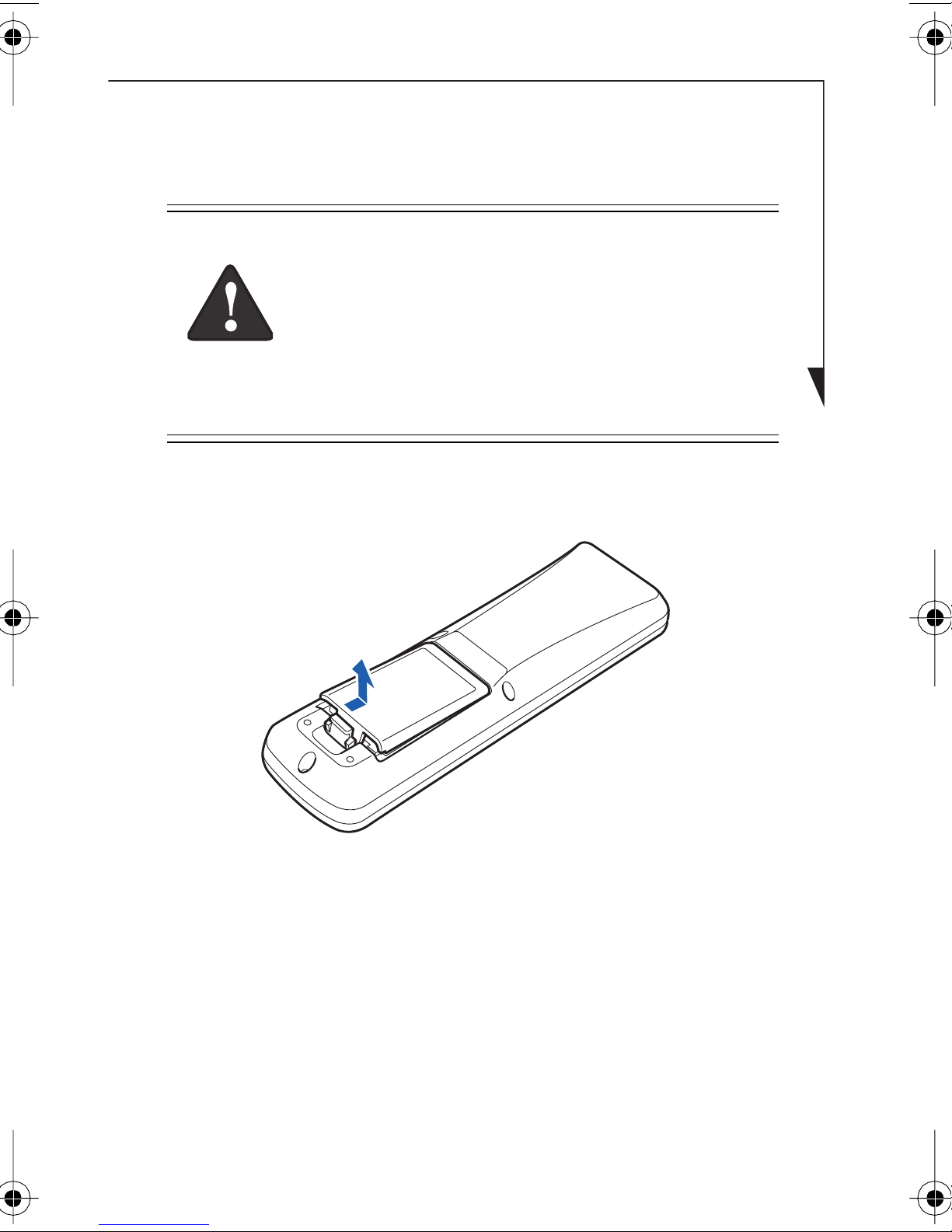

Figure 5. Opening the battery compartment
2. Insert the batteries with the polarities indicated on the bottom
of the compartment and replace the cover.
Warning
■Properly insert batteries using the correct
polarities (+, -). If they are incorrectly
inserted, damage to the remote control
could result.
■If you do not intend to use the remote
control for an extended period of time,
remove the batteries.
MCE Remote B6FH-7741-02EN-00.fm Page 5 Wednesday, February 15, 2006 2:55 PM

6
Connecting optical remote control IR receiver
Connect the USB connector on the end of the remote control to one
of the USB ports on your computer that are labeled “IR Remote”
(Figure 6). Note that the location of the USB port on your system
may not be the same as that shown in the figure. Refer to the system
user’s guide for the location of the USB ports.

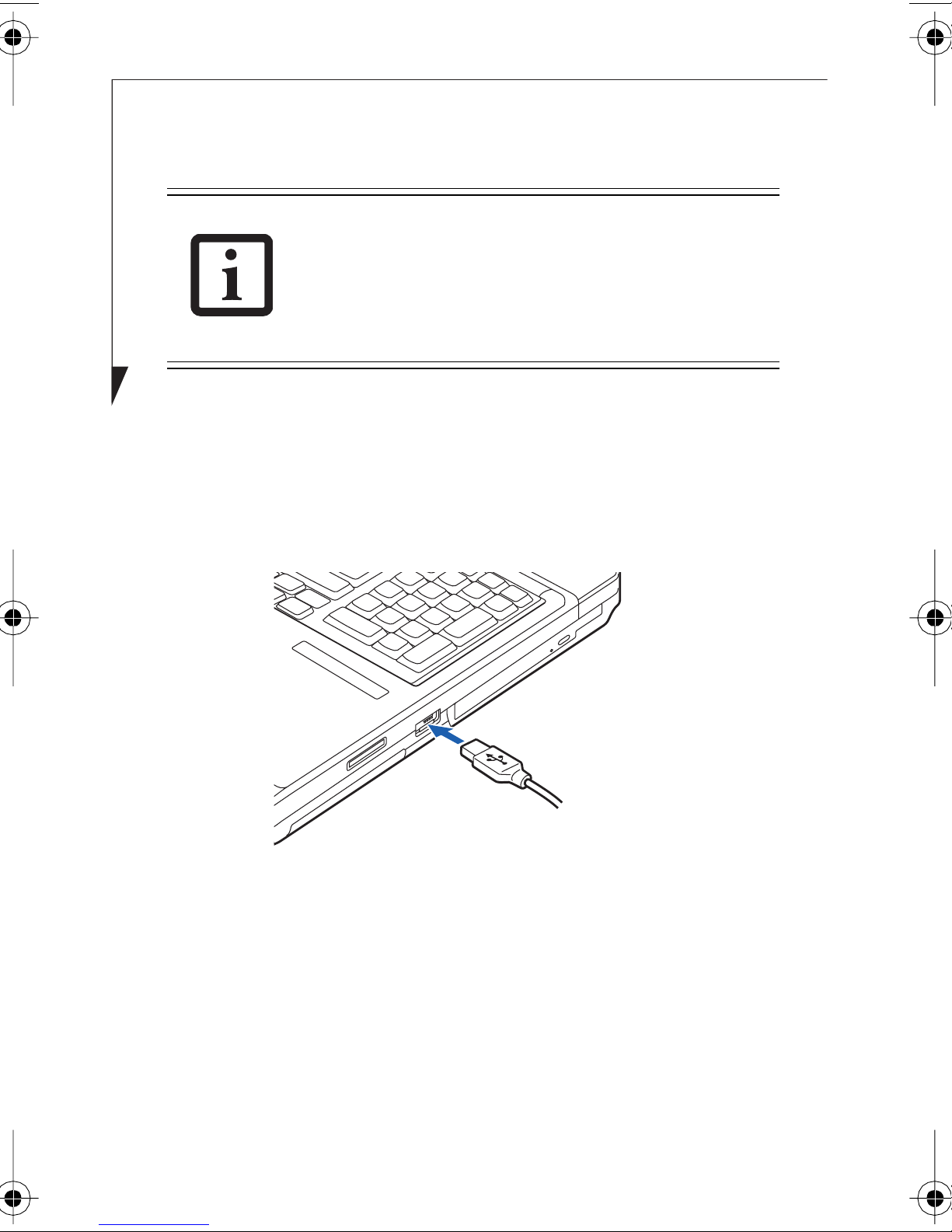

Figure 6. Connecting the optical remote control receiver
The USB ports that can be used to connect the
optical remote control IR receiver cable are
labeled “IR Remote”. Use only the labeled
ports to ensure optimal performance of the
remote control.
MCE Remote B6FH-7741-02EN-00.fm Page 6 Wednesday, February 15, 2006 2:55 PM

7
Connecting infrared control cable
The infrared control cable is for when you are using a television
connected to a set-top box, such as a cable vision box. The cable
should be installed covering the infrared receiver of the set-top box.
1. Connect the infrared control cable to either of the jacks on the
rear side of the optical remote control receiver.

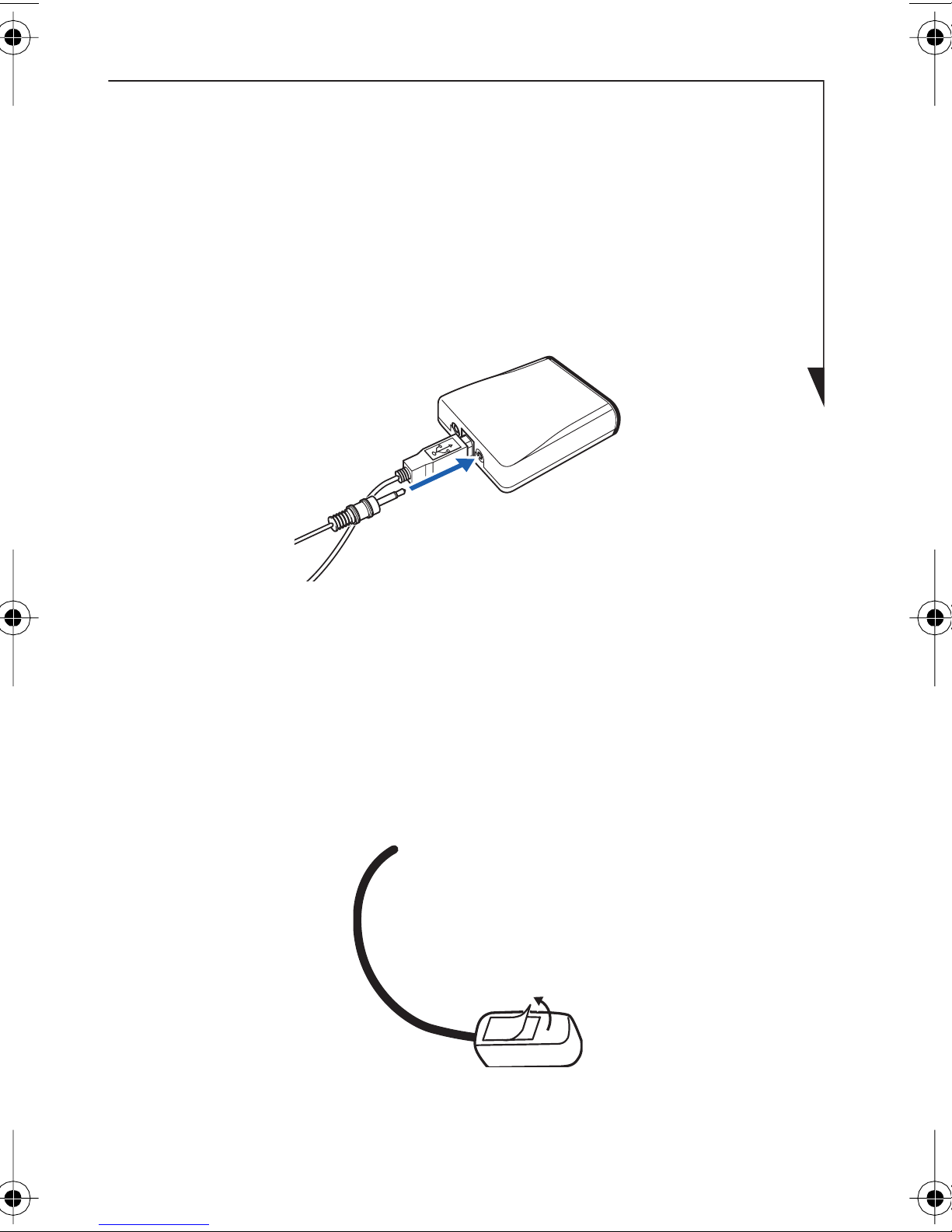

Figure 7. Connecting the infrared control cable
2. Peel the adhesive sticker from the back of the light emitter end
of the IR Blaster (infrared control) cable (Figure 8.) Position
the light emitter so that it covers the infrared receiver of the
set-top box as in Figure 9. (You can identify the receiver
because it flashes red when you press the set-top box remote
control.) Press the light emitter into place so that the adhesive
sticks it to the infrared receiver as in Figure 10.
Figure 8. Peeling sticker from emitter
MCE Remote B6FH-7741-02EN-00.fm Page 7 Wednesday, February 15, 2006 2:55 PM

8
Figure 9. Applying light emitter to set-top receiver
Figure 10. Set-top box with light emitter attached
Set-top box
Infrared receiver
Infrared control cable Light emitter
To optica l
remote control
receiver
MCE Remote B6FH-7741-02EN-00.fm Page 8 Wednesday, February 15, 2006 2:55 PM

9
Setting up the BIOS for use of remote control
In order to allow the remote control to communicate with the
remote control receiver, you must first change one of the settings in
the system BIOS. To do so, perform the following steps:
1. Turn on or restart your notebook.
2. Press the [F2] key once the Fujitsu logo appears on the screen.
This will open the main menu of the BIOS Setup Utility with
the current settings displayed.
3. Press the right and left arrow keys to move to the Advanced
menu.
4. Using the arrow keys, go to Miscellaneous Configurations and
press the [Enter] key.
5. From the Miscellaneous Configurations submenu, select Wake
On USB. Press the arrow keys or spacebar (depending upon
your notebook model) to change the state of Wake On USB to
[Enabled].
6. Press the [F10] key. Click [Yes] to save the settings and exit the
BIOS Setup Utility. You will return to Windows.
MCE Remote B6FH-7741-02EN-00.fm Page 9 Wednesday, February 15, 2006 2:55 PM

10
Using the remote control
To use the remote control to operate Media Center Edition, you
must use the remote control receiver included with the remote
control. The system infrared port cannot be used to operate the
remote control.
Note the following when using the remote control:
■The receiver should be placed in a location where it is not
obstructed. You should be able to point the remote control
directly at the receiver. Keep the receiver out of direct sunlight,
otherwise reception may prove faulty and the effective distance
may be affected.
■If a plasma display, plasma TV, or halogen heater is located close
to the device, the remote control may not work properly due to
infrared interference. Relocate the devices if they interfere with
the remote control operation.
■The infrared control cable should be fixed as close as possible to
the remote control receiver of the set-top box so as to avoid
directing the signal to the computer’s infrared port.
Using the remote control is fairly intuitive. For specific information
on using particular features, click the Start button to display the
main menu. Scroll down to Settings and press the OK button. A
submenu containing a variety of help topics appear. Click on the
desired submenu to access related topics.
To exit the Help menu, click on the Start button to return to the
main menu.
MCE Remote B6FH-7741-02EN-00.fm Page 10 Wednesday, February 15, 2006 2:55 PM

11
Effective distance/location for remote control
(Figure 11)
Horizontal (left and right from center-point): Approximately 45
degrees
Vertical (left and right from center-point): Approximately 45
degrees
Distance from remote control to receiver: 3 meters max.

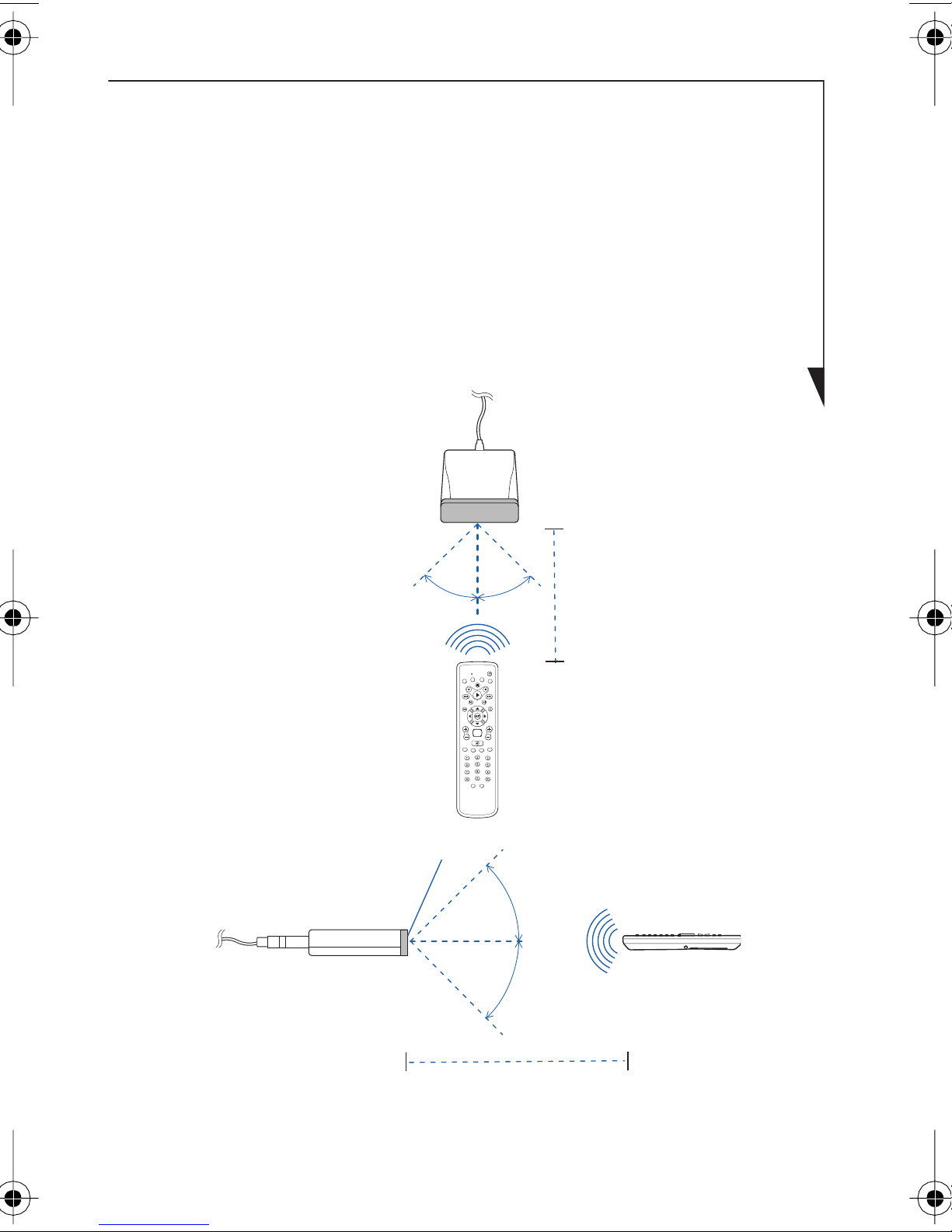

Figure 11. Effective distance/location of remote control
3 meters
3 meters
45
o
45
o
45
o
45
o
MCE Remote B6FH-7741-02EN-00.fm Page 11 Wednesday, February 15, 2006 2:55 PM

12
Remote control features
Each button on the remote control is explained in this section.
Figure 12. Remote control buttons
OK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
MCE Remote B6FH-7741-02EN-00.fm Page 12 Wednesday, February 15, 2006 2:55 PM

13
No. Label Purpose
1My
Pictures
Pressing this button displays the “My Pic-
tures” menu on the screen.
2MyMusic
Pressing this button displays the “My
Music” menu on the screen.
3MyTV
Pressing this button displays the “My TV”
menu on the screen.
4Record
Pressing this button while in television
mode brings up a menu from which you
can choose what and when to record.
5Rew
When watching a recorded program or
DVD, pressing this button will cause the
program to rewind.
6Replay
When watching a recorded program or
DVD, pressing this button will cause the
program to go back 6-7 seconds per press.
7Back
Pressing the Back button returns you to the
previously viewed MCE screen.
8Navigation
Buttons
Pressing one of these buttons allow you to
move the cursor left, right, up, or down.
9Volume
Up/Down
When the (+) button or (-) button is
pressed, the MCE volume will switch to the
next higher (+) or the next lower (-)
volume level.
10 Recorded TV Pressing this button will display a list of all
recorded programs on the screen.
11 Guide Pressing this button will display the TV
program guide on screen.
12
Numeric/
Letter
Keypad
Pressing the buttons allows you to input
numbers or letters on the screen.
MCE Remote B6FH-7741-02EN-00.fm Page 13 Wednesday, February 15, 2006 2:55 PM

14
13 Clear Pressing this button will clear the numbers
or letters input on the screen one by one.
14 Power
Button
Pressing this button while the computer is
active will normally put the computer into
standby. Pressing this button while the
computer is in standby will take the com-
puter out of standby. Note: When a USB
remote control receiver is connected to
your system, the action invoked by the but-
ton on the remote control can be changed
by going to Control Panel->Power
Options-> Advanced tab. The “When I
press the sleep button on my computer:”
drop-down list refers to the power button
on the remote control in the Media Center
Edition environment. From the drop-down
list, you can select the desired action for the
remote control power button.
15 My Videos Pressing this button displays the “My Vid-
eos” menu on the screen.
16 Stop
Pressing this button while recording a pro-
gram or while an audio CD or DVD video is
being played, record/play will be stopped.
17 Pause
If you press this button while a DVD, a
recording, or live TV is playing, play will
stop temporarily. Pressing this button while
play has been paused, play will restart.
18 Play Pressing this button causes a selected
recording to start playing.
19 Fwd
When watching a recorded program or
DVD, pressing this button will cause the
program to fast forward.
No. Label Purpose
MCE Remote B6FH-7741-02EN-00.fm Page 14 Wednesday, February 15, 2006 2:55 PM

15
20 Skip
Pressing this button will cause the program
or DVD being viewed to jump to the next
chapter.
21 More
Pressing this button will display all relevant
information on replaying DVD-VIDEO, CD
music, or recorded programs on screen.
22 OK Pressing this button will select or execute
the item where the cursor is placed.
23 Start
Pressing this button will start up Media
Center. Pressing this button while Media
Center is running will display the Media
Center Main Menu on the screen.
24 Ch/Pg
When the (+) button or (-) button is
pressed, the channel will switch to the next
higher channel (+) or the next lower
channel (-). This button will also go to the
previous or next page of a menu or on-
screen notification that is more than one
screen high.
25 Mute Pressing the Mute button will turn off
sound temporarily until you press it again.
26 DVD Menu Pressing this button will display the main
DVD menu.
27 Live TV
Pressing this button will display in full-
screen the program on the channel tuned in
the last time.
28 Enter Pressing this button will enter the letters or
numbers input on screen.
No. Label Purpose
MCE Remote B6FH-7741-02EN-00.fm Page 15 Wednesday, February 15, 2006 2:55 PM

16
1250 E. Arques Avenue (M/S 122),
Sunnyvale, California 94085
For more information, call 1-877-372-3473 or visit our Web site
at us.fujitsu.com/computers
For technical support call 1-800-8fujitsu or send e-mail to:
[e-mail]
Fujitsu and the Fujitsu logo are registered trademarks of Fujitsu, Ltd.
Microsoft and Windows are registered trademarks of the Microsoft
Corporation. All other trademarks mentioned herein are the property of
their respective owners. We cannot guarantee the accuracy of the
contents of this document. We disclaim liability for errors, omissions or
future changes.
© 2006 Fujitsu Computer Systems Corporation. All rights reserved.
MCE Remote B6FH-7741-02EN-00.fm Page 16 Wednesday, February 15, 2006 2:55 PM
