Fujitsu Plasmavision PDS4229W-B User manual

PDS4229W-B
Copy Prohibited
FUJITSU GENERAL Proprietary

CONTENTS
IMPORTANT INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SETTING SIGNALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
CONNECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
PART NAMES AND FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
TROUBLESHOOTING USING LED AND OSD . . . . . . . . . . . . . . . . . . . 12
VOLTAGE OF EACH CONNECTOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
VSAND -VYADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
GENERAL CONNECTION DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . 21
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DISASSEMBLY FLOWCHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
TRANSPORTATION AND HANDLING RESTRICTIONS . . . . . . . . . . . . 44

– 2 –
IMPORTANT INFORMATION
WARNING : TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
Please use a screen saver to prevent burning of an after-image on the screen.
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your
personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD.
In order not to defeat the safeguards incorporated into this unit, observe the following basic rules governing its installation,
use and service. Please read these "Important Safeguards" carefully before use.
— Read all the safety and operating instructions before operating the unit.
— Retain the safety and operating instructions for future reference.
— Adhere to all warnings on the unit and in the operating instructions.
— Follow all operating instructions.
— Unplug the unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
— Do not use attachments not recommended by the manufacturer as they may be hazardous.
— Do not use the unit near water. Do not use the unit immediately after moving it from a low temperature to a high
temperature environment, as this causes condensation, which may result in fire, electric shock, or other hazards.
— Do not place the unit on an unstable cart, stand, or table. The unit may fall, causing serious injury to a child or adult, and
serious damage to the unit. Mount the unit according to the manufacturer's instructions, using the mount recommended by
the manufacturer.
— When the unit is used on a cart, avoid quick stops, excessive force, and uneven
surfaces which may cause the unit and cart to overturn, damaging the unit or
causing possible injury to the operator.
When transporting by car, place the unit as shown in the figure.
— Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation and protect the unit from
overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the unit
on a bed, sofa, rug, or similar surface. The unit should not be placed in a built - in installation such as a bookcase or rack
unless proper ventilation is provided and the manufacturer's instructions are adhered to.) For proper ventilation, separate
the unit from other equipment, which may obstruct ventilation. Keep the unit at least 10cm from other equipment.
— Operate only with the type of power source indicated on the label. If you are not sure of the type of power supply to your
home, consult your dealer or local power company.
— This unit is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you cannot insert the plug
into the outlet, have an electrician install the proper outlet. Do not defeat the safety purpose of the grounded plug.
— Route power cords so that they are not likely to be walked on or pinched by items placed on or against them. Pay
particular attention to cords at doors, plugs, receptacles, and where they exit from the unit.
— For added protection during a lightning storm, or when the unit is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the cabling. This will prevent damage to the unit by lighting and power line
surges.
— Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in fire or
electric shock.
— Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or short-circuit
parts that could result in a fire or electric shock. Never spill liquid of any kind onto the unit.

— Do not attempt to service this unit yourself as opening or removing covers may expose you to dangerous voltages and
other hazards. Have all service done by qualified service personnel.
— Unplug this unit from the wall outlet and have it serviced by qualified service personnel in the following cases:
a) If the power supply cord or plug is damaged.
b) If liquid has been spilled, or objects have fallen onto the unit.
c) If the unit has been exposed to rain or water.
d) If the unit does not operate normally by following the operating instructions. Adjust only those controls that are
covered by the Operation Manual, as improper adjustment of controls may result in damage and will often require
extensive work by a qualified technician to restore the unit to normal operation.
e) If the unit has been dropped or damaged in any way.
f) A distinct change in performance indicates that service is required.
— When required, be sure the service technician uses replacement parts specified by the manufacturer or parts with the
same characteristics as the original parts. Unauthorized substitutions may result in fire, electric shock, or other hazards.
— Upon completion of any service of repairs, ask the service technician to perform safety checks to determine that the
unit is in proper operating condition.
— Place the unit more than one foot away from heat sources such as radiators, heat registers, stoves, and other devices
(including amplifiers) that produce heat.
— When connecting other devices such as VCR's and personal computers, turn off the power to this unit to protect
against electric shock.
— Do not place combustibles such as cloth, paper, matches, aerosol cans or gas lighters that prevent special hazards
when overheated behind the cooling fan.
— Use only the accessory cord designed for this unit to prevent shock.
The power supply voltage rating of this unit is AC100-240V, but the attached power cord conforms to the following
power supply voltage. Use only the Power Cord designated by our dealer to ensure Safety and EMC.
When used with other power supply voltages, the power cable must be changed.
Consult your local dealer.
Power Cord
Power supply voltage : AC 100 - 125 V AC 200 - 240 V AC-240V
(SAA TYPE)
– 3 –

– 4 –
SPECIFICATIONS
Power source 100-240V, 50/60Hz
Power consumption 370 W
Display panel UE-41 type
Screen size 92.0 (W) x 51.8 (H) [cm]
36.2 (W) x 20.4 (H) [inch]
Aspect ratio 16 : 9
Number of pixels 852 (H) x 480 (V) pixels
Pixel pitch 1.08mm x 1.08mm
Contrast ratio 580 : 1 (typ.)
Brightness 400 cd/m2(typ.)
Viewing angle Max. 160 degrees
Input terminals
Video input BNC connector
1.0VP-P /75Ω
S video input S terminal
Y signal : 1.0VP-P /75Ω
C signal : 0.3VP-P /75Ω
Component video Three BNC terminals
input Y : 1VP-P /75Ω
Pb/B-Y: 0.7VP-P /75Ω
Pr/R-Y: 0.7VP-P /75Ω
Analog RGB input mD-sub : 15pin (3 row type)
Picture signal : 0.7VP-P /75Ω
SYNC signal : TTL level
Display frequency Horizontal :15.62 to 80.0kHz
Vertical : 50.0 to 120Hz
Dot clock : 50MHz Max
XGA 68MHz Max
RS-232C D-sub 9-pin terminal
Color system NTSC/PAL/SECAM/
4.43NTSC/PAL60
Display colors
16.7 million (256 each for R.G.B.)
Language English/German/French/Italy/
Portuguese/Spanish/
(E type:Russian)
Dimensions Width : 103.5 cm (46.7 inch)
Height: 64.0 cm (25.2 inch)
Depth : 8.5 cm (5.9 inch)
Net weight 28.5kg
Environment (Operating)Temperature 00° to 40°C
Relative humidity 20 to 90%
Pressure 800 to 1,114 hPa
Accessories User’s manual
Remote controller
Dry batteries (Type AA 2pcs.)
Power cable
Ferrite core (2 types)
Options
Stand P-42TT29
Wall mounting unit P-42WB12 installation angle
Horizontal 0° to 15°
Vertical 0° to 5°
Ceiling mounting unit P-42CT11 installation angle
Available 0° to 15°
Regulation
PDS4229W-B
PDS4229E-B
• AS
Safety : IEC950 A1/A2/A3/A
EMC : AS/NZS 3548
• CE
Safety: EN60950 1992
A1 1993
A2 1993
A3 1995
A4 1997
• UL,CSA
Safety : UL1950
:CSA C22.2 No.950
EMC : FCC Part15 Class A
:ICES-003 Class A
EMC : EN55022 1994 Class A
EN61000-3-2, 1995
EN61000-3-3, 1995
EN55024, 1998
EN61000-4-2, 1995
EN61000-4-3, 1996
EN61000-4-4, 1995
EN61000-4-5, 1995
EN61000-4-6, 1996
EN61000-4-8, 1993
EN61000-4-11,1994

POWER INPUT VIDEO
INPUT
S-VIDEO
INPUT
RS-232CCOMPONENT
VIDEO INPUT
(color difference input)
RGB INPUT
To receptacle
Connection to AV equipment Connection to PC
To video
output
terminal
To S-video
output
terminal
To display
(analog RGB)
output
terminal
To RS-232C
output
terminal
To color
difference
output terminal
– 7 –
CONNECTION

q
w
ON (GRN)
STD-BY (RED)
NO-SIGNAL (ORG)
Control Panel (bottom)
POWER MODE WIDE MENU ENTER
e r t y oui
– 8 –
PART NAMES AND FUNCTIONS
Front
qPower indicator lamp
This lamp shows whether the main power is ON or
OFF, as follows :
Lit (red) : Standby
Lit (green) : Power ON
Lit (orange) : Power saving (DPMS: Power
saving function) mode ON
Flashing (red) : Malfunction (Flashes differently
depending on the type of
malfunction.)
wRemote control signal receiver
Receives signals from the remote control.
ePower button [POWER]
Turns the power ON or OFF.
rInput mode selector button [MODE]
Switches between image input modes.
tWide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
yMenu button [MENU]
Displays image and sound adjustment menus.
uAdjustment buttons [ / ]
The [ / ] buttons can also be used to scroll through
the options when a menu is displayed.
iAdjustment buttons [ / ]
The [/] buttons can also be used to scroll through
options in a menu, or to change values.
oSet button [ENTER]
Press this button to finalize the selection of a desired
option in a menu.
qPower ON button [POWER ON]
Turns the power ON.
wPower OFF button [POWER OFF]
Turns the power OFF.
eRGB input mode selector button [RGB]
Switches between RGB input modes.
rVideo input mode selector button [VIDEO]
Switches between video input modes.
tWide screen selector button [WIDE]
Switches the screen over to a desired wide screen.
yMenu button [MENU]
Use this button to display a desired menu for adjusting
the image and sound.
uVolume adjustment buttons [VOL +/-]
Unused.
iAdjustment buttons [ / / / ]
Use these buttons to scroll through options in a menu
and change values.
oEnter button [ENTER]
Press this button to finalize the selection of a desired
menu or option within a menu.
!0 Display selector buttons [SHIFT 1-4]
When you use two or more displays, you can use
these buttons to control up to four displays by
assigning a unique number to each of the displays.
Strap hole
ENTER
MENU
SHIFT
1
2
3
4
VIDEO
VOL
POWERON
RGB
POWER OFF
WIDE
u
!0
w
t
y
i
e
q
o
r
Remote control

w ert q y
Bottom

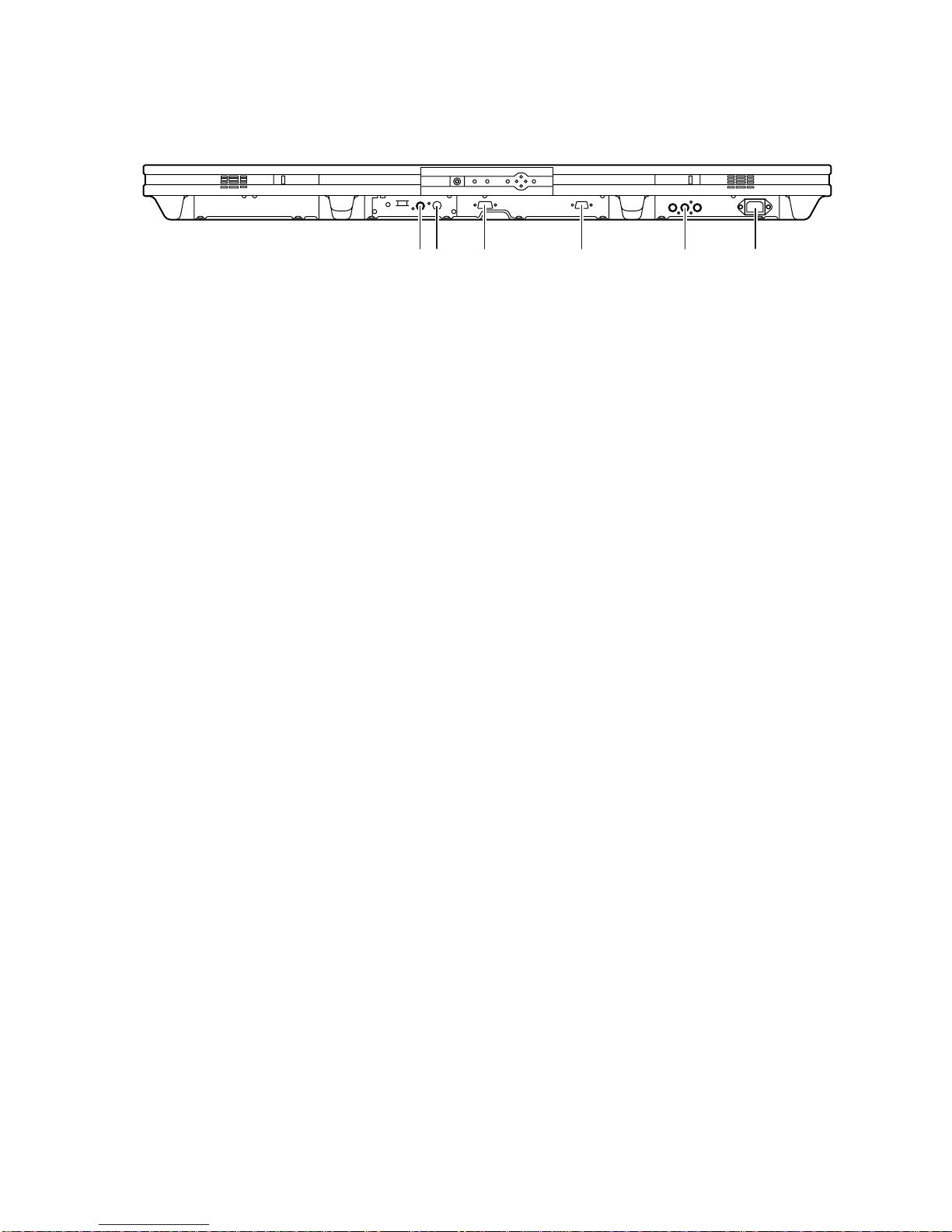

qRS-232C terminal (RS-232C)
This terminal is provided for you to control the display from the PC. Connect it to the RS-232C terminal on the PC.
When connecting a cable, attach a ferrite core to the cable.
∗No RS-232C cable is supplied with the display. The type of cable to be used varies depending on the PC model.
wRGB input terminal (RGB INPUT/mD-sub)
Connect this terminal to the PC's display (analog RGB) output terminal or decoder (digital broadcast tuner, etc.) output terminal.
∗No RGB cable is supplied with the display. The type of cable to be used varies depending on the PC model.
eComponent video input terminal (COMPONENT VIDEO INPUT)
Connect this terminal to the component video output (color difference output) terminal of your HDTV unit or DVD player.
When connecting a cable, attach a ferrite core to the cable.
rS-video input terminal (S-VIDEO INPUT)
Connect this terminal to the S-video output terminal of your VCR or video disk player.
tVideo input terminal (VIDEO INPUT)
Connect this terminal to the video output terminal of your VCR or video disk player.
yPower input terminal
Connect this terminal to the power cable supplied with the display.
– 9 –

– 12 –
TROUBLESHOOTING USING LED AND OSD
1. Display
(1) OSD
Two kinds of error messages are displayed on the screen, and the power is turned off 10 sec later.
(2) LED
LED error is displayed continuously after the power is turned off.
2. Error types and check points
On screen display Cause Check point
ERROR MESSAGE CONDITION 1 Fan protector operated • Fan
• Main power PCB
• PFC PCB
• Main/Digital PCB
ERROR MESSAGE CONDITION 2 Temperature protector
operated • Ambient temperature of unit
• Main/Digital PCB
• Temp. sensor IC757.
(1) OSD
LED lamp display status Cause Check point
Steady light (Red) Stand-by status –––––––––––
Continuous
Flashes continuously (Red)
No power
Power supply protector
operated
• Main power PCB
• PFC PCB
• PDP panel
1 time
Flashes once every 4 sec. (Red) Fan protector operated • Fan
• Main power PCB
• Main/Digital PCB
2 times
Flashes twice every 5 sec. (Red) Temperature protector
operated
• Ambient temperature of unit
• Temperature sensor IC757
• Main/Digital PCB
4 times
Flashes four times every 7 sec.
(Red) Main/Digital circuit faulty • Main/Digital PCB
5 times
Flashes five times every 8 sec.
(Red) Video circuit faulty • Video PCB Assy
(2) LED

– 13 –
TROUBLESHOOTING FLOWCHART
LED lamp blinking
Turn power on and check
state of lamp.
Not lighted.
LAMP STATE Power supply
circuit faulty.
POWER SUPPLY STATE ∗Replace Main
Power PCB.
REMEDY
∗Vs and -Vy must be adjusted.
Blinks
continuously. Power turned off immediately.
RED Check 1
Blinks continuously.
Power turned off
immediately.
RED Check 1
Blinks once Power turned off
after 10 sec.
RED Check 2
Blinks twice Power turned off
after 10 sec.
RED Check 3
Blinks four times Power not turned
off, LED blinks only.
RED Replace Main/Digital
PCB Assy.
Blinks five times Power not turned
off, LED blinks only.
RED Replace Video PCB
Assy.
Is on-screen display
normal? Check 4
All input image
faulty. Signal processing PCB faulty. Replace Main/Digital PCB Assy.
Video input image
faulty. Check 5
S-video input image
faulty. Check 5
Component video
input image faulty. Check 6
RGB input image
faulty. Check 7
Lights steadily for
more than 10 sec.
GREEN
NO
YES
Note : 1. Since a voltage is applied to the Main Power
PCB and PFC PCB heat sinks while the set is
operating, do not touch the heat sinks.
2. If the PFC PCB insulation sheet is not
installed when assembling, the PFC PCB
fuse will blow.
3. After the power cord plug was pulled out, do
not pull out the connector on the Main Power
PCB until the green LED(D531) turns off.

Yes
– 14 –
Check 1
Start
(1) Pull out Power Cord Plug and disconnect connectors CN10, CN41, CN42, CN49 and
CN50 on Main Power PCB.
(2) Connect 1 to pin 2 and 3 to pin 4 on CN4 connector.
(3) Plug in Power Cord Plug and turn on power switch.
PDP faulty.
Power supply protector operated
Power lamp : Flashing continuously in red.
(at an interval of 1 sec)
(1) Pull out Power Cord Plug and disconnect connector CN351 and CN352 on Main Power PCB .
(2) Connect 1 to pin 13 on connector CN352.
(3) Disconnect connectors on Main Power PCB. (CN10, CN41, CN42, CN49, CN50)
(4) Plug in Power Cord Plug and turn on power switch.
(1) Pull out Power Cord Plug and connect connector CN351 and CN352 to Power Supply Unit.
(2) Remove Video PCB Assy.
(3) Plug in Power Cord Plug and turn on power switch.
(4) Check state of green lamp.
∗ Replace PDP.
∗ Vs and -Vy must be adjusted.
Yes
No
Does
lamp change to
green?
Power Supply
circuit faulty. ∗Replace Main Power PCB.
∗ Vs and -Vy must be adjusted.
No
Is voltage
at each connector on
Main Power PCB normal ?
See page 19.
Video circuit
faulty. Replace Video PCB Assy.
Yes
Main/Digital
circuit faulty. Replace Main /Digital PCB Assy.
No
Is green lamp lit
continuously?

No
No
No
– 15 –
∗Vs and -Vy must be
adjusted.
No
Fan protector operated
Power lamp: Flashes once intermittently in red.
(For 0.5 sec. at an interval of 4 sec.)
Check 2
Start
Yes
Yes
Is voltage
at connectors
CN352 wand oon
Main/Digital
PCB 14V?
Is voltage at connectors CN951, CN953 and CN954 on Main/Digital PCB normal ? + eand - qof CN951, 953 and 954 5V to 11V.
Is fan rotary signal of Main/Digital PCB normal ? Pin wof CN951, CN953 and CN954 16 to 90 Hz.
Power Supply Unit circuit faulty.
∗Replace Main
Power PCB.
Temperature protector operated
Power lamp : Flashes intermittently twice in red.
(For 0.5 sec. at an interval of 5 sec.)
Check 3
Start
Adjust PDP unit installation so that peripheral temperature is 40.0°C or less.
No
Yes
Is ambient temperature
of IC757 on Main/Digital
PCB less than 60°C ?
Microcomputer peripheral circuit faulty.
Yes
Replace Main/Digital PCB Assy.
Microcomputer peripheral circuit faulty.
Replace Main/Digital PCB Assy.
Fan faulty Replace fan.
Yes Microcomputer
peripheral circuit faulty.
Replace Main/Digital PCB Assy.
Temperature sensor IC757 faulty.
Temperature sensor cooling
The temperature sensor IC757 is installed on Main/Digital PCB. Turn the power off and cool with a point cooler.
Replace temperature sensor IC757.
Does unit
operate normally
when temperature sensor
IC757 changed ?

– 16 –
OSD is not displayed.
Power lamp : Lighted green.
(10 sec or more)
Check 4
Start
Yes
No
Is picture
displayed on screen
when signal input?
Video/S-video input signals are abnormal.
Power lamp : Lighted green
(10 sec or more)
Check 5
Signal processing circuit faulty. Replace Main/Digital
PCB Assy.
No
Yes
Is voltage at
each connector on Main
Power PCB
normal ?
Power Supply circuit faulty.
Replace Main Power PCB.
Yes
No
Is picture displayed
normally when PDP
changed ?
PDP panel faulty. Replace PDP panel.
Signal processing circuit faulty. Replace Main /Digital
PCB Assy.
Start
Yes
No No
Can this unit
select only RGB mode ? Install video PCB
Assy firmly.
Yes
Is picture
displayed on screen
normal when new video
PCB unit installed ?
Video PCB Assy faulty. Replace Video
PCB Assy.
Yes
Is signal input level
normal ? Signal prosessing
circuit faulty.
Replace Main/Digital PCB Assy.
No
Check input signal.

– 17 –
Component input signals (Y/Pb/Pr) are abnormal.
Power lamp : Lighted green
(10 sec or more)
Check 6
Start
Yes
No
Can this unit select
only RGB mode ? Install video PCB
Unit firmly.
Yes
No
Video PCB Unit
faulty.
Replace Video PCB
Assy.
No
Yes
Are brightness
and color difference
signals connected to
input terminals
correctly ?
Check connection
cable.
Yes
No
Is signal input level
normally ? Signal processing
circuit faulty. Replace Main/Digital
PCB Assy.
Check input signal.
∗ SYNC. signals are added to the Y signal.
Is picture
displayed on screen
normal when new video
PCB Unit
installed ?

RGB input is abnormal.
Power lamp: Lighted green
(10 sec or more)
Check 7 Start
Separate signal Composite signal
No
Yes Yes
Yes
Sync.on green signal
Yes Yes Yes
No No
No
Is RGB
cable pin arrangement
appropriate ?
What kind of
signal is output from signal
source ?
Is composite sync.
signal input to pin wof RGB
cable ?
Is composite sync.
signal input to pin !3 of RGB
cable ?
Is Sync.signal
TLL and polarity
negative ?
Is horizontal sync.
signal input to pin !3 and vertical sync.
signal input to pin !4 of
RGB cable ?
Check connection cable.
Check input signal.
Connect RGB cable to terminal.
Check input signal.
No
Make sync.signal polarity output from signal source negative, or make output impedanceTTL.
No Check input signal.
No Check input signal.
Is frequency of horizontal sync. and vertical sync signals within specified range ?
Is input level(∗) within specified range ?
Yes
Signal processing circuit faulty. Replace Main/Digital PCB Assy.
– 18 –

– 19 –
VOLTAGE OF EACH CONNECTOR
1. How to measure the voltages on the Main Power Supply PCB in protect mode.
• Since a voltage is applied to the Main Power PCB and PFC PCB heat sinks while the set is operating,
do not touch the heat sinks.
• After the power cord plug was pulled out, do not pull out the connector on the Main Power PCB until
the Green LED (D531: Discharge check LED) turns off.
1) Disconnect CN4, CN10, CN41, CN42, CN49 and CN50
2) Connect pins 1 and 2, 3 and 4 of CN4.
3) Press the power button.
2. On the Main Power Supply PCB. (M00BV)
CN41
Ground
No. NAME SPEC.
1 Vcc 1 5.0V +/- 0.25V 2
9 Vs 180.0V +/- 3.2V 5
CN50
Ground
No. NAME SPEC.
3 Va 65.0V +/- 1.3V 4
1 Vw 170.0V +/- 5.0V 2
CN42
Ground
No. NAME SPEC.
3 -Vy -165.0V +/- 3.0V 5
4 Vsc 120.0V +/- 3.5V 3
CN10
Ground
No. NAME SPEC.
3 Ve 16.0V +/- 0.4V 4
CN352
Ground
No. NAME SPEC.
1 P5V 5.0V +/- 0.25V 4
3 +14V 14.0V +/- 0.7V 4
10 -8V -8.0V +/- 0.4V 6
CN351
Ground
No. NAME SPEC.
3 +2.5V 2.5V +/- 0.13V 2
6 +3.3V 3.3V +/- 0.17V 5
10 +6.5V 6.5V +/- 0.33V 9

– 20 –
VSAND -VYADJUSTMENT
When the Main Power Supply PCB and PDP panel are replaced, Vs and –Vy must be
adjusted.
Preparation : Heat-run for 5 minutes with a white pattern in the wide mode.
Adjustment : Adjust the Vs and –Vy in the no-signal state.
Check points : Refer to the drawing shown below.
Adjustment points : Refer to the drawing shown below.
Adjustment value : Within +/- 0.1V of voltage indicated on the label of the PDP panel.
NOTE : After the power cord plug was pulled out, do not pull out the connector on the Main Power
PCB until the Green LED (D531: Discharge check LED) turns off.
T2 T3 T4 T5
VR582
Vs ADJ.
VR633
-Vy ADJ.
CN352
CN351
CN41
CN42 CN49
CN50
L583
CN4
CN10
16
101
– MAIN POWER SUPPLY PCB (M00BV-PCB) –
D531
DISCHARGE
CHECK LED
Vscheckpoint
CN41
9pin+
5pinGND
-Vycheckpoint
CN42
3pin+
5pinGND

– 21 –
GENERAL CONNECTION DIAGRAM
INLET
AC/DC POWER SUPPLY
PLASMA DISPLAY PANEL UNIT
FPF42C10660UE-41
OPTICAL FILTER
Glass 2.6 ΩT2.5 985 x 585
FAN
68PIN
FAN
COMP. TERMINAL
FAN
PFC
VIDEO
MAIN / DIGITAL
LED / PHOTO AMP
CONNECTION PCB
KEY SWITCH
POWER
PHOTO AMP
MODE MENUWIDE ENTER
1
17.2V-OFF
THI
S-AC 3
1
GND (P5V)
RL1
P5V
RL2 4
1
385V(VPFC)
NC
GND(VPFC)
17.2V
GND(VPFC)
20V 6
1
17.2V-OFF
THI
S-AC
3
1
GND (P5V)
RL1
P5V
RL2
4
1
385V(VPFC)
NC
GND(VPFC)
17.2V
GND(VPFC)
20V
6
1
GND
KEYIN0
KEYIN1
KEYIN2
KEYIN3
KEYSCAN1
KEYSCAN2
KEYSCAN3
8
1 P5V +14V +14V GND -8V GND RE12.5V GND GND PSIATE1 PSIATE0 ACON RELAY 13
13
RELAY ACON PSIATE0 PSIATE1 GND GND RE12.5V GND -8V GND +14V +14V P5V 1
1
SA1 NC GND
3
20
S. GND
VYK
S.GND
VWK
S.GND
VSK
S.GND
VAK
S.GND
VEK
S.GND
NC
S.GND
VIAA
S.GND
VISS
S.GND
VW/VY-GO
S.GND
VE-GO
1
CN102
(ILS-3P)
CN2
(53259-0320)
1
AC(N) AC(L)
2
CN1
FG
M4
CN501
(B4P-PH)
CN101
(B6P-VH)
CN102
(ILS-3P)
CN501
(B4P-PH)
CN101
(B6P-VH)
CN352
(B13B-PH-K-S)
1 VCC1 GND(VCC1) -VY VSC GND(-VY) GND(-VY) VCC1 GND(VCC1) VE GND(VE) VA GND(VA) 12
CN42
(HL-12P)
CN4
(FCN-20P) CN4 (FCN-20P)
M5E
1 VCC1 GND(VCC1) VE GND(VE) GND(VS) GND(VS) GND(VS) NC VS VS 10
Y
CN41
(DF7C-10P)
1 VCC1 GND(VCC1) VE GND(VE) GND(VS) GND(VS) GND(VS) NC VS VS 10
X
CN49
(DF7C-10P)
1 -VY VSC GND(VSC) GND(-VY) 4
Y
CN42
(HC-4P)
1 VW VA GND(VA) GND(VW) 4
X
CN50
(VH-4P)
1 R(8) G(8) B(8) GND H V GND 68
1
R(8)
G(8)
B(8)
GND
H
V
GND
68
5
+5V LEDR LEDG REMOCON GND 1
3
+14V FANPRM4 GND 1
CN1
(FX2B-68P)
1 VCC1 GND(VCC1) VE GND(VS) GND(VS) GND(VS) GND(VS) NC VS VS 10
Y
CN41
(VH-10P)
1 VCC1 GND(VCC1) VE GND(VS) GND(VS) GND(VS) GND(VS) NC VS VS 10
X
CN49
(VH-10P)
1 VCC1 GND(VCC1) VE GND(VE) VA GND(VA) 6
A
CN10
(VH-6P)
1 VCC1 GND(VCC1) VE GND(VE) VA GND(VA) 6
A
CN12
(VH-6P)
1 VCC1 GND(VCC1) VE GND(VE) VA GND(VA) 6
A
CN10
(VH-6P)
1 VCC1 GND(VCC1) 4
CN
(VH-2P)
1 VCC1 GND(VCC1) VA GND(VA) 4
CN8
(VH-4P)
P1001
(TX24-60P)
CN701
(TX24-60P)
CN752
(B5B-PH-SM3-TBT)
CN351
(VH-10P)
L TYP
CN401
M-SUB 15PIN
CN4500
[FX28-68P]
CN352
(B13B-PH-SM3-TBT)
CN751
(B8B-PH-SM3-TBT)
(SIGNAL PROCESSING)
P954
(B3B-PH-SM3-TBT)
3
+14V FANPRM3 GND 1
P953
(B3B-PH-SM3-TBT)
Y TYP SMT
(TX25-30P-12ST-H1)
CN702
CN1004
(TX24-30R-6ST-H1)
CN1001 (BNC)
P6900
P6701 (KEY SWITCH)
(LED/PHOTO AMP)
3
+14V FANPRM1 GND 1
P951
(B3B-PH-SM3-TBT)
P902
D-SUB 9PIN S.TERMINAL J1202 (BNC) J1202
CN201 V TYP
(FX2B-68PA-1.27DSA)
CN3001
(TX25-60P)
CN3002
(TX25-60P)
1 GND(VW) VA GND(VA) VA GND(VA) VCC1 GND(VCC1) 8
X/LOGIC
CN50
(VL-8P)
10 +6.5V GND +5V GND +3.3V GND +2.5V +2.5V GND GND 1
10
+6.5V GND +5V GND +3.3V GND +2.5V +2.5V GND GND 1
CN351
M00GM
M00GNB
M00GNC
M00GNA
M00GND
M00BV
M00BX
M00GNE
68PIN
S-VIDEO INPUT
RGB RS232C VIDEO INPUT
COMPONENT VIDEO INPUT
@@@@@@@@e?
@@@@@@@@e?
@@h?
@@h?
@@h?
@@h?
@@h?
@@h?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
?@@
?@@
?@@
?@@
?@@
?@@
?@@@@@@@@
?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@?e@@@@@@@@e?@@@@@@@@
@@g
@@g
@@g
@@g
@@g
@@g
@@@@@@@@
@@@@@@@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
@@
01:8-7 13:B-1 25:NC 37: R-6 49:R-0 61:G-2
02:S. GND 14:S. GND 26:S. GND 38:S. GND 50:S. GND 62:S. GND
03:B-6 15:B-0 27:DISPEN 39:R-5 51:G-7 63:G-1
04:S. GND 16:S. GND 28:S. GND 40:S. GND 52:S. GND 64:S. GND
05:B-5 17:VSYNC 29:NC 41:R-4 53:G-6 65:G-0
06:S. GND 18:S. GND 30:B-CNT0 42:S. GND 54:S. GND 66:S. GND
07:B-4 19:HSYNC 31:B-CNT1 43:R-3 55:G-5 67:NC
08:S. GND 20:S. GND 32:B-CNT2 44:S. GND 56:S. GND 68:NC
09:B-3 21:BLANK 33.HQEN 45:R-2 57:G-4
10:S. GND 22:S. GND 34:NC 46: S. GND 58: S. GND
11:B-2 23:DCLOCK 35:R-7 47:R-1 59:G-3
12: S. GND 24: S. GND 36: S. GND 48: S. GND 60: S. GND

– 22 –
INSTALLATION
INSTALLATION PRECAUTIONS
1. Installation Environment
1) Do not expose the display directly to vapor or heat. Protect the unit from rain or water.
2) The display uses glass material, and cracks easily. So, do not subject it to vibration and
shock. When carrying the display, always use two peoples so that vibration and shock is
not applied to the display.
3) Do not disturb the radiation of heat from the rear, sides and top of the unit. Install the
unit in a well ventilated place. Use the unit within an ambient temperature range of 0°C
~ 40°C.
4) Displaying a static picture for a long time may burn an after-image on the screen, the
same as a CRT. To prolong the life of the unit, turn off the display when it is not in use,
scroll the picture, and use a screen saver. Periodically display a uniformly bright picture
over the entire screen, add complimentary colors, and insert moving pictures. Use half
tones and intermediate colors, if possible, because the higher the brightness, the easier
burning occurs. The problem does not occur with moving pictures.
5) Do not expose the optical filter directly to the sun for a long time. The characteristics of
the optical filter will change and discoloration may occur.
6) Do not wipe the optical filter with a solvent such as benzene or paint thinner. The optical
filter may peel off. Wipe the surface of the optical filter with a soft, lint-free cloth such as
cotton. The surface of the optical filter scratches easily so do not rub or hit it with a hard
object.
7) The brightness and contrast of the PDP are still inferior to those of a CRT. Also note
that the ambient light may cause the screen become white and difficult to read.
Therefore, it is recommended that the ambient light be reduced.
8) Note that light from the back may adversely affect the screen. Avoid backlighting as
much as possible.
9) The display may cause radio frequency interference sensors which detect low level and
low frequency radiowaves. If an improperly shielded VCR or signal cable is brought
close to this unit, noise may appear on the screen. To avoid this, move the unit to a new
location.
10) Near infrared rays are radiated from the front of the display panel. These rays may
interfere with the infrared ray remote control unit of other equipment and with infrared
communication systems. In this case, change the direction of the equipment relative to
the screen or move the unit away from the other equipment so that the rays radiated
directly from the screen (or reflected rays, depending on the situation) have no affect on
other equipment.
11) When the display is installed in a quiet room, it is recommended that a thick curtain be
hung on the wall behind the display to reduce the noise.
12) Dark gray scenes may appear purplish or greenish. To avoid this, increase the
brightness.

– 23 –
2. Installation Precautions
1) The support must withstand the weight of the unit.
The standards of the country must be met.
2) Special care should be taken in areas where earthquakes occur frequently.
(At a magnitude of six, each pipe must withstand a load of 100 to 150 kg).
3) Grounding should be performed.
(Ground connected to power
outlet is acceptable).
4) Sufficient passage space.
5) Installation should be performed
by at least two peoples. A simple
lifter should be used.
6) When carrying the unpacked
unit, do not hold the Optical
Filter.
3. Outline Drawings
Ceiling
Floor
64 cm
42 Plasmavision
Sufficient space is needed for
people to pass or to move objects.
94.5
103.5
54.4 64.0
6
Floor
Wall
Floor
8.5 1.5 Unit : cm
Unit : cm
1.5
Wall
Wall mounting unit
