Fujitsu Point 1600 User manual

Connectivity
Peripherals
User’s Guide
Point 510
Point 1600

Connectivity
Peripherals
User’s Guide
Point 510
Point 1600

Fujitsu Personal Systems, Inc. has made every effort to ensure the accuracy and
completeness of this document. However, because ongoing development efforts are
continually improving the capabilities of our products, we cannot guarantee the
accuracy of the contents of this document. We disclaim liability for errors, omissions,
or future changes herein.
Point 510 and Point 1600 are trademarks of Fujitsu Personal Systems, Inc.
All other products are trademarks or registered trademarks of their respective
companies.
Copyright 1999
Fujitsu Personal Systems, Inc.
No part of this publication may be copied, reproduced, translated, stored, or transmitted without
the express written consent of Fujitsu Personal Systems, Inc.

iii
Agency Compliance
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try and correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables must be employed with this equipment to insure compliance
with the pertinent RF emission limits governing this device.
Changes or modifications not expressly approved by Fujitsu Personal Systems, Inc., could
void the user’s authority to operate the equipment.
Canadian DOC Compliance
This digital apparatus does not exceed the Class B limits for radio noise emissions from
digital apparatus as set out in the radio interference regulations of the Canadian Department of
Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe B prescrites dans le règlement sur le
brouillage radioélectrique édicté par le Ministère des Communications du Canada.

iv

v
Table of Contents
About This Guide
Related Documentation ............................................................................. viii
Organization................................................................................................ viii
Chapter 1
Getting Started
Introduction to Connectivity Peripherals................................................ 1-1
Portable Port Expander.............................................................................. 1-2
Port Replicator............................................................................................. 1-3
High-Usage Cradle..................................................................................... 1-4
High-Connectivity Cradle ......................................................................... 1-6
Wall-Mount Cradle..................................................................................... 1-8
Charge-Only Cradle ................................................................................... 1-9
Folding Desk Stand..................................................................................... 1-10
Chapter 2
Using Point 510/Point 1600 Connectivity Peripherals
Portable Port Expander.............................................................................. 2-2
Attaching the Portable Port Expander......................................... 2-3
Disconnecting the Portable Port Expander................................. 2-5
Port Replicator............................................................................................. 2-6
Inserting the Pen Tablet................................................................. 2-7
Locking and Unlocking the Port Replicator................................ 2-9
Removing the Pen Tablet From the Port Replicator.................. 2-10
Attaching the Port Replicator to the Desk Stand........................ 2-10
Setting Up the Desk Stand......................................................... 2-11
Attaching the Port Replicator to the Desk Stand.................... 2-12
Detaching the Port Replicator from the Desk Stand.................. 2-13
Folding the Desk Stand.............................................................. 2-13
High-Connectivity Cradle ......................................................................... 2-14
Inserting the Pen Tablet................................................................. 2-14
Locking and Unlocking the High-Connectivity Cradle............ 2-16
Adjusting the Viewing Angle ....................................................... 2-17
Removing the Pen Tablet............................................................... 2-18
High-Usage Cradle..................................................................................... 2-18
Inserting the Pen Tablet................................................................. 2-19
Locking and Unlocking the High-Usage Cradle........................ 2-21
Adjusting the Viewing Angle ....................................................... 2-21
Removing the Pen Tablet............................................................... 2-22
Wall-Mount Cradle..................................................................................... 2-23
Opening the Wall-Mount Cradle.................................................. 2-23
Closing the Wall-Mount Cradle.................................................... 2-24
Inserting the Pen Tablet................................................................. 2-24
Locking and Unlocking the Wall-Mount Cradle........................ 2-26

vi
Removing the Pen Tablet............................................................... 2-27
Charge-Only Cradle ................................................................................... 2-28
Inserting the Pen Tablet ................................................................. 2-28
Removing the Pen Tablet............................................................... 2-28
Synchronizing Cradle Latches .................................................................. 2-29
Chapter 3
Care and Maintenance of Connectivity Peripherals
Cautions........................................................................................................ 3-1
Cleaning Connectivity Peripherals........................................................... 3-2

vii
About This Guide
This guide provides operating instructions for the following Point 510 and Point 1600
pen tablet connectivity peripherals. Note that several of the peripherals are available
in locking and non-locking versions.
* This guide provides instructions for using the Point 510 and Point 1600 pen
tablets with these cradles at the work site. For details on installing these
cradles and connecting peripheral devices, refer to the Connectivity
Peripherals Installation Guide: Point 510, Point 1600 or contact your reseller.
Part Name Locking/
Non-Locking FPSI Order Number
Portable port expander N/A FMW26CR5
Port replicator Locking FMW26CR3
Non-Locking FMW26CR23
High-connectivity cradle Locking FMW26CR2 *
Non-Locking FMW26CR22 *
High-usage cradle Locking FMW26CR1 *
Non-Locking FMW26CR21 *
Wall-mount cradle Locking FMW26CR4 *
Non-Locking FMW26CR24 *
Charge-only cradle N/A FMW26CR10 *
Folding desk stand N/A FMWDS3

viii About This Guide
Related Documentation 0
The following manuals provide additional information on the Point 510 and Point
1600 pen tablets and peripherals.
Point 510 User’s Guide
This manual gives instructions on using the Point 510 pen tablet.
Point 1600 User’s Guide
This manual gives instructions on using the Point 1600 pen tablet.
Connectivity Peripherals Installation Guide: Point 510, Point 1600
This manual provides details on assembling and installing Point 510 and Point
1600 connectivity peripherals.
Connectivity Peripherals Product Reference: Point 510, Point 1600
This 1-page sheet is shipped with Point 510 and Point 1600 connectivity
peripheral components to illustrate the individual components required to
assemble different connectivity peripherals.
Organization 0
This guide is organized as follows:
•Chapter 1: Getting Started
This chapter provides an introduction to the Point 510 and Point 1600
connectivity peripherals and their features.
•Chapter 2: Using Point 510 and Point 1600 Connectivity Peripherals
This chapter gives instructions on using each of the Point 510 and Point 1600
Connectivity Peripherals.
•Chapter 3: Care and Maintenance of Connectivity Peripherals
This chapter provides information on maintaining and handling your
connectivity peripherals.

Introduction to Connectivity Peripherals 1-1
Chapter 1
Getting Started
This chapter provides an overview of the Point 510 and Point 1600 connectivity
peripherals and their features.
Introduction to Connectivity Peripherals 1
The Point 510 and Point 1600 connectivity peripherals provide additional interface
capabilities and other additional functionality to your pen tablet system. In general,
connectivity peripherals are designed to connect to the pen tablet in one simple
operation and provide connections to various computer equipment. Table 1-1
provides a quick look at the interfaces provided by each of the connectivity
peripherals. The specific sections comprising the rest of the chapter outline the
interfaces and functionality of each of the peripherals.
* The PS/2-style port on the PPE can be used for either a mouse or keyboard on the Point 1600;
on the Point 510, it can only be used for a mouse.
** Although the wall-mount cradle includes a mouse port, the mouse port is not used in the
wall-mount cradle.
Table 1-1. Ports Available in Connectivity Peripherals
Portable Port
Expander
Port Replicator
High-Usage Cradle
High-Connectivity
Cradle
Wall-Mount
Cradle **
Charge-Only
Cradle
Serial Port A ✔✔ ✔
Serial Port B ✔✔ ✔
PS/2-style Mouse ✔*✔✔✔
PS/2-style Keyboard ✔✔✔✔
Parallel Port ✔✔ ✔
Floppy Drive Port ✔✔ ✔
Video Port ✔✔ ✔
DC Power Input ✔✔✔✔✔

1-2 Getting Started
Portable Port Expander 1
The Point 510/Point 1600 portable port expander is best suited for mobile computing
tasks when a quick and temporary connection to peripheral computer equipment is
needed and the pen tablet alone does not provide the necessary connectivity.
Figure 1-1. Portable Port Expander - Bottom View
Figure 1-2. Portable Port Expander - Top View
The portable port expander provides the following interfaces for connection to
peripheral computer equipment:
• Serial port A
• Serial port B
• PS/2-style mouse/keyboard port (This port can only be used with a mouse on the
Point 510; on the Point 1600, it can be used either with a mouse or a keyboard).
• Parallel port
• Floppy disk drive port
• Video port

Port Replicator 1-3
Port Replicator 1
The Point 510/Point 1600 port replicator is best suited for use on a desk top and is
designed for use with the FMWDS3 folding desk stand. The port replicator adds
connectivity that is not built into the Point 510 and Point 1600 pen tablets. Typically,
the port replicator is connected to peripheral computer equipment and the pen tablet
is then inserted in the port replicator when the peripheral equipment is needed.
Note: The port replicator for the Point 510 and the Point 1600 is available in two
versions: locking and non-locking. The locking version includes a lock (also called
a “tubular lock” elsewhere in this manual) to secure the pen tablet to the port
replicator. The illustrations and procedures provided in this document address the
locking version.

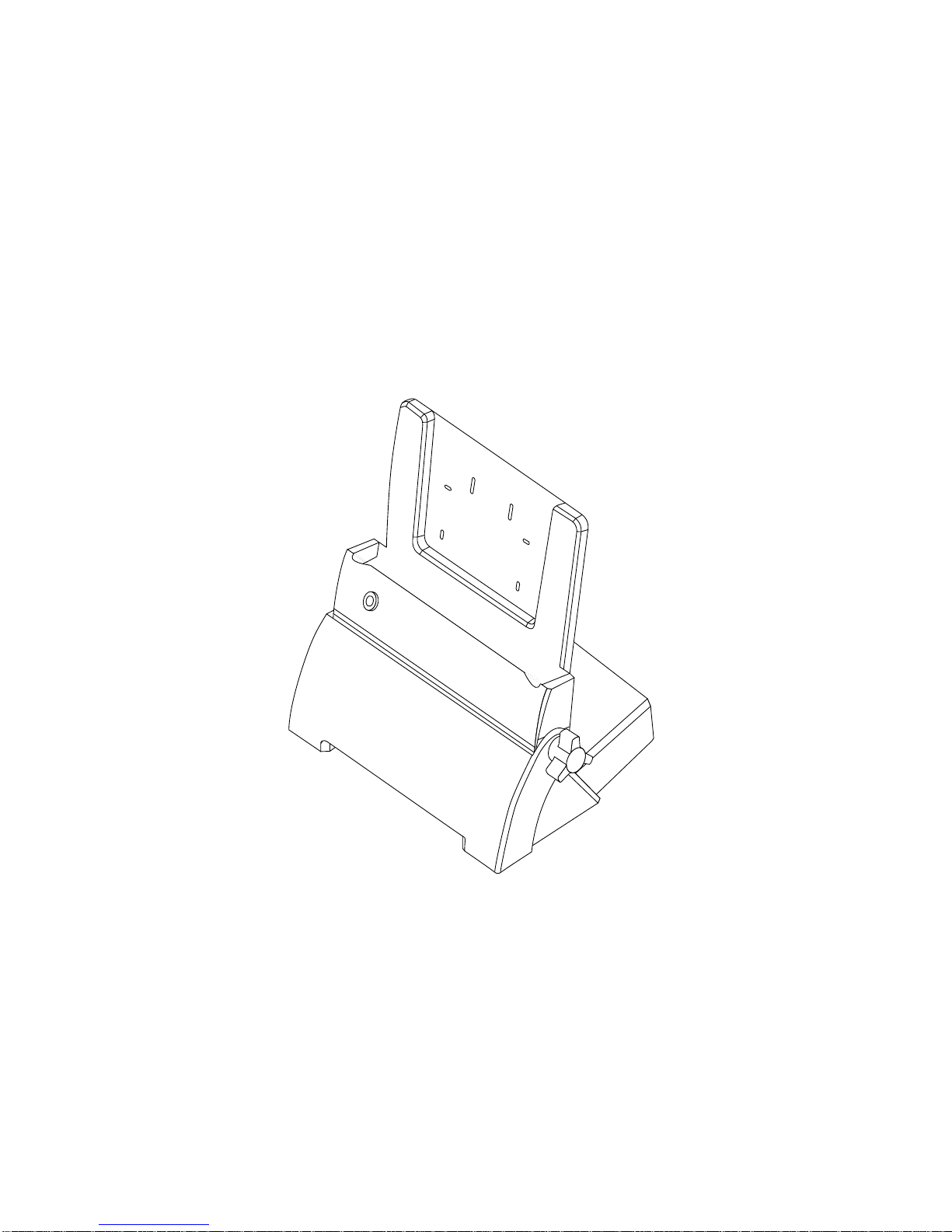

Figure 1-3. Point 510/Point 1600 Port Replicator
The port replicator provides the following peripheral interfaces and connectors:
• Serial port A
• Serial port B
• Parallel port
• Floppy disk drive port
• Video port
• PS/2-style keyboard port
• PS/2-style mouse port
• DC power input

1-4 Getting Started
High-Usage Cradle 1
The Point 510/Point 1600 high-usage cradle is designed for environments where the
pen tablet is frequently inserted into and removed from the cradle. The high-usage
cradle is equipped with special “high-usage” connector pins that are designed to
withstand a much higher number of pen tablet insertion and removal operations.
This cradle is best suited for desk- or counter-top installations where the cradle
remains stationary.
Note: The high-usage cradle for the Point 510 and the Point 1600 is available in two
versions: locking and non-locking. The locking version includes a tubular lock to
secure the pen tablet into the cradle. The illustrations and procedures provided in
this document address the locking version
Figure 1-4. High-Usage Cradle
The high-usage cradle provides connections for the following interfaces:
• PS/2-style keyboard
• PS/2-style mouse
•DCinput

High-Usage Cradle 1-5
The high-usage cradle is similar in appearance to the high-connectivity cradle. To
distinguish between the two, observe that the high-usage cradle is equipped only
with high-usage connector pins and does not have a connector that contacts the
system interface port on the pen tablet; the high-connectivity cradle has both. The
following figure shows the location of the high-usage connector pins on the
high-usage cradle.
Figure 1-5. Identifying the High-Usage Cradle
High-usage
connector pins No connector in this area

1-6 Getting Started
High-Connectivity Cradle 1
The high-connectivity cradle provides several additional peripheral interfaces that
neither the high-usage cradle nor the pen-tablet alone provide. This cradle is best
suited for desk- or counter-top installations where the cradle remains stationary.
Note: The high-connectivity cradle for the Point 510 and the Point 1600 is available in
two versions: locking and non-locking. The locking version includes a tubular lock
to secure the pen tablet into the cradle. The illustrations and procedures provided
in this document address the locking version.
Figure 1-6. High-Connectivity Cradle
The high-connectivity cradle provides the following peripheral connectors:
• Serial port A
• Serial port B
• Parallel port
• Floppy disk drive port

High-Connectivity Cradle 1-7
• Video port
• PS/2-style keyboard port
• PS/2-style mouse port*
• DC power input
* The high-connectivity cradle, due to its modular design, is equipped with
two mouse ports. Note that only one mouse port can be used at a time.
Note that the high-connectivity cradle is similar in appearance to the high-usage
cradle. To distinguish the two, observe that the high-connectivity cradle is equipped
with a system interface connector; the high-usage cradle does not have the connector.
Figure 1-7 shows the location of the system interface connector on the
high-connectivity cradle.
Figure 1-7. Identifying the High-Connectivity Cradle
High-usage
Connector Pins 120-pin Connector

1-8 Getting Started
Wall-Mount Cradle 1
The wall-mount cradle is designed to be installed on a wall. It has a built-in keyboard
tray, and allows the pen tablet to be charged as it is being used.
Note: The wall-mount cradle for the Point 510 and the Point 1600 is available in two
versions: locking and non-locking. The locking version includes a tubular lock to
secure the pen tablet into the cradle. The illustrations and procedures provided in
this document address the locking version.
The wall-mount cradle provides the following interface connectors:
• DC power input
• PS/2-style keyboard port
• PS/2-style mouse port*
* Due to the modular design of the Point 510 and Point 1600 connectivity
peripherals, the mouse port is not used in most wall-mounted installations
because the wall mount cradle is designed specifically to be used with a
keyboard and does not provide space to use a mouse.

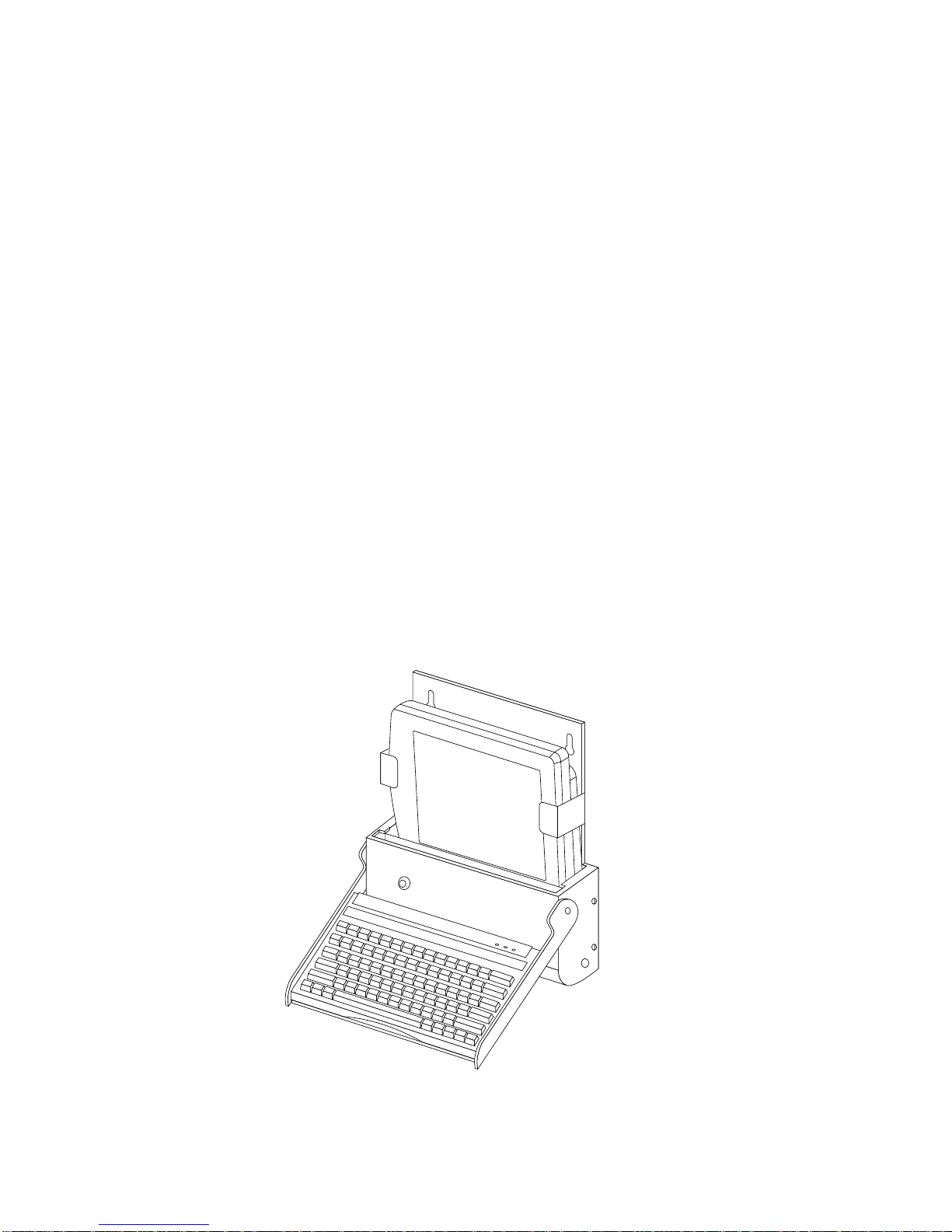

The following illustration shows the wall-mount cradle with a keyboard and pen
tablet installed (keyboard and pen tablet sold separately)
.
Figure 1-8. Wall-Mount Cradle

Charge-Only Cradle 1-9

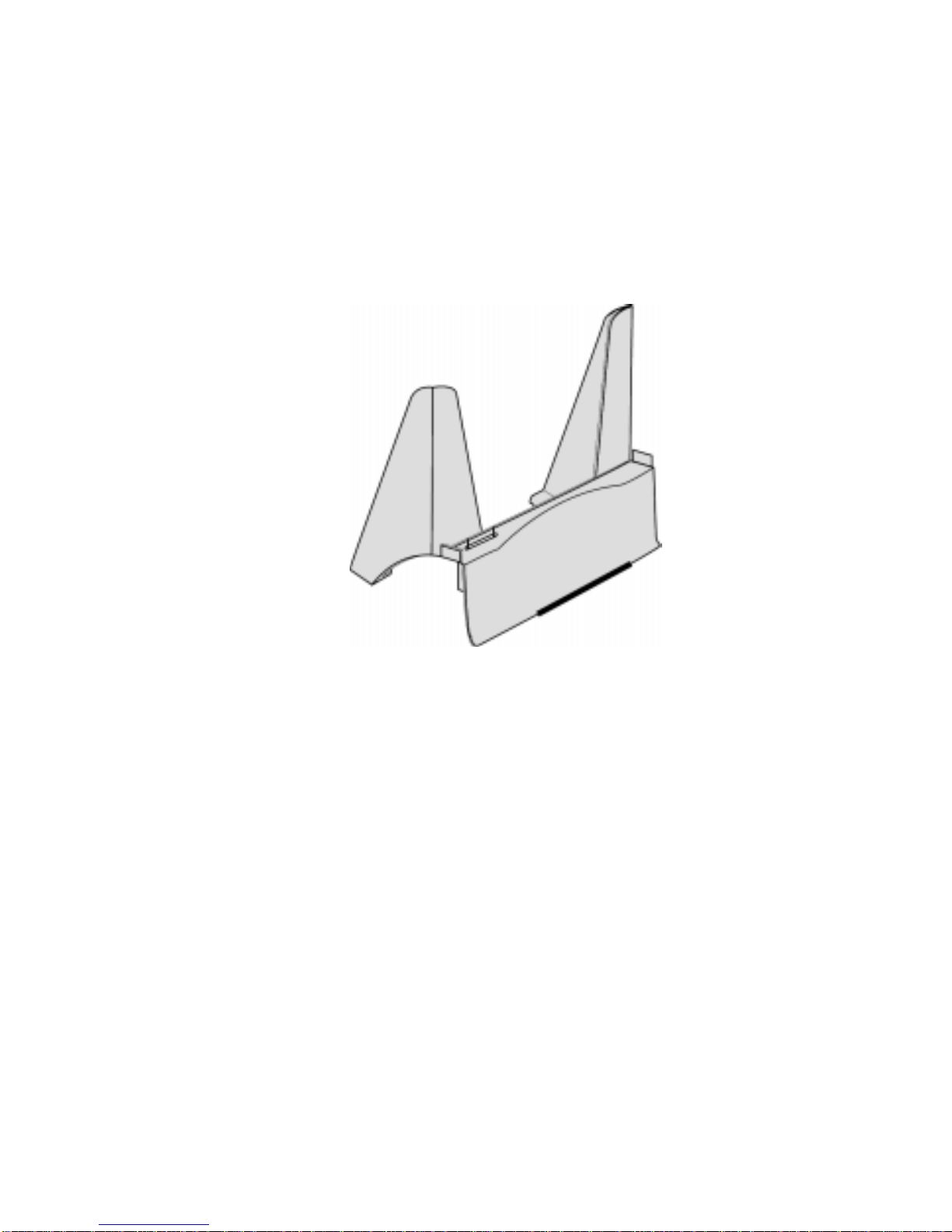

Charge-Only Cradle 1
The charge-only cradle is designed for a desk- or counter-top installation where a
quick connection to a DC power source (only) is needed. The pen tablet can be placed
in the charge-only cradle and used while external DC power is supplied by the
cradle. The connector pins on the cradle are “high-usage” type connectors and are
designed to withstand a large number of insertion and removal operations.
Figure 1-9. Charge-Only Cradle

1-10 Getting Started
Folding Desk Stand 1
The FMWDS3 folding desk stand is recommended for use with the port replicator.
The desk stand can be locked into place in five positions, one folded position and
four open positions. The four open positions allow you to set up the desk stand in
four different viewing angles. A storage pouch is provided with the desk stand.
Figure 1-10. Folding Desk Stand
Top of desk stand snaps over
rubber feet when stand is folded
Rubber feet
One folded
locking position
Four open
locking positions
