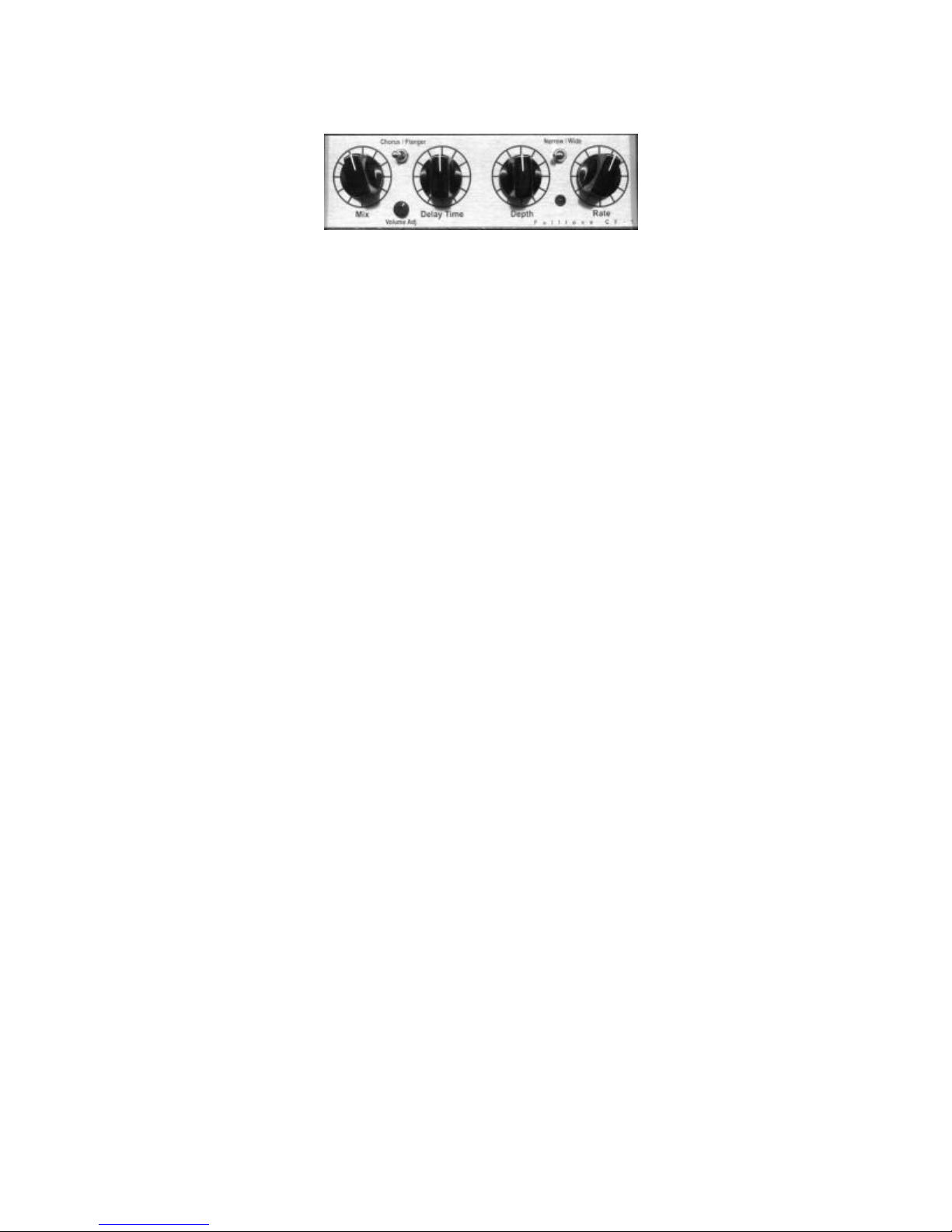

ChoralflangeTM Features
Mix knob: this sets the balance between straight (unaffected) guitar and the effected
sound. Clockwise (CW) yields more effect, Counter Clockwise, (CCW) more guitar.
Chorus / Flange toggleswitch: chose between the two modes of operation. Both
function in either Mono (1 amplifier) or Stereo (2 amps) operation.
Volume Adj. trimmer: this only affects the volume when the effect ON/OFF footswitch is
in the “ON” mode. Why? Because there can often be a large difference in the level
between the bypassed and “ON” modes depending on your settings, particularly when
operating this chorus in stereo. (Two amplifiers) TheVolume Adjust is crucial for
getting the right balance so that there is not a Boost or Cut unless you desire.
Delay Time knob: allows for Delay lengths ranging from 1 to 50 milliseconds. The
length of Delay times determines the amount of Vibrato present in the chorus, and the
affected frequencies of both the chorus and the flange modes.
Depth knob: this controls the saturation or “wetness” of the “ON” sound, and along with
the Mix knob, gives this pedal the ability to sound vintage-thick, extremely transparent,
or anything in-between.
Narrow / Wide toggleswitch: set toNarrow, the affected frequency bandwidth will be
approximately 1 Octave. Set to Wide, the affected frequency will be approximately 2
Octaves. This range is also affected by the chosen Delay Time setting.
Rate knob: controls the speed of the modulation and is reflected in the flashing LED
positioned next to it. Slower speeds are generally used for Chorusing and Heavy
Flanging sounds. Faster speeds are generally used for Leslie and wild chorus/vibrato
sounds
Input Jack: plug guitar or Bass into this, remember to unplug when not in use to
prolong Battery Life.Warning: this device is designed for “normal” output Pickups and
not Super-Hi-Gain ones like the “LiveWires”, EMG85’s, etc. Use of these could overload
the input of the Choralflange. Lower gainedPU’s equals better tone anyway IMHO.
Output 1: use this for mono (single amp) operation.
Output 2: use this only in conjunction with Output 1 when stereo operation is desired.
Caution!Always make sure there are no grounding problems when using multiple amp set-ups.
Failure to maintain proper ground can cause serious injury or even death!
DC Jack: this is a standard 2.1mm Barrel Jack connector, and is configured (like most
effects) with the Center Pin being Negative. It is HIGHLY recommended that you use
only the Fulltone FPS-1 because it is regulated and the optimum tones in this pedal are
achieved with exactly 9.0 volts…fresh batteries are often 9.5+volts and the flanging
sounds may be affected.
Internal Adjustments: there areNO internal user adjustable parameters in this pedal.
There are trimmers that are set by us and are not to be touched, you will ruin the pedal.
