FULTON VMP40 User manual

Fulton VMP
(Vertical Multi-Port)
Gas Fired Steam Boilers
40-150 HP
Installation Operation And
Maintenance Manual
VMP-STEAM-GAS_IOM_2016-1007-REV1
Serial # : ___________________________
Model # : ___________________________
Fulton Order # : ___________________________
Sold To : ___________________________
Job Name : ___________________________
Date : ___________________________

Product Bulletin
Product Bulletin
2010-001PB
The Fulton Companies
972 Centerville Road
Pulaski, N.Y. 13142
Date: January 22, 2010
Subject: Water Chemistry Requirements for Fulton Steam Products
Products: ICS/ICX, FB-A, FB-F, FB-S, VMP, PVLP, PHP, Electric Steam
Boilers and Unfired Steam Generators
Please note that the water chemistry is different for carbon steel vs. stainless steel
pressure vessels and vertical vs. horizontal orientation.
Effective immediately, please use the limits below. Should you have any questions,
please do not hesitate to contact Fulton at 315-298-5121.
Water Chemistry Requirements for Fulton Steam Products (to 300 psig MAWP)
NOTES:
*This is a minimum temperature. Feedwater temperatures below 200F will require an oxygen scavenger.
** Suspended solids: Take a water sample. After the sample sits for 10 minutes, no solids should be visible.
+ Total Organic Carbon: Take a water sample. Shake vigorously for 30 seconds. No sheen or foam should be visible.
++ Iron: Take a water sample. Hold the sample against a white background. The water should have no visible yellow, red or
orange tinge.
ND: None Detected.
Parameter
Carbon Steel Stainless Steel
Feedwater Vertical
Boiler/Steam
Pac Water
Horizontal
Boiler/Steam
Pac Water
Feedwater Vertical
Boiler/Steam
Pac Water
Horizontal
Boiler/Steam
Pac Water
pH 7.5-9.5 8.5-10.5 8.5-10.5 6.0-9.5 8.5-10.5 8.5-10.5
Feedwater
Temperature
140F* --- --- 140F* --- ---
Hardness as
CaCO3
<2ppm <10 ppm <15 ppm <2 ppm <10 ppm <15 ppm
Chlorides --- --- --- --- 50 ppm 50 ppm
Total
Alkalinity
--- <300 ppm <500 ppm --- <300 ppm <500 ppm
Total
Dissolved
Solids
--- <2000 ppm <3000 ppm --- <2000 ppm <3000 ppm
Suspended
Solids
No visual
turbidity**
No visual
turbidity**
No visual
turbidity**
No visual
turbidity**
No visual
turbidity**
No visual
turbidity**
Total Organic
Carbon
No sheen
No foam+
No sheen
No foam+
No sheen
No foam+
No sheen
No foam+
No sheen
No foam+
No sheen
No foam+
Iron Colorless
liquid++
Colorless
liquid++
Colorless
liquid++
Colorless
liquid++
Colorless
liquid++
Colorless
liquid++
Dissolved
Oxygen
<1ppm* ND ND <5ppm ND ND
Visual Oil ND ND ND ND ND ND
Conducivity
(uS/cm)
--- <2985 <4477 --- <2985 <4477

VMP IOM 1
Contents
Section
4Maintenance
PAGE 31
5Parts and
Warranty
PAGE 35
3Operation
PAGE 17
2Installation
PAGE 9
1Safety Warnings
and Precautions
PAGE 3

2VMP IOM

VMP IOM 3
Section 1Safety Warnings
and Precautions
4
5
3
2

4VMP IOM

VMP IOM 5
Safety Warnings and Precautions
This manual is provided as a guide to the correct operation and
maintenance of your Fulton Gas Fired Steam Boiler, and should be
permanently available to the staff responsible for the operation of
the gas fired boiler.
These instructions must not be considered as a complete code of
practice, nor should they replace existing codes or standards which
may be applicable.
The requirements and instructions contained in this section
generally relate to the standard Fulton Gas Fired Steam Boiler.
When installing a packaged unit, this entire section should be read
to ensure that the installation work is carried out correctly.
Prior to shipment the following tests are made to assure the
customer the highest standards of manufacturing:
a) Material inspections.
b) Manufacturing process inspections.
c) ASME welding inspections.
d) ASME hydrostatic test inspection.
e) Electrical components inspection.
f) Operating test.
g) Final Engineering Inspection
h) Crating inspection.
All units are crated for fork lift transport. Once uncrated, all units can
be transported with a forklift. Under no circumstances should weight
be allowed to bear on the jacket, control panel, or fan housing of any
Fulton Boiler.
Rigging your boiler into position should be handled by a competent
rigger experienced in handling heavy equipment.
The customer should examine the boiler for any damage, especially
the refractories. It is the responsibility of the installer to ensure
all parts supplied with the boiler are fitted in a correct and safe
manner.
NOTE
The installation of the Fulton Gas Fired Steam Boiler should
be carried out by competent personnel in accordance with the
standards of the National Fire Protection Association, National
or Canadian Electrical Code. All state and jurisdictional codes
beyond the scope of the applicable ASME Boiler and Pressure
Vessel Codes, for its corresponding classification, should be
followed in all cases. Jurisdictional authorities must be
consulted prior to installation.
WARNING
Operating the boiler beyond its design limits can damage the
boiler and can also be dangerous. Do not operate the boiler
outside its limits. Do not try to upgrade the boiler performance
by unapproved modifications. Unapproved modifications can
cause injury and damage. Contact your Fulton dealer before
modifying the boiler.
WARNING
A defective boiler can injure you or others. Do not operate a
boiler which is defective or has missing parts. Make sure that
all maintenance procedures are completed before using the
boiler. Do not attempt repairs or any other maintenance work
you do not understand. Obtain a Service Manual from Fulton
or call a Fulton Service Engineer.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of
this or any other appliances.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
- Installation and service must be performed by a qualified installer, service agency
or the gas supplier.
WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.

6VMP IOM
Safety Warnings and Precautions
For Your Safety
The following WARNINGS, CAUTIONS, and NOTES appear in various sections of this manual.
They are repeated on these safety summary pages as an example and for emphasis.
WARNINGS must be observed to prevent serious injury, or death to personnel.
CAUTIONS must be observed to prevent damage or destruction of equipment or loss of operating effectiveness.
NOTES must be observed for essential and effective operating procedures, conditions, and as a statement to be highlighted.
It is the responsibility and duty of all personnel involved in the operating and maintenance of this equipment to fully understand the
WARNINGS, CAUTIONS, and NOTES by which hazards are to be eliminated or reduced. Personnel must become familiar with all
aspects of safety and equipment prior to operation or maintenance of the equipment.
WARNING
Care should be taken to ensure that the blow off receptacle
used meets the regulations covering such vessels. A means to
cool boiler blowdown water to <140o F prior to discharging to
floor drains is required for personnel and equipment
protection.
WARNING
Only properly trained personnel should install and maintain
water gauge glass and connections. Wear safety glasses
during installation. Before installing, make sure all parts are
free of chips and debris. Gauge glass valves must be fully
open to prevent boiler water damage if a gauge glass breaks.
WARNING
Prior to the commencement of any work requiring the removal
of cover plates and the opening of the control panel box, the
electrical supply to the boiler must be disconnected.
WARNING
DO NOT TAMPER WITH THE SAFETY FEATURES OF THE
LOW WATER SAFETY CUT OFF.
WARNING
When shutting down the boiler for any extensive repairs, shut
off main disconnect switches on both the boiler and the feed
water pump.
WARNING
Do not clean the gauge glass while pressurized. Ensure gauge
glass valves are fully shut prior to glass removal.
WARNING
Do not allow anyone to operate, service or repair this
equipment unless they fully understand all applicable sections
of this manual.
CAUTION
To prevent corrosion fatigue at the feedwater nozzle or
cold end corrosion, boiler feed water must be at least
140oF prior to entry into the boiler.
CAUTION
A temperature exceeding 100oF in the boiler room may
cause premature failure of electrical components in the
boiler control panel.
CAUTION
The water chemistry in the boiler must be kept within
limits outlined in this manual. Failure to do so will likely
cause premature boiler pressure vessel failure and poor
steam quality.
NOTE
After installation is complete and prior to operation the
pressure vessel should be cleaned or boiled out per
instructions included in this manual.
NOTE
a) The fused disconnect switch that controls the feed water
pump should be kept in the “on” position at all times during
the boiler operation as well as during the non-operating
period of the boiler.
b) This switch should be turned “off” only when repairs or
adjustments should be made.
NOTE
The feedwater pump will continue to operate until the water
reaches the correct level in the boiler. This level is
approximately the center of the water gauge glass.
NOTE
To ensure that your Fulton Steam Boiler is kept operating
safely and efficiently, follow the maintenance procedures set
forth in Section 4 of this manual.
NOTE
If only the top refractory is to be changed, the bottom
refractory need not be removed.
NOTE
The boiler blow off operation should be done once during the
day when the boiler is at 10 PSIG or less.
NOTE
After a new Fulton Boiler has been in operation for several
months, pieces of burned metal will be found in the space at
the bottom of the boiler. These pieces of metal are the remains
of a light gauge metal form which was used during
manufacture for forming the boiler insulation. This is a normal
condition and does not affect the efficiency or the life of the
boiler in any way.

VMP IOM 7
Safety Warnings and Precautions

8VMP IOM

VMP IOM 9
Section 2Installation
4
5
3
1

10 VMP IOM
Installation
Gas Train Assembly
Burner Plate Assembly
Top Plate Assembly
Secondary Air Damper
Flue Cover Plate
Lifting Hook(s)
Stainless Steel Ring
Flue Outlet
Top Refractory
Turbulator
Feedwater Inlet
Bottom Refractory
Blowdown Outlet
Clean Out Opening
Transformer
Scroll
Burner Motor
Steam Gauge
Assembly
Water Column
Gauge Glass
Valve
Gauge Glass
Valve
Gauge Glass and
Protector Rods
Control Box
Fiberglass Insulation
Outside Jacket
Handhole
Castable Refractory Insulation
*O.P.C. = Operating Pressure Control
*H.P.C. = High Pressure Control
To
O.P.C.*
To
H.P.C.*
Blowdown Outlet
Burner Alignment
Tabs
Artwork Revision 2017-0927

Fulton Vertical
MultiPort
Steam Boilers
(Standard Burners)
Fulton Models: VMP40, VMP49.5, VMP50, VMP60,
VMP80, VMP100, VMP130 and
VMP150

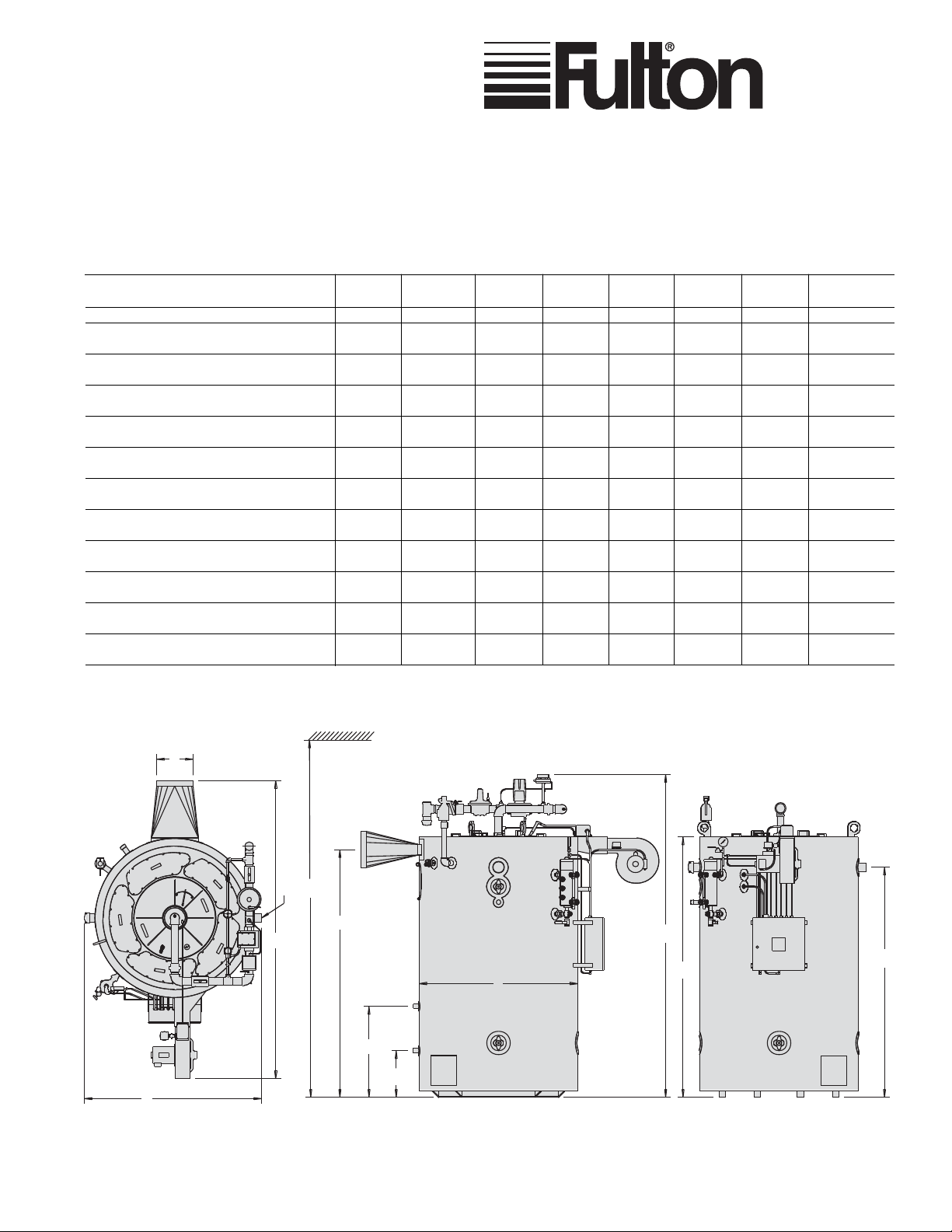

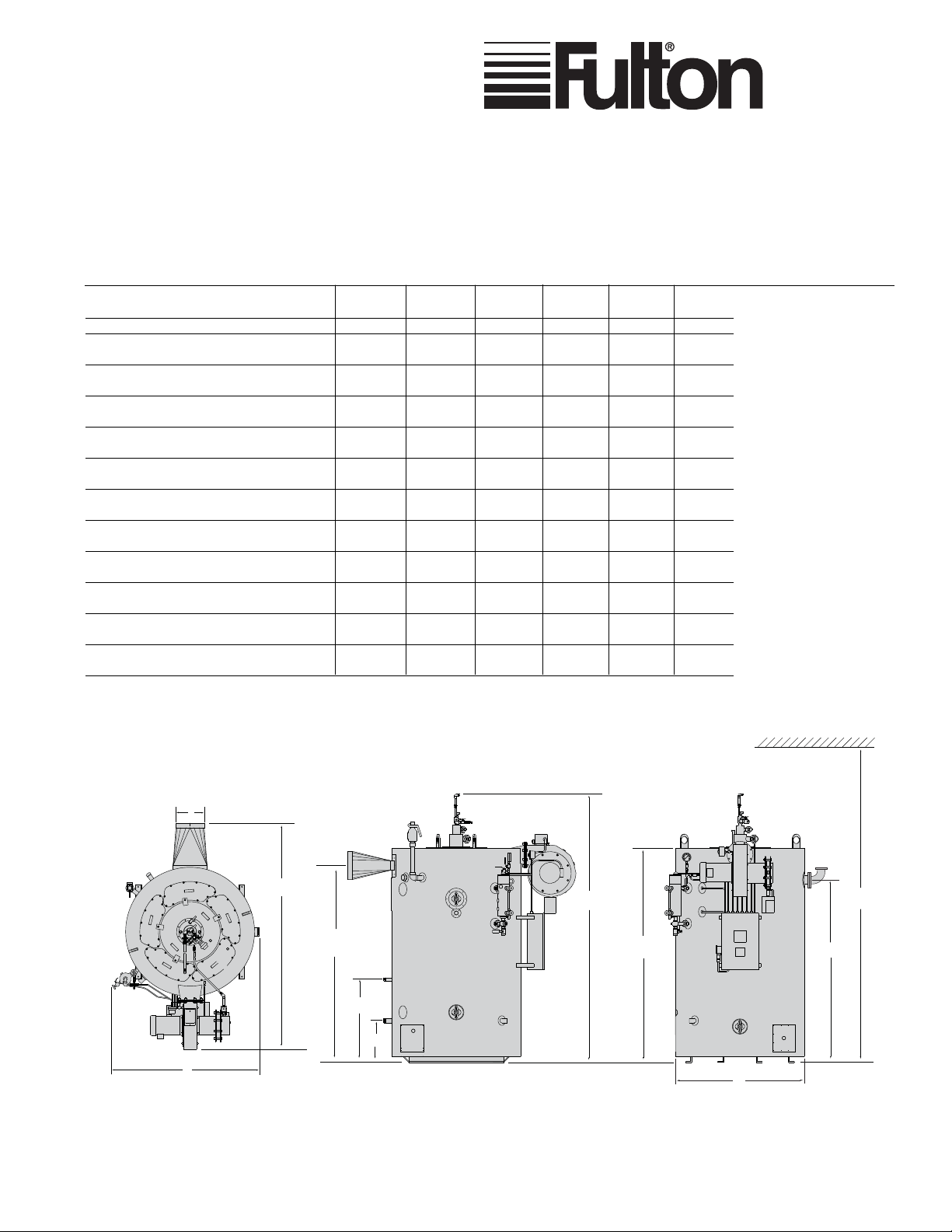

Product Data Submittal
Models VMP 40 49.5 50 60 80 100 130 150
Unit Size: BHP 40 49.5 50 60 80 100 130 150
A. Boiler Diameter IN 50.5 55 55 55 63 69 76.5 76.5
MM 1283 1397 1397 1397 1600 1753 1943 1943
B. Boiler Height IN 84 91 91 97 100 100 115 115
MM 2133 2312 2312 2464 2540 2540 2921 2921
C. Boiler Depth IN 90 100 100 100 114 119 128 130
MM 2286 2540 2540 2540 2896 3022 3251 3302
D. Boiler Height w/trim IN 107 112 112 118 124 126 135 141
MM 2718 2832 2832 2984 3150 3200 3429 3582
E. Overall Boiler Width IN 56 62 62 62 68 74 84.5 84.5
MM 1422 1575 1575 1575 1727 1880 2146 2146
F. Flue Outlet Diameter IN 12 12 12 12 14 14 14 16
MM 305 305 305 305 356 356 356 407
G. To Center of Flue Outlet IN 79 86 86 92 95 95 107 107
MM 2006 2184 2184 2237 2413 2413 2718 2718
H. Feedwater Inlet IN 35 35 35 35 35 35 39 39
MM 889 889 889 889 889 889 991 991
J. Blowdown Outlet IN 17 18 18 18 18 18 22 22
MM 432 457 457 457 457 457 559 559
K. Height to Steam Outlet1IN 73 77 77 84 89 89 102 102
MM 1854 4956 4956 2134 2260 2260 2591 2591
L. Min. Clearance to Ceiling IN 110 115 115 125 130 132 145 145
MM 2794 2921 2921 3175 3302 3353 3683 3683
Specifications and Dimensions are approximate. We reserve the right to change specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of unit.
1. The boiler may be fitted with a 90oelbow spool piece making the steam outlet connection higher.
Dimensions
L
G
H
J
D
A
Minimum Clearance
For Burner Removal
BK
E
F
C
SteamOutlet
Top View Side View Front View
11 VMP IOM

Specifications
Models VMP 40 49.5 50 60 80 100 130 150
Unit Horsepower 40 49.5 50 60 80 100 130 150
Boiler Connections
Steam Outlet 15 PSI - 150# Flanged IN 4 4 4 4 6 6 *6*6
MM 101 101 101 101 152 152 203 203
Steam Outlet 150 PSI IN NPT 3 3 3 3 3 3 4 4
MM 76 76 76 76 76 76 101
Feedwater Inlet IN NPT 1 1 1 1 1 1.25 1.25 1.25
MM 25 25 25 25 25 31 32 32
Blowdown Outlet (2) IN NPT 1.5 1.5 1.5 1.5 1.5 2 2 2
MM 38 38 38 38 38 51 51 51
Water Column Blowdown IN NPT 1 1 1 1 1 1 1 1
MM 25 25 25 25 25 25 25 25
Surface Blowdown IN NPT .75 .75 .75 .75 .75 .75 .75 .75
MM 19 19 19 19 19 19 19 19
Safety Valve 150 PSI Inlet IN NPT .75 1 1 1 1.25 1.25 1.5 1.5
MM 19 25 25 25 31 31 38 38
Safety Valve 150 PSIOutlet IN NPT 1 1.25 1.25 1.25 1.5 1.5 2 2
MM 25 31 31 31 38 38 51 51
Safety Valve 15 PSI Inlet (2) IN NPT 1.25 1.25 1.25 1.25 1.5 1.5 2 2
MM 31 31 31 31 38 38 51 51
Safety Valve 15 PSI Outlet IN NPT 1.5 1.5 1.5 1.5 2 2 2 2
MM 38 38 38 38 51 51 51 51
Natural Gas Connection IN 1.5 1.5 1.5 2 2 2 2 2
MM 38 38 38 51 51 51 51 51
Light Oil Connection IN .25 .25 .25 .25 .25 .25 .375 .375
MM6666 669.59.5
Burner Motor (Gas) HP 1.5 1.5 1.5 1.5 3 3 10 10
KW 1.1 1.1 1.1 1.1 2.2 2.2 7.5 7.5
Burner Motor (Oil/Combo) HP 2 2 2 2 3 3 10 10
KW 1.5 1.5 1.5 1.5 2.2 2.2 7.5 7.5
Approximate Weights
Shipping Weights (approx.) LB 5775 6550 6575 7370 8000 9500 12350 12350
KG 2620 2972 2980 3340 3630 4310 5600 5600
Operating Weight (approx.) LB 6720 8850 8209 9227 11760 14525 20135 20135
KG 3050 4015 3720 4190 5330 6590 9130 9130
**Ratings Sea Level to 3000 FT. (914 M)
Output 1000 BTU/HR 1340 1656 1673 2009 2678 3347 4353 5022
1000 KCAL/HR 338 417 422 506 675 843 1097 1266
Steam Output LBS/HR 1380 1708 1725 2070 2760 3450 4485 5175
KG/HR 626 775 783 939 1252 1565 2035 2348
Water Content GAL 172 274 242 270 383 518 810 810
LITERS 651 1038 916 1022 1450 1960 3066 3066
Approximate Fuel Consumption at Rated Capacity+
Natural Gas FT3/HR 1595 1972 1992 2392 3188 3985 5200 5978
M3/HR 45 56 56 68 90 113 147 169
LP Gas FT3/HR 638 788 797 957 1275 1594 2080 2391
M3/HR 18 22 23 27 36 45 59 68
Light Oil GPH 11.0 13.9 14.0 17.0 22.8 28.0 37.0 42.0
LPH 41.6 52.6 53 64.3 87 106 140 159
Gas Pressure Required
Standard Burners Min. IN W.C. 7 7 7 7 9 9 40 40
Gas Pressure Required
Standard Gas Train Max. IN W.C. 13 13 13 13 27 27 5 psig 5 psig
Electrical Requirements/Amps for Burner Motors
208V, 50/60 CY, 3 Phase (Gas/Oil) 6.6/7.5 6.6/7.5 6.6/7.5 6.6/7.5 10.6 10.6 30.8 30.8
230V, 50/60 CY, 3 Phase (Gas/Oil) 6.0/6.8 6.0/6.8 6.0/6.8 6.0/6.8 9.6 9.6 28 28
460V, 50/60 CY, 3 Phase (Gas/Oil) 3.0/3.4 3.0/3.4 3.0/3.4 3.0/3.4 4.8 4.8 14 14
* Steam separator or dual steam nozzle design required.
**Ratings - From 0 PSIG and at 212 Degrees F and KG/HR - From 0 KG/CM2and at 100 Degrees C +Consumption based on natural gas 1000 BTU/FT3;
Propane 2500, and Light Oil 140,000 BTU/GAL.
vmpstd-pds-2010-1008
NOTE: 7” - 11” wc gas pressure is required during run for 40-60 HP boilers with standard burners. 9”-11” wc gas pressure is required during run for 80-100 HP boilers with
standard CSD-1 burners, 40” W.C. is required for 130-150 HP
Specifications & dimensions are approximate. We reserve the right to change without notice.
The Fulton Companies
972 Centerville Road
Pulaski, New York 13142
Call 315-298.5121
Fax [phone]
www.fulton.com
11a VMP IOM

Fulton Vertical
MultiPort
Steam Boilers
(Low Emissions Burners)
(<20 PPM NOx)
Fulton Models: VMP40, VMP49.5, VMP50, VMP60,
VMP80, and VMP100
Product Data Submittal
Models VMP 40 49.5 50 60 80 100
Unit Size: BHP 40 49.5 50 60 80 100
A. Boiler Diameter IN 49 55 55 55 63 69
MM 1245 1397 1397 1397 1600 1753
B. Boiler Height IN 84 91 91 97 100 100
MM 2133 2312 2312 2464 2540 2540
C. Boiler Depth IN 90 100 100 100 114 119
MM 2286 2540 2540 2540 2896 3022
D. Boiler Height w/trim IN 107 112 112 118 124 126
MM 2718 2832 2832 2984 3150 3200
E. Overall Boiler Width IN 56 62 62 62 68 74
MM 1422 1575 1575 1575 1727 1880
F. Flue Outlet Diameter IN 12 12 12 12 14 14
MM 305 305 305 305 356 356
G. To Center of Flue Outlet IN 79 86 86 92 95 95
MM 2006 2184 2184 2237 2413 2413
H. Feedwater Inlet IN 35 35 35 35 35 35
MM 889 89 889 889 889 889
J. Blowdown Outlet IN 17 18 18 18 18 182
MM 432 457 457 457 457 457
K. Height to Steam Outlet1IN 73 77 77 84 89 89
MM 1854 4956 4956 2134 2260 2260
L. Min. Clearance to Ceiling IN 123 135 135 144 147 147
for Burner Removal MM 3124 3429 3429 3658 3734 3734
Specifications and Dimensions are approximate. We reserve the right to change specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of the unit.
1. The boiler may be fitted with a 90oelbow spool piece making the steam outlet connection higher.
Dimensions
F
E
C
G
H
J
DL
K
B
A
Top View Side View Front View
12 VMP IOM

Specifications
Models VMP 40 49.5 50 60 80 100
Unit Horsepower 40 49.5 50 60 80 100
Boiler Connections
Steam Outlet 15 PSI IN 4 4 4 4 6 6
150# Flanged MM 101 101 101 101 152 152
Steam Outlet 150 PSI IN NPT 3 3 3 3 3 3
150# Flanged MM 76 76 76 76 76 76
Feedwater Inlet IN NPT 1 1 1 1 1 1.25
MM 25 25 25 25 25 31
Blowdown Outlet IN NPT 1.5 1.5 1.5 1.5 1.5 2
MM 38 38 38 38 38 51
Water Column Blowdown IN NPT 1 1 1 1 1 1
MM 25 25 25 25 25 25
Surface Blowdown IN NPT .75 .75 .75 .75 .75 .75
MM 19 19 19 19 19 19
Safety Valve 150 PSI Inlet IN NPT .75 1 1 1 1.25 1.25
MM 19 25 25 25 31 31
Safety Valve 150 PSIOutlet IN NPT 1 1.25 1.25 1.25 1.5 1.5
MM 25 31 31 31 38 38
Safety Valve 15 PSI Inlet (2)@ IN NPT 1.25 1.25 1.25 1.25 1.5 1.5
MM 31 31 31 31 38 38
Safety Valve 15 PSI Outlet (2) IN NPT 1.5 1.5 1.5 1.5 2 2
MM 38 38 38 38 51 51
Natural Gas Connection IN 1.5 1.5 1.5 2 2 2
MM 38 38 38 51 51 51
Burner Motor HP 5 5 5 5 5 7.5
KW 3.7 3.7 3.7 3.7 3.7 5.6
Approximate Weights
Shipping Weights (approx.) LB 6575 7375 7375 8170 8800 10300
KG 2982 3345 3345 3706 3992 4672
Operating Weight (approx.) LB 8659 9684 9684 10671 12051 14700
KG 3928 4393 4393 4840 5466 6668
Ratings Sea Level to
3000 FT. (914 M)
Output 1000 BTU/HR 1340 1656 1673 2009 2678 3347
1000 KCAL/HR 338 417 422 506 675 843
Steam Output** LBS/HR 1380 1708 1725 2070 2760 3450
KG/HR 626 775 783 939 1252 1565
Water Content GAL 172 274 242 270 383 518
LITERS 651 1038 916 1022 1450 1960
Approximate Fuel Consumption at Rated Capacity+
Natural Gas FT3/HR 1595 1972 1992 2392 3188 3985
M3/HR 45 56 56 68 90 112
Gas Pressure Required Min. IN W.C. 30 30 30 40 40 40
Gas Pressure Required Max. PSIG. 5 5 5 5 5 5
Electrical Requirements/Amps for Burner Motors
208V, 60 CY, 3 Phase 16.7 16.7 16.7 16.7 16.7 24.2
230V, 60 CY, 3 Phase 15.2 15.2 15.2 15.2 15.2 22.0
460V, 60 CY, 3 Phase 7.6 7.6 7.6 7.6 7.6 11.0
* Steam separator or dual steam nozzle design required. Consult factory for availability.
**Steam Output LB/HR - From 0 PSIG and at 212 Degrees F and KG/HR - From 0 KG/CM2and at 100 Degrees C
+Consumption based on natural gas 1000 BTU/FT3and 20 ppm NOx@ 3% CO2burner.
vmp40-100le-pds-2010-1008
The Fulton Companies
972 Centerville Road
Pulaski, New York 13142
Call 315-298.5121
Fax [phone]
www.fulton.com
12a VMP IOM

Fulton Vertical
MultiPort
Steam Boilers
(Low Emissions Burners)
(<30 PPM NOx)
Fulton Models: VMP130 and VMP150
Product Data Submittal
Models VMP 130 150
Unit Size: BHP 130 150
A. Boiler Diameter IN 76.5 76.5
MM 1943 1943
B. Boiler Height IN 115 115
MM 2921 2921
C. Boiler Depth IN 128 130
MM 3251 3302
D. Boiler Height w/trim IN 135 149
MM 3429 3785
E. Overall Boiler Width IN 84.5 84.5
MM 2146 2146
F. Flue Outlet Diameter IN 14 16
MM 356 407
G. To Center of Flue Outlet IN 107 107
MM 2718 2718
H. Feedwater Inlet IN 39 39
MM 991 991
J. Blowdown Outlet IN 22 22
MM 559 559
K. Height to Steam Outlet1IN 102 102
MM 2591 2591
L. Min. Clearance to Ceiling IN 155 155
for Burner Removal MM 3937 3937
M. Height to top of FGR Loop IN 121 121
MM 3073 3073
Specifications and Dimensions are approximate. We reserve the right to change
specifications and/or dimensions.
NOTE: Minimum clearance is 24” to the side and back and 36” in front of unit.
1. The boiler may be fitted with a 90oelbow spool piece making the steam outlet
connection higher.
Dimensions
K
B
DG
H
J
F
E
C
M
L
A
13 VMP IOM

Specifications
The Fulton Companies
972 Centerville Road
Pulaski, New York 13142
Call 315-298.5121
Fax [phone]
www.fulton.com
Models VMP 130 150
Unit Horsepower 130 150
Boiler Connections
Steam Outlet 15 PSI - 150# Flanged IN *6*6
MM 152 152
Steam Outlet 150 PSI IN NPT 6 6
150# Flanged MM 152 152
Feedwater Inlet IN NPT 1.25 1.25
MM 32 32
Blowdown Outlet IN NPT 2 2
MM 51 51
Water Column Blowdown IN NPT 1 1
MM 25 25
Surface Blowdown IN NPT .75 .75
MM 19 19
Safety Valve 150 PSI Inlet IN NPT 1.5 1.5
MM 38 38
Safety Valve 150 PSIOutlet IN NPT 2 2
MM 51 51
Safety Valve 15 PSI Inlet (2)@ IN NPT 2 2
MM 51 51
Safety Valve 15 PSI Outlet (2) IN NPT 2 2
MM 51 51
Natural Gas Connection IN 2.5 2.5
MM 63 63
Burner Motor HP 10 10
KW 7.4 7.4
Approximate Weights
Shipping Weights (approx.) LB 12800 12800
KG 5806 5806
Operating Weight (approx.) LB 20585 20585
KG 9337 9337
Ratings Sea Level to
3000 FT. (914 M)
Output 1000 BTU/HR 4353 5022
1000 KCAL/HR 1097 1266
Steam Output** LBS/HR 4485 5175
KG/HR 2035 2348
Water Content GAL 810 810
LITERS 3066 3066
Approximate Fuel Consumption at Rated Capacity+
Natural Gas FT3/HR 5182 5978
M3/HR 146 169
Gas Pressure Required Min. IN W.C. 21 21
Gas Pressure Required Max. PSIG 5 5
Electrical Requirements/Amps for Burner Motors
208V, 60 CY, 3 Phase 30.8 30.8
230V, 60 CY, 3 Phase 28 28
460V, 60 CY, 3 Phase 14 14
* Steam separator or dual steam nozzle design required. Consult factory for availability.
**Steam Output LB/HR - From 0 PSIG and at 212 Degrees F and KG/HR - From 0 KG/CM2and at 100 Degrees C
+Consumption based on natural gas 1000 BTU/FT3and 20 ppm NOx@ 3% O2burner.
vmp130-150le-pds-2010-1008
13a VMP IOM
