Funkwerk elmeg hybrid 300 User manual

Declaration of Conformity and CE Mark
This device meets the requirements of R&TTE Directive 1999/5/EC:
„Directive 1999/5/EC of the European Parliament and of the Council of 9 March 1999 on radio equip-
ment and telecommunications terminal equipment andthe mutual recognition of their conformity“.
The Declaration of Conformity can be viewed at the following web address: http://www.funkwerk-ec.com.
Waste disposal
The crossed-out waste bin icon on the device indicates that the device must be disposed of separately
from normal household waste at the disposal sites provided at the end of its service life.
GEMA
This product uses internal music for calls on hold for which approval from GEMA (German Society for Musical Per-
formance and Mechanical Reproduction Rights) is not required. This has been confirmed by GEMA with the follo-
wing approval certification. The approval certification can be viewed at the following web address: http://www.funk-
werk-ec.com.
System hold music:
elmeg Song,
Hold the line.
© 2012 Funkwerk Enterprise Communications GmbH - All rights reserved.
This document may not be reproduced, in full or in part, except with the approval of the publisher and with a detailed
reference to the source publication, irrespective of the nature and method or media (mechanical or electronic) by
which this is produced.
Functional descriptions of this documentation that relate to software products of other manufacturers are based on
the software used at the time of creation or printing. The product or company names usedin this documentation may
in some cases be registered trademarks.

Table of Contents
Declaration of Conformity and CE Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B
Waste disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B
GEMA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B
© 2012 Funkwerk Enterprise Communications GmbH - All rights reserved. . . . . . . . . . . . . . . . . . . B
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Mains connection (230V~mains) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Radio devices (e.g. DECT, Bluetooth, WLAN). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Power failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of module slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Module slots 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Module slots Slot 7 and 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Module slots 11-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Base module interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Serial 1/Serial 2 (RS 232 interface 1 and 2). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mini USB interface assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Audio in/out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Functional earth (GND terminal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SD card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Contacts (switch contacts) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ETH1- ETH5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
LED elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Status LED, rack-mounted version elmeg hybird 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Display of LED 1-LED 4 (elmeg hybird 300) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of LED functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Interfaces elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Interior view of the elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Assembly of elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting modules in the elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mount modules for module slots 1-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Mount modules for module slots 11 and 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Open module slot 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Opening the cover for module slot 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Closing the cover for module slot 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Remove detachable cover for clamp connector 9 and RJ45 connector 8. . . . . . . . . . . . . . . . . . . . . . . 13
Table of Contents
I

Interfaces elmeg hybird 600. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connections elmeg hybird 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Frontal view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Fan connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Functional earth connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mounting modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mounting modules for module slots 7-8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mounting modules in mounting frame (elmeg hybird 600) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Mounting modules for module slots 11-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Module Connection (MC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Terminal strip terminals / RJ45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Module connection clamp (MC CL) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Module connection RJ45 (MC RJ45)" . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Assignment of connection terminals and RJ45 sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Y-Adapter FXS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Assignment of the Y-adapter FXS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
M 4 S/U+4U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Switch for the terminators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical data, S0 interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Technical data, Upn interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Interface assignment M 4 S/U + 4U . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
M 4 S/U + 6 FXS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Switch for the terminators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Technical data, S0 interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical data, Upn interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Technical data, analogue interfaces (FXS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Interface assignment M 4 S/U + 6 FXS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
M 8 FXS and M 16 FXS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Technical data, analogue interfaces (FXS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Interface assignment M 8 FXS/M 16 FXS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
LED functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED functions ETH1- ETH5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED-functions ETH1- ETH5 10Mbits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED-functions ETH1- ETH5 100Mbits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED-functions ETH1- ETH5 1Gbit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED functions: internal S0 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED functions: external S0 interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED functions: internal U interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
LED functions: FXS interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Coding Plug (Coding plug) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
M 4 FXO (POTS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Performance features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Interface assignment FXO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Module power supply unit (M PSU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table of Contents
II

Module mains unit 1/2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Intelligent power management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Surge protection module (FSM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Module connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Connection of analogue FXS terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
International . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
System technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ISDN connections: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Upn connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Analogue interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
USB interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
elmeg hybird 300 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
elmeg hybird 600. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Table of Contents
III

Safety instructions
Caution: All areas which can only be opened with tools are maintenance areas. Unauthorised opening of
the device may be dangerous to the user.
Condensation may form on or in the device during transitions from cold to warm temperatures. Please only remove
the system from the packing materials once the authorised operating ambient temperature has been reached.
•Do not connect or disconnect any lines during a thunderstorm.
•The Die elmeg hybird 300/ elmeg hybird 600 may only be operated in dry rooms.
•Do not assemble the Die elmeg hybird 300/ elmeg hybird 600 in damp rooms or in areas subject to a risk of
explosion.
•The installation cables may only be laid inside of buildings.
•In operation, the elmeg hybird 300 must be mounted on a wall in the specified direction (see page 9).
•Only fit the connection cables to the appropriate connectors.
• Lay connection cables to prevent accidents.
• Avoid the following influences:
Direct sunlight
Heat sources (e.g. heating elements)
Electronic devices (e.g., audio equipment, office equipment or microwaves)
Penetration of humidity or liquids
Corrosive liquids or vapours
Heavy dust
• Only open those areas of the system specified in the installation instructions.
•Do not touch plug contacts with sharp, metallic or damp objects.
•Only use approved accessories.
The Die elmeg hybird 300/ elmeg hybird 600 must be connected to the functional earth before being ini-
tially brought into service. The functional earth must be connected to the equipotential bonding strip via
a connecting line with a minimum of 2.5mm 2.
•Only terminals that offer SELV (safety extra low voltage) and/or meet ETS 300047 may be connected to the
elmeg hybird 300. Correct use of the permitted terminals meets these requirements.
•Clean the Die elmeg hybird 300/ elmeg hybird 600 only with a slightly dampened cloth.
Mains connection (230V~mains)
•Installation of the electrical connection (shockproof socket) for the system (and any additional devices)
must be performed by an authorised electrician to avoid damage to persons and property.
Safety instructions
1

•The system is designed for connection to a functional earth; this must be connected before being brought
into service.
An “earth line” should be located in the vicinity of the assembly site (water line, heating line or the building
installation’s equipotential bonding strip). Connection to the system must occur via a connecting line of
min. 2,5 mm 2.
•If possible, provide a separate electric circuit for the 230V connection of your system . If other household
devices short circuit, the system can then still operate.
•We recommend installation of surge protection for the system, to guard against the overvoltage that may
occur during thunderstorms. Consult your electrician about this.
Radio devices (e.g. DECT, Bluetooth, WLAN)
•Under certain circumstances, medical equipment may be influenced by operating radio devices. Therefore,
please observe requirements imposed by local conditions.
Power failure
•In the event of a power failure (230V~ mains voltage), the system cannot operate, thus preventing internal
and external calling. When the power is restored after a failure, separate internal and external connections
are not automatically reestablished. Performance features set up via configuration remain unaffected by
the power failure.
Safety instructions
2

elmeg hybird 300
Description of module slots

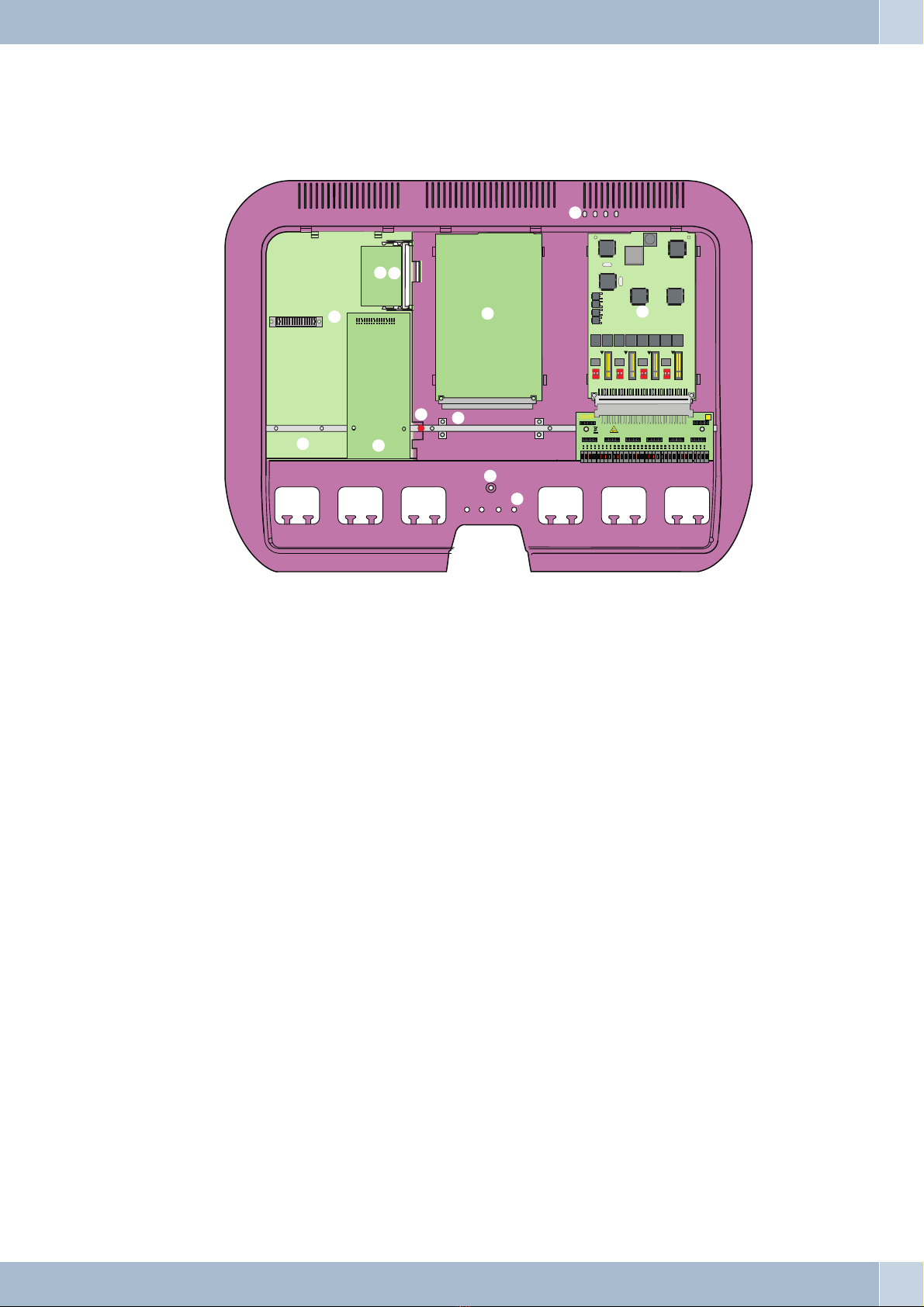

The image below shows the module slots of the elmeg hybird 300/ elmeg hybird 600, along with their designation.
1elmeg hybird 300
2elmeg hybird 300
Slot
Slot refers to the individual module slots (slot 1-12). For connection of the external lines, the modules in slots 1-3
each require one more module “Connection Module” (Port).
Module slots 1-3
The following modules can be inserted here:
•M 4 S/U + 6 FXS
•M 4 S/U + 4U:
•M 8 FXS
•M 16 FXS
Module slots Slot 7 and 8
•M 4 FXO
elmeg hybird 300 Description of module slots
3
Slot 8Slot 7
Slot 11 Slot 12
Slot 1 Slot 2
Port
Slot 3
1234567812345678 12345678
PortPort
1234 12341234 1234 1234 1234 1234 12341234 12341234 1234 1234 1234 1234 12341234 12341234 1234 1234 1234 1234 1234
Slot 4 Slot 5
Port
Slot 6
1234567812345678 12345678
PortPort
1234 12341234 1234 1234 1234 1234 12341234 12341234 1234 1234 1234 1234 12341234 12341234 1234 1234 1234 1234 1234
Sieckmann
2
1

Base module interfaces elmeg hybird 300
4
Module slots 11-12
The following modules can be inserted here:
•DSP module 4fold
•DSP module 8fold
•DSP module 32fold
Port
Located on the “Connection Module” module (port) are the RJ45 interfaces (1-8) or connecting terminals (1-8), (see
page 8). The connecting terminals can be removed from the module. Connection to the terminals (a1 b1 a2 b2) con-
forms to the currently inserted module. On page 8, 10, 18, 20, 22, you’ll find a description of the “Connection Module”.
Base module interfaces
1Serial 1 7System GND terminal
(functional earth)
§ETH 1
2Audio in/out 8SD card $ETH 2
3Serial 2 9Reset %ETH 3
4elmeg hybird 600 LED 0Contacts &ETH 4
5USB Contacts /ETH 5
6Maintenance °Option (Option
Serial 1/Serial 2 (RS 232 interface 1 and 2)
•The serial 1 interface is designed for connecting a laptop, a PC with serial interface for console applications.
•The serial 2 interface is designed for connecting a printer with serial interface for hotel applications
(check-in/check-out).
The serial 1/2 interfaces are not galvanically isolated from the elmeg hybird 300/ elmeg hybird 600 mass. If PC’s or
printers are connected with the serial interfaces, these should be powered from the same 230V line as the elmeg hybird
300/ elmeg hybird 600. Otherwise an equalising current may flow through the safety earth/service earth. This could
lead to data transmission disruption.
Any work on serial 1 and 2 interfaces may only be performed in the presence of a properly connected functional earth.
Devices to be linked via the interface (e.g. PC or printer) must be switched off and disconnected from the 230V~ power
supply before the serial 1 and 2 interfaces are connected!
31 2456790ß° 8§$%&/(
Sieckmann

Mini USB interface assignment
1nc
2TxD
3RxD
4nc
5GND
Audio in/out
No function is currently assigned to this interface.
Functional earth (GND terminal)
The elmeg hybird 300/ elmeg hybird 600 requires a functional earth connection for safe operation. Hence, an “earth
line” should be located in the vicinity of the assembly site (a water line or heating line connected to the potential equa-
lisation line, or the building installation’s equipotential bonding strip). Connection to the elmeg hybird 300 should
occur via a connecting line of at least 2.5 mm2.
Note:
If terminals are connected to the safety earth or service earth (e.g. USB or serial interfaces), the func-
tional earth connection should be as short as possible, as ground loops may otherwise ensue.
SD card
SD cards cannot be formatted in the system.
The following data can be stored on the SD card:
• Audio files in “wave” format.
• Music-on-hold files in “wave” format.
•“Wave” files for voice applications.
Reset
The elmeg hybird 300/ elmeg hybird 600 is rebooted by quickly pressing the key (ca. one second). Pressing the key is
equivalent to interrupting the power supply. Saved data are preserved, but all connections interrupted.
If you press the reset key for ca. 30-40 seconds, the elmeg hybird 300/ elmeg hybird 600 will execute a factory reset.
This means that the elmeg hybird 300/ elmeg hybird 600 is returned to its ex works state. The boot configuration is
deleted and all passwords are reset. The reset is accomplished when the elmeg hybird 300/ elmeg hybird 600 returns
to operating status after ca. 30 to 40 seconds, and the status LED returns to blinking.
Contacts (switch contacts)
No function is currently assigned to this interface!
elmeg hybird 300 Base module interfaces
5
1
2
3
4
5
Sieckmann

Option
No function is currently assigned to this interface!
ETH1- ETH5
5 Ethernet interfaces
An Ethernet interface is a physical interface for connection to the local network or external networks.
Ethernet ports ETH1 to ETH4 are assigned to a single logical Ethernet interface in the ex works state. .
Port ETH5 is assigned to logical ethernet interface en1-4 and is not preconfigured.
To ensure your device can be reached, when splitting ports make sure that Ethernet interface en1-0 with the
preconfigured IP address and netmask is assigned to a port that can be reached via Ethernet. If in doubt, perform the
configuration using a serial connection via the Serial 1 interface.
Note:
LED functions ETH1- ETH5 are located on page 31.
LED elmeg hybird 300
LED’s of the elmeg hybird 300 are located on the upper right corner of the housing.
Status LED, rack-mounted version elmeg hybird 600
Display of LED 1-LED 4 (elmeg hybird 300)
Feature LED pulse LED Function (see description)
1Power ________ Flashes red Power Management
 Glows green Operating voltages present
2State ________ Flashes red System messages present
________ Flashes green Operating status
 Glows green The elmeg hybird 300 is initialised
3SD card ______ Flickers green Write/read data
 Glows green Memory card detected but no access
Base module interfaces elmeg hybird 300
6
Status
SD-Card
Power
Info
Sieckmann
123
4
123
4
5
6
Sieckmann

Description of LED functions
1 PowerManagement
Anoverloadhasoccurredontheelmeghybird300; e.g.overloadatS0interface.Theelmeg hybird300
attempts to return to normaloperation after removal of the fault.
2 Systemmessages present
Error message if, e.g. the SIP provider is not registered, or theclient is not detected at the USBhost.
Theelmeg hybird300 is initialised
When switching to operating voltage, the LED blinksuntil the elmeg hybird 300 is operative.
Operatingstatus
The elmeg hybird 300 is in normal operation; no errorsdetected.
3 Memorycard detected
Memorycard detected butno access.
Write/read data
Data are currently being writtenor read on the SD card.
elmeg hybird 300 Base module interfaces
7

Interfaces elmeg hybird 300
Interior view of the elmeg hybird 300
1Module slot 1. Slot open; slots 7-12 visible beneath.
2Module slot 2. Example shows inserted module.
3Module slot 3. Module M 4 S/U + 6 FXS with »module connection-clamp (MC CL)«(assembled).
7Module slot 7.
8Module slot 8. Example shows inserted module.
Module slot 11. Example shows inserted module.
°Module slot 12.
§Functional earth strip. It is linked with the system GND terminal.
$Functional earth connecting screw. This bar links the functional earth strip with the functional earth
strip of the cover for slot 1. They must always remain connected!
%LED display (see page 6).
&Bore for fixation screw.
/Cable entry with clamp for cable tie.
(Bores for cable ties.
Interior view of the elmeg hybird 300 Interfaces elmeg hybird 300
8
Modul
Header RJ45
FSM2
FSM1
FSM3 FSM4
FSM5 FSM6
FSM7
FSM8
//////
Sieckmann
%
2
1
°
ß
$§
&
8
7
(
ON
1 2
ON
1 2
ON
1 2
ON
1 2
3

Assembly of elmeg hybird 300
Installation process
This section describes the installation sequences.
In operation, the elmeg hybird 300 must be mounted on a wall in the specified direction (top, see image
below).
Select an installation site no further than 1.5 metres from a 230V~ mains outlet and the NTBA (ISDN connection), as
well as the network operator’s DSL connection.
•To prevent devices from interfering with each other, do not install the system close to electronics such as
Hi-Fi systems, office equipment or microwave ovens.
Do not install near heat sources, e.g. heating elements, or in damp rooms. Ambient temperature must re-
main between 5°C and 40°C.

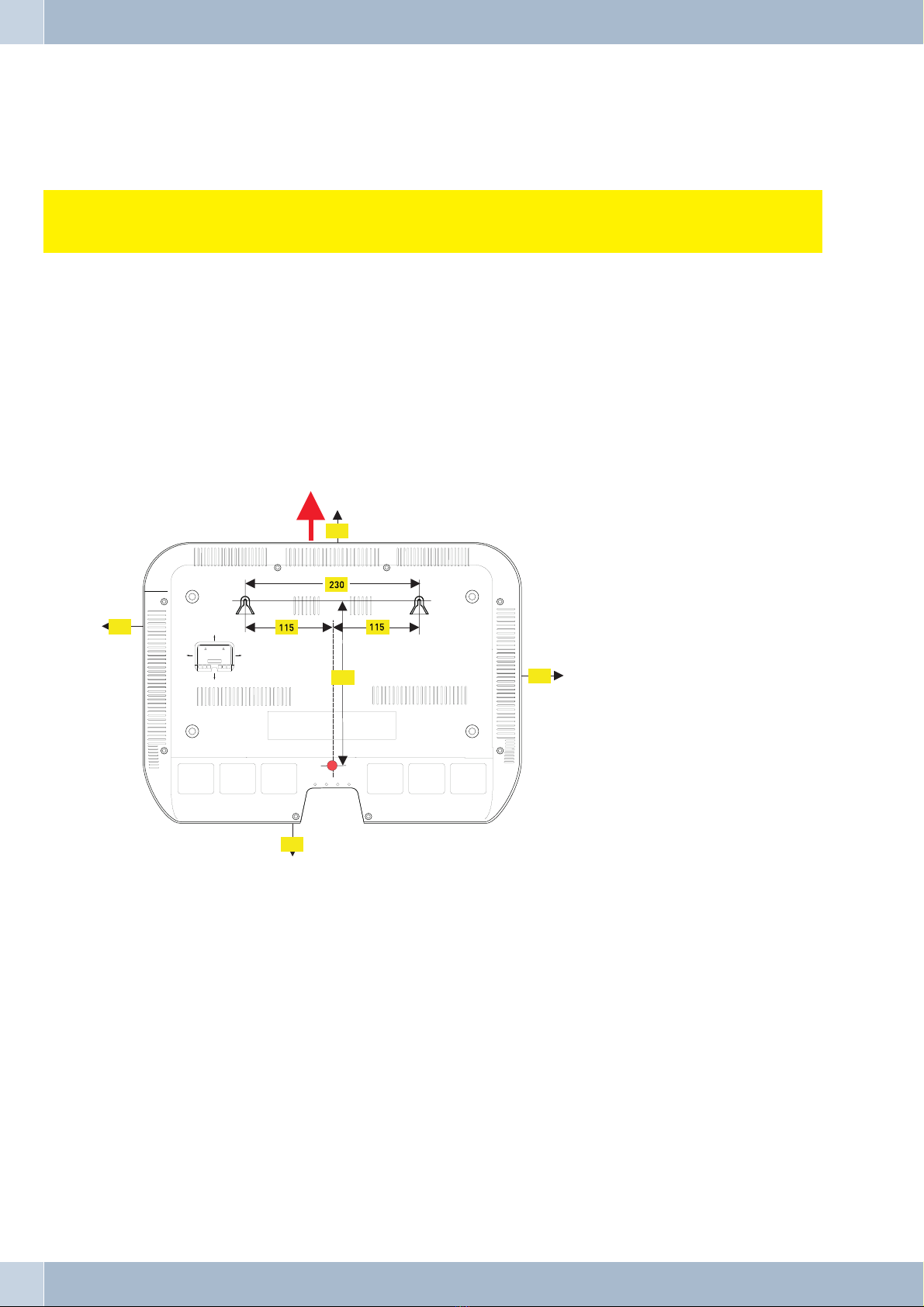

•Borehole spacing guidelines for wall mounting are indicated at the back of the system (4). In selecting an
installation site, a minimum distance of the system from other objects of about 100 mm must be observed
•System fixation points must rest firmly on the wall. Make sure that no supply lines, cables and the like are
present in marked borehole areas.
•Drill the two upper fixation holes (1 and 2) at marked points. If mounting with 6mm dowels, use a 6mm
masonry bit.
•Insert the screws into both upper dowels in the wall so as to maintain a spacing of ca. 5 mm between screw
head and wall.
•elmeg hybird 300 open:
Interfaces elmeg hybird 300 Assembly of elmeg hybird 300
9
100
100
100
100
12
3
4
218
Top/Oben

They may be electrostatically charged. Before opening the system, you must discharge yourself by touch-
ing an earthed conductive object (e.g. water pipe).
•The system can be opened for mounting with-
out tools. For this, pull the cover strap (identi-
fied in the picture by an arrow) upward in the
direction of the arrow. The cover can now be
removed. Inside the cover appears a diagram
indicating the layout of the modules along with
their designation (see page 3).
Caution: All areas which can only be opened with tools are maintenance areas. Unauthorised opening of
the device may be dangerous to the user.
Hang the system from above with rear mounts 1 and2 into the screw heads. Next, check the system for level horizon-
tal mounting, mark lower borehole 3 and drill.
• Then tighten the system to the marked position with the third screw.
• For configuration over the Ethernet, connect the PC’s Ethernet interface with a system LAN interface using
a Cat.6 or Cat.5 connecting cable. In basic setting ETH 5.
• To close, insert the snap tabs (back of housing cover) into the tab opening at the base of the system housing,
then press down on the front of the housing cover until it locks into place.
•The system is now ready to operate.
Assembly of elmeg hybird 300 Interfaces elmeg hybird 300
10
Sieckmann

Mounting modules in the elmeg hybird 300
Do not extract or insert modules during operation!
Three different module types and their corresponding module slots have been designed for the elmeg hybird 300 (see
page 8).
•With the elmeg hybird 300‘s cover removed, you’ll find the module slots 1-3 at the top of the elmeg hybird
300
•Module slots 7-8 are located under the module slot 1 cover. To open cover, see instructions on page 12.
•Module slots 11-12 are located under the module slot 1 cover. To open cover, see instructions on page 12.
They may be electrostatically charged. Before opening the elmeg hybird 300, you must discharge yourself
by touching an earthed conductive object (e.g. water pipe).
Mount modules for module slots 1-3
The image shows the example of module slot 3.
1Module for slot 3.
2Lateral guide for modules.
3Module connection in the elmeg hybird
300 housing.
4Connection Module (in the example »MC
CL«(see page 8).
5Plug connection between module
Connection Module.
6Fixation screws of the “Connection
Module” in the earth bar.
•Place module on lateral guide 2.
•Push in the direction of the arrow into module plug socket3.
•»Connection Module«(see page 8) 4 push in the direction of the arrow into the connector of module 5.
•Screw module onto 6 earth bar.
Module »Connection Module«must always be screwed onto the elmeg hybird 300‘s earth bar.
Mounting modules in the elmeg hybird 300 Assembly of elmeg hybird 300
11
Modul
Header RJ45
FSM2
FSM1
FSM3 FSM4
FSM5 FSM6
FSM7
FSM8
2
3
2
2
2
1
5
6
6
4

Mount modules for module slots 11 and 12
As pictured, the module is inserted into the plug base at an angle of ca. 45 degrees (A), then pushed down (B) until the
plug snap tabs lock into the module. To remove the module, simultaneously press both tabs toward the outside; the
module snaps into the position shown at bottom of the image. It may then be extracted in the opposite direction (A).
1Plug base for module.
2Plug base snap tab.
3Module.
4Insertion direction for module mounting.
Open module slot 1
Under module slot 2, you’ll find the slotsfor modules 9-12 and the connections for the modules on slots 7
and 8.
1Cover for module slot 1.
2elmeg hybird 300.
3Functional earth strip of cover.
4elmeg hybird 300 earth bar.
5Lateral guide for modules.
6Arrows for open direction.
7Catch for cover attachment.
8Detachable cover for RJ45 connectors of mod-
ules in slots 7 and 8.
9Detachable cover for terminal clamps of mod-
ules in slots 7 and 8.
0Connection screw for the earth bars.
?Fixation screws for the Connection Module.
These screws are provided with the modules.
Opening the cover for module slot 1
•When switched on, turn off power supply.
•Remove screw 0
•Pull off cover in the direction of the arrow 6 and lift off upward. In this, be careful not to bend the brackets
at the ends of the earth bars 3 and 4.
Open module slot 1 Mounting modules in the elmeg hybird 300
12
1
2
3
4
A
B
A
5
4
5
2
ß
8989
1
6
ß
77
6
55
77
3ß
0

Closing the cover for module slot 1
•Insert the cover into the catches for fixation 7 and push back, opposite to the direction of arrow 6 while
lightly pressing the catches. Avoid bending the brackets on the earth bars.
•Insert screw 0 and firmly tighten.
•Restore power supply.
The cover’s earth bar must always be screwed together with the earth bar of the elmeg hybird 300. Only
this will create a continuous functional earth connection!
Remove detachable cover for clamp connector 9 and RJ45 connector 8.
The desired covers are easily removed. Next, the broken-off fixation strips should be removed so that the modules’
RJ45 connectors easily fit in the openings when mounting the covers.
Note:
If connection of the modules is designed for clamp connectors, this should be done before closing the
cover.
Mounting modules in the elmeg hybird 300 Open module slot 1
13

Frontal view Interfaces elmeg hybird 600
14
Interfaces elmeg hybird 600
Connections elmeg hybird 600
Frontal view
1Module slot 1, with module “MC RJ45".
2Module slot 2, with module “MC RJ45".
3Module slot 3, with module “MC RJ45".
4Module slot 4, with module “MC RJ45".
5Module slot 5, no module inserted, cover only.
6Module slot 6, no module inserted, cover only.
7Module slot 7. This module is mounted on the base module, as described on page
°Module slot 12. This module is mounted on the base module, as described on page 12
§Base module.
$Module power supply 1 (always present).
%Module power supply 2 (only in connection with modules on slot 4-6)
%& 19"angle.
/LED display (see page ).
(Removable cover for connecting modules of slot 7 (see page ).
)Removable cover for connecting modules of slot 8 (see page ).
Note:
The covers for modules 1-6 are secured with Phillips head screws. The module drawers are secured
with knurled screws.
Sieckmann
312456
7ß°8$%&
&/
()
12345678
12345678
123
45678 12345678
Serial 1 Serial 2MoH
1
1
23
456
USB MA GND SD-Card
§
Reset

Rear view
1elmeg hybird 600 back panel.
2Low-heat device connector with on/off switch.
3Fan 1.
4Fan 2.
5Connection for functional earth (rack service earth).
6Screws for opening of back panel.
Fan connection
After removal of back panel (see “rear view” image), the connectors for the fans become accessible on the rear PCB
“backpane” These connectors are designated as FAN1 to FAN4. Here, the first fan is connected to FAN1 and oper-
ated via power supply 1 (left slot). The second fan can be connected to FAN2 or FAN3. Both connection are switched
parallel and are operated via power supply 2 (right slot).
Note:
With only mains unit 1 present, only fan 1 is in operation.
1Connection, fan 1 (FAN1)
2Connection, fan 2 (FAN2)
3Connection, fan 2 (FAN3)
Functional earth connection.
The elmeg hybird 600 requires a functional earth connection for safe operation. Hence, an “earth line” should be lo-
cated in the vicinity of the assembly site (a water line or heating line connected to the potential equalisation line, or
Interfaces elmeg hybird 600 Rear view
15
FAN1
FAN2
FAN3
1
234
3
1
2
4
5
1
2
66
Sieckmann
