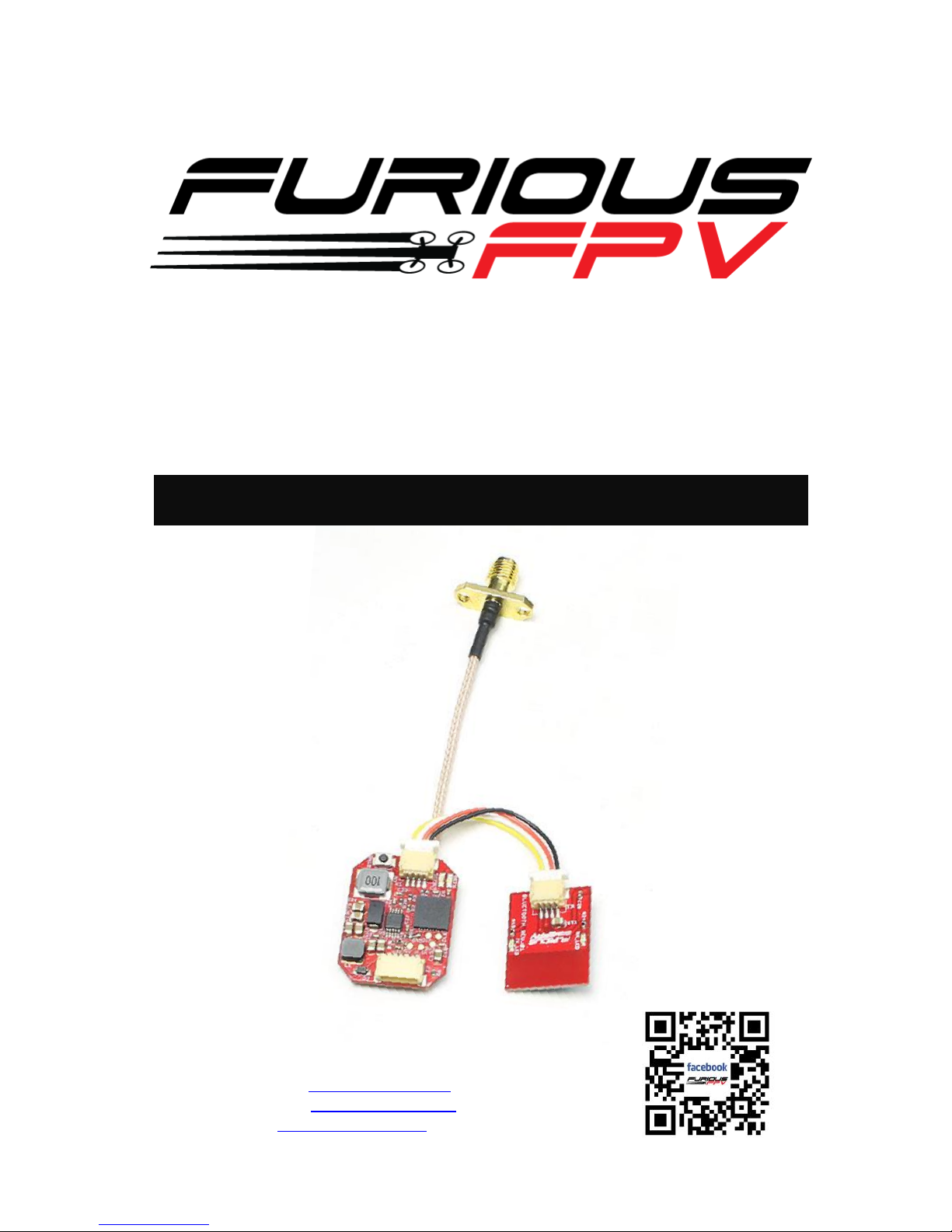

Furious FPV STEALTH RACE VTx User manual

Please contact us if you need further assistance:
Tech support: [e-mail]
Sales support: [e-mail]
Website: http://furiousfpv.com/
STEALTH RACE VTx
Video Transmitter
USER MANUAL VERSION 1.0

1
Contents
Contents..................................................................................................................................................1
Introduction ............................................................................................................................................2
Connections ............................................................................................................................................5
Using Fortini F4 OSD: ..............................................................................................................5
Using Fortini F4: ......................................................................................................................7
Using Radiance Dshot Version: ...............................................................................................8
Using Kombini Dshot Version: ................................................................................................9
Using KISS FC:........................................................................................................................10
Setup .....................................................................................................................................................11
LEDs Status........................................................................................................................................11
Set frequency and power for Stealth Race VTx ...............................................................................11
Option 1: Configure FuriousFPV Stealth Race VTx by button ...............................................11
Option 2: Configure FuriousFPV Stealth Race VTx by app on Smartphone.......................... 12
Option 3: Configure FuriousFPV Stealth Race VTx by Transmitter Taranis ..........................15
Hardware Requirement ....................................................................................................................15
Hardware Connection.......................................................................................................................15
Update Taranis OpenTX Firmware....................................................................................................16
Download LUA Script for Betaflight ..................................................................................................16
Betaflight Configurator Settings .......................................................................................................17
Extra Steps for VTx setup..................................................................................................................17
Setting up LUA script on telemetry page..........................................................................................17

2
Introduction
Stealth Race VTx - Blink, and It's Gone.
At Furious FPV, we're massively excited to debut our flagship model that's destined to push the
boundaries of FPV VTx technology. Nano sized & micron light, the all new Stealth Race VTx is a game
changer, inside & out.
At half the size of competitive based VTx systems, the Stealth Race VTx will blow your mind when it
comes to how much we have packed into this stamp sized beast. Able to fit in just about any racing
quad on the market, the Stealth VTx boasts full size features in the smallest platform we have ever
designed.
Incorporating a built in microphone for in flight audible feedback, Smart Audio support, built in LC
filter for ultra clean video, thermal protection, and the ability to be powered up to 6S 22.2V input
power, the Stealth Race VTx brings plenty to the table with a zero compromise layout. Combine this
with an adjustable VTx power output of 0.1mW / 25mW / 200mW output, this VTx is an all in one
FPV game changer that you can't live without.
Functionality is the game and simplicity is the key. With the Stealth Race VTx, the Furious team has
been hard at work, incorporating intuitive setup capability via Bluetooth technology. This brilliant
system offers a dedicated Furious FPV app for iOS & Android, allowing users to adjust channels &
other functionality with ease via ultra simplified smart phone setup. It just doesn't get much more
simple than that.
The Stealth Race VTx is ultra-compatible and incredibly easy to use. Simple, powerful and amazingly
functional, the Stealth Race VTx is the ultimate VTx solution in a no compromise, ultra-brilliant
design.
Features:
- Supports Smart Audio or IRC Tramp Functionality.
- Fully Adjustable via Bluetooth Capable Smart Phone App
- Built-In LC Filter for Ultra Clean Imagery
- Adjustable VTx Power Output with Pit Mode
- Flexible VTx Power for Race & Freeride Flight
- Stealth Power Up Capable
- Built-In Full Thermal Protection
- High Voltage Ready with 6S Input Power Capability
Specifications:
Dimensions: 15x25x6 mm
Weight: 2.9 gram (without antenna)
Voltage Range: 2-6S Li-Po
VTx Power: 0.1mW / 25mW / 200mW
Micron Small - Half the Size, Triple the Features.

3
At half the size of traditional VTx units, the sheer mico sized layout of the Stealth Race VTx is simply
mind blowing. And then, you begin to see what this system packs - nothing short of magic via pure
design brilliance.
Built In Bluetooth Capability - Power In the Palm of Your Hands.
Incredibly simple to setup and utilize, Furious FPV brings the next evolution of functionality &
brilliance to the table with full up smart phone adjustments. By downloading the Furious FPV iOS /
Android app via your smart phone, you now can adjust your VTx in ultimate style. Like a boss, we
might add.
Built In LC Filter - Keeping It Clean.
Ultra clean imagery is paramount, helping you avoid clipping gates and ending your race in shame &
defeat. By incorporating a built in LC filter, your video imagery is kept clean and focused so you can
push your FPV to the ragged edge & beyond.
Adjustable VTx with Pit Mode Technology - The Ultimate In Setup Flexibility.
Whether setting up your aircraft, pushing hard laps in the race, or relaxing with some epic freeride
flight, the Stealth Race VTx offers it all. Utilizing Pit Mode Technology, you can now setup your gear
while others are in flight by transmitting at an ultra low 0.1mW output. Time to race? Dial it up to
25mW, and after your laps, push it to 200mW for some epic freeride flight.
Stealth Power Up - Keeping the Airwaves Clean.
Protect other racers from signal interference with Stealth Power Up technology, allowing you to
power up your aircraft while keeping your VTx output power at zilch - just where it needs to be.
Built In Thermal Protection - Keeping It Cool.
Crank up the speed without the heat. With built in thermal protection, the Stealth Race VTx keeps
temps under control with built in thermal protection. So, go ahead and push it to the max - the
Stealth Race VTx can take it.
High Voltage Ready - Power to the Max.
With the ability to handle a full 6S 22.2V input power, the Stealth Race VTx can handle all the voltage
you can throw at it, offering ultimate voltage flexibility.

4
Pinout

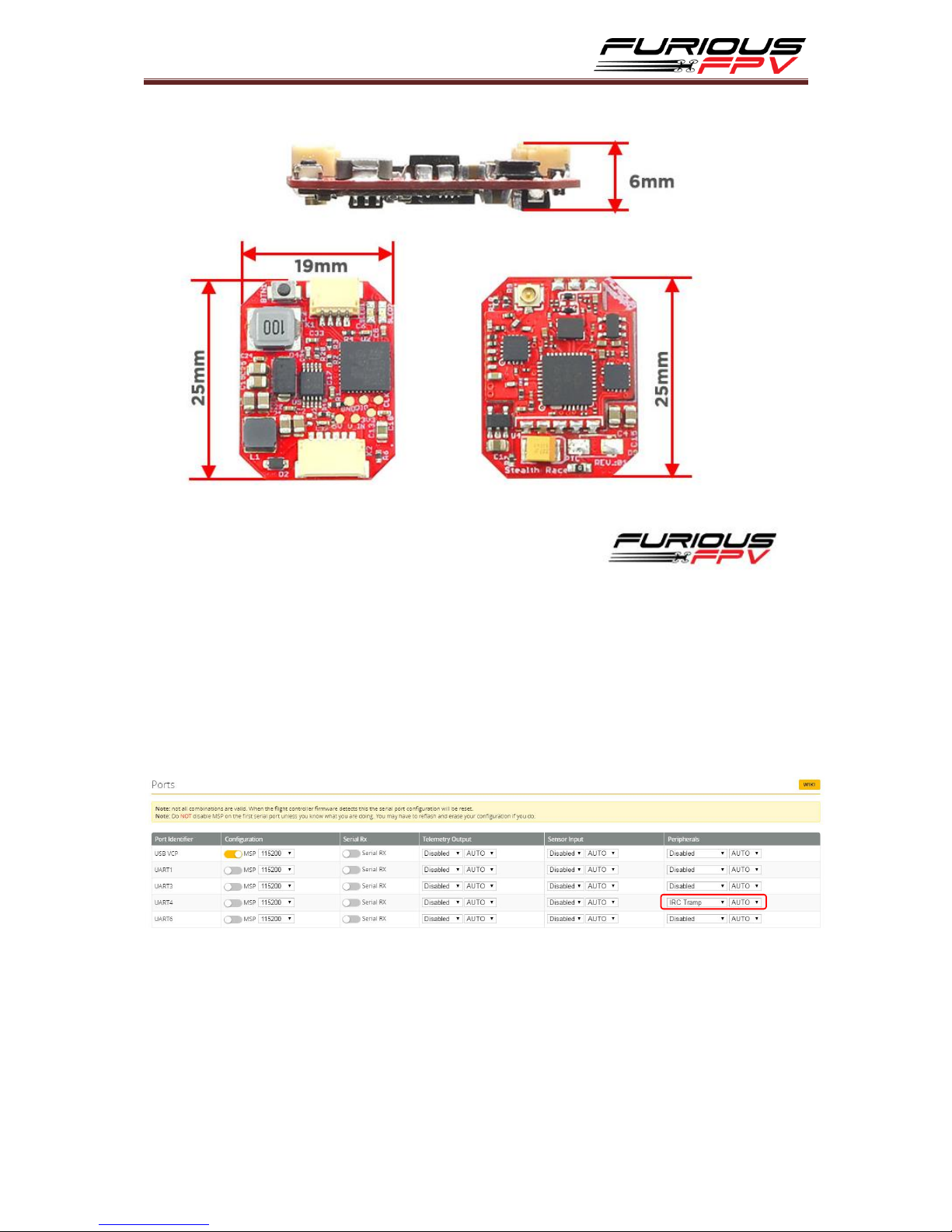

Dimensions

5
Connections
Using Fortini F4 OSD:

6

7
Using Fortini F4:
You can buy FORTINI F4 right here: https://goo.gl/TPd5kB

8
Using Radiance Dshot Version:
You can buy Radiance DShot Vesion right here: https://goo.gl/RBXrJ6

9

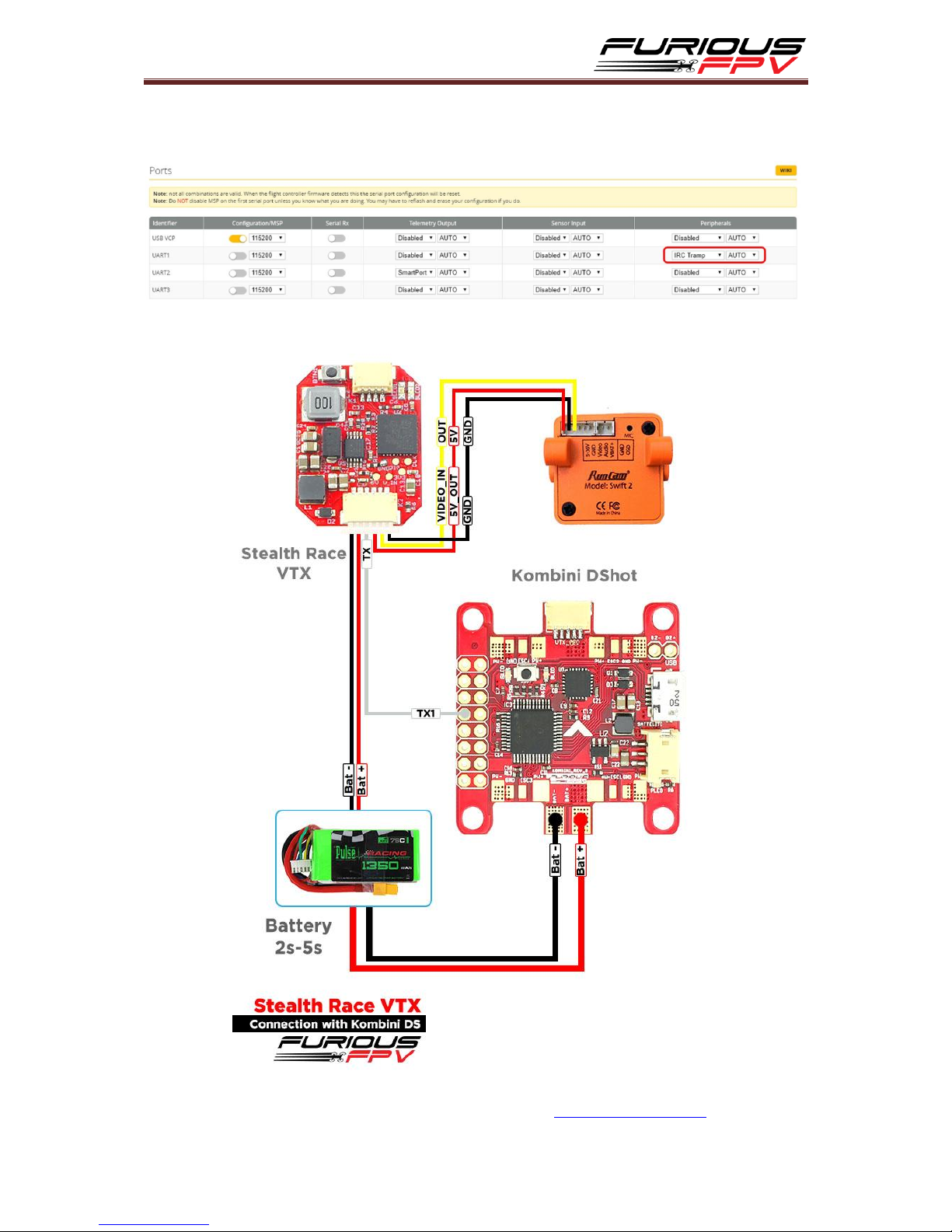

Using Kombini Dshot Version:
You can buy Kombini DShot Vesion right here: https://goo.gl/EzQnak

10

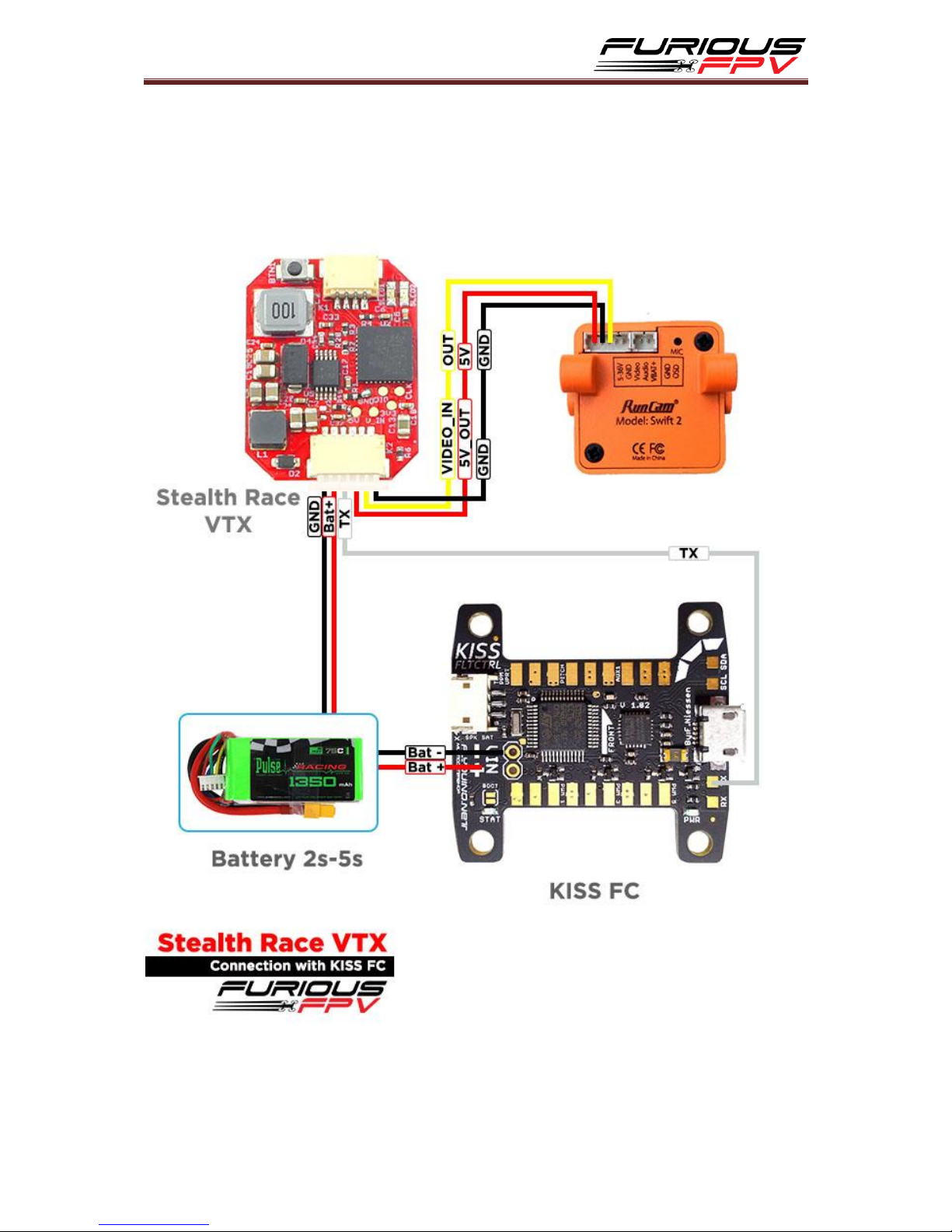

Using KISS FC:

11
Setup

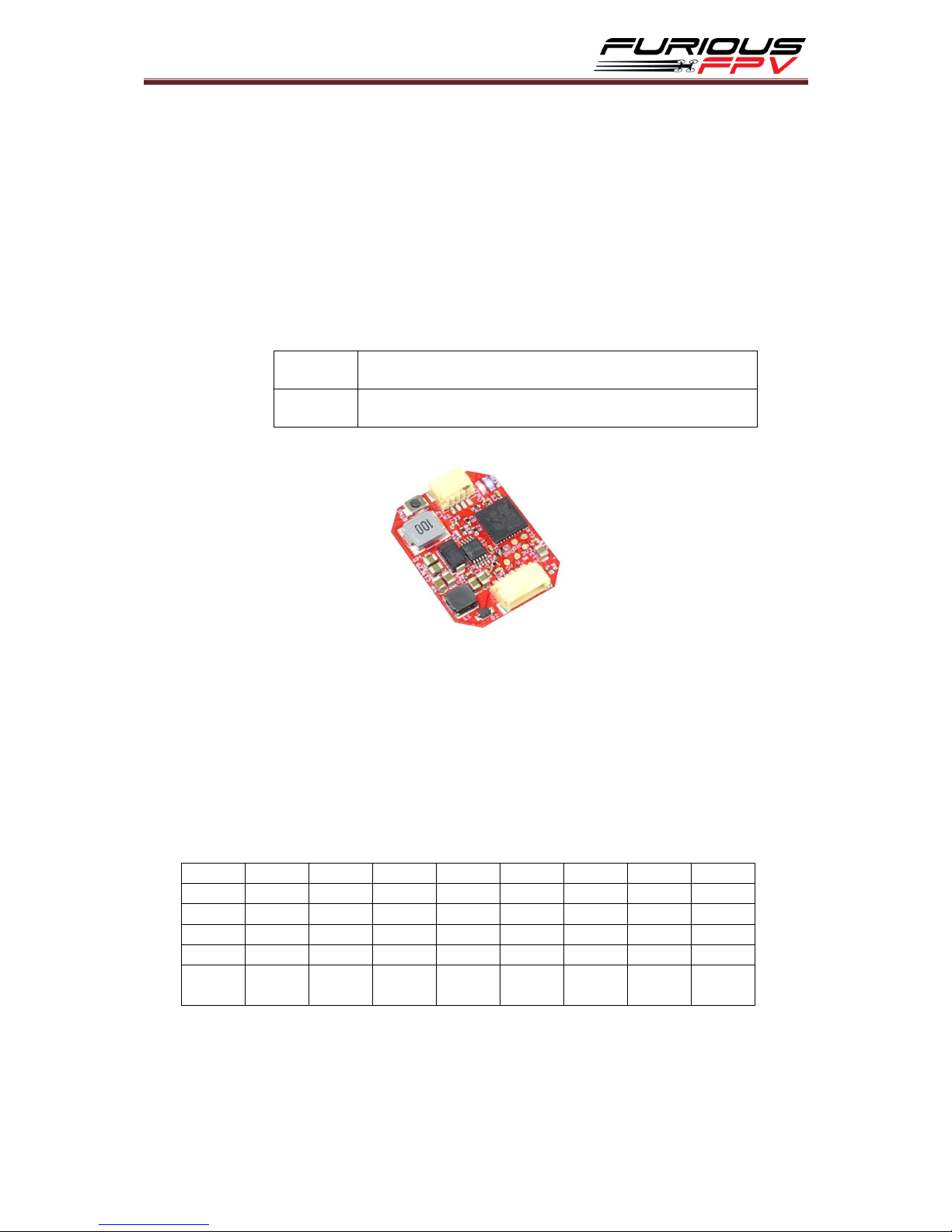

LEDs Status
LED Flash Codes for Channel, Band and Power
The FuriousFPV Stealth Race VTx signals selected channel, band and power levels using a
startup sequence of LED codes. The same sequence is also repeated in the menu to make it
unified. First the RED LED flashes to indicate the item being shown. One flash for channel,
two flashes for band, three flashes for power level. Subsequently, the BLUE LED will indicate
the value.
RED LED
Indicate item –Channel, band or power setting
Blue LED
Indicate value
For example, Channel 2, Band B, Power of 200mW, will have the following startup
LED code:
1x Red and 1x Blue = Channel 1 => Channel 2
2x Red and 5x Blue = Band Race (C) => Band R (C)
3x Red and 2x Blue = Status 2 => No power
4x Red and 2x Blue = Power 2 => 200mW
Code LED Status: Status 1 –Pitmode, Status 2 –No Power, Status 3 –Normal
Band
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Band A
5865
5845
5825
5805
5785
5765
5745
5725
Band B
5733
5752
5771
5790
5809
5828
5847
5866
Band E
5705
5685
5665
5645
5885
5905
5925
5945
Band F
5740
5760
5780
5800
5820
5840
5860
5880
Band R
(C)
5658
5695
5732
5769
5806
5843
5880
5917
Set frequency and power for Stealth Race VTx
Option 1: Configure FuriousFPV Stealth Race VTx by
button

12
Please configure VTx by button as follow:
NOTE: You need to Unlock Stealth Race VTx to use full frequency and 200mW power
Option 2: Configure FuriousFPV Stealth Race VTx by
app on Smartphone
This is the first app to configure for VTx in the world at the moment of talking.
Download app at here:
Android: https://play.google.com/store/apps/details?id=com.VTxandroid

13
iOS: https://itunes.apple.com/vn/app/imagination-configuration/id1271196332?mt=8

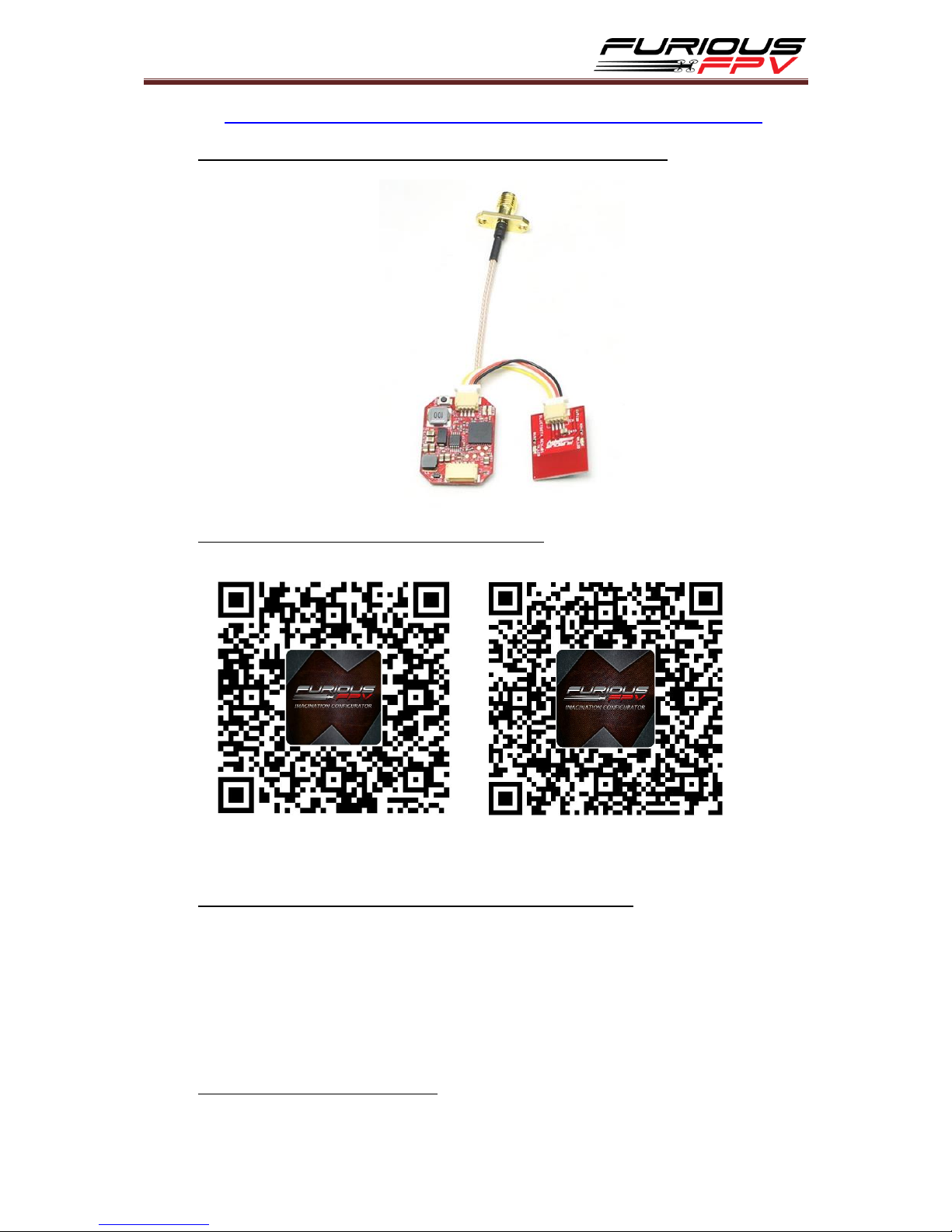

STEP 1: You need to connect your Stealth Race with Bluetooth module
STEP 2: DOWNLOAD app Imagination Configuration
For Android For iOS
STEP 3: Connect Stealth Race with app Imagination Configuration
Plug battery power to Stealth Race VTX then open Imagination Configuration on your
mobile.
On Imagination Configuration click PAIR DEVICE to app search your Stealth Race VTx.
Default password is: 000000
*NOTE: If you change password and forget it, you can press and hold button on VTx 20
second to reset your password to default is 000000.

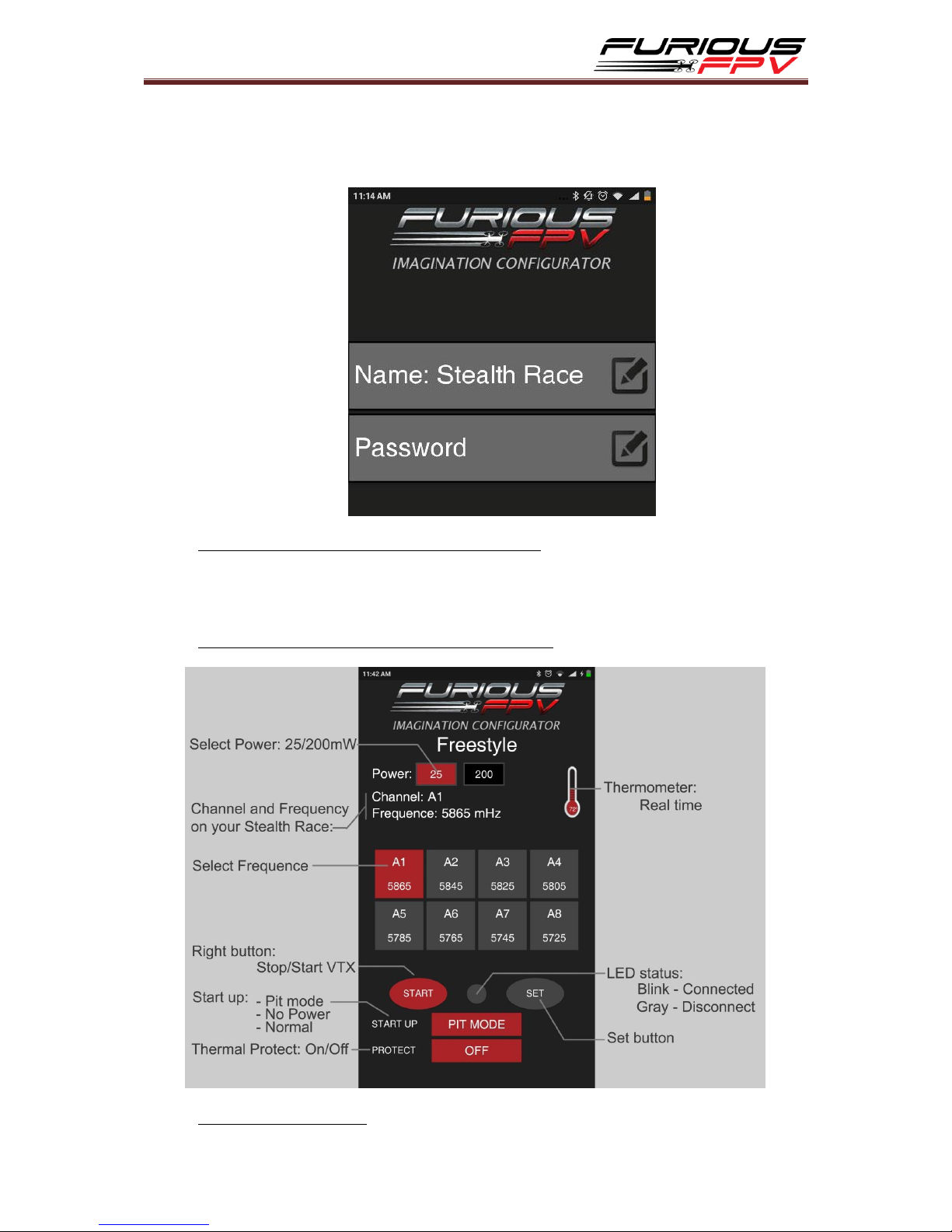

STEP 4: Change name and password

14
To change your device name and password, please hit PROFILE tab on app. You can use 12
character for Name and 6 numbers for Password
Hit BACK on your mobile to come back to home menu.
STEP 5: Select you style quad at home screen using
- Racing: only pitmode/25mW with frequency use for Racing quad.
- Freestyle: pimode/25mW/20mW with 40CH/5 Bands.
STEP 6: Configuration your Stealth Race VTx with app
Meaning of icons on app:

15
-Start-up have a pop-up with 3 selections for VTX power when you plug battery
Pitmode: when you plug battery, VTx will be working with Pitmode 0.1mW
No power: when you plug battery, VTx will not be working until you hit
START
Normal: VTX will be working with your channel when you plug battery.
-RIGHT BUTTON: use to turn ON/OFF your VTX.
-SET BUTTON: set your configurations from app to VTX.
-LED STATUS: this icon will blink RED/GRAY when connected and not blink GRAY
when disconnected
STEP 6: Save your configuration
After selecting your configurations on app please hit SET button to save your configurations
to VTx
*** NOTE: When VTx at NO POWER/PIT MODE please click START button
on app or hit BUTTON on VTx to Transmit power
Option 3: Configure FuriousFPV Stealth Race VTx by
Transmitter Taranis
You can now adjust rates and VTx settings right from your Taranis menu with Betaflight
using LUA script and Smart Port. In this tutorial we are going to show you how. Furious FPV
uses this article written by Artur Banach, Oscar and editted by Furious FPV. This guide is
written specifically for Betaflight firmware - Fortini F4.
Hardware Requirement
Taranis X9D or QX7 TX
Furious FPV SPD15 or XSR RX (Smart Port required)
Fortini F4 Flight Controller with Betaflight FW, find out if Smart Port is supported
natively.
FuriousFPV Stealth Race VTx –to change VTx settings from Taranis
Hardware Connection
To allow VTX configuration from Taranis, simply connect S.PORT from SPD15 or XSR RX to
UART TX6 pin on the Fortini F4
For changing VTx settings, Telemetry port from FuriousFPV Stealth Race VTx also needs to
be connected to one of the UART TX4
Please connect as below picture:

16
Update Taranis OpenTX Firmware
Your Taranis TX has to be updated to the latest OpenTX firmware (we tested V2.2 RC14
successfully). The process is simple, and it’s covered here:
https://oscarliang.com/flash-opentx-firmware-taranis/
Download LUA Script for Betaflight
The LUA script for Betaflight can be downloaded here:
https://github.com/betaflight/betaflight-tx-lua-scripts/releases
Please be aware that the LUA script files are different for Frsky X9D, QX7 and the Horus.

17
Download the latest version available for your transmitter model.
The zip file contains 2 folders: BF and TELEMETRY, and the files needs to be copied to the SD
card in your Taranis.
1. Copy BF.lua file in TELEMETRY folder to the /SCRIPTS/TELEMETRY/ folder in your
Taranis SD Card.
2. And copy the whole BF folder to /SCRIPTS/ folder in the SD card. These are the script
interface files needed to make it work.
Betaflight Configurator Settings
First of all, make sure SmartPort is setup properly:
1. In Betaflight configurator, PORTS tab, find the UART where you have connected S.PORT
to, then select SmartPort as the Telemetry Output
2. Enable option TELEMETRY in Configuration tab
Extra Steps for VTx setup
Go to PORTS tab, find the UART4 you connected the VTX to, and choose which VTX you have
under Peripherals is IRC TRAMP [Auto]
With Fortini FC I am using SmartPort in UART6, FuriousFPV Stealth Race VTX in UART4
please select IRC Tramp, and SBUS in UART3.
Don’t forget to hit “Save and Reboot” when you finish.
Setting up LUA script on telemetry page
We are almost there!

18
Once you have SmartPort set up, and you have copied the BF.lua file to
/SCRIPTS/TELEMETRY/ folder on the Taranis SD card, we can proceed to the final step.
Go to page 13 DISPLAY in your Taranis. Here you can configure which telemetry screen to
execute the LUA script. In Screen 1, choose Script as the first option, and then select the BF
Lua script in the 2nd option.
You should be able to activate BF LUA script now by holding down the PAGE button (LUA
script is triggered by entering Telemetry Screen 1).
Page 1 of the script is for VTx settings.
After making VTx setting changes on your Taranis, you can save it by long pressing the
MENU button.
That’s it!! I hope you enjoyed it, and have fun changing VTx channels from your Taranis in
the field! :)

19
Thank you for using our product
