Operating and Installation Instructions
Flat and Curved Glass Electric Fireplace
Furrion FF26S15A-BL
Flat Glass Electric Fireplace
Furrion FF26C15A-BL
Curved Glass Electric Fireplace
This manual is for use with
© 2017 The Furrion Compay, Inc.

1
Welcome
Furrion® FF26S15A-BL Flat Glass Electric Fireplace
Furrion® FF26C15A-BL Curved Glass Electric Fireplace
Thank you for purchasing a Furrion® FF26S15A-BL Flat Glass Electric Fireplace/
Furrion® FF26C15A-BL Curved Glass Electric Fireplace.
SUITABLE FOR DOMESTIC HOUSEHOLD USE, RV’s & MODULAR HOMES
Before installation and use, please read all instructions carefully. This will ensure
safe use and reduce the risk of injury .

2
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................. 3-5
Installation ......................................................................................... 6-8
Operation ........................................................................................... 9-10
Troubleshooting ................................................................................11-12
Care and maintenance ......................................................................13
Warranty .............................................................................................14

3
IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ ALL OF THE INFORMATION IN THIS OPERATING MANUAL,
INCLUDING ALL SAFETY, OPERATING, AND MAINTENANCE INFORMATION.
TO AVOID THE POTENTIAL RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, USERS SHOULD FOLLOW THE DIRECTIONS AND WARNINGS IN
THIS MANUAL.
1. Read all instructions before using this
fireplace.
2. Do not use this fireplace outdoors.
3. This fireplace is not intended for use
in bathrooms, laundry areas or similar
indoor locations. Never position the
fireplace where it may fall into a bath-
tub or other water container.
4. Do not run the power cord under
carpeting. Do not cover the power
cord with throw rugs, runners, or the
like. Arrange the power cord away
from high traffic areas or where it may
be tripped over.
5. To disconnect the fireplace, turn
controls to off, then remove the plug
from the outlet.
6. Connect to properly grounded outlets
only. Always plug fireplaces directly
into a wall outlet/receptacle. Never
use with an extension cord or reloada-
ble power tap (outlet/power strip).
7. To prevent a possible fire, do not
block the fireplace’s air intakes or
the exhaust in any manner. Do not
operate the fireplace on soft surfaces
such as a bed where the openings
may become blocked.
8. There is a thermostat protective device
inside the fireplace. When the inner
temperature exceeds a predefined
level or abnormal heating occurs, the
thermostat protective device cuts off
the power supply to avoid damage to
the fireplace or risk of fire.
9. Use this fireplace only as described
in this manual. Any other use is not
recommended by the manufacturer
and may cause fire, electrical shock,
or injury.
SAVE THESE INSTRUCTIONS
WARNING: This fireplace is hot
when in use. To avoid burns,
do not let bare skin touch hot
surfaces. If provided, use handles
when moving this fireplace.
WARNING: Extreme caution is
necessary when any fireplace is
used by or near children or inva-
lids and whenever the fireplace
is left operating and unattended.
WARNING: Do not operate any
fireplace with a damaged cord
or plug or after the fireplace
malfunctions or has been
dropped or damaged in any
manner. Return the fireplace
to an authorized service facility
for examination, electrical or
mechanical adjustment, or
repair.
WARNING: Do not insert or
allow foreign objects into
the ventilation or exhaust
openings as this may cause an
electric shock, fire, or damage
the fireplace.

4
WARNING: The fireplace
contains hot and potentially
flammable components. Do
not use in areas where gaso-
line, paint, or other flammable
liquids are used or stored.
CAUTION: While in use, the
top center of the fireplace can
become hot to the touch and
may cause serious injury or
burns. Always supervise small
children around the fireplace.
Do not place any cloth, deco-
rations, or otherwise obstruct
the fireplace outlet as this may
cause a fire and serious injury
may result.
GROUNDING INSTRUCTIONS
DANGER: Improper
connection of the equipment-
grounding conductor can
result in a risk of electric
shock. Check with a qualified
electrician if you are in doubt
as to whether the product is
properly grounded. Do not
modify the plug provided
with the product. If it will not
fit the outlet, have a proper
outlet installed by a qualified
electrician.
IMPORTANT SAFETY INSTRUCTIONS
This product must be grounded. If it
should malfunction or breakdown,
proper grounding provides a
path of least resistance for electric
current to flow and reduces the
risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor
and a grounding plug. The plug
must be inserted into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.

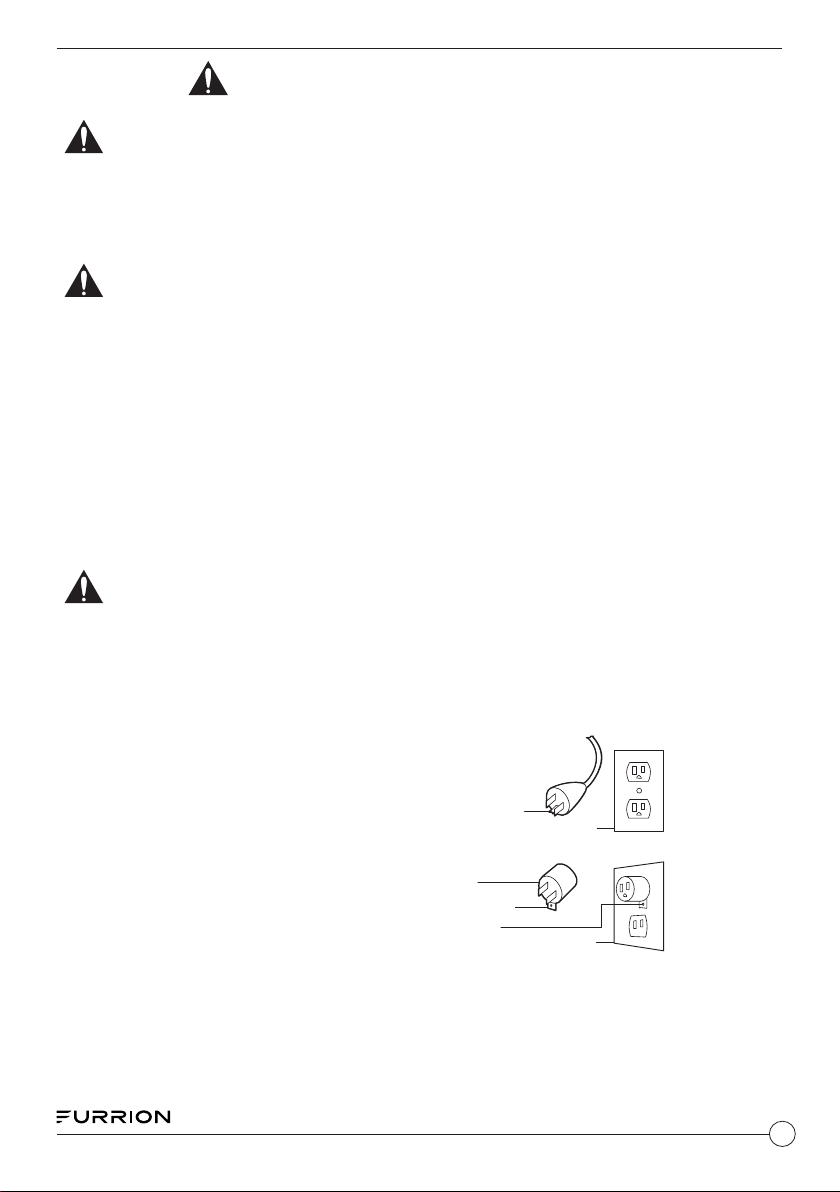

This fireplace is for use on 120 volt
circuits and has a grounded plug. An
adapter is available for connecting
three-blade grounding type plugs
to two-slot receptacles. The green
grounding lug extending from
the adapter must be connected
to a permanent ground such as a
properly grounded outlet box.
The adapter should not be used if
a three-slot grounded receptacle is
available.
A
B
Grounding Pin
Grounding Lug
Metal Screw
Adapter
Cover of Grounded Outlet Box
Cover of Grounded Outlet Box

5
IMPORTANT SAFETY INSTRUCTIONS
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Modifications not approved by the party responsible for compliance could
void user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-006.

6
Installation
IMPORTANT: Failure to install the built-in electric fireplace as instructed below
may result in damage to the equipment and or may expose the user to the risk
of fire, serious injury, illness or death.
First Time Use
Remove the marketing sticker from the front glass.
Marketing Sticker

7
Installation
25 ¼”
21”
6 ½”
25 ¼”
6 ½”
Fig. A Fig. B
Fig. D
Fig. C
Wall-mount Installation
1.Select a suitable location that is not susceptible to moisture.
2.Mark and cut an opening in the cabinet according to the dimensions outlined
in the illustration below. (Fig. A)
3. Ensure the cabinet area is free of dust and debris, remove fireplace carefully
from carton and discard the plastic and foam packaging.
4.The trim kit for the unit is attached by magnet, pull to remove. (Fig. B)
5.Install the fireplace into the cut out area and secure with 4 mounting screws
supplied. (Fig. C) For your safety, it is recommended to apply the top 2 screws
first.
6.Re-attach the trim kit to the fireplace.
7. Do not block the ventilation areas. (Fig. D)

8
Installation
Residential Installation
CAUTION: When installing this replace in residential applications, ensure to leave 3 feet
minimum from any object.
RV Installation
WARNING: When installing this replace in RV applications, ensure hot air will not directly blow
onto soft furnishings or combustible materials during operation. For replace installation in RV
slide out wall, we recommend you connect the slide out safety cut o wires to the slide out 12V
DC activation system. This system will prevent operation while traveling and in storage mode. Do
not operate the replace when slide out is in the stowed position.
NOTE: This replace is tted with a proximity sensor and thermal cuto your safety. When
replace is in operation and objects are placed within 6 inches or less the replace will
automatically shut o and a red LED will ash. Remove the object and cycle the replace power
switch to reset. Check for interference from other electrical product remotes that may aect
replace operations.
Do not install the replace insert directly on carpet or similar surfaces which may restrict
airow.
CAUTION: If installing the replace in a carpeted area, place a one-piece solid, at surface under
the replace.
CAUTION: Clearance for air circulation is located on top of the replace. Ensure this gap is free
from obstruction.

9
Operation
Product Specications
Rating voltage 120Vac 60Hz
AMPS 12.5A
WAT TS 1500W
Control Panel
Warning: This electric fireplace must be properly installed before it is used.
Note: The element retains heat after shut down. There is a built-in cool down
period of 30 seconds before the blower shuts off completely.
Note: To operate correctly, the remote control must be pointed toward the glass
window view.

10
Operation
Function Icon Description
POWER Turn on or turn off the fireplace.
Flame Select one of four brightness levels.
Fireplace
1. Press once to activate the low heat setting.
2. Press the button a second time to activate the high
heat setting.
3. Press the button a third time to turn off the fireplace.
4. After turning on the fireplace, press this button for 5
seconds to select the desired temperature setting.
Note: pressing the power button for 5 seconds will
toggle between °C and °F.
Timer Pressing the button will cycle through the timer setting:
30 minutes to 5 hours.
Temperature
down Decrease the heat output (remote control only).
Temperature
up Increase the heat input (remote control only).
Slide Out
(safety cut
off)
automatically shuts off fireplace operation when power
is provide to the slide out 12V DC system.
Proximity
Sensor
Detect the presence of nearby objects with 3.94 -
5.91 inch. The fireplace will cut off the heating fuction
automatically.

11
Troubleshooting
Problem Root cause Corrective action
Display shows
“”
The thermostat
sensor is broken
or disconnected.
Unplug the fireplace and remove
the back panel. Check that the
thermostat is plugged into the main
circuit board. If this does not solve
the problem, contact customer
service for a replacement thermostat
sensor.
Display shows
“”
Manual reset
overheat
protection has
triggered.
Inspect the fireplace and check
that the air inlets and outlets are
not blocked as this may cause
overheating.
Fireplace does not
blow warm air.
Cool down cycle Normal operation will continue for
30 seconds before shutting down.
Thermostat
setting is
preventing the
fireplace from
turning on.
Adjust the temperature setting
to ensure that the thermostat is
set higher than the current room
temperature.
The RED LED is
blinking constantly
and the blower
motor does not
start.
Proximity switch
cut off
Ensure there are no obstructions
within a minimum distance of 6
inches from the air vents. Press the
Power button to restart the fireplace.
The fireplace turns
off automatically.
The slide out
moves and
activates the
safety cut off.
Do not use the fireplace if the slide
out is not in the fully extended
position.

12
Problem Root cause Corrective action
Remote control is
not working
Weak or defective
batteries Replace the remote batteries.
Poor signal
Press the remote control buttons
with an even motion and gentle
pressure. Repeatedly pressing
buttons in rapid succession may
cause the remote to malfunction.
Distance
Operate the remote at a distance
less than 20 feet from the front of
the fireplace. Point the remote at the
control panel.
Troubleshooting

13
Care and Maintenance
• The fan and flame generator motors are pre-lubricated for extended bearing
life and require no further lubrication. However, we recommend periodic
cleaning/vacuuming of the fan/fireplace.
• Buff the trim using a soft cloth slightly dampened with a citrus oil based
product (available at supermarkets and hardware stores). DO NOT use brass
polish or household cleaners. These products will damage the metal trim.
• Make sure the unit is turned OFF and unplugged before cleaning the fireplace.

14
Warranty
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE BY THE
ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED TO YOU IN NEW
CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION AUTHORIZED RESELLER AND USED
IN NORMAL CONDITIONS, IS FREE FROM ANY DEFECTS IN MANUFACTURING, MATERIALS, AND
WORKMANSHIP. IN CASE OF SUCH DEFECT, FURRION SHALL REPLACE OR REPAIR THE PRODUCT
AT NO CHARGE TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE THE ORIGINAL
SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT READILY BE DETERMINED;
DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE, ABUSE, NEGLECT, PRODUCT MODIFICATION,
FAILURE TO FOLLOW INSTRUCTIONS IN INSTRUCTION MANUAL, COMMERCIAL OR INDUSTRIAL
USE; DAMAGE OR LOSS CAUSED TO THE DECORATIVE SURFACE OF PRODUCT; TO ANY DATA,
SOFTWARE OR INFORMATION; AND NORMAL WEAR AND TEAR. THIS WARRANTY ONLY PROTECTS
THE ORIGINAL END-USER (“YOU”) AND IS NOT TRANSFERABLE; ANY ATTEMPT TO TRANSFER THIS
WARRANTY SHALL MAKE IT IMMEDIATELY VOID. THIS WARRANTY IS ONLY VALID IN THE COUNTRY
OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED.
FURRION SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT
LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF
FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS LIMITED WARRANTY,
ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE ARE LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modication, extension, or
addition to this warranty.

15
Warranty
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY
OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME, GOODWILL,
DAMAGE TO OR REPLACEMENT OF ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING,
REPROGRAMMING, OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH
FURRION PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR REPLACEMENT
OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION OF IMPLIED
WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY
TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER
RIGHTS THAT VARY BY STATE OR (WHERE APPLICABLE IN THE COUNTRIES WHERE FURRION HAS
NON-US/CANADIAN AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the warranty
period. Service under this warranty must be obtained by contacting Furrion at
[email protected]om
Product features or specications as described or illustrated are subject to change without
notice.

IM-FHA00014 V2.0
Furrion Innovation Center & Institute of Technology
● 52567 Independence Ct., Elkhart, IN 46514, USA ● Toll free:1-888-354-5792
● Email: [email protected]
©2007-2018 Furrion Ltd. Furrion® and the Furrion logo are trademarks licensed for use by Furrion Ltd.
and registered in the U.S. and other countries.
FURRION.COM
