Furrion FF40S15A-BL User manual

1
Operating and Installation Instructions
40” Built-in Electric Fireplace
Furrion FF40S15A-BL
40” Built-in Electric Fireplace
This manual is for use with

2
Welcome
Furrion FF40S15A-BL 40” Built-in Electric Fireplace
Thank you for purchasing a FF40S15A-BL 40” Built-in Electric Fireplace.
SUITABLE FOR DOMESTIC HOUSEHOLD USE, RV’s & MODULAR HOMES
Before installation and use, please read all instructions carefully. This will ensure
safe use and reduce the risk of injury.

3
Contents
IMPORTANT SAFETY INSTRUCTIONS ............................................. 4-6
Installation ......................................................................................... 7-8
Operation ........................................................................................... 9
Troubleshooting ................................................................................10
Care and maintenance & Warranty .................................................11

4
IMPORTANT SAFETY INSTRUCTION
PLEASE READ ALL OF THE INFORMATION IN THIS OPERATING MANUAL,
INCLUDING ALL SAFETY, OPERATING, AND MAINTENANCE INFORMATION.
TO AVOID THE POTENTIAL RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, USERS SHOULD FOLLOW THE DIRECTIONS AND WARNINGS IN
THIS MANUAL.
1. Read all instructions before using
this fireplace.
2. Do not use this fireplace outdoors.
3. This fireplace is not intended for
use in bathrooms, laundry areas
or similar indoor locations. Never
position the fireplace where it may
fall into a bathtub or other water
container.
4. Do not run the power cord under
carpeting. Do not cover the power
cord with throw rugs, runners, or
the like. Arrange the power cord
away from high traffic areas or
where it may be tripped over.
5. To disconnect the fireplace, turn
controls to off, then remove the
plug from the outlet.
6. Connect to properly grounded
outlets only. Always plug fireplaces
directly into a wall outlet/recepta-
cle. Never use with an extension
cord or reloadable power tap
(outlet/power strip).
7. To prevent a possible fire, do not
block the fireplace’s air intakes or
the exhaust in any manner. Do
not operate the fireplace on soft
surfaces such as a bed where the
openings may become blocked.
8. There is a thermostat protective
device inside the fireplace. When
the inner temperature exceeds
a predefined level or abnormal
heating occurs, the thermostat
protective device cuts off the
power supply to avoid damage to
the fireplace or risk of fire.
9. Use this fireplace only as described
in this manual. Any other use is not
recommended by the manufac-
turer and may cause fire, electrical
shock, or injury.
SAVE THESE INSTRUCTIONS
WARNING: This fireplace is hot
when in use. To avoid burns,
do not let bare skin touch
hot surfaces. If provided, use
handles when moving this
fireplace. Keep combustible
material, such as furniture, pil-
lows, bedding, paper, clothes
and curtains at least 3 ft. (0.9
meters) from the front of the
fireplace and keep them away
from the sides and rear.
WARNING: Extreme caution is
necessary when any fireplace
is used by or near children or
invalids and whenever the
fireplace is left operating and
unattended.
WARNING: Do not operate any
fireplace with a damaged cord
or plug or after the fireplace

5
malfunctions or has been
dropped or damaged in any
manner. Return the fireplace to
an authorized service facility
for examination, electrical or
mechanical adjustment, or
repair.
WARNING: Do not insert or
allow foreign objects into
the ventilation or exhaust
openings as this may cause an
electric shock, fire, or damage
the fireplace.
WARNING: The fireplace
contains hot and potentially
flammable components. Do
not use in areas where gaso-
line, paint, or other flammable
liquids are used or stored.
CAUTION: While in use, the
top center of the fireplace can
become hot to the touch and
may cause serious injury or
burns. Always supervise small
children around the fireplace.
Do not place any cloth, deco-
rations, or otherwise obstruct
the fireplace outlet as this may
cause a fire and serious injury
may result.
GROUNDING INSTRUCTIONS
DANGER: Improper
connection of the equipment-
grounding conductor can
result in a risk of electric
shock. Check with a qualified
electrician if you are in doubt
as to whether the product is
properly grounded. Do not
IMPORTANT SAFETY INSTRUCTIONS
modify the plug provided
with the product. If it will not
fit the outlet, have a proper
outlet installed by a qualified
electrician.
This product must be grounded. If it
should malfunction or breakdown,
proper grounding provides a
path of least resistance for electric
current to flow and reduces the
risk of electric shock. This product
is equipped with a cord having an
equipment-grounding conductor
and a grounding plug. The plug
must be inserted into an appropriate
outlet that is properly installed and
grounded in accordance with all local
codes and ordinances.
This fireplace is for use on 120 volt
circuits and has a grounded plug. An
adapter is available for connecting
three-blade grounding type plugs
to two-slot receptacles. The green
grounding lug extending from
the adapter must be connected
to a permanent ground such as a
properly grounded outlet box.
The adapter should not be used if
a three-slot grounded receptacle is
available.

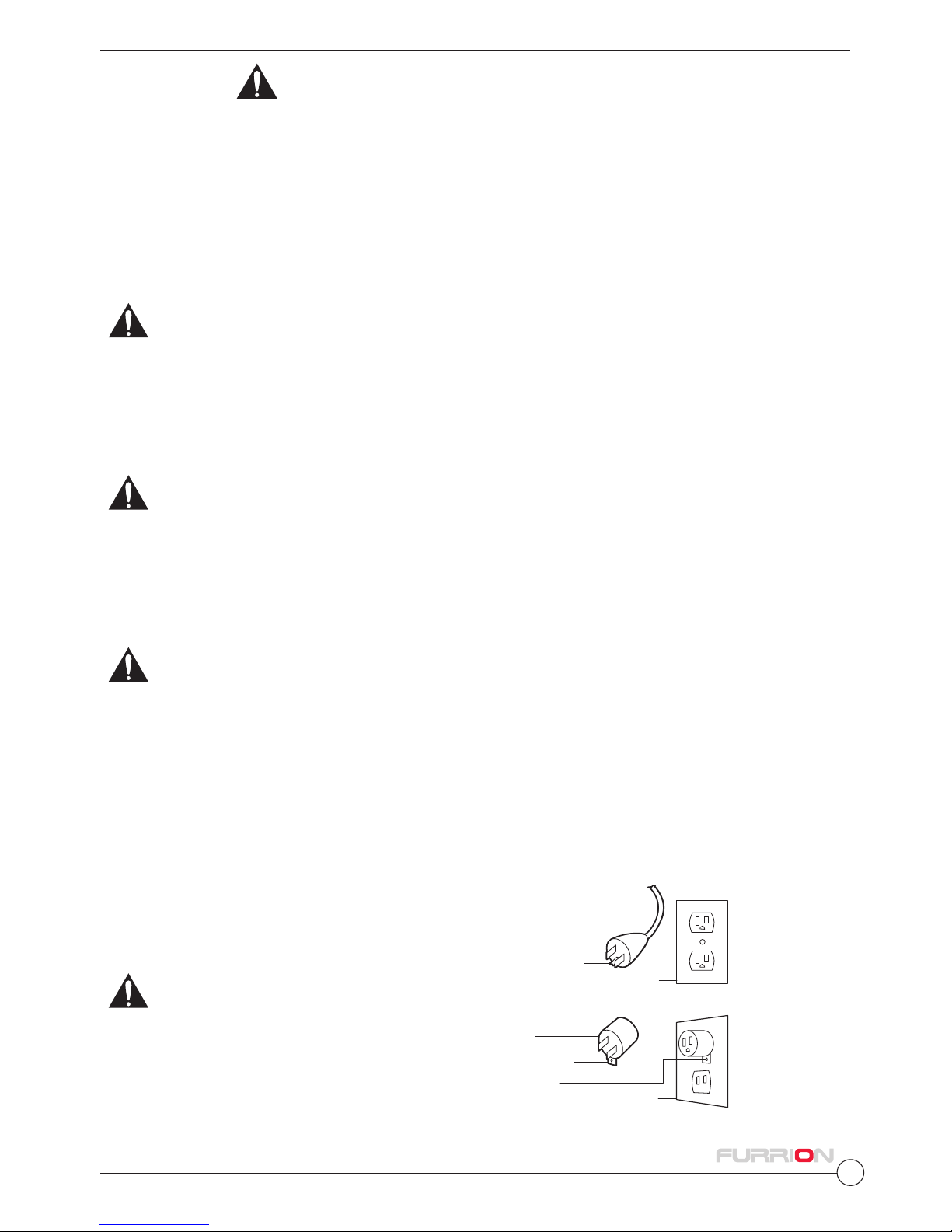

A
B
Grounding Pin
Grounding Lug
Metal Screw
Adapter
Cover of Grounded Outlet Box
Cover of Grounded Outlet Box

6
IMPORTANT SAFETY INSTRUCTIONS
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Modifications not approved by the party responsible for compliance could
void user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.

7
Installation

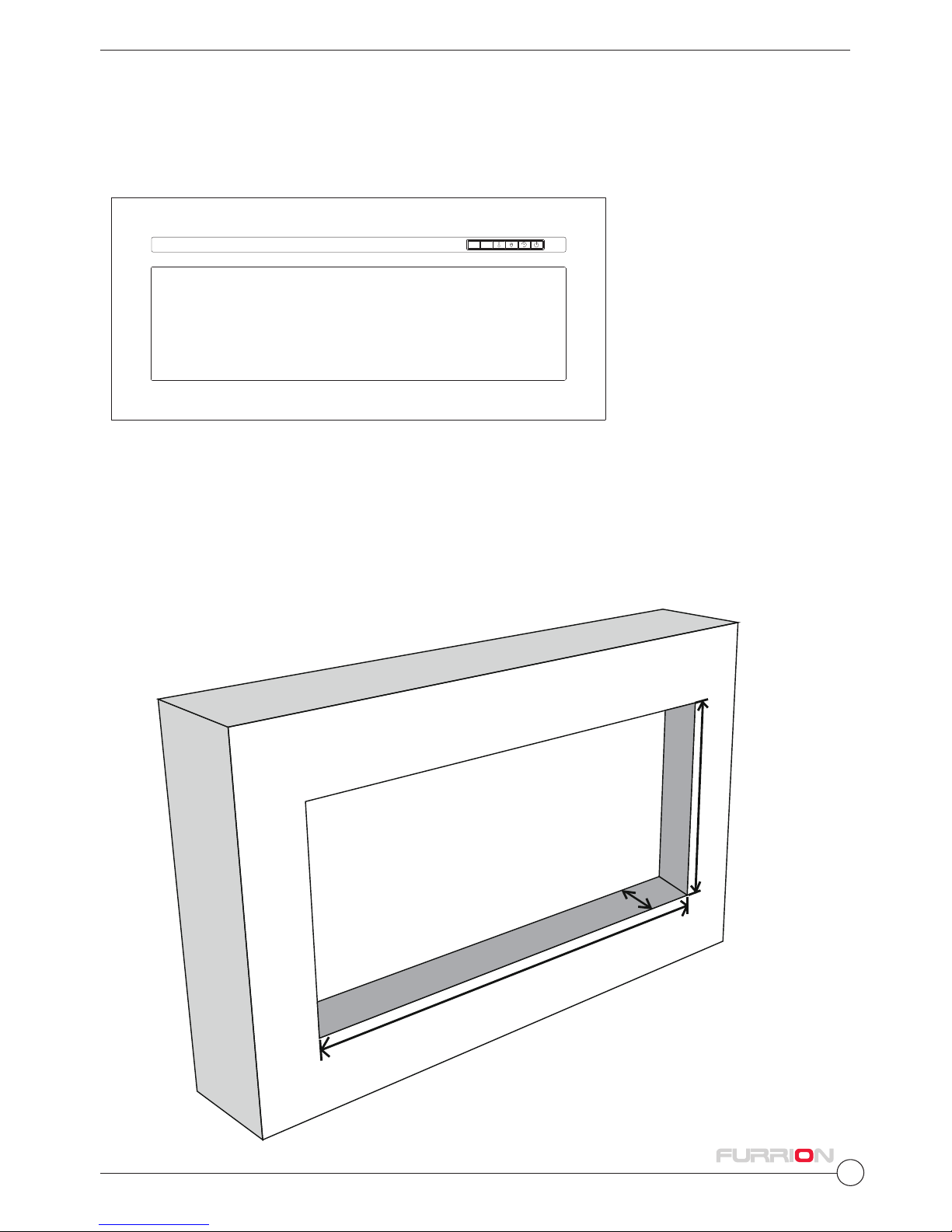

1. Remove the front glass assembly and place the unit into the cabinet. The
height, width, and depth of the cabinet’s opening is outlined in the picture
below.
Installation
First Time Use
Remove the marketing sticker from the front glass.
35 7⁄8 “
16 ¼ “
5 “
Marketing Sticker

8
Installation
Note: If installing the fireplace
in an RV, ensure to leave a
minimum clearance of 6
inches from any object when
the unit is turned off and 3
feet from the unit when in
operation.
CAUTION: Do not install the re-
place insert directly on
carpet or similar surfac-
es which may restrict air
ow.
CAUTION: If installing the fireplace
in a carpeted area,
place a one-piece solid,
flat surface under the
fireplace.
2. Secure the fireplace to the cabinet with the (4) supplied mounting screws.
3. Align the glass assemble into the grooves on the left and right sides of the
unit and gently slide into place and secure the glass assembly to the fireplace
body with the (4) supplied mounting screws.
35 7⁄8 “
16 ¼
“
5 “
35 7⁄8 “
16 ¼
“
5 “
35 7⁄8
“
16 ¼
“
5 “

9
Operation
Product Specications
Rating voltage 120Vac 60Hz
AMPS 12.5A
WAT TS 1500W
Control Panel
Marketing Sticker
Warning: This electric fireplace must be properly installed before it is used.
Note: The element retains heat after shut down. There is a built-in cool down
period of 30 seconds before the blower shuts off completely.
Note: To operate correctly, the remote control must be pointed toward the
control panel.
Function Icon Description
POWER Turn on or turn off the fireplace.
Flame Select one of four brightness levels.
Fireplace
1. Press once to activate the low heat setting.
2. Press the button a second time to activate the high
heat setting.
3. Press the button a third time to turn off the fireplace.
4. After turning on the fireplace, press this button for 3
seconds to select the desired temperature setting.
Note: pressing the power button for 3 seconds will
toggle between °C and °F.

10
Operation & Troubleshooting

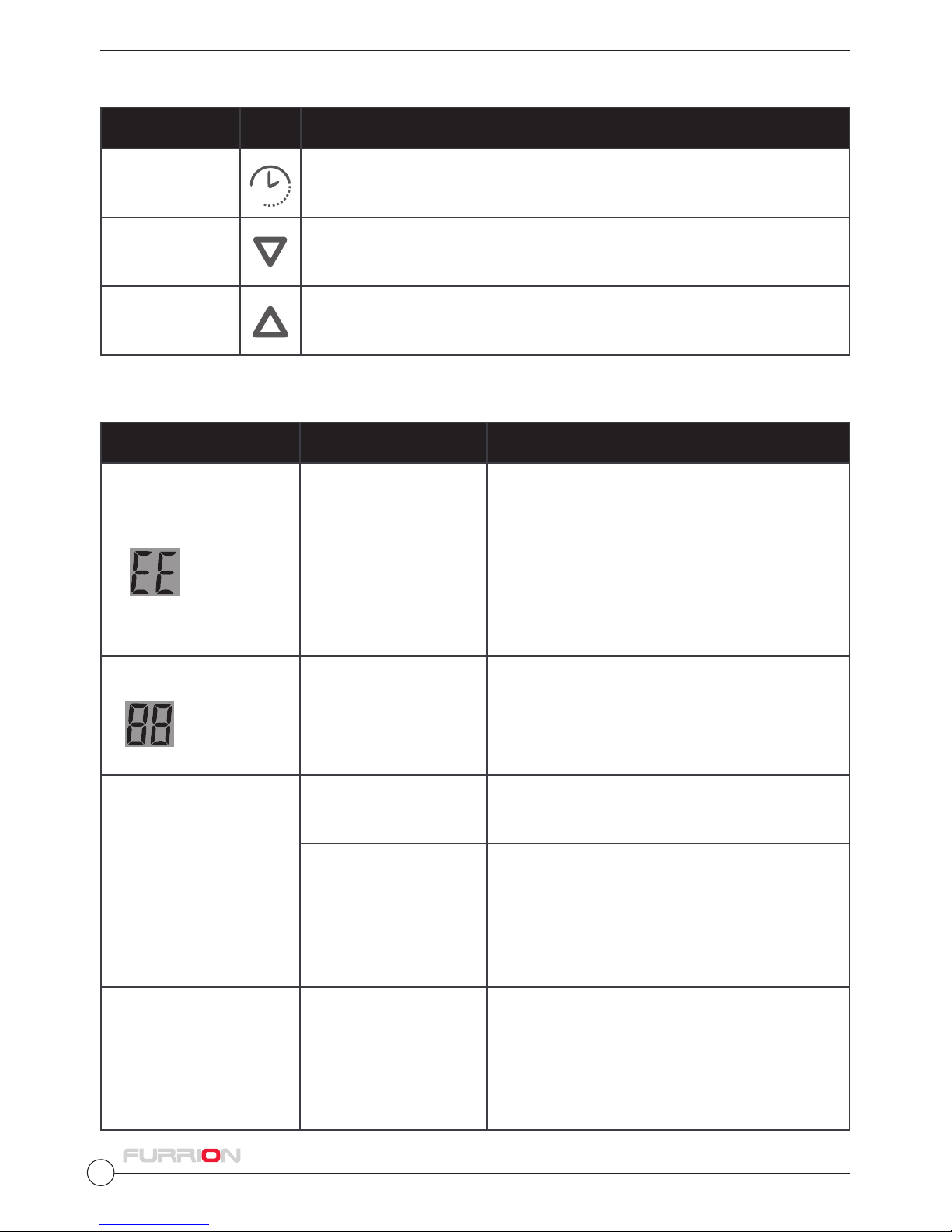

Function Icon Description
Timer Pressing the button will cycle through the timer setting:
30 minutes to 5 hours.
Temperature
down Decrease the heat output (remote control only).
Temperature
up Increase the heat input (remote control only).
Troubleshooting
Problem Root cause Corrective action
Display shows
“”
The thermostat
sensor is broken
or disconnected.
Unplug the fireplace and remove
the back panel. Check that the
thermostat is plugged into the main
circuit board. If this does not solve
the problem, contact customer
service for a replacement thermostat
sensor.
Display shows
“”
Manual reset
overheat
protection has
triggered.
Inspect the fireplace and check
that the air inlets and outlets are
not blocked as this may cause
overheating.
Fireplace does not
blow warm air.
Cool down cycle Normal operation will continue for
30 seconds before shutting down.
Thermostat
setting is
preventing the
fireplace from
turning on.
Adjust the temperature setting
to ensure that the thermostat is
set higher than the current room
temperature.
The RED LED is
blinking constantly
and the blower
motor does not
start.
Air vents may be
obstructed.
Ensure there are no obstructions
within a minimum distance of 6
inches from the air vents. Press the
Power button to restart the fireplace.

11
Troubleshooting & Care and Maintenance
Problem Root cause Corrective action
The slide out
moves and the
fireplace turns off
automatically.
Overcurrent
protection has
been triggered.
After the slide out stops, press
the power button to restart to the
fireplace.
Remote control is
not working
Weak or defective
batteries Replace the remote batteries.
Poor signal
Press the remote control buttons with
an even motion and gentle pressure.
Repeatedly pressing buttons in rapid
succession may cause the remote to
malfunction.
Distance
Operate the remote at a distance
less than 20 feet from the front of
the fireplace. Point the remote at the
control panel.
Care and maintenance
• The fan and flame generator motors are pre-lubricated for extended bearing
life and require no further lubrication. However, we recommend periodic
cleaning/vacuuming of the fan/fireplace.
• Buff the trim using a soft cloth slightly dampened with a citrus oil based
product (available at supermarkets and hardware stores). DO NOT use brass
polish or household cleaners. These products will damage the metal trim.
• Make sure the unit is turned OFF and unplugged before cleaning the fireplace.
Warranty
We are confident that you will be delighted with this purchase. Should this product
be defective in workmanship or materials or fail under normal use, we will repair or
replace it for a period of up to one (1) year from the date of purchase.
This warranty gives you specific rights and you may also have other rights which
vary from state to state.

12
IM- FF40S15A-BL REV.0
Furrion reserve the right to alter the information in this document without prior notice.
Furrion shall not be liable for technical or editorial errors or omissions contained herein.
FURRION.COM
