Furrion FCR08DCGTA-NR User manual

8 & 10 cu. ft. Furrion Arctic®
12 Volt Built-in Refrigerator
User Manual
* Product picture is for reference only.
Model:
FCR08DCGTA-BL/FCR08DCGTA-BR
FCR10DCGTA-BL/FCR10DCGTA-BR
FCR08DCGTA-NR/FCR08DCGTA-NL
FCR08DCGTA-KR/FCR08DCGTA-KL
FCR10DCGTA-NR/FCR10DCGTA-NL
FCR10DCGTA-KR/FCR10DCGTA-KL

2
Thank you for purchasing this Furrion® product. Before operating your new appliance, please read these instructions carefully.
This instruction manual contains information for safe use, installation and maintenance of the appliance.
Please keep this instruction manual in a safe place for future reference. This will ensure safe use and reduce the risk of injury.
Be sure to pass on this manual to new owners of this appliance.
The manufacturer does not accept responsibility for any damages due to disregarding these instructions.
Table of Contents
Explanation of Symbols
This manual has safety information and instructions to help
you eliminate or reduce the risk of accidents and injuries.
Always respect all safety warnings identified with these
symbols. A signal word will identify safety messages and
property damage messages, and will indicate the degree or
level of hazard seriousness.
DANGER
Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate personal injury, or
property damage.
Table of Contents ..........................................................................................................................................................................2
Explanation of Symbols ...............................................................................................................................................................2
Important Safety Instructions.....................................................................................................................................................3
General Safety Warnings ..................................................................................................................................................................................................... 3
Proper Disposal of the Refrigerator ................................................................................................................................................................................ 3
Parts and Features .......................................................................................................................................................................4
Installation .....................................................................................................................................................................................5
What’s in the Box...................................................................................................................................................................................................................... 5
Site Preparation........................................................................................................................................................................................................................ 5
Installing the Refrigerator..................................................................................................................................................................................................... 7
Reversing the Door Swing (Optional)............................................................................................................................................................................. 9
Operation........................................................................................................................................................................................11
Temperature Control.............................................................................................................................................................................................................. 11
Off Grid Usage .......................................................................................................................................................................................................................... 11
Extreme Temperature Usage............................................................................................................................................................................................. 12
Adjusting the Shelf (Optional)............................................................................................................................................................................................ 12
Storage Lock ............................................................................................................................................................................................................................. 13
Transportation........................................................................................................................................................................................................................... 13
Energy Saving Tips................................................................................................................................................................................................................. 13
Extended Storage ................................................................................................................................................................................................................... 13
Cleaning and Maintenance ..........................................................................................................................................................14
Refrigerator Interior Cleaning ............................................................................................................................................................................................ 14
Refrigerator Exterior Cleaning........................................................................................................................................................................................... 14
Battery Maintenance.............................................................................................................................................................................................................. 14
Replacing the Interior LED .................................................................................................................................................................................................. 14
Replacing Door Panels (for FCR08DCGTA-BL/BR and FCR10DCGTA-BL/BR models only)............................................................ 15
Circuit Diagram..............................................................................................................................................................................16
Specifications................................................................................................................................................................................17
Troubleshooting ............................................................................................................................................................................18

3
Important Safety Instructions
General Safety Warnings
CAUTION
Improper installation, adjustment, alteration, service
or maintenance can cause personal injury or property
damage. For assistance or additional information, contact
Furrion customer service.
●Do not allow anything to touch the refrigerator cooling
system.
●Make sure the electrical installation follows all applicable
code.
●Do not bypass or change the refrigerator's electrical
components or features.
●Do not spray liquids near electrical outlets, connections,
or the refrigerator components. Most liquids are
conductive, which can cause electric shock, short circuit
or fire.
●The refrigerator cooling system is under pressure. Do not
try to repair or to recharge a defective cooling system.
●The shelves have been fixed according to safety
regulation. The shelves must always be retained during
operation and transportation. Contact Furrion customer
service if the fixing mechanism is ever compromised.
●Make sure the glass door does not contact any hard
object while opening/closing the door.
●Do not slam the glass door.
WARNING
●The rear of the refrigerator has sharp edges and
corners. To prevent cuts or abrasions when working
on the refrigerator, use caution and wear personal
protection such as cut resistant gloves, and arm
protection.
●Do not store or use gasoline or any flammable vapors
and liquids in the vicinity of this refrigerator.
●This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
●Children should be supervised to ensure that they do
not play with the appliance.
●To avoid an electrical shock hazard, relevant actions
should be performed by qualified and certified
professionals. Power should always be disconnected.
WARNING
●Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
●Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
●Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
Proper Disposal of the Refrigerator
DANGER
Risk of child entrapment. To avoid the possibility of child
entrapment, please take the following precautions before
you dispose of your refrigerator.
●Remove all doors.
●Leave shelves in place so children may not easily climb
inside.
●Never allow children to play with, operate, or crawl
inside the refrigerator.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow the
instructions below to help prevent accidents.
Before you throw away your old refrigerator or freezer:
●Take off the doors.
●Leave the shelves in place so that children may not easily
climb inside.
Refrigerants
The refrigerant isobutane (R600a) is contained within the
refrigerant circuit of the refrigerator, a natural gas with a high
level of environmental compatibility, which is nevertheless
flammable and under federal law must be removed prior to
product disposal. If you are getting rid of an old refrigeration
product, check with the company handling the disposal
about what to do.
Save these instructions for future
reference!

4

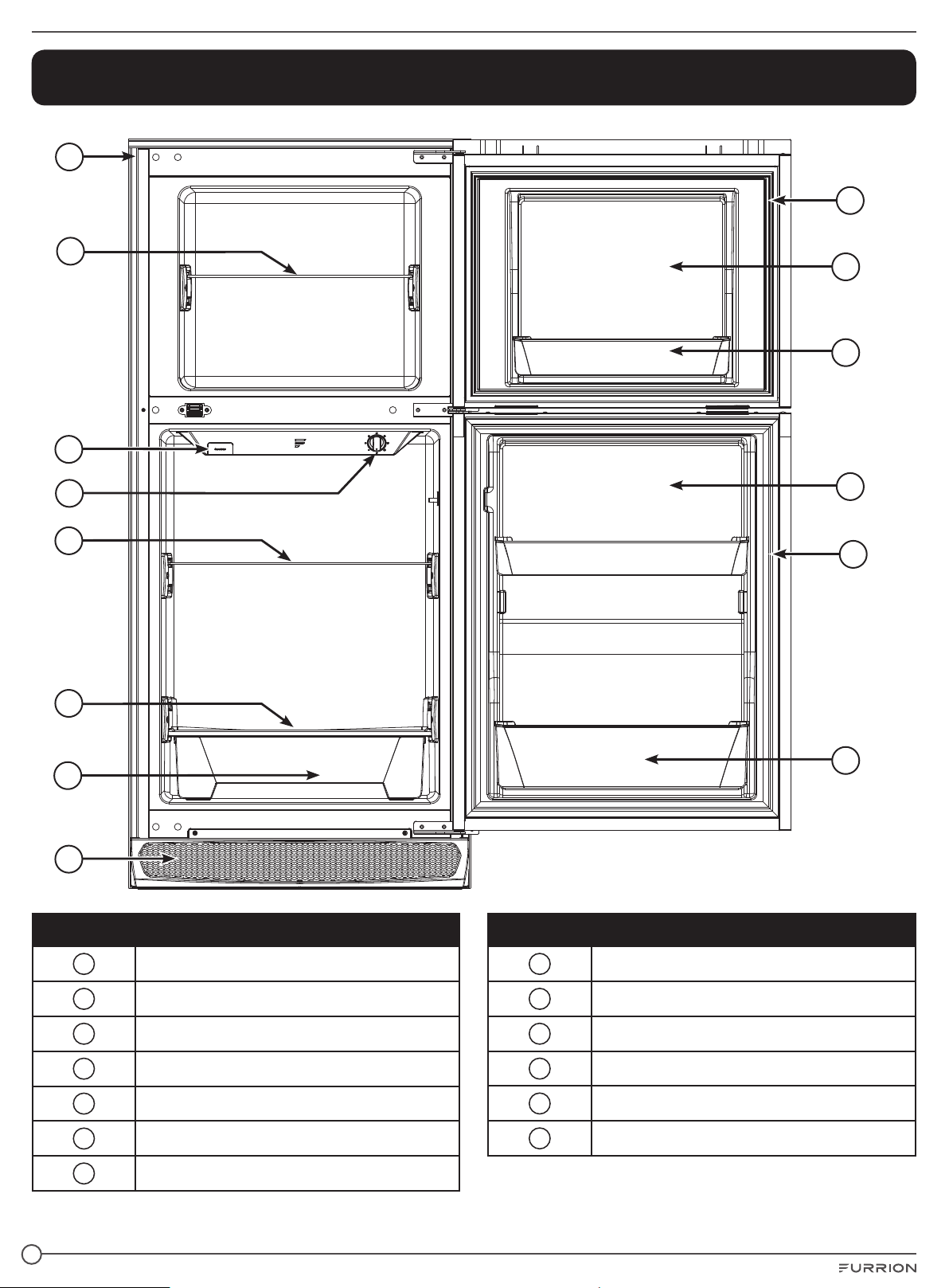

Parts and Features
1
2
3
4
5
6
7
8
9
10
11
12
13
10
Item Part Name
1Trim Kit
2Freezer Shelf
3Charcoal Filter
4Temperature Control
5Refrigerator Top Shelf
6Refrigerator Bottom Shelf
7Drawer
Item Part Name
8Air Vent
9½ Gallon Door Bin
10 Gasket
11 Refrigerator Door
12 Common Door Bin
13 Freezer Door

5
Installation
All Furrion product referenced in this manual is to be installed
in accordance with local and national codes, including the
latest editions of the following standards:
USA:
−NFPA 1192
−NFPA 70
Canada:
−C22.1
−CSA Z240
What’s in the Box
1. Set the unit upright.
NOTE: The refrigerator may have been laid on its back for
transportation and delivery. This is acceptable, but must
be stood up-right vertically for at least 4 hours before
running the compressor to settle the compressor oil.
2. Unpack the unit, discard the packaging material
appropriately.
3. Confirm everything is in the box. If anything is damaged or
missing, contact your dealer.
●Refrigerator x 1
●User Manual x 1
●Warranty Leaflet x 1
●Refrigerator Door Lock Cover x 1
●Storage Lock x 1
Site Preparation
Removing the Existing Refrigerator (if
applicable)
WARNING
FIRE OR EXPLOSION
Gas leaks may occur in your system and result in a
dangerous situation. Always perform a leak test for
possible leaks according to the manufacturer’s instructions
after removing any appliance.
●NEVER leak test when smoking. Never use a flame.
●Do not use any appliance until connection has been leak
tested and does not leak.
●Remove the existing refrigerator (if applicable):
−Unplug the 120V AC power cord from the receptacle
at the rear of the refrigerator enclosure.
−Disconnect the 12V DC leads from the refrigerator and
cap the lead ends.
−Turn off the LP gas supply to the refrigerator.
−Disconnect the LP gas line from the refrigerator. Cap
the line and verify there are no LP gas leaks.
−Remove the screws anchoring the refrigerator to the
enclosure.
−Slide the refrigerator out from the enclosure and
remove it from the RV.
Select Location
●Your new refrigerator must stand on a flat surface which
should support a weight of 330Lbs (150kg). Surface must
be level relative to the coach floor plane.
NOTE: A slope that is comfortable to live with, and from
normal transportation is acceptable.
●If the appliance is to be placed onto the carpet, support it
with a wooden board. Do not place the appliance directly
on the carpet, as the heat from the compressor may
cause the carpet to fade.
●For best and most efficient operation, the refrigerator
should operate within 50°F ~ 126°F (10°C ~ 52°C). If
installing near large heat sources, such as furnaces,
fireplaces, furnaces, etc. Ensure a thermal barrier, such
as wood paneling isolates the refrigerator space as not to
hinder performance of the appliance.
Refrigerator Cabinet/Enclosure Preparation
●The built-in refrigerator is designed for 0" clearance to the
sides, top. There is an intentional ¼" clearance between
the back of the unit and cabinet to allow the service wire
to enter the cabinet space. Frame the cabinet to the
dimensions indicated below:
H
D
W
¼” space wire entrance
to the cabinet
1/4"
Model W H D
8 cu. ft. 12 Volt Built-in
Refrigerator 23½"±⅛"52⅞"±⅛"24"±⅛"
10 cu. ft. 12 Volt Built-in
Refrigerator 23½"±⅛"59⅞"±⅛"24"±⅛"
●Squareness of the cabinet/enclosure needs to be within
the "W" & "H" dimensions described in two places on
either end. The diagonal measurement should be within
⅜" from each other.
●The base support of the cabinet/enclosure must be
prepared with a 0 degree slope. If the existing cabinet/
enclosure has a base with a slope, shimming is required to
level and support the refrigerator.

6
NOTE: Cabinet/enclosures of absorption style fridges
may be built with a 3 degree slope towards the rear. The
slope is to allow moisture drainage towards the sidewall
vent.
●The cooling system is a forced air closed loop design,
with inlet and exhaust on the bottom front of the unit. The
enclosure does not need to be ventilated for any purpose.
There is also no need for additional insulation on sides
and top of the enclosure. The enclosure can be treated as
a normal cabinet enclosure of the living space.
●Face surfaces of the cabinet enclosure made from solid
MDF should contain a softwood backing as a skeleton for
mounting support, and to reduce splitting.
NOTE: A softwood core with MDF laminate, or a soft/
hardwood face will be sufficient without a skeleton
backing.
Electrical Preparation
WARNING
●Proper grounding is required for your safety, to prevent
electrical shock or fire. The refrigerator is provided with
the proper grounding for internal electric faults from the
factory. This grounding must not be removed or altered.
●Ensure that the converter or DC power supply is
grounded properly per manufacturers instruction. Per
RVIA the power supply is required to be isolated and
grounded with the Coach Chassis.
CAUTION
This refrigerator will accept voltage levels up to 17V DC
only. Anything other than this, including any AC power will
cause product damage and void the warranty.
●The refrigerator requires a power source that can
adequately provide 10.2~14.2V DC to function properly.
Furrion Recommends Power Center (FCVSWC42A or
FCVSWC54A) and Lithium Battery (FB12I10C) to match
with.
●The refrigerator should be dedicated to a single branch
circuit, and must be fused for 15A minimum.
NOTE:An internal 15A fuse is provided with the product.
This is only intended to protect the internal wiring of the
unit. It will not protect the power source and wiring to the
product and is not to be used as a substitute. The internal
fuse will however allow for a larger rated branch circuit.
NOTE: Sharing power with other devices on the same
branch circuit may cause transient surges and voltage
drops. These interferences may damage or limit
functionally of all devices on the branch circuit.
NOTE: When replacing an absorption refrigerator, the
power supplied is usually shared with other powered
features in the coach, such as overhead lights. A separate
dedicated branch circuit will be preferred to eliminate
flickering during compressor operation.
●The maximum input of the appliance is rated for 11A. All
wiring must follow RVIA and NEC standards based on the
input rating.
●Apply the following wiring guidelines to achieve maximum
performance out of the battery reserve.
Dedicated from the Distribution Box/Panel

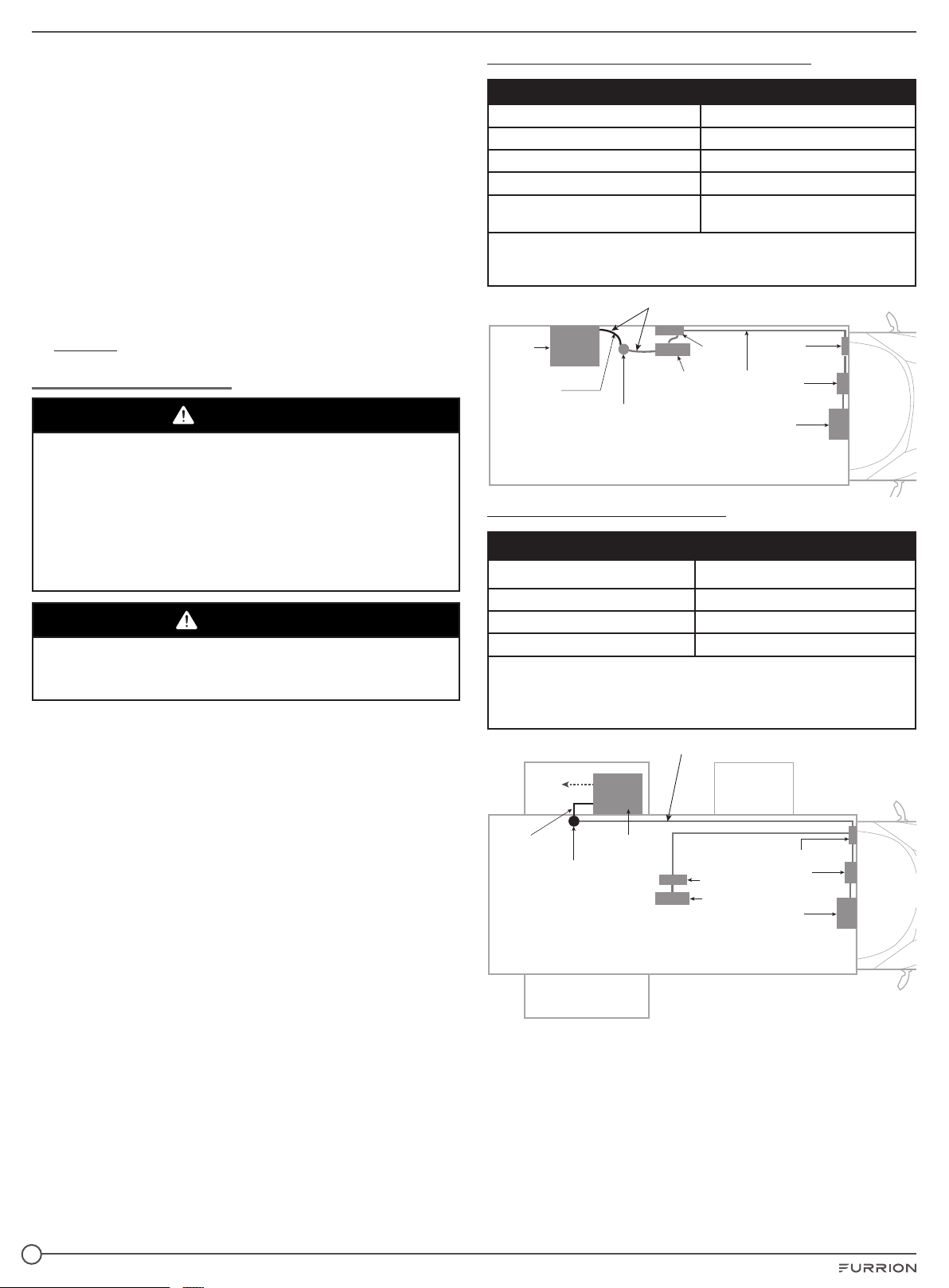

Table A
Wire Length to Refrigerator Wire Gauge
Maximum 5ft 14AWG
Maximum 10ft 12AWG
Maximum 15ft 10AWG
Exceeds 15ft and/or main wire feed
exceeds 25ft of 6AWG
See "Direct Connection from
Battery"
*Optional - A pigtail harness of matching gauge can be added to the
refrigerator, however the length must be included in the total.
** Main wire feed required to be 6AWG minimum @ 25ft maximum.
Refrigerator Converter
Wire Length - Reference Tabel A
Mini
Breaker
Battery
Dis-connect
Battery
Distribution
Box/Panel
Main Wire
Feed (**)
Refrigerator
Converter
Mini Breaker
Battery
Dis-connect
Battery
Distribution
Box/Panel
Pigtail
Pigtail Connection
Point (*)
Pigtail Connection
Point (*Optional)
Chasis
Grounding
(**Optional)
Pigtail
Wire Length - Reference Tabel B
Direct Connection from Battery
Table B
Wire Length to Refrigerator Wire Gauge
Maximum 20ft 10AWG
Maximum 35ft 8AWG (*)
Maximum 55ft 6AWG (*)
* The refrigerator will accept maximum 10AWG wire. To connect a larger
gauge wire, utilize a 10AWG pigtail, maximum 5ft.
**Optional - The ground/negative terminal can be connected to the chassis
with the same gauge wire, instead of returning to the battery.
Refrigerator Converter
Wire Length - Reference Tabel A
Mini
Breaker
Battery
Dis-connect
Battery
Distribution
Box/Panel
Main Wire
Feed (**)
Refrigerator
Converter
Mini Breaker
Battery
Dis-connect
Battery
Distribution
Box/Panel
Pigtail
Pigtail Connection
Point (*)
Pigtail Connection
Point (*Optional)
Chasis
Grounding
(**Optional)
Pigtail
Wire Length - Reference Tabel B
●If additional grounding is desired for external faults to the
refrigerator chassis, an external grounding wire can be
prepared and attached directly to the terminal block. The
terminal block is rated for Maximum 300V at 25A.
●Enter service wire into the cabinet space. It is acceptable
to enter through the cabinet floor, sidewall or ceiling.
Ensure that the wire is within the ¼" space provided to the
back of the unit and cabinet.
NOTE: For replacement of an existing refrigerator, the
wire may need to be re-routed into the cabinet if the
entryway point is not within the ¼" spacing.

7
●If no sidewall access panel/vent is available to reach
the rear wire connection of the appliance, plan for the
appropriate wire length to reach outside of the cabinet so
the wire connection can be made before installing.
NOTE:Furrion recommends dropping the 12V feed wire
from the upper rear of the cabinet down to the terminal
block. Temporarily affix the wires to the upper half of the
appliance with tape so that excess wire will droop without
risk of rubbing with the appliance chassis and floor during
installation.
Drainage Preparation
The cavity condensate drainage is captured in a drain pan
integrated with the unit. No external drainage needs to be
prepared at this point.
Installing the Refrigerator
Electrical Connection

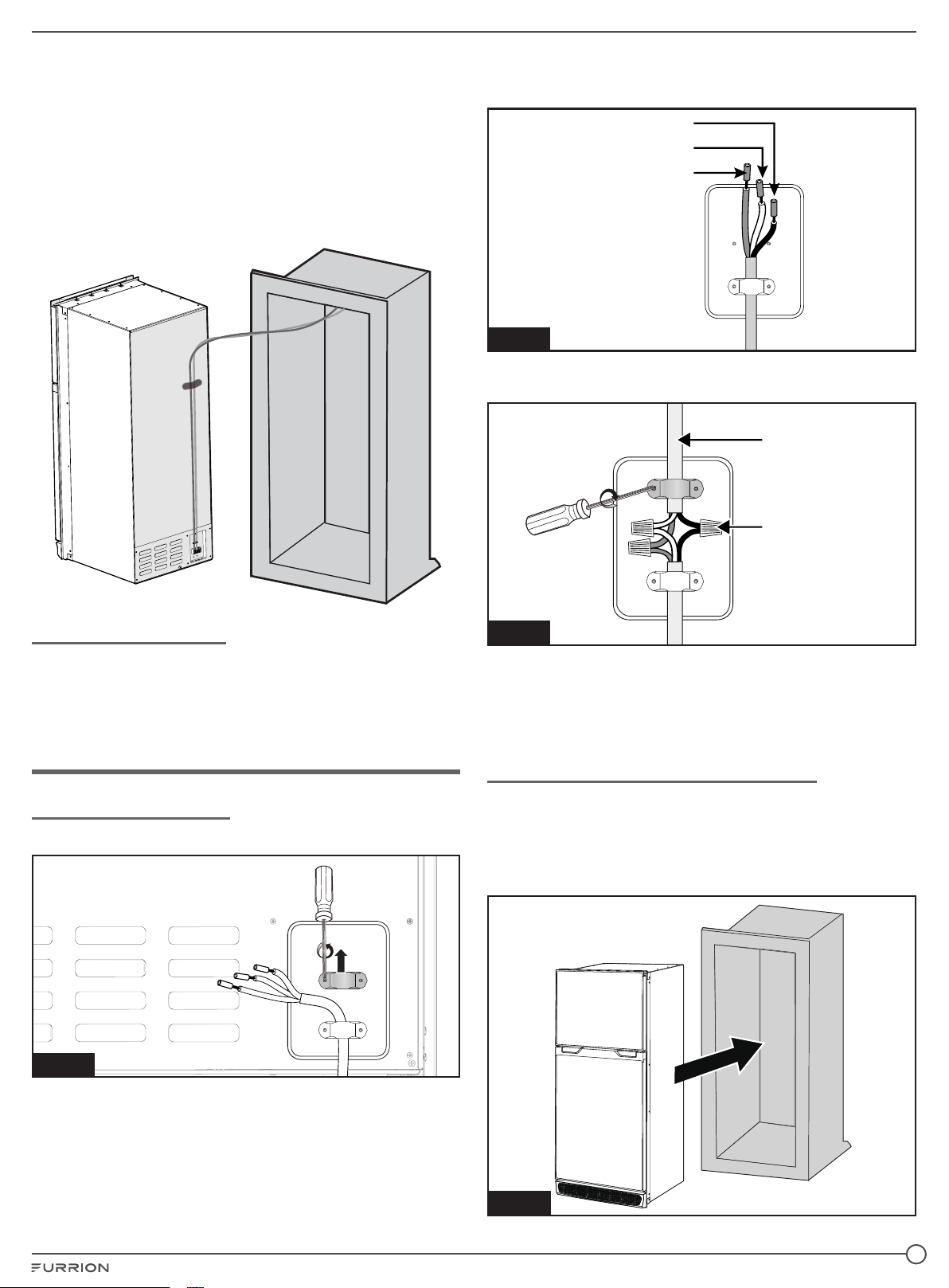

1. Remove the strain relief and connector cover. (Fig. 1)
Remove
Fig. 1
2. Connect the Red "+" to the 12V DC positive pole. Connect
the White "-" and green "GND" wire together with the 12V
DC negative pole. (Fig. 2)
White: -12V
Red: +12V
Green: Grounding
Fig. 2
3. Use the upper strain-relief for securing the wires going to
the battery. (Fig. 3)
Wire from Battery
Not Provided
Fig. 3
NOTE: The inverter’s input winding is electrically separated
from the output winding by an insulation at least equivalent
to DOUBLE INSULATION or REINFORCED INSULATION,
that is intended to supply an appliance or circuit at SAFETY
EXTRA-LOW VOLTAGE.
Installation without Sidewall Access
Slide the unit into the enclosure. Care should be taken
to avoid rubbing the chassis and wire together during
installation. (Fig. 4)
NOTE: Elevating the wire and use of wire sheathing/wire
loom will help protect the wire.
Fig. 4

8

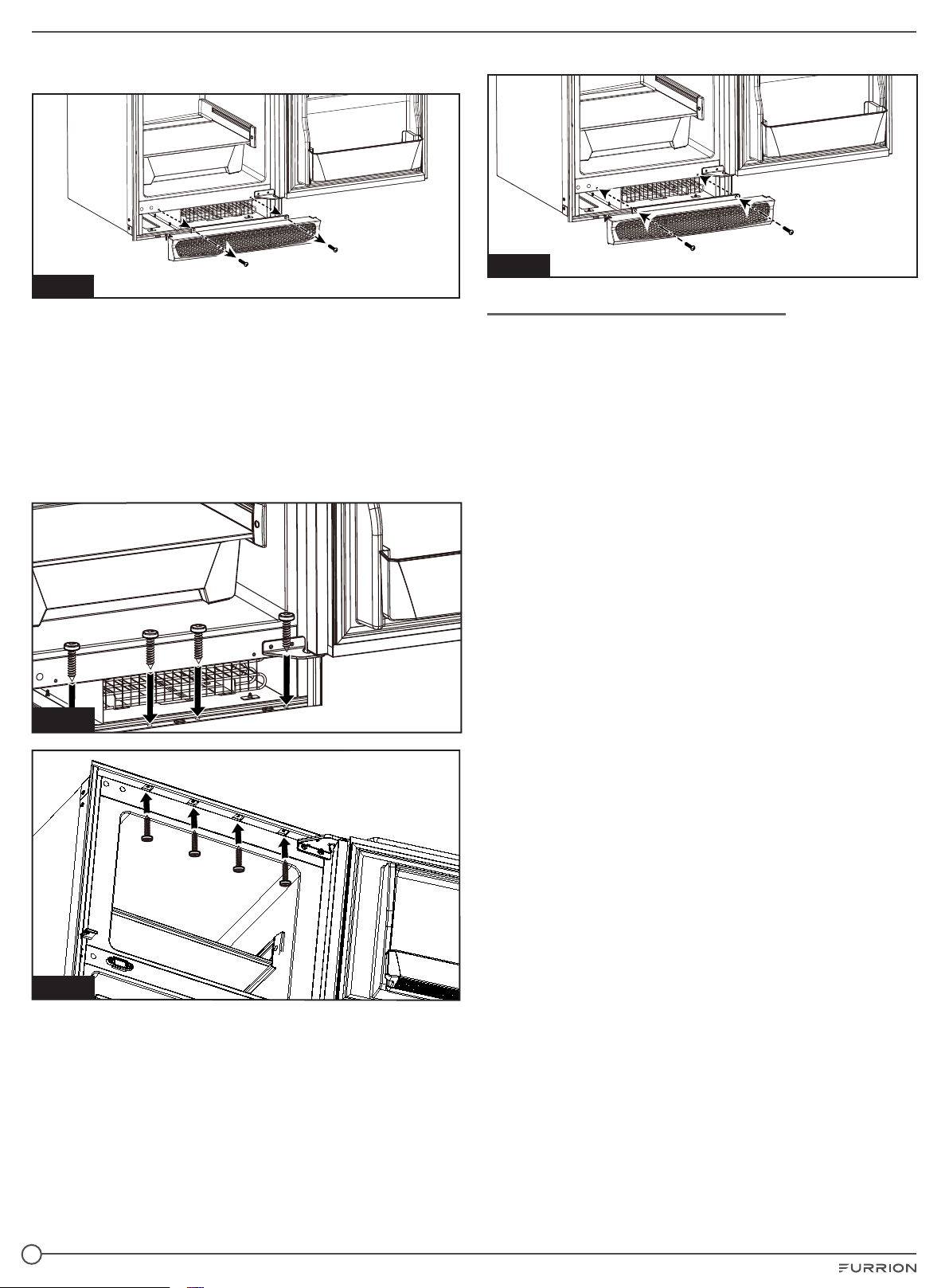

4. Unscrew the air vent fixing screws and remove the air
vent. (Fig. 5)
Fig. 5
5. Center the fridge in the opening to ensure the trim covers
all front gaps in the cabinet.
6. Affix the refrigerator into the enclosure on both the top
and bottom. (Fig. 6 and Fig. 7)
NOTE: Use the appropriate wood style screw to bite into
the softwood portion of the cabinet framing.
NOTE: Do not mount the top or bottom first, and push
the free end of the refrigerator cavity to square up in the
enclosure. Doing so will mis-align door the latches. If the
cabinet is out of square, shim appropriately.
Fig. 6
Fig. 7
7. Reinstall the air vent and tighten the screws. (Fig. 8)
Fig. 8
Installation with Sidewall Access
NOTE: Follow the below steps where a sidewall vent or
access panel is available, such as when replacing an existing
gas absorption refrigerator.
1. Place refrigerator in the enclosure, described in Fig. 4
from the "Installation without Sidewall Access" section.
Disregard any electrical connections at this step.
2. Remove the existing sidewall vent or open the sidewall
access panel, for access to the rear of the appliance.
3. Confirm location of the wire and that no interference with
the refrigerator chassis frame will cause an abrasion or
pinch on the wire. Relocate the wire if necessary, it should
be within the ¼" space between the back of the unit and
cabinet. Refer to "Electrical Preparation" of this manual
for further detail.
4. Inspect fit of the refrigerator to the cabinet. Push tight into
position.
NOTE: Sealing foam may be interfering in the rear and will
require removal of contact locations with a knife.
5. Affix the refrigerator to the cabinet following steps 2 - 5 in
section "Installation without Sidewall Access".
6. If applicable, cap and seal the gas line with a ⅜" flange
fitting plug. Turn the gas on and check for any gas leaks
using a non corrosive liquid leak detection solution.
7. Make the electrical connection as described in
"Electrical Connection" section.
8. If necessary re-seal any openings that were revealed from
cutting away the foam in step 3 that may prevent moisture
leakage/propagation.
NOTE: Foaming/sealing gaps along the perimeter of the
refrigerator sides and bottom is not necessary.

9
Reversing the Door Swing (Optional)
Your refrigerator is ordered as either a left or right open swing
from the factory, you may change the door swing direction as
required.

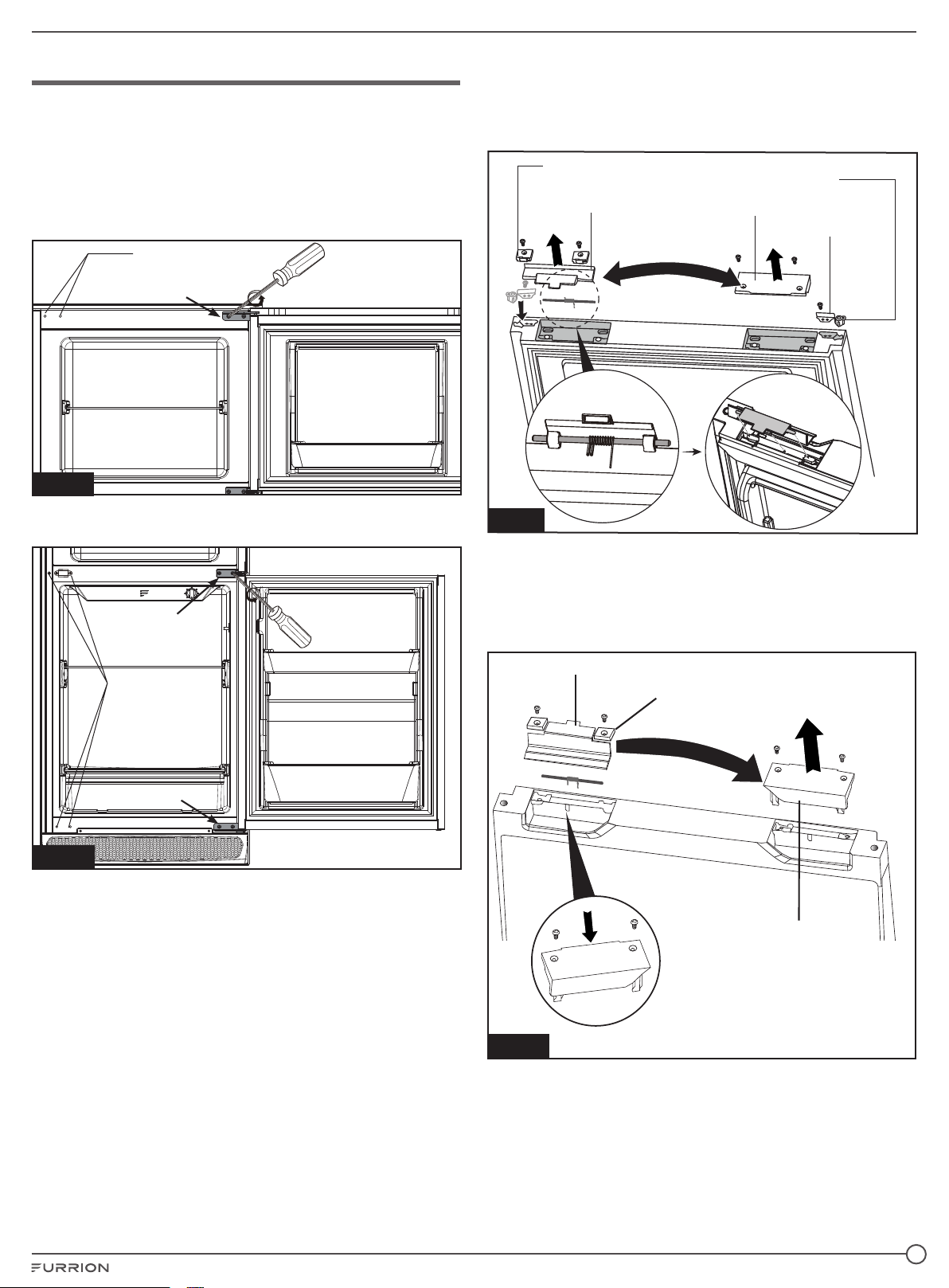

1. Disassemble the freezer door by removing the Hinge A
fixing screws. (Fig. 9) Remove the Hole Plastic Cover
Plugs from the left side of the refrigerator and set aside for
future use.
Hinge A
Fig. 9
Hole Plastic Cover Plugs
2. Disassemble the Refrigerator Door by removing the Hinge
B and Hinge C fixing screws. (Fig. 10)
Hinge B
Hinge C
Fig. 10
Hole Plastic
Cover Plugs
3. Reverse the parts of Freezer Door Lock Cover, Metal
Bracket, Plastic Bushing, Freezer Door Lock, Lock Fixing
Block to the opposite side respectively. (Fig. 11)
NOTE: The Metal Bracket is only applicable to models
FCR08DCGTA-BL/BR and FCR10DCGTA-BL/BR.
Lock Fixing Block
Freezer Door Lock Freezer Door Lock Cover
Plastic Bushing
Metal Bracket
Fig. 11
4. Remove the Refrigerator Door Lock Cover (right) and
save it for future use. Change Refrigerator Door Lock and
Lock Fixing Blocks to the opposite side. Install the left side
Refrigerator Door Lock Cover, provided as an accessory
with the unit, where the door lock was. (Fig. 12)
Refrigerator Door
Lock Cover (left)
Refrigerator Door
Lock Cover (right)
Lock Fixing Block
Refrigerator Door Lock
Fig. 12

10
5. Reverse the Metal Bracket and Plastic Bushing on the
bottom of Refrigerator Door. (Fig. 13)
NOTE: The Metal Bracket is only applicable to models
FCR08DCGTA-BL/BR and FCR10DCGTA-BL/BR.
Metal Bracket
Plastic Bushing
Fig. 13
6. Unscrew the Door Latch Bracket fixing screws and
change it to the opposite side. (Fig. 14)
Fig. 14
7. Fix the Hinge A at the bottom left. Reinstall the
Refrigerator Door and fix the Hinge B to the left side of the
middle beam. (Fig. 15)
Hinge A
Hinge B
Fig. 15
8. Reinstall the Freezer Door and then fix the Hinge C at the
top left. (Fig. 16)
Hinge C
Hinge B
Fig. 16
Door swing change is complete, now check for proper
alignment. Feel for any binding, or misalignment of the
door, and make certain the latch is catching and releasing
correctly. Slight adjustments can be made by loosening and
adjusting the hinges if needed.
NOTE: The instructions above are for changing the door
open direction from the left to the right. By reversing the
above steps, you can change the door open direction from
right to left.

11

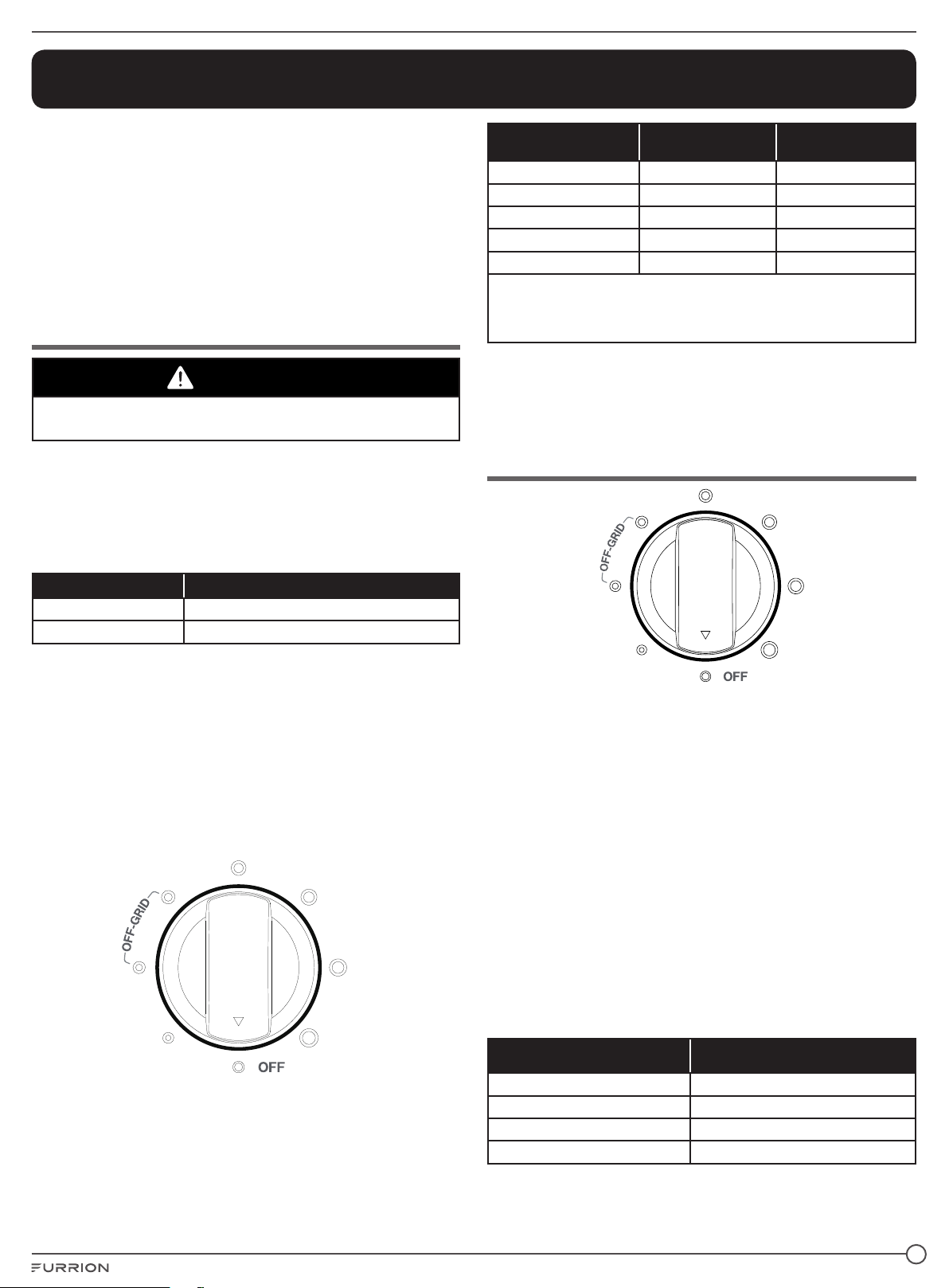

Operation
The appliance has a low-voltage shut-off function, intended
to protect your RV battery's from excessive drain.
NOTE: This function controls compressor operation only, a
small electric current is still used for the LED cavity light and
low-voltage monitoring system. Once voltage is increased,
the system will automatically begin normal operation. The
cavity LED light will also turn off after 3mins of the door
being open. The 3 min timer can be reset by closing and re-
opening the door.
Temperature Control
CAUTION
Proper food storage temperatures is important to reduce
the risk of foodborne illness bacteria.
The temperature control knob is located in the fresh food
compartment of the refrigerator. It is designed to set the
temperature from cold to coldest or turn the refrigeration
system off.
The recommended operating temperatures for proper food
storage is as follows:
Compartment Temperature
Fridge 36°F~40°F (2°C~4°C)
Freezer < 0°F (< -18°C)
Turn the thermostat to max when first starting the refrigerator
and after putting large quantities of food in. After a few
hours turn it down between mid and max position to reach
the recommended operating temperature setting. This
will ensure the cabinet is thoroughly chilled before food is
placed into the refrigerator. Placing large amounts of food
may require additional cooling time to bring the temperature
down. Several conditions may require adjustment of the
temperature dial, use the following chart as a guideline.
Mid
Min Max
Thermostat Setting Fridge Temperature Freezer
Temperature
Max 30°F(-1.1°C) -11.2°F(-24°C)
Between Max and Mid 39.2°F(4°C) 1.4°F(-17°C)
Mid 43.7°F(6.5°C) 5°F(-15°C)
Between Mid and Min 45.5°F(7.5°C) 6.8°F(-14°C)
Min 46.4°F(8°C) 8.6°F(-13°C)
NOTE: The above chart is a guideline defined based on ideal ambient
conditions of 77°F (25°C). Several factors can alter the performance,
a refrigerator thermometer should be placed to achieve maximum
performance.
NOTE: If power is lost during operation, the refrigerator will
automatically resume operation after 3 to 5 minutes. The
temperature knob does not need to be adjusted or cycled to
restart the refrigerator.
Off Grid Usage
●Where grid power is not available, the “OFF GRID” setting
can be used to maximize battery life.
●During travel, where a tow vehicle will provide constant
battery charging, it is recommended to operate the
refrigerator at a normal temperature setting dial (refer to
“Temperature Control” section). Once you have arrived
and are dependent on your battery reserve, rotate the
knob to the “OFF GRID” setting of the dial.
●It is recommended to store meat and dairy products
towards the back and middle shelf of your refrigerator.
Utilize the other space of the refrigerator for beverages,
condiments, and produce.
NOTE: Operation time of refrigerator in "OFF GRID" mode
depends on, but not limited to, factors such as; ambient
temperature, battery capacity, condition of battery,
thermostat setting, food qty, and frequency of door openings.
Reference the below chart to adjust operation time based on
ambient temperature.
Ambient Temperature Operation Time
68°F(20°C) 100%
77°F(25°C) 80%
90°F(32.2°C) 55%
110°F(43°C) 25%

12
Extreme Temperature Usage
The normal operating temperature for this appliance is 50°F
(10°C) to 109.4°F (43°C).
The refrigerator can be used in ambient temperatures
between 109.4°F (43°C) and 125.6°F (52°C), but expect
reduced cooling performance. If the ambient temperature
exceeds 125.6°F (52°C), allow the inside of the coach to cool
down before turning on. If the ambient temperature is below
50°F (10°C), the dial control may need to be turned towards
max to operate the refrigerator. The freezer can be operated
with ambient temperatures below 32°F (0°C), but expect the
refrigerator to be frozen. Furrion recommends increasing the
ambient temperatures above 50°F (10°C) for best results.
Adjusting the Shelf (Optional)
WARNING
To avoid the possibility of child entrapment, do not remove
any shelf from the refrigerator. Shelving is intended to deter
children from play in the compartment area.
The refrigerator and freezer shelves are fixed in the
compartments from the factory. Shelving adjustment is
possible with the following Instruction:
NOTE: The instructions will walk through the freezer
compartment shelving, but apply to all shelving.
To adjust the freezer compartment shelf position:
1. Open the compartment door. (Fig. 17)
Fig. 17
2. Lever the shelf fixing screw cover using a sharp tool.
(Fig. 18)
Fig. 18
Shelf Fixing
Screw Cover
3. Loosen the fixing screw using a Phillips screwdriver.
(Fig. 19)
Fig. 19
4. Repeat steps 2 and 3 to loosen the shelf fixing screw on
the other side. Pull to remove the shelf out from its original
position. (Fig. 20)
Fig. 20
5. Slide the shelf into an appropriate position and fix with
screw. (Fig. 21)
Fig. 21
Repeat the process for shelving in the refrigerator.

13
Storage Lock
Utilize the Storage Lock, provided in the accessories
package with the unit, to prop the door open during extended
storage. This will provide air flow throughout to reduce
moisture and odors.
NOTE: It is not recommended to leave the Storage Lock in
position during traveling, vibration may shake the latch loose.
1. Press the Storage Lock onto the lock bracket directly to
install it.
2. Press both sides of the Storage Lock as per the arrows
shown in Fig. 22 and pull to remove the Storage Lock.
Storage Lock
Lock Bracket
Fig. 22
3. Close the doors so that the door latch engages with the
storage lock.
Transportation
Your refrigerator is designed to operate during normal
transportation of your coach. Please refer to the following
guidelines to assist during transportation.
●During long trips, leave your refrigerator off until 3 hours
before your destination arrival. This will help reduce
any moisture/ice accumulation and accidental battery
discharging.
●Avoid traveling with food in the cavity. Wait until you have
arrived to your destination and remove any remaining
food before departing.
●Never transport with the Storage lock in place.
●Turn refrigerator to "OFF" if climbing/crawling any off-road
grades. Compressor oil should resettle within 2 hours.
Energy Saving Tips
●When possible, place your coach or refrigeration in a
position to avoid direct sun.
●Cool down the hot food to normal temperature before
putting them into the refrigerator.
●Be sure to wrap foods properly, and wipe containers dry
before placing them in the refrigerator. This could prevent
frost buildup inside the refrigerator.
●Organize and label the food to reduce door openings and
long time searches.
Extended Storage
Any time the unit is not to be in-use, it is considered
"extended storage". Follow the below steps to properly
prepare the unit for storage:
1. Remove all food and turn the dial to off.
2. Let any accumulated ice thaw, and dry out with a towel.
3. Disconnect power(either via main disconnect switch, and
turning the converter off or fuse).
4. Remove charcoal filter to preserve charcoal activation,
replace with a new filter every season or after three
months of active use.
5. Install door Storage Lock.
See the "Storage Lock" section about how to install the
Storage Lock.

14
Cleaning and Maintenance
Refrigerator Interior Cleaning
It is recommended to clean the interior as needed due to
spills and other cleaning needs, or each time a new charcoal
filter is replaced.
Refrigerator Exterior Cleaning
To maintain good appearance of your refrigerator, it is
recommended to clean it regularly.
Mix together one to two tablespoon of baking soda and
one quart of water. Wipe down the walls and glass doors of
the refrigerator with this solution, then rinse it with water.
Wipe the refrigerator dry. Avoid using abrasive cleaners and
scrubbing pads or they will damage the refrigerator surfaces.
Battery Maintenance
Your refrigerator has an automatic shut-off switch, should the
voltage drop below 9.6V at the terminal connection. This is to
help prevent permanent damage to your batteries.
NOTE: Once voltage is re-established the refrigerator will
begin working automatically per the setting of the dial.
When possible maintain the float voltage listed on your
battery. Solar is a good way to maintain battery voltage if
a local power source is not available. Contact Furrion for
further questions or options on Solar.
Replacing the Interior LED
WARNING
Electric Shock Hazard
Remove power to the refrigerator by turning off the
converter, disconnecting the battery main, or pulling the
fuse. Failure to do so may result in electrical shock or
personal injury.
Before removing the LED, turn the refrigerator temperature
control to the OFF position. Replace the old LED with a new
LED of the same wattage and size. Contact Furrion or Furrion
authorized dealer to purchase a genuine Furrion replacement
LED (C-FCR10DCDTA-S01).
1. Unscrew the three screws (Fig. 23)
Fig. 23
2. Press the cover backwards toward the rear of the unit and
open it. (Fig. 24)
Fig. 24
3. Remove the clip and two screws to replace the old LED
with a new LED. Fix the clip and tighten the screws. Then
reinstall the cover. (Fig. 25)
Fig. 25
Replacing the Charcoal Filter
It is recommended to replace the charcoal filter every
three months of active use. Contact Furrion or Furrion
authorized dealer to purchase the replacement charcoal filter
(C-FCR10DCDTA-B01).
Replace the charcoal filter by pulling it out from the
refrigerator as shown in Fig. 26 and replace with a new one.
Fig. 26

15
Replacing Door Panels (for
FCR08DCGTA-BL/BR and
FCR10DCGTA-BL/BR models only)
Furrion offers high gloss black, matte black, stainless steel
and black stainless steel colors of refrigerator door panel.
Contact Furrion or Furrion authorized dealer to purchase the
replacement door panel.
Replacement Door Panel
Color
Model
8 cu. ft. 12 Volt Built-
in Refrigerator
10 cu. ft. 12 Volt
Built-in Refrigerator
Stainless Steel C-FCR08DCGTA-A01 C-FCR10DCGTA-A01
Matte Black C-FCR08DCGTA-A02 C-FCR10DCGTA-A02
High Gloss Black C-FCR08DCGTA-A03 C-FCR10DCGTA-A03
Black Stainless Steel C-FCR08DCGTA-A04 C-FCR10DCGTA-A04
Black Midnight Glass C-FCR08DCGTA-A05 C-FCR10DCGTA-A05
Replacing Refrigerator Door Panel
When replacing the refrigerator door panel, the following
dimensions should be met:
H
V
Model H V T
8 cu. ft. 12 Volt
Built-in Refrigerator 27¾"±⁄" 23¾"±⁄" ⁄"
10 cu. ft. 12 Volt
Built-in Refrigerator 34¾"±⁄" 23¾"±⁄" ⁄"
NOTE: "T" indicating the thickness of the replacement door panel.
1. Pull out the Side Cover. (Fig. 27)
Fig. 27
2. Slide out the Refrigerator Door Panel and replace with a
new one. (Fig. 28)
Fig. 28
Replacing Freezer Door Panel
When replacing the freezer door panel, the following
dimensions should be met:
H
V

16
Model H V T
8 cu. ft. 12 Volt
Built-in Refrigerator 18¾"±⁄" 23¾"±⁄" ⁄"
10 cu. ft. 12 Volt
Built-in Refrigerator 18¾"±⁄" 23¾"±⁄" ⁄"
NOTE: "T" indicating the thickness of the replacement door panel.
1. Hold the right of the Top Cover and lift upward to remove.
(Fig. 29)
Fig. 29

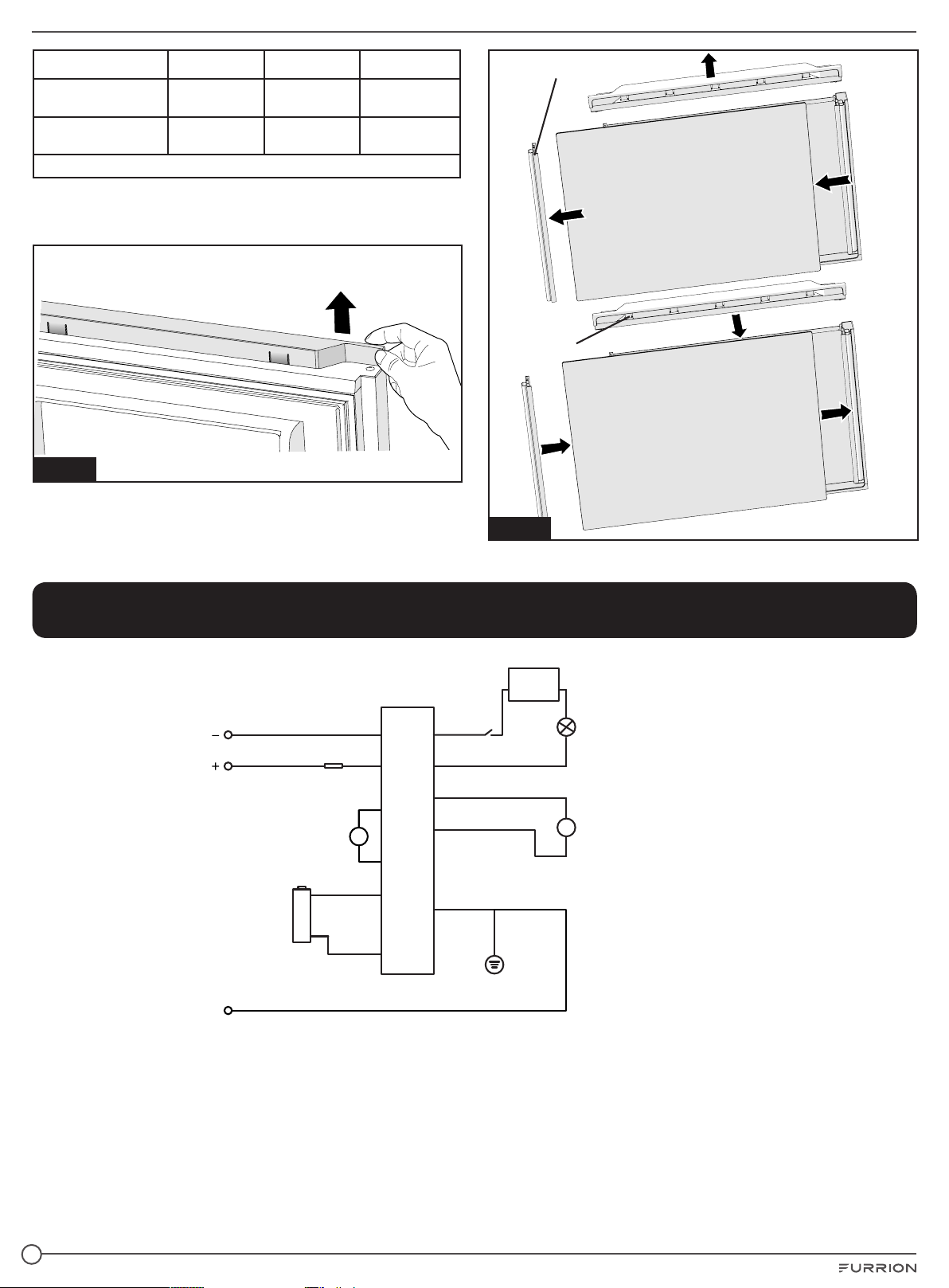

2. Take off the Side Cover. Slide out the Freezer Door Panel
and replace with a new one. Reinstall the Top Cover and Side
Cover. (Fig. 30)
Side Cover
Top Cover
Fig. 30
Circuit Diagram
Red
GND
Green
To Chassis / 12V Ground
12V Power
10.2~14.2V DC
Inverter PCB
Blue
Black
Thermostat
Green
-
+
F+
F-
D
C
P
T
Fuse 15A
Compressor
Red
White
Red
Black Cooling
Fan
M
M
White
Compartment
Light (LED)
Timer
3 min.
Door
Switch

17

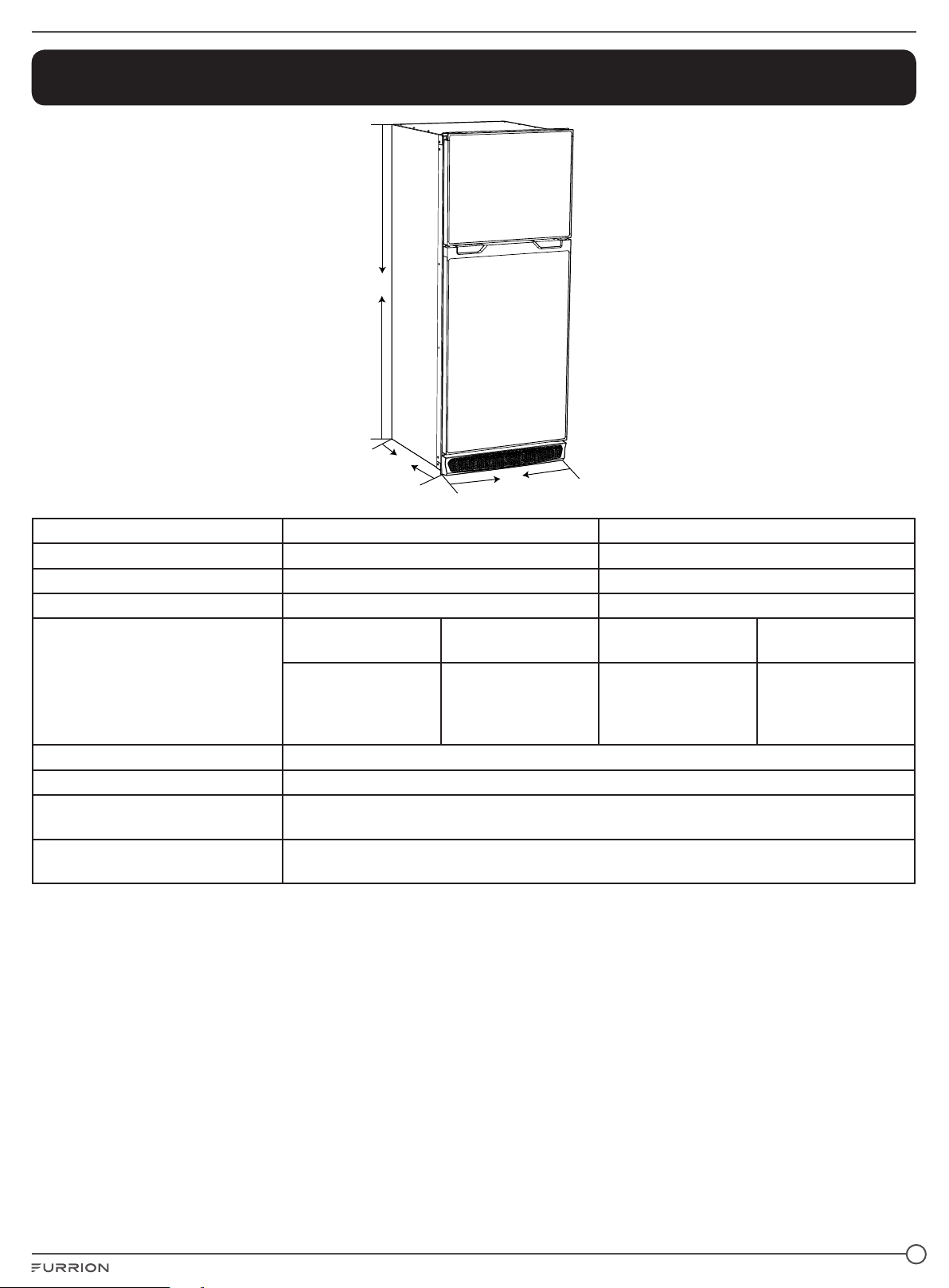

Specifications
H
D
W
8 cu. ft. 12 Volt Built-in Refrigerator 10 cu. ft. 12 Volt Built-in Refrigerator
Capacity (cu. ft.) 8 cu. ft. 10 cu. ft.
Product Dimensions (W x H x D) 24¼ x 53⅛ x 25¾” (616 x 1350 x 655mm) 24¼ x 60⅛ x 25¾” (616 x 1528 x 655mm)
Recessed Dimensions (W x H x D) 23¼ x 52⅝ x 23¾” (592 x 1338 x 604mm) 23¼ x 52⅝ x 23¾” (592 x 1338 x 604mm)
Net Weight (lbs/kg)
FCR08DCGTA-BL
FCR08DCGTA-BR 118lbs / 53.5kg FCR10DCGTA-BL
FCR10DCGTA-BR 130lbs / 59kg
FCR08DCGTA-NR
FCR08DCGTA-NL
FCR08DCGTA-KR
FCR08DCGTA-KL
126lbs / 57kg
FCR10DCGTA-NR
FCR10DCGTA-NL
FCR10DCGTA-KR
FCR10DCGTA-KL
139lbs / 63kg
Rated Power Supply Voltage DC 12V (Min. 9.6V to max. 17V)
Rated Current 11A @ start-up & maximum cooling setting
Temperature Range Refrigerator Compartment: +32°F ~ +50°F (0°C ~ 10°C)
Freezer Compartment: -4°F ~ +10.4°F (-20°C ~ -12°C)
Typical Runtime (Off Grid Usage,
powered by 100amp/hr battery)
49 hours @ 77°F (25°C)
31 hours @ 90°F (32.2°C)

18
Troubleshooting
A qualified professional is required for any servicing of the compressor drive board and the control board, otherwise it will void
the product warranty. If you encounter a problem similar to what is mentioned in the following table, try the suggested solution
below to see if you can solve the problem before calling service.
Problem Solution
Refrigerator does not work
The circuit breaker tripped or fuse blown.
The unit temperature control dial is set to the “OFF” position.
Battery voltage might be out of operating range. Check battery voltage for 10.5V
under load.
Compressor turns on and off
frequently
The room temperature might be elevated.
The door is open or is frequently opened.
The temperature control dial is not set correctly.
The door gasket is torn or not sealing properly.
Battery voltage might be low, and dropping out of operating range. Check battery
voltage for 10.5V under load.
Refrigerator compartments are
too warm
Temperature control dial is not set correctly (see the "Temperature Control"
section for instructions on setting the temperature).
The door is open or is frequently opened.
The door gasket is torn or not sealing properly.
A large amount of warm or hot food was stored recently. Wait for the refrigerator to
reach its selected temperature.
The refrigerator has recently been disconnected for a period of time.
Vibrating or rattling (slight
vibration is normal)
The refrigerator is placed on uneven or weak surface.
Temperature setting, such as max position, may affect the vibration level. Refer to
the "Temperature Control" section.
Moisture or ice inside the
refrigerator
The door is open or is frequently opened.
Temperature control dial is set at too cold of a position
Moisture forms on the outside of
refrigerator This is normal in hot and humid weather.
Bubbling or gurgling sounds (like
boiling water)
This is the normal sound of refrigerant (used to cool refrigerator) circulating
throughout the system.
Popping or cracking sounds when
compressor comes on
This is normal for metal parts to undergo expansion and contraction, like hot water
pipes.
The door can't be closed properly
The refrigerator is not on a level surface.
The door was reversed and not properly installed.
The gasket is dirty or bent.
The storage basket, shelves, and bins are not seated properly.

Furrion Innovation Center & Institute of Technology
●52567 Independence Ct., Elkhart, IN 46514, USA ●Toll free: 1-800-789-3341
●Email: [email protected]
©2007-2021 Furrion Ltd. Furrion®, Furrion Arctic® and the Furrion logo are registered trademarks licensed for use by
Furrion Ltd. and registered in the U.S. and other countries.
For Patent Info: www.furrion.com/pages/patents
www.furrion.com
IM-FHA00097 V4.0
