Furrion FCR10DCBTA-BL User manual

10 cu. ft. DC Refrigerator
10 pi cu Réfrigérateur CC
10 pies cúbicos Refrigerador CC
Instruction Manual
Manuel d'instructions
Manual de instrucciones
Model/Modèle/Modelo:
FCR10DCBTA-BL
FCR10DCBTA-SS

1
Welcome
English
Thank you for purchasing this Furrion®10 cu. ft. DC refrigerator. Before placing your
new appliance into operation, please read these operating instructions carefully.
They contain important information for safe use, installation and maintenance of the
appliance.
Please keep this instruction manual in a safe place for future reference. Pass it onto
possible new owners of the appliance.
The manufacturer does not accept responsibility for any damages that may arise due
to non-observation of these instructions.
If you have any further questions regarding our products, please contact us at
[email protected]

2
Contents
English
Welcome............................................................................................1
Contents ............................................................................................2
Important Safety Instructions............................................................3
Proper Disposal of the Refrigerator....................................................................3
Parts and Features ............................................................................4
Before Using......................................................................................5
Before Using for the First Time...........................................................................5
Usage Note ..........................................................................................................5
Installation ........................................................................................6
Installation Precautions.......................................................................................6
What’s in the Boxes .............................................................................................6
Installing Your Refrigerator.................................................................................6
Electrical Connection ........................................................................9
Wire Connection Diagram....................................................................................9
Operation...........................................................................................10
Temperature Control ...........................................................................................10
Replacing the Interior Light.................................................................................10
Freezer Compartment Operation ........................................................................10
Maintenance ......................................................................................11
Cleaning Your Refrigerator..................................................................................11
Vacation Time.......................................................................................................11
Moving Your Refrigerator.....................................................................................11
Energy Saving Tips...............................................................................................11
Specifications ....................................................................................12
Troubleshooting ................................................................................13
Warranty............................................................................................14

3
Important Safety Instructions
English
WARNING
To reduce the risk of fire, electric
shock or injury follow these basic
precautions when using your
refrigerator.
DANGER
Risk of child entrapment. To avoid the
possibility of child entrapment, please
take the following precautions before
you dispose of your refrigerator.
−Remove all doors.
−Leave shelves in place so children
may not easily climb in.
−Never allow children to play
with, operate, or crawl inside the
refrigerator.
• Do not store or use gasoline or any
flammable vapors and liquids in the
vicinity of this refrigerator.
• All refrigeration products contain
refrigerants, which under the
guidelines of federal law must be
removed before disposal. It is the
consumer’s responsibility to comply
with federal and local regulations
when disposing of this product.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to
ensure that they do not play with the
appliance.
• To avoid a hazard, some actions
relative with electricity should be
done with service agent or qualified
person.
Proper Disposal of the
Refrigerator
Child entrapment and suffocation
are not problems of the past.
Junked or abandoned refrigerators
are still dangerous…even if they will sit
for “just a few days.” If you are getting
rid of your old refrigerator, please follow
the instructions below to help prevent
accidents.
Before you throw away your old
refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that
children may not easily climb inside.
Refrigerants
All refrigeration products contain
refrigerants, which under federal law
must be removed prior to product
disposal. If you are getting rid of an old
refrigeration product, check with the
company handling the disposal about
what to do.
Save these instructions
for future reference

4
Parts and Features
Item Part Name
1Freezer Shelf
2Freezer Temperature Control
3Adjustable Temperature Control
4LED Light
5Wire Shelf
6Clear Glass Crisper Cover
7Clear Crisper
Item Part Name
8Full-Width Door Shelf
9Small Door Shelf
10 Light Switch
11 Gallon Shelf
12 Small Door Shelf
13 Divider
14 Full-Width Door Shelf
English
1
28
9
10
11
12
13
14
3
4
5
6
7

5
Before Using
English
Before Using for the First Time
1. Remove the exterior and interior packing.
2. Before connecting the refrigerator to the power source, let it stand upright for
approximately 4 hours. This will reduce the possibility of a malfunction in the
cooling system from improper handling during transportation.
3. Clean the interior surface with lukewarm water using a soft cloth.
Usage Note
1. This refrigerator operates on 12VDC, the actual working voltage is from 10.5-17V.
NOTE: The compressor will stop running when the voltage is lower than 10.5V.
2. This refrigerator requires 10.5-17VDC, >=15A power source for normal operating.
Direct connection with AC power source is forbidden.
3. The wire of the refrigerator and outer wire must meet the following requirement:
Wire size The Max. Length (Feet)
Remarks:
• 13AWG or bigger wire is recommended to be used. 14AWG wire
is not recommended.
• This refrigerator is not equipped with power source. Please buy
the power source in local authorized dealer.
14 AWG 3.2 Feet
13 AWG 8 Feet
12 AWG 13 Feet
10 AWG 20 Feet
8 AWG 33 Feet
6 AWG 50 Feet
4. A proper location and reliable grounding device is recommended to avoid electric
shock when using a converter to change the power source from AC to DC.
5. Non professionals are forbidden to dismantle the drive board of the compressor
and the control board.

6
Installation
English
Installation Precautions
Location
• Allow 1 inch from the wall to the back
and sides of the refrigerator, which
allows the proper air ventilation.
• Avoid Installation:
−On weak surfaces unable to support
refrigerator when fully loaded.
−In direct sunlight and sources of
heat (stove, heater, radiator, etc.)
will hinder the performances of this
appliance.
What’s in the Boxes
Make sure the unit and the accessories
are in the canton box. If anything
damaged or missing, contact your
dealer.
• Refrigerator x 1
• Instruction Manual x 1
• Warranty Card x 1
NOTE: The trim kits and screws for this
fridge is packed in another box, please
contact your dealer for these things.
• Trim Kit Case x 1
−Trim Kit x 4
−Trim strip x 2
−Screws 1set x 15
Installing Your Refrigerator
Adjust the leveling feet to keep the
refrigerator level.
Install the refrigerator in a convenient
location away from extreme heat and
cold. Allow sufficient clearance between
the refrigerator and side wall so the
door(s) will open without obstruction.
Select a space with strong level floor.
Allow 1 inches of space between the
refrigerator’s side and the wall.
The appliance must be correctly
connected to the power supply.
59 ”
MIN
/
78
24”
MIN
24”
MIN
NOTE: The door should protrude at least
1” beyond the surrounding cabinets.

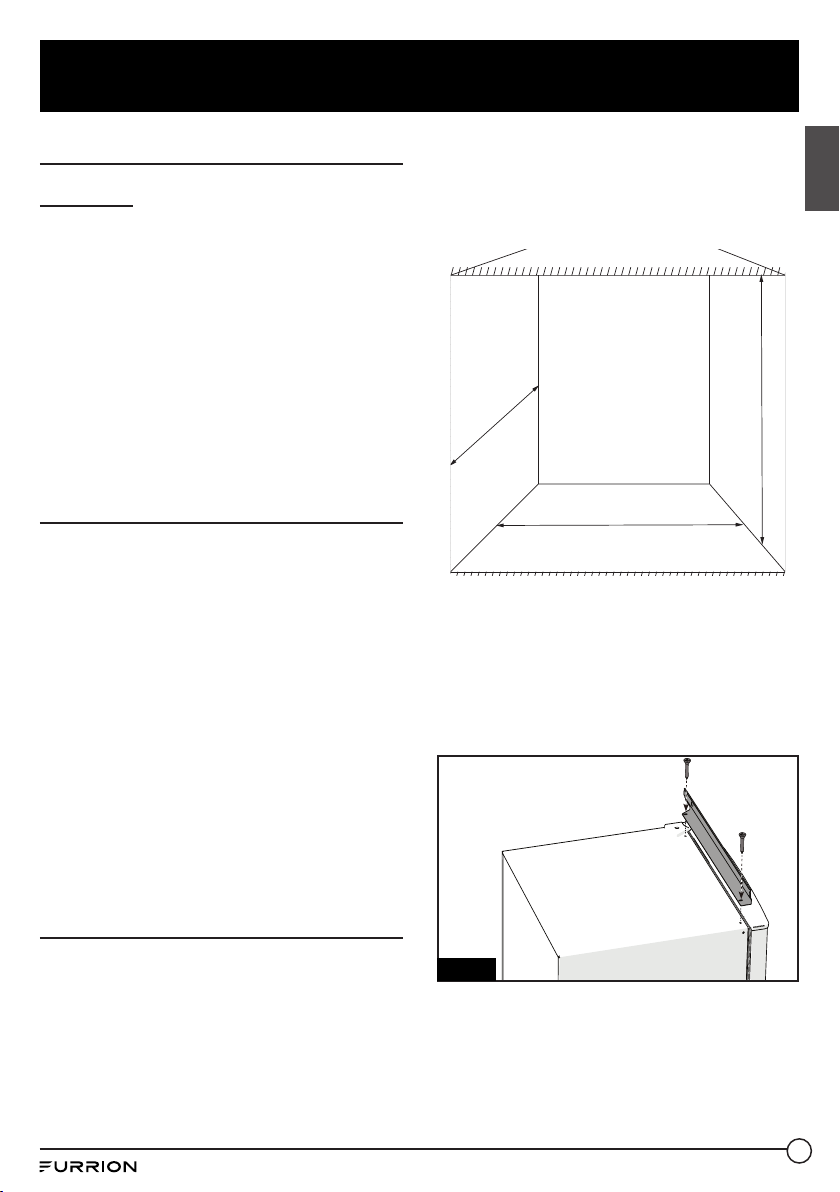

1. Install the top and side pieces of trim
kit onto the refrigerator (two screws
on top and 3 screws on left and right
side). (Fig. 1 and Fig 2 )
Fig. 1

7
Installation
English
Fig. 2
2. Open the door of refrigerator. Fix the
bottom piece of the trim kit onto the
bottom of the refrigerator using 3
screws. (Fig. 3 )
Fig. 3
3. Put the refrigerator completely into
the enclosure and adjust the leveling
feet to make the refrigerator stand
level. (Fig. 4)
Fig. 4
4. Secure the refrigerator into the
enclosure using 4 self-tapping screws
(2 pieces each on top and bottom).
(Fig. 5 and Fig. 6)
Fig. 5
Fig. 6
5. Remove the protective film from the
trim strip and clip on top and bottom
of the refrigerator.
NOTE: Install the short one on top of
the refrigerator and the longer one at
the bottom. (Fig. 7 and Fig 8)
Shorter
(594mm)
Longer
(650mm)
Fig. 7

8
Installation
English
Shorter
(594mm)
Longer
(650mm)
Fig. 8

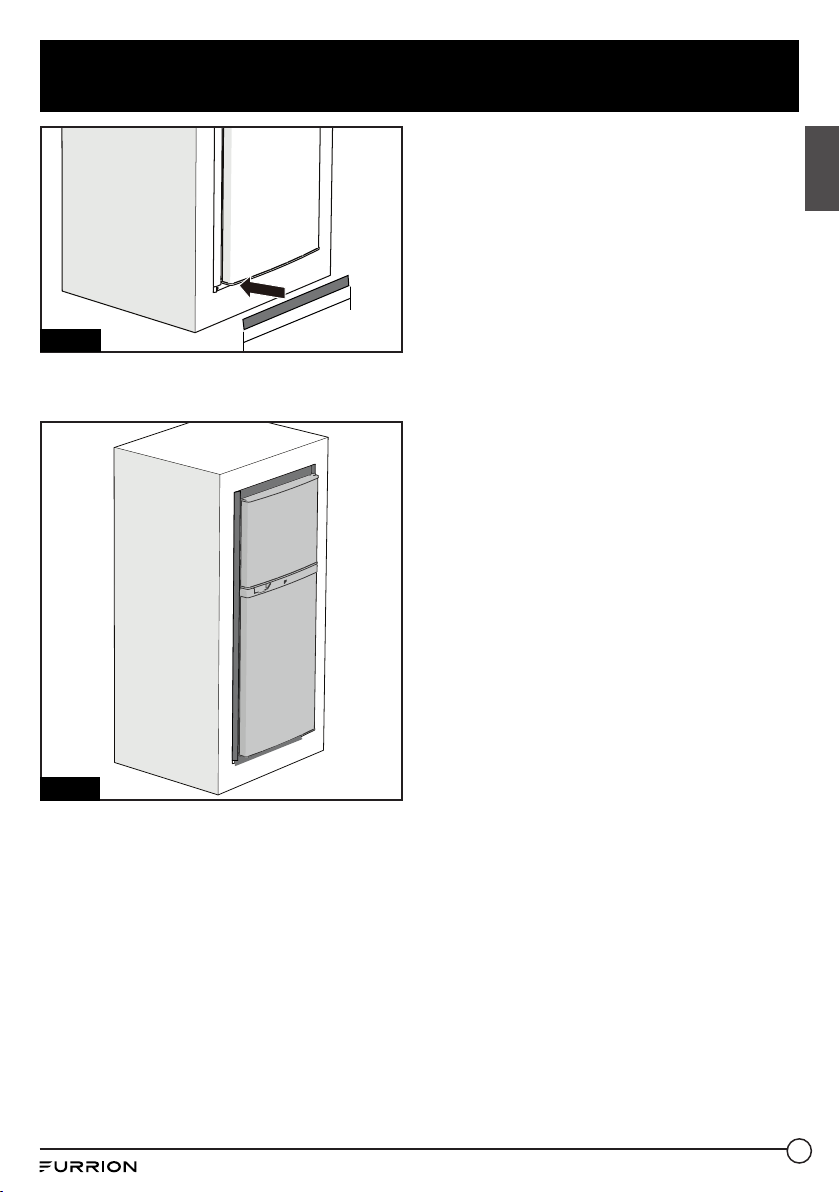

6. The refrigerator is now fully installed
into the enclosure. (Fig. 9)
Fig. 9

9
Electrical Connection
English
WARNING
Improper use of the grounded plug can result in the risk of electrical shock. If the
power cord is damaged, have it replaced by an authorized service center.
WARNING
This refrigerator should be properly grounded for your safety.
This refrigerator requires a standard 10.5-17V , electricity ≥15A. Direct connection
with AC power source is forbidden.
This refrigerator is designed for DC power input only, if you do not have ,recommend
Power Center (FCVSWC42A and FCVSWC54A), Lithium battery (FB12I10C) to match
with it.
The cord should be secured behind the refrigerator and not left exposed or dangling
to prevent accidental injury.

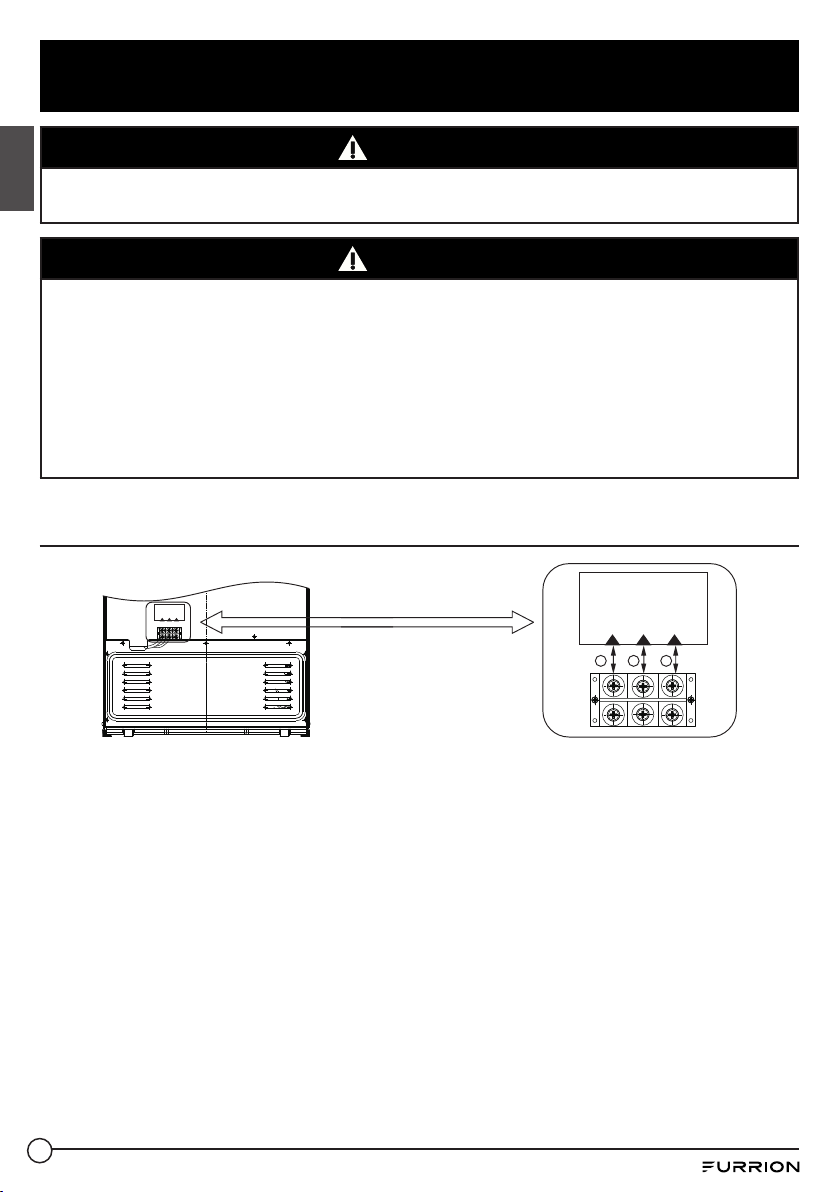

Wire Connection Diagram
+ -
GND
+ -
GND
Power Input: DC12V(10.5-17V)
Current: 20A MAX
Power Input: DC12V(10.5-17V)
Current: 20A MAX
1 2 3
1. Connect the "+" terminal with Positive pole of 12V DC.
2. Connect the "-" terminal with Negative pole of 12V DC.
3. The GND terminal shall be connected with the RV shell, in which the material shall
be steel.

10
Operation
English
Your refrigerator must stand on a flat
surface. If the appliance is to be placed
onto the carpet, support it with a wooden
board. Do not put the appliance directly
onto the carpet, because the heat from
the compressor may cause the carpet to
fade.
Temperature Control
The temperature
control is located
inside the refrigerator
compartment on the
top. The refrigerator compartment
temperature control ranges from “1”,
cold setting, to “7”, coldest setting. The
first time the unit is turned on, adjust
the temperature control knob to a higher
(colder) setting and run for at least 24
hours before readjusting the temperature
and placing food inside. This will ensure
the cabinet is thoroughly chilled before
food is placed into the refrigerator.
If you choose to change the thermostat
setting, adjust the thermostat by
one increment at a time. After each
movement of the control knob, allow
several hours for the unit to adjust
completely. Large amounts of food
may lower the cooling efficiency of the
appliance.
NOTE: If the unit is unplugged or loses
power; you must wait 3 to 5 minutes
before restarting the unit. If you attempt
to restart before this time delay, the
refrigerator may not start.
Replacing the Interior Light
Before removing the light bulb, turn the
refrigerator temperature control to the
“1” position. Then unplug the electrical
cord from the wall outlet. Failure to
do so may result in electrical shock or
personal injury. Replace the old bulb with
a new bulb of the same wattage and size.
Freezer Compartment
Operation
Temperature Control
Your refrigerator
has one control
for regulating the
temperature in the
freezer compartment. The freezer
temperature control is located on the
freezer compartment’s interior back
panel. For the best performance, leave
the freezer control at the midpoint and
adjust the refrigerator compartment
temperature control. Adjust the freezer
control one increment at a time until the
desired temperature is reached.
NOTE: Do not store canned foods or food
stored in glass containers in the freezer
compartment.
The Freezer Compartment
• This compartment is designed for
the long-term storage of frozen food.
The storage life of frozen foods varies
and the recommended storage time
should not be exceeded.
• Place frozen food into the freezer as
quickly as possible after purchase. If
there are instructions on the packet,
carefully follow these instructions
regarding storage times.

11
Maintenance
English
Cleaning Your Refrigerator
• Disconnect the electrical unit from
the wall outlet.
• Clean interior and parts with a cloth
soaked in lukewarm water and
baking soda solution. A solution of 2
tablespoons baking soda to a quart of
water will clean and neutralize odors.
Rinse and wipe dry.
• Be sure to keep the door gasket
(seal) clean to keep the unit running
efficiently.
• The outside of the refrigerator should
be cleaned with a warm damp cloth
and mild detergent. Do not use harsh
or abrasive cleaners.
• Never clean refrigerator parts with
flammable fluids. The fumes can
create a fire hazard.
Vacation Time
• For long vacations, remove all food.
Then, unplug the electrical cord from
the wall outlet.
• Clean the interior and leave doors
open to avoid possible odor or mold
formation.
• Use extreme caution in the case
of children. The unit should not be
accessible to child’s play.
Moving Your Refrigerator
• Moving Disconnect the electrical cord
from the wall outlet.
• Remove all the food and securely tape
down all loose items such as shelves,
drawers, and doors.
• Be sure the refrigerator stays
in the upright position during
transportation.
Energy Saving Tips
• The refrigerator should be located in
the coolest area of the room, away
from heat producing appliances or
heating ducts, and out of the direct
sunlight.
• Let hot foods cool to room
temperature before placing in the
refrigerator.
• Be sure to wrap foods properly, and
wipe containers dry before placing
them in the refrigerator. This cuts
down on frost build-up inside the
refrigerator.
• Organize and label food to reduce
door openings and extended
searches.

12
Specifications
English
W
D
H

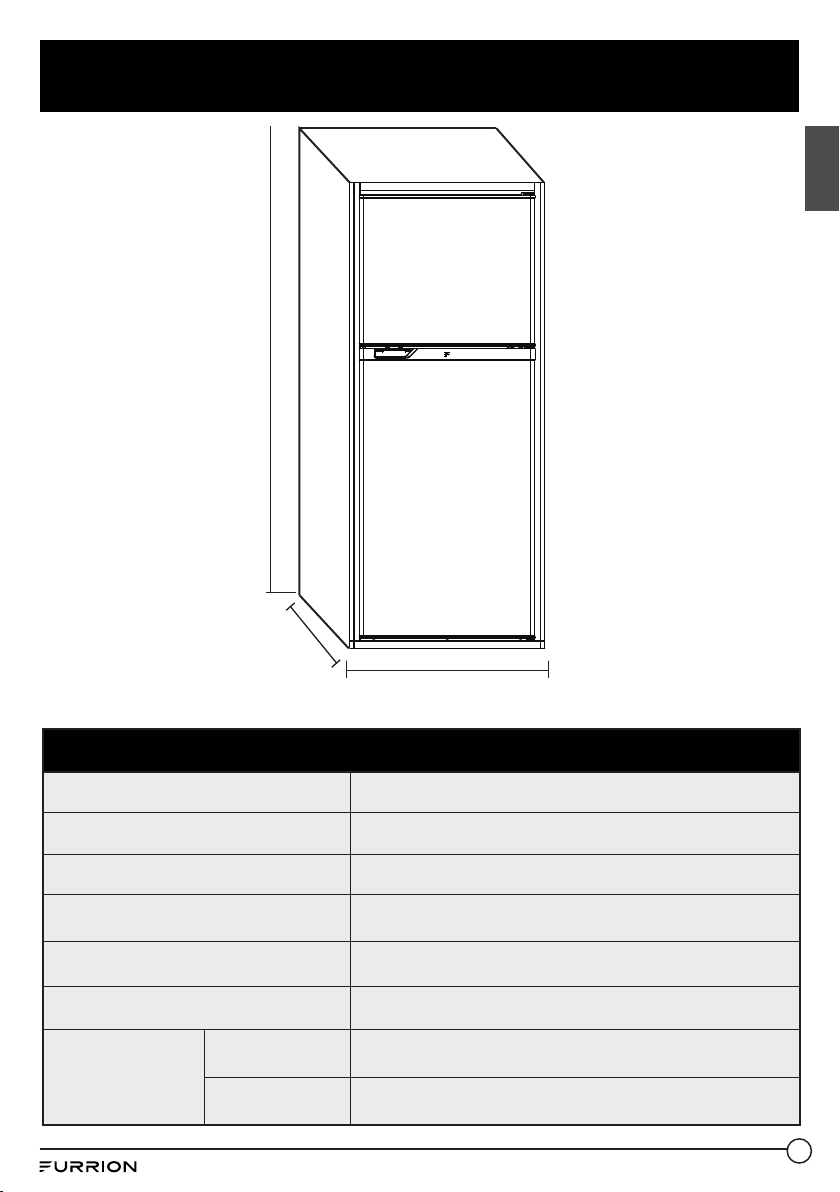

Specifications
Capacity (cu. ft.) 10.7 cu. ft.
Product Dimensions (W*H*D) 26 ⁄” x 60 ⁄” x 27 ⁄” (681 x 1546 x 690 mm)
Recessed Dimensions (W*H*D) 23 ⁄” x 59 ⁄” x 24” (608 x 1503 x 610 mm)
Net Weight 114.6 Lbs (52 Kg)
Voltage DC 12V
Rated Current 11A
Temperature Range
Fresh Food
Compartment 0 ~ +10 oC (+32 ~ +50 oF)
Freezer
Compartment -6 ~ -18 oC (+21.2 ~ -0.4 oF)

13
Troubleshooting
English
You can solve many common refrigerator problems easily, saving you the cost of a
possible service call. Try the suggestions below to see if you can solve the problem
before calling for service.
Problem Solution
Refrigerator does not
operate
Refrigerator is unplugged.
The circuit breaker is tripped/ fuse blown.
Compressor turns on and off
The room temperature is warmer than normal
Door is left open or is frequently opened.
The refrigerator does not have the correct clearances.
The refrigerator has recently been disconnected for a period of time.
Refrigerator compartments
are too warm
Temperature control is not set correctly.
Door is left open or is frequently opened.
The door gasket does not seal properly.
A large amount of warm or hot food was stored recently. Wait for the
refrigerator to reach its selected temperature.
The refrigerator has recently been disconnected for a period of time.
Vibrating or rattling (slight
vibration is normal)
Leveling legs need adjusting
Refrigerator is placed on an uneven or weak surface.
The refrigerator is touching the wall. Re-level the refrigerator and move
it away from the wall.
Temperature of external
refrigerator surface is warm
The exterior refrigerator walls can be as much as 30°F warmer than
room temperature.
This is normal while the compressor works to transfer heat from inside
the refrigerator cabinet.
Moisture collects inside the
refrigerator Door is left open or is frequently opened.
Moisture forms on outside of
refrigerator
Is normal in hot and humid weather. Air carries moisture into the
refrigerator when doors are opened.
Bubbling or gurgling sounds
(like boiling water)
This is the normal sound of refrigerant (used to cool refrigerator)
circulating throughout the system.
Popping or cracking sounds
when compressor comes on
This is normal. Metal parts undergo expansion and contraction, like hot
water pipes. The sound will level off or disappear as refrigerator runs.
The door will not close
properly
The refrigerator is not on a level surface.
The gasket is dirty.
The storage basket is out of position.

14
Warranty
English
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE
BY THE ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED
TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION
AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM ANY
DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP. IN CASE OF SUCH
DEFECT, FURRION SHALL REPLACE OR REPAIR THE PRODUCT AT NO CHARGE
TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE THE ORIGINAL
SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT READILY BE
DETERMINED; DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE, ABUSE, NEGLECT,
PRODUCT MODIFICATION, FAILURE TO FOLLOW INSTRUCTIONS IN INSTRUCTION
MANUAL, COMMERCIAL OR INDUSTRIAL USE; DAMAGE OR LOSS CAUSED TO THE
DECORATIVE SURFACE OF PRODUCT; TO ANY DATA, SOFTWARE OR INFORMATION;
AND NORMAL WEAR AND TEAR. THIS WARRANTY ONLY PROTECTS THE ORIGINAL
END-USER (“YOU”) AND IS NOT TRANSFERABLE; ANY ATTEMPT TO TRANSFER THIS
WARRANTY SHALL MAKE IT IMMEDIATELY VOID. THIS WARRANTY IS ONLY VALID IN
THE COUNTRY OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER
ORAL OR WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS
LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.

15
Warranty
English
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING,
OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR (WHERE
APPLICABLE IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADIAN
AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY
PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion
at [email protected]om
Product features or specifications as described or illustrated are subject to change
without notice.

16
Bienvenue
Français
Merci d'avoir acheté ce Furrion®10 pi cu Réfrigérateur CC. Avant utiliser votre nouvel
appareil, veuillez lire ces consignes attentivement. Le présent guide d’utilisation
contient des informations permettant l’utilisation, l’installation et l’entretien en toute
sécurité de l’appareil.
Veuillez conserver le présent guide d’utilisation en lieu sûr pour vous y référer
ultérieurement, afin d’assurer votre sécurité et de réduire les risques de blessure.
Veuillez aussi remettre le présent manuel à tout nouveau propriétaire de cet appareil.
Le fabricant décline toute responsabilité en cas de dommages dus au non-respect
des présentes consignes.
Si vous avez des questions sur nos produits, veuillez nous contacter:
[email protected]

17
Contenu
Français
Bienvenue..........................................................................................16
Contenu .............................................................................................17
Consignes de sécurité importantes...................................................18
Mise au rebut appropriée du réfrigérateur .........................................................18
Pièces et caractéristiques .................................................................19
Avant l’utilisation...............................................................................20
Avant d'utiliser pour la première fois..................................................................20
Remarque d'utilisation ........................................................................................20
Installation ........................................................................................21
Précautions d'installation....................................................................................21
Qu'y a-t-il dans les boites?..................................................................................21
Installation de votre réfrigérateur.......................................................................21
Raccordement électrique ..................................................................24
Diagramme de connexion de fil...........................................................................24
Fonctionnement.................................................................................25
Contrôle de la température .................................................................................25
Remplacer la lumière intérieure.........................................................................25
Fonctionnement du compartiment congélateur.................................................25
Entretien............................................................................................26
Nettoyage de votre réfrigérateur.........................................................................26
Temps de vacances..............................................................................................26
Déplacer votre réfrigérateur ...............................................................................26
Conseils d'économie d'énergie ...........................................................................26
Caractéristiques................................................................................27
Dépannage.........................................................................................28
Garantie.............................................................................................29

18
Consignes de sécurité importantes
Français
AVERTISSEMENT
Pour réduire les risques d'incendie,
d'électrocution ou de blessures,
suivez ces précautions de base lors de
l'utilisation de votre réfrigérateur.
DANGER
Risque de piégeage d'enfant. Pour
éviter la possibilité de piégeage
des enfants, veuillez prendre les
précautions suivantes avant de jeter
votre réfrigérateur.
−Enlevez toutes les portes.
−Laissez les étagères en place afin
que les enfants ne puissent pas
facilement monter à l'intérieur.
−Ne permettez jamais aux enfants
de jouer avec, de travailler ou de
ramper dans le réfrigérateur.
• Ne stockez pas ou n'utilisez pas
d'essence ou de vapeurs et de
liquides inflammables à proximité de
ce réfrigérateur.
• Tous les produits de réfrigération
contiennent des réfrigérants qui,
conformément aux directives de
la loi fédérale, doivent être retirés
avant d'être éliminés. Il est de la
responsabilité du consommateur de
se conformer aux réglementations
fédérales et locales lors de la mise
au rebut de ce produit.
• Cet appareil n'est pas conçu pour
être utilisé par des personnes (y
compris les enfants) ayant des
capacités physiques, sensorielles
ou mentales réduites, ou manquant
d'expérience et de connaissances, à
moins d'être supervisé ou instruit par
une personne responsable de leur
sécurité.
• Les enfants doivent être surveillés
pour s'assurer qu'ils ne jouent pas
avec l'appareil.
• Pour éviter un danger, certaines
actions relatives à l'électricité doivent
être effectuées avec un agent de
service ou une personne qualifiée.
Mise au rebut appropriée du
réfrigérateur
L'emprisonnement et la
suffocation des enfants ne sont
pas des problèmes du passé. Les
réfrigérateurs jetés ou abandonnés sont
toujours dangereux ... même s'ils ne
restent là que «pour quelques jours».
Si vous vous débarrassez de votre ancien
réfrigérateur, veuillez suivre les
instructions ci-dessous pour éviter les
accidents.
Avant de jeter votre ancien
réfrigérateur ou congélateur:
• Enlevez les portes.
• Laissez les étagères en place afin
que les enfants ne puissent pas
facilement monter à l'intérieur.
Réfrigérants
Tous les produits de réfrigération
contiennent des réfrigérants qui,
conformément aux directives de la loi
fédérale, doivent être retirés avant d'être
éliminés. Si vous vous débarrassez d'un
vieux produit de réfrigération, vérifiez
auprès de l'entreprise qui s'occupe de
l'élimination de ce qu'il faut faire.
Conservez ces instructions
pour référence future

19
Pièces et caractéristiques
Article Nom de la pièce
1Tablette de congélateur
2Contrôle de température du
congélateur
3Contrôle de température réglable
4Lumière DEL
5Étagère en fil métallique
6Couvercle de verre transparent du
bac à légumes
7Bac à légumes clair
Article Nom de la pièce
8Tablette de porte pleine largeur
9Petite étagère de porte
10 Interrupteur
11 Étagère des gallons
12 Petite étagère de porte
13 Diviseur
14 Tablette de porte pleine largeur
Français
1
28
9
10
11
12
13
14
3
4
5
6
7
