Furrion FCR10DCBTA-BL User manual

10 cu. ft. DC Refrigerator
10 pi cu Réfrigérateur CC
10 pies cúbicos Refrigerador CC
Instruction Manual
Manuel d'instructions
Manual de instrucciones
Model/Modèle/Modelo:
FCR10DCBTA-BL
FCR10DCBTA-SS
CCD-0005596 REV: 10.12.2022

1
Welcome
English
Thank you for purchasing this Furrion®10 cu. ft. DC refrigerator. Before placing your
new appliance into operation, please read these operating instructions carefully.
They contain important information for safe use, installation and maintenance of the
appliance.
Please keep this instruction manual in a safe place for future reference. Pass it onto
possible new owners of the appliance.
The manufacturer does not accept responsibility for any damages that may arise due
to non-observation of these instructions.
If you have any further questions regarding our products, please contact us at
CCD-0005596 REV: 10.12.2022

2
Contents
English
Welcome............................................................................................1
Contents ............................................................................................2
Important Safety Instructions............................................................3
Proper Disposal of the Refrigerator....................................................................3
Parts and Features ............................................................................4
Before Using......................................................................................5
Before Using for the First Time...........................................................................5
Usage Note ..........................................................................................................5
Installation ........................................................................................6
Installation Precautions.......................................................................................6
What’s in the box..................................................................................................6
Installing Your Refrigerator.................................................................................6
Electrical Connection ........................................................................9
Wire Connection Diagram....................................................................................9
Operation...........................................................................................10
Temperature Control ...........................................................................................10
Replacing the Interior Light.................................................................................10
Freezer Compartment Operation ........................................................................10
Maintenance ......................................................................................11
Cleaning Your Refrigerator..................................................................................11
Vacation Time.......................................................................................................11
Moving Your Refrigerator.....................................................................................11
Energy Saving Tips...............................................................................................11
Specifications ....................................................................................12
Troubleshooting ................................................................................13
Warranty............................................................................................14
REV: 10.12.2022 CCD-0005596

3
Important Safety Instructions
English
WARNING
To reduce the risk of fire, electric
shock or injury, please follow these
basic precautions when using your
refrigerator.
• Do not store and use any flammable
vapors or liquids (such as gasoline)
near this refrigerator.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they are
supervised by a person responsible
for their safety.
• Children should be supervised to
ensure that they do not play with the
appliance.
• The relevant change or installation
for the refrigerator must be
performed by a qualified technician
or service company. Failing to do so
may result in an electrical shock.
Proper Disposal of the
Refrigerator
DANGER
Risk of child entrapment. Before you
throw away your old refrigerator,
please follow the precautions below to
prevent accidents:
−Take off all doors.
−Leave the shelves in place so
children may not easily climb inside.
−Never allow children to play
with, operate, or crawl inside the
refrigerator.
Refrigerants
All refrigeration products contain
refrigerants, which under federal law
must be removed prior to product
disposal. Please comply with federal
and local regulations to ensure the safe
disposal of an old refrigeration product.
Save these instructions
for future reference
CCD-0005596 REV: 10.12.2022

4
Parts and Features
Item Part Name
1Freezer Shelf
2Freezer Temperature Control
3Adjustable Temperature Control
4LED Light
5Wire Shelf
6Clear Glass Crisper Cover
7Clear Crisper
Item Part Name
8Full-Width Door Shelf
9Small Door Shelf
10 Light Switch
11 Gallon Shelf
12 Small Door Shelf
13 Divider
14 Full-Width Door Shelf
English
1
28
9
10
11
12
13
14
3
4
5
6
7
REV: 10.12.2022 CCD-0005596

5
Before Using
English
Before Using for the First Time
1. Remove the exterior and interior packing materials.
2. Before connecting the refrigerator to the power source, let it stand upright for
approximately 4 hours. This will reduce the possibility of a malfunction in the
cooling system from improper handling during transportation.
3. Clean the interior surface with lukewarm water using a soft cloth.
Usage Note
1. This refrigerator operates on 12VDC, while the actual working voltage is from 10.5-
17V.
NOTE: The compressor will stop running when the voltage is lower than 10.5V.
2. This refrigerator requires 10.5-17VDC, >=15A power source for normal operating.
Direct connection with AC power source is forbidden. Otherwise, it will void any
product warranty.
3. The wire of the refrigerator and outer wire must follow RVIA and NEC standards.
4. A proper location and reliable grounding device is recommended to avoid electric
shock when using a converter to change the power source from AC to DC.
5. A qualified professional is required for any servicing of the compressor drive board
and the control board, otherwise any product warranty will be voided.
CCD-0005596 REV: 10.12.2022

6
Installation
English
Installation Precautions
Location
• Do not install your refrigerator in a
location where the unit may not be
fully loaded.
• Do not install your refrigerator in
direct sunlight or expose it to the
heat from stove, heater, radiator or
other appliances.
What’s in the box
Check all the items included in the
carton box. If anything damaged or
missing, contact your dealer.
• Refrigerator x 1
• Instruction Manual x 1
• Warranty Card x 1
NOTE: The trim kits and screws for this
fridge are packed in another box,Please
contact your dealer if any of these
damaged or missing.
• Trim Kit Case x 1
−Trim Kit x 4
−Trim strip x 2
−Screws 1set x 15
(M5x10 x 8 and ST4.8x25 x 7)

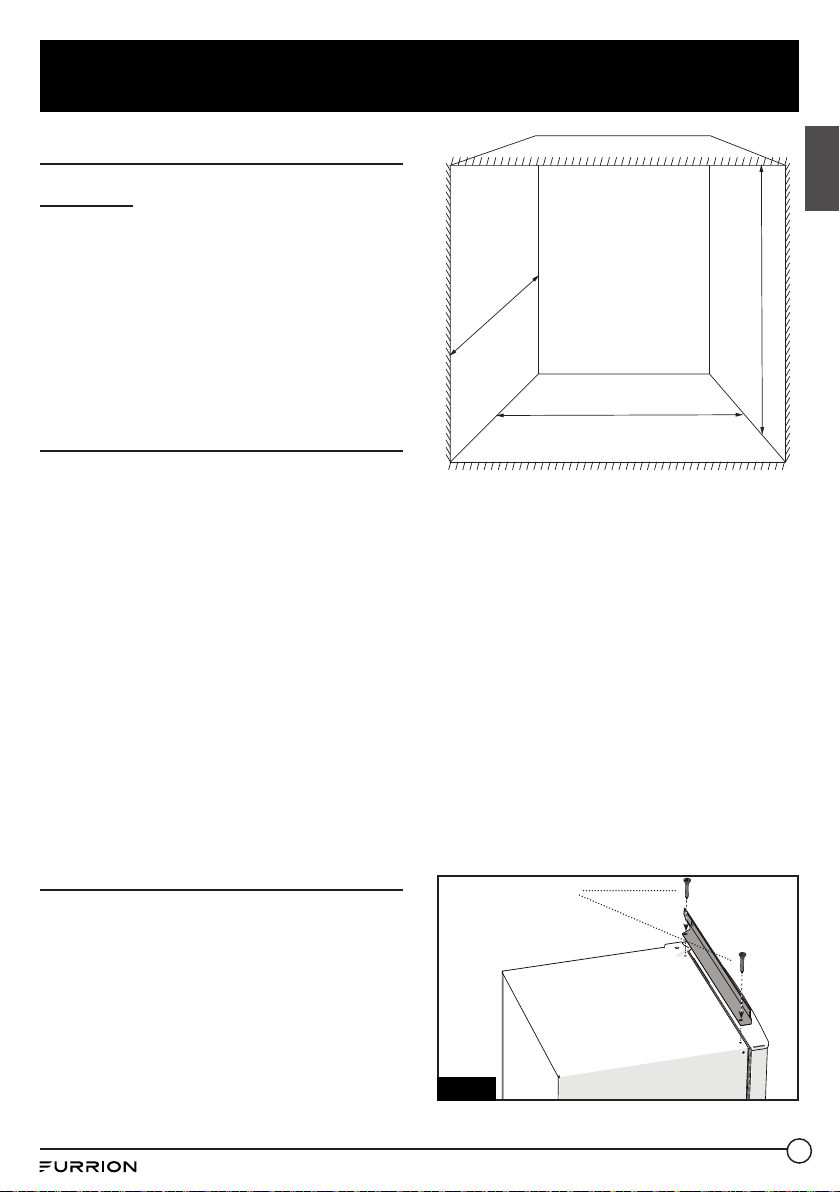

Installing Your Refrigerator
Install the refrigerator in a convenient
location away from extreme heat and
cold.
Select a solid surface with the floor
supporting a weight of 200Kg.
Connect the refrigerator with power
supply correctly.
59 7/8”
24”
24
1
/
8
”
NOTE: The door should protrude at least
1” beyond the surrounding cabinets.
The screws M5x10 are used to install
the trim kits and trim strip to the
refrigerator (referring to step 1 below).
The screws ST4.8x25 are used to install
the whole refrigerator with trim kits and
trim strips to the wooden box (referring
to steps 2, 4 below).
1. Adjust the leveling legs to make sure
the refrigerator is properly leveled.
Install the top trim kit with screws
(x2) and the sides trim kits with
screws (x3 each on the left/right) onto
the refrigerator. (Fig.1 and Fig.2)
Screw: M5x10
Fig. 1
REV: 10.12.2022 CCD-0005596

7
Installation
English
Fig. 2
2. Open the refrigerator door. Locate the
bottom trim kit on the refrigerator
with screws (x3). (Fig. 3)
Fig. 3
3. Put the whole refrigerator into the
enclosure. (Fig. 4)
Fig. 4
4. Fix the refrigerator on the enclosure
with the self-tapping screws (x2 each
on the top/bottom).
(Fig. 5 and Fig. 6)
Fig. 5
Fig. 6
5. Remove the protective film from the
trim strip cover. Install the shorter
trim strip on the top and the longer
one at the bottom of the refrigerator.
(Fig. 7 and Fig 8)

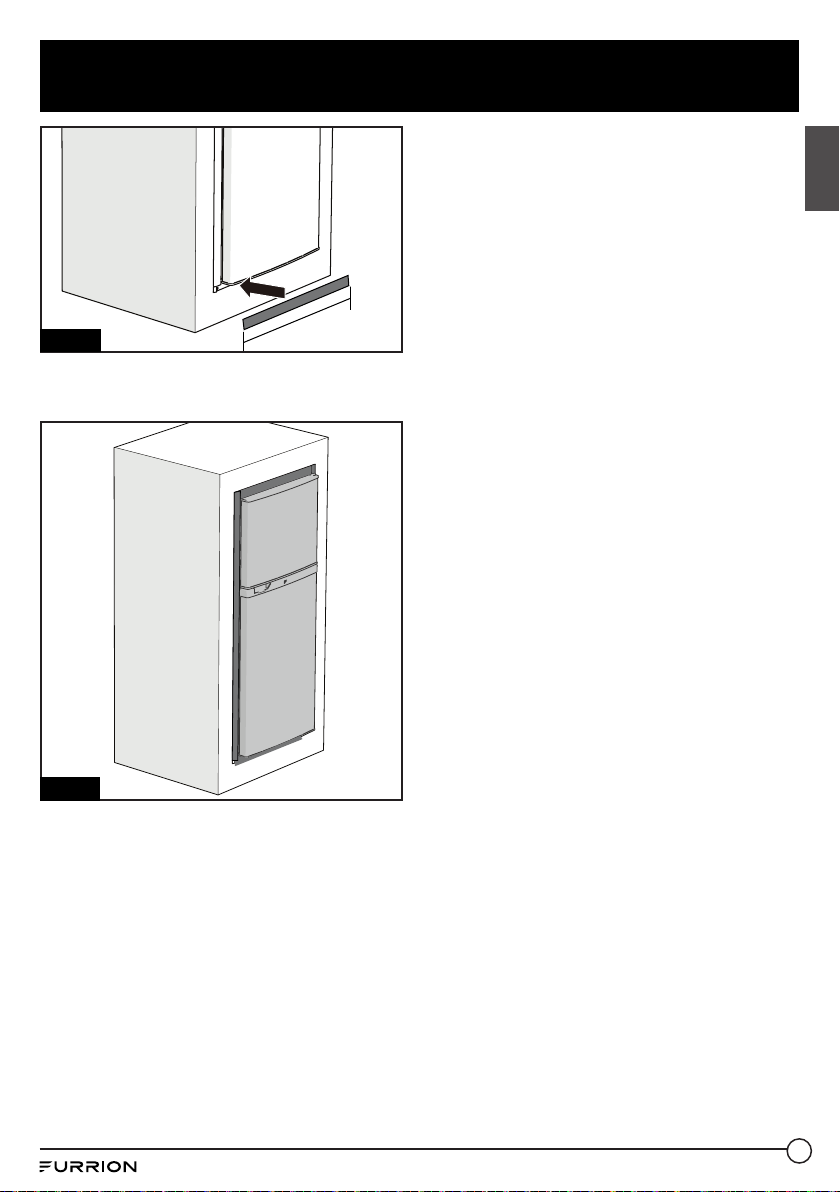

Shorter
(594mm)
Longer
(650mm)
Fig. 7
Screw: M5x10
Screw: ST4.8x25
Screw: ST4.8x25
Screw: ST4.8x25
CCD-0005596 REV: 10.12.2022

8
Installation
English
Shorter
(594mm)
Longer
(650mm)
Fig. 8
6. The refrigerator is now fully installed
into the enclosure. (Fig. 9)
Fig. 9
REV: 10.12.2022 CCD-0005596

9
Electrical Connection
English
WARNING
The 12V power supply wiring should incorporate a general main switch that enables
all pole disconnection of the 12V appliances from the 12V power supply source.
WARNING
This refrigerator should be properly grounded for your safety.
This refrigerator requires 10.5-17VDC,>=15A power source for normal operating.
Direct connection with AC power source is forbidden. If doing so, it will void any
product warranty.
This refrigerator is designed for DC power input only, if you do not have ,recommend
Power Center (FCVSWC42A and FCVSWC54A), Lithium battery (FB12I10C) to match
with it.
The cord should be secured behind the refrigerator and not left exposed or dangling
to prevent accidental injury. If needed, please use strain relief to hold it. You should
follow the instruction of strain relief to install it.

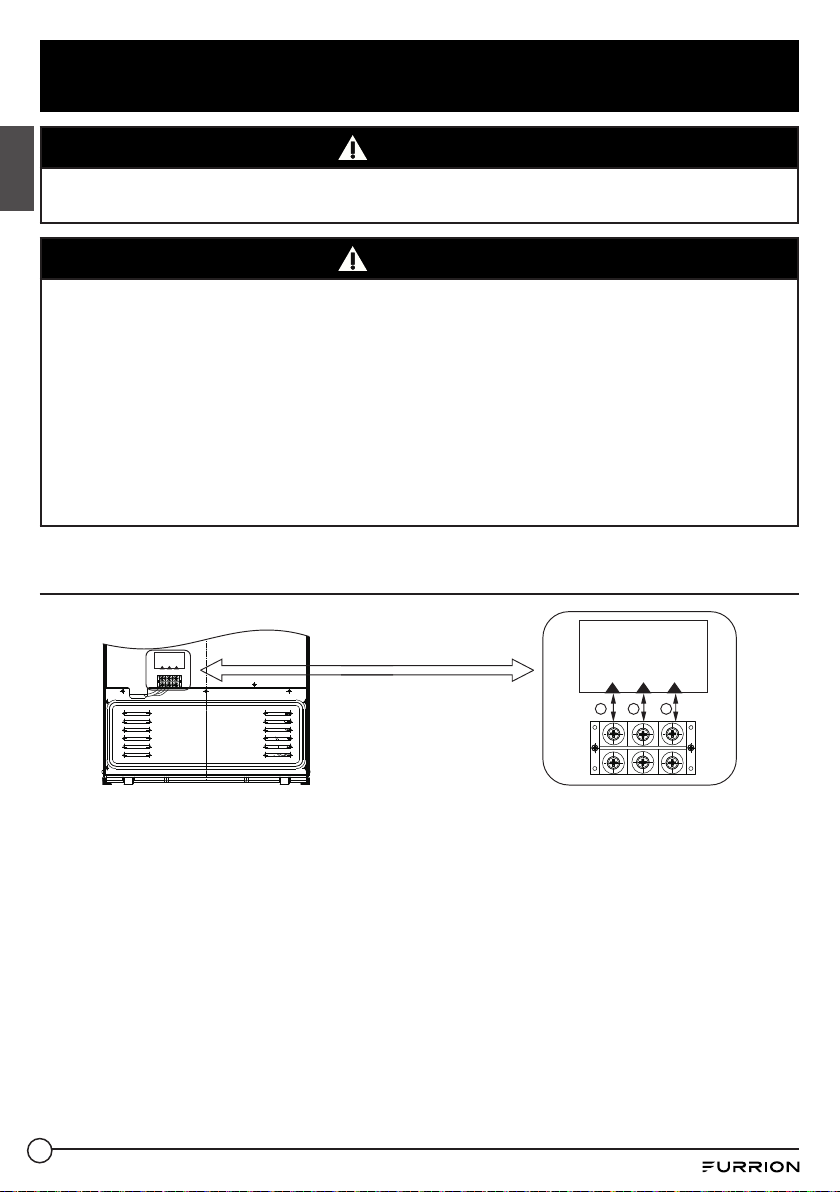

Wire Connection Diagram
+
-
GND
+
-
GND
Power Input: DC12V(10.5-17V)
Current: 20A MAX
Power Input: DC12V(10.5-17V)
Current: 20A MAX
1 2 3
1. Connect the "+" terminal with Positive pole of 12V DC.
2. Connect the "-" terminal with Negative pole of 12V DC.
3. GND should be connected to the converter ground or bus ground correctly.
CCD-0005596 REV: 10.12.2022

10
Operation
English
Your refrigerator must stand on a flat
surface. If the appliance is to be placed
onto the carpet, support it with a wooden
board. Do not put the appliance directly
onto the carpet, because the heat from
the compressor may cause the carpet to
fade.

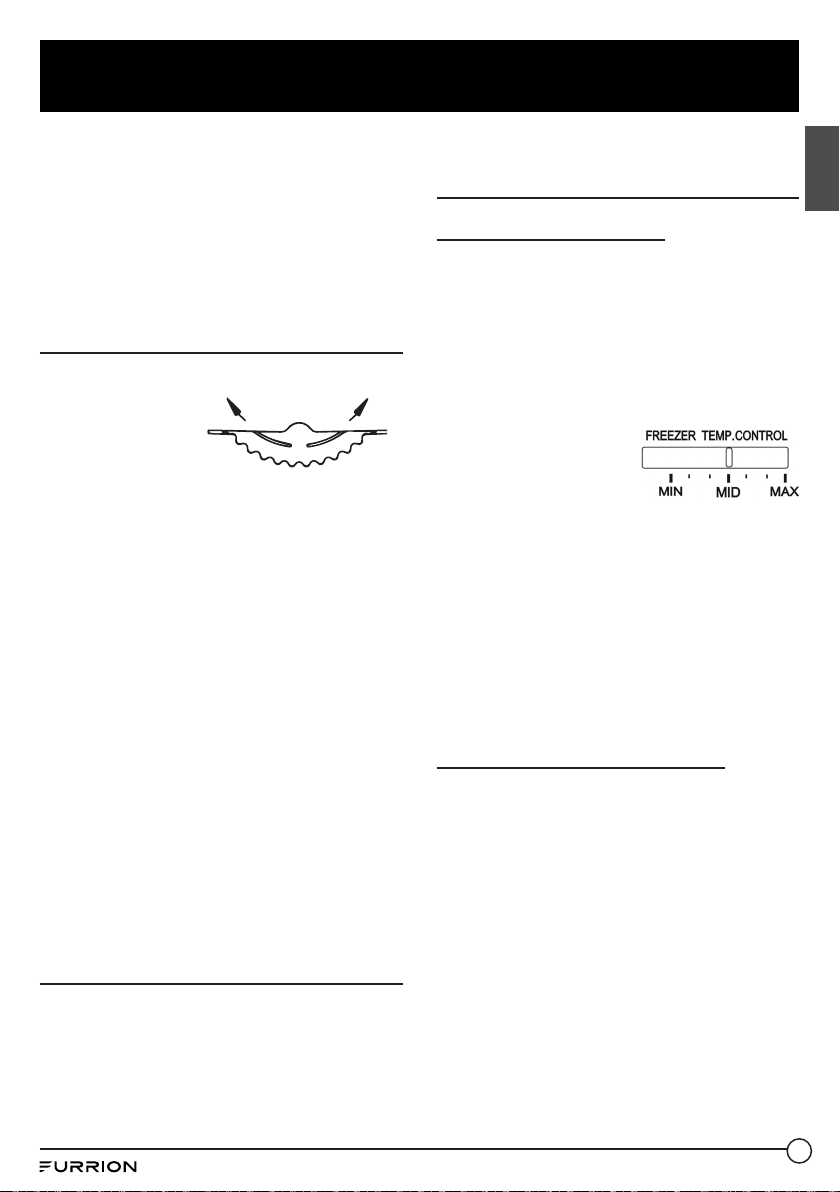

Temperature Control
The temperature
07
4
control is located
inside the
refrigerator
compartment on
the top. The temperature control ranges
from 0 to 7 (from cold to coldest). The
first time the unit is turned on, adjust the
temperature control knob to a higher
(colder) setting and run for at least 24
hours before readjusting the temperature
and placing food inside. This will ensure
the cabinet is thoroughly chilled before
food is placed into the refrigerator.
If you choose to change the thermostat
setting, adjust the thermostat by
one increment at a time. After each
movement of the control knob, allow
several hours for the unit to adjust
completely. Large amounts of food
may lower the cooling efficiency of the
appliance.
NOTE: If losing power during working
time, the refrigerator will rework after 3
to 5 minutes automatically.
Replacing the Interior Light
Switch off the fridge. Failure to do so may
result in electrical shock or personal
injury. Replace the old bulb with a new
bulb of the same wattage and size.
Freezer Compartment
Operation
Temperature Control
Your refrigerator has one control for
regulating the temperature in the freezer
compartment. The freezer temperature
control is located on the interior back
panel of freezer compartment. For the
best performance, leave the freezer
control at the midpoint and adjust
the refrigerator
compartment
temperature control.
Adjust the freezer
control one increment at a time until the
desired temperature is reached.
NOTE:
• Do not store the canned food or store
the food with glass containers in the
freezer compartment.
• MIN stands for the setting of "cold".
MAX stands for the setting of
"coldest".
The Freezer Compartment
• This compartment is designed to
store the frozen food for a long period
of time. The storage life varies by the
frozen food and should not exceed the
recommended time.
• Place frozen food into the freezer as
early as possible after purchased.
Follow the packaging's instruction on
recommended storage time.
REV: 10.12.2022 CCD-0005596

11
Maintenance
English
Cleaning Your Refrigerator
• Switch off the fridge.
• Clean the interior of the refrigerator
with a cloth soaked in lukewarm
water and baking soda solution. A
solution of 2 tablespoons baking soda
to a quart of water will clean and
neutralize odors. Rinse and wipe dry.
• Be sure to keep the door gasket (seal)
clean to keep the fridge running
efficiently.
• Clean the exterior of the refrigerator
with a warm damp cloth and mild
detergent. Do not use harsh or
abrasive cleaners.
• Never clean the refrigerator with
flammable fluids. This may result in a
risk of fire.
Vacation Time
• For long vacations, remove all food.
Then, switch off the refrigerator.
• Clean the interior and leave doors
open to avoid possible odor or mold
formation.
• Keep the refrigerator not easily
accessible by children.
Moving Your Refrigerator
• Switch off the refrigerator.
• Remove all the foodstuff, shelves,
drawers and doors.
• Be sure the refrigerator stays
in the upright position during
transportation.
Energy Saving Tips
• Locate the refrigerator in the coolest
area of the room, away from heat
producing appliances or heating
ducts, and out of the direct sunlight.
• Cool off the hot food to room
temperature before placing in the
refrigerator.
• Wrap the food properly with the
containers and ensure them dry
before placing in the refrigerator, to
avoid the frost built on interior walls.
• Organize and label the food to reduce
the time to open the door or search
the food.
CCD-0005596 REV: 10.12.2022

12
Specifications
English
W
D
H
Specifications
Capacity (cu. ft.) 10 cu. ft.
Product (with trim kit) dimension (W*H*D) 26 ⁄” x 60 ⁄” x 27 ⁄” (681 x 1545 x 690 mm)
Recessed Dimensions (W*H*D) 23 ⁄” x 59 ⁄” x 24” (604 x 1512 x 610 mm)
Net Weight 114.6 Lbs (52 Kg)
Voltage DC 12V
Rated Current 11A
Temperature Range
Fresh Food
Compartment 0 ~ +10 oC (+32 ~ +50 oF)
Freezer Compartment -6 ~ -18 oC (+21.2 ~ -0.4 oF)
REV: 10.12.2022 CCD-0005596

13
Troubleshooting
English
If you encounter a problem with the refrigerator as below tables stated, firstly try the
suggested solutions. If problems persist, please call the service or the dealer.
Problem Solution
Refrigerator does not
operate Ensure that the refrigerator is powered on correctly.
Compressor turns on and off
Check whether the room temperature is higher than the normal.
Check whether the door is open or is frequently opened.
Check whether the refrigerator has been recently disconnected for a
period of time.
Refrigerator compartments
are too warm
Ensure that the temperature control is set correctly.
Check whether the door is open or is frequently opened.
Ensure that the door gasket is properly sealed.
Ensure that the warm or hot foodstuff is cooled down before storing in
the refrigerator.
Check if the refrigerator has been recently disconnected for a period of
time.
Vibrating or rattling (slight
vibration is normal)
Adjust the leveling legs.
Ensure that the refrigerator is placed on a flat and solid surface.
The temperature on the
exterior of the refrigerator
is high.
Check if the temperature of the exterior refrigerator walls is much
higher than the room temperature 30°C.
This is normal when the surface is warm, because the compressor
works to convey the heat from the interior to the exterior.
Moisture collects inside the
refrigerator Check whether the door is open or is frequently opened.
Moisture forms on outside of
refrigerator This is normal when in hot and humid weather.
Bubbling or gurgling sounds
(like boiling water)
This is the normal sound of refrigerant (used to cool refrigerator)
circulating throughout the system.
Popping or cracking sounds
when compressor comes on
This is normal. Metal parts undergo expansion and contraction, like hot
water pipes. The sound will decrease or disappear as refrigerator runs.
The door cannot be closed.
Ensure the refrigerator is on a flat surface.
Check whether the gasket is dirty.
Check whether the storage drawer is out of position.
CCD-0005596 REV: 10.12.2022

14
Warranty
English
FURRION WARRANTS FOR A PERIOD OF 1 YEAR FROM DATE OF RETAIL PURCHASE
BY THE ORIGINAL END-USE PURCHASER, THAT THIS PRODUCT, WHEN DELIVERED
TO YOU IN NEW CONDITION, IN ORIGINAL PACKAGING, FROM A FURRION
AUTHORIZED RESELLER AND USED IN NORMAL CONDITIONS, IS FREE FROM ANY
DEFECTS IN MANUFACTURING, MATERIALS, AND WORKMANSHIP. IN CASE OF SUCH
DEFECT, FURRION SHALL REPLACE OR REPAIR THE PRODUCT AT NO CHARGE
TO YOU. THIS WARRANTY DOES NOT COVER: PRODUCTS WHERE THE ORIGINAL
SERIAL NUMBERS HAVE BEEN REMOVED, ALTERED OR CANNOT READILY BE
DETERMINED; DAMAGE OR LOSS CAUSED BY ACCIDENT, MISUSE, ABUSE, NEGLECT,
PRODUCT MODIFICATION, FAILURE TO FOLLOW INSTRUCTIONS IN INSTRUCTION
MANUAL, COMMERCIAL OR INDUSTRIAL USE; DAMAGE OR LOSS CAUSED TO THE
DECORATIVE SURFACE OF PRODUCT; TO ANY DATA, SOFTWARE OR INFORMATION;
AND NORMAL WEAR AND TEAR. THIS WARRANTY ONLY PROTECTS THE ORIGINAL
END-USER (“YOU”) AND IS NOT TRANSFERABLE; ANY ATTEMPT TO TRANSFER THIS
WARRANTY SHALL MAKE IT IMMEDIATELY VOID. THIS WARRANTY IS ONLY VALID IN
THE COUNTRY OF PURCHASE.
THIS WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER
ORAL OR WRITTEN, EXPRESS OR IMPLIED. FURRION SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION,
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IF FURRION CANNOT LAWFULLY DISCLAIM IMPLIED WARRANTIES UNDER THIS
LIMITED WARRANTY, ALL SUCH WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED IN
DURATION TO THE DURATION OF THIS WARRANTY.
No Furrion reseller, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
REV: 10.12.2022 CCD-0005596

15
Warranty
English
FURRION IS NOT RESPONSIBLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR
CONDITION, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED
TO LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO OR REPLACEMENT OF
ANY EQUIPMENT OR PROPERTY, ANY COSTS OF RECOVERING, REPROGRAMMING,
OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH FURRION
PRODUCTS. FURRION’S TOTAL LIABILITY IS LIMITED TO THE REPAIR OR
REPLACEMENT OF THIS PRODUCT PURSUANT TO THE TERMS OF THIS WARRANTY.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR EXCLUSIONS OR LIMITATIONS ON THE DURATION
OF IMPLIED WARRANTIES OR CONDITIONS, SO THE ABOVE LIMITATIONS OR
EXCLUSIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY STATE OR (WHERE
APPLICABLE IN THE COUNTRIES WHERE FURRION HAS NON-US/CANADIAN
AUTHORIZED DEALERS) COUNTRY. NO ACTION OR CLAIM TO ENFORCE THIS
WARRANTY SHALL BE COMMENCED AFTER THE EXPIRATION OF THE WARRANTY
PERIOD.
Keep your receipt, delivery slip, or other appropriate payment record to establish the
warranty period. Service under this warranty must be obtained by contacting Furrion
at [email protected]om
Product features or specifications as described or illustrated are subject to change
without notice.
CCD-0005596 REV: 10.12.2022

16
Bienvenue
Français
Merci d'avoir acheté ce Furrion®10 pi cu Réfrigérateur CC. Avant utiliser votre nouvel
appareil, veuillez lire ces consignes attentivement. Le présent guide d’utilisation
contient des informations permettant l’utilisation, l’installation et l’entretien en toute
sécurité de l’appareil.
Veuillez conserver le présent guide d’utilisation en lieu sûr pour vous y référer
ultérieurement, afin d’assurer votre sécurité et de réduire les risques de blessure.
Veuillez aussi remettre le présent manuel à tout nouveau propriétaire de cet appareil.
Le fabricant décline toute responsabilité en cas de dommages dus au non-respect
des présentes consignes.
Si vous avez des questions sur nos produits, veuillez nous contacter:
REV: 10.12.2022 CCD-0005596

17
Contenu
Français
Bienvenue..........................................................................................16
Contenu .............................................................................................17
Consignes de sécurité importantes...................................................18
Mise au rebut appropriée du réfrigérateur .........................................................18
Pièces et caractéristiques .................................................................19
Avant l’utilisation...............................................................................20
Avant d'utiliser pour la première fois..................................................................20
Remarque d'utilisation ........................................................................................20
Installation ........................................................................................21
Précautions d'installation....................................................................................21
Qu'y a-t-il dans les boites?..................................................................................21
Installation de votre réfrigérateur.......................................................................21
Raccordement électrique ..................................................................24
Diagramme de connexion de fil...........................................................................24
Fonctionnement.................................................................................25
Contrôle de la température .................................................................................25
Remplacer la lumière intérieure.........................................................................25
Fonctionnement du compartiment congélateur.................................................25
Entretien............................................................................................26
Nettoyage de votre réfrigérateur.........................................................................26
Temps de vacances..............................................................................................26
Déplacer votre réfrigérateur ...............................................................................26
Conseils d'économie d'énergie ...........................................................................26
Caractéristiques................................................................................27
Dépannage.........................................................................................28
Garantie.............................................................................................29
CCD-0005596 REV: 10.12.2022

18
Consignes de sécurité importantes
Français
AVERTISSEMENT
Pour réduire les risques d'incendie,
d'électrocution ou de blessures,
suivez ces précautions de base lors de
l'utilisation de votre réfrigérateur.
• Ne stockez pas et n’utilisez pas de
vapeurs ou de liquides inflammables
(comme l’essence) à proximité de ce
réfrigérateur.
• Cet appareil n’est pas conçu pour
être utilisé par des personnes (y
compris les enfants) ayant des
capacités physiques, sensorielles
ou mentales réduites, ou manquant
d’expérience et de connaissances,
à moins d’être supervisées par
une personne responsable de leur
sécurité.
• Les enfants doivent être surveillés
pour s’assurer qu’ils ne jouent pas
avec l’appareil.
• La modification ou l’installation du
réfrigérateur doit être effectuée par
un technicien qualifié ou une société
d’entretien. Tout manquement à cet
égard pourrait se solder par une
décharge électrique.
Mise au rebut appropriée du
réfrigérateur
DANGER
Risque de piégeage d’enfant. Avant de
jeter votre vieux réfrigérateur, veuillez
suivre les précautions ci-dessous pour
éviter les accidents:
−Enlevez toutes les portes.
−Laissez les étagères en place afin
que les enfants ne puissent pas
facilement monter à l’intérieur.
−Ne permettez jamais aux enfants
de jouer avec le réfrigérateur, de
l’utiliser ou d’y pénétrer.
Réfrigérants
Tous les produits de réfrigération
contiennent des réfrigérants qui,
en vertu de la loi fédérale, doivent
être retirés avant l’élimination du
produit. Veuillez vous conformer aux
réglementations fédérales et locales
pour assurer l’élimination sûre d’un
ancien produit de réfrigération.
Conservez ces instructions
pour référence future
REV: 10.12.2022 CCD-0005596

19
Pièces et caractéristiques
Article Nom de la pièce
1Tablette de congélateur
2Contrôle de température du
congélateur
3Contrôle de température réglable
4Lumière DEL
5Étagère en fil métallique
6Couvercle de verre transparent du
bac à légumes
7Bac à légumes clair
Article Nom de la pièce
8Tablette de porte pleine largeur
9Petite étagère de porte
10 Interrupteur
11 Étagère des gallons
12 Petite étagère de porte
13 Diviseur
14 Tablette de porte pleine largeur
Français
1
28
9
10
11
12
13
14
3
4
5
6
7
CCD-0005596 REV: 10.12.2022
Other manuals for FCR10DCBTA-BL
1
This manual suits for next models
1
Table of contents
Languages:
Other Furrion Refrigerator manuals

Furrion
Furrion FCR10DCBTA-BL User manual

Furrion
Furrion FCR08DCGTA-NR User manual

Furrion
Furrion Arctic FCR08DCGTA-BL User manual

Furrion
Furrion FCR43ACA-BL User manual

Furrion
Furrion FCR14ACBQA-BL User manual

Furrion
Furrion FCR08DCGTA Series User manual

Furrion
Furrion Arctic FCR10DCDTA Series User manual

Furrion
Furrion FCR33ACA-BL User manual

Furrion
Furrion ARCTIC FCR20DCAFA-SG User manual

Furrion
Furrion FCR16DCASA-BG User manual
