Futiro USB Phone User manual

User Manual
Futiro Luna / Terra / Solo
English
www.futiro.com

1
Table of Contents
1. Introduction ................................................................................................2
1.1 Overview .................................................................................................2
1.2 System equirements ............................................................................2
1.3 Features .................................................................................................3
2. Installing your Futiro USB Phone .............................................................4
3. Using your Futiro USB Phone ...................................................................
3.1 Using your Futiro Luna ........................................................................9
3.1.1 Luna Key functions ......................................................................... 10
3.2 Using your Futiro Terra ...................................................................... 11
3.2.1 Terra Key functions ........................................................................ 12
3.3 Using your Futiro Solo ....................................................................... 13
3.3.1 Solo Key functions ......................................................................... 14
4. Troubleshooting ....................................................................................... 15

2
1. Introduction
This manual provides instructions for installing and operating your Futiro USB
Phon.
1.1 Overview
Package Contents
• Futiro USB phone Luna, Terra or Solo.
• Futiro Quick Start Guide.
• Futiro software CD which includes :
o Futiro drivers and software to allow your phone to interact with
iChat.
o Futiro phone user manual in pdf format.
o Adobe Acrobat eader
1.2 System Requirements
Mac OS X v10.4. (Tiger)
•
Intel / G4 800 MHz CPU or faster
• Minimum 512 MB AM
• Minimum 10Mb of free space on your hard drive.
• 1 x USB 1.1/2.0.
• Broadband Internet Connection.

3
1.3 Features
• Easy to install plug-and-play technology.
• USB 1.1/2.0 compatible.
• USB bus powered.
• Connection type - USB Type A, Slave.
• iChat Integration.
• Adjustable in-call volume control.
• Unique Free Standing Design on Luna and Terra models.
• Stretchable cord on Luna and Terra models (up to approx 3 metres).
• Unique patented cable management system on Solo model.
• Hands-free and Speed-dial functionality on Luna model.
• Omnidirectional microphone with 60dB S/N atio and -43dB +/- 2dB
sensitivity.
• Speaker with a frequency range of F0-5.0 KHz

4
2. Installing your Futiro USB Phone
Please follow these 6 easy steps to set up your Futiro USB Phone for iChat.
STEP 1
First, remove any previous version of the Futiro software by dragging the
Futiro icon to Trash.

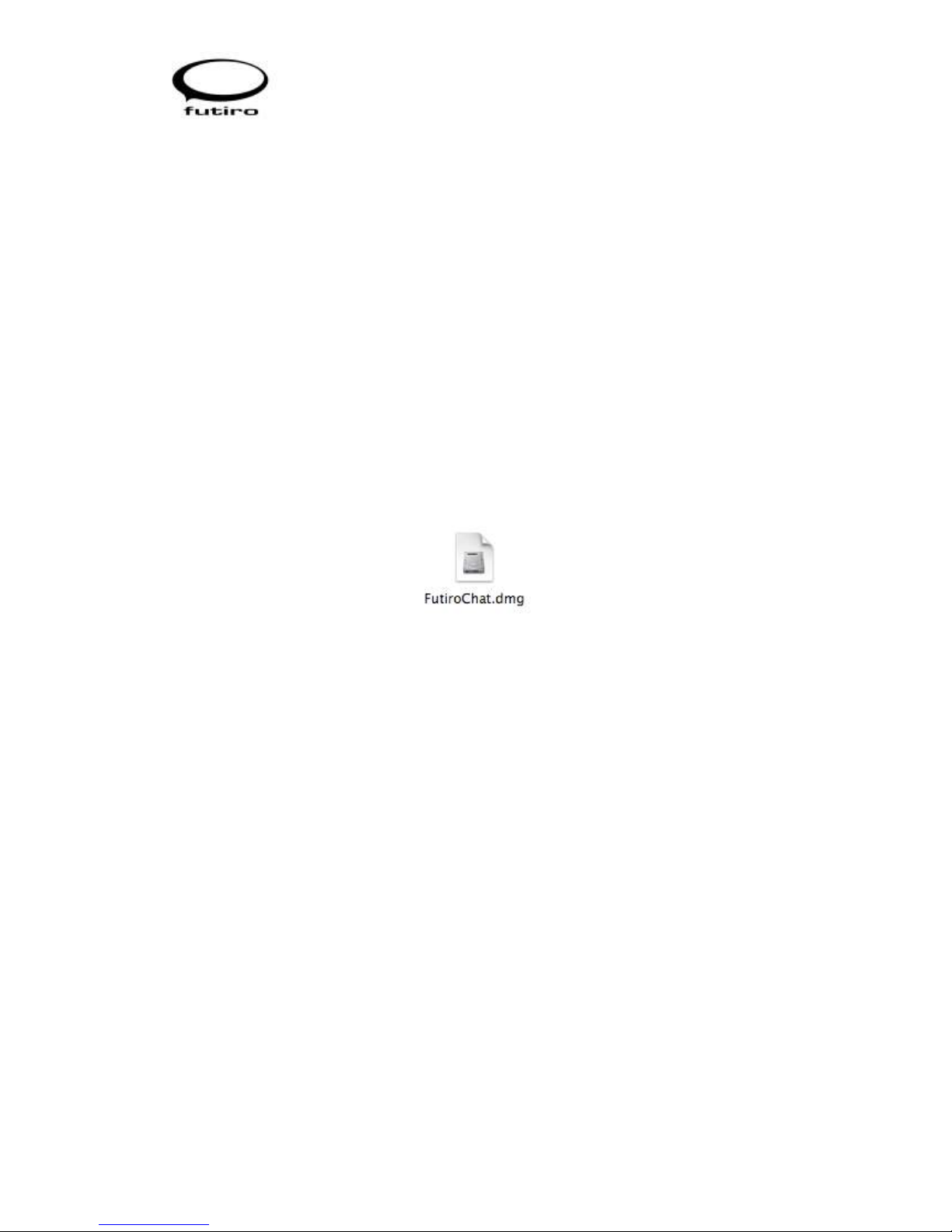

Locate the FutiroChat.dmg disk image (Figure 2.1) for Mac OS X on your
CD- OM (or download from www.futiro.com) and double-click on it.
Figure 2.1 – FutiroChat Disk Image

5

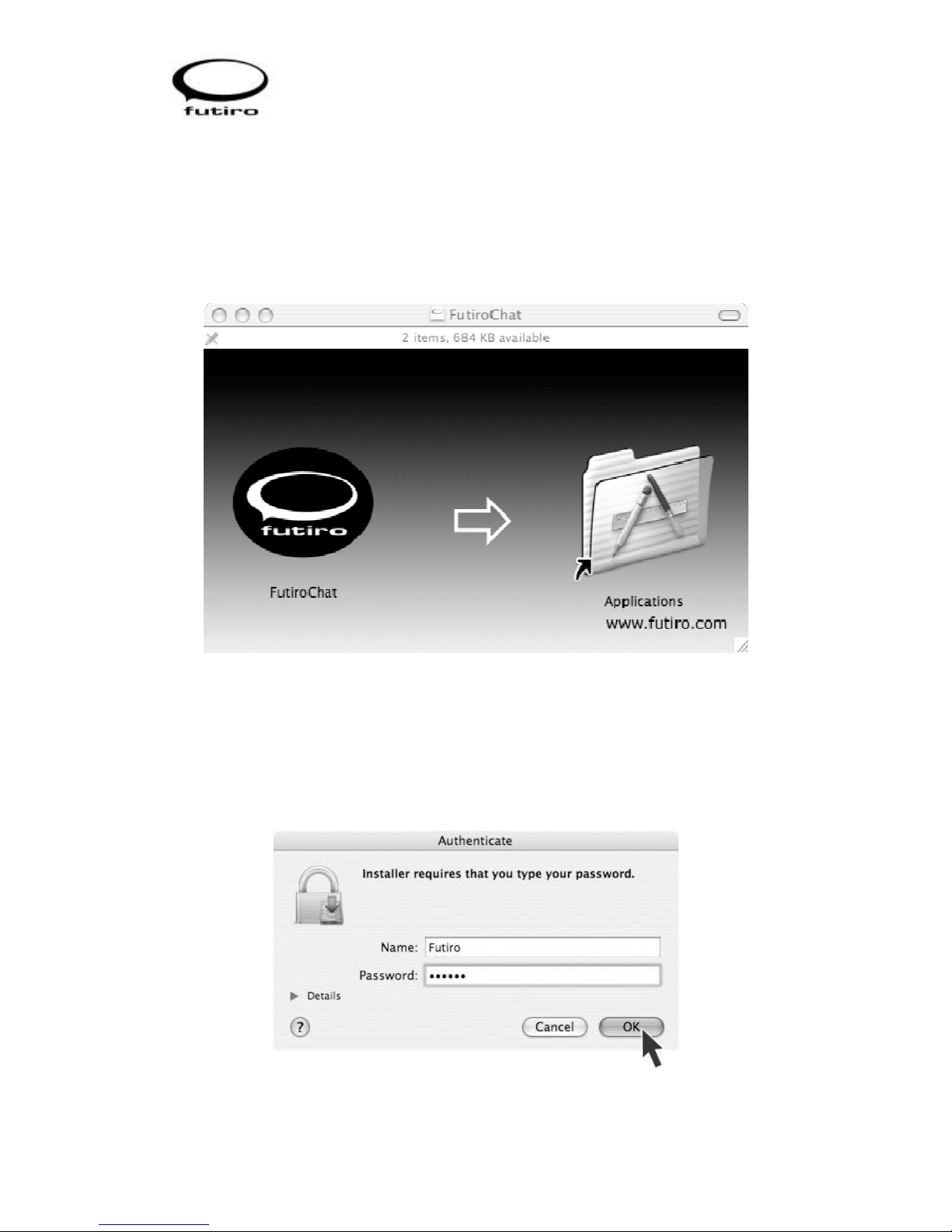

STEP 2
Locate the FutiroChat mounted disk image in Finder (Figure 2.2). Drag the
FutiroChat icon over to the Applications folder.
Figure 2.2 – FutiroChat Mounted Disk Image
STEP 3
You may be prompted to enter an administrative username and password
(Figure 2.3). Enter these details and click OK.
Figure 2.3 – Authentication Prompt

6
STEP 4

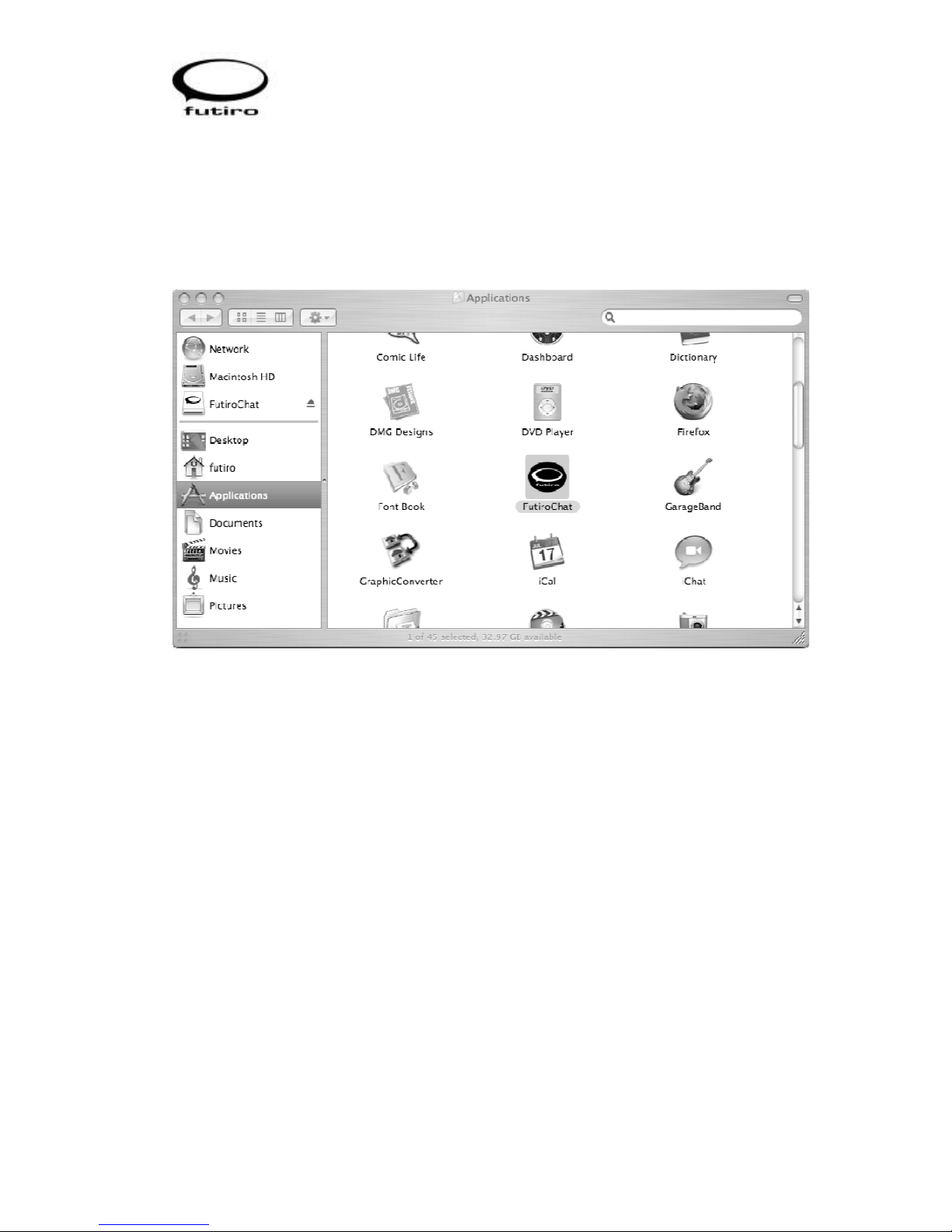

To run the Futiro software, locate the FutiroChat icon in the Applications
folder (Figure 2.4) and double-click on it.
Figure 2.4 – Applications Folder

7
STEP 5

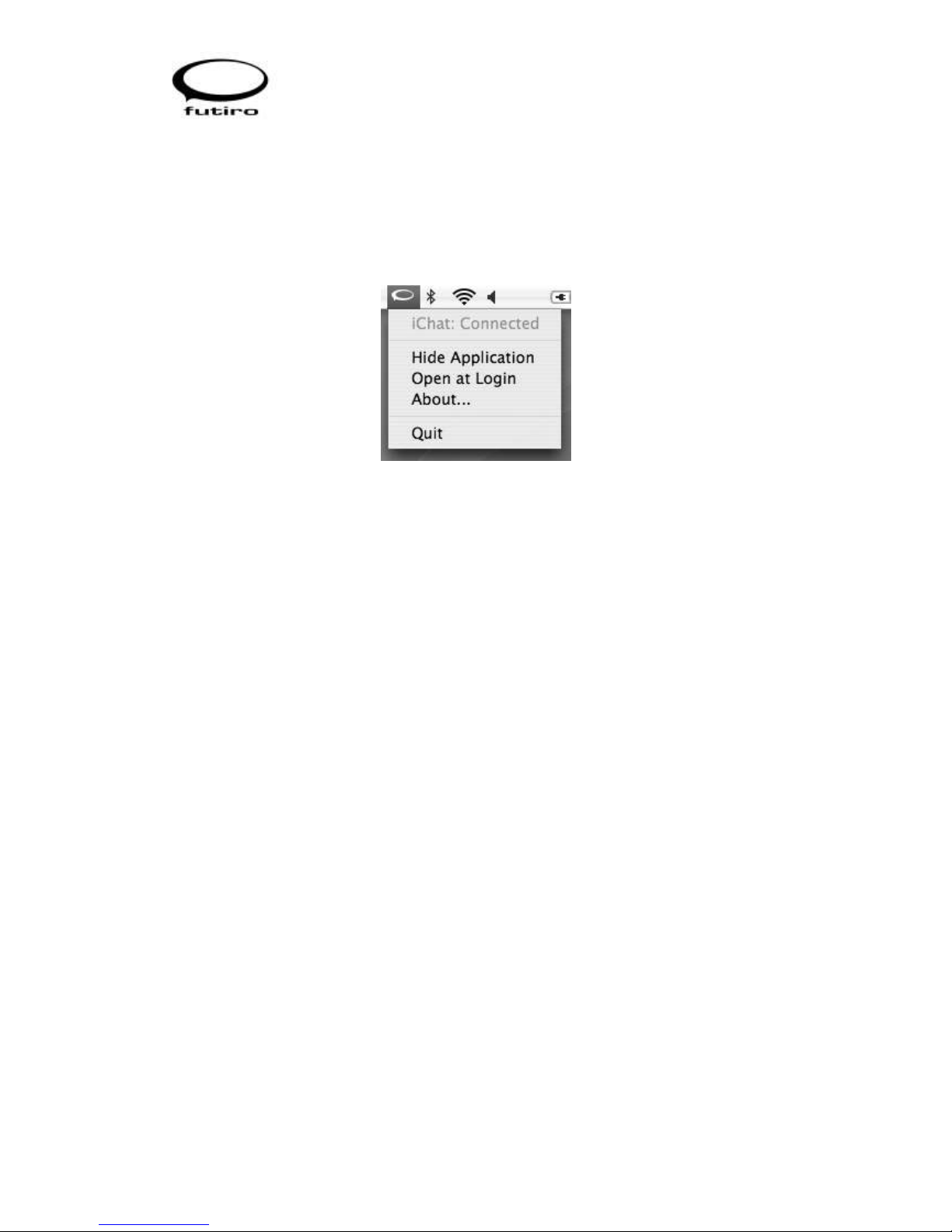

When the Futiro software is running, the Futiro logo will appear in the menu
bar (Figure 2.5).
Figure 2.5 – Futiro Menu
STEP 6
To automatically start the Futiro software on login, click on the Futiro icon in
the top menu bar. A pop up menu will appear (Figure 2.5). Tick the Open at
Login option.

8
3. Using your Futiro USB Phone
When using your Futiro phone with iChat, please ensure you have read the
previous chapters and have installed the Futiro software on your Mac.
Before you start using your phone with iChat please ensure:
1. iChat is running on your Mac and you are logged on to your iChat
account.
2. Your Futiro software is running. (See Section 2)

9

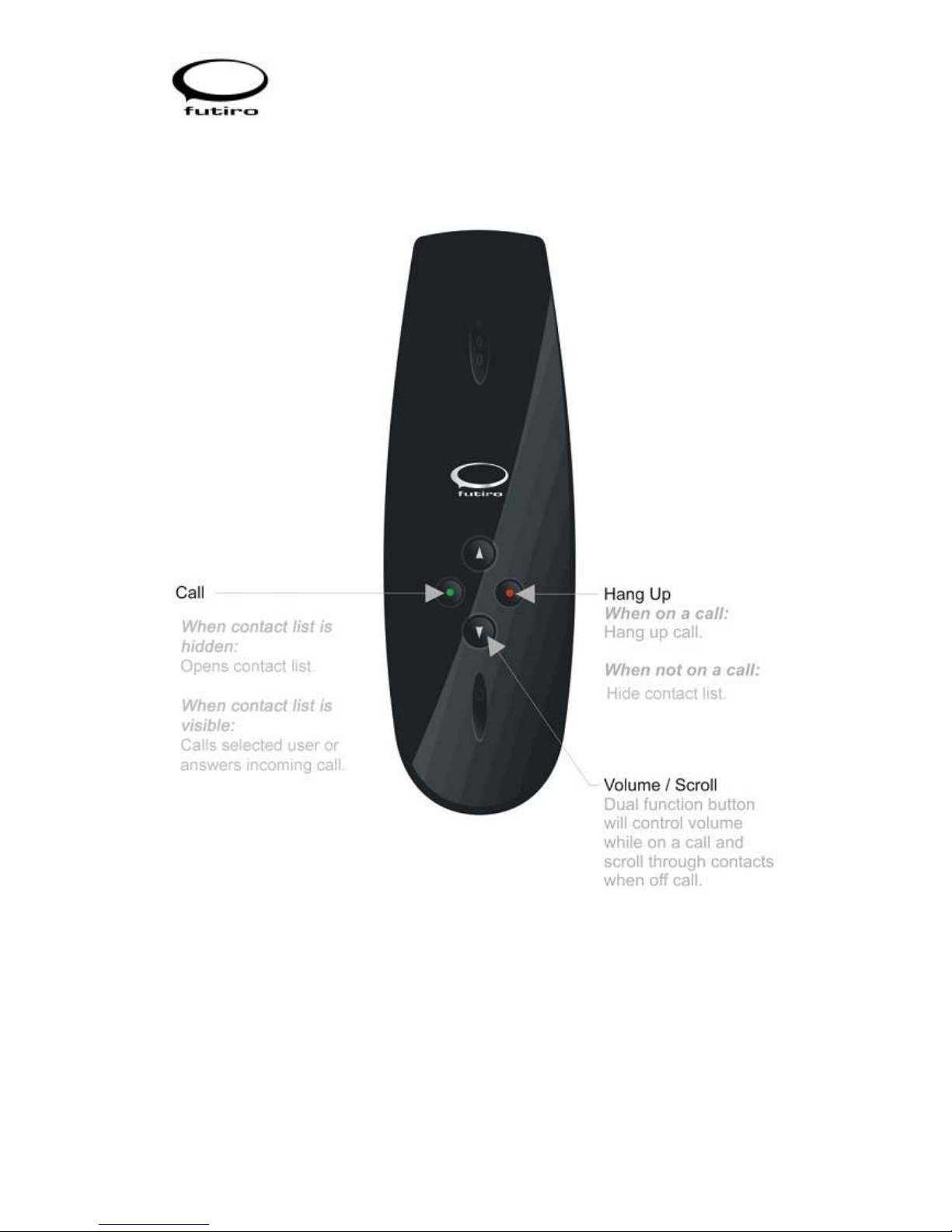

3.1 Using your Futiro Luna
Making a Call
1. Press the green to open the contact list.
2. Use the scroll button to scroll up or down through your contacts and
select the desired contact.
3. Press the green to call the selected contact.
Receiving a Call
Press the green to answer the call.
Ending a Call
Press the red to end the call.
Closing the Contact List
Press the red to close the contact list.
Additional Features
• To Switch on hands-free - Press either before or during a call. You
can leave the hands-free feature on if you wish.
• When on a call, press to mute the microphone (requires Enable
access for assistive devices to be ticked in the Universal Access
options under System Preferences.
The LED Indicator
The Futiro Luna contains a light emitting diode (LED) indicator. The LED
indicates different states of the phone:
LED Colour
Phone Mode
Off The phone is not plugged in.
ed The phone is plugged in and on normal mode.
ed Intermittent Plugged in and on a standard call.
Green Plugged in and on hands-free mode.
Green Intermittent Plugged in and on a hands-free call.
