Future Carping V80 User manual

GODIO Intelligent Remote Control Bait Boat
Product Operation Instruction
(Product Model: V80)
FUTURE CARPING LTD

User Instructions:
Dear Customer,
Thank you for your purchase of the V70 bait boat. Before
you use this product, please make sure to read the instructions
carefully on how to operate and maintain the bait boat
accordingly. If you have any questions regarding the boat, please
contact our after-sale service personnel by telephone.
Future Carping 01623 900 073
Thanks for your cooperation!

I. Factory and product introduction
1. Factory introduction
Kaiyuan Gediao Fishing Tackle Factory is a high-tech enterprise, which
is dedicated to R&D, production and sales of intelligent remote control bait
boats for fishing, intelligent bait casting and hook dropping boat, fish finder
boat and under-ice fishing products. The factory has a batch of professional
design and manufacturing teams and has produced a series of high-quality
products appraised by users, driven by market demand, relying on cutting-
edge technologies and through independent R&D. Now all products have
obtained multiple national patents, and Gediao has become the intelligent
fishing bait boat producer with distinct strengths in China. Our products
have been sold to overseas markets such as Europe and Middle Asia.
Since it was founded, Gediao has always adhered to the business
philosophy of quality-based development and credit-based brand building.
Gediao has always focused on product practicability and stability in design
and provided high-quality and competitive products to customers. At the
same time, Gediao has established a perfect after-sales service system and
has won trust and good comments from users with our strengths, reasonable
price and high-quality products. All friends and new and old customers are
sincerely welcome to visit our factory, guide us and negotiate with us for
common development.
2. Product introduction
Parameters of V80 Bait Boat:
Ba i
Boat
parameters
Product model: V80
Dimension: 80cm (L) * 40cm (W) * 28cm (D)
Net weight: 8kg
Maximal loading: 5kg
Bait hopper dimension: 28cm (L) * 15cm (W) * 12cm (D)
Boat material: high-quality ABS engineering plastics
Wireless
performance
2.4GHz anti-interference remote controller
400m remote control distance
Bait casting
and hook
dropping
4 independent bait hoppers (opened separately under control)
2 independent hook device
Optional bait thrower
Wearing-free electromagnet bait casting and hook dropping system.

II. Packing list
1. Gediao intelligent remote control bait boat 1 set
2. Anti-interference remote controller (include antenna) 1 set
3. Lithium battery pack for boat 1 pair
4. Boat antenna 1 piece
5. Charger for boat: 1 piece
6. Boat bag: 1 piece
7. Hanging rope of remote controller: 1 piece
8. Remote controller battery: 1 set
9. External charging bypass flow line: 1 piece
10.Small accessory bag: 1 piece
11.Product instruction: 1 piece
12.Foam pack: 1 set
13. Paper box for shipment: 1 piece
14. Optional accessories (Fishing finder, bait thrower etc...)
III. Precautions for use
1. After you make sure to know and grasp the operation keys of this bait boat,
you can use it in the water. Every time before your travelling, you should
check the functions of the boat and carry all accessories to ensure normal
operation.
2. To ensure that the boat can work normally, make sure to clean it after each
use. Every time before the boat is used, make sure that the battery
Basic
parameters
Product
performance
Two sets of lithium batteries (12V31AH) with 5-hour duration, or
two sets of lead acid batteries (12V14AH) with 1.5-hour duration
High-performance high-torque ultra-silence motor
Waterproof design of the whole boat
Double boat body design and resistance to Class 5-6 storm
Double motor driving, best operation and control performance and
ability to turn around in situ
Stepless speed change and maximum operation rate of 90m/min
Optional course auto-adjust function
Optional GPS auto-drive, and function of dropping bait
automatically
Protective system resistant to water weeds and fish line winding
Reserved fish finder and GPS navigation installation port
Reserved bait thrower, double hopper installation port
Charging voltage of AC220 for boat charger

compartment is covered and it is kept waterproof. After using, open the
battery cover to check if the battery compartment has any water in it,
ventilate the boat in a dry place, and keep the inside of the boat body dry.
3. Do not overload using the boat in heavy wind or storm, and check the inside
of the boat if using in bad weather.
4. In use, before the boat is placed into the water for operation, make sure that
the boat power and remote control power has been turned on. In addition,
the spare battery of the remote controller should be equipped with at any
time to prevent the boat from failing to return in case of no power of the
remote controller.
5. Do not make the motor idle. If the motor shaft gets away from the water level,
it cannot be cooled by water. The heat due to friction with the water seal will
make it quickly age and degrade the water proof performance.
6. The valid distance of the remote controller signals is 500m. The valid distance
of the remote controller signals may be shortened due to influences of the
environment and other factors. Please operate the boat within the range of
visibility as much as possible during operation. When the remote control
signals are lost or the remote controller is turned off, the boat will
automatically stop in the water (the boat based on GPS automatic driving can
automatically return to the origin) and four front and rear lights will flicker
continuously at the same time. In addition, the boat and remote controller
antenna should all point to the sky, so that transmission and receiving effect
of the signals is optimal.
7. When the boat power alarm indicator is turned on, the boat can continue
navigation for about 15 minutes. When the alarm indicator starts to flicker
(GPS automatic driving boat can automatically return to the origin), please

stop operation immediately and charge the boat batteries.
8. The power indicator of the remote controller will gradually change from
green to red during use. When the power of the remote controller is low, the
power indicator will start to flicker and give out an alarm. Please replace the
batteries of the remote controller and make sure that the boat power is
turned off during replacement (For GPS automatic driving configurations,
please refer to the precautions of automatic driving function).
9. After a new boat is received, if the power is insufficient, please charge the
batteries, and then use the boat. Each time after the boat batteries are used,
or if they are not used for a long time, they should be charged fully for
storage. If they are not used for a long time the batteries should be taken out
and be placed in a dry and ventilated place, the batteries shouldl be charged
again every 2-3 months. Do not discharge the batteries excessively.
Otherwise, it will damage the batteries and they cannot be used normally. If
the batteries fail due to incorrect battery maintenance of the customers, it is
beyond the warranty scope.
10. For boats with GPS function, if there is any problem of deviation during the
voyage, please do the median calibration of the right rocker according to the
suggested steps in the remote control Settings. In addition, do not restore
factory settings in the remote control Settings. If the boat cannot connect to
the remote control, please contact the customer service for the bind method.
11. Do not use this boat in the water areas with dense weeds. If the boat
propeller is wound by the fishing line, please stop using the boat immediately.
After the fishing line is removed, the boat can be used again. When Taking

out your hook bait and towing out the fishing line, do not reverse for a long
time to prevent the fishing line winding in the propeller.
12.When the boat is in the course of posting and transportation, place the
lithium batteries or lead acid batteries in the designed foam packing slot and
fix them. Do not directly place the batteries into the boat for transportation.
13.The charging port and other exposed ports should be covered by rubber caps
during use. Otherwise, water will enter them and lead to a short circuit.
14.After the power is turned on, it takes about 20 seconds to initialize the course
stabilizer. During this time, please leave the boat on a flat ground and do not
operate the remote control.
15.Do not use this bait boat in bad weather, such as lightning, storms and strong
wind and big waves.
16.Do not allow children to contact and use this product.
17.This product has been granted with the state utility model and appearance
patent, and its brand trademark has been registered. Do not infringe our
trademark. Once any infringement is discovered, we will investigate related
legal responsibilities.
IV. Operation guidance
1. Boat installation and operation instruction
The boat functions are described as follows:

1. First open the left and right battery compartment covers with the
screwdriver, take two batteries from the foam box, place them into the
left and right battery compartments of the boat, connect the battery power
lines at two ends respectively. Cover the left and right compartment
hatches.
2. Take out the boat antenna, fasten it clockwise, and fix it onto the boat
antenna seat.
3. If nesting is required on the left and right side of the middle
compartment, insert the division plate of the middle compartment into the
front and rear slot of the compartment and fix it.
4. After turning on the boat switch, the front and rear lights of the boat will
flicker three times, test the functions of the right rocker of the remote
controller. If it is normal, place the boat into the water and begin to use it.
5. Close the left and right bottom compartment plate of the middle
compartment and place the bait inside. When the middle compartment
door is remotely opened, the warning indicator will flicker.
6. To use the remote controller, place four AA-sized batteries, return all the
rockers of the remote controllers to the origin and turn on the remote

controller switch. The power indicator of the remote controller will be
on.
7. If a rear explosion hook hopper is required, please note that the fishing
line should go through the reserved single or double line slot. Each time
when the hopper door is opened, it is accompanied by flickering of the
indicator.
8. After use, please close the switch of the remote controller and boat
switch.
2. Operation instruction of remote controller

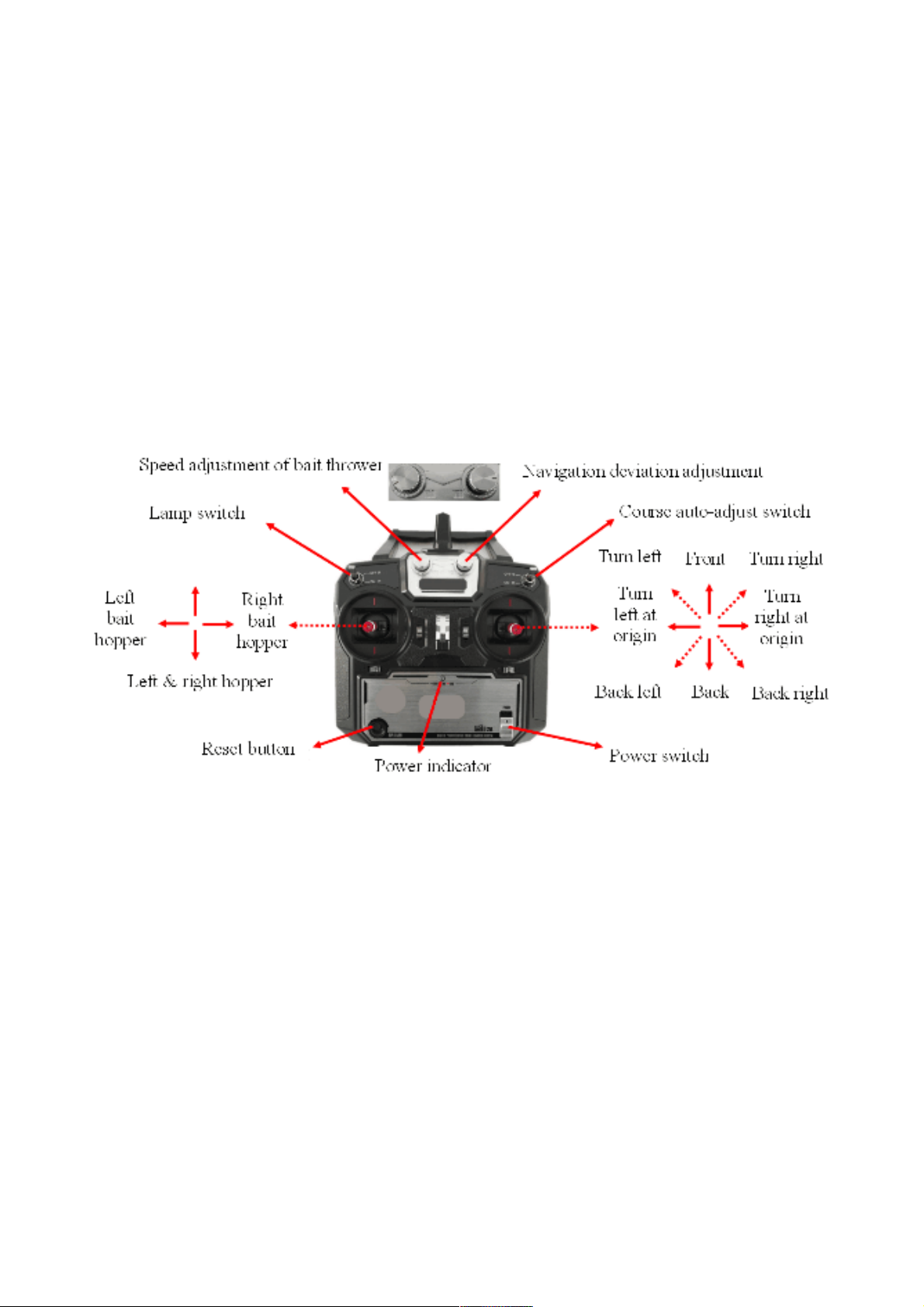

The standard remote controller is operated as follows:
Operation instructions of the standard remote controller:
1. Control the opening of the four bait hoppers by using the left rocker of the
remote controller. Dial left to open the left bait hopper of the middle
compartment, dial right to open the right bait hopper of the middle
compartment, dial up to open the right tail hopper, and dial down to open
the left tail hopper.
2. Control the boat on the water level by using the right rocker of the remote
controller. Dial up to move forward, dial down to move back, dial left to
turn left at the origin, dial right to turn right at the origin, dial left up to turn
left, and dial right up to turn right.

3. The toggle switch in the upper left corner of the remote control is the front
and rear lights switch of the boat, which is off when pushed upward, low
brightness if it is pushed to the middle, and high brightness if it is pushed
downwards.
4. The switch in the upper right corner of the remote control is for the course
protection program, which is turned off when turned up and turned on
when turned down. When this switch is turned on, the boat automatically
corrects course and follows a straight line.
5. The left up knob of the standard remote controller is the optional throwing
range adjustment knob of the bait thrower, it can be adjusted
counterclockwise to control the range from small to wide. An operation
protection program is used to prevent incorrect opening of the bait thrower.
When the remote controller is turned on, the bait thrower can be opened
when the knob returns to the minimum. (The left knob of the GPS remote
control is the brightness adjustment knob of the headlights, which can
increase the brightness clockwise and decrease the brightness
counterclockwise.)
6. The knob on the upper right of the standard remote control is the
navigation bias adjustment knob, and the pointer of the standard remote
control, pointing to the right is for the middle. When the boat is yaw to the
left, the knob can be slowly adjusted to the right, and vice versa. (The right
knob of the GPS remote controller is the adjustment knob for the throwing
range of the optional bait thrower, and the bait thrower has the open
protection program of false operation. When the remote control is not
turned on, the knob can only be opened after it is returned to the
minimum.)
3. Introduction to the GPS automatic driving function
3-1 Operation notices of GPS automatic driving function
（1）About 5 minutes after startup, the satellite signals will be

stable. When 10 satellites are available, the automatic driving
function can be enabled. When more than 15 satellites are available
and the boat is located in an open area without any obstacles, the
positioning precision can reach about 1m.
（2）Every time the boat arrives at the fishing lake, please first
set the origin to ensure that the boat can automatically return to
the origin in case of an emergency. It is recommended to set the
origin at the water surface several meters away from the bank. The
automatic driving function should be enabled at the origin. The
bow should point to the extensive water surface as much as
possible to prevent the boat from stranding on the bank during
automatic steering.
（3）When the boat cannot receive the signals from the
remote controller or the boat power reduces to the minimum
warning value, the boat will automatically enable the returning
function and return to the origin. The right rocker should be
located in the middle position during automatic return. Otherwise,
it will interfere with normal return. Four lights will continuously
flicker during automatic return.
（4）When the power of the remote controller is consumed up
or the remote control function fails, please turn off the power of the
remote controller. The boat will automatically enable the returning
function and return to the origin after 7s. Four lights will
continuously flicker during automatic return.
（5）When the boat power reduces to about 30%, the red
power indicator of the boat will be on and you can continue using
the boat for about 15minutes. When the power reduces to about

20%, the remote controller will give out the power alarm and the
red power indicator of the boat will begin to flicker. At this time, the
boat may enable automatic returning function in case of lower
power. You should stop using the boat immediately and charge it.
（6）The remote controller should be powered by high-quality
AA-sized batteries. When the power of the remote controller
reduces to 30%, the power alarm will be given out. When the power
reduces to be under 20%, please change the batteries of the
remote controller in time. In addition, always make sure that the
remote controller has enough spare batteries for use at any time.
Otherwise, when the power of the remote controller is consumed
up, the boat cannot be controlled and an emergency will occur.
（7）Before the GPS automatic driving function is enabled,
please make the right rocker locate in the middle position. Manual
operation is always dominant in automatic driving. When you
operate the right rocker or press the “Exit” key during this period,
the automatic driving program will terminate and the boat will
switch to the manual operation mode.
（8）To ensure that the boat keeps within the valid coverage
while sailing the longest distance of the GPS automatic driving is
300m. The automatic return is not restricted in case of an
emergency.
（9）If automatic driving cannot keep the correct direction in
the stormy weather, please switch to the manual navigation mode.
（10）For the boat's installable fish finder, please turn off the

course auto-adjust function during the process of finding fish,
because the automatic speed adjustment of the motor may
interfere with the power supply voltage of the fish finder.
3-2 Operation introduction to GPS automatic driving
3-2-1 Operation instruction for remote controller of GPS automatic driving is as
follows
3-2-2 Operation menu of GPS function is as follows

1. Startup homepage: The startup homepage includes the satellite
quantity, power of remote controller and boat power percentage. The
sailing direction will be displayed in real time at the left up corner and
the signal strength of the remote control will be displayed at the top
right corner.
2. Set the origin: After the boat arrives at the fishing field, first set the
origin as follows:
Homepage (down key) →origin homepage (hold Ok key) →
prompt to select “OK” →Save successfully (set the origin
successfully)
3. Position point saving function, manual and automatic function: When
any position point is saved, the manual function indicates to arrive at
the position point via manual operations on the graphic navigation.
The automatic function indicates to automatically drive the boat to the
position point. Operations are described as follows:

Homepage (hold Down key) →page at any position point (OK
key) →select manual or automatic (Hold the OK key) →
enable manual or automatic function
The manual operation images are introduced as follows:
（5）View the real-time distance of the boat from the origin. This function is
operated as follows:
Homepage (up key) →Display of information such as distance
from the origin
( 6 ) Function of return automatically after dropping bait.
Homepage (OK key) →Choose return automatically(OK
key) →(Up key or down key) Turn on or turn off function of return
automatically after drop bait.
When turned on, the function of returning automatically after
dropping bait, the boat will open the bait hoppers in turn（The bait
thrower will throw the bait automatically at the same time if the boat has
it attatched）. Then the boat will return to the origin after dropping the
bait. The whole process is fully automated without human intervention.
3. Battery charging
（1）Charge the boat battery pack by using the charger
The original 12.6V/4A charger should be used to charge the boat battery pack. Keep
the boat power off during charging, the charger indicator is red during charging. After

the battery pack is fully charged, the charger indicator becomes green.
Charging Method 1: Directly insert the output port of the charger into the boat
charging port (DC charging port on the back side of the boat switch) and charge two
battery packs simultaneously.
Charging Method 2: Please take out two battery packs from the boat battery
compartment, connect the original shunt current line to the charger, connect two ends
of the shunt wire to two battery packs, and charge them simultaneously.
Simultaneously charge two battery packs with the charger for about 7-8 hours.
When only one battery pack is charged, the duration will reduce by half.
V. Warranty notes
1. The valid warranty period of our whole bait boat is 1 year and the valid
warranty period of the battery pack is 6 months. The valid warranty period is
counted since an effective sales voucher is provided.
2. Make sure to keep your sales voucher. When this product needs to be repaired,
please contact our after-sale.
3. If the product is repaired due to product quality during the warranty period, we
will provide the reference accessories.
4. If the warranty period of the product expires, we will provide lifelong paid
repair for customers.
5. We will provide free after-sale service during the warranty period. The
following cases are beyond the scope of free warranty.
1. The specified valid warranty period is expired.
2. No sales voucher and warranty voucher is available except that this
product is proved to be within the valid warranty period.

3. This product is damaged because it is not operated and maintained
according to the operation instruction or is incorrectly operated.
4. Any man-made damage (including damage due to the boat falling and
hard collision), or any damage due to disassembly and refitting of the
repairers not assigned by us.
5. Damages due to fire, flood, lightning, earthquake or other force majeure
or accidents.
VI. Common questions and troubleshooting
1. The boat does not work after the power is turned on.
Reasons: (1) The battery power line is not connected or the battery power is too
low (2) Check the main control board Trouble (3) Switch problems.
Shooting method: Check power line connection of the left and right batteries,
charge the batteries, and contact with after-sale personnel for replacement of the
main control board or switch.
2. The boat will deviate to one side in sailing.
Reasons: (1) The boat is affected by the water flow or stormy waves (2) The
different left and right loads lead to different left and right drafts of the boat (3)
The right rocker of GPS remote controller is not calibrated. (4) The course auto-
adjust function is not turned on.（5）One - sided propeller winding obstacle
or propeller damage.
Troubleshooting method: Turn on the course auto-adjust function. Calibrate the
right rocker of the GPS remote controller ( Follow the instructions for the remote
controller). Check or replace the propeller.
3. The boat stops in the water due to an unknown reason, the light keeps
flickering, and the remote controller does not work.
Reasons: (1) The remote control distance is exceeded (2) The power of the remote
controller is not turned on or the power is low (3) The antenna is not installed in
place or the antenna is damaged.

Troubleshooting method: Check the power of the remote controller, replace the
batteries, hold the antenna of the remote controller high to the sky, move the
remote controller to the boat, and check and replace the antenna.
4. The tail hopper door cannot be opened.
Reasons: (1) The electromagnet line falls off (2) The electromagnet is damaged
(3) The main control board is damaged.
Troubleshooting method: Check the line, replace the electromagnet and main
control board.
5. The boat is out of control in the water and the lights and other functions work
normally.
Reasons: (1) The motor is wound with the fishing line or water weeds (2) The main
control board is protected due to overload.
Troubleshooting method: Stop operation, cool the motor and main control board
for several minutes, and then operate it. If the sailing function still cannot be
controlled, take back the boat and check if the propeller is clean.
6. The water enters the boat compartment.
Reasons: (1) The battery port is not covered well or the adhesive tape is damaged
and falls off (2) The water seal of the tail shaft is damaged.
Troubleshooting method: Remove the water, ventilate the boat for dryness, check
the boat and air tightness of the battery port, check air tightness of the tail shaft,
and contact with the after-sale personnel.
7. The remote control cannot control the boat, and the GPS remote control does
not display the satellite and hull power.
Reasons:(1) The power of the remote controller is low. (2) The power of the boat
is low. (3) The boat cannot bind the remote controller (Restore original factory
Settings).
Troubleshooting method: Change the batteries of the remote controller; Charge
the batteries of the boat; Contact the customer service for the bind method.
VII Upgradable configurations

A user can select to install the following accessories according to personal
preferences.
1. GPS automatic driving function
2. Godio Fishing finder (Used on mobile phone or tablet PC)
For installation of above configurations, please contact the customer service
personnel. For any upgraded configuration selected by the customers, the factory will
provide free installation services to the customers.
IIX. User warranty card
1. Customer information
Name:
Address:
Tel:
1. Product information
Name: Gediao BaitBoat
Model: V80
Configuration: lithium batteries ( ) lead acid ()
Standard configuration ( )+ GPS automatic driving ( )+ TF300( )+ TF500( )
Single tail hopper( )+ double tail hopper+ bait thrower ( )
Color: Black( ) Red ( )
Acquisition date:
2. Information about franchiser
Name:
Address:
Tel:
Delivrey date:
3. Problem description

4. When any product is repaired, make sure that the information filled in this
card is consistent with the information on the purchased product, and post
the card to us together with the product. For contact information and
address, refer to the following part.
IX. Contact information
Company name: Gediao Fishing Tackle Factory
Hotline: [phone] / ( WeChat)
Company website: http://www.gediao-baitboat.com
Address: No.63, Science and Technology Industrial Park, Economic Development
Zone, Kaiyuan City, Liaoning Province,China
