FUXTEC FX-AF1139 Product information sheet

Original User Manual FX-AF1139_rev03

Original User Manual FX-AF1139_rev03
2
INDEX
1. INTRODUCTION 3
2. SAFETY PRECAUTIONS 4
2.2. PERSONAL SAFETY 4
2.2.1. WORK CLOTHING 5
2.2.2. VIBRATIONS 5
2.3. SAFETY IN THE WORK AREA 5
2.4.
SAFE HANDLING OF FUELS 6
2.5.
MAINTENANCE AND USE OF THE DEVICE 6
2.6. MAINTENANCE 7
3. WARNING SYMBOLS 8
4. DEVICE SYMBOLS 8
5. DEVICE DESCRIPTION 9
5.1. TERMS OF USE 9
5.3. TECHNICAL FEATURES 10
6. START-UP 11
6.1.
UNPACKING AND LISTING OF MATERIALS 11
6.2. ASSEMBLY 11
6.2.1. MOUNTING OF THE SPUR 11
6.2.2. TRANSPORT WHEEL ASSEMBLY 11
6.2.3. HANDLEBAR MOUNTING 12
6.3.1. FILLING THE FUEL TANK 12
6.3.2. ENGINE OIL 13
6.4. START-UP 13
6.4.1. CONTROL POINTS BEFORE
COMMISSIONING 13
6.4.2. STARTING THE ENGINE 13
6.4.3. CONTROL POINTS AFTER STARTING THE
ENGINE 14
7. USE OF THE DEVICE 14
7.1. HOLDING AND OPERATING THE DEVICE 14
7.2. WORKING WITH THE MILLING DEVICE 15
7.2.1. SUGGESTED USE 15
8. MAINTENANCE 15
8.1.
MAINTENANCE AND CARE AFTER USE 15
8.1.1. GENERAL CHECKPOINTS 15
8.1.2. CLEANING 15
8.1.3. CHECKING THE OIL LEVEL 16
8.2. REGULAR MAINTENANCE 16
8.2.1. AIR FILTER 17
8.2.2. CHANGING THE engine OIL 17
8.2.3. CHECKING THE SPARK PLUG 17
8.2.4. CLEANING THE CYLINDER FINS 17
9. TROUBLESHOOTING 18
10. TRANSPORT 20
11. STORAGE 20
12. RECYCLING OR DISPOSAL 20
13. Declaration of conformity 21

Original Bedienungsanleitung FX-AF1139_rev03
3
1. INTRODUCTION
Attention! Read all safety instructions and all
instructions. Failure to observe all warnings and
instructions below may result in fire and severe injury.
Before using this device, carefully read this manual's
information regarding proper setup and safety
precautions.
Use this device only to order the country. Do not use
this system for other, unintended purposes. Using this
device for purposes other than intended can lead to
dangerous situations.
To avoid operating errors of this device, please read
all instructions in this manual before the first use. All
information in this manual is essential for your safety
and that of the people, animals, and things around you.
If you have any questions about the information
contained in this manual, please contact the
manufacturer from whom you purchased this device.
Keep all warnings and instructions for future
reference. If you sell the device in the future, remember
to pass this manual on to the new owner.
The expression "switch in open position" means that the
switch is off, and "switch in closed position" means that
the switch is on.

Original User Manual FX-AF1139_rev03
4
2. SAFETY PRECAUTIONS
To avoid operating errors of this device, please read
all instructions in this manual before the first use. All
information in this manual is essential for your safety
and that of the people, animals, and things around you.
If you have any questions about the information
contained in this manual, please contact the
manufacturer.
The following list of hazards and precautions covers the
likely situations that may occur during this device's use.
If you are in a situation that is not described in this
manual, use common sense to use the device as safely
as possible. If you recognize a dangerous situation, do
not use the device.
2.1. USER
This device was developed for handling by older users
who have read and understood this manual. It must not
be used by persons (including children) with physical,
mental, or limited cognitive abilities or lack of
experience/knowledge.
Attention! Do not allow underage persons to use
this device.
Attention! Do not allow persons to use this device if
they do not understand these instructions. Familiarize
yourself with the device before using it by ensuring that
you know exactly where the controls and safety devices
are located and how to use them. If you are an
inexperienced user, we recommend practising a simple
working procedure, if possible, accompanied by an
experienced person.
The cutting tool of this device is very sharp. It is
dangerous to misuse it.
Attention! Lend this device only to familiar with this
device type and know how to operate it. Always lend
the device together with the operating instructions, so
that the new user can read and understand them
carefully.
This device is dangerous in the hands of untrained
persons.
2.2. PERSONAL SAFETY
Stay alert, watch what you do, and use common sense
when operating this device.
Avoid inhaling the exhaust fumes. This device produces
dangerous gases such as carbon monoxide, which can
cause dizziness, fainting, or death.
Do not use this device if you are tired or under the
influence of drugs, alcohol, or medication. A moment of
inattention while operating this device can cause
serious personal injury.
Do not use this device if any component is damaged.
Never use the device with defective safety devices or
without safety equipment.
Do not change the device controls or the engine speed
controls.
Remove all keys or tools from the device
and the working area before starting the
engine. A key or device that remains near
the device can be caught by a moving part of the
device and thrown away as a projectile, which can
cause injuries.
Do not expend yourself. Keep both feet firmly on the
ground and keep your balance. Do not use this device
on slopes of more than 15°. Stay alert when working or
moving the device on a hill. Be especially careful when
changing direction on an incline.
Hold the device by the handlebars with both hands and
always position your body behind the device.
Keep all body parts away from cutting elements and
moving parts while the device is running. Before
starting the device, make sure that the cutting element
does not contact any object. While working with the
device, a moment of carelessness can cause your
clothing or any other part of your body to be cut by a
knife from the device.
If you are an inexperienced user, we recommend that
you first practice on a flat surface.
If the device vibrates abnormally, stop the engine,
check the device, look for the possible cause and
correct it. If you cannot find the cause of the problem,
take the device to the service technician.
Do not touch the device's exhaust pipe while the engine is
running or shortly after it has been turned off.
The exhaust pipe of this device reaches high
temperatures during operation and keeps these
temperatures for some minutes after shutdown.
Do not let the device run unattended. If you need to

Original Bedienungsanleitung FX-AF1139_rev03
5
leave the device alone, switch off the engine, wait until
the cutting tool stops, and remove the plug from the
spark plug.
Keep stored tools out of reach of children.
2.2.1. WORK CLOTHING
Dress properly. Do not wear loose clothing or
jewellery. Keep hair, clothing, and gloves away from
moving parts. Loose clothing, jewellery, or long hair
can get caught on moving parts.
Use this device with suitable footwear. Never use this
device barefoot, with sandals or open shoes.
Wear the following protective equipment when using
this device:
-
Eye and hearing protection
-
Non-slip boots
-
Long work pants
The use of additional protective clothing and safety
measures reduces personal injury risk.
The noises caused by this device can cause
hearing damage. Use hearing protection.
If you frequently use this device, visit your doctor
regularly to check your hearing.
Attention! If you work with hearing
protection, you must pay more attention to
visual signs because your hearing is
impaired.
You should always have the following with you:
•
Tools
•
Signal band for the working area
•
Cell phone (for use in emergencies)
2.2.2. VIBRATIONS
When using this device for a more extended period, the
user is exposed to vibrations. It can lead to white finger
disease (Raynaud's phenomenon). This disease
reduces the touch of the hand and adjusts the
temperature, resulting in a lack of sensitivity in the
fingers and a burning sensation. This disease can
lead to nervous and circulatory problems and even
necrosis in the hands.
High vibrations and long exposure times contribute to
white finger disease. To reduce the risk, it is necessary
to take these recommendations into account:
•
Always wear gloves
•
Make sure to keep your hands warm
•
Take regular breaks
•
Always hold the device firmly by the handles
If you experience any white finger disease symptoms,
consult your doctor immediately.
2.3. SAFETY IN THE WORK AREA
Do not operate this device in potentially
explosive atmospheres or the presence of
flammable liquids, gases, and dust.
Never start the device in closed rooms like
living rooms or garages. This device emits
dangerous gases through the exhaust
pipe, which accumulate in the area,
making the air toxic and harmful to the health of
people, animals, and plants. Do not start the device
in a living room or enclosure. The exhaust gases and
fuel vapours contain carbon monoxide and harmful
chemicals. In the event of a concentration of gases
that accumulate due to poor ventilation, remove
anything that impedes the flow of clean air from the
work area to improve ventilation and do not return to
the work area unless you have adequately ventilated
the area and are certain that the ventilation is
sufficient to prevent this concentration of airborne
pollutants from returning.
The area within a radius of 15 meters around the device is
to be regarded as a danger area, into which nobody may
enter while the device is running (safety area). If
necessary, use ropes and warning signs to mark the
safety area.
Keep children and curious persons away from the working
area while operating this device. Distractions can lead
to a loss of control. Ensure that children, persons, or
animals do not enter your working area.
If the work has to be carried out by two or more
persons simultaneously, always check other
persons' presence and location to maintain a
sufficient distance between each person to ensure
safety.
Do not use this device at night, in fog or poor
visibility. Otherwise, the working area will not be
visible.

Original User Manual FX-AF1139_rev03
6
Keep the working area clean and work with good
lighting. Only use this device in daylight or with
adequate artificial lighting. Unclear and dark areas
cause accidents. Check and remove all objects that
could cause damage to you or the device.
Do not use this device in areas where there are cables
or underground pipes.
Check your working area and remove all stones, wood,
wire, and foreign objects that can be caught by the
cutting tool and thrown through the air.
2.4.
SAFE HANDLING OF FUELS
IMPORTANT: The fuel used for this device is highly
flammable. If the fuel or device ignites, extinguish the
fire with a powder fire extinguisher.
Gasoline and oil are hazardous; avoid gasoline or oil
with skin and eyes. Do not inhale or swallow. See your
doctor immediately if you consume fuel or oil. If they
come into contact with fuel or oil, clean the contact
point with soap and water as soon as possible. If you
still have irritated skin or eyes, consult a doctor
immediately.
Do not refuel the fuel in closed or poorly
ventilated places. Vapours from the fuel and
oil contain dangerous chemicals. In the case
of concentration of gases caused by
insufficient ventilation, remove anything that impedes
clean airflow from the area to improve ventilation. Do
not return to the area unless you have adequately
ventilated the area and are certain that the ventilation is
adequate to prevent this concentration of pollutants
from reoccurring.
Gasoline and oil are highly flammable and explosive
under certain conditions. Do not smoke and keep
flames, sparks, or heat sources away from the device.
Do not smoke when transporting fuel, refuelling,
or during work.
Do not refuel the fuel in places where there
are naked flames, sparks, or heat sources. Always fill
the tank in well-ventilated areas and with the engine
switched off. When attempting to overfill the fuel tank,
fuel cannot overflow. If fuel leaks, clean these leaks
entirely before starting, move the device away from the
spillage area, and avoid any source of ignition until all
vapours have disappeared. Top up the fuel before
starting the device.
Never remove the fuel tank cap while the engine
is running or when the device is hot.
Do not refuel in enclosed spaces, in poorly
ventilated areas, or near flames.
Ensure that the fuel cap is tight and correctly closed
when using the device.
Ensure that you close the lid of the fuel firmly and
adequately after refilling.
Always store fuel in approved containers that comply
with European regulations.
Do not use fuel that has been stored for more than 2
months. Keeping fuel for too long will make starting
the device more difficult, and the engine performance
will be unsatisfactory. If the fuel has been in the
device's tank for more than 2 months, remove it from
the device and replace it with fuel in good condition.
2.5.
MAINTENANCE AND USE OF THE
DEVICE
Use this device only to order the country. Do not use
this tiller for any other purpose not intended. The use of
this tiller for purposes other than those intended can
lead to dangerous situations.
Use the accessories, tools, etc. of this device according
to these instructions and as intended, considering the
working conditions. The use of this tiller for other than
the intended work may lead to dangerous situations.
Check if all safety devices are installed and in good
condition.
Remember that the device operator is responsible for
the dangers and accidents caused to other persons or
things. The manufacturer is in no way liable for
damages caused by the improper or wrong use of this
device.
The cutting tool is very sharp. Non-observance of the
instructions can cause severe damage.
Keep your body away from the cutting tool while using
the device.
This device must not be operated by force. Use this
system for the correct task. Using the intended job
device will allow you to work better and safer.
Do not use this device if the switch does not change
between "open" and "closed." Any device that the
switch cannot control is dangerous and must be
repaired.

Original Bedienungsanleitung FX-AF1139_rev03
7
Before working with the device, make sure that the
cutting tools have no contact with objects and can
move freely.
Do not use the device on steep slopes where your
safety is not guaranteed. When working on a hill, slow
down your working speed and ensure good stability.
Keep this device in good condition. Check that the
moving parts are not misaligned or locked, that there
are no broken parts or other problems that could affect
this device's operation. If this device is damaged,
repair it before use. Poorly maintained devices cause
many accidents.
Keep the handles of the device dry and clean. Greasy
or oily handles are slippery and cause loss of control of
the device.
Turn off the device, remove the spark plug, and make sure
the cutting tool is stopped before making adjustments,
adding fuel, changing accessories, cleaning, transporting,
and storing it. Such preventive safety measures reduce
the risk of accidental starting of this device.
If the device starts to vibrate strangely, turn it off and
investigate to find the cause. If you cannot find the
reason, contact the service technician with the device.
Vibrations are always an indication of a problem in the
device.
Switch off the engine when leaving the device alone.
Reduce the rotation speed of the engine when you turn
off the engine. If the engine is equipped with a fuel
valve, cut the fuel when it is turned off.
Do not tilt the device while the engine is running.
2.6. MAINTENANCE
Please check your device regularly using only identical
spare parts by a qualified repair service. That will
ensure that the safety of this device is guaranteed.

Original User Manual FX-AF1139_rev03
8
3. WARNING SYMBOLS
Warning symbols indicate the information required for
the use of the device.
Warning: Danger!
Read this manual carefully before
starting up or using the device
Use non-slip safety shoes
You must wear adequate protection for
ears and eyes
Keep people away from the work area
Blades and rotating parts in use. Keep
hands and feet away. Risk of injury
Keep children away from this device
Hot surface! Risk of burns
Danger: Deadly gases! Do not use this
device in closed/ poorly ventilated areas.
Danger! Flammable fuel. Fire and
explosion hazard
Do not smoke or use flames near the
fuel or the device
Check that there are no fuel leaks
Always check the oil level before you
start. Capacity: 0.6
litres. Multipurpose oil 20W-40
Remove all keys or hand tools from the
device and work area before starting the
device
Attention! Before carrying out
maintenance and repair work on the
device, switch it off and remove the spark
plug
Dispose of your device in an
environmentally friendly manner. Do not
merely throw it into a trash can
Complies with CE guidelines (EU
standards)
Guaranteed sound power level XX Lwa,
dB(A)
Coupling positions:
Axis in a fixed position
Axis in motion
4. DEVICE SYMBOLS
To ensure the safe and proper use and maintenance of
the device, the following symbols are attached to the
device.
Fuel tank
Speed positions:
"STOP" = device cannot function.
Turtle = minimum.
Hare = maximum.
The air supply closed.
Air supply open.
Warning: Hot surface! The danger of
burns.
Oil tank.
STOP
OIL

Original Bedienungsanleitung FX-AF1139_rev03
9
5. DEVICE DESCRIPTION
5.1. TERMS OF USE
Use this device only to order the country. Do not use this device for purposes other than those for which it
was designed. The use of this device for other than the intended work can lead to dangerous situations.
Remember that the device operator is responsible for any hazards and accidents caused to other people or
things. The manufacturer is in no case liable for damages caused by improper or incorrect use of this device.
5.2. DETAILED PRODUCT DESCRIPTION
1.
Acceleration
2.
Clutch lever
3.
Handlebars
4.
Trail
5.
Fender
6.
Milling Tools
7.
8.
Transport wheel
9.
Air filter cover
10.
Silencer
11.
Oil filler cap
12.
Starter handle
13.
Fuel filler cap
The diagrams and pictograms contained herein are intended as a guide. Still, they are not necessarily an
exact copy of the actual device.

Original User Manual FX-AF1139_rev03
10
5.3. TECHNICAL FEATURES
Description Tiller
Brand FUXTEC
Model FX-AF1139
Engine 4-stroke engine
Displacement (cm³) 139
Maximum power (kW) / revolutions (min-¹) (ISO 8893) 2.2 / 3000
Fuel consumption at maximum output (kg/h) 0.97
Number of milling tools 4
Milling tool height (mm) 120
Working width (mm) 360
Oil capacity (l) 0.6
Guaranteed sound power level LwA (dB(A)) 93
Weight (kg) 30.5
Tank volume (l) 1.2
The above specifications are subject to change without notice.

Original Bedienungsanleitung FX-AF1139_rev03
11
6. START-UP
6.1.
UNPACKING AND LISTING OF
MATERIALS

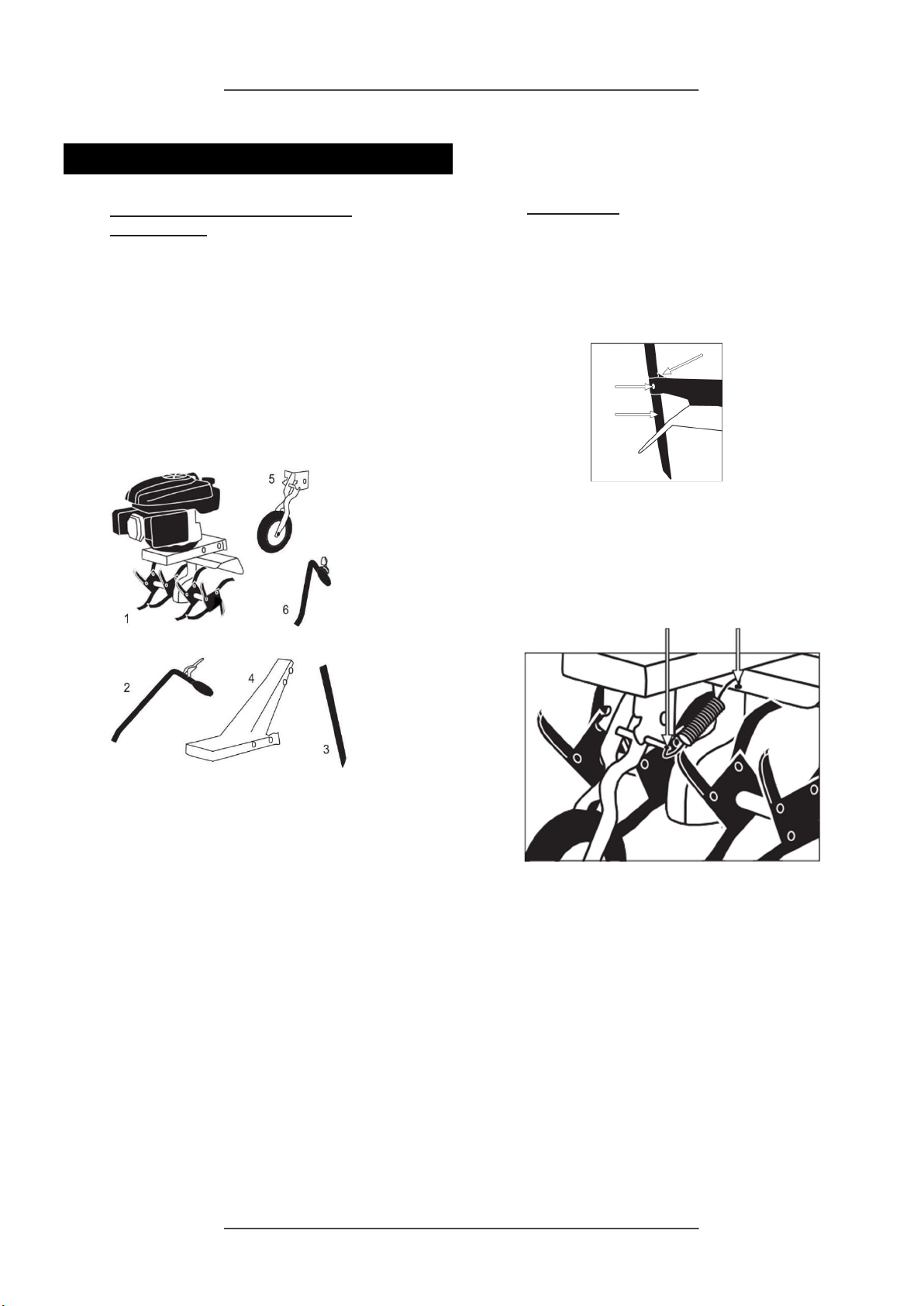

This device contains the following elements, which
you will find in the box:
1.
Device
2.
Right Handlebar
3.
Trail
4.
Lower handlebar
5.
Transport wheel
6.
Left Handlebar
7.
User manual
Check the product carefully to ensure that there are no
damaged elements. If you find damaged or missing
parts, do not use the device until the defect is repaired
or all missing parts are replaced.
Using the device without all parts or with defective parts
can cause serious injury.
6.2. ASSEMBLY
6.2.1. MOUNTING OF THE SPUR
Insert the spur (H) (as shown in the illustration) so
that it remains at the desired height, and insert the
pin (T5) that secures it with the retaining ring (T4).
6.2.2. TRANSPORT WHEEL ASSEMBLY
Place the spring in the bolt W1, fix it with the
retaining ring and place the other end in the
protective hole W2.
Place the transport wheel, as shown in the picture, and
fix it with the screw and nut W3.
T4
T5
H
W1
W2

Original User Manual FX-AF1139_rev03
12
There are two adjustment
heights of the transport
wheel. When transporting
or storing the milling cutter
from one place to another,
place the wheel in position
W5. When working with the
device, set the transport
wheel to position W4.
6.2.3. HANDLEBAR MOUNTING
Insert the lower bar of the handlebars (l) and tighten the
screws with the washers.
Fix the upper handles with the screws and washers.
6.3. FUEL AND OIL
IMPORTANT: The fuel used for this device is
highly flammable. If the fuel or device ignites,
extinguish the fire with a powder fire extinguisher.
Gasoline and oil are highly flammable and
explosive under certain conditions. Do not
smoke and keep flames, sparks, or heat away
from the device.
Use unleaded gasoline with 95 octanes.
Do not use fuel that has been stored for more than 2
months. The fuel stored too long will make it difficult to
start the device and result in unsatisfactory engine
performance. If the fuel has been in the device's tank
for more than 2 months, empty the tank and replace it
with fuel in good condition.
6.3.1. FILLING THE FUEL TANK
1.
Select a suitable location to perform this operation.
2.
Remove the fuel filler cap and fill it with fuel.
3.
Close the fuel tank cap tightly and remove all fuel
with a dry cloth that has spilt.
WARNING:
Stop the engine before refuelling.
Do not start the engine in a closed room or area. The
exhaust gases and vapours from the fuel and oil contain
carbon monoxide and harmful chemicals.
In case of increased concentration of gases due to poor
ventilation, remove anything that impedes clean airflow
through the work area to improve air quality. Do not
return to this work area unless it is well ventilated and
you are sure that an increased concentration of these
gases will not occur again.
Do not refuel the fuel in places where there are naked
flames, sparks, or heat sources. Always fill the tank in
well-ventilated areas and with the engine off. Do not
allow the fuel to overflow to avoid overfilling the fuel tank. In
case of fuel leaks, eliminate these leaks before starting,
move the device away from the spillage area and
prevent any ignition sources until all vapours have
disappeared.
Before starting the device, move at least 3 meters away
from the refuelling zone.
Add fuel before starting the device. Never remove the
fuel tank cap while the engine is running or when the
device is hot.
W4
W5
W3
L

Original Bedienungsanleitung FX-AF1139_rev03
13
Do not use fuels such as ethanol or methanol. These
fuels will damage the engine of the device.
6.3.2. ENGINE OIL
For transport reasons, your device's engine comes from
the factory without oil. Before starting the engine for the
first time, you must fill the engine with oil.
This engine uses quality oil for 4-stroke, 20W-40
viscosity. The capacity of the engine housing is 0,6l.

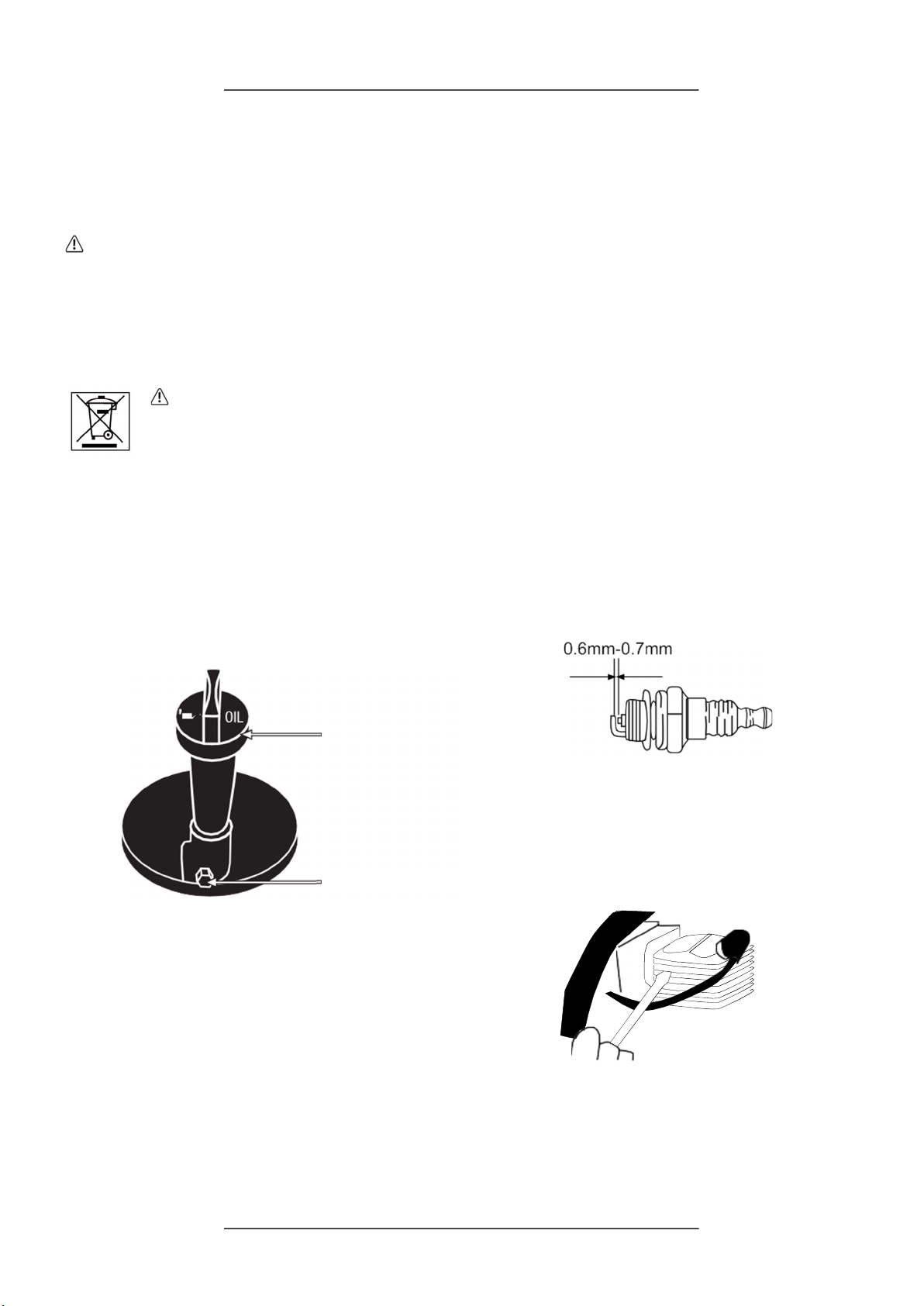

Filling the oil pan:
-
Place the device on a flat, horizontal, and
transparent surface.
-
Unscrew the oil tank cover (OIL).
-
Fill in the 0.6l oil.
-
Wait 1 minute until the oil completely drains into
the engine housing.
-
Clean the dipstick from the oil with a cloth.
-
Insert the dipstick and screw the oil cap back
on.
-
Unscrew the cover and check the mark left by
the dipstick's oil. The mark left by the oil must
be between the minimum and maximum mark.
-
If the mark is below the minimum, add a little
more oil and recheck the oil level.
-
If the mark is above the
maximum, you must
remove the engine housing
oil. To do this, tilt the device
and drain some oil (place a
container at the end of the
pipe so that no oil can get
on the device or the floor).
6.4. START-UP
6.4.1. CONTROL POINTS BEFORE
COMMISSIONING
Do not use the device if it is damaged or incorrectly
regulated.
Use this device for its intended purpose. Any other
use can be dangerous for the user, for the device
and persons, animals, and objects in the vicinity.
Check:
-
the device complete and check for loose and
damaged parts (screws, nuts, etc.).
-
that the moving parts of the device have no
contact with any object.
-
that the protective cover is correctly attached to the
device
-
that the milling tool is uncoupled (see 6.4.1.1.).
-
that there are no fuel leaks.
-
that the engine casing oil and gearbox filling level is
correct.
-
that the air filter is clean.
Tighten everything and repair or replace if necessary
before starting the device. Please do not use any
accessories on this device other than Garland's
recommended, as they may cause serious injury to the
user, the device and persons, animals, and objects in
the vicinity.
6.4.1.1. CLUTCH CHECKPOINT
The milling tool should be switched off by default to
prevent the device from moving at the time of start. To
check if the clutch is disengaged, set the switch to
"STOP" and slowly and forcefully pull the engine control
unit from the throttle lever. Observe whether the cutting
tool also moves when the engine is running. If the
cutting tool rotates, the clutch is engaged and,
therefore, poorly controlled. If the clutch is not adjusted
correctly, take your device for maintenance.
6.4.2. STARTING THE ENGINE
Start the engine carefully, according to the
instructions, and at a distance from the cutters.
6.4.2.1. COLD START OF THE ENGINE
Place the device on a flat and stable surface to start it.
-
Move the throttle lever to the closed position .
-
Stand behind the device, as shown in the illustration,
and pull the starter cord until the engine starts.
-
If the device starts and does not stop, slowly begin
moving the throttle pedal towards the open position .
-
Set the appropriate number of revolutions with the
throttle lever.
-
Let the engine warm-up for a few minutes before
starting the device.
OI
L
STOP

Original User Manual FX-AF1139_rev03
14
6.4.2.2. STARTING WITH A HOT ENGINE
Place the device on a level and stable surface to start it.
-
Move the throttle lever into position.
-
Stand behind the device and pull the starter rope until
the engine starts.
-
Set the appropriate number of revolutions with the
throttle lever.
6.4.2.3. STOPPING THE ENGINE
-
Move the throttle stick to the position and
leave the engine idling for a few seconds.
-
Move the throttle stick to the "STOP" position.
6.4.3. CONTROL POINTS AFTER STARTING THE
ENGINE
It is essential to pay attention to the individual parts or
the device's temperature. If you find an anomaly in the
device, stop immediately and check it carefully. In case
of a malfunction or problem, take the device to a service
technician for repair. In any case, continue to use the
device if the operation does not appear to be correct.
Do not use the device if it is damaged or improperly
adjusted.
7. USE OF THE DEVICE
Use this device only for the intended purposes.
Using this tiller for other purposes is dangerous and
may cause personal injury and damage to the device.
Do not approach the rotary tiller's cutting tools when
the engine is running.
Do not start the device in a closed room, as the exhaust
gases and fuel and oil vapours contain carbon monoxide and
harmful chemicals. In the event of an increased
concentration of gases caused by poor ventilation,
remove anything that impedes clean airflow to improve
ventilation from the work area. Do not return to the
work area unless you have a properly ventilated area
and know that ventilation is adequate so that this
increased concentration will not occur again.
Work only in daylight or good artificial light. Do not use
this device at night, in fog or poor visibility. Otherwise,
the working area will not be visible.
Limit the further use of this system to a time limit of 10
minutes and pause 10 to 20 minutes between the
individual work phases.
If you slip or fall, stop the acceleration and move the
switch to the "STOP" position.
Do not use this device if you are tired, sick, on drugs,
narcotized, or addicted to alcohol. Lack of rest and
fatigue can cause accidents or damage.
Always adjust the device on a level and stable surface.
Do not use the device on steep slopes to not guarantee
safety. When working on a hill, slow down your working
speed and ensure good stability.
Be careful when pulling the device towards you.
Do not rely solely on the safety features of this system.
It is necessary to pay attention to the possible loosening
or overheating of device parts. If you find an anomaly,
stop the device immediately and check it carefully. In
case of mechanical failure, contact the technical repair
service.
You should not continue working if you find that the
process is not running correctly.
Remember to always use the device with clean hands
and without fuel or oil residues.
Clean the working area and remove all obstacles that
could lead to accidents. Check the working area while
working and remove all objects that could get caught in
the cutting tool. Also, remove any items that the cutting
tool may eject forcibly during the operation.
Do not let anyone enter the work area. This work area
must be 15 meters long and is a danger zone.
Never leave this device unattended.
Take care not to touch hot parts of the device while
the engine is running or after use, e.g., exhaust,
spark plug, or high voltage cable.
Please do not use any accessories for
this device other than those
recommended by our company. Such
use may cause severe damage to the user, persons in
the vicinity of the device, and the device itself.
Always follow the safety instructions in this manual.
7.1. HOLDING AND OPERATING THE
DEVICE
When working, always stand behind the
device and hold it with both hands on the
handles.

Original Bedienungsanleitung FX-AF1139_rev03
15
Attention! Do not use this router with one hand.
Attention! This router can jump up or jump forward
unexpectedly. Suppose the teeth hit something hard
buried in the ground, such as large stones, roots, or
trunks, if the ground is too hard or if the ground is
frozen. Always hold the device with both hands.
This device clutch is deactivated by default
(disengaged). To activate the clutch and transfer the
engine power to cutters, the clutch lever must be
tightened.
The clutch lever has a safety block to prevent the accidental
coupling of the device.
To act on the clutch, you must first remove the safety
blockage by pushing the blocking device (W1)
downwards with one finger and, without releasing,
pressing the clutch lever (W2).
7.2. WORKING WITH THE MILLING DEVICE
Start the device according to the instructions in the user
manual.
Cutter in motion pull the device forward; you must
maintain the appropriate speed more or less by nailing
the spur into the ground.
Move the cutter slowly in the right rhythm so that the
blades have time to chop the soil.
If the tiller sinks and does not move, move the
handlebars left and right until released.
When working on a slope, always stand a little higher
on the hill so that the device is always below you.
7.2.1. SUGGESTED USE
A tillage depth between 15-20 cm is usually sufficient,
and it is rarely advantageous to work deeper. Shallower
tillage is often recommended for areas with little
precipitation to retain moisture.
Secondary tillage is less shallow than the first, so 2
crossed passes on the ground are sufficient.
8. MAINTENANCE
Perform regular inspections of the device to ensure
efficient operation of the device. We recommend that
you take the device to your service technician for
complete maintenance.
Before performing maintenance or repair work on the
device, ensure that the engine is switched off and
remove the spark plug.
Only perform device maintenance when the device is
on a level, cleared surface.
ATTENTION! Do not change the device or the
milling cutters. Improper use of these elements can lead
to HEAVY PERSONAL DAMAGE OR DEATH.
Use only suitable replacement parts for this device to
ensure the device's proper function. This replacement
can be found at the official dealers of the device. Other
spare parts can lead to risks, damage to the user,
persons, and the device.
Do not change anything at the carburettor. Bring your
device for maintenance if necessary. The carburettor's
adjustment is complicated and should only be done by
the technical service. Incorrect adjustment of the
carburettor can cause damage the engine and
invalidate the warranty.
Removal of safety devices, improper maintenance, or
replacement with non-original spare parts can cause injury.
8.1.
MAINTENANCE AND CARE AFTER USE
Carry out the following maintenance and care measures
when you are finished with the device to ensure this
device's smooth operation in the future.
8.1.1. GENERAL CHECKPOINTS
Make sure that the milling tools are firmly connected to
the gear unit. If necessary, tighten the milling tools.
Check the edge of the cutting edges and the milling
tools' condition. Replace the milling cutters if necessary.
It is recommended that an authorized service technician
carry out this work.
8.1.2. CLEANING
Keep the device clean, especially the area around the
fuel tank and the air filter areas.
Attention! The cutters are sharp and can cause
injuries. Wear protective gloves when cleaning the
W1
W2

Original User Manual FX-AF1139_rev03
16
device.
Clean the milling area:
-
Switch off the engine and let it cool down.
-
Remove dirt and brush off residues with a scraper
and brush.
-
After you have removed the residues, you can use a
water jet for a more thorough cleaning.
-
Direct the water jet onto the milling tools. Never
point the jet at the gear or engine. If water gets into
the ignition system or the carburettor, damage and
defects will occur.
-
If you have used water for cleaning, the engine will
get wet unintentionally. Start the engine and let it run
for a few minutes until the engine's heat evaporates
the remaining water in the engine's area.
Other areas:
Clean the rest of the device with a cloth moistened with
water. Never use gasoline, solvents, detergents, water,
or other liquids.
8.1.3. CHECKING THE OIL LEVEL
-
Place the device on a horizontal, clear, level surface.
-
Unscrew the cover of the oil filler neck.
-
Clean the oil dipstick with a cloth.
-
Insert the dipstick and unscrew the oil filler cap.
-
Unscrew the plug and check the mark left by the oil on
the dipstick. The mark left by the oil must be between
the minimum and maximum mark.
-
If the mark is below the minimum, add a little more oil
and check again.
-
If the mark is above the maximum, you must remove
the engine housing oil. To do this, tilt the device and
drain some oil (place a container at the end of the pipe
so that no oil from the device reaches the floor).
8.2. REGULAR MAINTENANCE
Perform regular inspections of the device to ensure the
device's effective operation and avoid the risk of
damage to the device and injury to the user. Spare
parts should be purchased from the official service
dealer.
Other spare parts can lead to the risk of accidents,
injury to the user, and damage to the device.
Perform maintenance frequently, as indicated in the
following table:
Action
Before each use
After the first 2
Hours of use
Every 25 operating hours Every 50 operating hours
The first use of the season
After the last use of the season
Check the device for loose parts -•
Check the status of the milling tool -•
Check the oil level -•
Change the engine oil -• -• -•
Clean the air filter -•
Check the spark plug -• -•

Original Bedienungsanleitung FX-AF1139_rev03
17
8.2.1. AIR FILTER
The dirt in the air filter will reduce the performance of
the device. Check and clean this element.
Note: The engine should never be operated without
the installed air filter.
8.2.2. CHANGING THE engine OIL
Carry out the oil change only when the engine is still
hot.
ATTENTION! Do not pour used oil into a
pipe system or onto the ground. The
contamination of groundwater and
groundwater level is subject to high fines.
There are unique collection points at filling stations. If
not, your local authority will provide you with relevant
information.
Note: There are two methods available for draining the
engine oil. You can drain the oil by unscrewing the drain
plug (Y2) at the bottom of the filling nozzle or by using a
FUXTEC suction pump (not included) and sucking the
oil through the filling nozzle (Y1) of the device. We
recommend collecting the oil for easy implementation,
cleaning, and safety.
To change the oil:
-
Place the device on a horizontal, level, and
transparent surface.
Drain the engine oil:
-
When sucking out the used oil: Remove the engine
oil plugs (Y1) and suck out the engine oil by
inserting the engine oil cleaner downwards.
-
If you choose to drain the oil by draining (Y2)
through the drain plug, please note the flow path that
the oil takes into a large container to collect all the
oil before it reaches the floor.
-
We recommend that you place a large plastic cover
on the area where you change the oil so that no oil
gets to the floor. Once the work area is prepared,
remove the filler cap (Y1), remove the oil drain plug
(Y2), and tilt the device slightly so that the oil comes
out and drains into the container.
-
After all, oil has been drained, turn the drain plug
back into the device.
8.2.3. CHECKING THE SPARK PLUG
When starting up a device, the most common problems
are caused by a dirty or poorly functioning spark plug.
Clean and check the spark plug regularly.
Check whether the electrode gap is correct (0.6 - 0.7
mm).
8.2.4. CLEANING THE CYLINDER FINS
The cylinder fins are responsible for cooling the engine due
to air contact. These fins must be clean and without any
material, including those that restrict the airflow.
Filling nozzle (Y1)
Drain plug (Y2)

Original User Manual FX-AF1139_rev03
9. TROUBLESHOOTING
If the device does not start, check the engine's compression and the spark of the spark plug. Depending on the
symptoms you notice, you can determine the probable cause and solve it.
The
compression
of the
cylinder is
normal
The spark
plug is ok
Probable cause Corrective actions
YES YES
No fuel in the tank Fill fuel tank with fuel
The fuel filter is dirty Clean the filter
There is water in the fuel Replace fuel
The wrong gasoline is used Change the fuel (correct octane number)
The carburettor is dirty Send your device to the service department
YES YES
The lever is set to "STOP." Set the lever to "I."
The spark plug is dirty Clean the spark plug
The spark plug is not connected Connect spark plug
No
compression
YES
The spark plug is loose Tighten the spark plug
The piston and its segments are
worn
Send your device to the service department
The cylinder is scratched Send your device to the service department
The engine
does not start
Cold engine Send your device to the service department
When the engine does not work correctly (lack of power, unstable idle, etc.), there are several symptoms, probable
cause, and solutions.
Symptom Possible cause Corrective actions
The device beeps Worn segments Send your device to the service department
Worn pistons Send your device to the service department
Crankshaft clearance Send your device to the service department
Slip in the clutch Send your device to the service department
The engine overheats Dirty exhaust pipe Send your device to the service department
Unsuitable fuel Change the fuel
Dirty carburettor Send your device to the service department
The engine does not start Dirty air filter Clean the filter
Dirty air filter Clean the filter
Badly adjusted carburettor Send your device to the service department
The engine stops or does
not remain idle.
Badly adjusted carburettor Send your device to the service department

Original Bedienungsanleitung FX-AF1139_rev03
19
If the milling tools do not move or do not work correctly:
Problem Possible cause Corrective actions
The milling cutters do not
rotate
Foreign matter in the milling cutters Remove foreign matter
Loose cutters. The screw of the milling
cutter is gone
Tighten the screw
Incorrect clutch setting or cable break Send your device to the service department
Internal gear problem Send your device to the service department
The cutters do not break
into the ground
Cutter placed incorrectly, and the edges
are set in the wrong direction
Send your device to the service department
In case you cannot solve the problem, please contact the FUXTEC customer service.

Original User Manual FX-AF1139_rev03
20
10. TRANSPORT
Never lift or transport the milling device while the engine is running. When transporting the device between different
working areas, always switch off the engine.
Wait 5 minutes after switching off the device to cool down before transporting. The exhaust pipe of the device
remains hot after switching off the engine.
To transport the device, lower the transport wheel and place the device on it. Lift the handlebars with both hands so
that the cutters do not touch the ground and press the device to move on the transport wheel.
If you need to lift the device, check the device's weight in the technical data before lifting it to make sure it is a
weight you can handle.
If you transport the milling device in vehicles, secure it not to slip or tip over.
11. STORAGE
If the device is switched off, wait 5 minutes to cool down before storing the device.
The exhaust pipe of the device remains hot after switching off the engine. Never store the device in places near
combustible materials (straw or wood or ...), gas, or fuel.
Store the device in a place inaccessible to children or in an area that does not pose a possible danger to people,
dry, clean, and at a temperature between 0º C and 45º C.
Before storing the device, follow the instructions in the Maintenance chapter.
If you plan to store the device in a secure place, first drain the fuel. Fumes could come in contact with a flame or
hot body and ignite. If the fuel tank needs to be emptied, do so outdoors, and following recycling regulations.
To reduce the risk of fire, keep the engine, muffler, and fuel tank clean by removing the remains of cutting material,
oil, and grease.
12. RECYCLING OR DISPOSAL
Protect the environment. Recycle the waste oil from this device and take it to a recycling centre. Do not pour waste
oil into sewers, soil, rivers, lakes, or seas.
Dispose of your device sustainably. You must not dispose of devices with regular household waste. Plastic
and metal components can be classified and recycled according to their nature.
The materials used for packaging this device are recyclable. Please do not throw the packaging in the
household waste. Dispose of it at an official collection point.
