1 INTRODUCTION
Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced team of engineers in Scotland,
and constructed to the highest standards. We believe they will give you many years of listening pleasure.
2 SAFETY
For safety reasons, and to ensure you achieve the best performance possible, please fully read this
document before installing these loudspeakers.
To prevent injury or damage when unpacking the loudspeakers, please do not use the protective bag to lift
them in case it tears. If possible retain packaging for future use.
The spikes are very sharp - take care to avoid personal injury.
These speakers must always be connected to a suitable amplier and never to a mains supply.
Ensure your amplier is switched off before making connections, to avoid damage.
3 PLINTH AND SPIKE FITTING (F302, F303)
When assembling the plinth and xing the spikes, always make sure the top of the cabinet is protected to avoid the risk of
scratches and other damage.

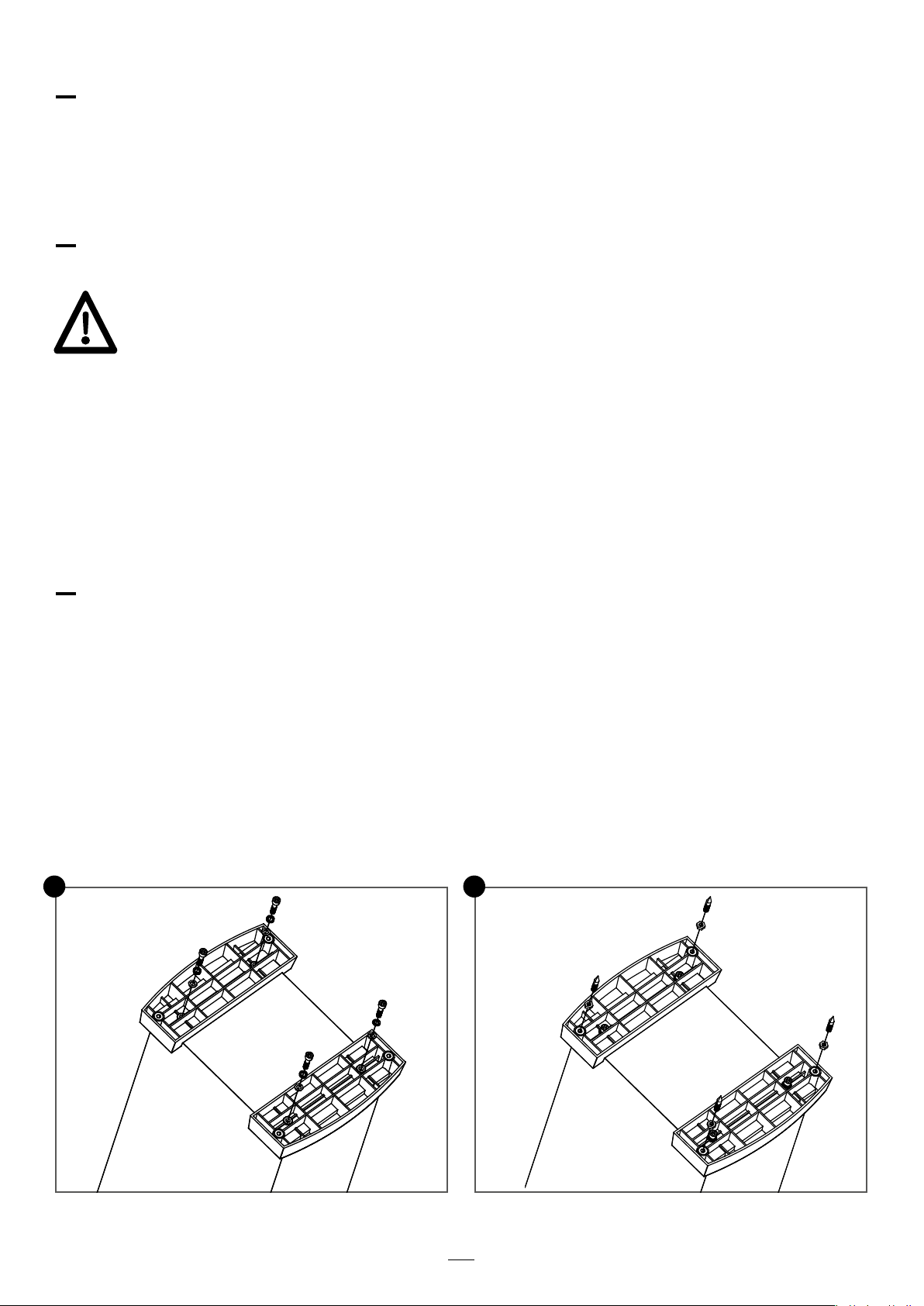

Position the plinths in place on the bottom of the cabinet aligning the holes in the plinth with those on the bottom of the
cabinet. Fix these securely, using the supplied bolts, spring-washers, washers and Allen key supplied (see Fig. 1).
Thread a nut onto each of the spikes and then screw each spike into the threaded inserts in each plinth, adjusting them all
to approximately the same height (see Fig. 2). Once the loudspeaker is in place, adjust the spikes to ensure
stability and use the lock-nut to secure them.
On wooden or other delicate oors, use the cups provided to prevent damage to the surface.
1 2

5
The F300 has the option of wall mounting. A hanging point is provided on the rear of this model. It is the
users’ responsibility to provide appropriate xing hardware. Ensure there are no water or gas pipes behind the
wall drilling locations. If in doubt, consult a qualied tradesman. Ensure any steps are secure and be aware of
trailing wires.
Place the supplied foam bung in the rear port to avoid air turbulence.
4 F300 WALL MOUNTING
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
3

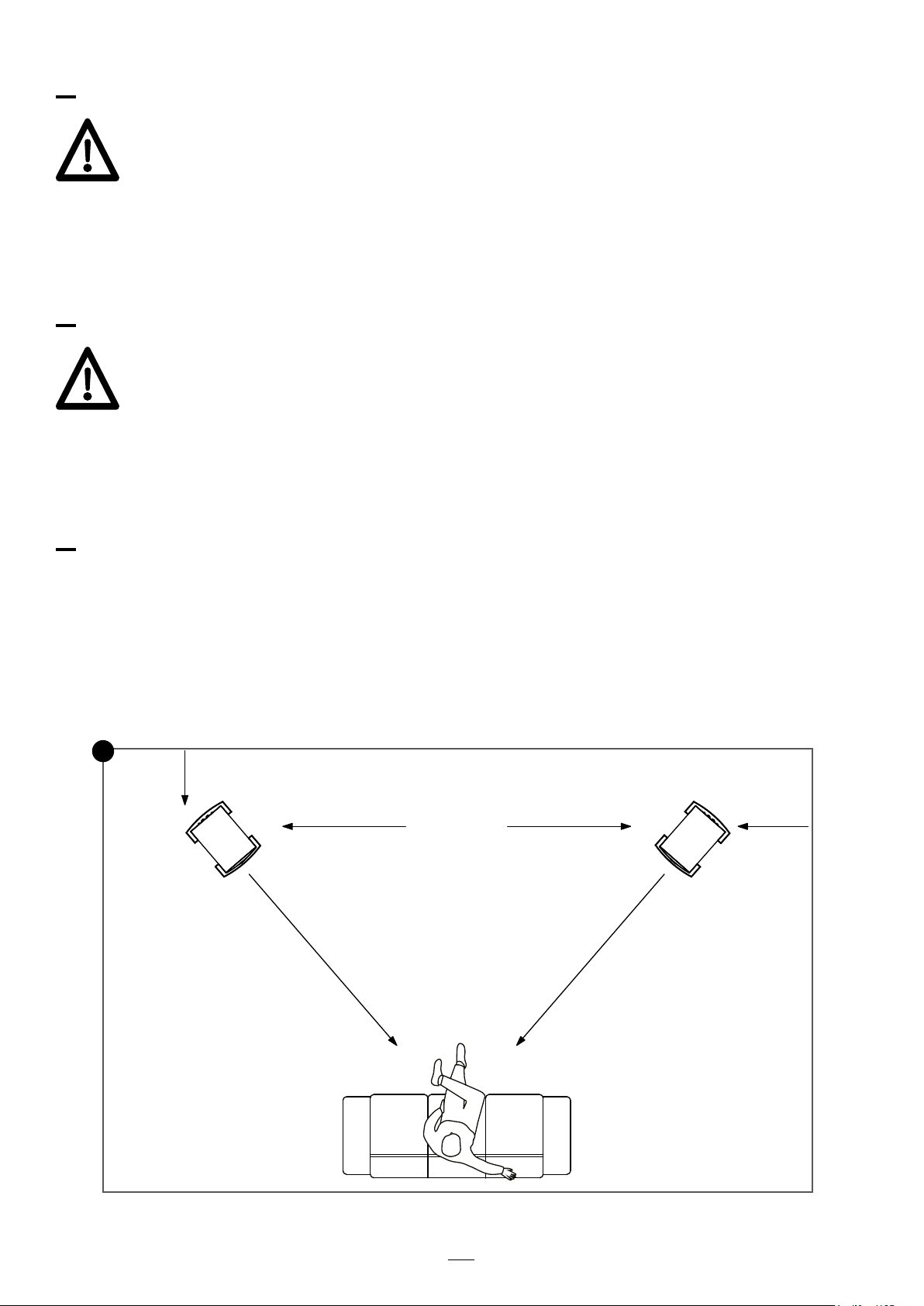

The loudspeakers should be positioned approximately
1.5- 4.5m apart (5- 15 feet), ideally no closer than 0.5m (20
inches) from the rear wall, and no closer than 1m (3 feet)
from the side walls (Fig.3).
Some degree of experimentation will provide the best
results, especially with toe in towards the listener, to give
the best stereo imaging.
The F300 and F301 may be shelf mounted, but far better
results will be obtained on dedicated stands that position
the tweeter at ear level. Your dealer will be able to
recommend suitable models.
6 TWO CHANNEL POSITIONING
This model is designed to be wall mounted using the supplied template, to ensure correct xing to the hanging
points provided.
It is the users’ responsibility to provide appropriate xing hardware. Ensure there are no water or gas pipes
behind the wall drilling locations. If in doubt, consult a qualied tradesman. Ensure any steps are secure and be
aware of trailing wires.
5 F300 LCR WALL MOUNTING

6
7 AV POSITIONING

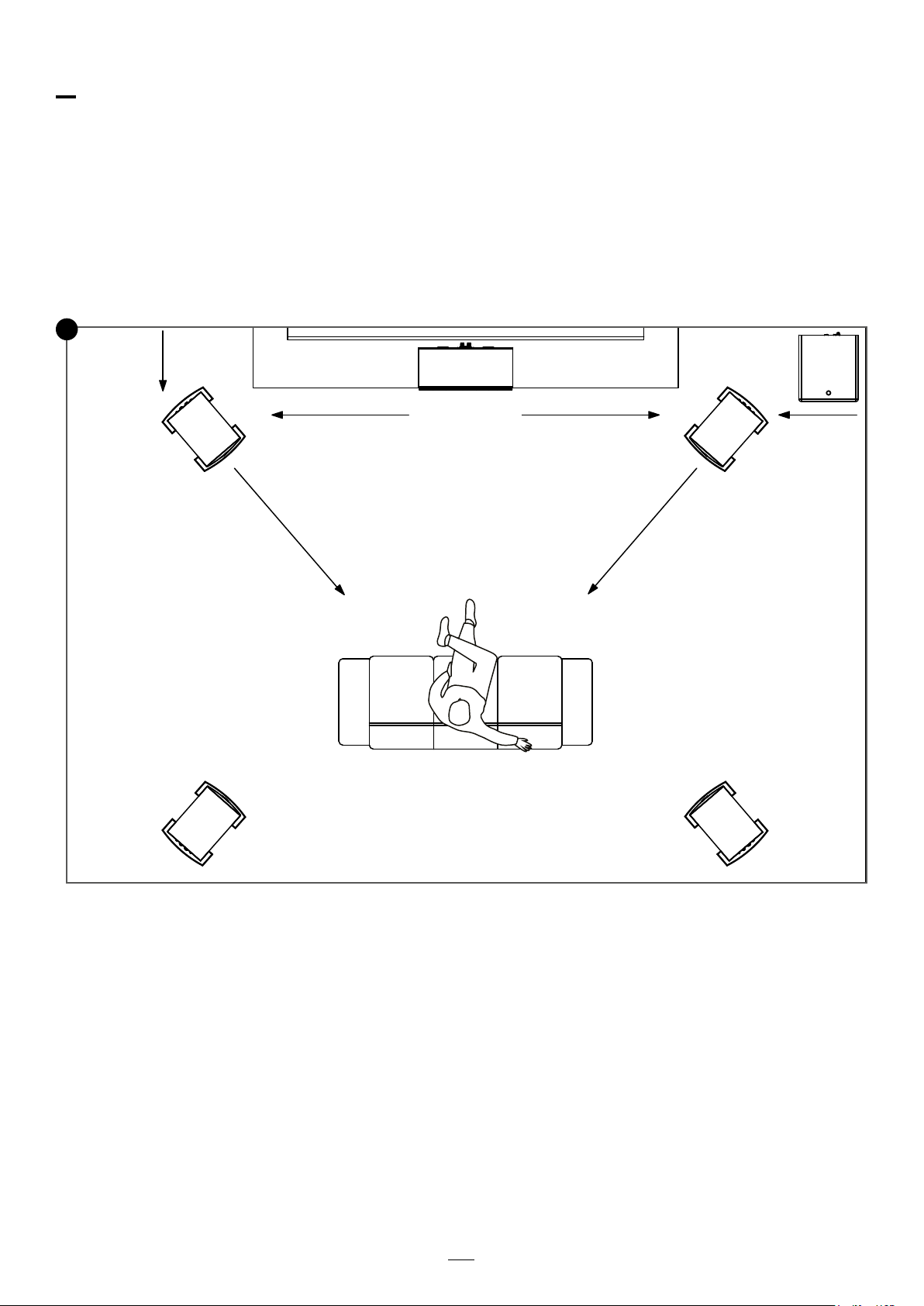

The front speakers should be positioned as below for 2
channel operation, with the centre speaker equidistant
between them and in the same plain, ideally at ear level.
When incorporating a subwoofer, please refer to the
instructions provided with it.
Stand mounting or oor standing models from the F300
range may be used for the rear effects loudspeakers (See
Fig. 4).
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
4

7
Your dealer will be able to advise on the most suitable
choice of cables for your budget and system, to obtain the
best performance.
Bare wire connections may be made by unscrewing the
terminal and making use of the hole in the threaded post.
Alternatively, dedicated 4mm plugs may be purchased, or
are already tted to terminated cable sets (Fig. 5)
Ensure connections are made positive to positive and
negative to negative between the speaker and the
amplier.
8 CONNECTING SPEAKER CABLES
SINGLE-WIRED
To Right Speaker
Amplifier / Recevier
LeftRight
Left Speaker
5

8

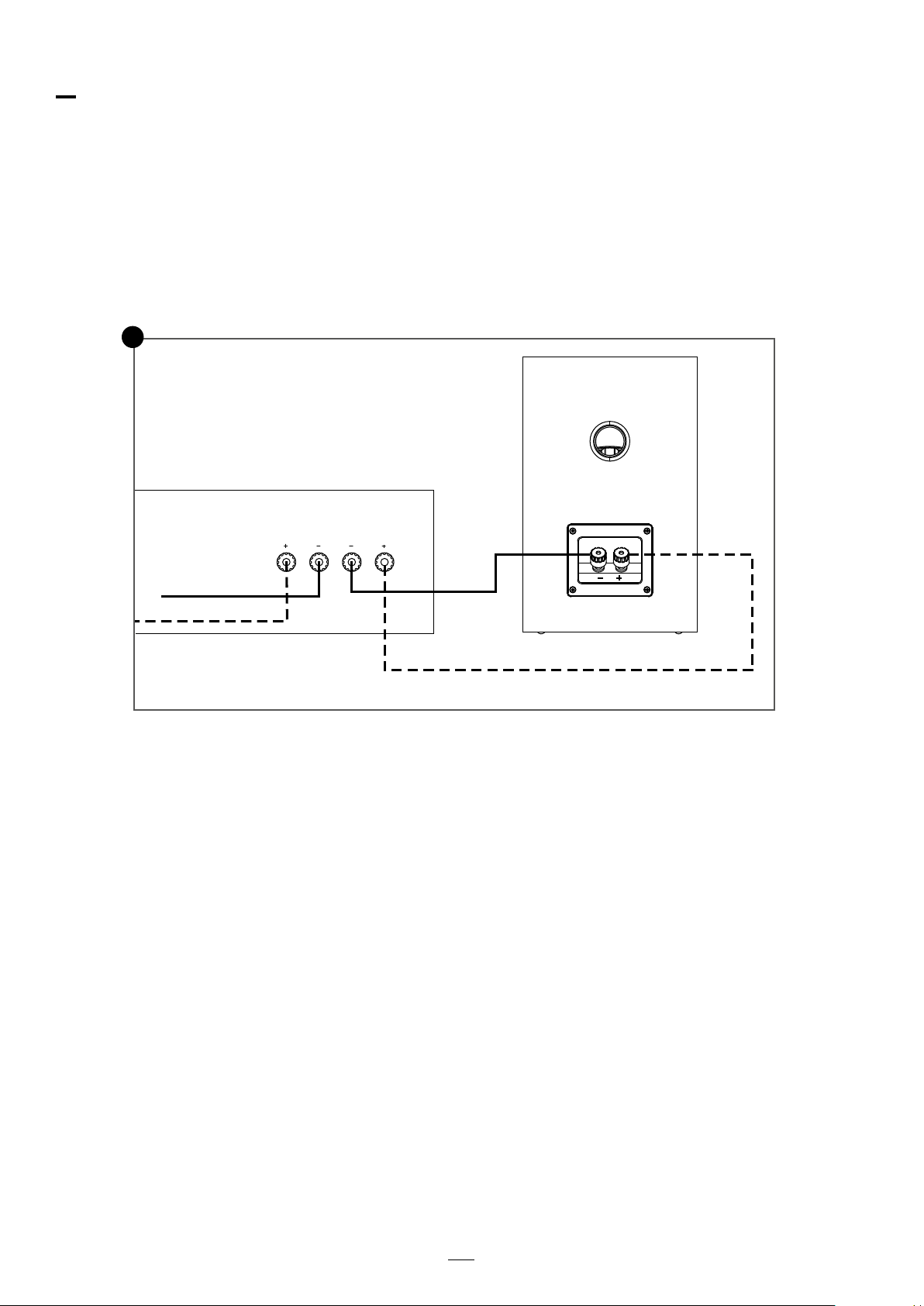

This model is provided with two sets of terminals, one for the HF and one for the LF. When using a single cable set,
keep the link bars in place (Fig. 6). For bi-wire operation remove the link bars and wire with two sets of cable or a
dedicated bi-wire cable (Fig. 7). This option will ensure the best possible sound quality.
9 CONNECTING SPEAKER CABLES (F303 ONLY)
SINGLE-WIRED
To Right Speaker
Amplifier / Recevier
LeftRight
Left Speaker
6
BI-WIRED
To Right Speaker
Amplifier / Recevier
LeftRight
Left Speaker
7

9
10 GRILLES
Although the magnetically attached grilles are designed for maximum transparency, we always recommend removal for the
best possible sound quality.
11 CABINET CARE
The cabinet may be cleaned with a microber cloth. Avoid exposure to extremes of heat, humidity and direct sunlight for
extended periods of time.
On no account use solvents or abrasive materials, as this will cause damage and invalidate the warranty.
12 WARRANTY
1. No maintenance of the loudspeaker is necessary.
2. Please register your Fyne Audio Limited product online at www.fyneaudio.com. All of our products have been
produced and tested with care and precision to give rst-class service.
3. All passive loudspeakers are guaranteed for a period of 7 years from the date of purchase from an authorised
Fyne Audio Limited dealer. This warranty is subject to the absence or evidence of misuse, overload, or accidental
damage, applies only to the registered owner, and covers only genuine Fyne Audio Limited products with the original
undamaged serial number.
4. All active and electronic components are guaranteed for a period of 2 years from the date of purchase from an
authorised Fyne Audio Limited dealer subject to the absence of, or evidence of, misuse, overload or
accidental damage.
5. If at any time during this warranty period the equipment proves to be defective for any reason other than accident,
misuse, neglect, unauthorised modication, incorrect installation or connection, matched with improper equipment
or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for
labour, parts or return carriage.
6. If you suspect a problem with a Fyne Audio Limited product, in the rst instance, discuss it with your Fyne Audio
Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited
distributor. If you cannot locate your distributor please contact Fyne Audio Limited Customer Services, via our
website listed above or at the e-mail [e-mail]
7. Do not ship any product to Fyne Audio Limited without previous authorisation.
8. LIABILITY
Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, Fyne Audio
Limited and its Authorised Distributors shall not be liable to you and/or any third party or entity whatsoever for:-
any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the Fyne Audio
Limited products any damages, loss and liability (except for any personal injuries or death), whether direct, indirect,
incidental, consequential special, punitive or otherwise, howsoever caused by, arising out of, or otherwise in relation
to the installation, delivery, use, service, repair, replacement and/or maintenance of the Fyne Audio Limited product;
or any damages, loss and liability (except for any personal injuries or death) under this warranty in respect of any act,
omission, or negligence of any of their technicians, employees, agents, representatives or independent contractors
relating to the actual or purported performance of any of the obligations under this warranty.
9. Without limiting the above, the maximum liability of the Fyne Audio Limited and its Authorised Distributors under
this warranty shall not in any event or under any circumstances exceed the actual purchase price paid for the Fyne
Audio Limited product(s).

10
 SPECIFICATIONS
Model F300 F301 F302 F303
System type 2 way, rear ported 2 way, rear ported 2 way, rear ported 2 way, rear ported
Recommended amplier 20 - 70 35 - 150 40 - 180 30 - 120
power (Watt RMS)
Continuous power 35 50 60 75
handling (Watt RMS)
Sensitivity (2.83 Volt @ 1m) 87dB 89dB 90dB 91dB
Nominal impedance 8 Ohm 8 Ohm 8 Ohm 8 Ohm
Frequency response 54Hz - 28kHz 44Hz - 28kHz 36Hz - 28kHz 32Hz - 28kHz
(-6dB typical in room)
Drive unit complement 1 x 125mm multi- 1 x 150mm multi- 1 x 150mm multi- 2 x 150mm multi-
bre bass / mid bre bass / mid bre bass / mid bre bass / mid
1 x 25mm polyester 1 x 25mm polyester 1 x 25mm polyester 1 x 25mm polyester
dome tweeter dome tweeter dome tweeter dome tweeter
Crossover frequency 3.4kHz 3.2kHz 3.2kHz 3.2kHz
Crossover type 2nd order low pass, 2nd order low pass, 2nd order low pass, 2nd order low pass,
1st order high pass 3rd order high pass 3rd order high pass 3rd order high pass
Dimensions inc terminals, 250 x 156 x 211mm 300 x 190 x 271mm 932 x 190 x 271mm * 962 x 190 x 271mm *
grille & plinth* - HxWxD (9.8 x 6.1 x 8.3”) (11.8 x 7.5 x 10.7”) (36.7 x 7.5 x 10.7”) (37.9 x 7.5 x 10.7”)

Model F300 F301 F302 F303
System type 2 way, rear ported 2 way, rear ported 2 way, rear ported 2 way, rear ported
Recommended amplier 20 - 70 35 - 150 40 - 180 30 - 120
power (Watt RMS)
Continuous power 35 50 60 75
handling (Watt RMS)
Sensitivity (2.83 Volt @ 1m) 87dB 89dB 90dB 91dB
Nominal impedance 8 Ohm 8 Ohm 8 Ohm 8 Ohm
Frequency response 54Hz - 28kHz 44Hz - 28kHz 36Hz - 28kHz 32Hz - 28kHz
(-6dB typical in room)
Drive unit complement 1 x 125mm multi- 1 x 150mm multi- 1 x 150mm multi- 2 x 150mm multi-
bre bass / mid bre bass / mid bre bass / mid bre bass / mid
1 x 25mm polyester 1 x 25mm polyester 1 x 25mm polyester 1 x 25mm polyester
dome tweeter dome tweeter dome tweeter dome tweeter
Crossover frequency 3.4kHz 3.2kHz 3.2kHz 3.2kHz
Crossover type 2nd order low pass, 2nd order low pass, 2nd order low pass, 2nd order low pass,
1st order high pass 3rd order high pass 3rd order high pass 3rd order high pass
Dimensions inc terminals, 250 x 156 x 211mm 300 x 190 x 271mm 932 x 190 x 271mm * 962 x 190 x 271mm *
grille & plinth* - HxWxD (9.8 x 6.1 x 8.3”) (11.8 x 7.5 x 10.7”) (36.7 x 7.5 x 10.7”) (37.9 x 7.5 x 10.7”)
Model F300C F300LCR
System type 2 way, rear ported 2 way, closed box
Recommended amplier 25 - 100 25 - 100
power (Watt RMS)
Continuous power 50 50
handling (Watt RMS)
Sensitivity (2.83 Volt @ 1m) 90dB 90dB
Nominal impedance 8 Ohm 8 Ohm
Frequency response 58Hz - 28kHz 80Hz - 28kHz
(-6dB typical in room)
Drive unit complement 2 x 125mm multi- 2 x 125mm multi-
bre bass / mid bre bass / mid
1 x 25mm polyester 1 x 25mm polyester
dome tweeter dome tweeter
Crossover frequency 3.4kHz 3.4kHz
Crossover type 2nd order low pass, 2nd order low pass,
1st order high pass 1st order high pass
Dimensions incl terminals, 156 x 400 x 211mm 156 x 400 x 120mm
grille & plinth* - HxWxD (6.1 x 15.8 x 8.3”) (6.1 x 15.8 x 4.7”)



