Fyne Audio F700 Series Technical manual

F700 SERIES
FYNE ADVICE
ESSENTIAL INFORMATION GUIDE

TABLE OF CONTENTS
1. Introduction
2. Safety
3. Stand Mounting
4. Spike Fixing (Floorstanding Models)
5. Positioning
6. Connecting Speaker Cables
7. Earth Connection
8. Grilles
9. Cabinet Care
10. Warranty
11. Specications

4
1 INTRODUCTION
Thank you for choosing Fyne Audio loudspeakers, proudly designed by our experienced engineers and manufactured to
exacting standards by our craftsmen in Scotland. We believe they will give you many years of listening pleasure.
2 SAFETY
For safety reasons, and to ensure you achieve the best performance possible, please fully read this
document before installing these loudspeakers.
To prevent injury or damage when unpacking the loudspeakers, please do not use the protective bag to lift
them in case it tears. If possible retain packaging for future use.
The spikes are very sharp - take care to avoid personal injury.
 Thesespeakersmustalwaysbeconnectedtoasuitableamplierandnever to a mains supply.
 Ensureyouramplierisswitchedoffbeforemakingconnections,toavoiddamage.
3 STAND MOUNTING
For optimum performance, we strongly recommend the use of Fyne Audio’s dedicated FS8 loudspeaker stand with
theF700&F701.Instructionsonhowtoafxtheloudspeakertothestandareincludedwiththestand,andshouldbe
followed carefully, both for reasons of safety and to ensure you achieve the best sound possible.
If you decide however to make use of a third party stand design, it should be rigid and well damped. The centre of the
drive unit should be approximately at ear height when seated.
To prevent both personal injury and damage to the loudspeaker, ensure the stand is stable and
capable of supporting the weight of the loudspeaker.
NOTE: Should you choose to use your loudspeaker without a stand, protect the surface by attaching the 4 self adhesive
feet provided.

5
The loudspeakers should be positioned approximately
1.5 - 4.5m apart (5 - 15 feet), ideally no closer than 0.5m (20
inches) from the rear wall, and no closer than 1m (3 feet)
from the side walls (Fig.2).
Some degree of experimentation will provide the best
results, especially with toe in towards the listener, to give
the best stereo imaging.
5 POSITIONING
0.5 METRE
MINIMUM
1.5 TO 4.5 METRES
1 METRE
MINIMUM
2
4 SPIKE FITTING
Thread the 4 carpet spikes and adjustment thumb wheels
to the inserts in the plinths of each loudspeaker. They can
be adjusted from above once the loudspeaker is in place
using the HEX key provided, to ensure it is stable and level
(Fig. 1).
On wooden or other delicate oors, use the cups
provided to prevent damage to the surface.
1

6
Your dealer will be able to advise on the most suitable
choice of cables for your budget and system, to obtain the
best performance.
Bare wire connections may be made by unscrewing
the terminal, and making use of the hole in the
threaded post. Alternatively, dedicated 4mm plugs may
bepurchased,orarealreadyttedtoterminated
cable sets.
Ensure connections are made positive to positive and
negativetonegativebetweenthespeakerandtheamplier.
All models are provided with two sets of terminals one for
the HF and one for the LF. When using a single cable wire as
shown, connect the link wires provided (Fig. 3). For bi-wire
operation omit the link wires, and wire with two sets of
cable or a dedicated bi-wire cable (Fig. 4). This option will
ensure the best possible sound quality.

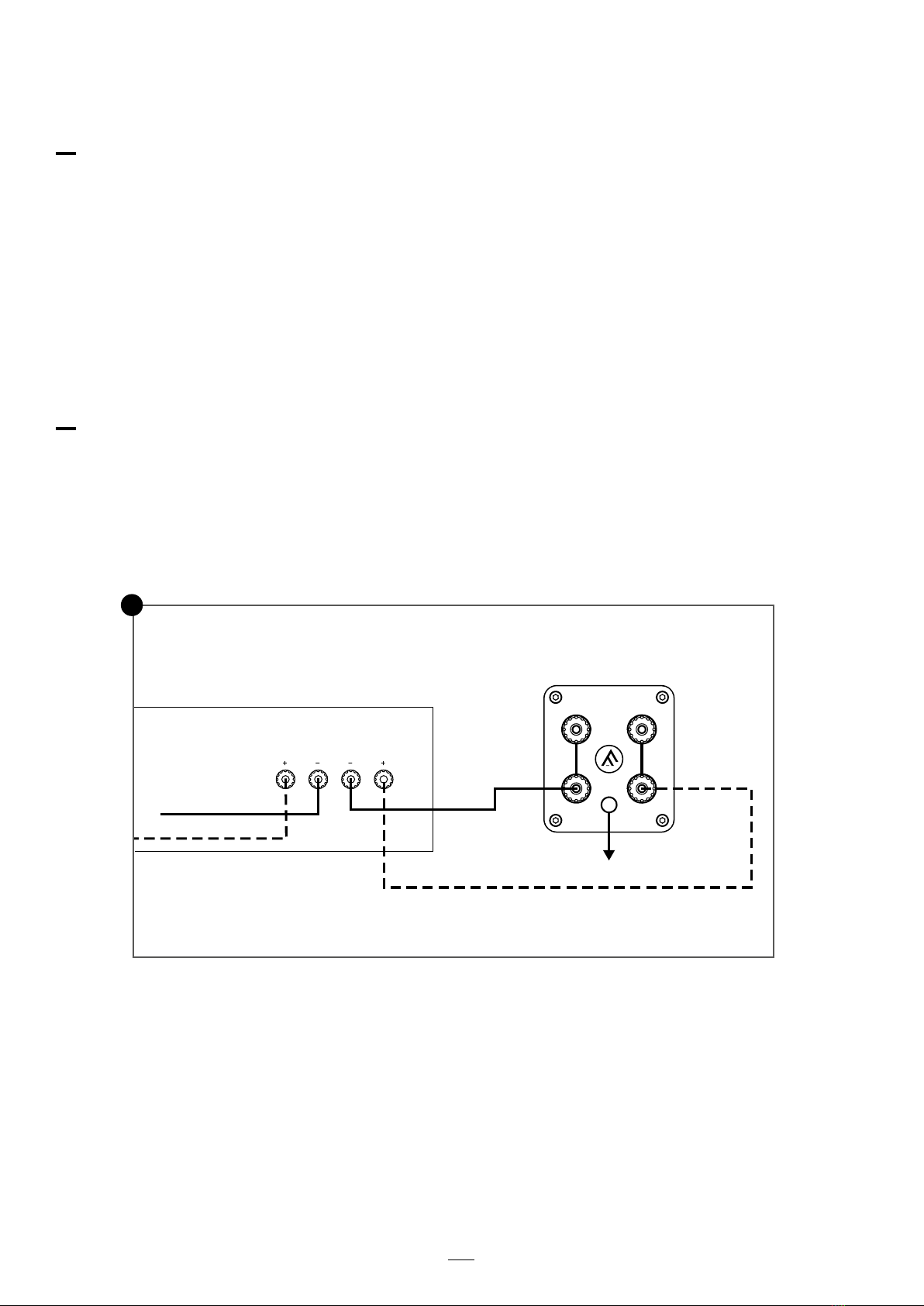

6 CONNECTING SPEAKER CABLES
HF- HF+
LF- LF+
HF- HF+
LF- LF+
SINGLE-WIRED
To Right Speaker
Amplifier / Recevier
LeftRight
Left Speaker
3
The loudspeaker is provided with an earth or ground
connection, connected to the drive unit chassis.
The purpose of this is to ground any radio frequency
interferencethatmaygetbacktotheamplier,reducing
nedetailandresolution.Aseparateearthwiremaybe
used for this purpose, but best results will be obtained by
using a dedicated screened loudspeaker cable.
7 EARTH CONNECTION
To Ground or ‘Earth’ (Optional)

7
8 GRILLES
Although the magnetically attached grilles are designed for maximum transparency, we always recommend removal for
the best possible sound quality.
9 CABINET CARE
Thecabinetmaybecleanedwithamicrobercloth.Avoidexposuretoextremesofheat,humidityanddirectsunlight
for extended periods of time.
On no account use solvents or abrasive materials, as this will cause damage and invalidate the warranty.
HF- HF+
LF- LF+
HF- HF+
LF- LF+
BI-WIRED
To Right Speaker
Amplifier / Recevier
LeftRight
Left Speaker
4
To Ground or ‘Earth’ (Optional)

8
9 WARRANTY
1. No maintenance of the loudspeaker is necessary.
2. Please register your Fyne Audio Limited product online at www.fyneaudio.com. All of our products have been
 producedandtestedwithcareandprecisiontogiverst-classservice.
3. All passive loudspeakers are guaranteed for a period of 7 years from the date of purchase from an authorised
Fyne Audio Limited dealer. This warranty is subject to the absence or evidence of misuse, overload, or accidental
damage, applies only to the registered owner, and covers only genuine Fyne Audio Limited products with the original
undamaged serial number.
4. All active and electronic components are guaranteed for a period of 2 years from the date of purchase from an
authorised Fyne Audio Limited dealer subject to the absence of, or evidence of, misuse, overload or
accidental damage.
5. If at any time during this warranty period the equipment proves to be defective for any reason other than accident,
 misuse,neglect,unauthorisedmodication,incorrectinstallationorconnection,matchedwithimproperequipment
or fair wear and tear, we will repair any such manufacturing defect or, at our option, replace it without charge for
labour, parts or return carriage.
6. IfyoususpectaproblemwithaFyneAudioLimitedproduct,intherstinstance,discussitwithyourFyneAudio
Limited dealer. If you require further assistance, then we ask that you deal directly with your local Fyne Audio Limited
distributor. If you cannot locate your distributor please contact Fyne Audio Limited Customer Services, via our
website listed above or at the e-mail [e-mail]
7. Do not ship any product to Fyne Audio Limited without previous authorisation.
8. LIABILITY
Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, Fyne Audio
Limited and its Authorised Distributors shall not be liable to you and/or any third party or entity whatsoever for:-
any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the Fyne Audio
Limited products any damages, loss and liability (except for any personal injuries or death), whether direct, indirect,
incidental, consequential special, punitive or otherwise, howsoever caused by, arising out of, or otherwise in relation
to the installation, delivery, use, service, repair, replacement and/or maintenance of the Fyne Audio Limited product;
or any damages, loss and liability (except for any personal injuries or death) under this warranty in respect of any act,
omission, or negligence of any of their technicians, employees, agents, representatives or independent contractors
relating to the actual or purported performance of any of the obligations under this warranty.
9. Without limiting the above, the maximum liability of the Fyne Audio Limited and its Authorised Distributors under
this warranty shall not in any event or under any circumstances exceed the actual purchase price paid for the Fyne
Audio Limited product(s).

9
 SPECIFICATIONS
Model F700 F701
System type 2way,downwardsring 2way,downwardsring
port, with BassTrax™ port, with BassTrax™
Tractrix diffuser* Tractrix diffuser*
Recommended amplier 30 - 150 30 - 180
power (Watt RMS)
Continuous power 75 90
handling (Watt RMS)
Peak power handling 300 360
(Watt)
Sensitivity (2.83 Volt @ 1m) 89dB 91dB
Nominal impedance 8 Ohm 8 Ohm
Frequency response 40Hz - 34kHz 35Hz - 34kHz
(-6dB typical in room)
Drive unit complement 1 x 150mm IsoFlareTM 1 x 200mm IsoFlareTM
point source driver, point source driver,
 multi-brebass/ multi-brebass/
midrange cone, midrange cone,
FyneFluteTM surround FyneFluteTM surround
with 25mm magnesium with 25mm magnesium
dome compression dome compression
tweeter, neodymium tweeter, neodymium
magnet system magnet system
Crossover frequency 1.7kHz 1.7kHz
Crossover type Bi-wired passive low loss, Bi-wired passive low loss,
2nd order low pass, 2nd order low pass,
1st order high pass. 1st order high pass.
Cryogenically treated Cryogenically treated
Cabinet construction Pressed high density birch Pressed high density birch
ply with extensive ply with extensive
internal bracing internal bracing
Dimensions 382 x 224 x 337mm 465 x 278 x 390mm
incl. terminals & grille - H x W x D (13.7 x 8.8 x 13.3”) (18.3 x 10.9 x 15.5”)
Weight 9.0kg (19.8lbs) 13.6kg (30.0lbs)
* Patent applied for

10
Model F702 F703 F704
System type 2½way,downwardsring 2½way,downwardsring 2½way,downwardsring
port, with BassTrax™ port, with BassTrax™ port, with BassTrax™
Tractrix diffuser*, Tractrix diffuser* Tractrix diffuser*
twin cavity loading system twin cavity loading system twin cavity loading system
Recommended amplier 30 - 200 20 - 250 20 - 300
power (Watt RMS)
Continuous power 100 125 150
handling (Watt RMS)
Peak power handling 400 500 600
(Watt)
Sensitivity (2.83 Volt @ 1m) 92dB 94dB 96dB
Nominal impedance 8 Ohm 8 Ohm 8 Ohm
Frequency response 30Hz - 34kHz 26Hz - 26kHz 24Hz - 26kHz
(-6dB typical in room)
Drive unit complement 1 x 200mm IsoFlareTM 1 x 250mm IsoFlareTM 1 x 300mm IsoFlare™
point source driver, point source driver, point source driver,
 multi-brebass/ multi-brebass/ multi-brebass/
midrange cone, midrange cone, midrange cone,
FyneFluteTM surround FyneFluteTM surround FyneFluteTM surround
with 25mm magnesium with 75mm titanium with 75mm magnesium
dome compression dome compression dome compression
tweeter, neodymium tweeter, ferrite tweeter, ferrite
magnet system magnet system magnet system
 1x200mmmulti-brebass, 1x250mmmulti-brebass, 1x300mmmulti-brebass,
FyneFlute™ surround FyneFlute™ surround FyneFlute™ surround
Crossover frequency 250Hz & 1.7kHz 200Hz & 850Hz 200Hz & 900Hz
Crossover type Bi-wired passive low loss, Bi-wired passive low loss, Bi-wired passive low loss,
2nd order low pass, 2nd order low pass, 2nd order low pass,
1st order high pass. 2nd order high pass. 1st order high pass,
Cryogenically treated Cryogenically treated Cryogenically treated
Cabinet construction Pressed high density birch Pressed high density birch Pressed high density birch
ply with extensive ply with extensive ply with extensive
internal bracing internal bracing internal bracing
Dimensions 1111 x 384 x 440mm 1176 x 430 x 465mm 1340 x 540 x 560mm
incl. terminals & grille - H x W x D (43.7 x 15.1 x 17.3”) (46.3 x 16.9 x 18.3”) (52.8 x 21.3 x 22.0”)
Weight 30.5kg (67.2lbs) 48.3kg (106.5lbs) 66.7kg (149.3lbs)
* Patent applied for

11
Model F702 F703 F704
System type 2½way,downwardsring 2½way,downwardsring 2½way,downwardsring
port, with BassTrax™ port, with BassTrax™ port, with BassTrax™
Tractrix diffuser*, Tractrix diffuser* Tractrix diffuser*
twin cavity loading system twin cavity loading system twin cavity loading system
Recommended amplier 30 - 200 20 - 250 20 - 300
power (Watt RMS)
Continuous power 100 125 150
handling (Watt RMS)
Peak power handling 400 500 600
(Watt)
Sensitivity (2.83 Volt @ 1m) 92dB 94dB 96dB
Nominal impedance 8 Ohm 8 Ohm 8 Ohm
Frequency response 30Hz - 34kHz 26Hz - 26kHz 24Hz - 26kHz
(-6dB typical in room)
Drive unit complement 1 x 200mm IsoFlareTM 1 x 250mm IsoFlareTM 1 x 300mm IsoFlare™
point source driver, point source driver, point source driver,
 multi-brebass/ multi-brebass/ multi-brebass/
midrange cone, midrange cone, midrange cone,
FyneFluteTM surround FyneFluteTM surround FyneFluteTM surround
with 25mm magnesium with 75mm titanium with 75mm magnesium
dome compression dome compression dome compression
tweeter, neodymium tweeter, ferrite tweeter, ferrite
magnet system magnet system magnet system
 1x200mmmulti-brebass, 1x250mmmulti-brebass, 1x300mmmulti-brebass,
FyneFlute™ surround FyneFlute™ surround FyneFlute™ surround
Crossover frequency 250Hz & 1.7kHz 200Hz & 850Hz 200Hz & 900Hz
Crossover type Bi-wired passive low loss, Bi-wired passive low loss, Bi-wired passive low loss,
2nd order low pass, 2nd order low pass, 2nd order low pass,
1st order high pass. 2nd order high pass. 1st order high pass,
Cryogenically treated Cryogenically treated Cryogenically treated
Cabinet construction Pressed high density birch Pressed high density birch Pressed high density birch
ply with extensive ply with extensive ply with extensive
internal bracing internal bracing internal bracing
Dimensions 1111 x 384 x 440mm 1176 x 430 x 465mm 1340 x 540 x 560mm
incl. terminals & grille - H x W x D (43.7 x 15.1 x 17.3”) (46.3 x 16.9 x 18.3”) (52.8 x 21.3 x 22.0”)
Weight 30.5kg (67.2lbs) 48.3kg (106.5lbs) 66.7kg (149.3lbs)
* Patent applied for
ENJOY.



FYNEAUDIO
@FyneAudio
WWW.FYNEAUDIO.COM
9 January 2020
Thank you for choosing Fyne Audio loudspeakers, proudly
designed by our experienced engineers and manufactured to
exacting standards by our craftsmen in Scotland.
F6480 0009
