G Trans KS-3002 User manual

2-Port
S~itch
KS-3002
Manual

I
Certificate
Certificate
FCC
This equipment has been tested and found to comply with Part 15 of the
FCC
Rules. Operation is subject to the following two conditions:
(I) This device may not cause harmful interference.
(2) This device must accept any interference received,
Including interference that may
cause undesired operation.
CE-Certificate
This equipment is in compliance with the requirements of the following
regulations: EN 55 022:
CLASS B
CE:
Disclaimer
Information in this document is subject to change without notice. The
manufacturer does
not make any representations or warranties (implied
or otherwise) regarding the accuracy and completeness of this document
and shall in no event be liable for any loss of profit or any commercial
damages, including but not limited to special, incidental, consequential, or
other damages. No part of this document may be reproduced or
transmitted in any form, electronic or mechanical, by any means, including
photocopying, recording
or information recording and retrieval systems
without the expressed written permission of the manufacturer.
All brand names and product names mentioned in this document are
trademarks,
or registered trademarks of their respective holders.
Version: KO-MOO I-I .0 Date Code: 11/12/2002

Table of Contents
User's Manual
KVM 2-Port Switch (KS-3002)
Index
Safety Instructions············
............ I
Introduction . . 2
Features. .. 2
System Requirements. .... 3
Package Contents· 3
Specifications . .
..... 4
Hardware Installation
..... 5
Push Button Functionality .
.. 6
Hot-Key Keyboard Commands
.................... ·7
Troubleshooting. ........... . . .
.. 7

I
KYMSwitch
Safety Instructions
• Always read the safety instructions carefully.
• Keep this User's Manual for future reference.
• Keep this equipment away from humidity.
• Lay this equipment on a reliable flat surface before setting it up.
• Ifany of the following situation arises, getthe equipment checked by a
service technician:
a. The equipment has been exposed to moisture.
b. The equipment has dropped and damaged.
c. The equipment has obvious sign of breakage.
d. The equipment is not working properly or you cannot get it to work
according to User's Manual.

I
KVM Switch
Introduction
The KYM 2/4-Port Switch allows you to access multiple computers by
sharing one keyboard, video and mouse. There is no interface card or
software to configure. Installation is as easy as connecting cables between
the KYM 2/4-Port Switch and your computers. Switch between pes
simply by pressing a button on the front panel or hot-key commands.
This product is ideal for any users with the need of sharing one keyboard,
video and mouse with multiple computers.
Features
• supports Microsoft IntelliMouse, Microsoft IntelliMouse Pro, Logitech
Net Mouse, and more.
• Supports hot-swappable.
• High Video quality up to I920x1440 with bandwidth of 200Mhz.
• Hot-key function allows easy computer access.
• Auto Scan Mode automatically selects computers sequentially. !
• Keyboard states automatically saved and restored upon switching,
• Beep sounds for switching port confirmation. ,
2

I
System Requirements
I
KVM Switch
Introduction
Th~ KVM 2/4-Port Switch allows you to access multiple computers by
sharing one keyboard, video
and mouse. There is no interface card or
software to configure. Installation is as easy as connecting cables between
the KVM 2/4-Port Switch and your computers. Switch between PCs
simply by pressing a button on the front panel or hot-key commands.
This product
is ideal for any users with the need of sharing one keyboard,
video and mouse with multiple computers.
Features
• supports Microsoft IntelliMouse, Microsoft IntelliMouse
Pro, Logitech
Net Mouse, and more.
• Supports hot-swappable.
• High Video quality up
to I920x1440 with bandwidth of 200Mhz.
• Hot-keyfunction allows
easy computer access.
• Auto Scan Mode automatically selects computers sequentially.
• Keyboard
states automatically saved and restored upon switching.
• Beep sounds
for switching port confirmation.
2
KVM Switch
KS-5104
One Video Monitor
One PS/2 Keyboard
One PS/2 Mouse
Four
HDD 15 pin male-
to-male
VGA cables
Four PS/2 cables male-
to-male
for Keyboard
Four
PS/2 cables male-
to-male
for Mouse
KVM Switch Cable
Functions
Console
side
Computer Side
KS-3002
One Video Monitor
One PS/2 Keyboard
One PS/2 Mouse
Two
HDD 15 pin male-
to-male
VGA cables
Two PS/2 cables male-
to-male
for Keyboard
Two
PS/2 cables male-
to-male
for Mouse
3
Package Contents
Model Number: KS-3002
• KVM 2-port Switch
• User's manual
I Model Number: KS-5104
• KVM 4-port Switch
• User's manual
•
AC/DC PowerAdapter

I
KVM Switch
Specifications
Functions KS-3002
KS-5104
PC Port 2 4
Console Port 1 1
PC Port Connector
(All Female Type)
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
Console port connector
(PS/2 Keyboard and
Mouse Female type)
(VGA Male type)
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PC selection
Hot Key/Button Hot Key/Button
LED 2 4
On Screen Display
Control
NO NO
Scan Intervals 4 Sec 4 Sec
Keyboard Emulation PS/2
PS/2
Mouse Emulation
(Console port to PC port)
PS/2 PS/2
VGA Resolution 1920 X 1440 1920 X 1440
Bandwidth
200MHz 200MHz
Daisy Chain and Levels NO NO
MAX PC Connections 2 4
HousinQ
Plastic Metal
Size Mini Desktop Desktop
4

KYM Switch KVM Switch
Specifications
Functions KS-3002 KS-5104
PC PDrt 2 4
Console Port 1 1
PC Port Connector
(All Female Type)
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGAHDD 15 pin
Console port connector
(PS/2 Keyboard and
Mouse Female type)
(VGA Male type)
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PS/2 Keyboard Mini DIN 6 pin
PS/2 Mouse Mini DIN 6 pin
VGA HOD 15 pin
PC selection Hot Key/Bulton
Hot Key/Bulton
LED 2 4
On Screen Display
Control
NO NO
Scan Intervals 4 Sec 4 Sec
Keyboard Emulation PS/2 PS/2
Mouse Emulation
(Console port to PC port)
PS/2 PS/2
VGA Resolution 1920 X 1440 1920 X 1440
Bandwidth 200MHz 200MHz
Daisy Chain and Levels NO NO
MAX PC Connections 2 4
Housing
Plastic
Metal
Size
Mini Desktop Desktop
4

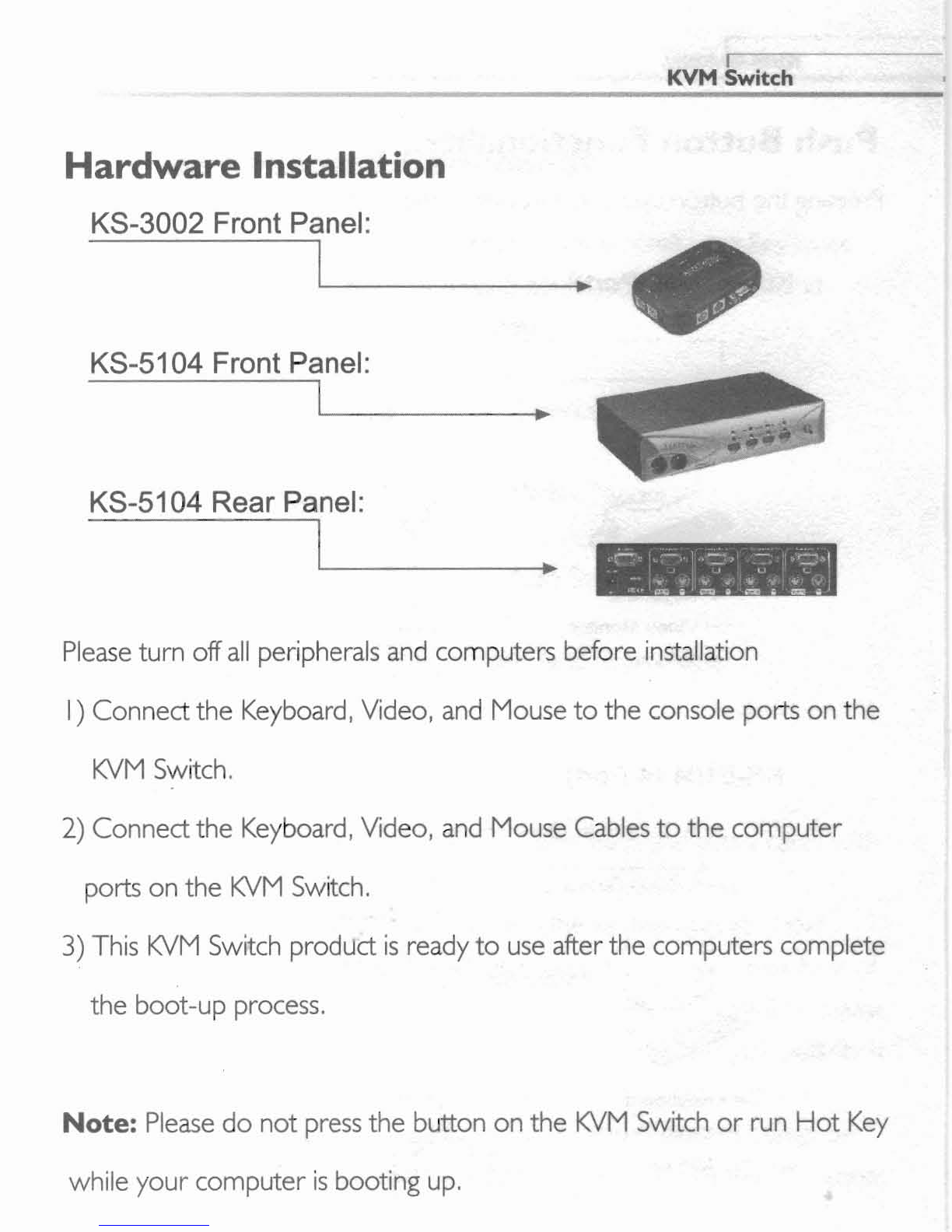

Hardware Installation
KS-3002 Front Panel:
I
KS-5104 Front Panel:
I
KS-5104 Rear Panel:
I r - ':7> -=- ''=''1
-
r
"" ........ # .......... '"
,.,J
Please turn off all peripherals and computers before installation
I) Connect the Keyboard, Video, and Mouse to the console ports on the
KVM Switch.
2) Connect the Keyboard, Video, and Mouse Cables to the computer
ports on the KVM Switch.
3) This KVM Switch product is ready to use after the computers complete
the boot-up process.
Note: Please do not press the button on the KVM Switch or run Hot Key
while your computer is booting up.
5

~-- --~
KVM Switch
Push Button Functionality
Pressing the button cyclically through all the ports.
KS-3002 (2 Port)
,
---+" 1 ---+" 2 ---+"1
..
-Keyboard
- Video Monitor
Mouse
KS-51 04 (4 Port)
2 3 4
C1 - - - -1
6

L- ,
KVMSwitch
Push Button Functionality
Pressing the button cyclically through all the ports.
KS-3002 (2 Port)
~I---. 1
--_ .. 2
•
-Keyboard
- Video Monitor
Mouse
KS-51 04 (4 Port)
r:
1-- 2--3-- 4 -I
•
(0 etetetet]
==
~~~~~
-Keyboard
-Video Monitor
Mouse
6
,
KVM Switch

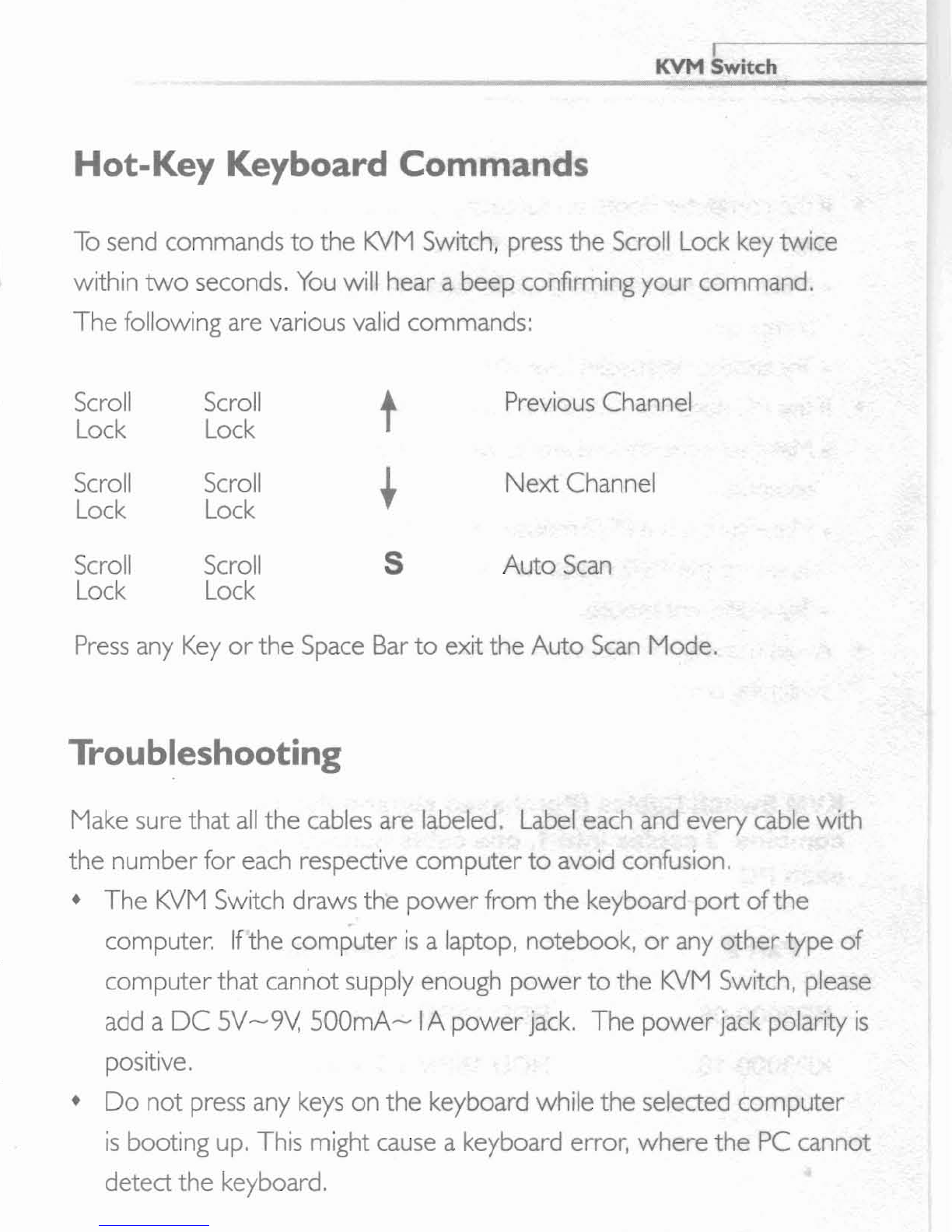

Hot-Key Keyboard Commands
To send commands to the KVM Switch, press the Scroll Lock key twice
within
two seconds. You will hear a beep confirming your command.
The following are various valid commands:
Scroll
Lock Scroll Lock t Previous Channel
Scroll
Lock Scroll Lock •
Next Channel
Scroll Scroll 5
Auto Scan
Lock Lock
Press any Key or the Space Bar to exit the Auto Scan Mode.
Troubleshooting
Make sure that all the cables are labeled. Label each and every cable with
the number for
each respective computer to avoid confusion.
• The
KVM Switch draws the power from the keyboard port of the
computer. Ifthe computer
is a laptop, notebook, or any other type of
computer that cannot supply enough power to the KVM Switch, please
add a DC 5V-9V, 500mA-IA power jack. The power jack polarity is
positive.
•
Do not press any keys on the keyboard while the selected computer
is booting up. This might cause a keyboard error, where the PC cannot
detectthe keyboard.
7

...... ,
KVM Switch
Ifthe computer boots-up successfully, but the keyboard does not work,
then
• Make sure the keyboard works when it
is directly plugged into the
computer.
• Try another keyboard, use 101, 102, or I04-key keyboards only.
, Ifthe
PC does not detect the Mouse while it is booting up,
-Make sure the mouse works when it
is directly plugged into the
computer.
-Make sure it
is a PS/2 mouse. A combo mouse will work as long as it
is set for the PS/2 mode with the correct adaptor.
• Try a different mouse.
, Avoid moving the mouse
or pressing the buttons on the mouse when
switching ports.
KVM Switch Cables (Purchased separately), Designed to
combine 3 cables into 1, one cable needed for connecting
each PC
Part # Description
KP3000-06 HDD 15PM x 2 + MND 6PM x 46FT
KP3000-10 HDD 15PM x 2 + MND 6PM x
410 FT
8
