GAAM Quenchmaster CP500 Owner's manual

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 1 of 16
GAAM Emergerncy Products
29 Temple Drive Thomastown 3074
Phone [phone] Fax [phone]
NSW: P.O. Box 301 Albion Park 2527
Ph: [phone] Fax: [phone]
Quenchmaster CP500
MODEL: 2 Valves with ON/OFF Valve
MANUAL
FOR
INSTALLATION
OPERATION
MAINTENANCE
SPARE PARTS

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 2 of 16
TABLE OF CONTENTS
QUENCHMASTER CP 500RFS
1. WARRANTYCERTIFICATE Pg3
2. QUENCHMASTER FOAM SYSTEM INTRODUCTION Pg 4
3. QUENCHMASTER FOAM SYSTEM OPERATION Pg 6
4. SCHEMATIC LAYOUT OF QUENCHMASTER Pg 7
5. QUENCHMASTER CP500 TEMPLATE Pg 8
6. SPAREPARTSGUIDE Pg9
7. FITTING INSTRUCTIONS Pg 10
8. QUENCHMASTER OPERATING INSTRUCTIONS Pg 13
9. MAINTENANCE INFORMATION Pg 14
10.OPERATINGINFORMATION Pg14
11. QUENCHMASTER APPLICATIONS Pg15
12. PERFORMANCE CERTIFICATE Pg 16

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 3 of 16
GAAM Emergency Products
ABN 80 008 399 004
Limited Warranty
Products are warranted to be free of defects resulting from faulty materials and
workmanship for a period of 12 months, (a) in the case of goods, from faulty the
day the goods are delivered or are deemed to have been delivered in accordance
with the clause 5, and (b) in the case of provision of services, from the day on
which the relevant service is completed.
The company will not admit any liability whatsoever or howsoever arising which
exceeds the cost of replacement of the products or performance of services and
shall not be liable in any event in any way whatsoever for any contingent
consequential direct indirect special or punitive damages arising in any way
whatsoever in relation thereto, and the Purchaser acknowledges this express
limitation of liability and agrees to limit any claim by it accordingly. No other term
condition, agreement, warranty, representation or understanding whatsoever
whether express or implied in any way extending to or otherwise relating to or
binding on the Company with respect to the products or services other than these
terms and any other terms by which the Company agrees to be sound in writing, is
made or given. Any condition term or warranty which might otherwise be implied
under law of Australia is hereby expressly negative insofar as it lawfully can be.
The Company must be advised of any defect within one week of the defect
becoming known. Unless otherwise arranged, the item of equipment or individual
parts thereof (as the case may be) shall be sent to the Company carriage prepaid
and at the Purchaser’s risk. Replacement items of equipment and parts shall
become the property of the Company.
The Company shall in no way be liable for damage to products due to normal wear
and tear, or to improper use or abuse, nor shall the Company be liable in any way
for any losses, damages or costs of any kind occurring or incurred outside the
Company's factory.
The Company shall be relieved of any liability should the Purchaser, without the
Company’s authority in writing, make any attempt to repair, adjust, improve or
otherwise interfere with the products or the working thereof. Any such action shall
cause all warranties and conditions in respect of the products to become null and
void. Equipment and accessories furnished by third parties are not guaranteed by
the Company, and no term condition, agreement, warranty, representation of
understanding is given or shall be implied in relation thereto.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 4 of 16
QUENCHMASTER FOAM SYSTEMS INTRODUCTION
GENERAL DESCRIPTION
The range of Quenchmaster systems are designed to dispense both Class ‘A’ and Class ‘B’
foams.
The foam system is connected to the fire fighting pump and includes the following:-
the proportioner, foam on/off valve(optional), a ‘Y’ type strainer (optional) and the foam
concentrate.
Water is delivered from the Discharge side of the pump into the proportioner and metered
across a venturi, this causes a negative vacuum, foam is then drawn through the proportioner,
mixes with the water, and then returns to the pump inlet, and then the foam mixture is
delivered to the fire fighting hoses.
Proportioner:- This device contains 2 valves to control the supply of foam concentrate to
the pump. The left hand valve selects the class of foam (Class ‘A’ or Class ‘B’) to be used.
The right hand (metering) valve selects to percentage (%) of foam to be added to the water.
Note: BFFF is Class ‘A’ foam. AFFF and ATC are Class ‘B’ foams.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 5 of 16

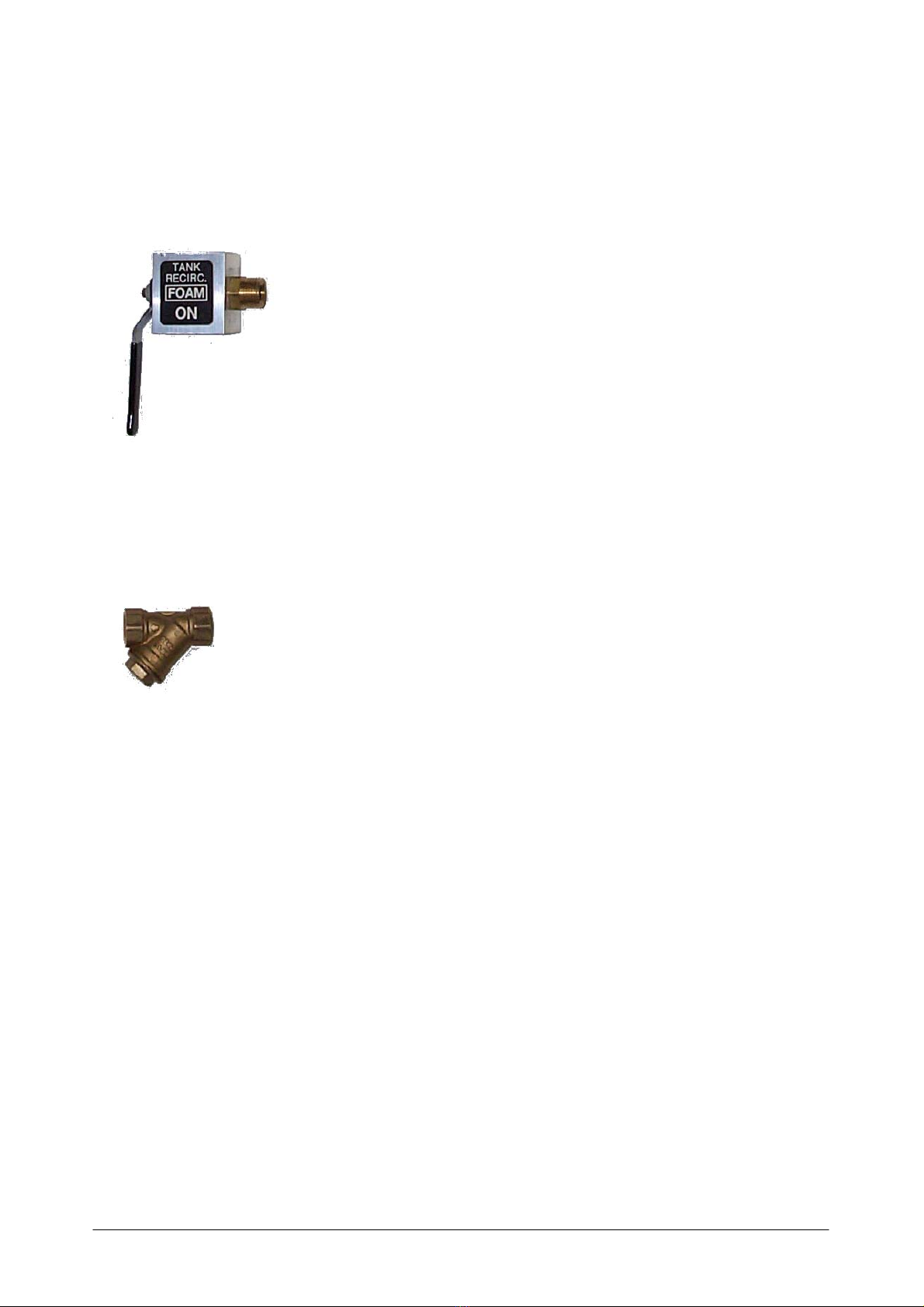

Foam On/Off Valve (Optional):- Located on the discharge side of the pump, after the ‘Y’
strainer. ‘Foam ON’ position allows water to pass from the pump to the foam proportioner to
operate the proportioner. ‘Foam Off’ position (or ‘Tank Recirc.’) allows water to circulate
from the pump back to the water tank to keep the pump cool during standby periods when the
pump is in operation.
‘Y’ type Strainer (Optional):- Located on the side of the pump near the discharge flange. Its
main function is to filter the water that passes from the pump to the proportioner to protect
the proportioner from becoming blocked and therefore unable to supply foam to the nozzle. It
also protects the pump bypass from similar blockage that can cause pump overheating. This
should be cleaned on a weekly basis.
Foam Concentrate:- Normally stored in 20 litre plastic drums that are mounted near the
foam proportioning system. Foam is drawn out of the drum by a probe and hose that is fitted
to the cap of drum. This cap should be opened ¾ to 1 full turn when foam is required and
closed when travelling. (Where foam tanks are fitted to the tanker, the tank may have a
vented filled cap that does not need to be unscrewed.)

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 6 of 16
QUENCHMASTER FOAM SYSTEM OPERATION
PROPORTIONER OPERATING PROCEDURE
To supply foam (when drawing water from water tank or static supply)
Open the cap on the foam drum ¾ to 1 full turn.
Start the pump and set the pressure at greater than 600kPa. (700 kPa. is optimum) Do not
exceed 1000 kPa.
Open nozzle/branch to provide water flow through pump and proportioner.
Check class of foam to be used is selected.
Turn Foam On/Off valve On. (if fitted)
Select percentage of foam required to suit type/class of fire.
To shut-down foam
With water discharging from a nozzle/branch, set Foam Metering Valve percentage selector
to Off.
Allow a 15- 20 secs. of water to pass through the pump then close the Foam On/Off valve (if
fitted).
Close the cap on the foam drum (if no more foam required).
To flush foam system
Set foam percentage selector to zero.
Start the pump and set pressure at greater than 400 kPa.
Turn foam On/Off valve to On.
Discharge water through the hoses used until discharged water is free of foam.
Turn foam On/Off valve Off.
Shut down the pump.
If foam entered the tank during any fire fighting operation, flush the water tank until free of
foam.
NOTES & SUGGESTIONS
BFFF is Class ‘A’ foam. AFFF and ATC are Class ‘B’ foams.
Never exceed 1000 kPa. Pump pressure whilst operating Quenchmaster unit
Clean ‘Y’ strainer regularly. This means after each fire (or shift at a major fire) when water is
drawn from a dirty creek or dam and at least monthly when town water is used. A
blocked ‘Y’ strainer can cause the pump to overheat or the foam system to fail to
operate. To clean, undo the hexagon cap and carefully remove the mesh screen.
Flush with clean water, Replace carefully. Do not over-tighten the cap when refitting.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 7 of 16

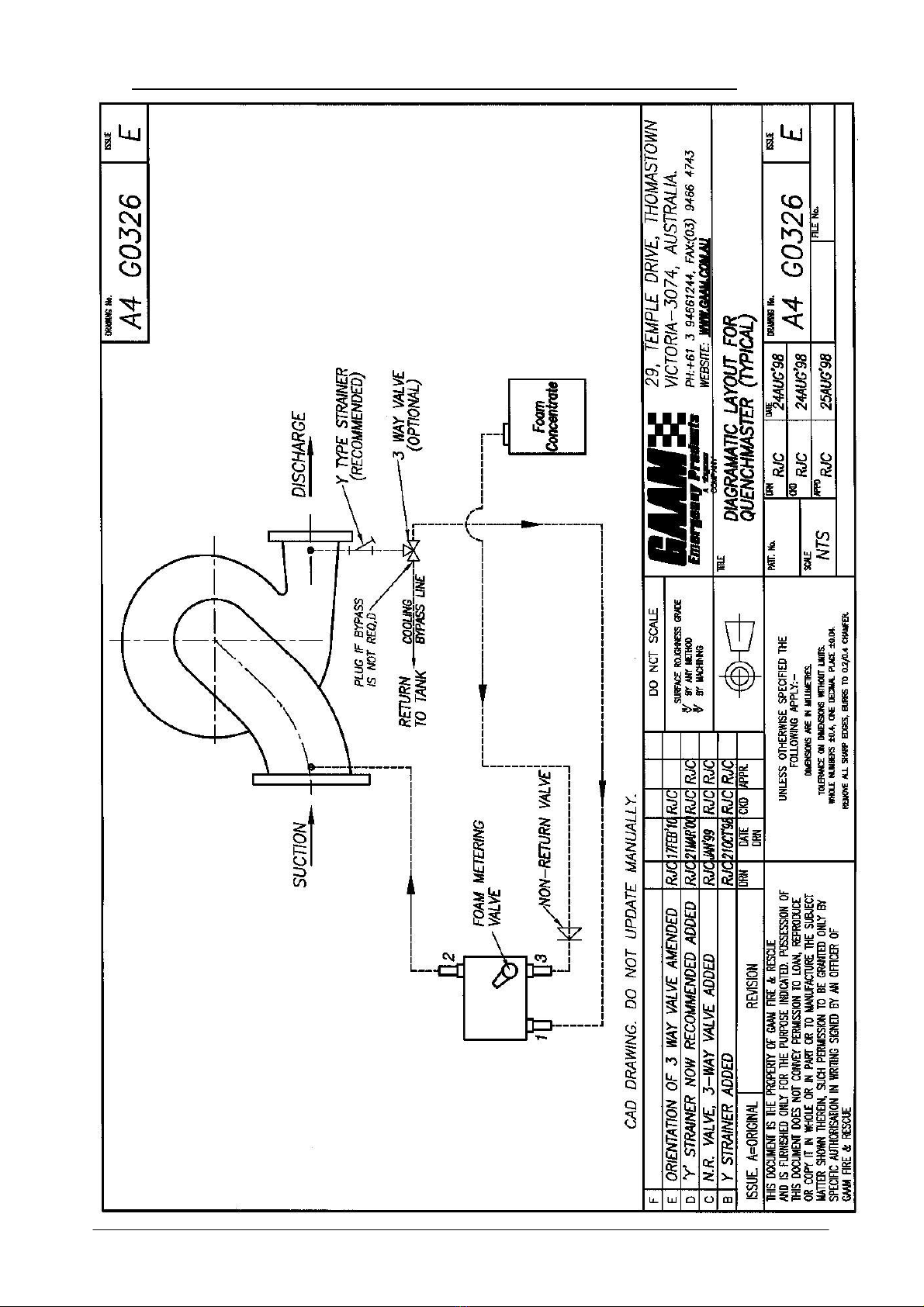

General Arrangement of Quenchmaster with the Pumpsets

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 8 of 16
5.0 Quenchmaster CP500 Template

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 9 of 16
SPARE PARTS
QUENCHMASTER CP500
Sr.
No.
P
art Number Part Description
Quantity Material
1 GA 9817 3/8” Mini Ball Valve 2 Brass
2 GAG0345 Face Plate CP500 1 Poly Plastic
3 GA9843 Spacer Quenchmaster,
All models 2 S.Steel
4 GA9813 Sticker, Quenchmaster 1 Paper
5 GA9814 Non- Return Valve ½” York 1 Brass
6 GA9816 Y – Strainer ½” TS1070 1 Brass
7 GAG0721 Filter for Y - Strainer 1 Stainless Steel
8 GAG0366 Bracket for Foam ON/OFF valve 1 Aluminium
9 GA9956 Label Sticker on Tank Recirculation 1 Paper
KIT
SR.
NO. PART NUMBER DESCRIPTION QUANTITY MATERIAL
1 GA9857 Ratchet Clip 13mm 1 Poly
2 GA9859 Director 13mm 1 Poly
3 GA9861 Elbow – 13mm 1 Poly
4 GA9887 Hose Barb 3/8” x ½” 2 Brass
5 GA9886 Elbow M/F 3/8” 1 Brass
6 GA9888 Nipple 3/8” x ½ “ 1 Brass
7 GA9898 Hose ½” H.P. – 1 m 1 Poly
8 GA9899 Hose ½” – 380 mm 1 Poly
9 GA9889 Hose Clips 13-20mm 6 Steel

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 10 of 16
QUENCHMASTER
FIRE FIGHTING FOAM
PROPORTIONING SYSTEMS
FITTING INSTRUCTIONS
MODEL CP500RFS VALVE
_________________________________________________________
IMPORTANT
For this system to operate correctly, it is essential that it be installed strictly in accordance
with these fitting instructions. Should any difficulties be experienced, contact the
manufacturer on [phone] Fax [phone].
_________________________________________________________
For Diagrammatic layout see attached Dwg. A4G0326.
Disconnect both the compound and pressure gauge hoses and throttle cable from the pump
engine, unplug wiring harness at rear of control panel and remove control panel from
appliance.
Remove control panel cover.
Mark and drill a 20 mm dia. Hole in the control panel, 40 mm to the left of the existing hole.
Remove the metering valve knobs from the foam unit and locate the foam unit inside the
control panel with the metering valve stems protruding through the holes. It may be
necessary to extend the holes towards the lower edge of the control panel to ensure that the
bottom of the unit rests on the return fold to allow the unit to seat against the face of the
control panel.
Place the template supplied over the metering valve stems, with the bottom of the template
level with the lower edge of the control panel and mark the location of the two 1/4” holes on
the control panel face..
Remove the template and foam unit.
Drill out the marked holes, using a 1/4” drill..
Countersink both holes to a sufficient depth, so that the heads of the bolts supplied are level
with the surface of the panel.
Replace the foam unit inside the control panel and mark on the unit the position of the two
holes.
Drill two holes thru the foam unit at the position marked, using a 6 mm drill.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 11 of 16
Secure the foam unit to the inside of the control panel, using the two M5 x 50 mm long
C/Sunk bolts and nuts provided.
Drill one 21 mm hole in the rear of the control panel, directly in line with the tail piece of the
foam unit, and fit the rubber grommet provided.
Place the control panel in its original position on the appliance tray, and mark the position of
the No. 1 and 3 outlets on the tray.
Drill two 25 mm holes in the tray at these locations.
Bolt the control panel to the tray and screw on the non-return valve to outlet marked (3).
Reconnect the compound and pressure gauges and the throttle cable.
Drill a 15 mm (19/32”) hole in the pump discharge outlet at a suitable location.
Tap to 3/8” BSP and screw in the 1/2” x 3/8” reducing nipple, using a suitable thread sealer.
Fit the ‘Y’ strainer, ensuring that the flow is in the correct direction, using a suitable thread
sealer.
Install the foam ‘ON/OFF’ valve, using a suitable thread sealer, so that the face plate faces
the pump operator.
Screw in a 3/8” tail piece to the lower outlet of the foam ‘ON/OFF’ valve using teflon tape.
Connect the by-pass cooling line to the remaining outlet of the foam valve.
Drill a 15 mm (19/32”) hole in the pump suction inlet at a suitable location.
Important: Tap to 3/8” B.S.P. thread and fit 3/8” brass tailpiece, using teflon
tape.
Drill a 25 mm hole in the tray deck immediately below the foam ‘ON/OFF’ valve.
Cut to length and clamp 13 mm hose from the foam ‘ON/OFF’ valve tailpiece, passing the
hose through the hole in the deck to tailpiece marked (1) on the foam unit.
Cut to length and clamp 13 mm hose from pump suction inlet tailpiece, passing the hose
through the hole and grommet in the control panel, to tailpiece marked (2) on the foam unit.
Secure a suitable foam pail bracket on the appliance.
Drill a 12 mm hole in a foam container cap and press the 13 mm P.V.C. elbow through the
hole.
Attach the pick up tube to elbow and clamp with P.V.C. clip.
Cut 13 mm hose to length and attach to elbow and clamp.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 12 of 16
Attach other end to tailpiece marked (3) Foam metering valve on the foam unit.
Remove the protective covering from the ‘Scotch’ tape on the back of the face plate.
Place the face plate over the metering valve spindles and carefully aligning the lower edge of
the face plate with the bottom edge of the control panel, press into place.
NOTE Accuracy is essential in locating the face plate on the control panel.
Place the metering valve knobs on the valve stems, ensuring that the brass spacer washers are
retained and secure with the screws supplied.
_________________________________________________________________
FITTING INSTRUCTIONS MODEL CP500 2V/FV/Y
_________________________________________________________________
NOTES
If the operation of this foam Proportioner requires any lengthy period of nozzle shut-down, a
full flow check valve should be installed in the suction line, to prevent any possibility of back
flow of foam mixture into the water tank.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 13 of 16
QUENCHMASTER
FIRE FIGHTING FOAM PROPORTIONING SYSTEMS
OPERATING INSTRUCTIONS
MODEL CP500
CONTROL PANEL MOUNT
Allow free entry of air into the foam container.
Prime and start the pump.
Adjust the throttle to run the pump at a suitable pressure (600 to 1000 kPa is recommended)
and open a delivery valve to allow water to flow.
Turn pump by-pass isolation valve (if fitted) to 'OFF'.
Open the pump pressure delivery valve to allow water to flow to the foam control unit.
When operating on mains supply, restrict the incoming flow so there is a reading on the
compound gauge at or near "O" and no higher than +50 kPa.
Set the foam selection valve to Class A or Class B.
Set metering valve to the appropriate setting.
Fine-tune both the foam selection valve and the foam-metering valve to select the most
suitable premix solution.
On completion of fire fighting operations requiring the use of foam, set metering valve to
'OFF' and flush pump and hoses until all foam solution is expelled.
Close pump pressure delivery valve and re-open by-pass isolation valve.
Reseal foam container.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 14 of 16
QUENCHMASTER
FIRE FIGHTING FOAM PROPORTIONING SYSTEMS
MAINTENANCE INFORMATION
All equipment must be flushed with clean water after use.
Clean up any spill of foam concentrate by washing down with clean water.
Tighten all hose clamps regularly to ensure that no air leaks exist.
Periodically check the metering valve knob for tightness.
Do not over tighten.
QUENCHMASTER
FIRE FIGHTING FOAM PROPORTIONING SYSTEMS
OPERATING INFORMATION
Operators of QUENCHMASTER Foam Proportioning Units should be aware that if delivery
nozzles are shut down for any prolonged period, the metering valve on the Control Unit
should be set to the 'OFF' position.
This is necessary to prevent the foam solution from being drawn into the system during the
shut down period. Whilst the amount of foam concentrate used during the period of shut
down is minimal, it is good policy to adopt this procedure at all times.
Delivery nozzles should be opened regularly to allow the foam solution to flow for a short
period, to ensure that overheating of the pump does not occur.

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 15 of 16
QUENCHMASTER
FIRE FIGHTING FOAM PROPORTIONING SYSTEMS
APPLICATION RATIOS
APPLICATION FOAM RATIO
MOP UP 0.1% TO 0.25%
INITIAL SUPRESSION 0.25% TO 0.5%
BACK BURNING 0.5% TO 0.75%
EXPOSURE PROTECTION
AND STRUCTURAL ATTACK 0.75% TO 1.0%
___________________________________________________________________________
_____________________________________________________
QUENCHMASTER Foam Systems are manufactured by
29 Temple Drive, THOMASTOWN VIC – 3074
PHONE [phone]
FAX [phone]
___________________________________________________________________________
_____________________________________________________

Quenchmaster CP500 RFS Rev4, 16/2/2010 Page 16 of 16
Certificate No: GAAM 0055
Quenchmaster Foam Proportioner Certification
GAAM Emergency Products hereby certify that the Quenchmaster CP 500 has
an accuracy of ± 10% when run at 700kPa at flows up to 400 lpm, when used
with class ‘A’ (0.1% to 1.0%), AFFF (1%, 3% & 6%) and class ‘B’ (3% to 6%)
foams. The unit is calibrated to use a foam concentrate that has a Specific
Gravity of 1.02 at a temperature of 20°C
Regards
JATINDER SINGH
ENGINEER
