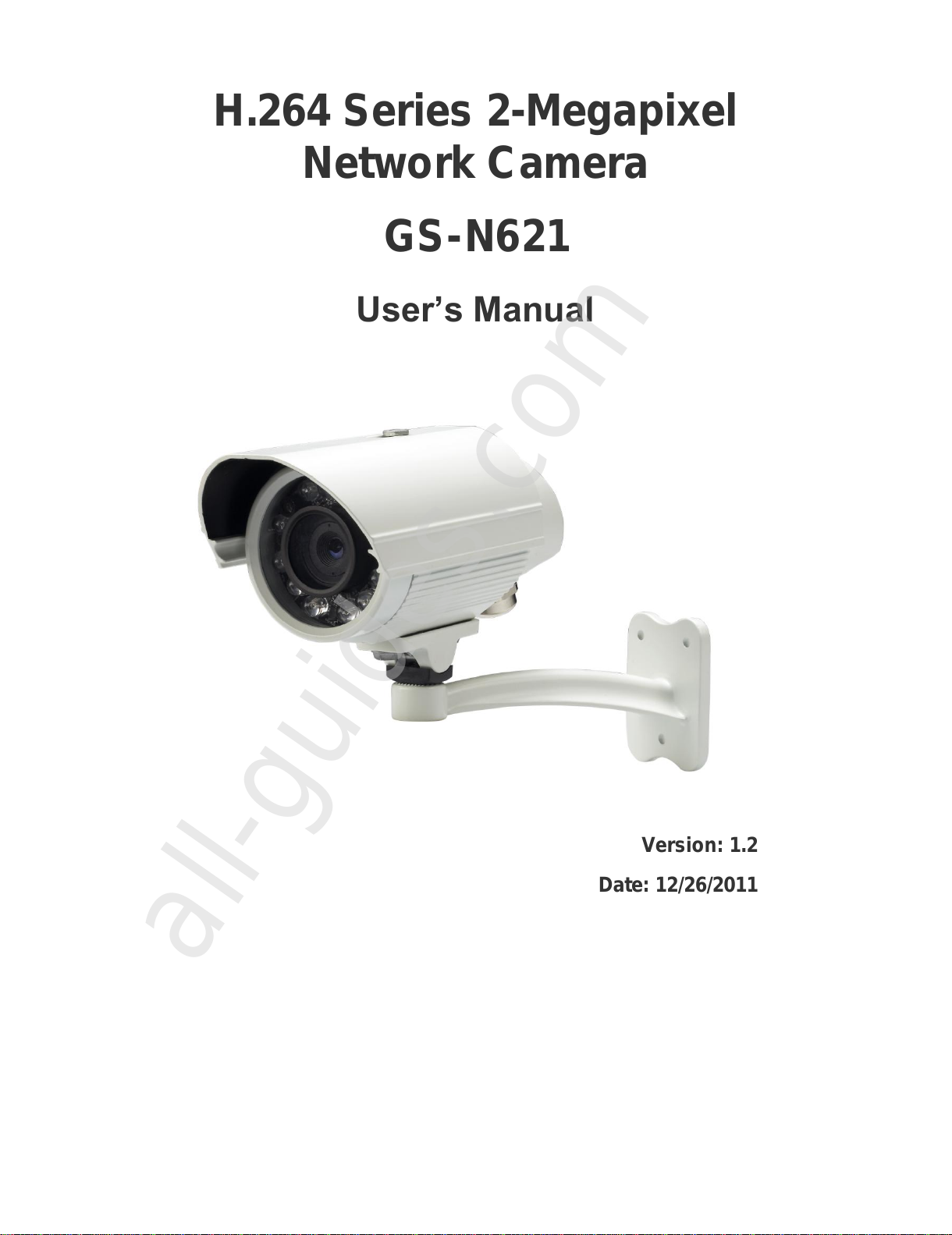

Gadspot GS-N621 User manual

H.264 Series 2-Megapixel
Network Camera
GS-N621
User’s Manual
Version: 1.2
Date: 12/26/2011
All manuals and user guides at all-guides.com
all-guides.com

1
Contents
Notices .................................................................................................................................................2
Introduction..........................................................................................................................................3
Installation............................................................................................................................................4
Using the Web UI...............................................................................................................................12
1. Live View...............................................................................................................................13
2. Video ......................................................................................................................................16
General...............................................................................................................................16
Advanced ...........................................................................................................................17
3.Camera....................................................................................................................................19
General...............................................................................................................................19
Advanced ...........................................................................................................................21
4. Event ......................................................................................................................................22
Event Server.......................................................................................................................23
Motion Detection ...............................................................................................................25
I/O Ports.............................................................................................................................27
Event Configuration...........................................................................................................28
5. Network..............................................................................................................................30
General...............................................................................................................................30
Advanced ...........................................................................................................................31
SMTP (E-Mail) ..................................................................................................................32
DDNS.................................................................................................................................33
6. System....................................................................................................................................34
Information.........................................................................................................................34
User....................................................................................................................................35
Date & Time.......................................................................................................................36
Server Maintenance............................................................................................................37
Log Service ........................................................................................................................38
7. Customize...............................................................................................................................39
FAQ....................................................................................................................................................41
I/O Terminal Connector - Pin Assignment.................................................................................41
Restore Factory Default .............................................................................................................41
All manuals and user guides at all-guides.com

2
Notices
This user manual is intended for administrators and users of the H.264 Network Camera, including
instructions for using and managing the camera on your network. The use of surveillance devices may be
prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such devices is
legal before installing this unit for its intended use.
Before the Network Camera is installed, all the safety and operating instructions should be carefully read and
followed to avoid damage due to faulty assembly and installation. This also ensures the product is used
properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power connection with
wet hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could damage this
equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified service
personnel or system installers.
All manuals and user guides at all-guides.com

3

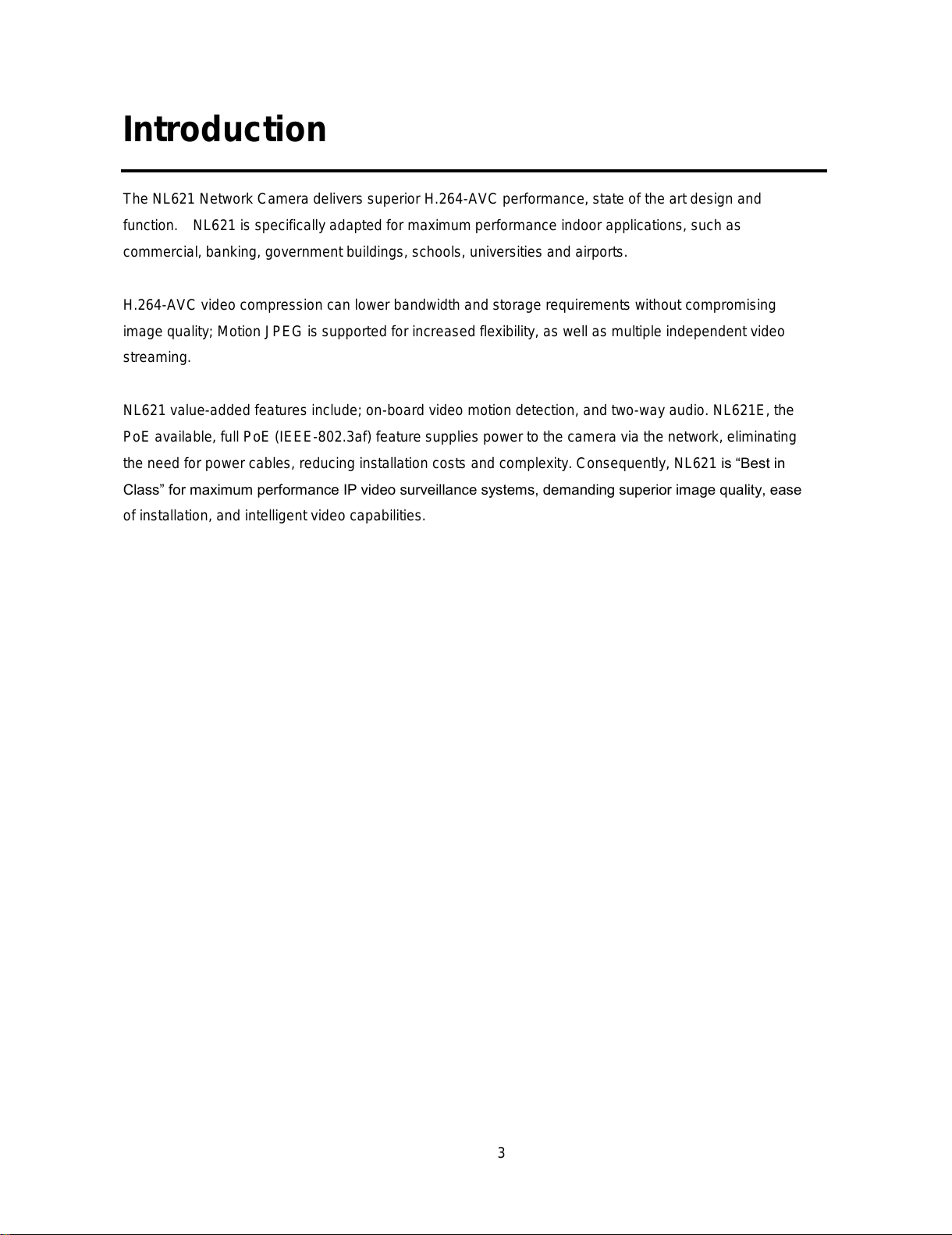

Introduction
The NL621 Network Camera delivers superior H.264-AVC performance, state of the art design and
function. NL621 is specifically adapted for maximum performance indoor applications, such as
commercial, banking, government buildings, schools, universities and airports.
H.264-AVC video compression can lower bandwidth and storage requirements without compromising
image quality; Motion JPEG is supported for increased flexibility, as well as multiple independent video
streaming.
NL621 value-added features include; on-board video motion detection, and two-way audio. NL621E, the
PoE available, full PoE (IEEE-802.3af) feature supplies power to the camera via the network, eliminating
the need for power cables, reducing installation costs and complexity. Consequently, NL621 is “Best in
Class” for maximum performance IP video surveillance systems, demanding superior image quality, ease
of installation, and intelligent video capabilities.
All manuals and user guides at all-guides.com

4
Installation
1. Hardware Connection
1. Prepare a PC with Ethernet link to the network
2. Connect LAN port (RJ45) of the camera to a network switch/hub
3. Connect power jack
4. Ensure the power adaptor specification matches the power system (110V or 220V) and connect the
adaptor to the outlet
5. Check LED status (Power/Network)
All manuals and user guides at all-guides.com

5
2. Software Installation
The following software is necessary for the proper display and use of the NL621 from the Web site. The
software will be taken from the Software Package CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on the LAN. This
utility is useful for conveniently configuring the network settings of the device, or for finding a device
once the network settings have been modified.
To install the IP Installer, from the Software Package CD UI, select IP installer, then follow the on screen
instructions.
XVID Codec
An H.264 codec is applied for displaying the video stream and playing the recoded AVI files. If the video
stream can’t be displayed or the recorded AVI files can’t be play on PC, install this software from the
Software Package CD.
VLC
Though not necessary, this can be used for viewing the streaming without a Web browser.
All manuals and user guides at all-guides.com
all-guides.com

6
3. Network Configuration
IP Installer is a utility that provides an easier, more efficient way to configure the IP address and network
settings of the devices. It even provides a convenient way to set the network settings for multiple
devices simultaneously using the batch setting function.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server in order to
avoid using a previously assigned IP address.
2. Ensure the NL621 is powered on and correctly connected to the network.
3. MAC Address: Each device has a unique Ethernet address (MAC address) shown on the label of the
device as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any NL621 in the LAN except those that are behind
a router, it is a good idea to set the host PC to the same subnet. In order to connect to the Web-based
user interface of the camera, the host PC must be in the same subnet. For more information about
subnets, please consult your network administrator.
Using IP Installer to Assign an IP Address to NL621
1. Once IP Installer has been successfully installed on the PC, double click the IP Installer icon on the
desktop
2. Click the [Device Search] to search the device in the LAN.
*0004290000
B1
All manuals and user guides at all-guides.com

7

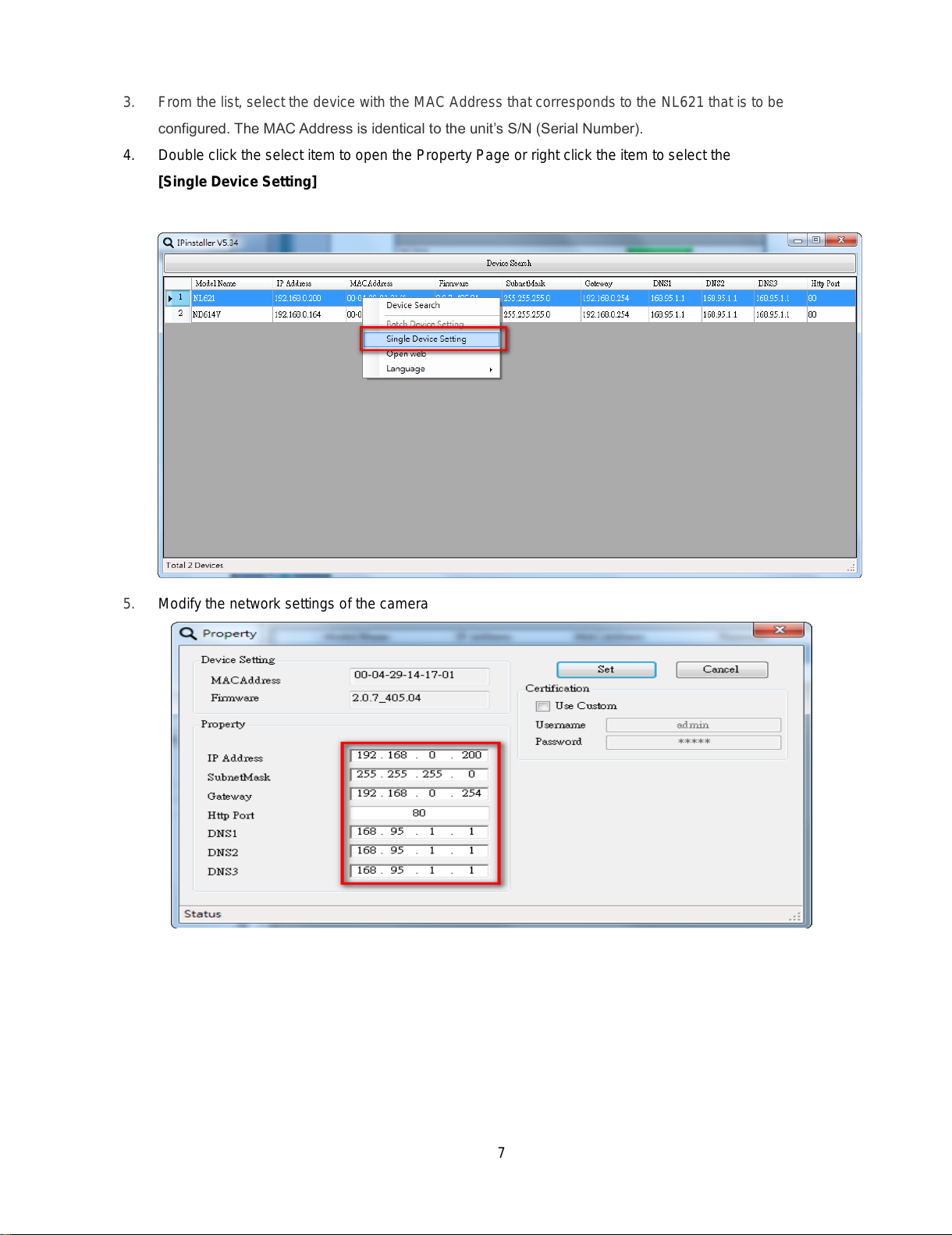

3. From the list, select the device with the MAC Address that corresponds to the NL621 that is to be
configured. The MAC Address is identical to the unit’s S/N (Serial Number).
4. Double click the select item to open the Property Page or right click the item to select the
[Single Device Setting]
5. Modify the network settings of the camera
All manuals and user guides at all-guides.com

8
6. After filling in the properties, click [Set] button to complete the configuration settings.
7. Click the [Batch Device Setting] to set several devices.
All manuals and user guides at all-guides.com

9
8. Language support for Chinese, English and Spanish.
All manuals and user guides at all-guides.com

10

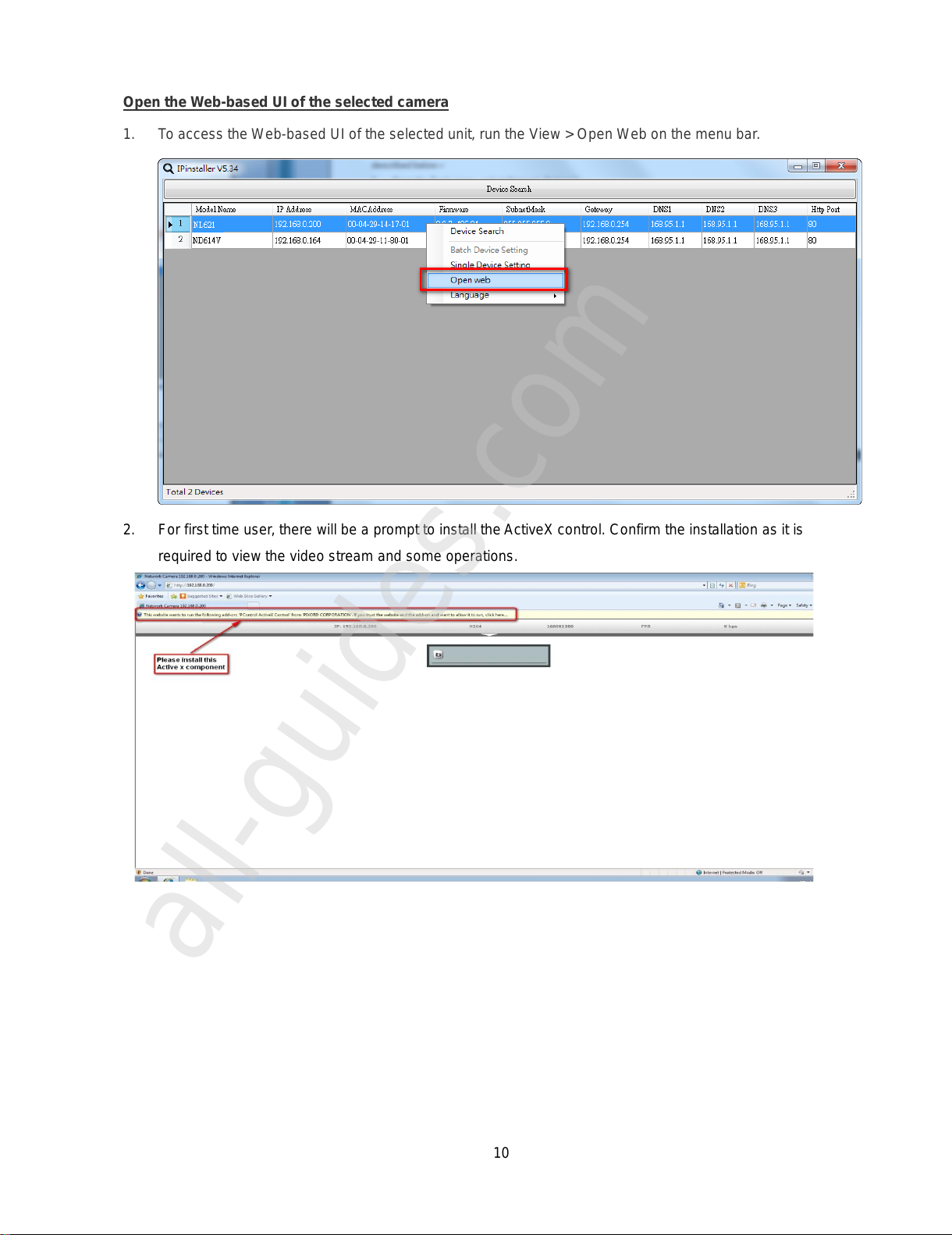

Open the Web-based UI of the selected camera
1. To access the Web-based UI of the selected unit, run the View > Open Web on the menu bar.
2. For first time user, there will be a prompt to install the ActiveX control. Confirm the installation as it is
required to view the video stream and some operations.
All manuals and user guides at all-guides.com
all-guides.com

11
3. If the device has been configured correctly, the default Web browser will open to the home page of the
selected device.
Verify and Complete the Installation from Your Browser
When browsing the Home Page at the first time with the Microsoft Internet ExplorerTM, you must temporarily
lower your security settings to perform a one-time-only installation of the ActiveX component onto your
workstation, as described below:
1. From the Tools menu, select [Internet Options]
2. Click the [Security] tab and then click [Custom Level] button to see your current security settings.
3. Set the security level to Low and click [OK].
4. Type the URL or IP address of your camera into the Address field.
5. A dialog box will pop up asking if the ActiveX control should be installed. Click [Yes] to start the
installation.
Once the ActiveX installation is complete, return the security settings to their original value, as noted above.
All manuals and user guides at all-guides.com

12

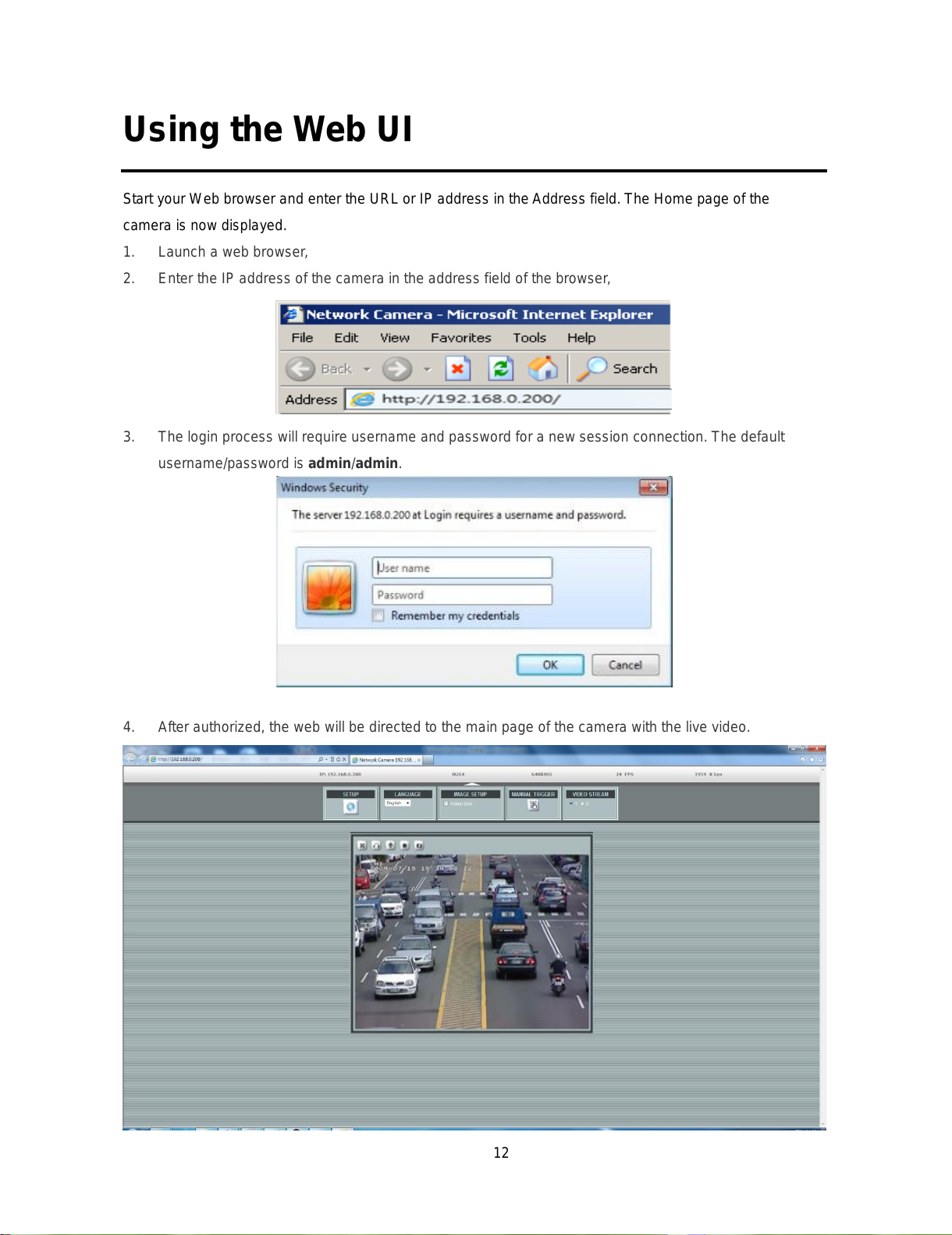

Using the Web UI
Start your Web browser and enter the URL or IP address in the Address field. The Home page of the
camera is now displayed.
1. Launch a web browser,
2. Enter the IP address of the camera in the address field of the browser,
3. The login process will require username and password for a new session connection. The default
username/password is admin/admin.
4. After authorized, the web will be directed to the main page of the camera with the live video.
All manuals and user guides at all-guides.com

13

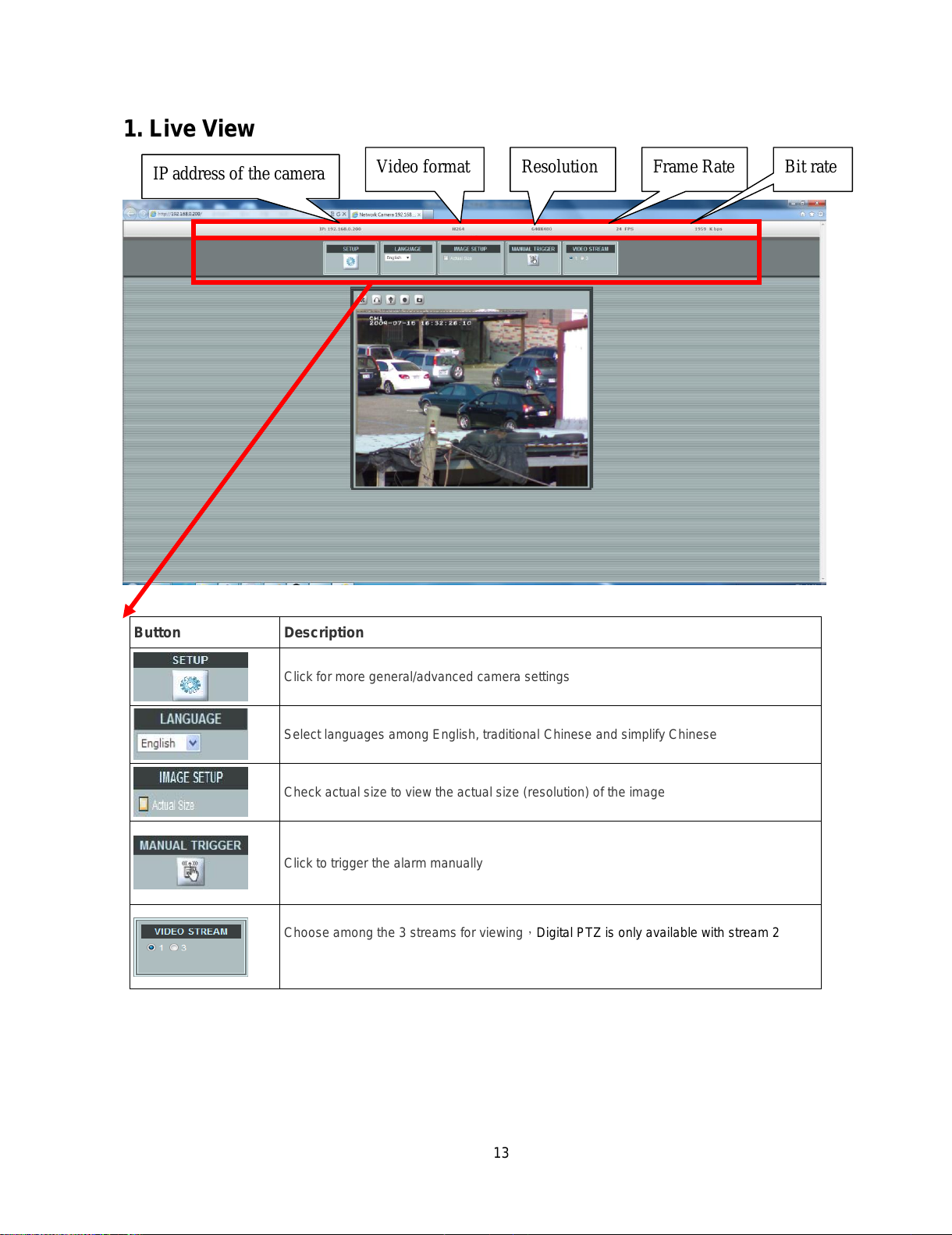

1. Live View
Button
Description
Click for more general/advanced camera settings
Select languages among English, traditional Chinese and simplify Chinese
Check actual size to view the actual size (resolution) of the image
Click to trigger the alarm manually
Choose among the 3 streams for viewing，Digital PTZ is only available with stream 2
IP address of the camera
Video format
Resolution
Frame Rate
Bit rate
All manuals and user guides at all-guides.com

14
Button
Description
Full screen
Listen the audio input from local end
Talking function
Record instant live video
Snapshot the image
All manuals and user guides at all-guides.com

15

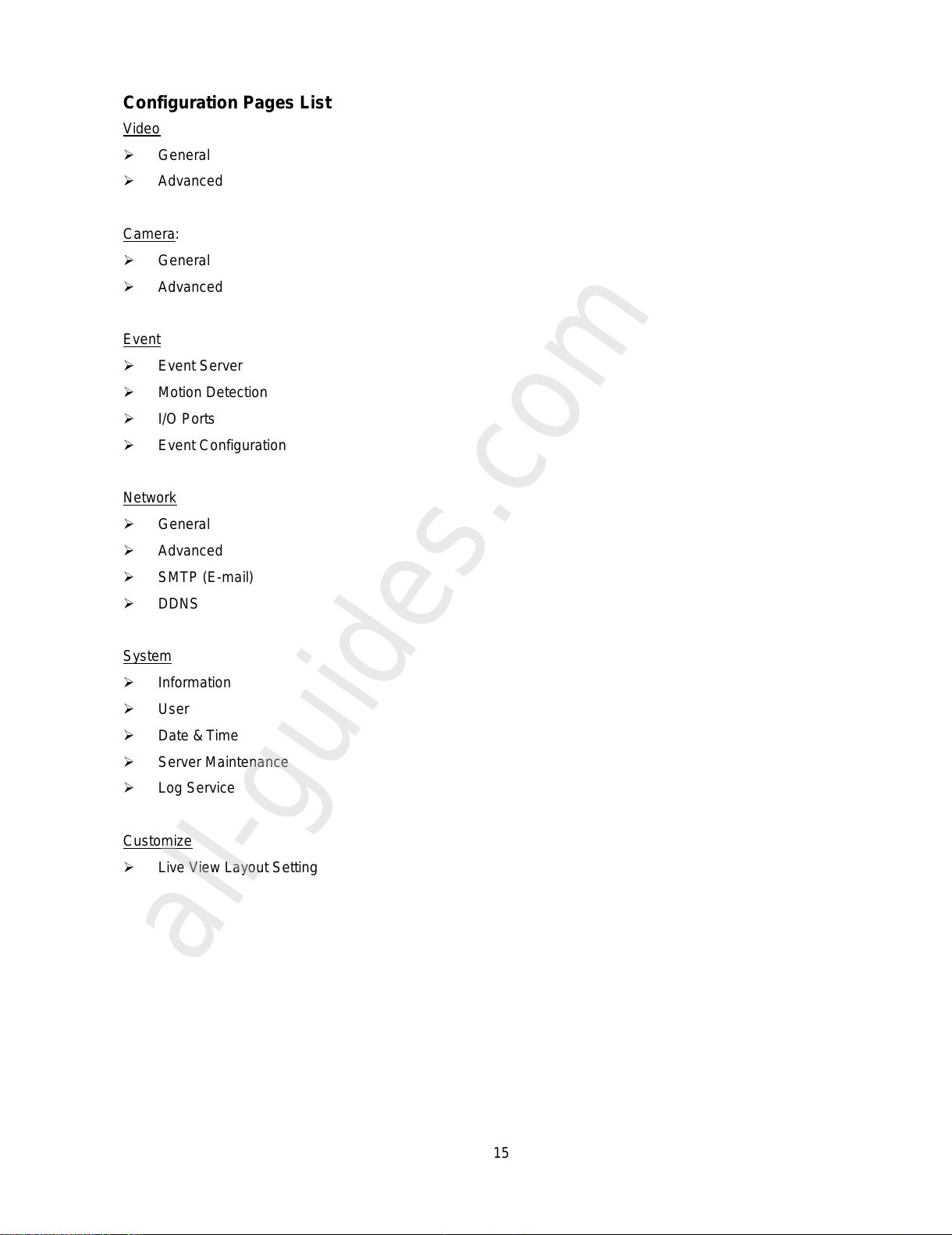

Configuration Pages List
Video
General
Advanced
Camera:
General
Advanced
Event
Event Server
Motion Detection
I/O Ports
Event Configuration
Network
General
Advanced
SMTP (E-mail)
DDNS
System
Information
User
Date & Time
Server Maintenance
Log Service
Customize
Live View Layout Setting
All manuals and user guides at all-guides.com
all-guides.com

16

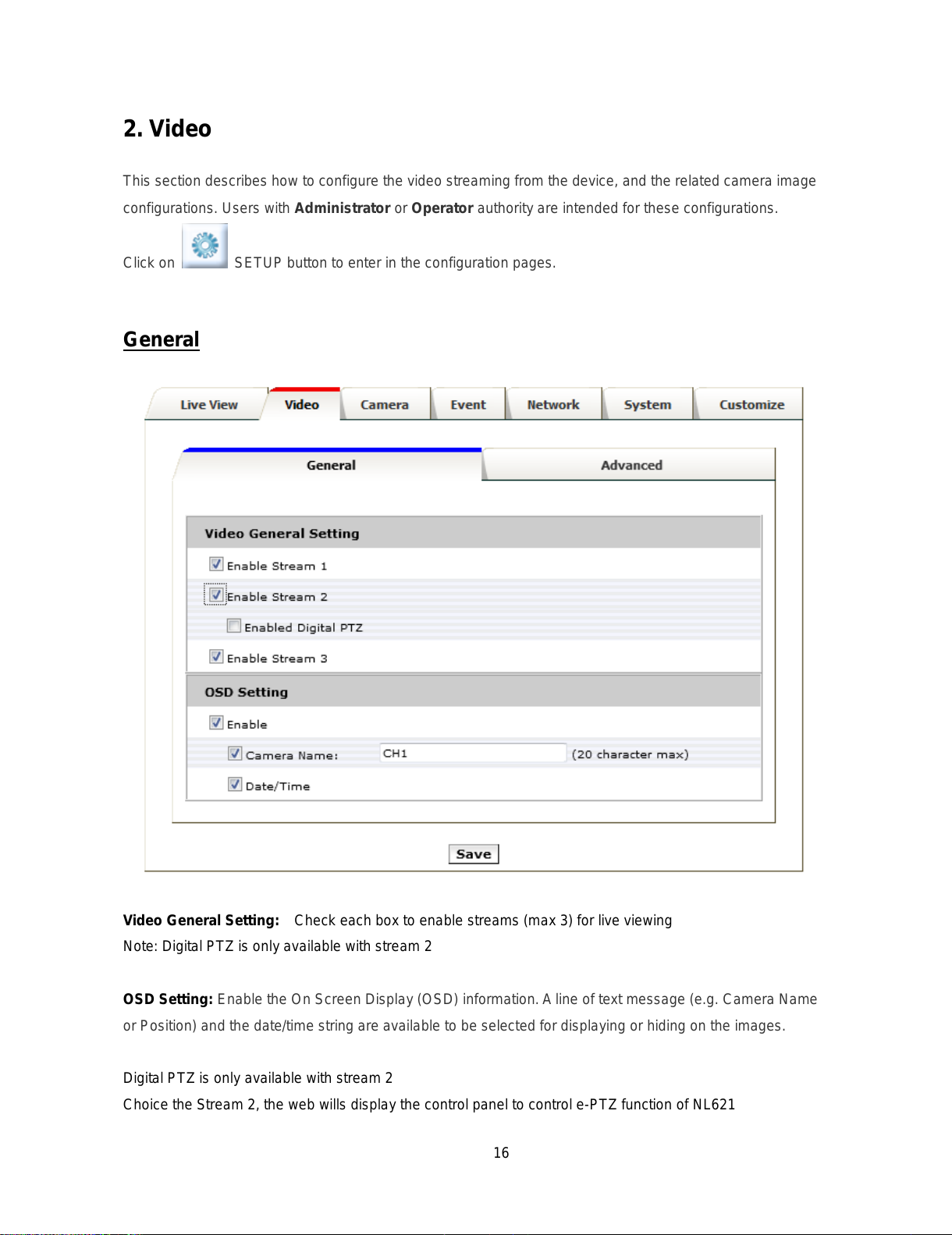

2. Video
This section describes how to configure the video streaming from the device, and the related camera image
configurations. Users with Administrator or Operator authority are intended for these configurations.
Click on SETUP button to enter in the configuration pages.
General
Video General Setting: Check each box to enable streams (max 3) for live viewing
Note: Digital PTZ is only available with stream 2
OSD Setting: Enable the On Screen Display (OSD) information. A line of text message (e.g. Camera Name
or Position) and the date/time string are available to be selected for displaying or hiding on the images.
Digital PTZ is only available with stream 2
Choice the Stream 2, the web wills display the control panel to control e-PTZ function of NL621
All manuals and user guides at all-guides.com

17

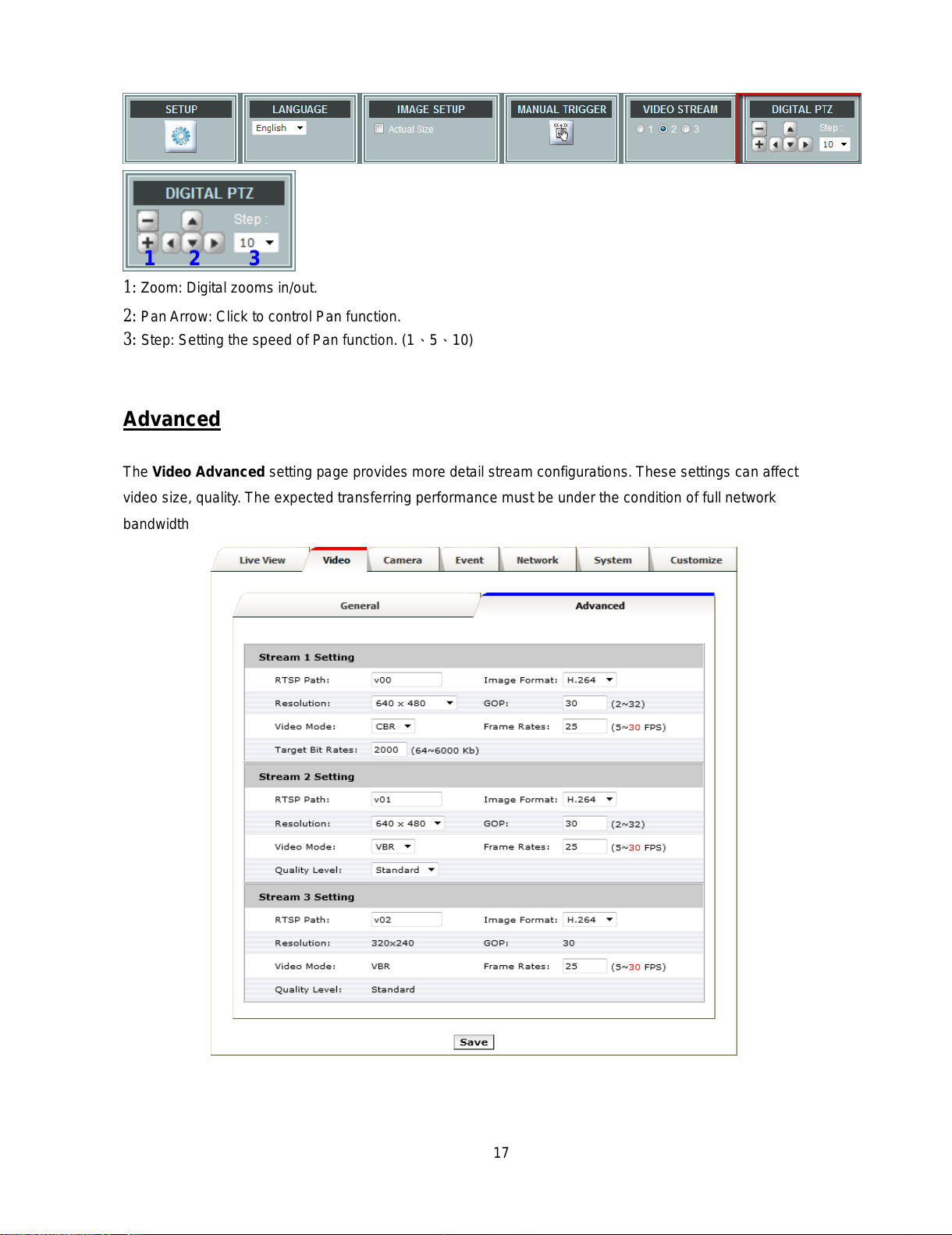

1: Zoom: Digital zooms in/out.
2: Pan Arrow: Click to control Pan function.
3: Step: Setting the speed of Pan function. (1、5、10)
Advanced
The Video Advanced setting page provides more detail stream configurations. These settings can affect
video size, quality. The expected transferring performance must be under the condition of full network
bandwidth
3
1
2
All manuals and user guides at all-guides.com

18
Stream Setting:
1: Configuration of stream 2 is the same as stream 1, but Stream 2 can only be set to 320x240 or 640x480,
2: Stream3 only RTSP path、image format and frame rate can be adjusted, the rest of the settings are fixed.
RTSP Path -
The RTSP Path is the stream ID used for RTSP client streaming connection, such as VLC player. The default
values are v00, v01 and v02 for the three streams respectively. The string can be any combination of number
or capital/small letters. It cannot be empty however.
Resolution -
The resolution here describes an image size counted by width and height, e.g. 640x480, referring to pixel
resolution. The 1st stream can be set from more options of resolution; 1600x1200 (2 megapixels),
1280x720(HD), 800x600(SVGA), 640x480(VGA), 320x240(QVGA). While Stream2 has the options of VGA
and QVGA, stream3 is in a fixed resolution, the QVGA.
Video Mode -
This option allows the selection of two bit rate modes, the Constant Bit Rate (CBR) or Variable Bit Rate
(VBR). CBR refers to the setting of a fixed Target Bit Rate (configuration in the rage of 64Kbps to 6Mbps)
that would apply in the case of limited bandwidth or/and storage requirement. While CBR concerns a fixed
data rate transmitting, the video quality is of high priority for VBR mode selected. VBR therefore is configured
with the Quality Level (Standard, Good, Best). In general, CBR predicts the provided condition; if image
activity requires higher bit rates than configured, the frame rate and quality would be affected as not likely to
increase bandwidth (bit rate). In spite of the required recording storage estimation, VBR is by way of
compensation that adjustable bit rate fits the actual image activity.
Image Format -
H.264 and MJPEG are available for image format selection. The term, “image format”, is referring to
compression / encoding technique. The selection of image format decides the performance of bandwidth and
storage requirement. In the request of same video quality, H.264 contributes to less bandwidth and storage
requirement, which is more efficient than MJPEG.
GOP -
In H.264 video coding, GOP (group of pictures) describes how the different types of frames are arranged. The
frame types implemented here are I-frame (full image information) and P-frame (motion-compensated
difference information). This setting configures the GOP length which is the number of frames before next
I-frame appears. Having more I-frames usually increases the stream size, and therefore more bandwidth and
storage are required.
Frame Rates -
The Frame Rates defines the number of frames that will be displayed per second. The frame rate setting can
affect the target bit rate (bandwidth requirement) and storage requirement.
All manuals and user guides at all-guides.com

19
3. Camera
This page provides the basic image color appearance and further image settings.
General
Camera General Setting:
Brightness: the luminance of image view
Hue: refer to pure a pure color, or described by its name, such as red, green or blue.
Saturation: intensity of a specific color
Contrast: the difference in color and light between parts of an image
Sharpness: the sharpness of camera image
All manuals and user guides at all-guides.com
