Gadspot ND637E User manual

ND637 User’s Manual
ND637E
User’s Manual
H.264 High Profile
2M Fish-Eye Panoramic Vandal Dome
Camera
Version: 1.0
Date: 06/15/2011

ND637 User’s Manual
1
1
Contents
Notices ...........................................................................................................................................................2
Introduction ...................................................................................................................................................3
Installation .....................................................................................................................................................4
Using the Web UI .........................................................................................................................................12
1. Live View..........................................................................................................................................13
2. Video................................................................................................................................................16
General.........................................................................................................................................16
External Video Source .................................................................................................................20
3. Camera.............................................................................................................................................21
General.........................................................................................................................................21
Advance........................................................................................................................................23
4. Event ................................................................................................................................................28
Event Server.................................................................................................................................29
Motion Detection.........................................................................................................................31
I/O Ports.......................................................................................................................................34
Event Configuration .....................................................................................................................35
5. Schedule...........................................................................................................................................36
General.........................................................................................................................................36
Storage.........................................................................................................................................37
6. Network ...........................................................................................................................................38
General.........................................................................................................................................38
Advanced .....................................................................................................................................39
SMTP (E-Mail) ..............................................................................................................................40
DDNS............................................................................................................................................41
7. System..............................................................................................................................................42
Information..................................................................................................................................42
User..............................................................................................................................................43
Date & Time.................................................................................................................................44
Server Maintenance.....................................................................................................................45
Log Service ...................................................................................................................................46
8. Customize.........................................................................................................................................47
FAQ...............................................................................................................................................................49
I/O Terminal Connector - Pin Assignment ...........................................................................................49
Restore Factory Default .......................................................................................................................49

ND637 User’s Manual
2
2
Notices
This user manual is intended for administrators and users of the ND637 Network Camera, including
instructions for using and managing the camera on your network. The use of surveillance devices may
be prohibited by law in your country. It is the user’s responsibility to ensure that the operation of such
devices is legal before installing this unit for its intended use.
Before the Network Camera is installed, all the safety and operating instructions should be carefully
read and followed to avoid damage due to faulty assembly and installation. This also ensures the
product is used properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power connection with
wet hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could damage this
equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified service
personnel or system installers.

ND637 User’s Manual
3
3
Introduction
ND637 is a Fish-Eye Vandal Dome Network Camera featured with 2Mega Pixel resolution and superior
H.264-AVC performance and rich functions. ND637 include a fish-eye lens for 360°panoramic wide angle
view without blind spot.
The e-PTZ function include 16 preset points without moving parts, it can execute part of traditional PTZ
camera functions and thus save lot of traditional mechanical Pan/Tilt maintain cost.
The hardware base panorama video processing ability can provide user multiple video mode include
source image, double broad view, triple mode view and quad view.
The PoE function (ND637E) is good for flexible installation.
Further functions include two-way audio and micro SD card support for local storage application.

ND637 User’s Manual
4
4
Installation
1. Hardware Connection
1. Prepare a PC with Ethernet link to the network
2. Connect LAN port (RJ45) of the camera to a network switch/hub
3. Connect power jack
4. Ensure the power adaptor specification matches the power system (110V or 220V) and connect
the adaptor to the outlet
5. Check LED status (Power/Network)

ND637 User’s Manual
5
5
2. Software Installation
The following software is necessary for the proper display and use of the ND637 from the Web site.
The software will be taken from the Software Package CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on the LAN. This
utility is useful for conveniently configuring the network settings of the device, or for finding a
device once the network settings have been modified.
To install the IP Installer, from the Software Package CD, select IP installer, then follow the on
instructions to complete the installation.
XVID Codec
An H.264 codec is applied for displaying the video stream and playing the recoded AVI files. If the
video stream can’t be displayed or the recorded AVI files can’t be play on PC, install this software
from the Software Package CD.
VLC
Though not necessary, this can be used for viewing the streaming without a Web browser.

ND637 User’s Manual
6
6
3. Network Configuration
IP Installer is a utility that provides an easier, more efficient way to configure the IP address and
network settings of the devices. It even provides a convenient way to set the network settings for
multiple devices simultaneously using the batch setting function. Moreover, IP Installer can save the
network settings for all devices as a backup and restore them when necessary.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server in order to
avoid using a previously assigned IP address.
2. Ensure the ND637 is powered on and correctly connected to the network.
3. MAC Address: Each device has a unique Ethernet address (MAC address) shown on the label of the
device as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any ND637 on the LAN except those that are
behind a router, it is a good idea to set the host PC to the same subnet. In order to connect to the
Web-based user interface of the camera, the host PC must be in the same subnet. For more
information about subnets, please consult your network administrator.
Using IP Installer to Assign an IP Address to ND637
1. Once IP Installer has been successfully installed on the PC, double click to run the software.
*0004290000
B1

ND637 User’s Manual
7
7

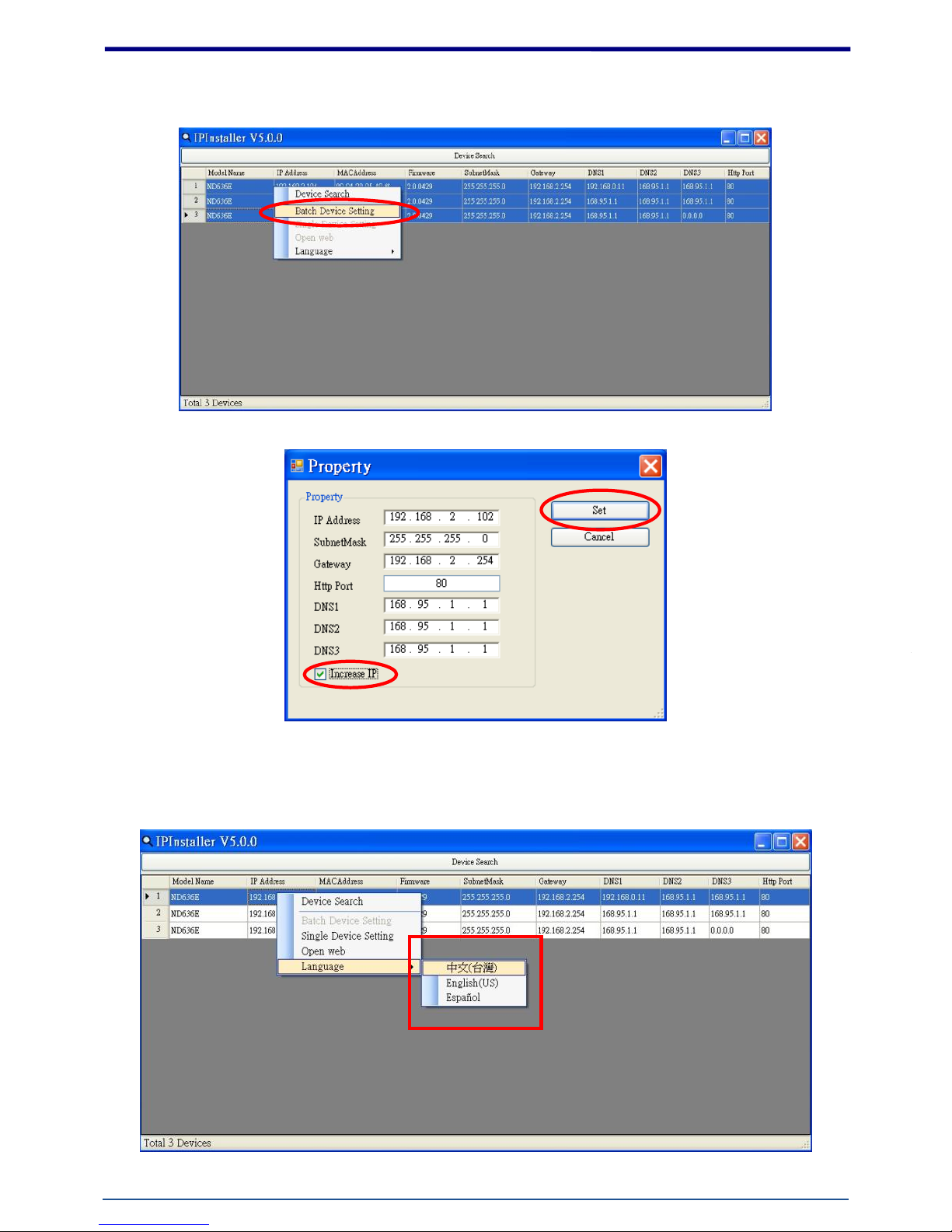

2. Click the [Device Search] to search the device in the LAN.
3. From the list, select the device with the MAC Address that corresponds to the ND637 that is to be
configured. The MAC Address is identical to the unit’s S/N (Serial Number).
4. Double click the select item to open the Property Page or right click the item to select the
[Single Device Setting].

ND637 User’s Manual
8
8
5. Modify the network settings of the camera.
6. After filling in the properties, click [Set]button to complete the configuration settings.

ND637 User’s Manual
9
9
7. Click the [Batch Device Setting] to set several devices.
8. Language support for Chinese, English and Spanish.

ND637 User’s Manual
10
10
Open the Web-based UI of the selected camera
1. To access the Web-based UI of the selected unit, run the [Open Web] on the select item.
2. For first time user, there will be a prompt to install the ActiveX control. Confirm the installation as it
is required to view the video stream and some operations.

ND637 User’s Manual
11
11
3. If the device has been configured correctly, the default Web browser will open to the home page of
the selected device.
Verify and Complete the Installation from Your Browser
When browsing the Home Page at the first time with the Microsoft Internet Explorer TM, you must
temporarily lower your security settings to perform a one-time-only installation of the ActiveX
component onto your workstation, as described below:
1. From the Tools menu, select [Internet Options]
2. Click the [Security] tab and then click [Custom Level] button to see your current security settings.
3. Set the security level to Low and click [OK].
4. Type the URL or IP address of your camera into the Address field.
5. A dialog box will pop up asking if the ActiveX control should be installed. Click [Yes] to start the
installation.
Once the ActiveX installation is complete, return the security settings to their original value, as noted
above.

ND637 User’s Manual
12
12
Using the Web UI
Start your Web browser and enter the URL or IP address in the Address field. The Home page of the
camera is now displayed.

ND637 User’s Manual
13
13
1. Live View
Button
Description
Click for more general/advance camera settings
Select languages among English, traditional Chinese and simplify Chinese
Select display mode to view the different type of the video layout.
Check actual size to view the actual size (resolution) of the image
Applied as one of the trigger conditions
IP address of the camera
Video format
Resolution
Frame Rate
Bit rate

ND637 User’s Manual
14
14
Button
Description
Full screen
Listen the audio input from local end
Talk function
Record instant live video
Snapshot the image

ND637 User’s Manual
15
15
Configuration Pages List
Video
General
Advance
External Video Source
Camera
General
Advance
Event
Event Server
Motion Detection
I/O ports
Event Configuration
Schedule
General
Storage
Network
General
Advance
SMTP (E-mail)
DDNS
System
Information
User
Date & Time
Server Maintenance
Log Service
Customize
Style Layout

ND637 User’s Manual
16
16
2. Video
General
OSD Setting: Enable OSD to display camera name and date/time on the image.
The PTZ function will display in Broad view, Quad view, Quad with source view, Double view and Triple
view of Ceiling Mount.
Click on the PTZ icon, the web will popup the control panel to control e-PTZ function of ND637.

ND637 User’s Manual
17
17
Broad view PTZ control panel:
1. Step: Setting the speed of Pan function. (1~10)
2. Pan Arrow: Click to control Pan function.
3. Move the control panel.
4. Close the control panel.
1
3
4
2

ND637 User’s Manual
18
18
Quad view & Quad with source view PTZ control panel:
1. Ch：Select the channel. (1~4) & (2~4)
2. Step：Setting the speed of Pan/Tilt function. (1~10)
3. Pan Tilt Arrow：Click to control Pan/Tilt function.
4. Zoom：Digital zoom in/out. (1~10)
5. Move the control panel.
6. Close the control panel.
7. List of preset points. (1~16)
1
2
3
4
5
6
7

ND637 User’s Manual
19
19
Advanced
Stream 1 Setting:
RTSP Path: It is the stream ID used for RTSP client streaming connection, such as VLC player.
(default v00)
Resolution: 1600x1200, 800x600, 640x480.
Video Mode: Choose between variable bit rate (VBR) and constant bit rate (CBR)
VBR-> Choose quality level from best to standard, for some environment it is very important to
ensure the video quality level but after selecting video quality level, the bandwidth
consumption will be variable.
CBR-> Choose target bit rate range from 1000kb to 6000kb, for some environment it is very
helpful for network bandwidth management but the video quality will be variable up to the
complexity of video scene.
Image Format: 2 kinds of format to choose from; MJPEG and H.264.
GOP: Choose the number of P-frame or B-frame between I-frame from 2 to 32, the shorter of
the number indicated the higher video quality you may get, while it will consumer more
network bandwidth and storage size.
Frame Rates (FPS): Choose the number of frames to display per second from 5 to15.
