User’s Manual
H.264 Series 2-Megapixel
Network Camera
ND614E
Version 1.3
Date: 12/26/2011

Contents
Notices ...........................................................................................................................3
Introduction....................................................................................................................4
Installation......................................................................................................................5
1. Hardware............................................................................................................5
2. Software Installation..........................................................................................6
3. Network Configuration......................................................................................7
Using the Web UI.........................................................................................13
1. Live View.........................................................................................................14
2.Video.................................................................................................................17
3.Camera..............................................................................................................20
General.........................................................................................................20
Advanced .....................................................................................................22
4 .Event ................................................................................................................23
Event Configuration.....................................................................................27
5. Schedule...........................................................................................................30
General.........................................................................................................30
Storage .........................................................................................................31
5. Network........................................................................................................34
General.........................................................................................................34
Advanced .....................................................................................................35
SMTP (E-Mail)............................................................................................36
DDNS...........................................................................................................37
7. System..............................................................................................................38
User..............................................................................................................38
Date & Time.................................................................................................39
Server Maintenance .....................................................................................40
Log Service..................................................................................................40
8. Customize ........................................................................................................41
FAQ..............................................................................................................................43
1.Restore Factory Default Settings ......................................................................43
2.Video Streams Specification......................................... 錯誤! 尚未定義書籤。

3
Notices
This user manual is intended for administrators and users of the ND614 Series Network
Camera, including instructions for using and managing the camera on your network. The use
of surveillance devices may be prohibited by law in your country. It is the user’s responsibility
to ensure that the operation of such devices is legal before installing this unit for its intended
use.
Before the Network Camera is installed, all the safety and operating instructions should be
carefully read and followed to avoid damage due to faulty assembly and installation. This also
ensures the product is used properly as intended.
Heed all warnings
Do not drop or strike this equipment
Sensitive electronics inside the camera are vulnerable to excessive strike.
Do not install the equipment near any flames or heat sources
Excessive heat could damage this equipment.
Do not cover cloth or to install this equipment in poorly ventilated places.
Overheating could damage this equipment.
Do not expose this equipment to rain or moisture. Do not touch the power
connection with wet hands
Risk of short circuit, electric shock or fire
Do not damage the power cord or leave it under pressure
Risk of fire or shock circuit
To reduce the risk of electric shock, do not remove the Cover (or Back).
No user-serviceable parts inside. Misusage, improper, and negligence could
damage this equipment. Need to refer servicing to qualified service personnel.
Do not continue to operate if there appears to be fault.
If the unit ceases to function, contact qualified service personnel for help.
All work related to the installation of this product should be made by qualified
service personnel or system installers.

4
Introduction
The ND614 Series Network Camera delivers superior H.264-AVC performance, state of the
art design and function. ND614 Series is specifically adapted for maximum performance
indoor applications, such as commercial, banking, government buildings, schools,
universities and airports.
H.264-AVC video compression can lower bandwidth and storage requirements without
compromising image quality; Motion JPEG is supported for increased flexibility, as well as
multiple independent video streaming.
ND614 value-added features include; on-board video motion detection, two-way audio,
Micro SD card storage and PoE model is available with full PoE (IEEE-802.3af) feature that
supplies function of power to the camera via the network, eliminating the need for power
cables, reducing installation costs and complexity. Consequently, ND614 is “Best in Class”
for maximum performance IP video surveillance systems, demanding superior image
quality, ease of installation, and intelligent video capabilities.

5
Installation
1. Hardware

6
2. Software Installation
The following software is necessary for the proper display and use of the ND614 from the Web
site. The software will be available from the Software Package CD.
IP Installer
The IP Installer is used to locate and configure network cameras and video servers on
the LAN. This utility is useful for conveniently configuring the network settings of the
device, or for finding a device once the network settings have been modified. To install
the IP Installer, from the Software Package CD UI, select IP installer, then follow the on
screen instructions.
XVID Codec
An H.264 codec is applied for displaying the video stream and playing the recoded AVI
files. If the video stream can’t be displayed or the recorded AVI files can’t be play on PC,
install this software from the Software Package CD.
VLC
Though not necessary, this can be used for viewing the streaming without a Web
browser.

7
3. Network Configuration
IP Installer is a utility that provides an easier, more efficient way to configure the IP
address and network settings of the devices. It even provides a convenient way to set the
network settings for multiple devices simultaneously using the batch setting function.
NOTE: Default mode is DHCP.
Preparation before IP Assignment
1. Always consult your network administrator before assigning an IP address to your server
in order to avoid using a previously assigned IP address.
2. Ensure the device is powered on and correctly connected to the network.
3. MAC Address: Each device has a unique Ethernet address (MAC address) shown on the
label of the device as the serial number (S/N) with 12 digits (e.g. 000429-XXXXXX).
4. Although the IP Installer is able to find and configure any Pixord devices on the LAN
except those that are behind a router, it is a good idea to set the host PC to the same
subnet. In order to connect to the Web-based user interface of the camera, the host PC
must be in the same subnet. For more information about subnets, please consult your
network administrator.
Using IP Installer to Assign an IP Address to ND614
1. Once IP Installer has been successfully installed on the PC, double click the IP Installer
icon on the desktop,
2. Click the [Device Search] to search the device in the LAN.
*0004290000
B1

8
3. From the list, select the device with the MAC Address that corresponds to the device that
is to be configured. The MAC Address is identical to the unit’s S/N (Serial Number).
4. Double click the select item to open the Property Page or right click the item to select the
[Single Device Setting].
5. Modify the network settings of the camera

9
6. After filling in the properties, click [Set] button to complete the configuration settings.
7. Click the [Batch Device Setting] to set several devices.

10
8. Language support for Chinese, English and Spanish.
Open the Web-based UI of the selected camera
1. To access the Web-based UI of the selected unit, run the View > Open Web on the menu
bar.

11
2. For first time user, there will be a prompt to install the ActiveX control. Confirm the
installation as it is required to view the video stream and some operations.
3. If the device has been configured correctly, the default Web browser will open to the
home page of the selected device.

12
Verify and Complete the Installation from Your Browser
When browsing the Home Page for the first time with the Microsoft Internet ExplorerTM, you
must temporarily lower your security settings to perform a one-time-only installation of the
ActiveX component onto your workstation, as described below:
1. From the Tools menu, select [Internet Options]
2. Click the [Security] tab and then click [Custom Level] button to see your current security
settings.
3. Set the security level to Low and click [OK].
4. Type the URL or IP address of your camera into the Address field.
5. A dialog box will pop up asking if the ActiveX control should be installed. Click [Yes] to
start the installation.
Once the ActiveX installation is complete, return the security settings to their original value, as
noted above.

13
Using the Web UI
Start your Web browser and enter the URL or IP address in the Address field. The Home page
of the camera is now displayed
1. Launch a web browser,
2. Enter the IP address of the camera in the address field of the browser,
3. The login process will require username and password for a new session connection.
The default username/password is admin/admin.
4. After authorized, the web will be directed to the main page of the camera with the live
video

14

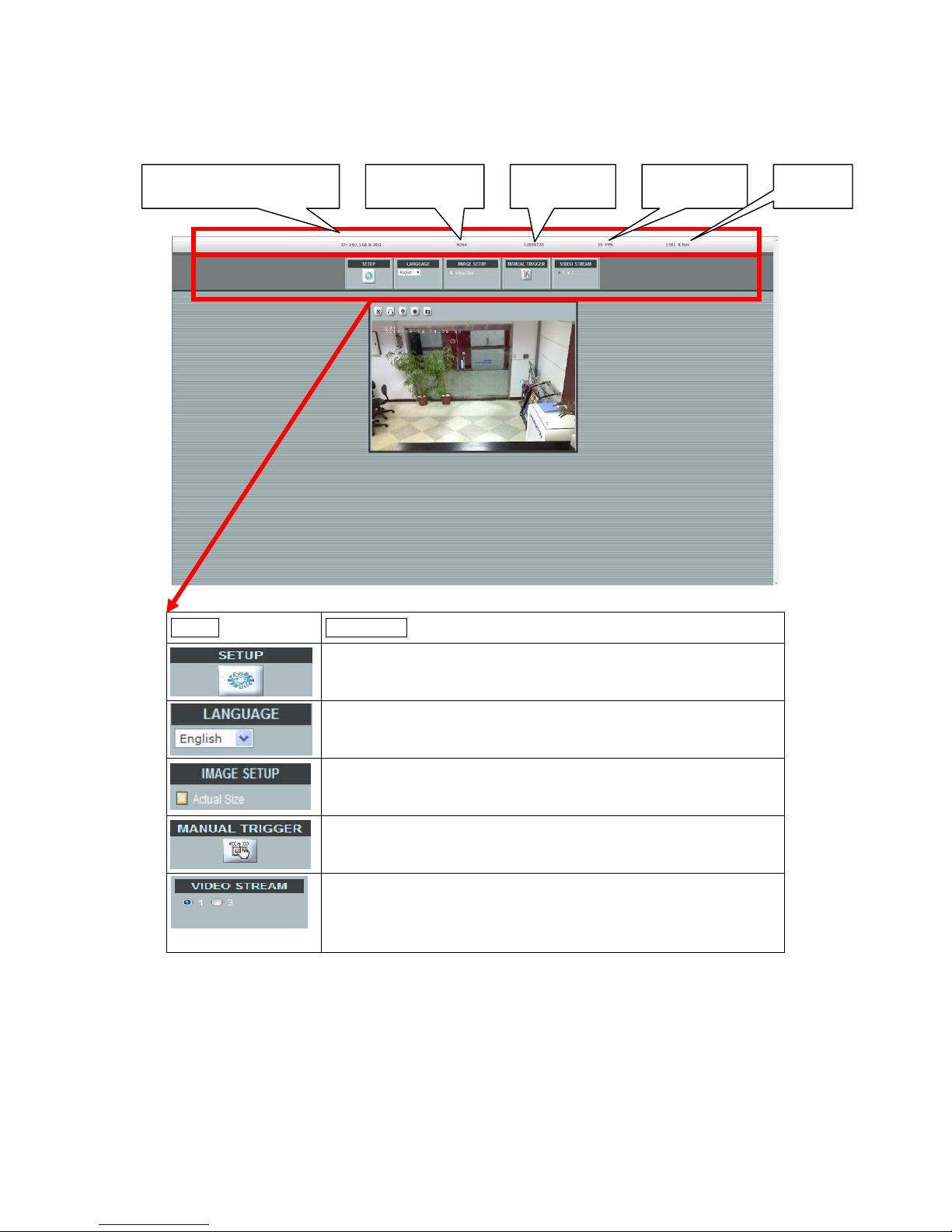

1. Live View
Button
Description
Click for more general/Advanced camera settings
Select languages among English, traditional Chinese and simplify Chinese
Check actual size to view the actual size (resolution) of the image
Triggers manually a preset event in the configuration page
Choose among the 3 streams for viewing，Digital PTZ is only available with
stream 2
IP address of the camera
Video format
Resolution
Frame Rate
Bit rate

15
Button
Description
Full screen
Listen the audio input from local end
Talking function
Record instant live video
Snapshot the image

16
Configuration Pages List
Video
General
Advanced

Camera
General
Advanced
Event
Event Server
Motion Detection
Event Configuration
Schedule
General
Storage
Network
General
Advanced
SMTP (E-mail)
DDNS
System
Information
User
Date & Time
Server Maintenance
Log Service
Customize
Style Layout

17
2.Video
This section describes how to configure the video streaming from the device, and the related
camera image configurations. Users with Administrator or Operator authority are intended
for these configurations.
Click on SETUP button to enter in the configuration pages.
General
Video General Setting: Check each box to enable streams (max 3) for live viewing
Note: Digital PTZ is only available with stream 2
OSD Setting:
Enable the On Screen Display (OSD) information. A line of text message (e.g. Camera Name
or Position) and the date/time string are available to be selected for displaying or hiding on the
images.

18
Digital PTZ is only available with stream 2
Choice the Stream 2, the web wills display the control panel to control e-PTZ function of N600
1: Zoom: Digital zooms in/out.
2: Pan Arrow: Click to control Pan function.
3: Step: Setting the speed of Pan function. (1、5、10)
Advanced
The Video Advanced setting page provides more detail stream configurations. These settings
can affect video size, quality. The expected transferring performance must be under the
condition of full network bandwidth
Stream Setting:
Note:
1:Configuration of stream 2 is the same as stream 1, but Stream 2 can only be set to 320x240
or 640x480,
2:Stream3 only RTSP path、image format and frame rate can be adjusted, the rest of the
settings are fixed.
3
1
2

19
RTSP Path -
The RTSP Path is the stream ID used for RTSP client streaming connection, such as VLC
player. The default values are v00, v01 and v02 for the three streams respectively. The string
can be any combination of number or capital/small letters. It cannot be empty however.
Resolution -
The resolution here describes an image size counted by width and height, e.g. 640x480,
referring to pixel resolution. The 1st stream can be set from more options of resolution;
1600x1200 (2 megapixels), 1280x720(HD), 800x600(SVGA), 640x480(VGA),
320x240(QVGA). While Stream2 has the options of VGA and QVGA, stream3 is in a fixed
resolution, the QVGA.
Video Mode -
This option allows the selection of two bit rate modes, the Constant Bit Rate (CBR) or
Variable Bit Rate (VBR). CBR refers to the setting of a fixed Target Bit Rate (configuration in
the rage of 64Kbps to 6Mbps) that would apply in the case of limited bandwidth or/and storage
requirement. While CBR concerns a fixed data rate transmitting, the video quality is of high
priority for VBR mode selected. VBR therefore is configured with the Quality Level (Standard,
Good, Best). In general, CBR predicts the provided condition; if image activity requires higher
bit rates than configured, the frame rate and quality would be affected as not likely to increase
bandwidth (bit rate). In spite of the required recording storage estimation, VBR is by way of
compensation that adjustable bit rate fits the actual image activity.
Image Format -
H.264 and MJPEG are available for image format selection. The term, “image format”, is
referring to compression / encoding technique. The selection of image format decides the
performance of bandwidth and storage requirement. In the request of same video quality,
H.264 contributes to less bandwidth and storage requirement, which is more efficient than
MJPEG.
GOP -
In H.264 video coding, GOP (group of pictures) describes how the different types of frames are
arranged. The frame types implemented here are I-frame (full image information) and P-frame
(motion-compensated difference information). This setting configures the GOP length which is
the number of frames before next I-frame appears. Having more I-frames usually increases
the stream size, and therefore more bandwidth and storage are required.
Frame Rates -
The Frame Rates defines the number of frames that will be displayed per second. The frame

20
rate setting can affect the target bit rate (bandwidth requirement) and storage requirement.
Note:
While multiple streaming is possible, each stream has its limitation and dependency to other
stream. See “Video Stream Specification”.
3.Camera
This page provides the basic image color appearance and further image settings.
General
