Galaxy 790.6071 Series User manual

Galaxy
Gas ange
stufa de as
790.6071
= color number, nQmero de color
¢)¢) ¢)¢)
_!ii:iilSi_i_
..........iiiiii_.........
www.sears.com Sears Roebuck and Co., Hoffman Estates, IL 60179 U.S.A. pin 316901005 (0910)

Table of Contents
Free-Standing Range Warranty ........................................... 2
Product Record ................................................................... 2
Serial Plate Location ........................................................... 2
iMPORTANT SAFETY iNSTRUCTiONS .......................... 3-5
Master Protection Agreements ............................................ 6
Setting Surface Controls ..................................................... 7
Before Setting Oven Controls .............................................. 8
Setting Oven Controls ......................................................... 9

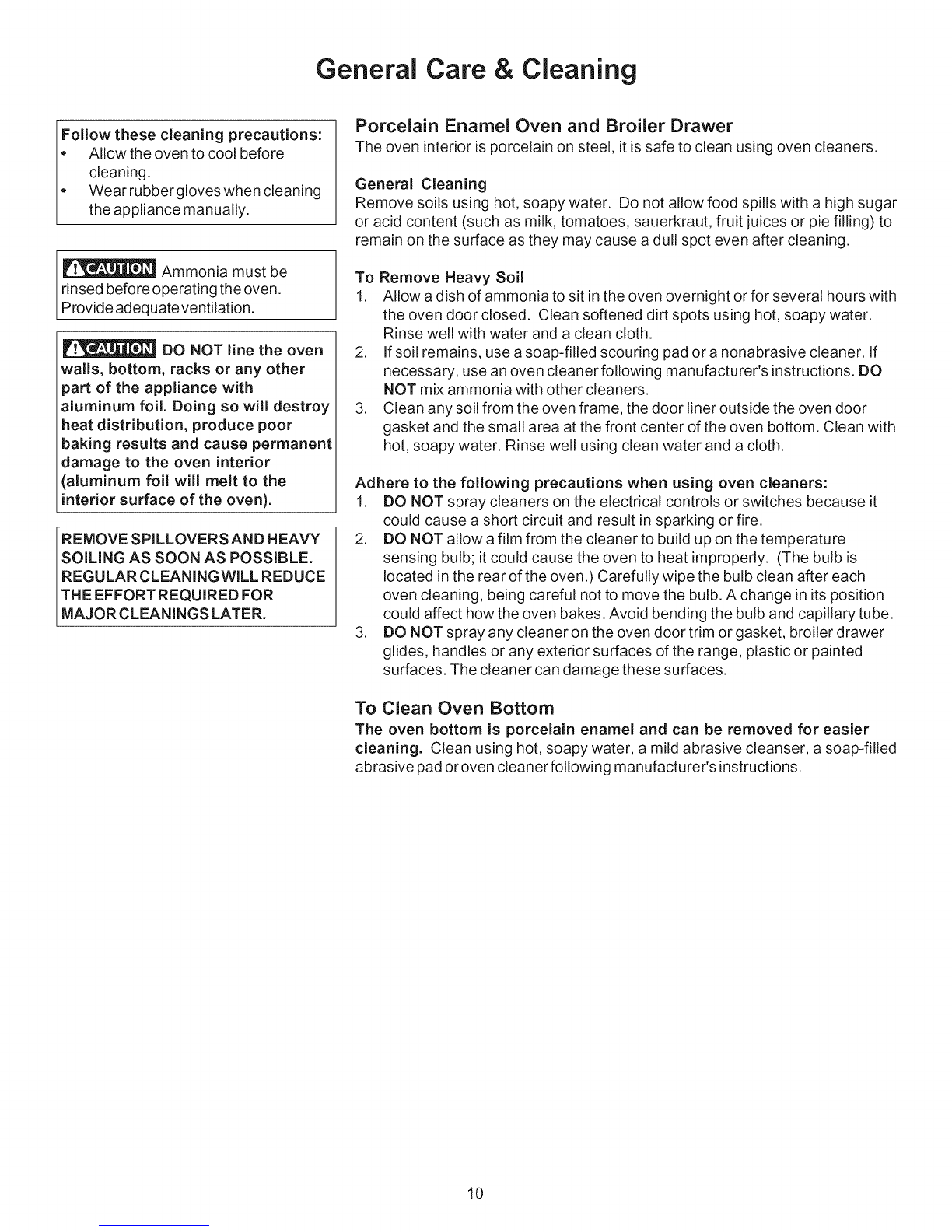

General Care & Cleaning .............................................. 10-13

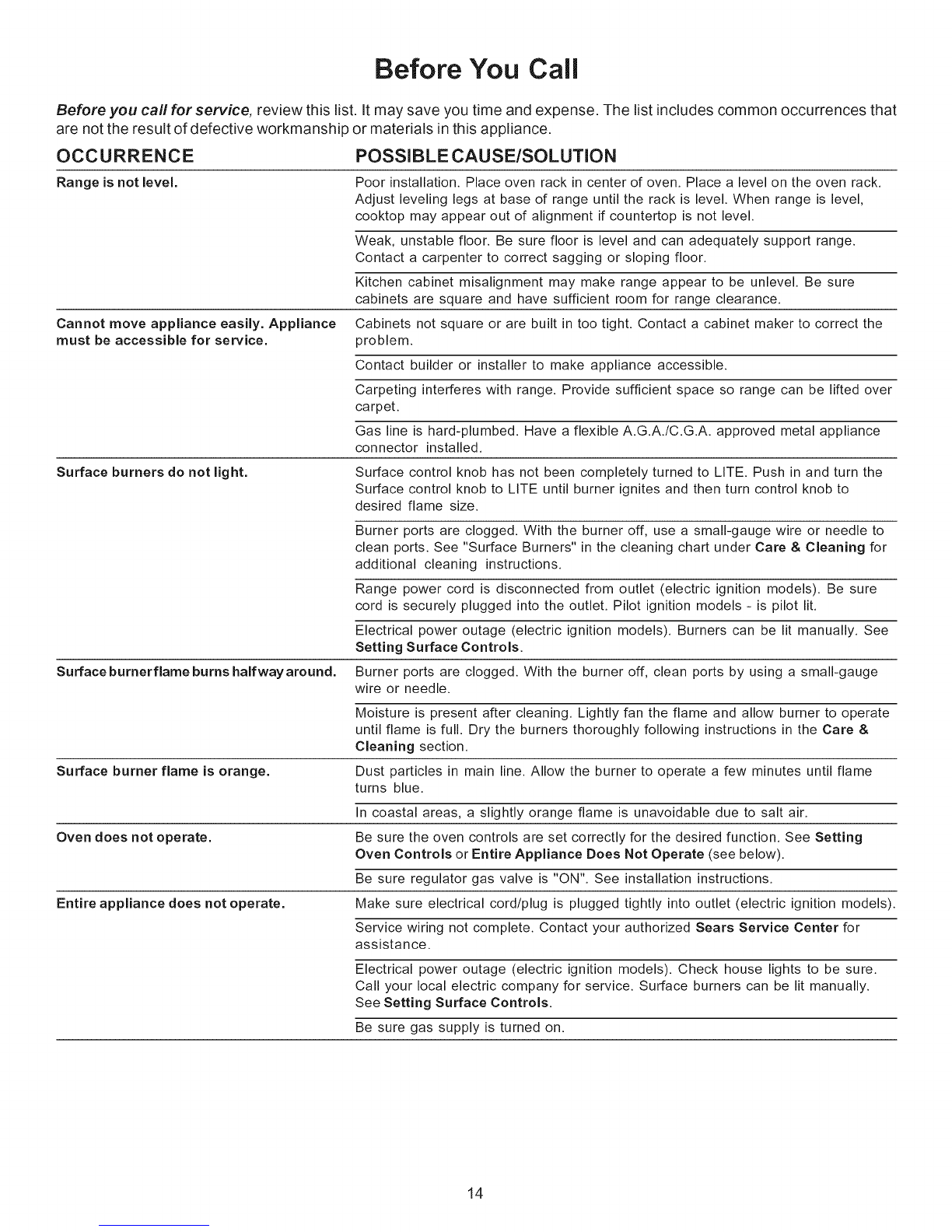

Before You Make a Service Call ................................... 14-15
Sears Service ...................................................... Back cover
Espa#ol ........................................................................ 17-32
Product Record
In this space below, record the date of purchase, model and
serial number of your product. You will find the model and
serial number printed on an identification plate. See the
bottom of the page for the serial plate location.
Model No. 790.
Serial No.
Date of Purchase
Save these instructions and your sales receipt for future
reference.
One Year Limited Warranty
When installed, operated and maintained according to all instructions supplied with the product, if this appliance fails due to
a defect in material and workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free
repair. This warranty applies for only 90 days from the date of purchase if this appliance is ever used for other than private
family purposes.
This warranty covers only defects in material and workmanship. Sears will NOT pay for:
1. Cracks in a ceramic glass cooktop that are not a result of thermal shock.
2. Stains and scratches on a ceramic glass cooktop resulting from failure to maintain it properly according to all instructions
supplied with the product.
3. Expendable items that can wear out from normal use, including but not limited to filters, belts, light bulbs, and bags.
4. A service technician to instruct the user in correct product installation, operation or maintenance.
5. A service technician to clean or maintain this product.
6. Damage to or failure of this product if it is not installed, operated or maintained according to all instructions supplied with
the product.
7. Damage to or failure of this product resulting from accident, abuse, misuse or use for other than its intended purpose.
8. Damage to or failure of this product caused by the use of detergents, cleaners, chemicals or utensils other than those
recommended in all instructions supplied with the product.
9. Damage to or failure of parts or systems resulting from unauthorized modifications made to this product.
Disclaimer of implied warranties; limitation of remedies
Customer's sole and exclusive remedy under this limited warranty shall be product repair as provided herein. Implied warran-
ties, including warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period
allowed by law. Sears shall not be liable for incidental or consequential damages. Some states and provinces do not allow
the exclusion or limitation of incidental or consequential damages, or limitation on the duration of implied warranties of
merchantability or fitness, so these exclusions or limitations may not apply to you.
This warranty applies only while this appliance is used in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL 60179
Sears Canada Inc., Toronto, Ontario, Canada M5B 2B8
Serial Plate Location
You will find the model and serial number printed on the
serial plate. Please refer to the illustration(s) shown at right
to locate the serial plate on your range.
Remember to record the serial number under Product
Record on this page for future reference.

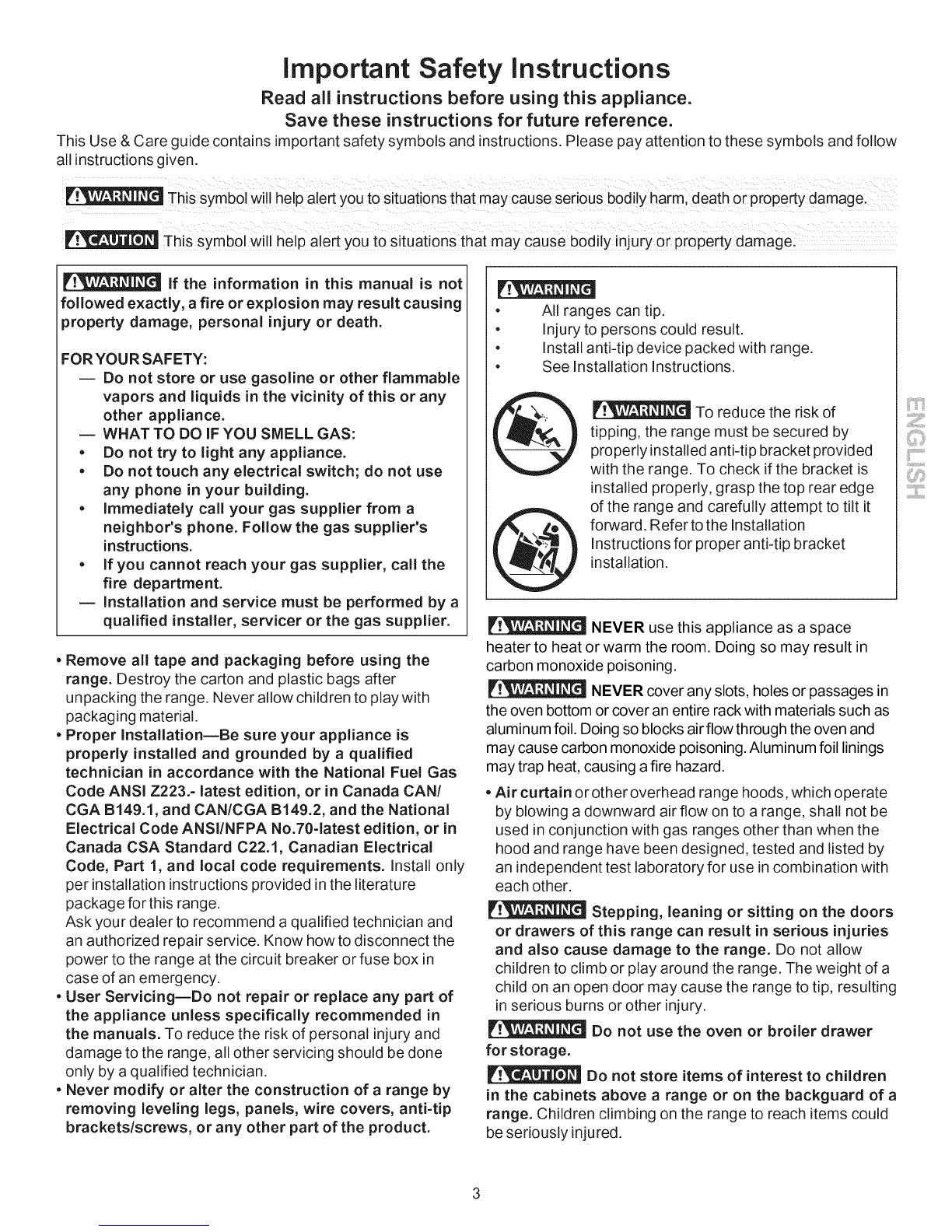

important Safety instructions
Read all instructions before using this appliance.
Save these instructions for future reference.
This Use & Care guide contains important safety symbols and instructions. Please pay attention to these symbols and follow
all instructions given.
This Symb01WillfielP alert YOUto situations that may cause serious b0di!y harm, death or pr0perty damagel
This symbol Will help alert you to situati0ns that may Cause b0dily injury Or pr0Perty damagel
if the information in this manual is not
followed exactly, a fire or explosion may result causing
property damage, personal injury or death.
FOR YOUR SAFETY:
-- Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
-- WHAT TO DO IF YOU SMELL GAS:
. Do not try to light any appliance.
. Do not touch any electrical switch; do not use
any phone in your building.
. immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
. if you cannot reach your gas supplier, call the
fire department.
-- installation and service must be performed by a
qualified installer, servicer or the gas supplier.
.Remove all tape and packaging before using the
range. Destroy the carton and plastic bags after
unpacking the range. Never allow children to play with
packaging material.
. Proper Installation--Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National Fuel Gas
Code ANSI Z223.= latest edition, or in Canada CAN/
CGA B149.1, and CAN/CGA B149.2, and the National
Electrical Code ANSI/NFPA No.704atest edition, or in
Canada CSA Standard C22.1, Canadian Electrical
Code, Part 1, and local code requirements. Install only
per installation instructions provided in the literature
package for this range.
Ask your dealer to recommend a qualified technician and
an authorized repair service. Know how to disconnect the
power to the range at the circuit breaker or fuse box in
case of an emergency.
. User Servicing--Do not repair or replace any part of
the appliance unless specifically recommended in
the manuals. To reduce the risk of personal injury and
damage to the range, all other servicing should be done
only by a qualified technician.
. Never modify or alter the construction of a range by
removing leveling legs, panels, wire covers, anti=tip
brackets/screws, or any other part of the product.
• All ranges can tip.
• Injury to persons could result.
•Install anti-tip device packed with range.
• See Installation Instructions.
To reduce the risk of
tipping, the range must be secured by
properly installed anti-tip bracket provided
with the range. To check if the bracket is
installed properly, grasp the top rear edge
of the range and carefully attempt to tilt it
forward. Refer to the Installation
Instructions for proper anti-tip bracket
installation.
NEVER use this appliance as a space
heater to heat or warm the room. Doing so may result in
carbon monoxide poisoning.
NEVER cover any slots, holes or passages in
the oven bottom or cover an entire rack with materials such as
aluminum foil. Doing so blocks airflow through the oven and
may cause carbon monoxide poisoning. Aluminum foil linings
may trap heat, causing a fire hazard.
. Air curtain or other overhead range hoods, which operate
by blowing a downward air flow on to a range, shall not be
used in conjunction with gas ranges other than when the
hood and range have been designed, tested and listed by
an independent test laboratory for use in combination with
each other.
Stepping, leaning or sitting on the doors
or drawers of this range can result in serious injuries
and also cause damage to the range. Do not allow
children to climb or play around the range. The weight of a
child on an open door may cause the range to tip, resulting
in serious burns or other injury.
Do not use the oven or broiler drawer
for storage. Do not store items of interest to children
in the cabinets above a range or on the backguard of a
range. Children climbing on the range to reach items could
be seriously injured.

important Safety instructions
. Storage in or on Appliance--Flammable materials
should not be stored in an oven, near surface burners
or in the broiler drawer. This includes paper, plastic and
cloth items, such as cookbooks, plasticware and towels,
as well as flammable liquids. Do not store explosives,
such as aerosol cans, on or near the range.
. Do Not Leave Children Alone--Children should not be
left alone or unattended in the area where appliance
is in use. They should never be allowed to sit or stand on
any part of the appliance.
, DO NOTTOUCH SURFACE BURNERS,AREAS NEAR
THESE BURNERS, OVEN BURNERS OR INTERIOR
SURFACES OF THE OVEN. Both surface and oven
burners may be hot even though flames are not visible.
Areas near surface burners may become hot enough to
cause burns. During and after use, do not touch, or let
clothing or other flammable materials touch these areas
until they have had sufficient time to cool. Among these
areas are the cook top, surfaces facing the cook top, the
oven vent openings and surfaces near these openings,
oven door and window.
, Wear Proper Apparel--Loose-fitting or hanging
garments should never be worn while using the
appliance. Do not let clothing or other flammable
materials contact hot surfaces.
. Do Not Use Water or Flour on Grease Fires--Smother
the fire with a pan lid, or use baking soda, a dry
chemical or foam-type extinguisher.
. When heating fat or grease, watch it closely. Fat or
grease may catch fire if allowed to become too hot.
. Use Only Dry Potholders--Moist or damp potholders
on hot surfaces may result in burns from steam. Do
not let potholders touch hot heating elements. Do not use
a towel or other bulky cloth instead of a potholder.
. Do Not Heat Unopened Food Containers--Buildup of
pressure may cause container to burst and result in
injury.
, Remove the oven door from any unused range if it is
to be stored or discarded.

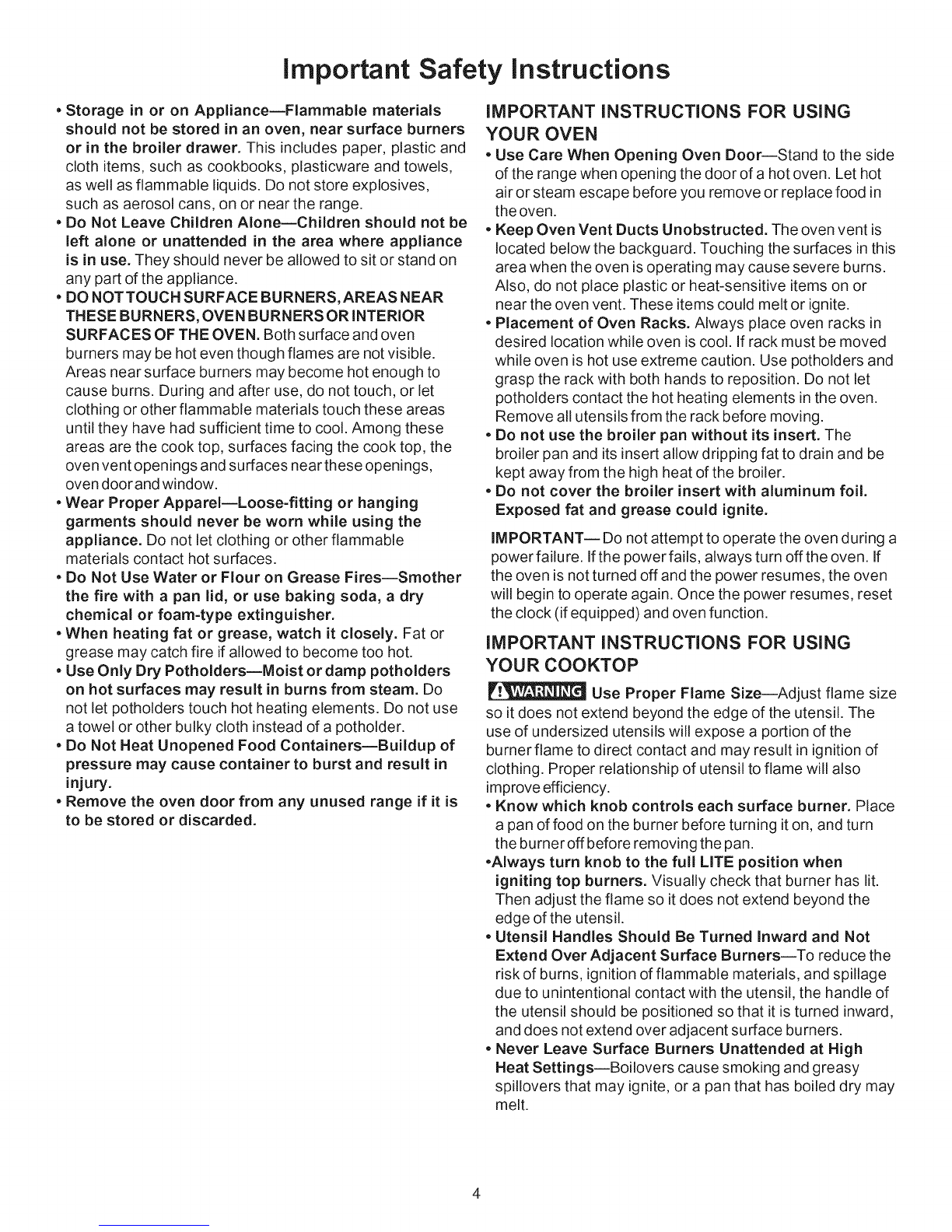

IMPORTANT INSTRUCTIONS FOR USING
YOUR OVEN
. Use Care When Opening Oven Door--Stand to the side
of the range when opening the door of a hot oven. Let hot
air or steam escape before you remove or replace food in
the oven.
. Keep Oven Vent Ducts Unobstructed. The oven vent is
located below the backguard. Touching the surfaces in this
area when the oven is operating may cause severe burns.
Also, do not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or ignite.
. Placement of Oven Racks. Always place oven racks in
desired location while oven is cool. If rack must be moved
while oven is hot use extreme caution. Use potholders and
grasp the rack with both hands to reposition. Do not let
potholders contact the hot heating elements in the oven.
Remove all utensils from the rack before moving.
. Do not use the broiler pan without its insert. The
broiler pan and its insert allow dripping fat to drain and be
kept away from the high heat of the broiler.
. Do not cover the broiler insert with aluminum foil.
Exposed fat and grease could ignite.
IMPORTANT-- Do not attempt to operate the oven during a
power failure. If the power fails, always turn offthe oven. If
the oven is not turned off and the power resumes, the oven
will begin to operate again. Once the power resumes, reset
the clock (if equipped) and oven function.
IMPORTANT INSTRUCTIONS FOR USING
YOUR COOKTOP
Use Proper Flame Size--Adjust flame size
so it does not extend beyond the edge of the utensil. The
use of undersized utensils will expose a portion of the
burner flame to direct contact and may result in ignition of
clothing. Proper relationship of utensil to flame will also
improve efficiency.
* Know which knob controls each surface burner. Place
a pan of food on the burner before turning iton, and turn
the burner off before removing the pan.
*Always turn knob to the full LITE position when
igniting top burners. Visually check that burner has lit.
Then adjust the flame so it does not extend beyond the
edge of the utensil.
* Utensil Handles Should Be Turned Inward and Not
Extend Over Adjacent Surface Burners--To reduce the
risk of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil, the handle of
the utensil should be positioned so that it is turned inward,
and does not extend over adjacent surface burners.
* Never Leave Surface Burners Unattended at High
Heat Settings--Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry may
melt.

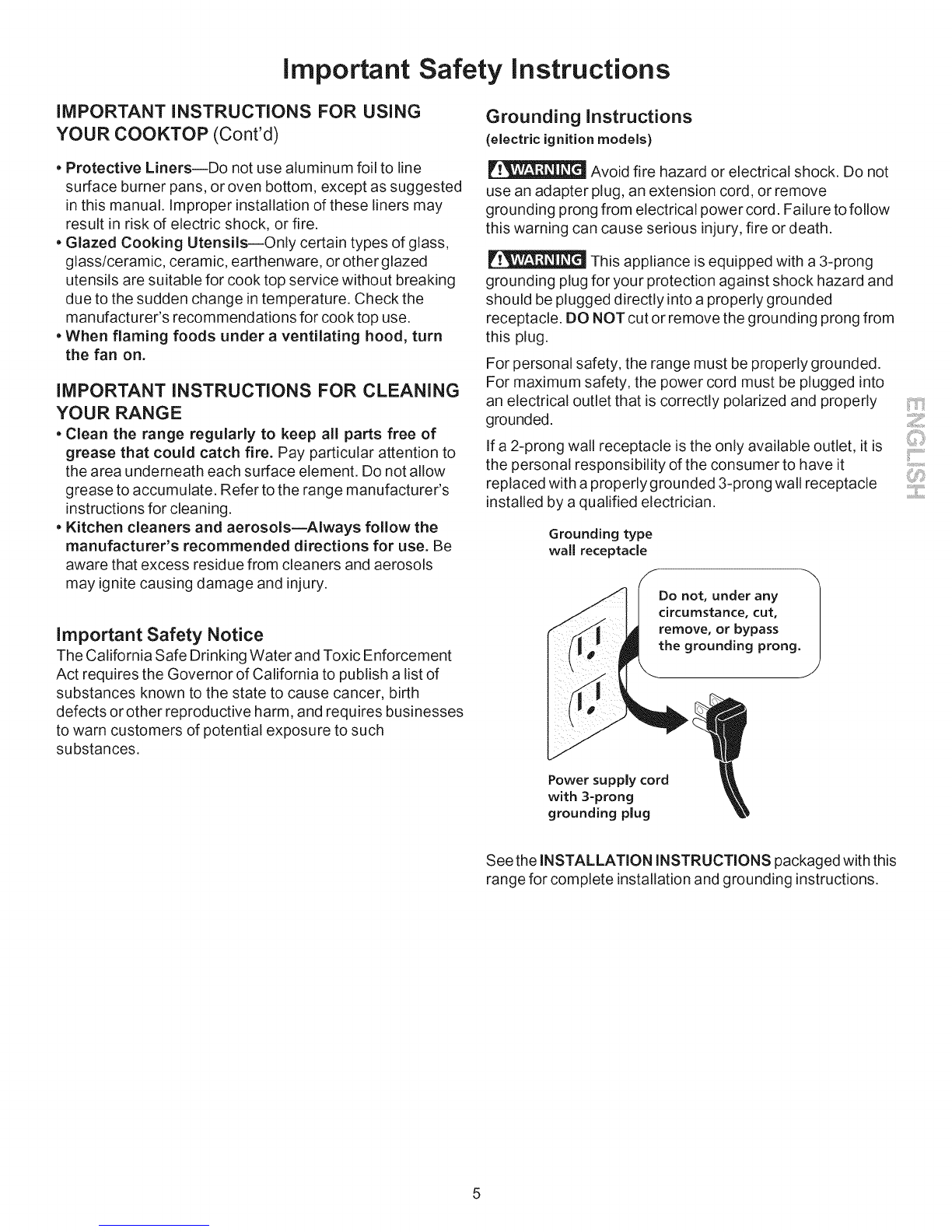

important Safety instructions
iMPORTANT iNSTRUCTiONS FOR USING
YOUR COOKTOP (Cont'd)
. Protective Liners--Do not use aluminum foil to line
surface burner pans, or oven bottom, except as suggested
in this manual. Improper installation of these liners may
result in risk of electric shock, or fire.
. Glazed Cooking Utensils--Only certain types of glass,
glass/ceramic, ceramic, earthenware, or other glazed
utensils are suitable for cook top service without breaking
due to the sudden change in temperature. Check the
manufacturer's recommendations for cook top use.
. When flaming foods under a ventilating hood, turn
the fan on.
IMPORTANT INSTRUCTIONS FOR CLEANING
YOUR RANGE
.Clean the range regularly to keep all parts free of
grease that could catch fire. Pay particular attention to
the area underneath each surface element. Do not allow
grease to accumulate. Refer to the range manufacturer's
instructions for cleaning.
.Kitchen cleaners and aerosols--Always follow the
manufacturer's recommended directions for use. Be
aware that excess residue from cleaners and aerosols
may ignite causing damage and injury.
Important Safety Notice
The California Safe Drinking Water and Toxic Enforcement
Act requires the Governor of California to publish a list of
substances known to the state to cause cancer, birth
defects or other reproductive harm, and requires businesses
to warn customers of potential exposure to such
substances.
Grounding Instructions
(electric ignition models)
Avoid fire hazard or electrical shock. Do not
use an adapter plug, an extension cord, or remove
grounding prong from electrical power cord. Failure to follow
this warning can cause serious injury, fire or death.
This appliance is equipped with a 3-prong
grounding plug for your protection against shock hazard and
should be plugged directly into a properly grounded
receptacle. DO NOT cut or remove the grounding prong from
this plug.
For personal safety, the range must be properly grounded.
For maximum safety, the power cord must be plugged into
an electrical outlet that is correctly polarized and properly
grounded.
If a 2-prong wall receptacle is the only available outlet, it is
the personal responsibility of the consumer to have it
replaced with a properly grounded 3-prong wall receptacle
installed by a qualified electrician.
Grounding type
wall receptacle
Do not, under any
circumstance, cut,
remove, or bypass
the grounding prong.
Power supply cord
with 3-prong
grounding plug
See the INSTALLATION INSTRUCTIONS packaged with this
range for complete installation and grounding instructions.

Protection Agreements Acuerodes de protecci6n
Master Protection Agreements
Congratulations on making a smart purchase. Your new Kenmore ®
product is designed and manufactured for years of dependable operation.
But like all products, it may require preventive maintenance or repair from
time to time. That's when having a Master Protection Agreement can
save you money and aggravation.
The Master Protection Agreement also helps extend the life of your new
product. Here's what the Agreement* includes:
[] Parts and labor needed to help keep products operating properly
under normal use, not just defects. Our coverage goes well
beyond the product warranty. No deductibles, no functional failure
excluded from coverage - real protection.
[] Expert service by a force of more than 10,000 authorized Sears
service technicians, which means someone you can trust will be
working on your product.
[] Unlimited service calls and nationwide service, as often as you
want us, whenever you want us.
[] "No-lemon" guarantee - replacement of your covered product if
four or more product failures occur within twelve months.
[] Product replacement if your covered product can't be fixed.
[] Annual Preventive Maintenance Check at your request - no extra
charge.
[] Fast help by phone - we call it Rapid Resolution - phone support
from a Sears representative on all products. Think of us as a "talking
owner's manual".
[] Power surge protection against electrical damage due to power
fluctuations.
[] $250 Food Loss Protection annually for any food spoilage that is
the result of mechanical failure of any covered refrigerator or
freezer.
[] Rental reimbursement if repair of your covered product takes
longer than promised.
[] 10% discount off the regular price of any non-covered repair
service and related installed parts.
Once you purchase the Agreement, a simple phone call is all that it takes
for you to schedule service. You can call anytime day or night, or
schedule a service appointment online.
The Master Protection Agreement is a risk free purchase. If you cancel
for any reason during the product warranty period, we will provide a full
refund. Or, a prorated refund anytime after the product warranty period
expires. Purchase your Master Protection Agreement today!
Some limitations and exclusions apply. For prices and additional
information in the U.S.A. call 1-800-827-6655.
* Coverage in Canada varies on some items. For full details call
Sears Canada at 1-800-361-6665.
Sears Installation Service
For Sears professional installation of home appliances, garage door
openers, water heaters, and other major home items, in the U.S.A. or
Canada call 1-800-4-MY-HOME ®.
Acuerdos maestros de proteccion
Enhorabuena por haber hecho una compra inteligente, Su nuevo
producto Kenmore®esta disefiado y fabricado para brindarle afios de
funcionamiento fiable, Pero, como cualquier producto, puede necesitar
mantenimiento preventivo o reparaciones peri6dicas, Es por eso que
tener un Acuerdo maestro de protecci6n podria ahorrarle dinero y
molestias,
El Acuerdo maestro de protecci6n tambien sirve para prolongar la
durabilidad de su nuevo producto, El acuerdo* incluye Io siguiente:
[] Piezas y mano de obra necesarias para contribuir a mantener el
funcionamiento adecuado de los productos utilizados en
condiciones normales de uso, no s61o en caso de defectos de los
productos. Nuestra cobertura va mucho mas alia que la garantia
del producto. No se aplican deducibles ni exclusiones por fallas del
funcionamiento: es decir, verdadera proteccibn.
[] Servicio t_cnico por expertos (mas de 10000 t_cnicos
autorizados de Sears), Io cual significa que quien repare o realice
el mantenimiento de su producto sera un profesional de confianza.
[] Servicio t_cnico a escala nacional y numero ilimitado de
Ilamadas de solicitud de servicio t_cnico: se puede poner en
contacto con nosotros cuantas veces Io desee y cuando Io desee.
[] Garantia "sin sorpresas": se reemplaza el producto cubierto por el
acuerdo si ocurren cuatro o mas fallas del producto en un periodo
de 12 meses.
[] Reemplazo del producto: en caso de que no se pueda reparar el
producto cubierto por el acuerdo.
[] Revisibn anual preventiva de mantenimiento del producto:
puede solicitarla en cualquier momento, sin costo alguno.
[] Rapida asistencia telefbnica, la cual denominamos Soluci6n
rapida: es decir, asistencia telef6nica a traves de cualquiera de
nuestros representantes de Sears, sobre cualquiera de nuestros
productos. Piense en nosotros como en un "manual parlante del
usuario".
[] Proteccibn contra fallas el_ctricas, contra dafios debidos a
fluctuaciones de la corriente electrica.
[] $250 al aho para cubrir cualquier posible deterioro de
alimentos que haya tenido que desechar debido a una falla
mec&nica de cualquiera de nuestros refrigeradores o congeladores
cubiertos por este acuerdo.
[] Devolucibn de gastos de alquiler de electrodom_sticos si la
reparaci6n de su producto asegurado toma masque el tiempo
prometido.
[] 10% de descuento aplicable tanto a los costos del servicio de
reparaci6n, como de las piezas instaladas relacionadas que no
hayan quedado cubiertos por este acuerdo.
Una vez que haya realizado el pago de este acuerdo, bastara una simple
Ilamada telef6nica para concertar una visita de servicio. Puede Ilamar a
cualquier hora del dia o de la noche, o bien concertar una visita de
servicio por Internet.
La adquisici6n del Acuerdo maestro de protecci6n es una inversi6n
exenta de riesgos. Si por cualquier motivo decide cancelar dicho acuerdo
durante el periodo de garantia del producto, le haremos un reintegro total
del valor. O bien un importe proporcional si cancela el acuerdo en
cualquier otro momento posterior al vencimiento del periodo de garantia
del producto, iAdquiera hoy mismo su Acuerdo maestro de protecci6n!
Algunas limitaciones y exclusiones podrian aplicarse. Para solicitar
precios e informaci6n adicional, Ilame al 1-800-827-6655 (en los
EE.UU.).
* La cobertura en Canada varia en el caso de algunos articulos. Para
obtener detalles completos al respecto, Ilame al 1-800-361-6665 de
Sears de Canada.
Servicio de instalacion de Sears
Para soficitar la instalacidn por profesionales de Sears de
electrodomesticos, abridores de puertas de garaje, calentadores de agua
y otros articulos de uso prioritario en el hogar, Ilame al 1-800-4-MY-
HOME en los EE.UU. o Canada.

Setting Surface Controls
Do not place plastic
items such as salt and pepper
shakers, spoon holders or plastic
wrappings on top of the range when
it is in use. These items could melt or
ignite. Potholders, towels or wood
spoons could catch fire if placed too
close to a flame.
Electric ignition models:
In the event of an electrical power
outage, the surface burners can be lit
manually. To light a surface burner,
ihold a lit match to the burner head,
then slowly turn the surface control
knob to LITE. After burner lights push
in and turn knob to desired setting. Use
CAUTION when lighting surface burners
manually.
Always select cookware that is suitable for the amount and type of food being
prepared. Select a burner and flame size appropriate to the pan. Never allow
flames to extend beyond the outer edge of the pan.
Each burner lights automatically from either an electric ignitor or standing pilot,
depending on your model. Standing pilots must be lit initially. Refer to your
installation instruction book for directions on lighting the standing pilot.
Standing pilots will remain litwhen the burners are turned off. Models with
electric ignitors light automatically each time a control knob is turned to the
LITE position.
Operating the Surface Burners
1. Place cooking utensil on surface burner.
2. Push the surface control knob in and turn counterclockwise out of the
OFF position.
3. Release the knob and rotate to the LITE position. If your range is equipped
with electronic ignitors, all four ignitors will spark at the same time.
However, only the burner you are turning on will ignite.
4. Visually check that the burner has lit.
5. Push the control knob in and turn counterclockwise to the desired flame
size. The control knobs do not have to be set at a particular setting. Use
the guides and adjust the flame as needed. DO NOT cook with the surface
control knob in the LITE position. (The electronic ignitor will continue to
spark if the knob is left in the LITE position.)
iii....................
Setting Proper Surface Burner Flame Size
For most cooking, start on the highest control setting and then turn to a lower
one to complete the process. Use the recommendations below as a guide for
determining proper flame size for various types of cooking. The size and type of
utensil used and the amount of food being cooked will influence the setting
needed for cooking.
Fordeep fatfrying, use a thermometer and adjust the surface control knob
accordingly. If the fat is too cool, the food will absorb the fat and be greasy. If
the fat is too hot, the food will brown so quickly that the center will be
undercooked. Do not attempt to deep fat fry too much food at once as the food
will neither brown nor cook properly.
Never extend the flame beyond the
outer edge of the utensil. A higher
flame simply wastes heat and energy,
and increases your risk of being burned
by the f ame.
*Flame Size
High Flame
Medium Flame
LowFlame
Type of Cooking
Start most foods; bring water to a boil; pan broiling.
Maintain a slow boil; thicken sauces, gravies; steaming.
Keep foods cooking; poach; stewing.
*These settings are based on using medium=weight metal or aluminum pans with lids. Settings may vary when
using other types of pans. The color of the flame is the key to proper burner adjustment. A good flame is clear, blue and
hardly visible in a well-lighted room. Each cone of flame should be steady and sharp. Adjust or clean burner ifflame is
yellow-orange.

Before Setting Oven Controls
Oven Vent
\
Oven Vent Location
The oven vent is located at the rear center of the cook top. When
the oven is on, warm air is released through this vent. This venting is
necessary for proper air circulation in the oven and good baking
results. DO NOT BLOCK THE OVEN VENT.
Arranging Oven Racks
ALWAYS ARRANGE OVEN RACKS WHEN THE OVEN IS COOL
(PRIOR TO OPERATING THE OVEN). Always use oven mitts when
using the oven.
Removing & Replacing Oven Racks
To remove, pull the rack forward until it stops. Lift up front of rack and
slide out. To replace, fit the rack onto the guides on the oven walls.
Tilt the front of the rack upward and slide the rack back into place.
Arranging Oven Racks with 6 Rack Positions
To bake on a single rack, place the rack on position 3 or 4. To bake
on 2 racks, place the racks on positions 3 and 5.
......... Rack
....... post ons RECOMMENDED RACK POSITIONS FOR
BROILING, BAKING & ROASTING
Food Rack Position
Broiling meats, chicken or fish 1 or 2
Cookies, cakes, pies, biscuits & muffins 3 or 4
Frozen pies, angel food cake, yeast, bread, 5
casseroles, small cuts of meat or poultry
Turkey, roast or ham 6
Note: Always use caution when removing food from the lower rack
positions.

Setting Oven Controls
\ =,, ,, ,,/
/ 200250
Note: The knobshown may not lookidentical
to the knob on your range. The illustrationis
representational.
PICK UP BROIL PAN
AND INSERT
FROM SIDES
Fig. 1
3 REAR HOLE TiLT UP FRONT OF RACK
POSiTiONS TO ADJUST
Bake
1. Arrange oven racks while the oven is still cool. See "Arranging Oven
Racks" under Before Setting Oven Controls.
2. Push in and turn the temperature control knob to the desired temperature.
3. Preheat the oven for 10 to 12 minutes before baking. Preheating is not
necessary when roasting, cooking casseroles or broiling most foods.
4. When cooking is finished, turn the temperature control knob to OFF.
Broil
1. Slide broiler drawer out to the stop position.
2. Remove broiler pan and insert (See Fig. 1).
3. Always position rack before setting control, while range is cool.
4. Position rack by tilting front of rack up and pulling rack out from locating
holes in rear of broiler drawer. Reposition back of rack in the desired
locating holes and allow front of rack to slide down intothe corresponding
slots in front of broiler drawer (See Fig. 2).
For rare meats, position the rack closer to the burner (upper position).
For medium foods use middle position.
For well-done foods such as chicken, lobster tails or thick cuts of meat,
position the rack further from the burner (lower position).
5. Place insert on broiler pan, then place meat on insert. DO NOT use the
broiler pan without the insert. DO NOT cover the insert with aluminum foil.
The exposed fat could ignite.
6. Place broiler pan on rack; make sure the broiler pan and insert is
positioned as shown, Fig. 1. Be sure front of pan is positioned correctly in
rack.
7. Slide the broiler drawer all the way into the range.
8. Push in and turn the temperature control knob to BROIL.
9. Broil on one side until food is browned; turn and cook on the second side.
Season and serve. ALWAYS pull the broiler drawer out to the stop position
before turning or removing food.
10. When broiling isfinished, turn the temperature control knob to OFF.
11. When removing broiler pan from broiler drawer always use pot holders.
DO NOT use the broiler drawer for storage. Items placed in the
broiler drawer will catch fire.
Should a broil fire occur, leave the broiler drawer closed and turn
the oven off. If the fire continues, throw baking soda on the fire or use a fire
extinguisher. DO NOT put water or flour on the fire. Flour may be explosive.
iii....................
Fig. 2

General Care & Cleaning
Follow these cleaning precautions:
•Allow the oven to cool before
cleaning.
•Wear rubber gloves when cleaning
the appliance manually.
Ammonia must be
rinsed before operating the oven.
Provide adequate ventilation.
DO NOT line the oven
walls, bottom, racks or any other
part of the appliance with
aluminum foil. Doing so will destroy
heat distribution, produce poor
baking results and cause permanent
damage to the oven interior
(aluminum foil will melt to the
interior surface of the oven).
REMOVE SPILLOVERSAND HEAVY
SOILING AS SOON AS POSSIBLE.
REGULARCLEANINGWILL REDUCE
THE EFFORT REQUIRED FOR
MAJOR CLEANINGS LATER.
Porcelain Enamel Oven and Broiler Drawer
The oven interior is porcelain on steel, itissafe to clean using oven cleaners.
General Cleaning
Remove soils using hot, soapy water. Do not allow food spills with a high sugar
or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to
remain on the surface as they may cause a dull spot even after cleaning.
To Remove Heavy Soil
1. Allow a dish of ammonia to sit in the oven overnight or for several hours with
the oven door closed. Clean softened dirt spots using hot, soapy water.
Rinse well with water and a clean cloth.
2. If soil remains, use a soap-filled scouring pad or a nonabrasive cleaner. If
necessary, use an oven cleaner following manufacturer's instructions. DO
NOT mix ammonia with other cleaners.
3. Clean any soil from the oven frame, the door liner outside the oven door
gasket and the small area at the front center of the oven bottom. Clean with
hot, soapy water. Rinse well using clean water and a cloth.
Adhere to the following precautions when using oven cleaners:
1. DO NOT spray cleaners on the electrical controls or switches because it
could cause a short circuit and result in sparking or fire.
2. DO NOT allow a film from the cleaner to build up on the temperature
sensing bulb; it could cause the oven to heat improperly. (The bulb is
located in the rear of the oven.) Carefully wipe the bulb clean after each
oven cleaning, being careful not to move the bulb. A change in its position
could affect how the oven bakes. Avoid bending the bulb and capillary tube.
3. DO NOT spray any cleaner on the oven door trim or gasket, broiler drawer
glides, handles or any exterior surfaces of the range, plastic or painted
surfaces. The cleaner can damage these surfaces.
To Clean Oven Bottom
The oven bottom is porcelain enamel and can be removed for easier
cleaning. Clean using hot, soapy water, a mild abrasive cleanser, a soap-filled
abrasive pad or oven cleaner following manufacturer's instructions.
10

Cleaning Chart General Care & Cleaning
Before cleaning any part of the range, be sure all controls are turned OFF and the range is COOL. REMOVE SPILLOVERS
AND HEAVY SOILING AS SOON AS POSSIBLE. REGULAR CLEANINGS WILL REDUCE THE EFFORT REQUIRED FOR
MAJOR CLEANINGS LATER.
Surfaces How to Clean
Aluminum (trim pieces)&Vinyl Use hot, soapy water and a cloth. Dry with a clean cloth.
Glass, Painted and Plastic Body
Parts, Control Knobs and
Decorative Trim Pieces
Control Panel
Porcelain Enamel
BurnerGrates, Cooktop
Surface, Below Cooktop,
Broiler Pan &insert, Broiler
Drawer, Door Liner & Oven
Bottom
Stainless Steel, Chrome Parts,
Drip Pans (some models)
Oven Racks
Surface Burners
Oven Door
Forgeneral cleaning, use hot, soapy water and a cloth. Formore difficult soils and
built-up grease, apply a liquid detergent directly onto the soil. Leave on soil for 30 to 60
minutes. Rinse with a damp cloth and dry. DO NOT use abrasive cleaners on any of
these materials; they can scratch these surfaces.
Before cleaning the controlpanel, turn all controls to OFF and remove the control
knobs. To remove, pull each knob straight off the shaft. Clean as instructed above.
Squeeze excess water from the cloth before wiping the panel; especially when wiping
around the controls. Excess water in or around the controls may cause damage to the
appliance. To replace knobs after cleaning, line up the flat sides of both the knob and
the shaft, then push the knob(s) into place.
Clean burner grates, broiler pan and insert in the dishwasher and dry upon removal. If
soils are not removed, follow the cooktop cleaning instructions below.
Gentle scouring with a soapy scouring pad will remove most spots. Rinse with a 1:1
solution of clean water and ammonia. If necessary, cover difficult spots with an
ammonia-soaked paper towel for 30 to 40 minutes. Rinse with clean water and a damp
cloth, then scrub with a soap-filled scouring pad. Rinse and wipe dry with a clean cloth.
Remove all cleaners orthe porcelain may become damaged during future heating. DO
NOT use spray oven cleaners on the range top.
Clean with hot, soapy water and a dishcloth. Rinse with clean water and a cloth. Cover
stubborn spots with an ammonia-soaked paper towel for 30-40 minutes. Rinse.
Cleaners made especially for stainless steel are recommended. Be sure to rinse the
cleaners as bluish stains may occur during heating and cannot be removed.
Remove racks. See "Removing and Replacing Oven Racks" under Before Setting
Oven Controls. Use a mild, abrasive cleaner, following manufacturer's instructions.
Rinse with clean water and dry. After cleaning the racks, rub the sides of the racks with
wax paper or a cloth containing a small amount of salad oil (this will make the racks
glide easier into the rack positions).
The holes in the burners of your range must be kept clean at all times for proper ignition
and a complete, even flame. Clean the burner holes routinely with a small gauge wire
or needle and especially after bad spillovers which could clog these holes.
Toremove andreplace surface burners, see "To Remove and Replace Burners" under
General Care & Cleaning. To clean, soak the burners in a 1:1 solution of ammonia
and water for 30 to 40 minutes. For stubborn stains, scrub with soap and water or a
mild abrasive cleanser and a damp cloth. Dry the burners thoroughly in a warm oven for
30 minutes. Then replace them, making sure they are properly seated and level. DO
NOT wash burner units in the dishwasher.
To clean oven door, wash with hot, soapy water and a clean cloth. DO NOT immerse
the door in water.
DO NOT clean the oven door gasket. The oven door gasket is made of a silicone rubber
material which is essential for a good seal. Care should be taken not to rub, damage or
remove the gasket.
11

General Care & Cleaning
When lowering the cooktop, grasp the sides with fingertips only. Be careful not to pinch fingers. Also, DO NOT
drop or bend the cooktop when raising or lowering. This could damage the surface.
DO NOT turn the burners on when the cooktop is raised for cleaning. Be sure that the top is completely lowered
and securely in place before turning on the burners.
To Raise and Lower the cooktop for Cleaning
1. Remove burner grates and drip pans (some models). Set aside.
2. Grasp the sides of the cooktop and then lift from the front (See Fig. 1)
3. Lift the cooktop high enough to allowthe cooktop support rods to snap into place. The rods will support the cooktop in the
raised position.
4. Clean underneath using hot, soapy water and a clean cloth; then, dry.
5. To lower the cooktop, grasp the front corner of each side of the top while pushing back on each rod with the heel of your
hand. This will release the notched support. Hold the range top and gently slide the cooktop down to the range.
Cooktop
Cooktop support rods
Support
Bar
Fig. 1 Fig. 2
Removing and Replacing Surface Burners for Cleaning
To Remove Burners
1. Remove surface burner mounting screws with a Phillips-head screwdriver. See Fig. 2 for screw locations.
2. Tilt the burner at the end closest to the support bar until the Iocator tab is released (front burners tilt right, rear burners tilt
left). Move the burner toward the back of the range. This will separate itfrom the gas valve at the front of the range.
To Replace Burners
1. __idetheburnertube_verthegasva_veatthefr_nt_ftherange(fr_ntburnersfit_vertherightva_ve, rearburnersfitoverthe
left valve on each side of the range).
2. Tiltburnersothatthelocatingtabwillslideintotheslotonthesupportbar. Make sure burners are properly seated on support
bar and are level.
3. Replace mounting screws.
12

Fig. 1
or
use
a Nail
Fig. 2
about 45
Oven Door l i
Hinge , /
General Care & Cleaning
Removing and Replacing the Oven Door
The door is heavy. For safe, temporary storage, lay the doorflat with
the inside of the door facing down.
To Remove Oven Door:
1. Open oven door completely (horizontal with floor- See Fig. 1).
2. Remove 2 screws located on the inside of the oven door liner (See A Fig. 2)
3. Insert the 2 screws into the door hinge holes located on the side of the
hinge arm, one intoeach hinge (See B Fig. 2).
4. Close oven door until the door stops (Do not force the door to close any
further). The placement of these screws should keep door open in about a
45 degree position.
5. Grasp oven door firmly on both sides and slide door up and off hinges at the
same angle. (See Fig. 3)
6. To clean oven door, follow the instructionsin the Care & Cleaning table
(page 11).
To Replace Oven Door:
1. Be sure the hinge arms remain at the 45 degree angle position. Be sure the
screws are still locking the hinge arms from moving. If the screws fall out of
the hinge holes, the hinge(s) may snap back against the oven frame and
could pinch fingers or chip the porcelain finish on the oven front frame.
2. Hold door at the sides near the top while resting the lower front of door on
your knee. Insert the door channels at the bottom of door over the door
hinges, (See Fig. 3).
3. Allow the door to slide down intothe door hinges evenly at the same 45
degree angle. The hinge arms should be inserted intothe bottom corners
as far as they can go.
4. Open door completely (horizontal with floor) and remove both screws from
holes in door hinges.
5. Reinstall the 2 screws intothe door liner (See C Fig. 2).
6. If the door is not inalignment with the oven frame, remove door and repeat
the above steps.
iii....................
13

Before You Call
Before you carl for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCCURRENCE
Range is not level.
Cannot move appliance easily. Appliance
must be accessible for service.
POSSIBLE CAUSE/SOLUTION
Poor installation. Place oven rack in center of oven. Place a level on the oven rack.
Adjust leveling legs at base of range until the rack is level. When range is level,
cooktop may appear out of alignment if countertop is not level.
Weak, unstable floor. Be sure floor is level and can adequately support range.
Contact a carpenter to correct sagging or sloping floor.
Kitchen cabinet misalignment may make range appear to be unlevel. Be sure
cabinets are square and have sufficient room for range clearance.
Cabinets not square or are built in too tight. Contact a cabinet maker to correct the
problem.
Contact builder or installer to make appliance accessible.
Carpeting interferes with range. Provide sufficient space so range can be lifted over
carpet.
Gas line is hard-plumbed. Have a flexible A.G.A./C.G.A. approved metal appliance
connector installed.
Surface burners do not light. Surface control knob has not been completely turned to LITE. Push in and turn the
Surface control knob to LITE until burner ignites and then turn control knob to
desired flame size.
Surface bumerflame burns halfway around.
Surface burner flame is orange.
Burner ports are clogged. With the burner off, use a small-gauge wire or needle to
clean ports. See "Surface Burners" in the cleaning chart under Care & Cleaning for
additional cleaning instructions.
Range power cord is disconnected from outlet (electric ignition models). Be sure
cord is securely plugged into the outlet. Pilot ignition models - is pilot lit.
Electrical power outage (electric ignition models). Burners can be lit manually. See
Setting Surface Controls.
Burner ports are clogged. With the burner off, clean ports by using a small-gauge
wire or needle.
Moisture is present after cleaning. Lightly fan the flame and allow burner to operate
until flame is full. Dry the burners thoroughly following instructions in the Care &
Cleaning section.
Dust particles in main line. Allow the burner to operate a few minutes until flame
turns blue.
Oven does not operate.
Entire appliance does not operate.
In coastal areas, a slightly orange flame is unavoidable due to salt air.
Be sure the oven controls are set correctly for the desired function. See Setting
Oven Controls or Entire Appliance Does Not Operate (see below).
Be sure regulator gas valve is "ON". See installation instructions.
Make sure electrical cord/plug is plugged tightly into outlet (electric ignition models).
Service wiring not complete. Contact your authorized Sears Service Center for
assistance.
Electrical power outage (electric ignition models). Check house lights to be sure.
Call your local electric company for service. Surface burners can be lit manually.
See Setting Surface Controls.
Be sure gas supply is turned on.
14

Before You Call
Before you carl for service, review this list. It may save you time and expense. The list includes common occurrences that
are not the result of defective workmanship or materials in this appliance.
OCC URRENC E POSSIBLE CAUSE/SOLUTION
Oven smokes excessively during broiling. Meat too close to the broil burner. Reposition the rack to provide more clearance
between the meat and the broiler burner.
Poor baking results.
Meat not properly prepared. Remove excess fat from meat. Slash remaining fatty
edges to prevent curling, but do not cut into the lean.
Broiler pan used without insert or insert covered with foil. DO NOT use the broiler
pan without the insert or cover the insert with foil.
Broiler drawer needs to be cleaned. Excessive smoking is caused by a build up of
grease or food spatters. If the broiler is used often, clean on a regular basis.
Broiler drawer is open. Drawer/door should be closed when broiling.
Many factors affect baking results. Make sure the proper rack position is used.
Center food in the oven and space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the oven. Try adjusting the
recipe's recommended temperature or baking time.
iii....................
121
15

® Registered Trademark /TMTrademark /SMService Mark of Sears Brands, LLC
® Marca Registrada /TM Marca de F_brica /SMMarca de Servicio de Sears Brands, LLC
MCMarque de commerce /MDMarque ddposee de Sears Brands, LLC © Sears Brands, LLC
