GRASS TRIMMER & BRUSH CUTTER
GBC 43 / GBC 52
Instruction manual

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
CONTENTS
INTRODUCTION ............................................................................................................................1
INTENDED USE..............................................................................................................................1
TECHNICAL DATA.........................................................................................................................1
Main unit...........................................................................................................................................1
Engine...............................................................................................................................................2
GRAPHIC WARNINGS...................................................................................................................2
SAFETY RULES & PRECAUTIONS .............................................................................................4

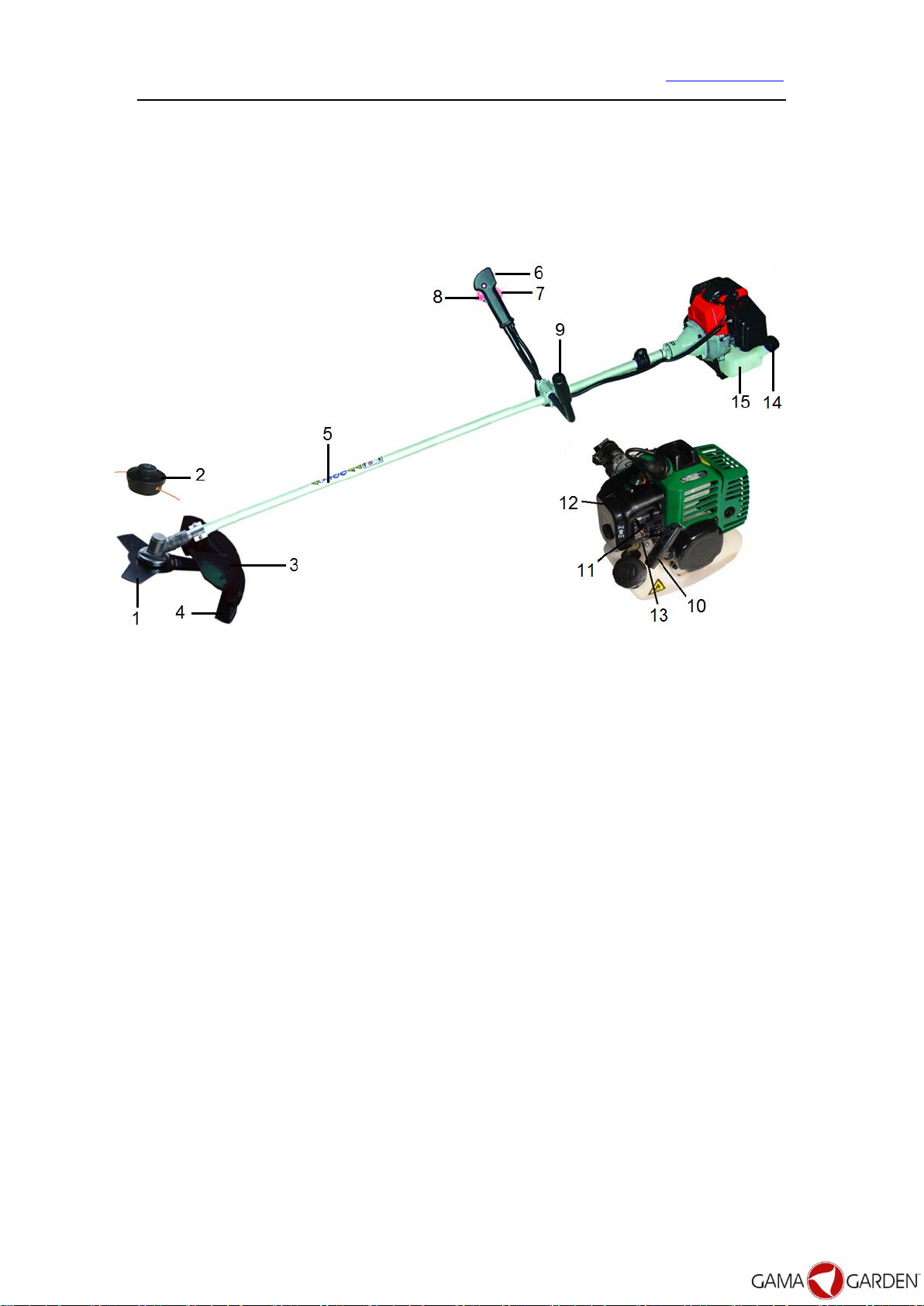

DESCRIPTION.................................................................................................................................9
ASSEMBLY INSTRUCTIONS..............................................................................................11
INSTALLING THE LOWER SHAFT....................................................................................11
INSTALLING PLASTIC SHIELD.................................................................................11

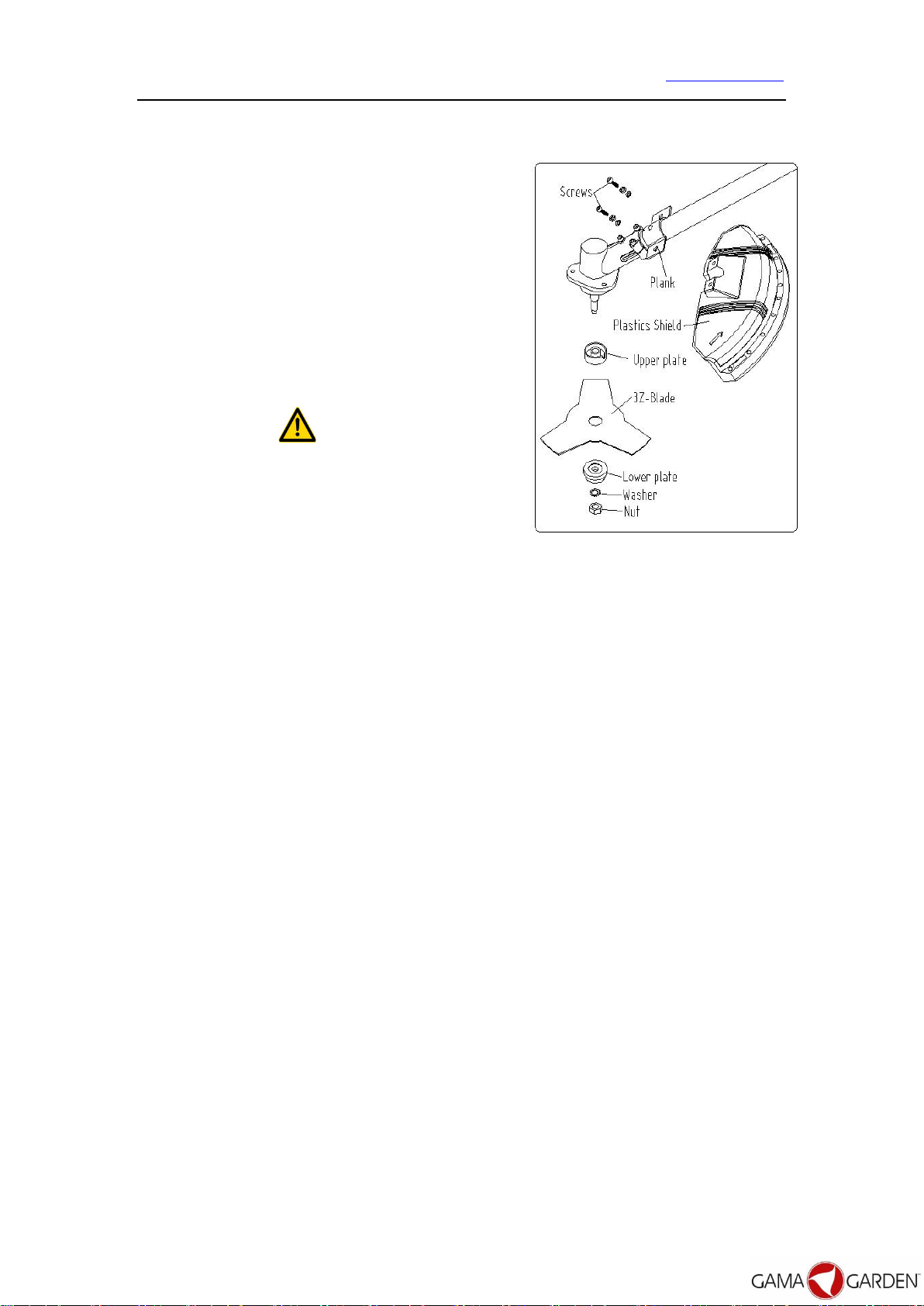

INSTALLING BLADE...................................................................................................12
RULES FOR SAFE OPERATION .................................................................................................13
CUTTING WITH A NYLON HEAD .............................................................................................14
CUTTING WITH A NYLON HEAD .............................................................................................15
CUTTING WITH A BLADE..........................................................................................................16
C
CU UT TT TI IN NG G W WI IT TH H A A B BL LA AD DE E
..................................................................................................16
CUTTING WITH A BLADE..........................................................................................................16

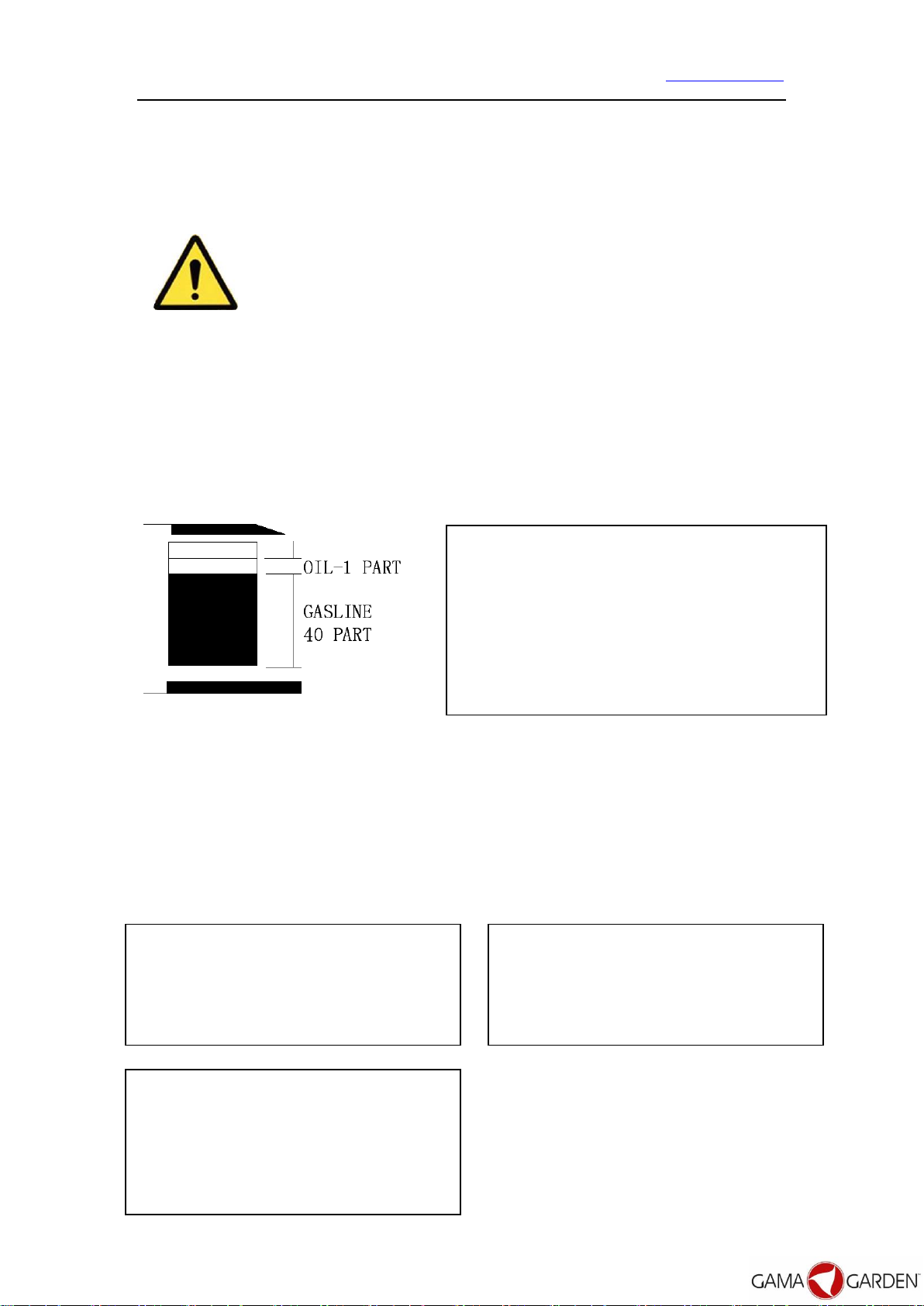

FUEL & OIL MIXTURE................................................................................................................18
PREPARING FOR OPERATIONS.................................................................................................19
OPERATIONS................................................................................................................................20
MAINTENANCE & CARE............................................................................................................22
TROUBLE SHOOTING.................................................................................................................23

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
INTRODUCTION
Thank you for your purchasing the brush cutter of our company. The
present manual explains how to handle the brush cutter well. Before using
it, please read this operator’s manual carefully, operate the machine
correctly and engage in your task with safely.
By the way, due to changes of specifications, all details of your machine
may not agree with this manual. Please understand accordingly.
Note: National regulation can restrict the use of the machine.
INTENDED USE
This appliance is designed for the following applications:
- Brush cutter (when fitted with metal circular blade)
The brush cutter is intended to cut weed and climbing plants. Do not use it for other purposes,
never use it for cutting wood. Never cut objects with a diameter exceeding 13mm.
- Grass trimmer (when fitted with nylon line cutting head)
The grass trimmer is intended for trimming grass. Do not use it for other purposes.
TECHNICAL DATA
MODEL
GBC 52
GBC 43
Main unit
Remote type
Centrifugal Clutch; flexible shaft
Maximum speed of linker shaft
/engine speed(min-1)
8000/10000
Idle speed of engine(min-1)
3000
Centrifugal speed of clutch
engagement (min-1)
3800
Vibration (in accordance with ISO
22867):
Brush cutter:
- Left handle: 3.926 m/s²,
- Right handle: 4.183 m/s²,
Grass trimmer:
- Left handle: 4.809 m/s²
- Right handle: 5.110 m/s²
- Uncertainty K
1.5 m/s2
- Sound pressure level LpA
Brush cutter:
93.1dB(A)
Grass trimmer:
93.4dB(A)
Brush cutter: 97
dB(A)
Grass trimmer: 98
dB(A)

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
- Sound power level LwA
Brush cutter:
107.94dB(A)
Grass trimmer:
108.24dB(A)
Brush cutter: 110
dB(A)
Grass trimmer: 112
dB(A)
- Uncertainty K
3 dB(A)
Guaranteed Sound power values
[dB(A)]
(in accordance with 2000/14/EC)
115dB(A)
120dB(A)
Line Max. Cutting Path /Diameter
of nylon line
44 cm(φ2.5mm)
Metal blade (Type/Diameter)
3-tooth metal blade 1.4x230mm / 230mm
Rotation direction of cutting
device
Counter-Clockwise (seen from the top)
Weight when dry(kg)
7.3
Engine
Name of engine
SPK44F
SPK1E40F for
10SPK
SPK1E40F (1) for
30SPK
Type
Air-cooled; 2 cycles; vertical
Piston valve; gasoline engine
Displacement(cm3)
52
43
Maximum output (kW/ min-1)
(in accordance with ISO 8893)
1.3/7500
1,23/7500
Specific fuel consumption at max.
engine performance（g/kwh）
≤695
≤610
Carburetor
Diaphragm-type
Ignition
Non-contact electronic ignition
Method of starting
Recoil type
Fuel used
Gasoline mixed with lubricating oil
(ratio of 40:1)
Fuel tank capacity(cm3)
1200
Technical Data subject to changed without notice
GRAPHIC WARNINGS
Because a trimmer/cutter is a high-speed, fast cutting power tool, special safety
precaution must be observed to reduce the risk of personal injury. Read this manual
carefully. Be familiar with the controls and the proper use of the unit. Know how to
shut it off, and how to unhook a harnessed unit quickly.

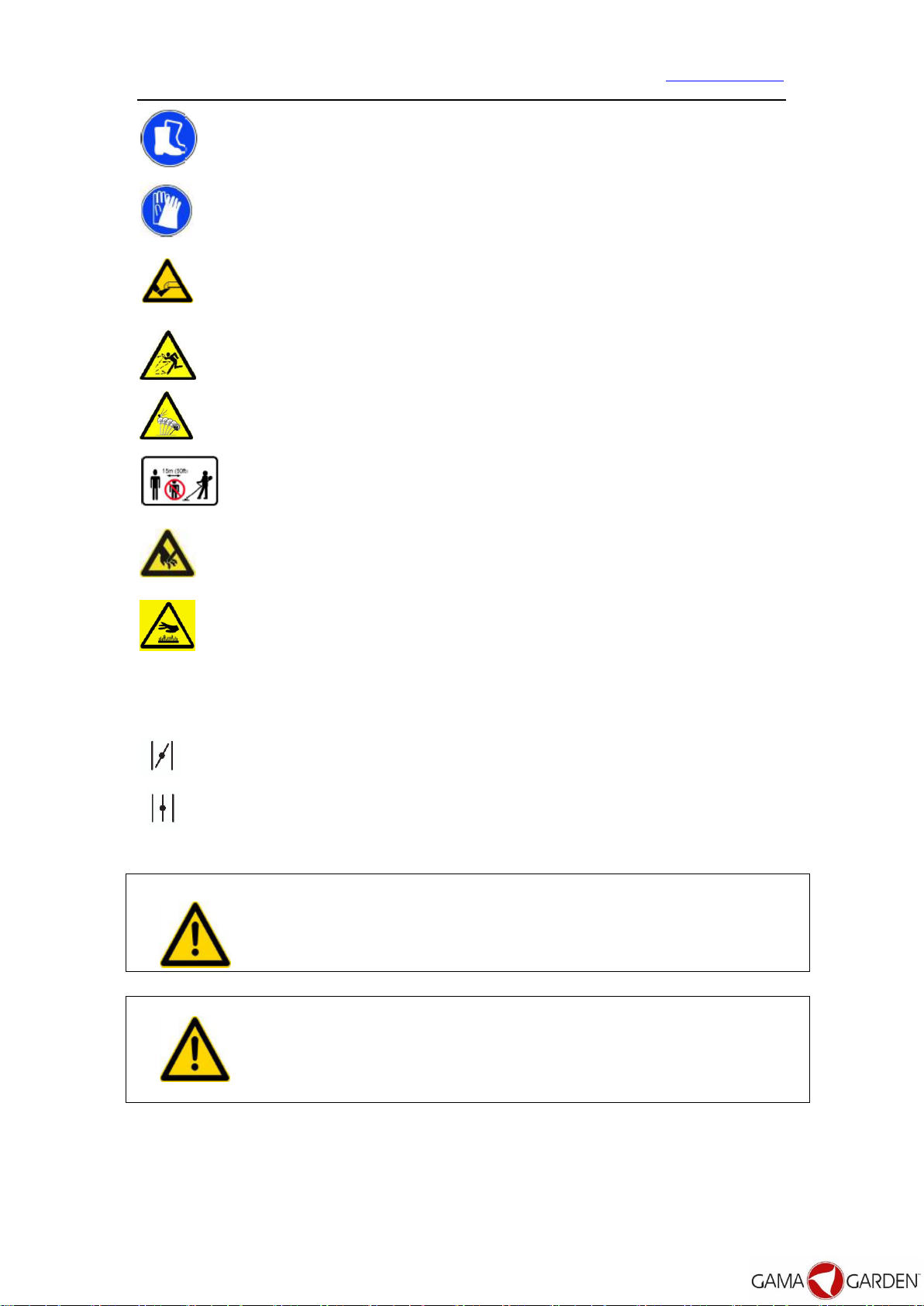

Warning
Read the instruction manual
Wear eye protection, ear muffles and helmet

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
Wear foot protection
Wear glove to protect your hands
Beware of foot injury by cutting attachment
Beware of thrown objects hit by cutting attachment.
Never use without properly mounted guard.
Beware of blade thrust
Keep at least 15m away from any other person.
Sharp blade on the safety guard, do not touch the cut off knife.
Extremely hot surface. Do not touch a hot muffler, gear box or cylinder, you
may get burned. These parts get extremely hot from operation and remain hot
for a short time after the unit is turned off.
Choke control
Start position (choke closed).
Run position (choke open).
Always TURN OFF ENGNINE and make sure the cutting tool has
stopped before cleaning, removing or adjusting blade.
WARNING! Never modify a trimmer or cutter in any way.
Improper use of the machine can cause SERIOUS OR FATAL
PERSONAL INJURY.

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
WARNING DANGER
The engine exhaust forms this product contains chemicals to cause
cancer, birth defects, of other reproductive harm.
Specifications, descriptions and illustrative material in this manual are as accurate as
known at the time of publication, but are subject to change without notice.
Illustrations may include optional equipment and accessories, and may not include all
standard equipment.
SAFETY RULES & PRECAUTIONS
Safety Rules
Proper safety precautions must be observed. Like all power equipment this unit must be
handled carefully. DO NOT EXPOSE YOURSELF OR OTHERS TO DANGER. Follow
these general rules. Do not permit others to use this machine unless they are thoroughly
responsible and have read, and understand the machine manual and are trained in its
operation.
Secure the machine during transport to prevent loss of fuel, damage or injury.
Always wear safety goggles for eye protection. Dress properly, do not wear loose
clothing or jewelry that could become caught in moving parts of the unit. Safe, sturdy,
nonskid footwear should always be worn. Long hair should be tied back. It is
recommended that legs and feet be covered to protect from flying debris during
operation.
Inspect the entire machine for loose parts (nuts, bolts, screws, etc.) and any damage.
Repair or replace as necessary before using the machine.
DO NOT USE any attachment with this power head other than the ones recommended
by our company. Serious injury to the operator or bystanders could result as well as
damage to the machine.
Keep the handles free from oil and fuel.
Always use proper handles when cutting.
Do not smoke while mixing fuel or filling tank.
Do not mix fuel in an enclosed room or near open flames.Assure adequate ventilation.
Always mix and store the fuel in a properly marked container that is approved by local
codes and ordinances for such usage.
Never remove the fuel tank cap while the engine is running.
Never start or run the engage inside a closed room or building. Fumes from the exhaust
contain dangerous carbon monoxide.
Never attempt to make engine adjustments while the unit is running and strapped to the
operator.Always make engine adjustments with the unit resting on a flat, clear surface.
Do not use the unit if it is damaged or poorly adjusted. Never remove the machine’s

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
guard. Serious injury to the operator or bystanders could result as well as damage to the
machine.
Inspect the area to be cut and remove all debris that could become entangled in the
nylon cutting head.Also remove any objects that the unit may throw during cutting.
Keep children away. Onlookers should be kept at a safe distance from the work area, at
least 15 METER(50 FEET)
Never leave the machine unattended.
Do not use this unit for any job other than those for which it is intended as described in
this manual.
Do not overreach. Keep proper footing and balance at all times. Do not run the unit
while standing on a ladder or on any other unstable footing location.
Keep hands and feet clear of the nylon cutting head while unit is in use.
Do not use this type of machine for sweeping away debris.
Do not use the unit when you are tired, ill or under the influence of medication drugs or
alcohol.
Use nylon cutting head which is free of damage. If a stone or any other obstacle is hit,
stop the engine and check the nylon cutting head. Abroken or unbalanced nylon cutting
head must never be used.
Follow Instruction For ChangingAccessories
Do not store in a closed area where fuel vapors can reach an open flame from hot water
heaters, furnaces, etc. Store in a locked, well ventilated area only.
Ensure safe and proper performance of your product. These parts are available from
your dealer. The use of any other accessories or attachments may cause a potential
hazard or injuryto the user, damage to the machine and void this warranty.
Clean the machine completely, especially, the fuel tank, its surroundings, and the air
cleaner.
When refueling, be sure to stop the engine and confirm that it is cooled down. Never
refuel when the engine is running or hot. When gasoline spills, be sure to wipe it up
completely dispose of those materials before starting the engine.

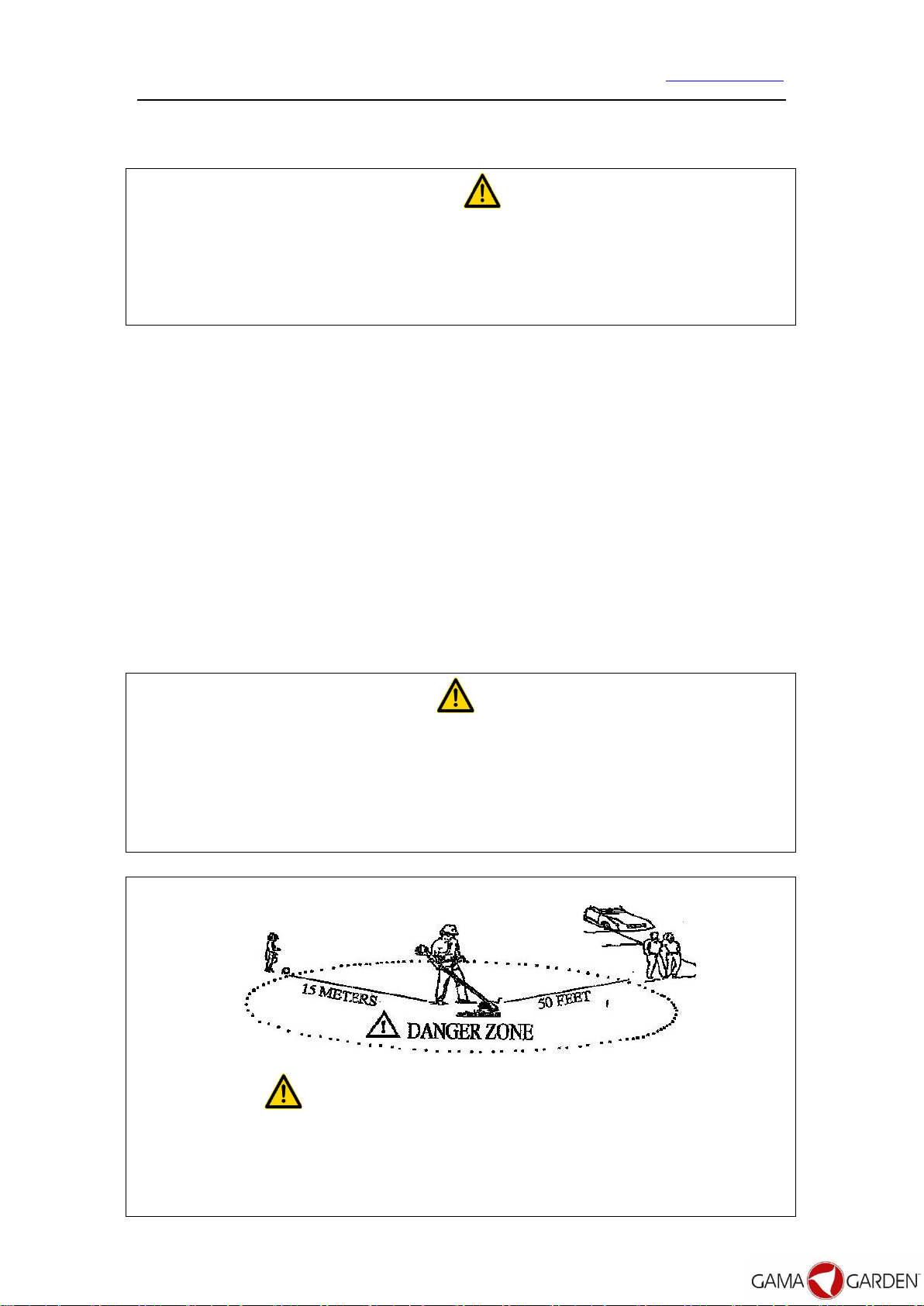

Stay clear of other workers or bystanders by at least 15 meters/50 feet.
When ever approaching an operator of the machine, carefully call his attention and
confirm that the operator stop the engine. Be careful not to startle or distract the
operator which can cause an unsafe situation.
Never touch the nylon cutting head when ever the engine is running. If it is necessary to
adjust the protector or nylon cutting head, be sure to stop the engine and confirm that
the nylon cutting head has stopped running.
The engine should be turned off when the machine is moved between work areas.
Be careful not to hit the nylon cutting head against stones, or the ground.
Unreasonable rough operation will shorten the life of the machine as well as create an
unsafe environment for yourself and those around you.
Pay attention to loosening and overheating of parts. If there is any abnormality of the
machine, stop operation immediately and check the machine carefully. If necessary,
have the machine serviced by a authorized dealer. Never continue to operate a machine
which may be malfunctioning.

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
In start-up or during operation of the engine, never touch hot parts such as the muffler,
the high voltage wire or the spark plug.
After the engine has stopped, the muffler is still hot. Never place the machine in any
places where there are flammable materials (dry grass, etc.), combustible gasses or
combustible liquids.
Pay special attention to operation in the rain or just after the rain as the ground may be
slippery.
If you slip or fall to the ground or into a hole, release the throttle lever immediately.
Be careful not to drop the machine or hit it against obstacles.
Before proceeding to adjust or repair the machine, be sure to stop the engine and detach
the spark plug.
When the machine is placed in storage for a long time, drain fuel from the fuel tank and
carburetor, clean the parts, move the machine to a safe place and confirm that the
engine is cooled down.
Make periodic inspections to assure safe and efficient operation. For a thorough
inspection of your machine, please contact a dealer.
Keep the machine awayfrom fire or sparks.
It is believed that a condition called Raynaud’s phenomenon, which affects the fingers
of certain individuals may be brought about by exposure to vibration and cold. loss of
color and numbness in the fingers. The following precautions are strongly
recommended because the minimum exposure which might trigger the ailment is
unknown.
Keep your body warm, especially the head, neck, feet, ankles, hands and wrists.
Maintain good blood circulation by performing vigorous arm exercises during frequent
work breaks and also by not smoking.
Limit the hours of operation. Try to fill each day with jobs where operating the brush
cutter or other hand-held power equipment is not required.
If you experience discomfort, redness and swelling of the fingers followed by whitening
and loss of feeling, consult your physician before further exposing yourself to cold and
vibration.
Always wear ear protection, loud noise for long time can make hearing debase even lost
hearing.
Total face and head protection must be worn to prevent damage from plummet or
branch.
Wear no-slip heavy duty work gloves to improve your grip on the brush cutter handle.
Gloves also reduce the transmission of machine vibration to your hands.
WARNING: The cutter area is still dangerous while the machine is going to a stop.
BLADE THRUST
Take great care using the blade with the device. Thrust is a reaction that occurs when
the blade hits objects that it can not cut. This can make the blade stop and “push away”
the tool from the object that was unable to be cut. This reaction can be intense enough
to lose control about the object, this process can occur without a warning, as soon as the
blade hits an obstacle and stands still. It will occur in areas, where you cannot see
exactly what you are cutting. This is why you always should cut from right to left to

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
minimize the reactions.
When transport, this unit must be handled carefully. Do not
expose yourself or others to danger.
● Envelop the blade before storage. Keep children away from it.
● Never remove the machine’s guard.
● Do not store in a closed area where fuel vapors can reach an open
flame from hot water heaters, furnaces, etc. Store in a locked, well ventilated area only.
● Never place the machine in any places where there are flammable materials (dry
grass, etc.), combustible gasses or combustible liquids.
● When the machine is placed in storage for a long time, drain fuel from the fuel tank
and carburetor, clean the parts, move the machine to a safe place and confirm that the
engine is cooled down.
●WARNING: emission of exhaust gases
●WARNING: national regulation can restrict the use of the machine.
Kickback and Related Warnings
● Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad,
brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating
accessory which in turn causes the uncontrolled power tool to be forced in the direction
opposite of the accessory’s rotation at the point of the binding.
● For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge
of the wheel that is entering into the pinch point can dig into the surface of the material
causing the wheel to climb out or kick out. The wheel may either jump toward or away
from the operator, depending on direction of the wheel’s movement at the point of
pinching.Abrasive wheels may also break under these conditions.
● Kickback is the result of power tool misuse and/or incorrect operating procedures or
conditions and can be avoided bytaking proper precautions as given below.
a) Never place your hand near the rotating accessory. Accessory may kickback over
your hand.
b) Do not position your body in the area where power tool will move if kickback
occurs. Kickback will propel the tool in direction opposite to the wheel’s movement at
the point of snagging.
c) Use special care when working corners, sharp edges etc. Avoid bouncing and
snagging the accessory. Corners, sharp edges or bouncing have a tendency to snag the
rotating accessoryand cause loss of control or kickback.

Acquaer Ltd. www.gamagarden.eu
H-4900, Fehérgyarmat Szatmári út 11.
OPERATION OFQUICK RELEASE MECHANISM
Pull the strip to release the machine from you in the case of emergency.
