Game Winner FSGWBG1000 User manual

Hunter’s Grill
Model #FSGWBG1000
Customer Service: [phone], 8:00am to 5:00pm, Pacific Standard Time,
Monday thru Friday
(Made in China)
Please keep this instruction manual for future reference
Assembly Instructions
BRAND
SC2000314-GW-00–ENG P.1 20131026-V1

Warnings --------------------------------------------------------------------------
Tools required -------------------------------------------------------------------
Component List -----------------------------------------------------------------
Hardware --------------------------------------------------------------------------
Assembly Instructions -------------------------------------------------------
Operating Instructions -------------------------------------------------------
Grill Maintenance ---------------------------------------------------------------
Warranty ---------------------------------------------------------------------------
Contents Page
3-9
10
11-12
13
14-19
20-24
25-26
27-28
SC2000304-OG-00–ENG P.2 20131026-V1

Warnings
Please read Safety and Precaution statements, Grill Maintenance, Leak Testing,
Regulator/ Cylinder connection and Lighting Instructions before using grill the
first time.
Safety Symbols
The symbols and boxes shown below explain what each heading means. Read
and follow all of the messages found throughout the manual.
DANGER
Danger: Indicates an imminently hazardous situation which, if not
avoided, will result in serious injury or death.
WARNING
Warning: Indicates a potentially hazardous situation which, if not
avoided, will result in serious injury or death.
CAUTION
Caution: Indicates a potentially hazardous situation or unsafe practice
which, if not avoided, may result in minor or moderate injury.
SC2000304-OG-00–ENG P.3 20120605-V1

Warnings
DANGER
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open Lid.
4. If odor continues, keep away from the appliance and
immediately call your gas supplier or your fire department.
Failure to follow these instructions could result in fire or
explosion which could cause property damage, personal injury or
death.
DANGER
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 ft (3.05 m) of any
structure, combustible material or other gas cylinder.
3. Never operate this appliance within 25 ft (7.5 m) of any
flammable liquid.
4. If a fire should occur, keep away from the appliance and
immediately call your fire department. Do not attempt to
extinguish an oil or grease fire with water.
Failure to follow these instructions could result in fire or
explosion which could cause property damage, personal injury
or death.
WARNING
Combustion by-products when using this product contain chemicals
known to the State of California to cause cancer, birth defects, or other
reproductive harm.
SC2000304-OG-00–ENG P.4 20131026-V1

•The appliance shall not be used on or under any apartment or condominium
balcony or deck.
•The appliance shall be used outdoors
only, and shall not be used in a building,
garage or any other enclosed area.
•This appliance is not intended to be
installed or used in or on a recreational
vehicle or boat.

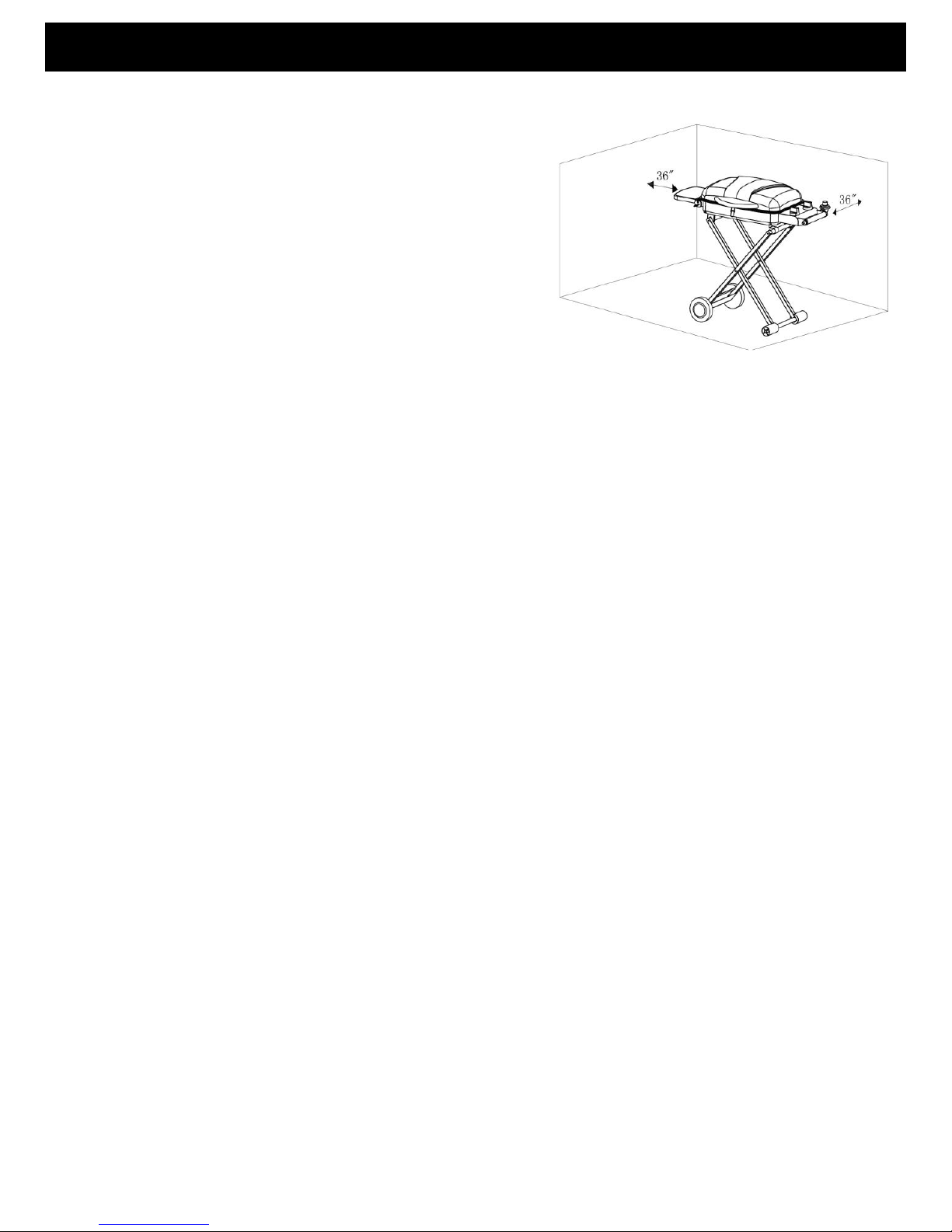

•The appliance shall maintain minimum
36 Inches (91.4cm) from combustible
materials to the sides and back of the
appliance, and the appliance shall not be located or used under overhead
unprotected combustible materials.
•This appliance is for outdoor use only and should only be operated in a well-
ventilated space. Never operate in an enclosed space, garage or building.
•This appliance is not intended for commercial use.
•This appliance is not for frying turkeys.
•When cooking, the appliance must be on a level, stable noncombustible
surface in an area clear of combustible material. An asphalt surface is not
acceptable for this purpose.
•Do not leave the appliance unattended. Keep children and pets away from
the appliance at all times.
•This appliance is not intended for and should never be used as a heater.
•This appliance will be hot during and after use. Use insulated oven mitts or
gloves for protection from hot surface.
•Never attempt to attach this appliance to the self-contained LP gas system of
a camper trailer or motor home.
•Carefully follow all instructions in this manual for proper assembly and leak
testing. Do not use appliance until leak test has been completed. If leak is
detected at any time, turn OFF gas supply and do not use until leak source
has been corrected.
•Cooking area should be kept clear and free from combustible materials,
gasoline, bottled gas in any form, and any other flammable vapors and
liquids. Keep free of obstructions that would prevent ventilation.
•Never try to light appliance with lid closed. The buildup of gas is very
dangerous and could cause an explosion.
•The use of alcohol, prescription or non-prescription drugs may impair your
ability to properly assemble or safely operate the appliance.
•Do not move appliance when in use. Allow the appliance to cool down
completely before moving or storing.
•Never use charcoal briquettes or lighter fluid with this grill.
Warnings
SC2000304-OG-00–ENG P.5 20131026-V1

USE OF LP GAS CYLINDER AND INSTALLATION
BEFORE INSTALLING:
LP GAS CYLINDER
•The installation must conform with local codes or, in the absence of local codes,with
the National Fuel Gas Code, ANSI Z223.1/NFPA 54, Storage and Handling of
Liquefied Petroleum Gases, ANSI/NFPA 58; or Natural Gas and Propane
Installation Code, CSA B149.1;Propane Storage and Handling, CSA B149.2; or the
Standard for Recreational Vehicles, ANSI A119.2/NFPA 1192; and Recreational
Vehicle Code, CSA Z240 RV Series, as applicable.
•The LP-gas supply cylinder to be used must be constructed and marked in
accordance with the specifications for LP-gas cylinders of the US Department of
Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods.

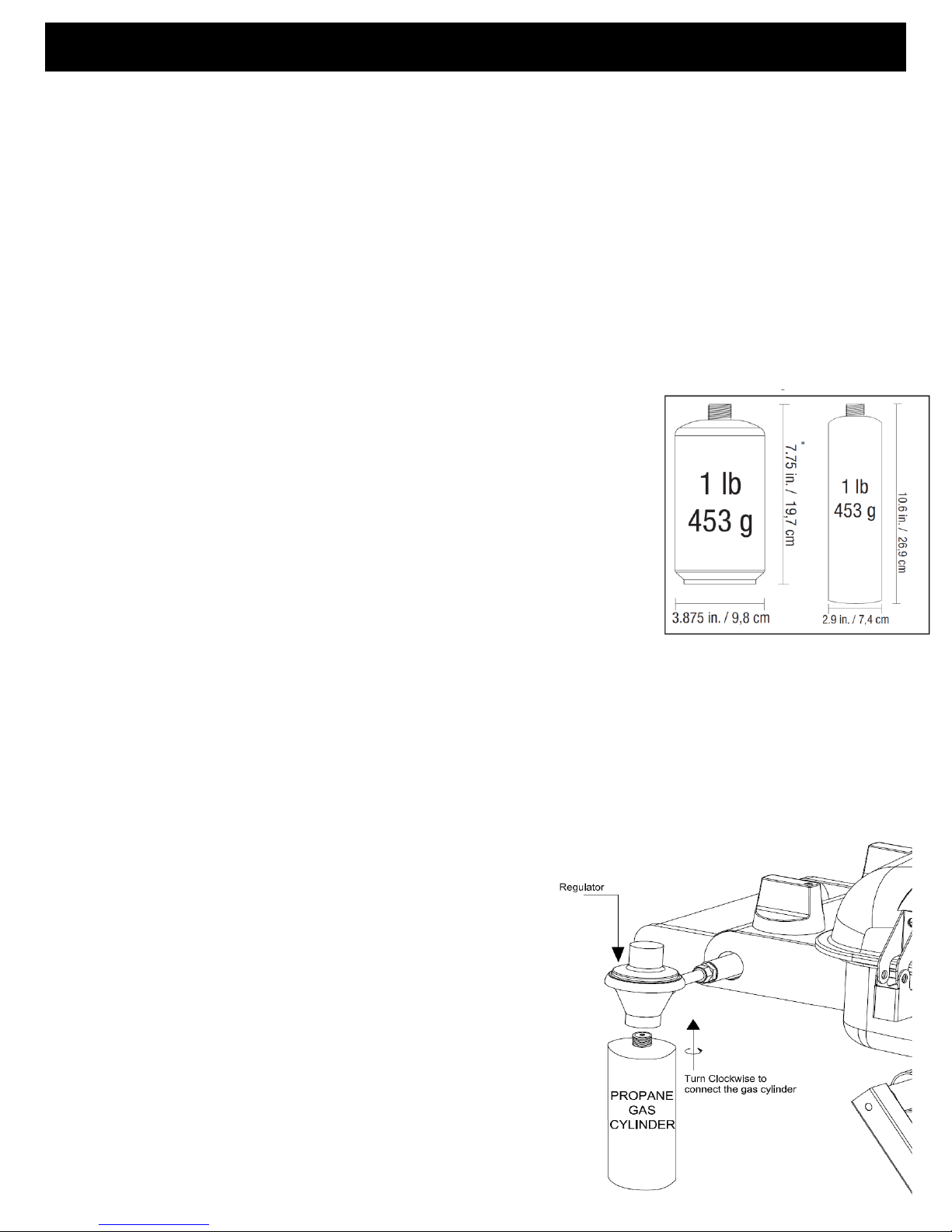

•This appliance is designed to operate with a one pound
7.75” or 10.6” high disposable / 16.4 oz. or 14.1 oz.
propane gas cylinder (DOT 39 Cylinder)
•Do not attempt to refill any disposable propane gas
cylinders.
•The cylinder must be installed, transported and stored
in an upright position and should not be dropped or
handled roughly.
•When the appliance is to be stored indoors, the propane
gas cylinder must be disconnected from the appliance.
•When the propane gas cylinder is connected to the
appliance, both must be stored outdoors in a well-ventilated space.
•The propane gas cylinder should never be transported or stored where
temperatures can reach 51.C (124.F)
•Cylinders must be stored outdoors out of the reach of children and must not be
stored in a building, garage, or any other enclosed area.
•The propane gas cylinder supply system must be arranged for vapor withdrawal.
•Disconnect the gas propane cylinder when not in use.
CONNECT THE PROPANE GAS CYLINDER
Only cylinders marked “propane” may be used.
Note: Some 1lb cylinders may form frost when
near empty.
1. Make sure the control knob is in OFF position.
2. Lubricate the threads of the regulator with
petroleum jelly if necessary. Line up threads
on LP gas cylinder with regulator.
3. Insert and rotate LP gas cylinder clockwise
until they fit snugly together. HAND TIGHTEN
ONLY. Be careful not to cross threads when
screwing in the cylinder. Test for leaks,
see “Leak Test” Section.
Warnings
SC2000304-OG-00–ENG P.6 20131026-V1

Warnings
CAUTION
(a) Do not store a spare LP-gas cylinder under or near this appliance;
(b) Never fill the cylinder beyond 80 percent full; and never refill 16.4 oz bottles.
(c) If the instructions in “(a)” and “(b)” are not followed exactly, a fire causing death or
serious injury may occur.
LEAK TEST
Although all gas connections on the grill are leak tested at the factory prior to shipment, a
complete gas tightness check must be performed at the installation site due to possible
mishandling in shipment, or excessive pressure unknowingly being applied to the unit.
Periodically check the whole system for leaks following the procedures listed below. If
the smell of gas is detected at any time you should immediately check the entire system
for leaks.
BEFORE TESTING
•Make sure that all packing material is removed from the grill including the burner tie-
down straps.
•Prepare a soap water mixture of one part liquid detergent and one part water. You
will need a spray bottle, brush, or rag to apply the solution to the fittings. For the initial
leak test, make sure the LP cylinder is available and never fill the cylinder beyond 80
percent full.
WARNING
DO NOT SMOKE WHILE CONDUCTING LEAK TEST
NEVER PERFORM LEAK TEST WITHAN OPEN FLAME
If it is evident there is excessive abrasion or wear, or the regulator is damaged, it
must be replaced prior to the appliance being operational. The replacement regulator
shall be specified by the manufacturer.
SC2000304-OG-00–ENG P.7 20131026-V1

TO TEST
1. Make sure the control knobs are in the “OFF” position, and turn on the
gas supply.
2. Check all connections at the Gas cylinder, LP gas regulator and
supply valve up to and including all connections to the pipe that go to
the burners (the diagram shows the point where the soap water
mixture is being applied). Soap bubbles will appear where a leak is
present.
3. If a leak is present, immediately turn off the gas supply and tighten the
leaky fittings.
4. Turn the gas back on and recheck.
5. If it is evident there is excessive abrasion or wear, or the hose is cut, it
must be replaced prior to the outdoor cooking gas appliance being put
into operation. The replacement hose assembly shall be that specified
by the manufacturer. Contact customer service at (888) 837- 1380
Warnings
Points of leak test:
1. Connection point at the manifold
and the regulator outlet.
2. Connection point at regulator
and tubing.
3. Connection point at the Gas
cylinder outlet and regulator inlet.
4. Connection points at control
valves and manifold. ( Under the
Control panel)
SC2000304-OG-00–ENG P.8 20131026-V1

Warnings
WARNING
Natural Hazards -Insects and Spiders
A clogged tube can lead to a fire beneath the appliance.
During shipment or storage, it is possible that small Insects and
spiders could find their way into the venturi tubes and make nests
or webs. This could block the flow of gas through the venturi tube
causing a smoky, yellowish flame, or prevent a burner from lighting.
It could even cause the gas to burn outside the venturi tube, which
could seriously damage the appliance. If this occurs, turn off the
gas flow and wait for the appliance to cool. When the appliance has cooled, remove
the burner and clean out the venturi tube with a brush or pipe cleaner. Replace the
burner and be sure that the venturi tube is seated over the orifice located on the gas
valves. Cleaning of the venturi tube should be conducted periodically, especially at the
start of the season.
Note: Damage resulting from blocked venturi tube is not covered under warranty.
SC2000304-OG-00–ENG P.9 20131026-V1
WARNING
Always unfold the grill completely before cooking and lighting

1 Philips & Flathead Screwdrivers
2 Pliers
3 Hex Nut Wrench
Tools Required
SC2000304-OG-00–ENG P.10 20131026-V1

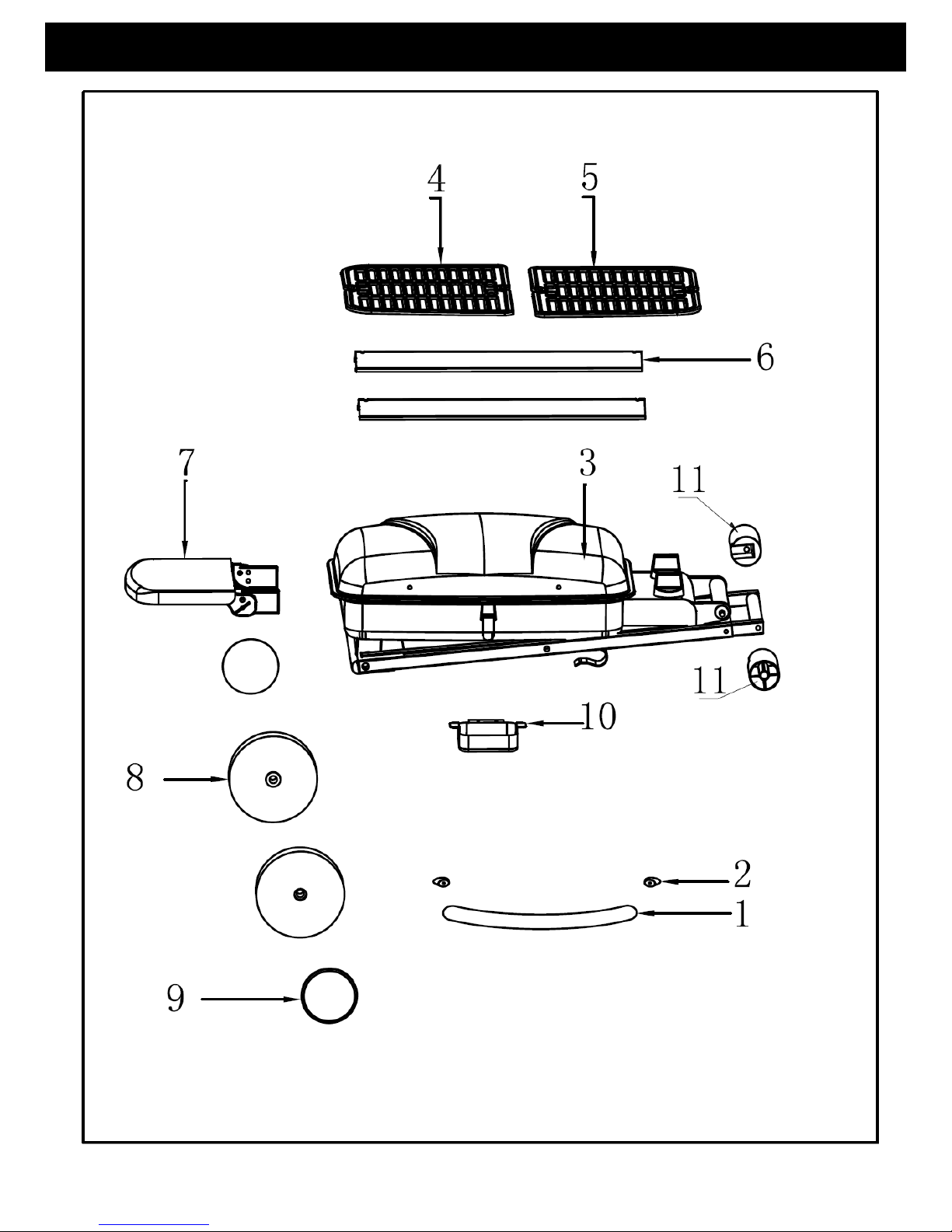

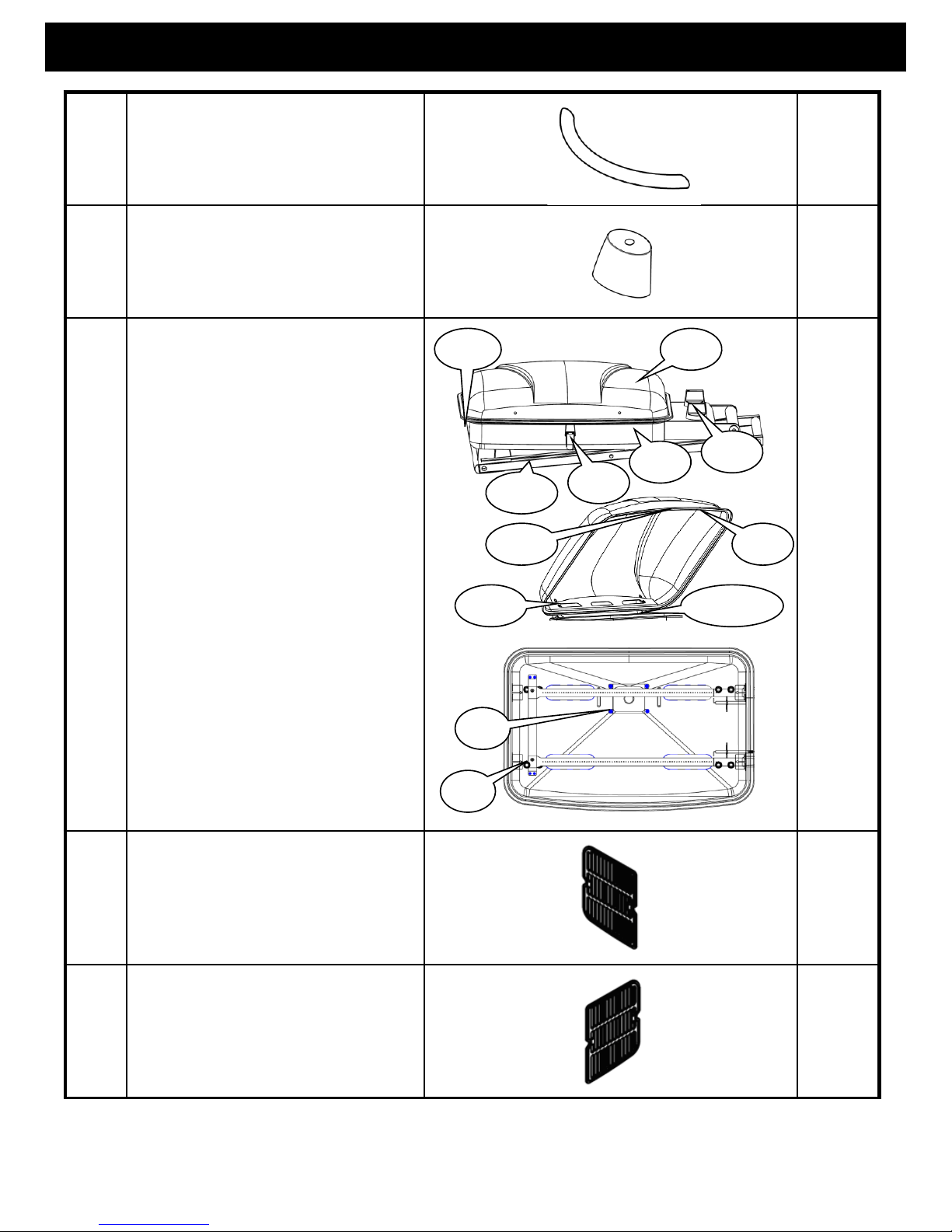

Parts List
1 Lid Handle 1pc
2 Lid Handle Bracket 2pcs
3 Grill Body Assembly
3a: Grill body with hose regulator
assembly –1 pc
3b: Grill lid –1 pc
3c: Legs –1 set
3d: Control knob –2 pcs
3e: Lighting rod –1 pc
3f: Lid lock –1 pc
3g: Heat Shield –1 pc
3h: Hinge (top) –2 pcs
3i: Hinge (bottom) –2 pcs
3j: Steel bracket (front) –2 pcs
3k: Steel bracket (back) –2 pcs
3l: Silica washer –12 pcs
4 Cooking Grate (Left) 1pc
5 Cooking Grate (Right) 1pc
3a 3d
3b3e
3f
3c
3g 3j
3h& 3i3k
SC2000304-OG-00–ENG P.11 20131026-V1
3l
3l

Parts List
6 Flame Tamer 2pcs
7 Side Table Assembly
7a: Side Table –1 pc
7b: Lock Assembly –1 pc
8 Wheel 2pcs
9 Wheel Cover 2pcs
10 Oil Drip Tray 1pc
11 Plastic Leg Base 2pcs
SC2000304-OG-00–ENG P.12 20131026-V1
7a
7b

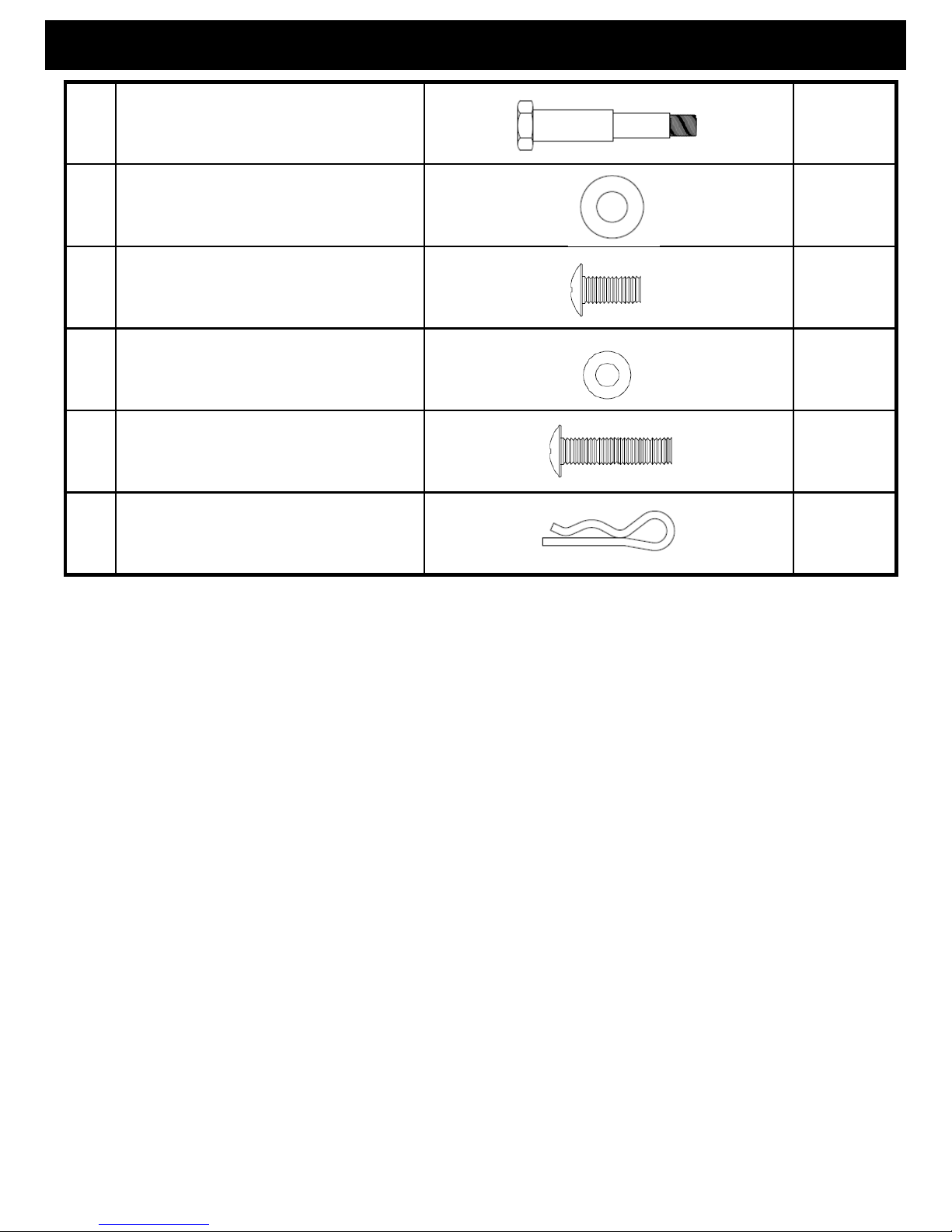

Hardware
A Wheel Bolt 2 pcs
B M10 Washer 2 pcs
C M6 * 15mm Bolt 4 pcs
D M6 Washer 4 pcs
E M6 * 55mm Bolt 2 pcs
F Cotter Pin 4 pcs
SC2000304-OG-00–ENG P.13 20131026-V1

Assembly Instructions
SC2000304-OG-00–ENG P.14 20131026-V1

Assembly Instructions
Step 1:
Take out the Grill Body (3)
from the packing box and
keep the grill body in folded
position. Loosen the
screws on legs as following.
Insert these screws through
the center hole of the
Plastic Leg Base(11) and
tighten them firmly.
Step 2:
Insert the Wheel Bolt (#A)
through the Wheel (8) and
Washer (#B) and then
tighten the bolt to the leg
frame of Grill Body (3).
Attach the Wheel Cover(9)
to the Wheel (8).
Screws on legs
#A –Wheel Bolt x 2 pcs
#B –Washer x 2 pcs
SC2000304-OG-00–ENG P.15 20131026-V1
3
9
#A
8
#B 3
9
#A
8
#B

Assembly Instructions
Unfold the Grill as per following figure.
SC2000304-OG-00–ENG P.16 20131026-V1
Step 3A:
Step 3B:

Assembly Instructions
Step 4:
Attach Side Table (7) to Grill Body by using 4 pcs of M6x15mm Bolt (#C) and M6 Washer (#D).
#C–M6x15mm
Bolt x 4 pcs
#D –M6 Washer x 4 pcs
SC2000304-OG-00–ENG P.17 20131026-V1
7
#C & #D #C & #D

Assembly Instructions

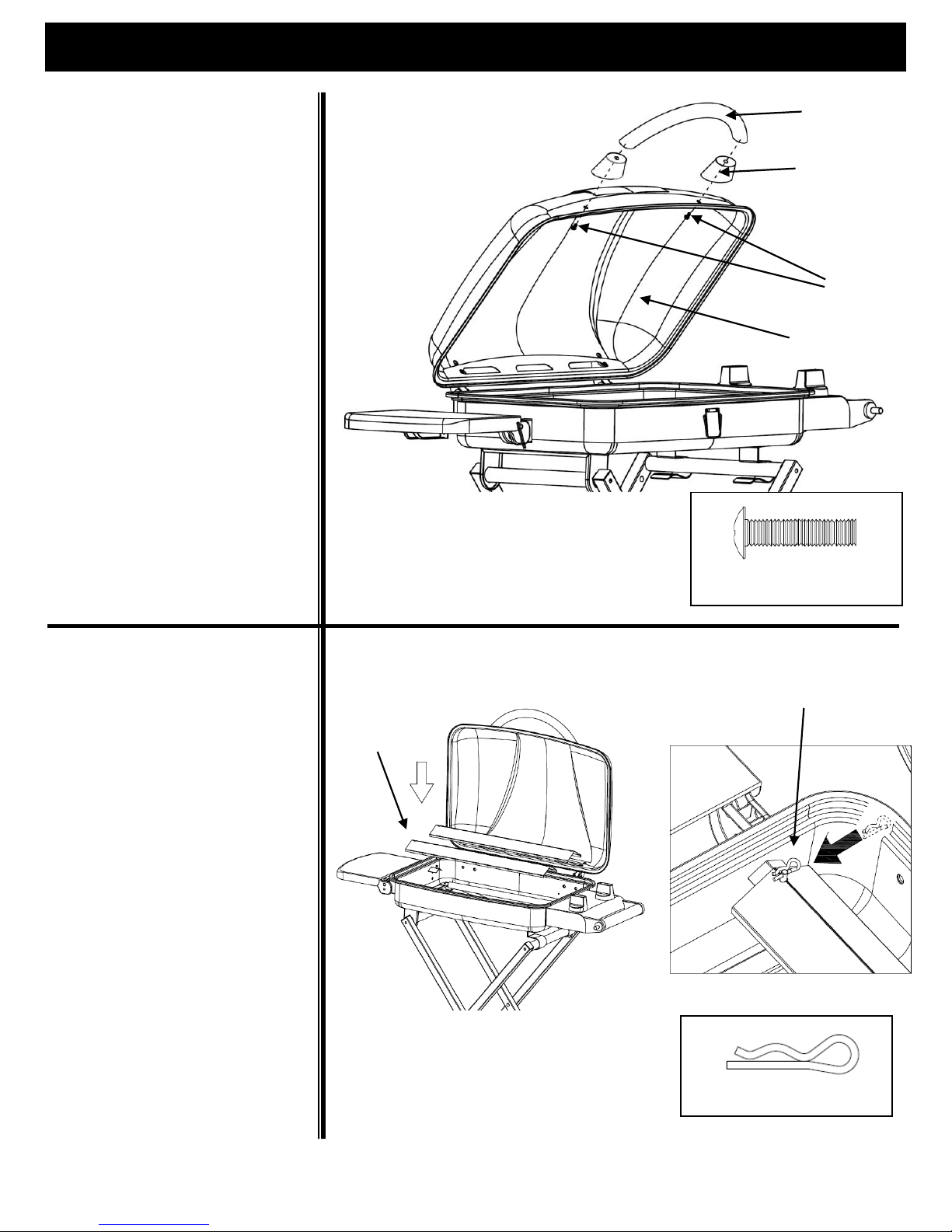

Step 5:
Insert M6x55mm Bolts (#E)
through the Lid Handle
Brackets (2) and Lid Handle
(1). Tighten the the Handle
firmly to the Lid.
Step 6:
Place the Flame Tamer (6)
over the burners and use 4
pcs of Cotter Pins (#F) to
maintain the Tamers in
position.
#E - M6x55mm
Bolt x 2 pcs
#F –Cotter Pin x 4 pcs
SC2000304-OG-00–ENG P.18 20131026-V1
1
2
3
#E
6
#F

Assembly Instructions
Step 7:
Place the Cooking Grates
(4 and 5).
Step 8:
Insert the Oil Drip Tray (10)
under the Grill Body.
Assembly is completed!!!
Before Cooking for the First Time
Operate grill 15 minutes with grill lid closed and gas control on HIGH. This will heat-clean
internal components and eliminate odor of oil in grill.
WARNING
Always unfold the grill completely before cooking and lighting
SC2000304-OG-00–ENG P.19 20131026-V1
4 and 5
10

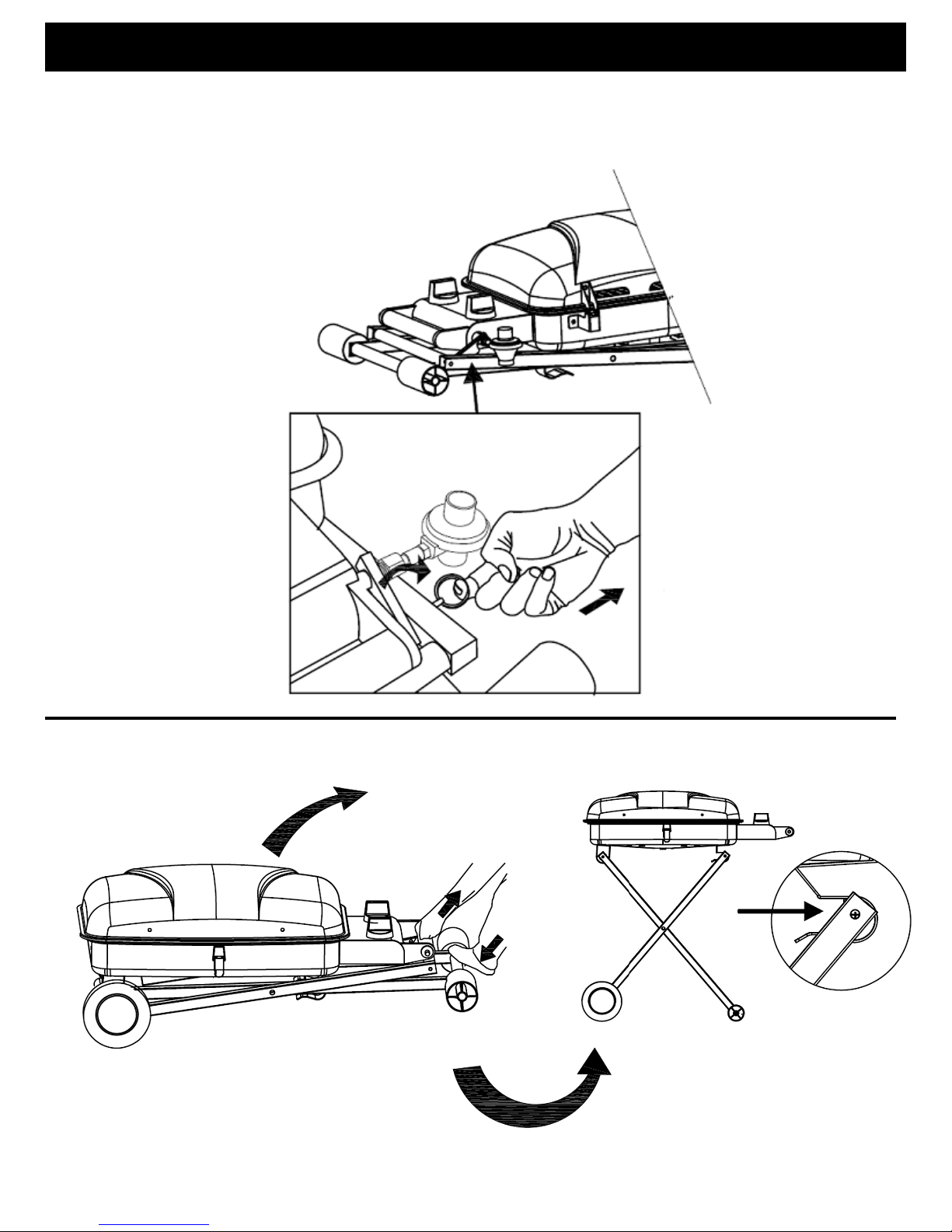

Operating Instructions
Unfold Grill
Note: Unlock the latch before unfolding the legs
SC2000304-OG-00–ENG P.20 20131026-V1
Step 1:
Step 2:
