GARCARE GPHT06 User manual

Corded Pole Hedge Trimmer
Model:GPHT06
Model :GPHT07
Read and understand all instruction carefully before using the tool!

General Power Tool Safety Warnings
WARNING：Read all safety warnings and all instructions. Failure
to follow all the warnings and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded)
power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any
way. Do not use any adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a
power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords increase the risk of electric
shock.
e) When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is unavoidable, use a
residual current device (RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
g)Recommendation that the tool always be supplied via a residual
current device with a rated residual current of 30 mA or less.
h)Always check that the power supply corresponds to the voltage on the
rating plate.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are tired or

under the influence of drugs, alcohol or medication. A moment of
inattention while operating power tools may result in serious personal injury.
b) Use safety equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking up or
carrying the tool.
Carrying power tools with your finger on the switch or energising power tools
that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result in
personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This
enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair,
clothing and gloves away from moving parts. Loose clothes, jewelry or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used. Use
dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at the rate
for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any
power tool that cannot be controlled with the switch is dangerous and must be
repaired.
c) Disconnect the plug from the power source and/or the battery pack
from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to operate
the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or sticking of moving
parts, breakage of parts and any other condition that may affect the
power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with
sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and the

work to be performed. Use of the power tool for operations different from
those intended could result in a hazardous situation.
5) Service
a) Have your power tool serviced by a qualified repair person using only
identical replacement parts. This will ensure that the safety of the power tool
is maintained.
6)Hedge trimmer safety warnings:
a)Keep all parts of the body away from the cutter blade. Do not remove
cut material or hold material to be cut when blades are moving. Make
sure the switch is off when clearing jammed material. A moment of
inattention while operating the hedge trimmer may result in serious personal
injury.
b)Carry the hedge trimmer by the handle with the cutter blade stopped.
When transporting or storing the hedge trimmer always fit the cutting
device cover. Proper handling of the hedge trimmer will reduce possible
personal injury from the cutter blades.
c)Keep cable away from cutting area. During operation the cable may be
hidden in shrubs and can be accidentally cut by the blade.
d)Hold the power tool by insulated gripping surfaces only, because the
cutter blade may contact hidden wiring or its own cord. Cutter blades
contacting a "live" wire may make exposed metal parts of the power tool
"live" and would give the operator an electric shock.
Additional Safety Instructions
Do not use the hedge trimmer in the rain.
If the cord is cut or damaged, remove it immediately from the power point.
If the replacement of the supply cord is necessary,this has to be done by the
manufacturer or his agent in order to avoid a safety hazard.
The pole hedger trimmer shall be operated with the operator standing upright.
Keep hands and fingers well away from the blade.
Wear work gloves, eye protection, solid shoes and trousers when using this
hedge trimmer.
Always grasp both handles when operating the unit.
Disconnect the hedge trimmer from the mains supply when you have finished
work, before cleaning or if you have been interrupted.
This hedge trimmer has been designed to cut soft, new growth and should not
be used on branches, hard wood or other forms of cutting.
Do not attempt to free a jammed blade before first switching off the machine
and disconnecting it from the mains supply
If you are interrupted when operating the hedge trimmer, complete the process
and switch off before looking up.
Never allow untrained users or children to use the hedge trimmer.

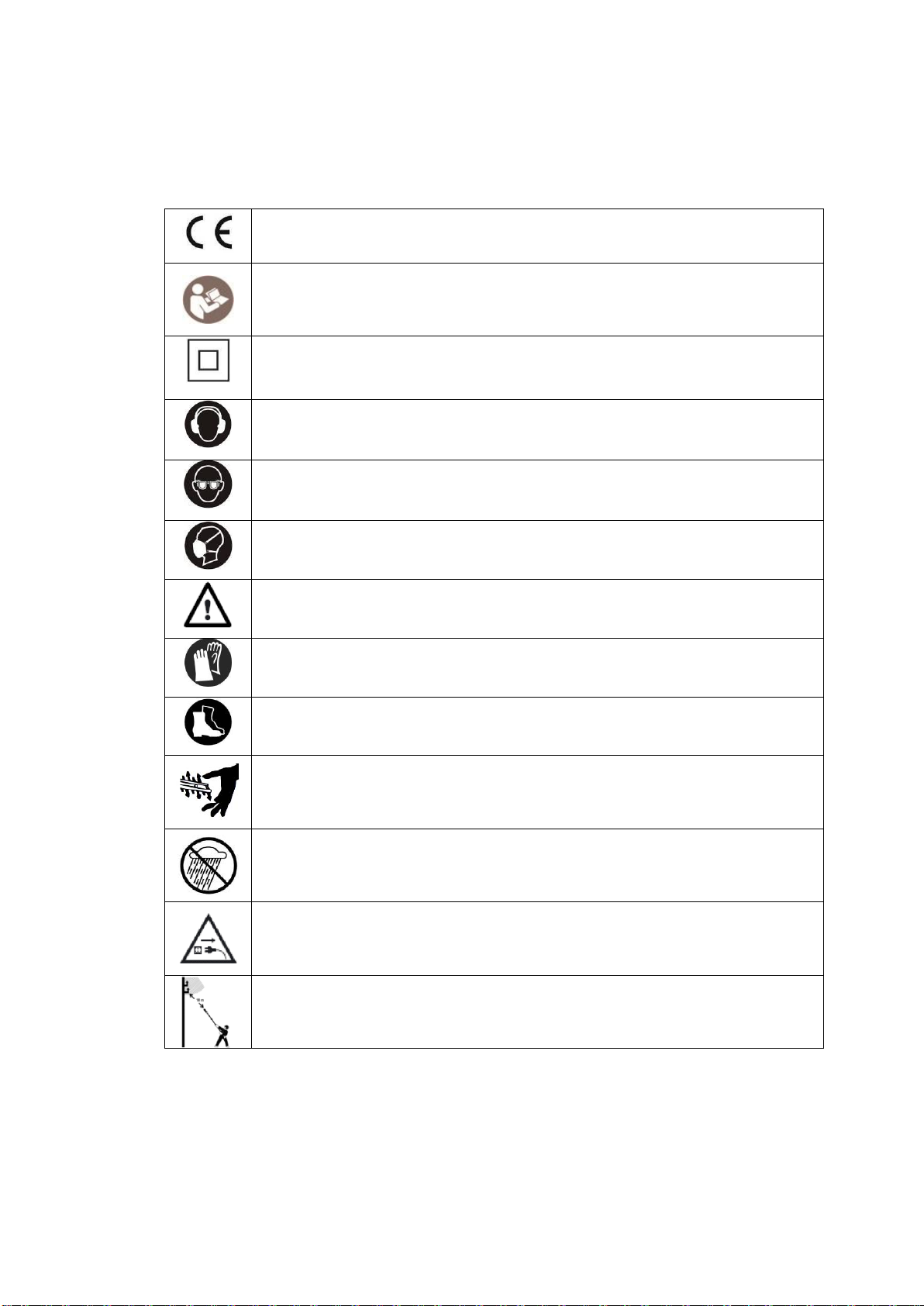

Symbols
In this manual and/or on the machine the following symbols are used:
In accordance with essential requirements of the European
directive(s)
To reduce the risk of injury, user must read instruction manual.
Double insulation
ClassⅡdevice .This device must not be earthed.
Wear hearing protection.
Wear eye protection.
Wear respiratory protection.
Denotes risk of personal injury or damage to the tool.
Wear gloves.
Wearing of protective shoes advised.
Keep hands away from blades, Don’t touch the blades when
starting or while operating the unit.
Never operate the machine in the rain or in damp or wet condition.
Moisture is a shock hazard.
Remove the plug from the mains.
Don’t use the trimmer in any position that causes any part to come
within 10 m of overhead electrical line.

Intended Use
The hedge trimmer should only be used for trimming hedges, bushes and shrubs. Other
use of the machine, not included in this manual, could damage it or seriously injure the
operator, and is therefore expressively excluded from the application range.
Technical Data
Description
Fig. 1
Fig. 2
Model
Rated Rating
Cutting length
(inch)
Cutting capability
(inch)
GHPHT06
120V~60Hz 4.8A
20
3/4
GHPHT07
120V~60Hz 4.8A
20
3/4

1. Rear handle
2. Safety button
3. Telescopic tube quick release button(FOR MODEL GPHT06)
Rotary handle(For MODEL GPHT07)
4. Auxiliary handle(FOR MODEL GPHT06)/
foam for hand hold( FOR MODEL GPHT07)
5. Allen key and storage
6. Motor
7. Blade
8. Safety blade cover
9. Locking knob for length adjustment
10.Shoulder strap
11.Safety guard
12.Rotating knob
13.Front handle switch
14.Front handle
15.Cable holder
16.Power cord & plug
17.ON/OFF switch
18.Locking button for engine head adjustment
Package Content List
a)Remove all packing materials.
b)Remove remaining packaging and transit supports (if existing).
c)Check the completeness of the packing content.
d)Check the appliance, the power cord, the power plug and all accessories for
transportation damages.
e)Keep the packaging materials as far as possible until the end of the warranty period.
Dispose it into your local waste disposal system afterwards.
WARNING Packing materials are not toys! Children must not play with plastic
bags! Danger of suffocation!
Operation
Stop the tool and unplug the power plug before performing any cleaning,
inspection, maintenance or other works on the tool.

For the model 2 in1 trimmer GPHT06
This trimmer can be the pole hedge trimmer and normal hedge trimmer

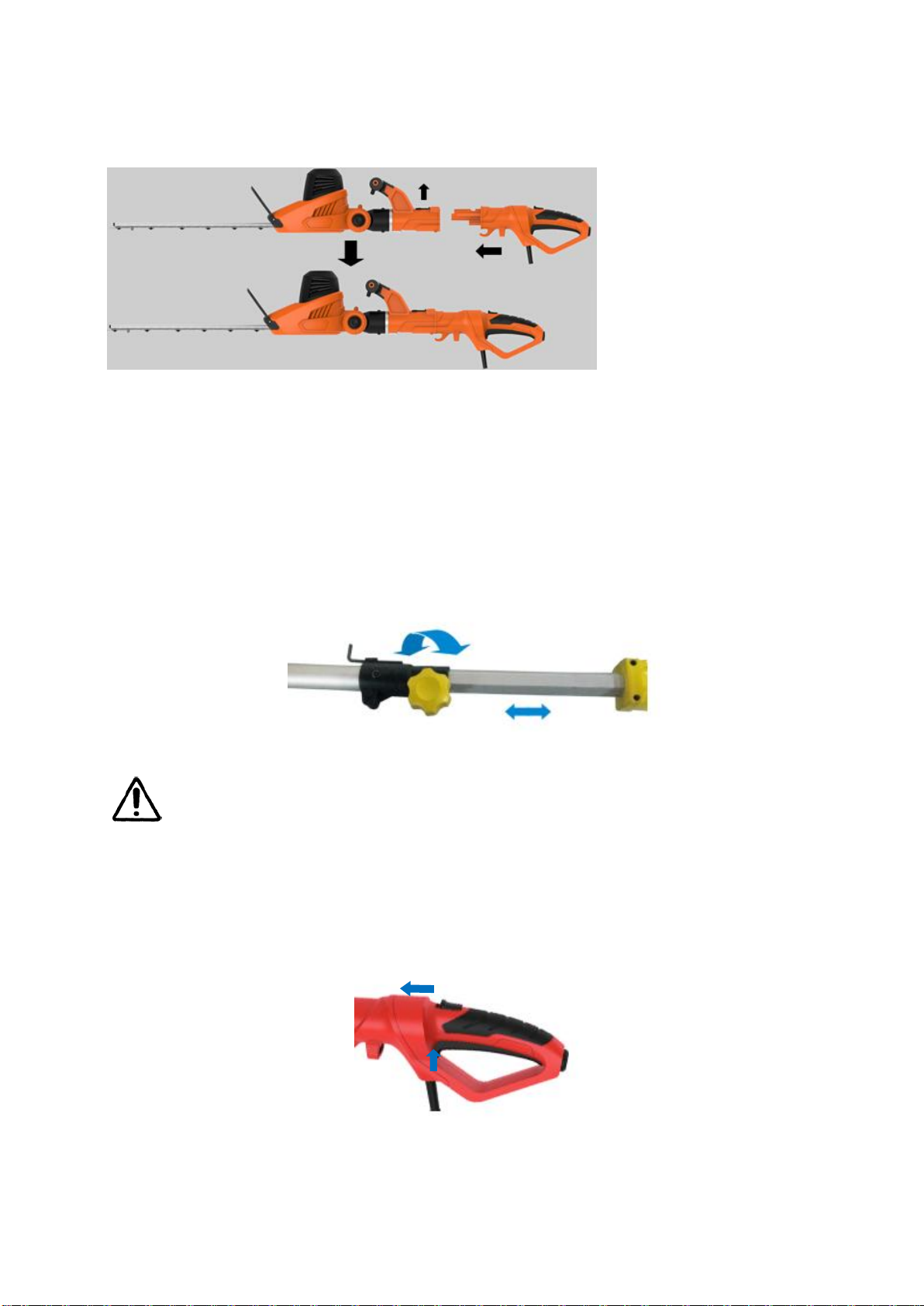

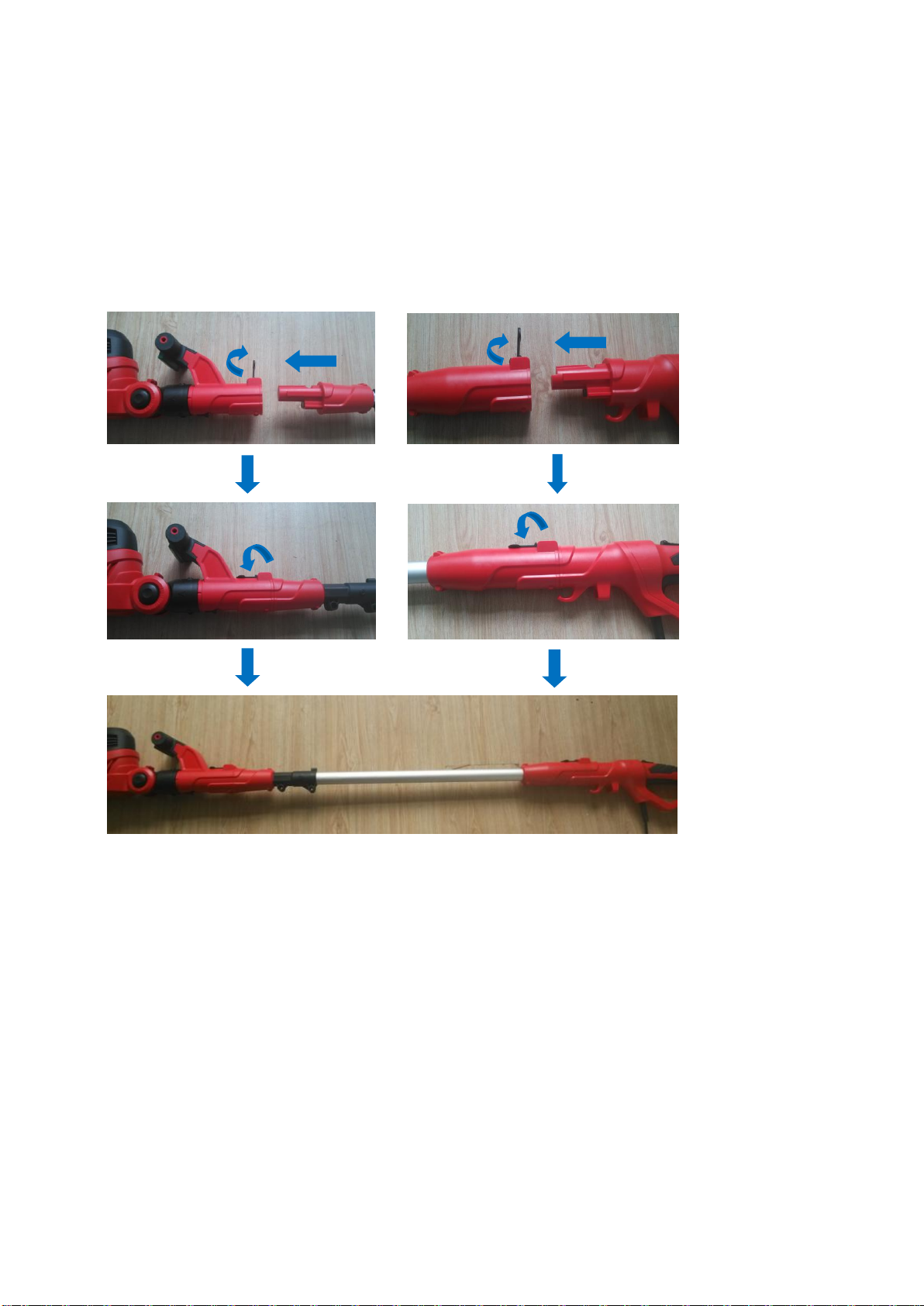

Assembly of the pole hedge trimmer/assembly of the telescopic tube (Fig. 3)
Fig. 3
a) 1. Open the quick release button (3) of the telescopic tube.
b) 2. Put the rear handle (1) into the opening of the telescopic tube.
c) 3. Lock the quick release button (3) of the telescopic tube.
d) 4. Open the quick release button (3) of the housing.
e) 5. Put the telescopic tube into the opening of the housing.
f) 6. Lock the quick release button (3) of the housing.
Assembly and adjustment the auxiliary handle（Fig. 4）

Fig. 4
Place the auxiliary handle to telescopic tube which near to rear handle (1), adjustment the
auxiliary handle to a comfortable working position and tighten the screw (A) by Allen key
(B)firmly.
Assembly and use of the shoulder strap (Fig. 5 and 6)
The shoulder strap is recommended for carrying the machine around when not in use.
Fig. 5 Fig. 6
Assembly
Use your thumb or fingers to squeezing the safety lock piece (A), put the hook to the
hanging part (B) of the tool.
Move slide buckle (C) to adjust the length of the shoulder strap.Adjust the length of the
shoulder strap to obtain a comfortable working position. A few practice swings without
starting motor should be made to determine correct balance.
Put the shoulder strap over your right shoulder. Carry the tool engine at the right side of
your body.
Dis-assembly:
Remove the safety lock piece in the opposite way.
Never attach the strap diagonally across your shoulder and your breast,
but rather place it on one of your shoulders. In this way you can remove
the tool quickly from your body in case of danger.

Assembly of the normal hedge trimmer without the telescopic tube .(Fig. 7)
Fig. 7
Open the quick release button (3) of the housing.
Put the rear handle (1) into the opening of the housing.
Lock the quick release button(3).
Adjustment length of the telescopic tube (Fig. 8)
Fig. 8
Disconnect your gardening tool from the power supply.
Loosen the locking knob for length adjustment (9) completely and push the telescopic
tube to the desired length, finally tighten the locking knob firmly.
Starting and stopping the pole hedge trimmer with the telescopic tube (Fig. 9)
Fig. 9
To start the tool: push the safety button (2) forward and press the ON/OFF switch (17) at
same time ,Release the safety button(2) once the motor has started.
To stop the hedge trimmer: Release the ON/OFF switch.

Starting and stopping the normal hedge trimmer without telescopic tube (Fig. 10)
Fig. 10
To start: Grasp the front handle (14) with one hand, and press the front handle switch
(13). Then grasp the rear handle with the other hand, and press the safety button (2) first,
then operate the ON/OFF switch (17). Release the safety button once the motor has
started.
To stop: Release one of the two switches (17, 13).

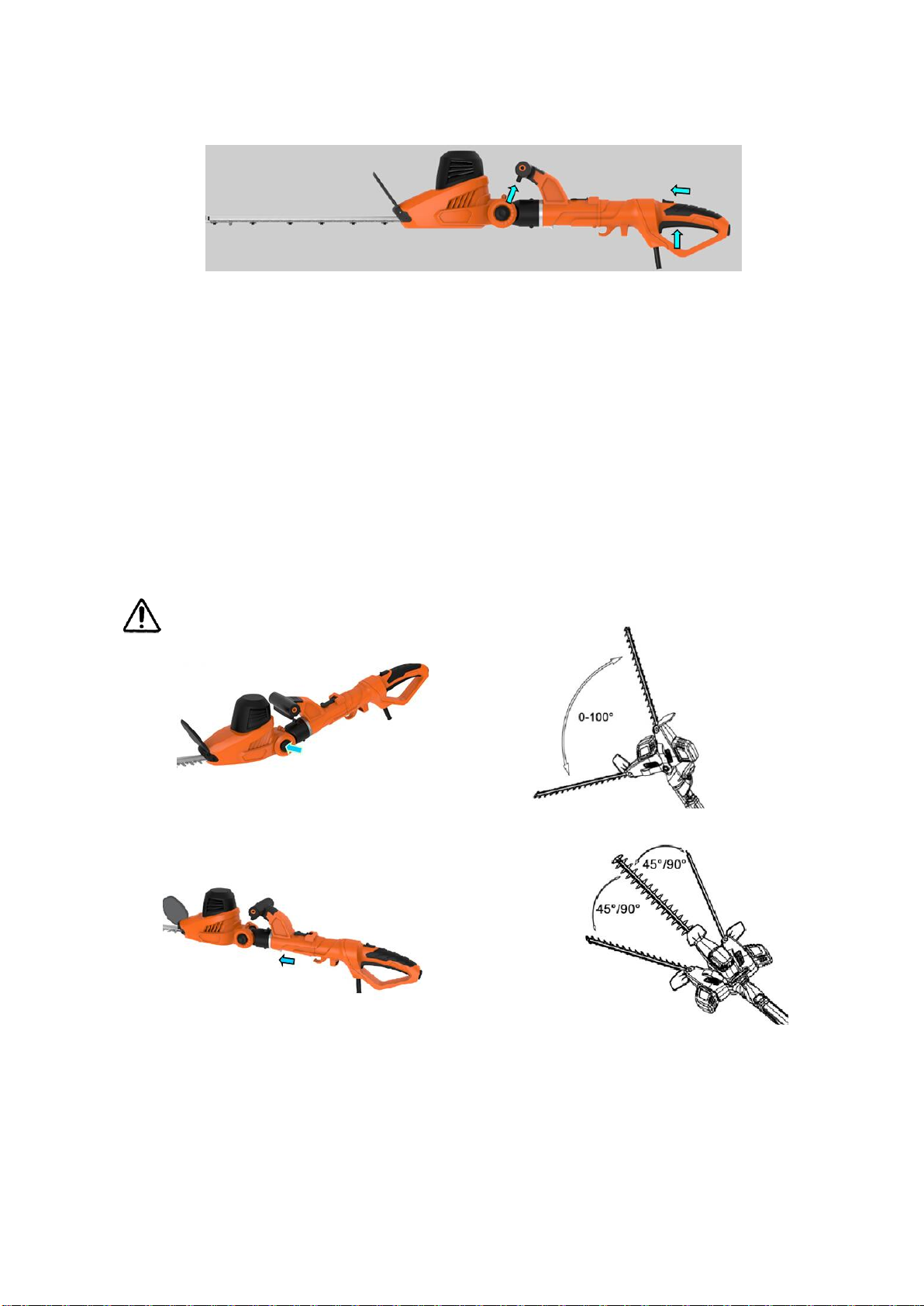

Adjustment of engine head (Fig. 11 and 12)
Disconnect your gardening tool from the power supply.
Fig. 11
Fig. 12
Press the locking button for engine head adjustment (18) or push the rotating knob (12)
forward, and adjust the engine head until it snaps into the desired position.

For the pole hedge trimmer GPHT07
This model just can be the pole hedge trimmer
Assembly:
1.Loosen the 4 pcs screws on the rotary handle(3) and take out the big screw at the
middle of the screw(Fig12) .
2. Put the telescopic tube into the rotary handle ,tighten the big screw and 4 pcs
screw .
Adjustment of engine head
Press the rotating knob (12) adjust the engine head until it snaps into the desired
position.
After adjustment make sure that the angle adjustment buttons have returned to
their initial positions. Otherwise the tool cannot start.

Do not connect to power supply until assembly is complete, Failure to
comply could result in accidental starting and possible serious personal
injury.
Cutting Tips
Assume a secure position, using two hands to hold the hedge trimmer and switch on.
Trim both sides of the hedge, starting at the bottom. This prevents cuttings falling into the
area yet to be cut.
Pass the blade lightly through the surface of the hedge trimmer. Do not attempt to cut too
deep.
Trim the top of the hedge.
For older hedges that require cutting back substantially, use pruning shears to cut the
thicker branches and then finish the job with the hedge trimmer.
Never use the hedge trimmer without check the tightness of the bracket.
Cleaning And Maintenance
Warning! Before performing any work on the equipment, pull out the power
plug.
Check your machine regularly before starting the work.
Damaged cutting blades have to be repaired or exchanged by a qualified technician
before working with the machine.
After each cutting operation, clean the cutting blade with a soft brush and cloth with
lubricating fluid oil and spray a thin layer of fluid protective oil over the blades. Silicone
spray is recommended.
Always keep the ventilation slots in motor housing clean.
Never clean or spray a machine with water.Clean the motor housing only with a moist
cloth and never apply detergents or solvents! These could ruin the plastic parts of the
machine, finally dry the motor housing carefully.
Store the machine with the supplied safety blade cover (8).
Only use original accessories and spare parts.

20161111
SAVE THIS INSTRUCTION MANUAL AS LONG AS YOU CAN !
Customer Service mail:garcareserv[email protected]
