Garden Gear D9531 User manual

For correct usage, read these instructions carefully and keep in
a safe place for future reference
After Sales Support
Call 0871 911 7031
Email Customerser[email protected]
Product Code: D9531
Thank you for purchasing this product, which
has been made to demanding high quality
standards and is guaranteed for domestic use
against manufacturing faults for a period of 12
months from date of purchase
Cordless Grass Trimmer
Instruction Manual

2
INTRODUCTION
Congratulations
You have made an excellent choice with the purchase of this quality Garden
Gear product.
By doing so you now have the assurance and peace of mind which comes
from purchasing a product that has been manufactured to the highest
standards, performance and safety.
We want you to be completely satisfied with your purchase, so this Garden
Gear product is backed by our full 12 month manufacturers guarantee
and an outstanding after sales service through our dedicated Helpline.
Register your product for an extended 2-year warranty by visiting our website
www.gardengearonline.co.uk. The product must be registered, along with your
contact information, within 30 days of purchase. For full terms and conditions
please visit our website.
We hope you enjoy using your purchase for many years to come.

3
Technical specifications
Speed N0
8,500 min-1
Cutting circle
Ø 26cm
Max. operation time
Approx. 30 mins
Protection class
III
LWA sound power level
88,3dB
LpA sound pressure level
78 dB
K uncertainty
3dB
Interchangeable battery
18 V d. c. /1300mAh
Vibration
5.8 m/s2
Weight
1.9kg
Charging unit mains
voltage
100-240 V ~ 50-60 Hz
Output rated voltage
20V d. c.
Output rated current
0.35A
The machine may exceed 85 dB (A). The operator will require noise
protection measures if this is the case. The noise was measured in
accordance with EN ISO 10518. The value of the vibrations emitted by the
handle was determined in accordance with EN ISO 10518.
Important note
The vibration value changes according to the area of application of the
electric equipment and may exceed the specified value in exceptional
circumstances.

4

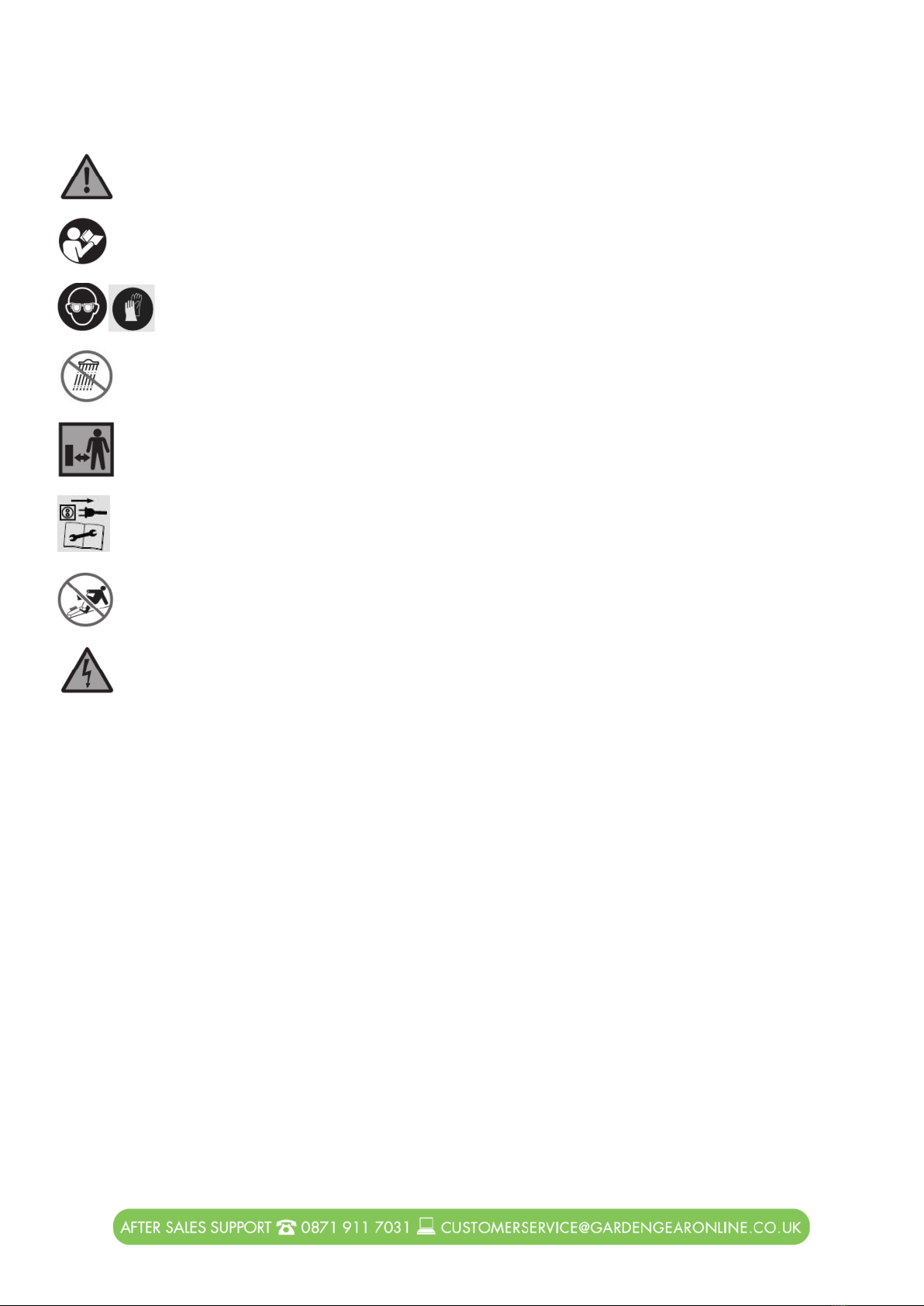

Safety symbols and their meaning
Precautions required that involve your safety.
To reduce the risk of injury, users must read and understand instruction
manual before using this product.
Wear ear and eye protection when operating this equipment.
Do not expose machine to rain or wet conditions.
Keep all bystanders (especially children and pets) at least 15m away from
the work area.
Switch off the machine before adjusting, cleaning and before leaving the
product unattended for any period.
Do not operate on inclines greater than 15°. Use across the face of slopes,
never up and down.
Beware of electric shock hazard.

5
General information and safety warnings
•Read these instructions fully and make sure you understand the manual
and labels affixed to the cordless grass trimmer before use.
•Wear appropriate personal protective clothing during use.
•Before use make sure that the cordless grass trimmer is correctly
assembled and all parts and securely attached.
•Do not use if any parts are damaged, always consult a qualified repair
person.
•Do not use in wet weather, wet areas or in areas where gases or other
flammable materials are stored.
•Not suitable for use in frozen or snowy conditions.
•Keep children and pets well away from the working area.
•Tie long hair back and remove any jewellery before use.
•Guide the cordless grass trimmer at a walking pace, do not overreach.
•Only use in a well-lit area.
•Do not use on a slope which may be too steep for safe operation.
•Keep the cordless grass trimmer in good clean condition.
•Do not use the cordless grass trimmer if you are tired or under the
influence of drugs or alcohol.
•Do not operate the cordless grass trimmer near electrical cables,
telephone lines, pipes or hoses.
•If the cordless grass trimmer strikes a foreign object, turn it off
immediately and check for damage.
•Do not put hands, feet or any other body part or clothing near the
cordless grass trimmer blades.
•The product is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the product by a person responsible for their safety.
•This appliance is approved solely for use in accordance with the
description and safety instructions specified in this user manual.
•Do not attempt to modify the product or use accessories. Any such
modification or misuse could result in a hazardous condition leading to
serious injury.
•If any parts are damaged or missing, do not operate until the parts are
replaced.
•Do not force the product. It will do a better job with less likelihood of a
risk of injury when you operate it at the rate for which it was designed.
•Make sure the power rating on the charger plug matches the outlet.

6
•Do not use any adaptor plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce the risk of electric
shock.
•Never use the power cable for carrying, pulling or unplugging the
charger.
•Never expose the battery charger or plug to damp or wet
environments.
•When you are not using the trimmer remove the battery and store in a
safe dry place.
•Our equipment has not been designed for commercial, trade or
industrial use.

7
Description of parts
1. Safety lock-off 8. Safety guard
2. On/off switch 9. Blade
3. Handle adjusting dial 10. Charging unit
4. Stabilising handle 11. Battery pack head
5. Height adjustment joint 12. Lock for rotatable motor
6. Edge guide 13. Head rotation grip
7. Blade head 14. Grass trimmer blades
1
2
3
4
5
6
7
8
9
10
11
12
13
14

8

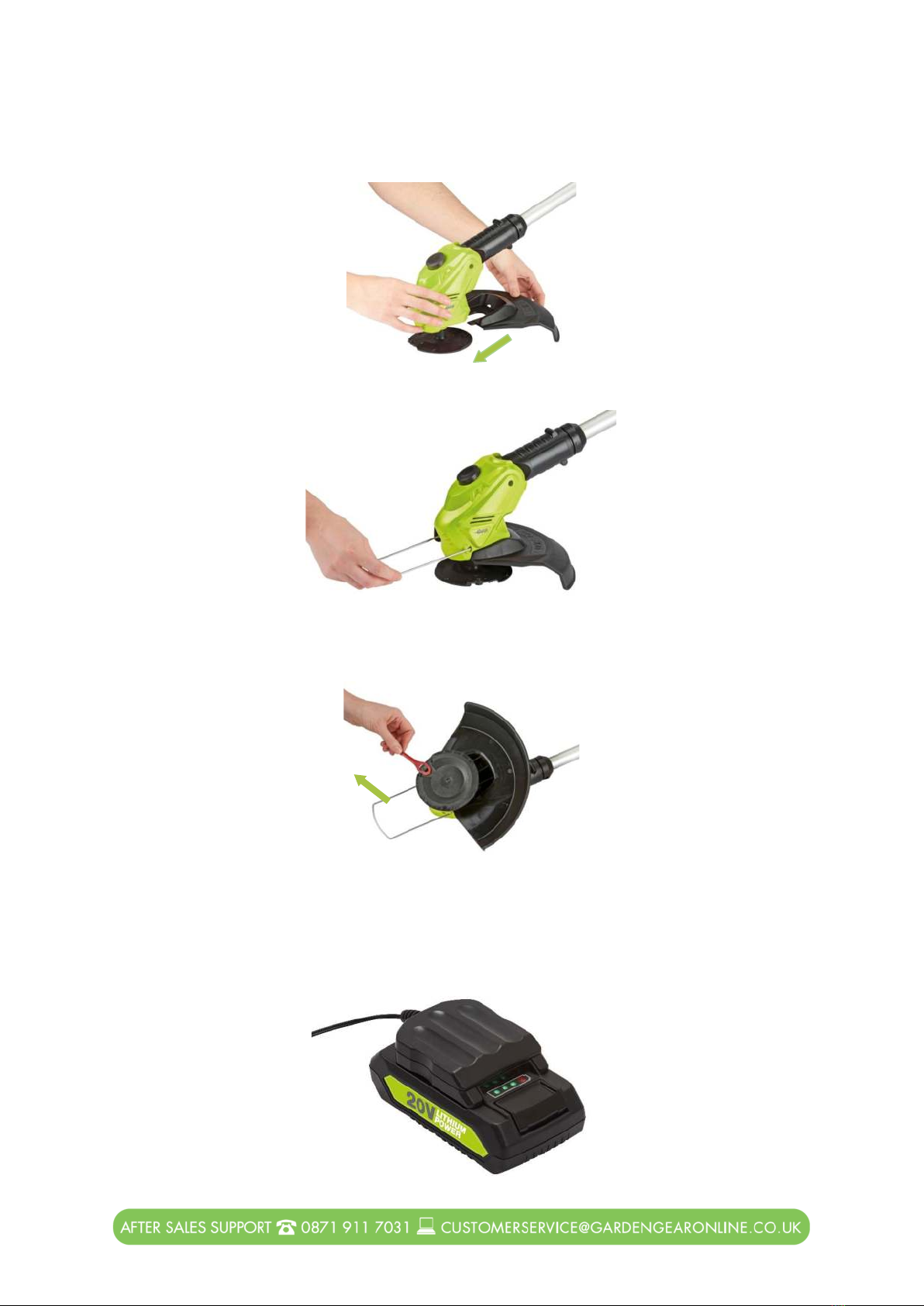

Assembly
1. Connect the safety guard to the motor head by pushing in the
direction shown below until you hear it click into place.
2. Connect the edge guide into its correct position on both sides of the
cutting head motor.
Fitting a new blade
To fit a blade, locate the large hole over the lug on the blade head. Pull it in
the direction shown until it snaps into place in the smaller hole.
Charging the battery
Plug the charger into a socket; push the battery into position (you will hear a
click when it is located correctly). The charger has 3 LED lights and an on
button. Turn the power on and press the on button; if the LED lights all turn
green the battery is fully charged. If the LED lights are red, the battery requires
charging.

9
To purchase a spare 20v battery please contact our dedicated customer
service team on 0871 911 7031* and quote the code G1168. Alternatively,
you can visit our website at www.gardengearonline.co.uk.
Instructions for use
Using the trimmer
•Once you have read the instructions and assembled your trimmer,
choose an area that you wish to work.
•Attach a blade if not already fitted.
•Attach the fully charged battery pack.
•Hold both the main handle and the stabilising handle, pull back the
safety lock-off and depress the on/off switch. The trimmer will start to
work.
Please note: The trimmer will not start unless you pull the lock-off at the
same time as pressing the on/off switch. This is to prevent accidental
start-up of the machine.
•Practice on a small area first by moving the cutting blade in a
sweeping action, moving the trimmer from side to side. Start with the
highest grass and move downwards in stages.
•To protect the blade, use the edge guide.
•Once you have become more experienced, you can start using the
trimmer on border edges by rotating the head.
•When using the trimmer, remove the spare grass trimmer blades.
Reattach these to the machine for storage so they do not get lost.
Adjusting the height of the trimmer
Loosen the height adjustment joint and pull the lower section of the main
shaft until the desired height is achieved, then retighten.

10
Adjusting the angle of the cutting head
Press the button on the main motor as shown below, this will enable you to
adjust the angle of the cut to suit the height of the grass. When the button is
released the head will remain in place.
Adjusting the rotating head
The trimmer can also be used as an edging tool. To adjust the angle, pull the
head grip away from the rotation lock, downwards, then turn the head 90°
and release, it will then lock into place.
Care and maintenance
•Before each use check the trimmer for any obvious defects such as
loose worn or damaged parts.
•Do not use the trimmer if there is any sign of damage or if cutting
edges are blunt this will over stress the motor of the machine.
•Check the outer sections of the body and safety switch for any
damage and if present get a qualified person to replace.
•Carry out the following maintenance and cleaning work regularly
•Every time you use the trimmer clean all parts especially the ventilation
slots and under the safety guard. Remove any moisture, debris or dust
and store in a clean dry environment.
•Do not use or submerge the trimmer in water or use cleaning agents or
solvents, these may damage the materials present on the trimmer.
•Do not try to service the trimmer yourself, always take it to a qualified
repair person.

11
Li-Ion battery care & maintenance
Lithium-Ion rechargeable batteries require routine maintenance and care in
their use and handling. Read and follow the guidelines to safely use Lithium-
Ion batteries and achieve the maximum battery life span.
Do not leave batteries unused for extended periods of time, either in the
machine or in storage. When a battery has been unused for 3 months or
more, check the charge status and charge or dispose of the battery as
appropriate.
The typical estimated life of a Lithium-Ion battery is about two years or 300
charge cycles, whichever occurs first. One charge cycle is a period of use
from fully charged, to fully discharged, and fully recharged again.
Rechargeable Lithium-Ion batteries have a limited life and will gradually lose
their capacity to hold a charge. This loss of capacity (aging) is irreversible. As
the battery loses capacity, the length of time it will power the product (run
time) decreases.
Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in
use or while in storage. Routinely check the battery’s charge status.
•Carefully monitor batteries that are approaching the end of their
estimated life.
•Consider replacing the battery with a new one if you note either of the
following conditions:
The battery run time drops below about 60% of the original run
time.
The battery charge time increases significantly.
•If a battery is stored or otherwise unused for an extended period, follow
the storage instructions. If damaged, do not attempt to recharge it or
to use it. Replace it with a new battery.
Storage
•Charge or discharge the battery to approximately 50% of capacity
before storage.
•Charge the battery to approximately 50% of capacity at least once
every six months.
•Remove the battery and store it separately from the product.
•Store the battery at temperatures between 5°C and 20°C (41°F and
68°F).
Please note: Higher temperatures (above 20°C or 68°F) reduce the battery
storage life.

12
Declaration of Conformity
In accordance with EN ISO 17050-1:2010
We Branded Garden Products Ltd
of Poplar Lane, Ipswich, Suffolk, IP8 3BU, UK
in accordance to the following Directives:
2014/35/EU Low Voltage Directive
2014/30/EU The Electromagnetic Compatibility Directive
2006/42/EC The Machinery Directive
2000/14/EC The Noise Emission in the Environment by Equipment for Use
Outdoors Directive
2015/863/EU & Amending Annex II 2011/65/EU Restriction of Hazardous Substances
Directive
2012/19 Waste Electrical and Electronic Equipment Directive
94/62/EC Packaging and Waste
850/2004/EC Amended by EU No. 757/2010 & EU 756/2010 Persistent Organic Pollutants
hereby declare that:
Equipment 20V Grass Trimmer
Model number D9531 / HYCH0082000350B / N1F-260E /18
is in conformity with the applicable requirements of the following documents
Ref. No.
Trimmer: EN 60335-1:2012/A11:2014; EN 50636-2-91:2014; EN 62233:2008; AfPS GS 2014:01 PAK;
EN 55014-1:2006/A2:2011; EN 55014-2:2015; IEC 62321, EN 55014-1:2017
Charger: EN 60335-1:2012+A11:2014; EN 60335-2-29:2004+A2:2010; EN 62233:2008; EN 55014-
1:2006+A1:2009+A2:2011; EN 55014-2:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; IEC 62321
Noise measurements have been made in accordance with EN ISO11680-1 with internal control of
production (Schedule 8 / Annex V). The declared noise values are as follows:
Measured sound power level
Guaranteed sound pressure level
88.3 dB LwA
78 dB LpA
I hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications and is in accordance with the requirements of the
Directives.
Signed by:
Mr Dan Price
Managing Director
Branded Garden Products Ltd
December 2020
The technical documentation for the machinery is available from:
Poplar Lane, Ipswich, Suffolk, IP8 3BU, UK

13
GUARANTEE
IMPORTANT
Please do not return this product without first calling the Customer Service
number below:
0871 911 7031*
Thank you for purchasing this product, which has been made to demanding
high quality standards and is guaranteed for domestic use against
manufacturing faults for a period of 12 months from the date of purchase.
Register your product for an extended 2-year warranty by visiting our website
www.gardengearonline.co.uk. The product must be registered, along with
your contact information, within 30 days of purchase. For full terms and
conditions please visit our website.
This guarantee does not affect your statutory rights. If your product fails due
to a defect in material or workmanship during this period, please return it to
the place of purchase. Normal wear and tear is not covered under the
guarantee.
Any guarantee is invalid if the product has been misused or subject to
neglect or an attempted repair other than by our own service centre.
Due to continuous product improvement, we reserve the right to change the
product specification without prior notice.
After Sales Customer Service:
Customer Service Department, Branded Garden Products Ltd, Premier House,
Hortonwood 7, Telford, TF1 7GP, UK
Telephone: [phone]*
E-mail [email protected]
Please retain for future reference.
Colours and contents may vary.
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer
for recycling advice.
Please note that all products with the symbol below must be recycled.
Calls cost 13p per minute, plus your phone company’s access charge
