GARDEN MASTER GM2315 User manual

CALL 0508 454 873
for an installer near you
THIS SHED
WAS PROUDLY
PACKED BY:
Please quote
this code for any
correspondence back
to the supplier
GM2315
SLOPING ROOF SHED
2280mm wide x 1530mm deep x 1980mm - 1830mm high
25
YEAR
WARRANTY 1974
EST.EST.
BEFORE YOU BEGIN:
To avoid any confusion with your new shed
build, we strongly suggest that you unpack
and identify each part before you begin to
put it together.
ASSEMBLY
INSTRUCTIONS
YOU SHOULD HAVE TWO PACKAGES:
• 1 cardboard package
• 1 channel pack
TOOLS SUPPLIED:
• 1 riveter
• 3.3mm double ended drillbit
TOOLS REQUIRED:
• Battery or electric drill (drill bits supplied)
• Tape measure
• Ladder
• Non-slip gloves, good shoes and goggles
• A set of helping hands
Some parts have sharp edges and should be handled
very carefully. We recommend the use of protective
gloves and footwear when assembling.
DO NOT attempt to erect this shed in windy weather.
All dimensions are approximate.
WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE

2If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!
A
3 x 1830mm sheets for the back
B
4 x 1980mm - 1830mm sloping sheets
(side walls 2 left, 2 right)
C
3 x 1830mm sheets for the roof
D
1 x 740mm wide sheet with door
jamb attached
E
Door pre-hinged to 740mm sheet with
door jamb
F
4 x 1515mm channels for end walls
2 x 2255mm channels for the roof
G
4 x 2255mm channels with ends cut for
front and back walls
H
2 x 1830mm ‘L’s for flashing the roof to
the side walls
I
2 x 793mm door spacers
ASSEMBLY OVERVIEW
These instructions are designed to guide you though the process
of building your new garden shed. It is a simple process of joining
sheets together before adding top and bottom channels to form a
shed panel. These panels are then joined together to make your shed.
When fitting the channels to the sheets, the high side of the channel should go on the inside of the sheet, ensuring that
any water that collects in the bottom channel will run over the lower side and run away rather than into the shed.
Rivets are fitted by drilling through outside of the channel into the ribs of the sheet, usually at every second rib. It is
also important to fit at least one rivet per sheet from the inside of
the channel into the pan of the sheet, close to a rib. Extra rivets
should be fitted on the inside of the channel into the pan of the
sheets in high wind areas.
It is critical that you remove the swarf (the metal filings created
when drilling) from the panels and channels as you assemble
them as these will rust quickly and could cause corrosion issues
with your shed!
RIBINSIDE
PANOUTSIDE
COMPONENTS CHECKLIST
Please check the parts carefully and advise immediately if any are damaged or missing.
1 x pack of rivets, 1 x riveter, 1 x drill bit. and a padbolt pack with wide
flanged rivets for fixing the padbolt on to the door and door jamb.
J
2 x ‘Z’ door braces
K

3
If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!
The cutouts go to the inside of the panel to
allow easy fitment of the end walls
on assembly. Note top and bottom
channels have different cutouts!
CHANNELS WITH CUTOUTS
TOP
CHANNEL
YOU WILL NEED:
3 x 1830mm sheets for the back.
1 x 2255mm top channel
1 x 2255mm bottom channel
A
G
STEP 1: BACK WALL
1. Join 3
A
sheets together with 2 rivets through the overlapping
ribs making sure the ends of the sheets are flush.
2. Cap sheeting with
G
channels putting the cutouts top
and bottom. This will finish 10-15mm shorter than the sheet.
3. Rivet the channels through the end ribs and
every 2nd rib between.
4. Make sure you put at least 1 rivet
per sheet up through the underside
of the channel into the pan
of the sheet.
BOTTOM
CHANNEL
WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE
Put extra rivets in for high wind areas,
particularly on the underside.
GARDEN MASTER TIP
G
A
G
H
F
C
H
F
YOU WILL NEED:
3 x 1830mm sheets
2 x 2255mm channels
2 x 1830mm ‘L’s
C
F
H
STEP 2: ROOF
1. Join 3
C
1830mm sheets together, same
as the back.
2. Cap sheeting with
F
2255mm channels.
3. Rivet the channels at every second rib but
not the corners at this stage.
4. Place the short flange of the ‘L’ on top of
the rib at one end. Make sure ends are flush
with sheeting (diagram 1) and put one rivet
in the centre to hold the ‘L’. Rivet the corners
through the channels and one more between
the corner and the centre rivet. Perform
the same at the other end. 5 rivets
for each ‘L’.
WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE

4If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!
STEP 3: END WALLS
1. Cap the sloping sheets
B
with
F
1515mm channels.
2. Rivet the channels at the corners and every 2nd rib in between.
3. 2 rivets up underneath through channel into pan of sheet.
4. Perform the same again for the other end.
YOU WILL NEED:
4 x 1980mm - 1830mm sloping sheets
(2 left, 2 right)
4 x 1515mm channels for end walls
(2 per side)
B
F
Channels will end 15-20mm short at tops
of end walls and 10-15mm at bottoms.
WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE
STEP 4: DOOR BRACES
1. The door braces can be riveted now or after you have
assembled your shed.
2. Tuck one end of the ‘Z’ between the bottom channel of the
inside of the door and the sheet. Do the same at the top,
overlapping in the centre behind the padbolt.
If you have a locking ‘T’ handle you will have to run the
‘Z’s the opposite way to the diagram.
3. Rivet the ‘Z’s at the ends, and in the centre of the channel
it is tucked under, and through the overlap in the centre.
Two or three more rivets will be required through the door
sheeting into the ‘Z’, but they will need to be riveted through
from the outside of the door for a neater appearance.
4. You may need to cut or bend the flange at the bottom
and the top of the ‘Z’ if it catches on the door jamb when
opening or closing (diagram 5).
5
DIAGRAM 5
before
after
ABOVE
Z door braces in position on
the inside of door sheet
door with padbolt Locking T handle
YOU WILL NEED:
Rivets as supplied
2 x ‘Z’ Door braces
K
J
B
F
F

5
If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!
DI
I
E
G
G
STEP 5: FRONT WALL
1. Slip
D
740mm wide sheet with door jamb under door. Use
I
door spacer to
determine the correct opening size by placing on the bottom flange of the door
jambs. Then rivet
G
channels to tops and bottoms of sheeting.
2. Outside: Rivet channel at corners and every 2nd rib between and through door
jambs and spacer.
3. Inside: One rivet per sheet at each end up through channel underside and
through door jambs and spacer.
Rivet padbolt to the outside of door using wide flange rivets supplied.
(We recommend you use an 8mm shackle diameter padlock on these pad bolts,
anything smaller may create security issues.)
A Drill and rivet here.
B Drill through to the underside.
Rivet top and underside.
A B
Channels will come
short of the ends of the
sheeting by 10-15mm on
all panels.
To hinge the door on the
opposite side, put the top
channel on the bottom and
the bottom on the top.
Put the padbolt on the
door before erecting the
panels. It will stop the door
swinging around!
GARDEN MASTER TIP
The higher side of the channel
goes to the inside of the shed.
It is very important to include
the rivets on the underside
of all the channels as they
are structural.
FITTING CHANNELS
INSIDE
OUTSIDE
The cutouts go to the inside of
the panel to allow easy fitment
of the end walls on assembly.
Note top and bottom channels
have different cutouts!
CHANNELS WITH CUTOUTS
TOP
CHANNEL
BOTTOM
CHANNEL
WATCH OUR
SHED ASSEMBLY
VIDEO GUIDE
HERE
YOU WILL NEED:
1 x 740mm wide sheet with
door jamb attached
Door pre-hinged to 740mm
sheet with door jamb
1 x 2255mm top channel
1 x 2255mm bottom channel
2 x 793mm door spacers
D
E
G
I
SPACERCHANNEL
Fix through the top and bottom of
the channels into the door jamb
and spacer. The door jamb goes on
inside of the channel.

6If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!

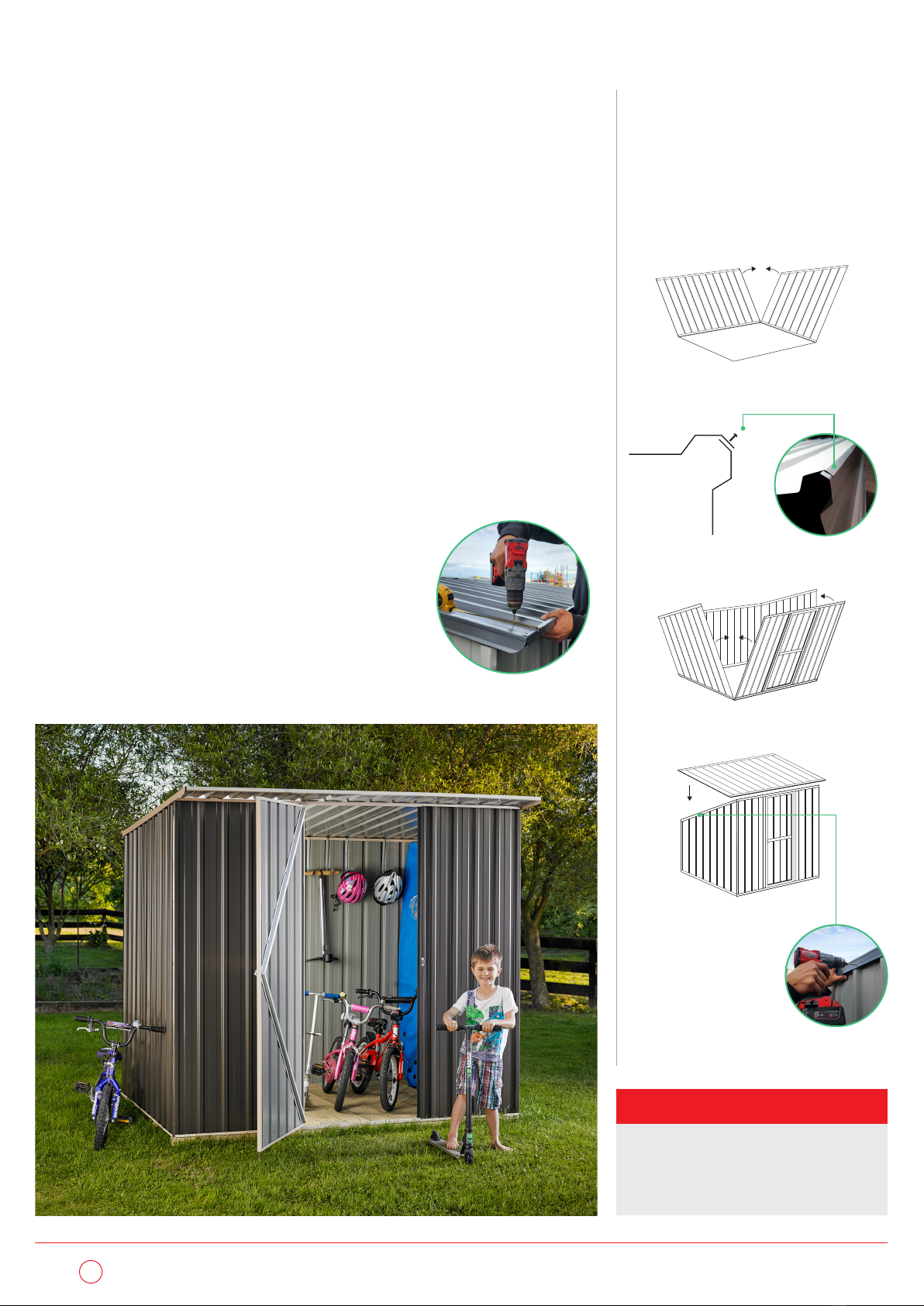

DIAGRAM 6
DIAGRAM 7
DIAGRAM 8
L FLASHING
Rivet through the side of
the ‘L’ flashing to secure the
roof to the side of the shed.
DIAGRAM 9
Use the handle end of a hammer in the
inside of the corner, but beware of drilling
holes on the end of your hammer!
GARDEN MASTER TIP
BUILDING YOUR SHED
The basic task is to join the sheets together
to form your panels, then rivet the channels
to the top and bottom of these panels. They
will then join together to form your shed
(diagram 6, 7, 8 and 9).
STEP 6: INSTALLATION
WALL ASSEMBLY
Stand up the back wall and as your helping hand is holding it up, bring the left end wall
in to meet it at the left corner (diagram 6) overlapping the corners (diagram 7).
Drill and rivet at approximately 50mm down from the top and up from the bottom,
drilling and riveting from the outside.
Bring the right end wall into the right back corner and perform the same again, checking
to make sure the walls are sitting flat at the bottom. Bring the front wall into place and
join the front corners to the end walls, same as the back (diagram 8).
Finish joining the corners by riveting at approximately 200-300mm apart. You will find
it easier to drill these corners if they are supported on the inside (see tip).
FIXING THE ROOF
With a person at each end of the roof panel, lift it over the top of your upright walls and
lower down on top. Once the roof is sitting on top of the walls and the roof panel has a
minimum of 50mm overhang from the back wall, drill, and rivet through the L flashing
at each end of the roof. Drill and rivet 150mm from the front or back wall as shown in
diagram 9.
A larger amount of overhang is required on the high side of the shed for weather
protection. Once you have located the roof panel you can then finish off riveting the
ends of the roof L’s at 300mm apart.
Using the ladder and the tape measure, rivet down through
the top of the roof, through the pan into the top channel
of the front and the back walls (10mm more than the
overhang). Rivet beside every second rib. You will not need
to worry about these rivets leaking as any water seeping
through will end up on the outside of the walls.
Make sure to clean ALL swarf from your roof once you
have finished installing the roof panels. left over swarf
will cause surface rust spots on your shed.

7
If you need advice, call us FREE on 0800 807 433 or email us at [e-mail]
If you choose to vary from these instructions your warranty will be impaired.
!
KITSET WOODEN FLOORS
Every shed must have a floor. These are available from your local shed dealer.
For more information visit www.gardenmastersheds.co.nz
FLAT FLOOR CLAMPS
For existing concrete only.
Water can seep underneath.
Available from your local
shed dealer.
BOXING DIAGRAM 20MM - 25MM
(1 ' X 1 ')
INTERNAL DIMENSIONS
APPROX 25MM RECESS
AROUND THE OUTSIDE 25MM
2235MM
INTERNAL
MEASUREMENT
1485MM
RUNNER
SHED
FLOOR BOARD
SHED
RECESS
20MM - 25MM
8MM BOLT SET INTO CONCRETE
100MM
25MM
25MM
APPROX
20MM - 25MM
2235MM X 1485MM
INTERNAL DIMENSIONS FOR THE GM2315
STEP 7: COMPLETE YOUR SHED
RECESSED CONCRETE FLOOR PLAN FOR SPECIALLY
POURED CONCRETE FLOORS: SPECIFICATIONS
Every shed must have some type of foundation between it and the ground. You can pour a concrete floor and use recessed floor
clamps, use an existing concrete base with flat floor clamps or purchase a kitset wooden floor from your local shed dealer.
RECESSED FLOOR CLAMPS
For poured floors with a
recess around the perimeter.
Available from your local
shed dealer.
For extra protection in high wind areas
put additional nails through the wall
channels into the floor boards and also
peg the shed bearers to the ground.
GARDEN MASTER TIP

WE’D REALLY LIKE YOUR FEEDBACK!
Customer satisfaction is our top priority and we are always on the look out for ways to do better.
Please email your comments to [e-mail]
Free gift
To receive your free gift, simply include your contact details when you send in your feedback, or you can send us a photo of
your finished shed with your details.
To help you we have listed some questions that you may like to answer:
There is no need to type every question, only the question number and your answers
are necessary for us.
1. How did you find out about us?
2. If you found us through our website, was it easy to navigate?
3. Did you find the assembly instructions and the online assembly videos easy to follow?
4. Where did you purchase your shed?
5. Was the sales person helpful and courteous?
6. What did you like best about your garden shed purchase?
7. Are there any parts of our service that you think we could improve upon?
Thanks for your help!
GARDEN MASTER SHED OPTIONAL EXTRAS
IMPORTANT: FIXING YOUR SHED
TO ITS FOUNDATIONS
If your foundations are unlevel or bowed, you will have problems with your padbolt and door
levels. This can be fixed by slipping a spade under either door jamb and lifting. You will soon
get a feel for which side needs propping up.
• Do not attempt to assemble panels in rain or windy conditions.
• Make sure your foundations are squared and level before erecting panels.
• It is easier to remove all swarf (filings) before you stand your walls up.
• Complete all panels before erecting your shed.
• Keep a firm grip on panels when handling. If they slip they will cause damage.
• Always wear non-slip gloves, protective footwear and eyewear.
It is essential that every shed has a floor, but the only way to make sure your shed is there to
stay on windy sites is with a recessed concrete floor. Phone [phone] for free advice or
see page 7 for more details.
1. SHELVING
(GMSH)
Hangs from the wall to allow
maximum use of valuable floor
space. Includes 3 x ply shelves,
1200mm x 300mm.
2. BRUNS TOOL RACKS
(SB6.10A OR SB4.05A)
Choose from the 1m rail and 6
tool grips or the 0.5m rail with 4
tool grips (or both) to help keep
your tools off the floor.
3. SHED CORNER
PROTECTORS (GMSCP)
Protect your shed from knocks
by mowers, bikes etc. with a set
of corner protectors. Folded
from 0.9mm high tensile steel
these clip on corners look great
and help to protect your shed!
4. HOOKS
(GMTH)
Perfect for hanging ropes, leads
hoses on a single hooh or use
a pair to hold up a ladder or
weedeater etc. These handy
hooks come in a set of four and
fit over the front or back walls
under the ribs in the roof sheets
