Garden Trax GTW33 User manual

MINI CULTIVATOR INSTRUCTIONS
Model GTW33
THANK YOU FOR PURCHASING YOUR GARDENTRAX MINI CULTIVATOR!
IT IS IMPORTANT THAT YOU READ ALL ASSEMBLY, USAGE AND SAFETY
INSTRUCTIONS. PLEASE TAKE THE TIME TO READ THIS MANUAL AND FOLLOW ALL
INSTRUCTIONS TO ENHANCE YOUR GARDENING EXPERIENCE!
THEN PLEASE REGISTER YOUR PURCHASE AT
www.gardentrax.com OR BY FILLING OUT AND MAILING THE
WARRANTY CARD.
Mini Cultivator
Model GTW33

CONGRATULATIONS….On the purchase of your new GardenTrax Mini Cultivator and welcome
to the world of GardenTrax Gardening. We know that you are anxious to get to work in your garden,
but before you do, it is important that you take a few moments to familiarize yourself with your new
unit, its assembly and operating instructions. Please read your owner’s manual and take the time now
to save time later. We have worked hard to ensure that your new unit will be one of the most trouble-
free and satisfying pieces of equipment you have ever owned. With proper care and maintenance
your new equipment will provide many years of service. Please take the time to read this manual
carefully to learn how to correctly assemble, use and maintain your unit. Unlike big tillers, the
GardenTrax Mini Cultivator weighs only 33 lbs. It lifts easily, handles smoothly and accurately weeds
and tills. Unlike other small tillers, it features serpentine blades that churn the soil up to six inches
deep to create a soft, smooth seed bed even in the most problematic soil. Once you know how to
correctly use your new unit, we guarantee you will love it!
Contents
Table of Contents
MINI CULTIVATOR INSTRUCTIONS............................................................................................................................. 1
REGISTRATION.............................................................................................................................................................. 4
OWNER’S RESPONSIBILITY AND MODEL SPECIFICATIONS......................................................................................... 4
ENGINE SAFETY PRECAUTIONS................................................................................................................................... 6
ENGINE SAFETY PRECAUTIONS (continued)................................................................................................................ 7
UNPACKING & ASSEMBLY............................................................................................................................................ 9
ASSEMBLY................................................................................................................................................................ 9
GAS AND OIL..............................................................................................................................................................10
MIXING FUEL AND FILLING THE GAS TANK..............................................................................................................10
OPERATING YOUR CULTIVATOR.............................................................................................................................. 11
MANUAL START INSTRUCTIONS............................................................................................................................... 11
MAINTENANCE........................................................................................................................................................... 13

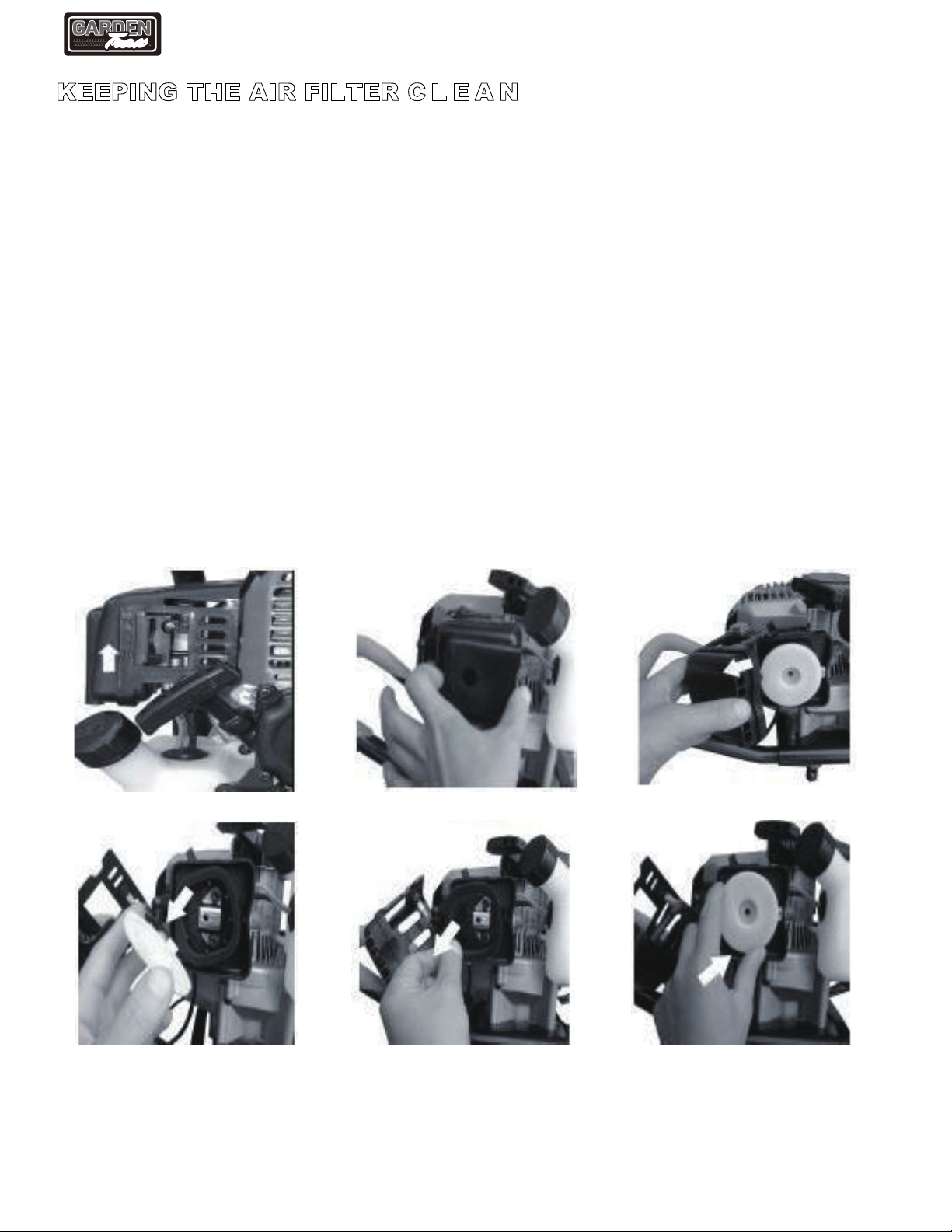

KEEPING THE AIR FILTER C L E A N ........................................................................................................................... 14
SPARK PLUG
..............................................................................................................................................................15
CARBURETOR
............................................................................................................................................................15

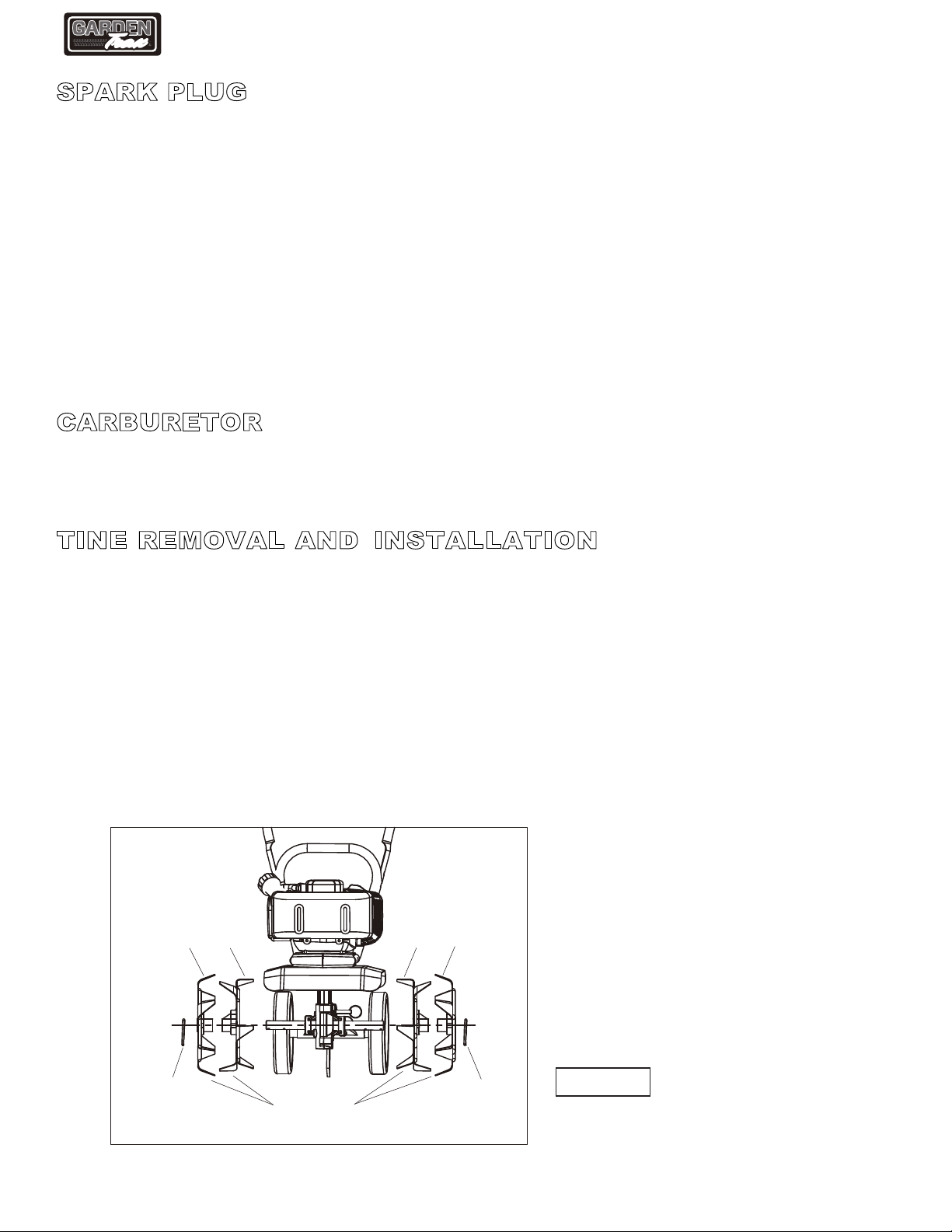

TINE REMOVAL AND INSTALLATION
................................................................................................................ 15
ADJUSTING WHEELS
................................................................................................................................................16
TRANSPORTING YOUR UNIT
............................................................................................................................... 16
LONG TERM STORAGE
............................................................................................................................................ 16
TROUBLESHOOTING................................................................................................................................................... 17
2
Mini Cultivator
Model GTW33

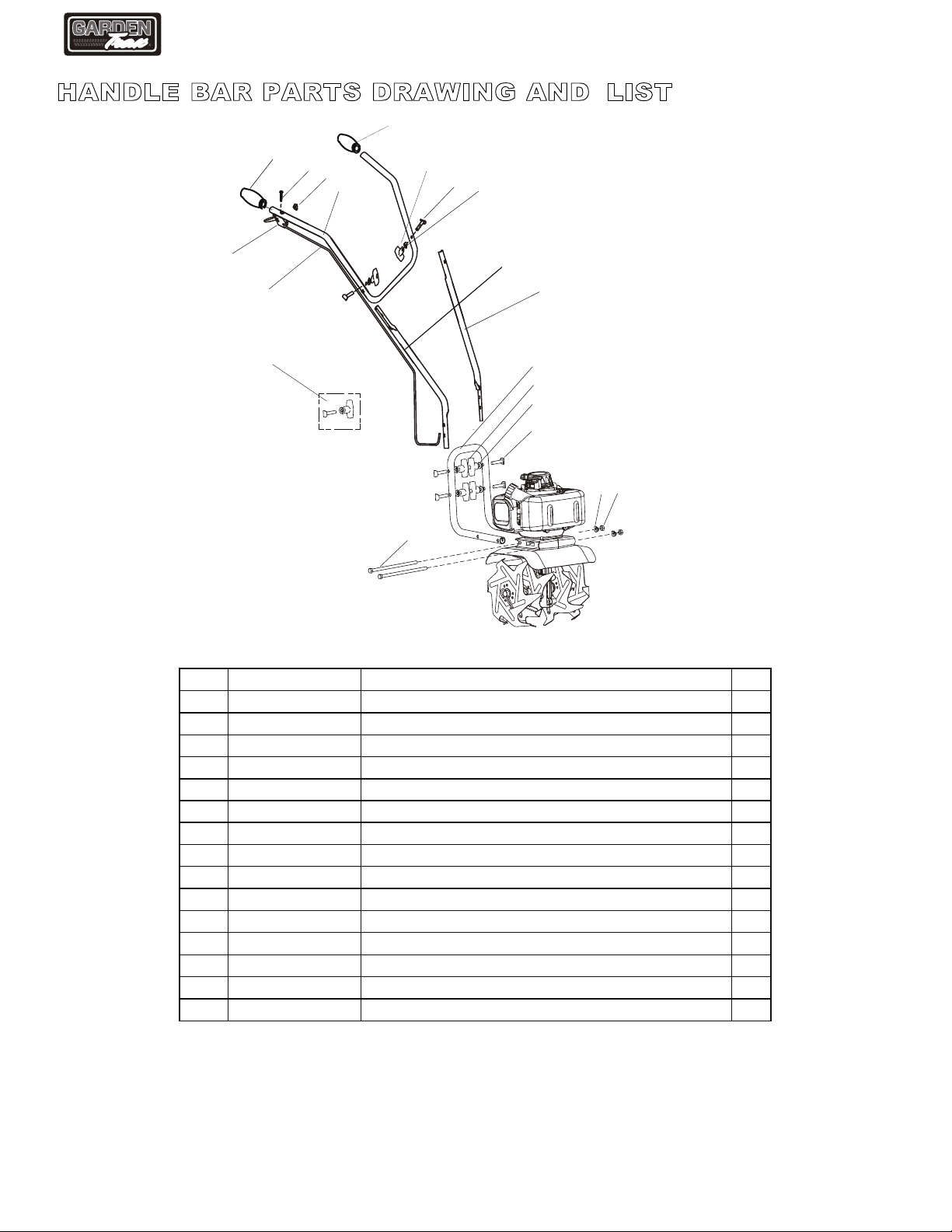

HANDLE BAR PARTS DRAWING AND LIST
....................................................................................................... 18
HOOD AND TINES PARTS DRAWING AND PARTS LIST
................................................................................ 19
TRANSMISSION PARTS DRAWING AND PARTS LIST
.....................................................................................20
ENGINE PARTS DRAWING.......................................................................................................................................... 21
ENGINE PARTS LIST.....................................................................................................................................................22
PLEASE TAKE THE TIME TO REGISTER YOUR PRODUCT: ........................................................................................................ 24
3
..
Mini Cultivator
Model GTW33

Never use E85 fuel blend.more than 10% ethanol.
Unleaded Regular Gas – 89 Octane. It is advisable to use
ethanol free whenever possible. Never use fuel with
REGISTRATION
Record your model information in the space below for easy reference and be sure to fill out
and mail in the registration card found in your parts package.
MODEL NUMBER
SERIAL NUMBER
ENGINE SERIAL NUMBER
DATE OF PURCHASE
PLACE OF PURCHASE
OWNER’S RESPONSIBILITY AND MODEL SPECIFICATIONS
CORRECT, ACCURATE ASSEMBLY AND SAFE USE OF THIS UNIT IS YOUR RESPONSIBILITY.
• Read and follow all safety instructions.
• Pay close attention and fully understand all safety practices.
• Carefully follow all assembly instructions.
• Maintain the unit per directions and schedule in this manual.
• Ensure that anyone who uses this unit is familiar with all the controls, parts and
safety recommendations.
ENGINE DISPLACEMENT 32.6cc
FUEL TANK CAPACITY 36 oz
OIL/GAS RATIO 50:1 –2.56 oz oil per gallon of gas
OIL TYPE 2 Cycle Engine Oil
GAS TYPE
SPARK PLUG Torch L8RTC
SPARK PLUG GAP 0.028
TRANSMISSION Gear Drive
GEAR RATIO 32:1
TILLING WIDTH 6” Minimum to 12” Maximum
TILLING DEPTH 6” Maximum
TINE SPEED 250 rpm
UNIT WEIGHT 30 lbs
UNIT SIZE (LxWxH) INCHES 22” x 12” x12”
RATED POWER 0.9kw
VIBRATION (Left Handle: 3.34 m’s2) (Right Handle 3.47
m’s2) k-1.5 m’s2
LpA AT OPERATOR’S POSITION 82.4 dB (A) Kpa -2.5 dB (A)
LwA 93 dB (A)
KwA 2.5 dB (A)
4
Mini Cultivator
Model GTW33
more
It will destroy the machine and void your warrantyIt will destroy the machine and void your warranty
Never use E85 fuel blend.

GENERAL SAFETY RULES
SPECIAL MESSAGES
This manual contains special messages to highlight and bring attention to potential safety concerns or
machine damage, as well as helpful operating and servicing information. Please read the whole
manual to avoid injury and machine damage.
NOTE: Throughout this manual, both general and specific information is
given that may help the operator in the use, service and maintenance of
this unit.
IMPORTANT SAFETY PRECAUTIONS
Please read and follow the next section with diligence and care. Always operate the unit per all the
safety instructions and recommendations outlined throughout this manual. Anyone who may use the
unit should read and study the instructions so that they are familiar with the unit, its controls and
safety features.
This symbol is designed to draw your attention to important safety instructions.
If these instructions are not followed, personal safety could be endangered and
damage to the unit could occur. Read and follow all safety instructions in this
manual prior to operating this equipment.
•Do not carry or transport the unit from one place to another while the engine is running.
•When the engine is idling, the tines should not be turning. If they do rotate, contact customer
service for support.
•Dress appropriately when operating this unit. Never wear sandals, sneakers, open shoes or other
light footwear. Always wear sturdy boots. Never operate this unit with bare feet! Always be
conscious of loose fitting clothing that could get caught in moving parts. Always wear safety
glasses when operating this unit.
•Always keep hands, hair, feet and any loose clothing away from the moving parts of the unit.
•Always wear approved hearing protection when operating thisunit.
•Never allow children to operate this unit. Never allow adults who are not familiar with this unit and
have not read the instructions to operate the unit.
•Never operate this unit when under the influence of alcohol ordrugs.
•Make sure all nuts, bolts and screws are always tight. Use only original equipment parts.
•Before making repairs or adjustments, turn off the unit and allow the unit to cool down. Remove
the spark plug wire before beginning repairs.
•The muffler and nearby areas can exceed 150 °F(65℃）in temperature. Avoid these areas and
allow the unit to cool.
•This engine produces carbon monoxide (an odorless, deadly gas). Never run this unit indoors or in
an enclosed area.
•Before using this unit, carefully inspect the area to be tilled. Remove all foreign objects. Never use
above underground utilities, including water, gas and electric lines or pipes.
•Do not operate this unit in ground that contains large rocks or obstacles that could damage the
unit.
•If an object becomes lodged in the unit, turn the unit off and remove the spark plug wire. Allow the
unit to cool before dislodging.
WARNING
California Proposition 65 Warning states that exhaust from this unit contains chemicals known to the
state of California to cause cancer, birth defects, or other reproductive harm.
5
Mini Cultivator
Model GTW33

ENGINE SAFETY PRECAUTIONS
WARNING! CARBON MONOXIDE POISONING
All gas engines produce carbon monoxide. Engine exhaust is very dangerous. Carbon monoxide is
a deadly, colorless, odorless, tasteless gas which could be present even though you cannot see or
smell it. In an enclosed area with no ventilation this exhaust can linger for days. If inhaled at any
level, this gas can cause drowsiness, headaches, nausea, dizziness, confusion and even death. If
you experience any of these symptoms, immediately seek fresh air and medical attention.
SAFETY GUIDELINES FOR PREVENTING POISONING
•Never run the unit’s engine indoors as carbon monoxide can reach dangerous levels quickly.
•Never use the unit where exhaust fumes can be pulled indoors.
•Never use the unit in a poorly ventilated outdoor area such as a large hole or hillyterrain.
•Never use the unit in an enclosed or partially enclosed area such as a tent, a basement or
carport.
•Always run the unit with the exhaust and muffler pointed away from theoperator.
•Always make sure that anyone who is with you stays well away from the unit and never point
the muffler towards anyone.
GASOLINE FIRES AND FUEL SAFETY
Both fuel and the vapors are dangerous, highly flammable and can ignite easily. Fuel fires spread
quickly and are explosive. Never use fuel near sparks or open flames. Never use fuel around clothes
dryers, hot water heaters, space heaters, electric motors, etc. Never smoke around open fuel
sources or while re-fueling the unit.
PREVENTION OF GASOLINE FIRES
•Never fill the fuel tank indoors. Always fill the tank outside and in a well-ventilated area.
•Never fill the fuel tank while the engine is running. Always allow the unit to cool down before
filling the fuel tank.
•Never drain the fuel from the unit in enclosed areas.
•Always wipe up any excess or spilled fuel and allow time for the fuel to evaporate before
starting the unit.
•Always make sure the fuel cap is secure before starting the unit. Never start the unit without
the fuel cap.
•To prevent a fire or an explosion, use only non-metal, portable fuel containers approved by the
UL or the ASTM.
•Never pour fuel from the unit’s fuel tank.
•An adult should always fill the fuel tank and only an adult should operate theunit.
•Never allow anyone under the influence of alcohol or drugs to fill the fuel tank or operate the
unit.
6
Mini Cultivator
Model GTW33

ENGINE SAFETY PRECAUTIONS (continued)
BURNS AND FIRES
Certain parts of this unit such as the muffler, muffler guard and engine parts become extremely hot
during operation. These parts will remain hot even after the unit has been turned off.
PREVENTION OF BURNS AND FIRES
•Never touch the muffler guard or other engine parts that become extremely hot. This will cause
burns.
•Never remove the muffler guard from the engine.
•Always keep the flammable debris away from the muffler guard and other hot parts of the
engine.
SAFETY DECALS
GardenTrax is a leading manufacturer of outdoor power equipment. This unit has been designed and
manufactured with your safety in mind and has all the reliability you expect from an industry leader.
Please read this manual to gain the necessary knowledge to operate this unit safely and effectively.
You will find safety decals have been placed on the unit to remind you to always use safety first when
operating this unit.
The safety decals are shown on this and the next page. Please review the decals now to familiarize
yourself with the symbols and meanings. If you have any questions regarding the meaning, please re-
read these instructions or contact our service representative.
If the decals on the unit becomes faded, worn or damaged in any way, please refer to the part
number and order a new decal from our authorized service center. The decals are easily applied and
will act as a constant visual reminder to you and others to always follow safety instructions for a safe
and satisfying operation of your unit.
SAFETY DECALS (continued on next page)
7
Mini Cultivator
Model GTW33

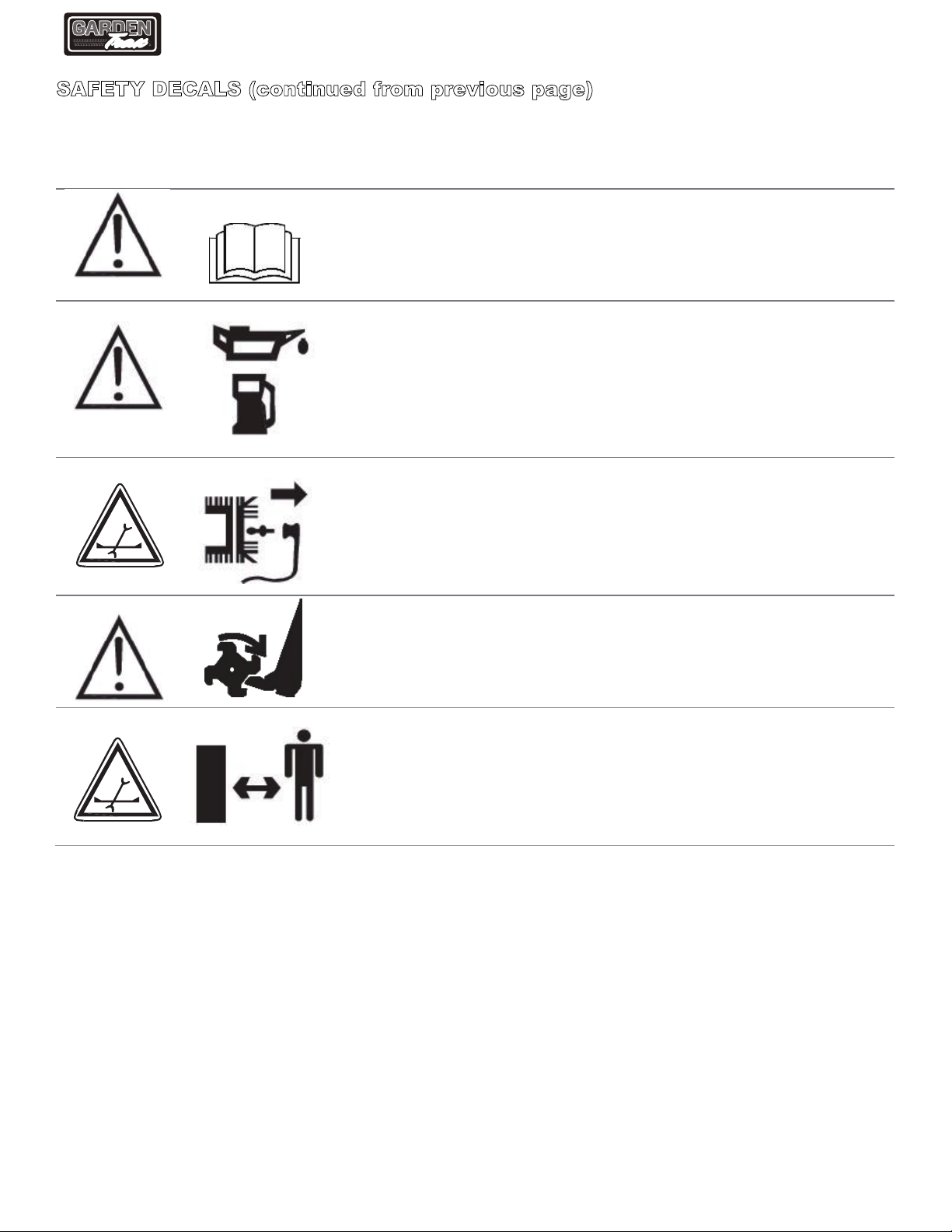

SAFETY DECALS (continued from previous page)
WARNING! This unit uses both gasoline and oil. The engine on
this unit runs on a GAS/OIL mixture. NEVER run this engine on
straight gas only. It will cause severe engine damage, and void
your warranty.
WARNING! Always turn off the unit and disconnect the spark
plug wire before cleaning, transporting or making any
adjustments. NEVER leave the unit running unattended.
WARNING! Always clean the area that you intend to cultivate.
There is a risk that stones or other objects could be thrown out
by the cultivator. Always keep bystanders and pets at a safe
distance.
IMPORTANT! Read this instruction manual carefully and
thoroughly. Keep it in a safe place for future reference.
WARNING! Never place feet or hands under the cultivator deck
while the unit is running. Keep loose clothing away from all
moving parts.
8
Mini Cultivator
Model GTW33

UNPACKING & ASSEMBLY
Unpack your unit by carefully lifting it out of its box.
Remove any packing material and cut any plastic ties that
may be holding the handlebar pieces to the rest of the
assembly.
ASSEMBLY
1.
Stand the unit upright with the tines and wheels on a level surface. DO NOT place the cultivator on a
high surface where it can fall and cause property damage or personal injury.
2.
Using two t-handle nuts, two bolts and two curved washers, assemble the ‘U’ shaped middle handlebar
section to the lower handlebar section that is already attached the main assembly (see Figure 1). The
middle handlebar section can be installed in either a low or a high position. DO NOT OVERTIGHTEN T-
HANDLE NUTS.
3.
Attach the upper right and left portions of the handlebars to the ‘U’ shaped middle section using the two
remaining t-handle nuts, bolts and curved washers (see Figure 1).
9
WASHER
Y4000.02.01
Y4000.02-03A
BOLT，HANDLE CLAMP
Y4000.07
BOLT，HANDLE CLAMP
WASHER
Y4000.02.01
Y4000.02-04A
Y4000.02-02A
Mini Cultivator
Model GTW33

OPERATING YOUR NEW UNIT
PREPARING THE ENGINE FOR STARTING
GAS AND OIL
We recommend you use a good quality 2-cycle oil when operating the engine so that it operates
smoothly throughout its life. Use only unleaded regular gasoline.
MIXTURE
Run engine with a 50:1 ratio.
GAS OIL RATIO
1 Gallon 2.56 Ounces 50:1
2 Gallons 50:1
5 Gallons 50:1
MIXING FUEL AND FILLING THE GAS TANK
MIXING FUEL
•Only mix fuel outside in a well-ventilated area.
•Add ¼ of the total amount of unleaded gasoline to an approved gasoline container.
•Add the recommended amount of 2-cycle oil.
•Securely tighten the container cap.
•Gently shake the gas container to mix the fuel and the oil.
•Slowly loosen the gas container’s cap allowing the vapors to vent.
•Add the remaining ¾ of the total amount of fuel to the container.
•Clean up any spilled fuel and allow any fuel on the container and in the area to evaporate
before moving.
FILLING THE UNIT’S FUEL TANK
•If the engine has been running, shut it off and allow the engine to cool completely.
•Move the unit to a well-ventilated area away from any open flames or sparks.
•Make sure the area around the fuel cap is clean.
•Slowly loosen the fuel cap and place in a dry area.
•Carefully fill the gas tank taking care not to spill.
•Do not fill the tank completely. Allow space for air to expand.
•Replace the fuel cap and secure it tightly.
•Clean any spillage around the cap and the tank area before starting.
IMPORTANT
Fuel and fuel vapors are hazardous and highly flammable. For safety reasons, never store the unit
indoors with fuel still in the tank.
Always use a separate certified gas container to mix the fuel and oil. Use only containers that are
approved by the Underwriters Laboratory (UL) or the American Society for Testing and Materials
(ASTM)
CAUTION
The unit’s engine runs on a GAS/OIL mixture. Never
run the engine on straight gas only. Never run with E85
gasoline. Severe engine damage will occur.
10
Mini Cultivator
Model GTW33
5.12 Ounces
12.8 Ounces

OPERATING YOUR CULTIVATOR
NORMAL OPERATION
•The clutch will transfer maximum power to the unit’s tines after approximately 2 hours of
normal operation. During this break-in period, clutch slippage may occur. The unit’s clutch
should be kept free of all oil and other moisture to ensure efficientoperation.
•When cultivating, do not place excessive body weight on the unit. The unit will operate most
efficiently with the use of its own weight.
STARTING AND STOPPING THE ENGINE
•To prevent carbon monoxide poisoning (also see engine safety precautions) always move the
unit outdoors to a well-ventilated area before starting.
•Always be aware of gas vapors and exhaust fumes. Before starting the engine, make sure it is
away from open flames or sparks.
•Make sure the air filter holes and the fuel tank area are free of debris.
MANUAL START INSTRUCTIONS
WARNING CAUTION
Alwa
y
s make sure the When startin
g
the unit, the starter rope can
unit is in a stabile sometimes cause an unanticipated jerk back
position before pulling towards the engine. Follow the instructions
the starter handle. carefully to avoid any injuries.
Once the unit starts to Always turn off the engine after every use.
engage, momentarily Never leave it running unattended.
release the throttle Never carry or move from the location while the
control with your right engine is running.
hand. Move both hands Always follow the gas and oil instructions.
to the handlebar Wear approved hearing protection.
position and use the Do not attempt to start when there is fuel
handlebar to maintain spillage present. Always clean up any spillage.
control and stability of
the unit.
MANUAL START / COLD ENGINE
Starting the engine for the first time or after running out of fuel or if the engine has cooled off:
1. Move choke lever to the RUN position.
a. NOTE: Choke must be in the RUN position when engaging the primer bulb.
2. Use the primer bulb to prime the unit until the primer hose and bulb are full of gasmixture.
a. NOTE: When using the primer bulb, allow the primer bulb to completely return to its
original position after each pump.
3. Move choke lever to CHOKE position
a. NOTE: In the CHOKE position, always move the lever to the farthest CHOKE position
possible.
4. Push the rocker switch to the ON position.
11
Mini Cultivator
Model GTW33

MANUAL START / COLD ENGINE (continued from previous page)
5. Squeeze the throttle control with the right hand. Grasp the starter rope with your left hand and
pull out slowly until the tension becomes slightly harder. Without letting the rope retract, pull
the starter rope with a rapid, forearm stroke. Allow the rope to return to its original position.
Repeat this step until the engine engages and allow the rope to return to its original position.
a. NOTE: If the engine fails to engage after 5 to 6 pulls, stop pulling, press the primer bulb
1 time and repeat the process.
6. Once the engine has engaged and has started running, move the choke lever to the HALF-
CHOKE position until the engine runs smoothly.
a. NOTE: HALF-CHOKE position is defined as being half way between CHOKE and RUN.
7. Once the engine is running smoothly, move the lever to the RUN position and engage the
throttle to the desired speed.
8. To STOP the engine, move the rocker switch to the OFF position.
MANUAL START / WARM ENGINE
1. Move the choke lever to the CHOKE position.
a. NOTE: In the CHOKE position, always move the lever to the farthest CHOKE position
possible.
2. Continue by repeating Cold Engine / Manual Starting beginning with step 4.
MANUAL START / HOT ENGINE
1. Begin with Step 4 of Cold Engine / Manual Starting.
2. If engine has not started, refer to Step 1 of Warm Engine / Manual Starting.
12
Mini Cultivator
Model GTW33

MAINTENANCE
CAUTION!
PRACTICE SAFETY ALWAYS! ENGINE MUST BE TURNED OFF AND ALLOWED TO
COOL AND SPARK PLUG WIRE MUST BE DISCONNECTED WHENEVER WORKING ON
THE UNIT FOR MAINTENANCE OR REPAIR.
TO PREVENT ACCIDENTAL STARTING:
ENGINE MUST BE TURNED OFF AND ALLOWED TO COOL AND SPARK PLUG WIRE
MUST BE DISCONNECTED BEFORE CHECKING OR ADJUSTING THE ENGINE.
MUFFLER AND NEARBY AREA TEMPERATURES MAY EXCEED 150° F (65° C). AVOID
THESE AREAS. ALWAYS CHECK UNIT FOR LOOSE SCREWS AND BOLTS. KEEP
CONNECTIONS SECURE.
NEVER STORE UNIT INDOORS WITH FUEL IN THE TANK. FUEL VAPORS MAY BE
PRESENT. ONLY ADULTS SHOULD BE ALLOWED TO USE THE UNIT OR PERFORM
MAINTENANCE ON IT.
ENGINE MUST BE TURNED OFF AND SPARK PLUG WIRE DISCONNECTED BEFORE
ANY REPAIRS OR MAINTENANCE IS PERFORMED ON UNIT.
STEPS FOR WORKING ON THE EQUIPMENT
1. Make sure the engine switch is in the OFF position.
2. Disconnect the spark plug wire from the spark plug.
3. Secure the spark plug wire away from the spark plug itself and away from other metalparts.
a. Make sure this is done to prevent the wire from arcing with plug.
4. Replace or repair the parts on your unit.
5. Once complete, make sure all the parts are secure and fit correctly. Re-attach the spark plug
wire to the spark plug
NOTE: All parts must come from the factory or our authorized Service Center. Never use parts
that are not designed specifically for the unit.
MINI CULTIVATOR MAINTENANCE
1. The unit’s Transmission Case comes with grease that has been packed at the factory. It is
recommended by the factory that the grease level be checked by a qualified service
professional to ensure that the grease level is accurate. If grease is needed, only use lithium
grease type EP-0 and fill only if the level is below the top of the gears. DO NOTOVERFILL!
2. Make sure all screws, nuts and bolts are secure and tight.
ENGINE MAINTENANCE
•Cooling fins, air vents and linkages must always be kept free of dirt and debris. Always make
sure they are clean each time before you use the unit.
•Never run this unit without the engine’s air filter properly installed. Engine failure and
additional wear may occur if the air filter is not installedproperly.
•Service the air filter every 90 days or at least once each season or after 20 h ours of
operation. Clean the air filter daily when used in dry, dusty or other extreme conditions. If
dust is visible in the air while the machine is in operation, the air filter should be cleaned.
13
Mini Cultivator
Model GTW33

KEEPING THE AIR FILTER C L E A N
STEPS FOR CLEANING RING STYLE FOAM AIR FILTER (SEE PARTS DRAWING ON PAGE 23)
1. Wash in warm water with liquid detergent until dirt and debris is removed. Press or squeeze
the filterwhen cleaning... DO NOT TWIST!
2. Rinse the filter until the detergent and dirt areremoved.
3. Dry the filter by wrapping it in a dry cloth and pressing it until the water is removed.
4. Apply lightweight motor oil or thin based machine oil to entirefilter.
5. Remove excess oil.
6. Re-attach the filter and cover to the unit.
STEPS FOR CLEANING BLOCK STYLE FOAM AIR FILTER (SEE PARTS DRAWING ON PAGE 23)
1. Before removing the air filter cover, move the choke lever to the choke position (See Fig 1).
2. Squeeze the latch tabs on both sides of the air filter cover to remove the cover (See Fig 2).
3. Once you have released the cover, rotate the cover away from the engine (See Fig 3).
4. Remove the foam air filter (See Fig 4 & 5)
5. Replace the filter with a new oiled filter or clean the original filter by following the same steps
as cleaning the Ring style filter above.
6. Re-install the filter by pressing it into position. Make sure the foam seals the air intake valve
(See Fig 6).
7. Snap the air filter cover back in place. Check to ensure the cover is securely in place. To
check, pull on the cover. If the cover does not move, then it is secure.
Figure 1Figure 2Figure 3
Figure 4
Figure 5
Figure 6
14
Mini Cultivator
Model GTW33

SPARK PLUG
THE RECOMMENDED SPARK PLUG FOR THIS UNIT IS TORCH L8RTC
1. Always check the spark plug at the beginning of each season.
2. Disconnect the spark plug cap and clean any debris or dirt from around the spark plug area.
3. Examine the spark plug and replace if any of the following have occurred:
oPitted Electrodes
oBurned Electrodes
oCracked Porcelain
oDeposits around Spark Plug
4. After cleaning or replacing, reseat the spark plug and tighten securely re-attach the spark plug wire.
5. When reinstalling the original spark plug, tighten an additional 1/2 turn.
6. When replacing the spark plug, adjust the spark plug gap to .028" and tighten an additional 1/8 to 1/4
turn.
NOTE: A loose spark plug can overheat and damage your engine. Over tightening could
damage the threads in the cylinder head.
CARBURETOR
NEVER TAMPER WITH THE FACTORY SETTING OF THE CARBURETOR!!
Carburetors are set by the factory in accordance with federal law. There are no user
serviceable parts or adjustments.
TINE REMOVAL AND INSTALLATION
REMOVING TINES
1. Remove the cotter pins from each end of the tine shaft.
2. Slide each of the four tines off the shaft.
INSTALLING TINES
1. First slide the inside tines onto both ends of the tine shaft. The inside tines are stamped with either the
letter “B” or “C”.
2. Slide the outside tines onto the tines shaft. The outside tines are stamped with either the letter “A” or
“D”.
3. The tines should be installed so that they are aligned in a sequence of "A, B, C, D" and should be
positioned in that order from left to right when viewed from the user's position of the mini cultivator.
4. Make sure the hub collars on both the right and pair of tines face each other so that there is adequate
spacing between the tine blades (See Figure 3) .
5. Reinsert the cotter pins back on each side of the tine shaft to lock the tines into place.
15
FIGURE 3
A
B
C
D
Hub Collars
Cotter Pin Cotter Pin
Mini Cultivator
Model GTW33

TRANSPORTING YOUR UNIT
• After using your mini cultivator, always allow the unit to cool off before transporting. Never transport
the unit in an enclosed space within a vehicle as fumes and vapors may build up. They could ignite and
cause serious injury or even death.
• If fuel is present in the fuel tank, always transport in an open vehicle and in an upright position.
• If an enclosed vehicle must be used, be sure that the fuel tank is empty and any unused gas mixture is
secured in a UL or ASTM approved container.
• Never siphon out gas mixture by mouth.
• Run engine to use up any small amount of remaining fuel left in carburetor and fuel tank.
• Always run the engine in a well-ventilated area.
• Clean up any spillage around the fuel tank and allow to dry and evaporate.
• Make sure the unit's gas cap is secured tightly before transporting.
LONG TERM STORAGE
If you will not be using your mini cultivator for more than 30 days, you need to prepare it for long term storage.
1. Make sure all the fuel is removed from the gas tank.
2. Run the engine to ensure any remaining fuel in the carburetor and tank are used up.
3. Before storing, wash down the unit to remove all dirt and debris from the body of the unit.
4. Store the unit in a stable, upright and level position.
16
Mini Cultivator
Model GTW33

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE REMEDY/ACTION
Engine will not start 1. Power switch is in OFF position 1. Flip switch to ON position
2. Spark plug wire is disconnected 2. Connect spark plug wire to spark plug
3. Out of fuel 3. Refuel
4. Spark plug wet, faulty or improperly
gapped
4. Clean, replace or gap spark plug
5. Throttle control not held open 5. Hold throttle control open when pulling recoil
handle
6. Fuel line hose not positioned in
bottom of gas tank
6. Push the fuel line down into the fuel in the gas
tank
Engine runs rough, floods during
operation
1. Dirty air filter 1. Clean or replace air filter
2. Choke partially engaged 2. Turn choke off
3. Carburetor out of adjustment 3. Call factory
Engine is hard to start 1. Stale fuel 1. Drain old fuel and replace with fresh.
2. Spark plug wire loose 2. Make sure spark plug wire is securely attached
to spark plug
3. Dirty carburetor 3. Clean carburetor, use gas stabilizer, refuel with
fresh gasoline.
4. Throttle control not held open 4. Prime unit 3 more times, then hold throttle open
when pulling recoil handle
Engine misses or lacks power 1. Clogged gas tank 1. Remove and clean gas tank
2. Clogged air filter 2. Clean or replace air filter
3. Carburetor out of adjustment or bad 3. Call factory
4. Spark plug wet, faulty or improperly
gapped
4. Clean, replace or gap spark plug
Engine runs, then quits 1. Plugged fuel filter 1. Clean or replace fuel filter
2. Carburetor out of adjustment or bad 2. Call factory
Engine revs too high 1. Carburetor out of adjustment 1. Call factory
Tines turn at idle 1. Idle speed too high 1. Adjust idle speed lower
2. Broken clutch spring 2. Replace spring
17
Mini Cultivator
Model GTW33

15
HANDLE BAR PARTS DRAWING AND LIST
KEY PART# DESCRIPTION QTY.
1Y4000.02-05 Grip, Handlebar 2
2Y4000.02-04A Control Handle Assembly 1
3B000004 Bolt, Phillips Truss Head Zn 10-24 X 1-1/4 1
4Y4000.02-03A Left Side Handlebar Support 1
5Y4000.02.01 Nut, T-Handle (sold as assembly) 6
6Y000007 Washer (sold as assembly) 6
7Y4000.02-06 Bolt, Handle Clamp (sold as assembly) 6
Y000006 Replacement T-Nut Handle Assembly
8Y43.03A Trigger Assembly, Long Throw W/O Cable 1
9Y4000.07 Throttle Cable 1
10 Y4000.02-02A Right Side Handlebar Support 1
11 Y4000.02-01 Handlebar, Lower 1
12 B000013 Nut, Hex Head M8, GB6187 2
13 B000014 Bolt Hex Head M8 X 155, GB5787 2
14 Y43.00-11 Rocker Switch 1
18
13
11
5
7
6
6
12
10
9
5
76
4
8
2
1
1
314
15
Mini Cultivator
Model GTW33

0.04-010
HOOD AND TINES PARTS DRAWING AND PARTS LIST
KEY PART # DESCRIPTION QTY
1 GTW33.01 1E36F-2E Engine 1
2
Y400003 Transmission Assembly 1
3
Y4 0 Cotter Pin, 5/8-3/4 2
4
Y4000.04.04 Tine “A” Right Outside 1
5
Y4000.04.03 Tine “B” Right Inside 1
6 Y4000.04.02 Tine “C” Left Inside 1
7 Y4000.04.01 Tine “D” Left Outside 1
8 Y4000.06-01 Tine Shield 2
9B000026 Bolt M5x12mm
Flanged HH, GB5787
2
10 B000027 Bolt M5x45mm
Flanged HH,GB5787
4
11 B000028 Nut M5, GB/T889.1
2
12 B000020 Washer 6, GB97.1 4
19
1
3 5
42
7
8
9
6
10
3
9
15
11
11
12
Mini Cultivator
Model GTW33
.

TRANSMISSION PARTS DRAWING AND PARTS LIST
KEY PART # DESCRIPTION QTY
1 Y4000.03 Transmission Assembly 1
2
3 Y4000.03.01 Clutch Drum 1
4 Y000008 Ball Bearing, 629 1
5 Y4000.03-04 Bushing, Drive Shaft 2
6 B000009-1 Washer, Thrust 2
7 B000009-2 Thrust Bearing Cage
Washer
1
8 B000009 Thrust Bearing Assembly 1
9 Y4000.03-05 Reducer, Thrust Bearing 1
10 Y4000.03-08 Shim, Tine Shaft 4
11 Y4000.03-09 Bushing, Tine Shaft 2
12 Y4000.03-03 Worm Gear Shaft 1
13 Y4000.03.02 Tine Gear & Shaft
Assembly
1
KEY PART # DESCRIPTION QTY
14 Y4000.03-02 Transmission Casting, Right 1
15 Y4000.03-01 Transmission Casting, Left 1
16 B000017 Bolt, Flanged HH
M6x22, GB5787
3
17 Y40000.03-06 Dust Cover 2
18 Y000010 Seal, Tine Shaft 2
19 B000018 Bolt, Flanged HH
M6x25, GB5787
2
20 1
21
Y4000.03-07 Spacer, Bushing
2B000019 Nut, Flanged HH M6,
GB/T889.1
22 B000021 Bolt, Flanged HH M6x18,
GB5787
3
20
1
15
10
3
4
14
10
12
13
19
20
7
6
8
9
5
11
11
16
22
18
18 21
5
17
17
Mini Cultivator
Model GTW33
