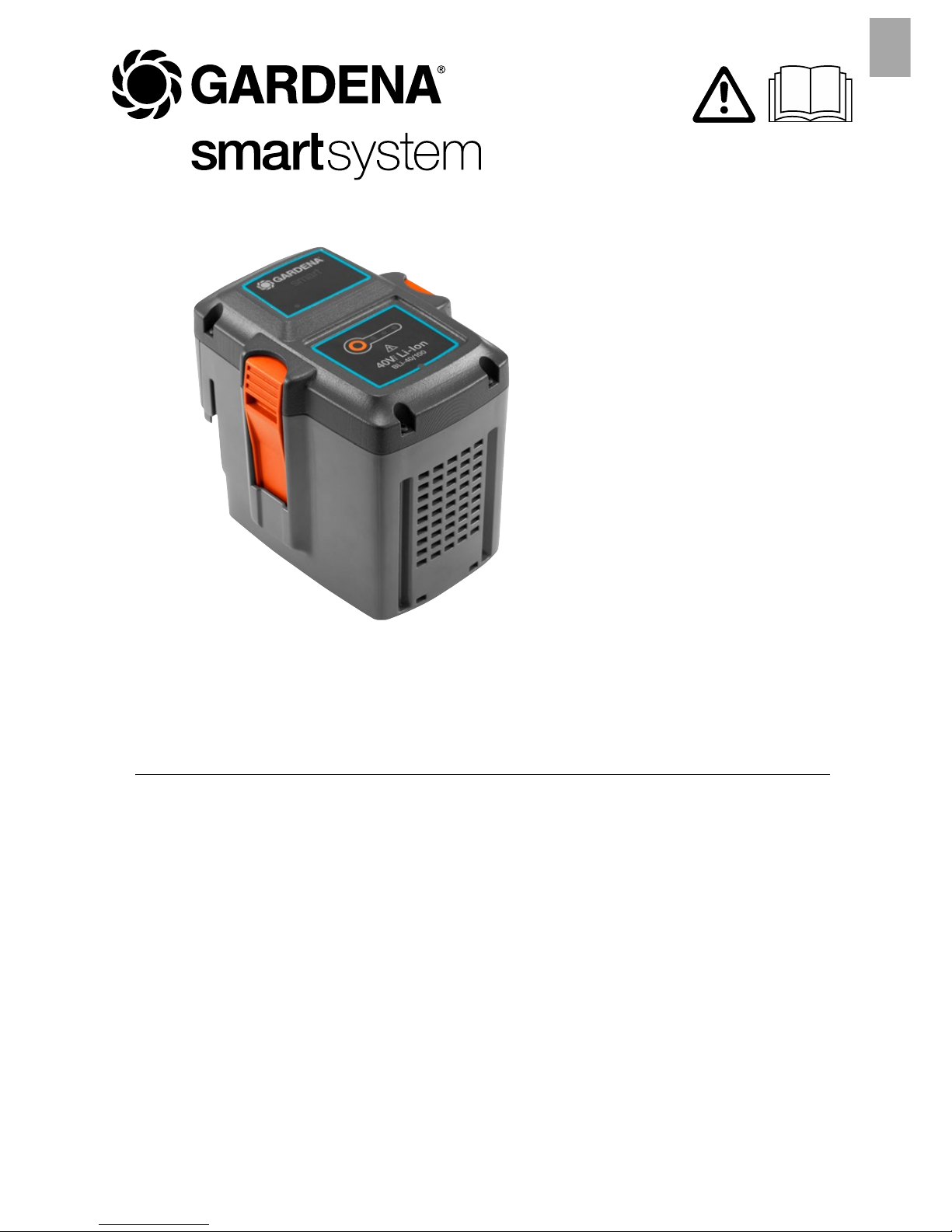

Gardena BLi-40/100 User manual

EN Operator’s manual
smart Battery
BLi-40/100 Art. 19090
BLi-40/160 Art. 19091
EN

BLi-40/100 / 2,6 Ah (Art. 19090)
BLi-40/160 / 4,2 Ah (Art. 19091)

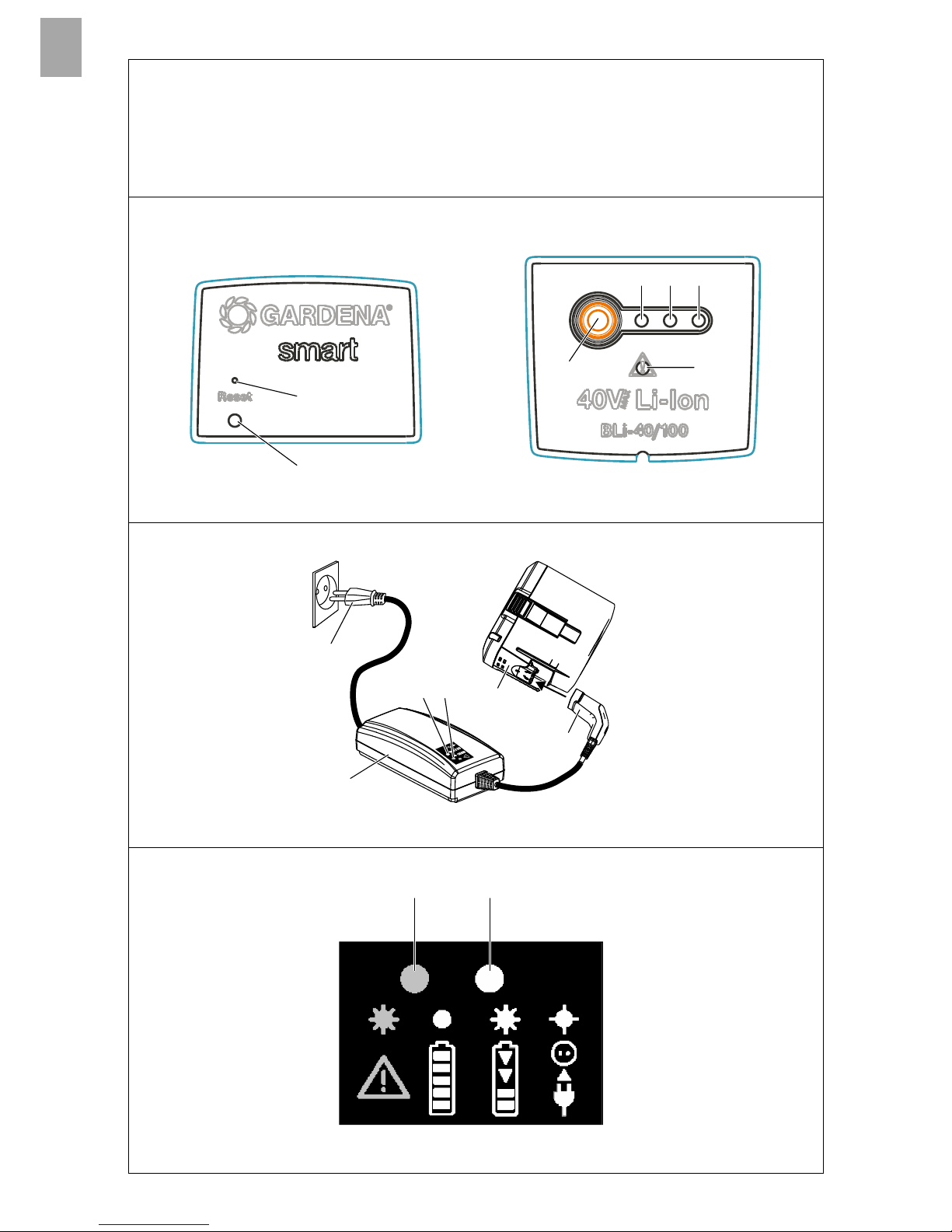

2
EN
1
ß
L
« ∑ €
¥y
≈ å
B
Ō
V
Y
X

1. SAFETY ................................................. 5
2. INITIAL OPERATION........................................ 7
3. OPERATION.............................................. 10
4. MAINTENANCE ........................................... 13
5. STORAGE ............................................... 13
6. TROUBLESHOOTING ...................................... 14
7. TECHNICAL DATA ......................................... 15
8. SERVICE / WARRANTY ..................................... 16
GARDENA smart Battery
3
EN

Original instructions.
Please read these operating instructions carefully and read the notes
given. Acquaint yourself with the use of the battery, the charging
technology (see operating instructions GARDENA Rechargeable
Battery unit) and read the safety instructions.
For safety reasons, children under the age of 16 as well as people, who are
not acquainted with the instructions should not use the battery. Persons
with reduced physical or mental abilities may use the product only if they are
supervised or instructed by a responsible person. Children must be super-
vised to ensure that they do not play with the product. Never operate the
product when you are tired, ill or under the influence of alcohol, drugs or
medicine.
Intended use:
The GARDENA smart Battery is used as a power supply for the relevant
GARDENA cordless products and is intended for use in private house and
hobby gardens. The battery must not be used in public facilities, parks, sports
grounds, next to roads or in agriculture or forestry.
The GARDENA smart Battery is part of the GARDENA smart system
and can only be programmed together with the GARDENA smart Gateway.
4
EN

1. SAFETY
Important!
Read the operator’s manual
carefully before use and keep
for future reference.
Symbols on the product:
vObserve the safety instruc-
tions on the battery.
vDo not expose the battery to
rain or wet conditions.
Water entering a battery will
increase the risk of electric shock.
General safety warnings
Electrical safety
DANGER! Fire risk!
vThe battery to be charged
must be placed on a non-
flammable, heat resistant
and non-conductive surface
while charging.
vKeep corrosive, flammable
and easily combustible
objects clear of the battery
charger and the battery.
vDo not cover the battery
charger and the battery while
charging.
vDisconnect the battery charg-
er immediately in the event of
smoke formation or fire.
vOnly use the original
GARDENA Charger to charge
the battery. The use of other
battery chargers may damage
the batteries irreparably and
even cause a fire.
v Regularly check the charging
status during charging.
Never charge the battery
overnight.
vIf you notice fire: Extinguish
the flames with oxygen reduc-
ing materials.
vDo not bridge the contacts
of the battery with metal com-
ponents.
DANGER!
Risk of explosion!
Protect batteries from heat and
fire. Do not leave on radiators or
expose to strong sunshine for
long periods.
Do not operate in explosive
atmospheres, such as in the
presence of flammable liquids,
gases, or dust.
Batteries may create sparks which
could ignite the dust or fumes.
Check your battery before each
use:
Visually check the battery before
each use. A non-functioning battery
must be disposed of correctly.
5
EN

For Art. 19091: Do not send by
post. For further details, please con-
tact your local disposal companies.
For risks of injury do not use the bat-
tery as a power source for other
products. Only use the battery for the
GARDENA product intended.
Only charge and use the battery in
ambient temperatures of between
0 °C and 40 °C. Allow battery to cool
down after long periods of use.
Check the charging cable regularly
for signs of damage or ageing
(brittleness). Only use it in perfect
condition.
Do not stow or transport the battery
above 45 °C or in direct sunlight.
Ideally, the battery should be stored
below 25 °C so that self-discharge
is low.
Keep battery in order (clean) espe-
cially air vents.
If usage of the battery is not planned
for a certain time (winter period)
reload the battery to avoid a deep
discharge.
Do not store while still attached to
a tool, this prevents misuse and
accidents.
Do not store the battery in places
where static electricity is present.
Additional safety warnings
DANGER!
This product makes an electro-
magnetic field while it operates.
This field may under some con-
ditions interfere with active
or passive medical implants. To
decrease the risk of conditions
that can possibly injure or kill, we
recommend persons with medi-
cal implants to speak with their
physician and the medical
implant manufacturer before you
operate the product.
Small parts can be easily swal-
lowed. There is also a risk that
the polybag can suffocate tod-
dlers. Keep toddlers away when
you assemble the product.
6
EN

2. INITIAL OPERATION
To charge the battery:
CAUTION!
Overvoltage damages the battery and the battery charger.
vMake sure that you use the correct mains voltage.
Before you use the battery the first time, the battery must be completely
charged.
We recommend to charge the battery after a push-up message to
keep the smart function available.
The lithium-ion battery can be charged in any state of charge and the charging
process can be disconnected at any time without to damage the battery
(no memory effect).
BŌ
V
Y
X
1. Connect the mains cable Bto the battery charger X.
2. Connect the mains cable Bto a mains socket.
3. Connect the battery charger cable Vto the battery Y.
7
EN

≈ å
When the charging control lamp åat the charger flashes green once
per second the battery is being charged.
When the charging control lamp åat the charger illuminates green
the battery is completely charged (For charging time, see 7. TECHNICAL
DATA).
BŌ
V
Y
X
4. Examine the charge status regularly while you charge.
5. When the battery Yis completely charged, disconnect the battery Yfrom
the battery charger X.
6. Disconnect the battery charger Xfrom the mains.
8
EN

« ∑ €
¥y
Battery charging indicator during charging:
100 % charged «, ∑and €illuminate
66 – 99 % charged «and ∑illuminate, €flashes
33 – 65 % charged «illuminates, ∑flashes
0 – 32 % charged «flashes
Battery charging indicator during operation:
vPush the button yon the battery.
66 – 99 % charged «, ∑and €illuminate
33 – 65 % charged «and ∑illuminate
11 – 32 % charged «illuminates
0 – 10 % charged «flashes
9
EN

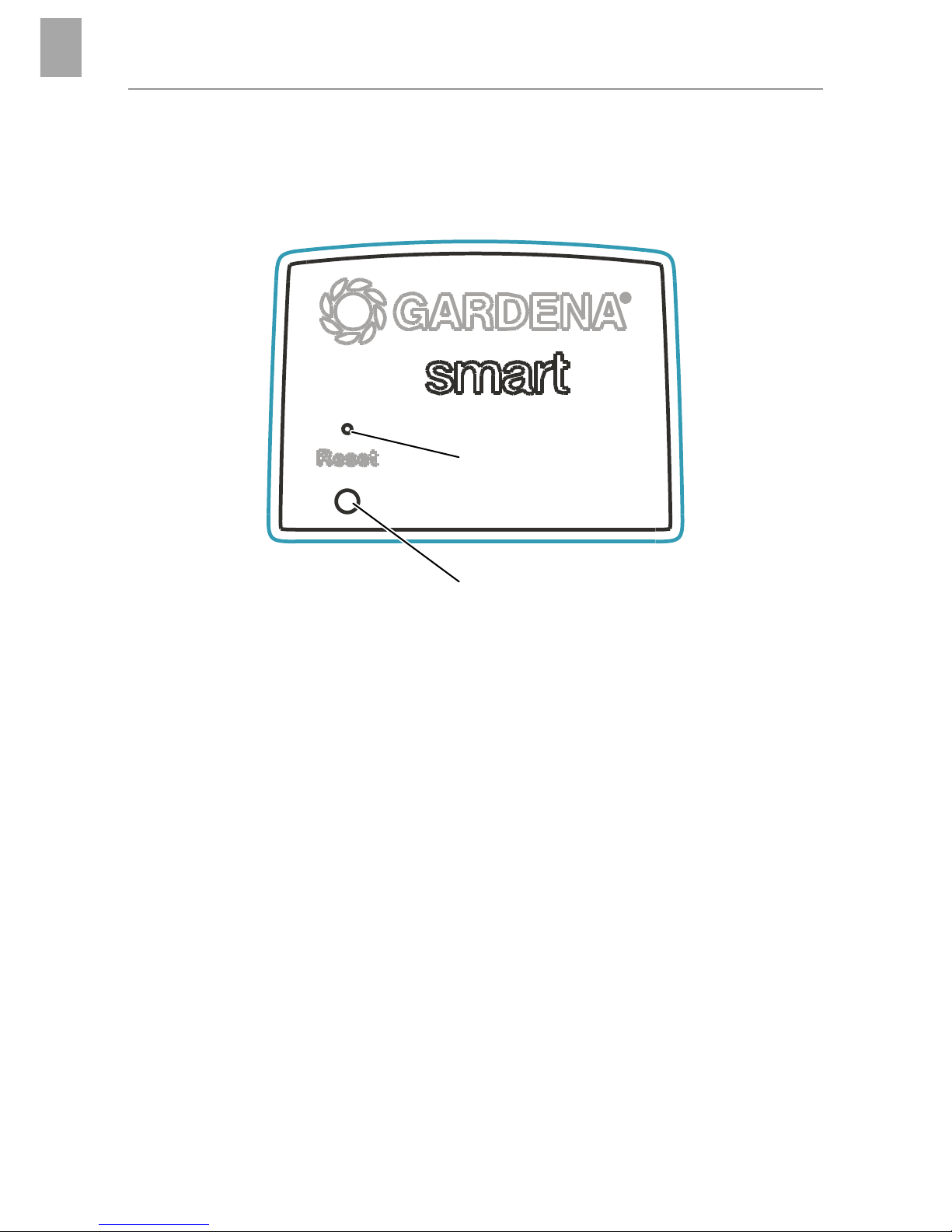

3. OPERATION
LED Connection display / Signal ß
L:
The battery must be connected to the charger!
1
ß
L
Green flashing: While connecting
Green for 20 sec: Signal strength high
Yellow for 20 sec: Signal strength medium
Red for 20 sec: Signal strength low
10
EN

Operation with the GARDENA smart system App:
You can use the GARDENA smart system app to control all smart
system products from anywhere at any time. You can download the free
GARDENA smart system app from the Apple App Store or from the
Google Play Store.
In order to include, a GARDENA smart Gateway with internet connectivity
is needed. All GARDENA smart products are integrated via the app.
Follow the instructions inside the App.
Settings of the smart Battery:
According to the smart system App:
– Battery capacity
11
EN

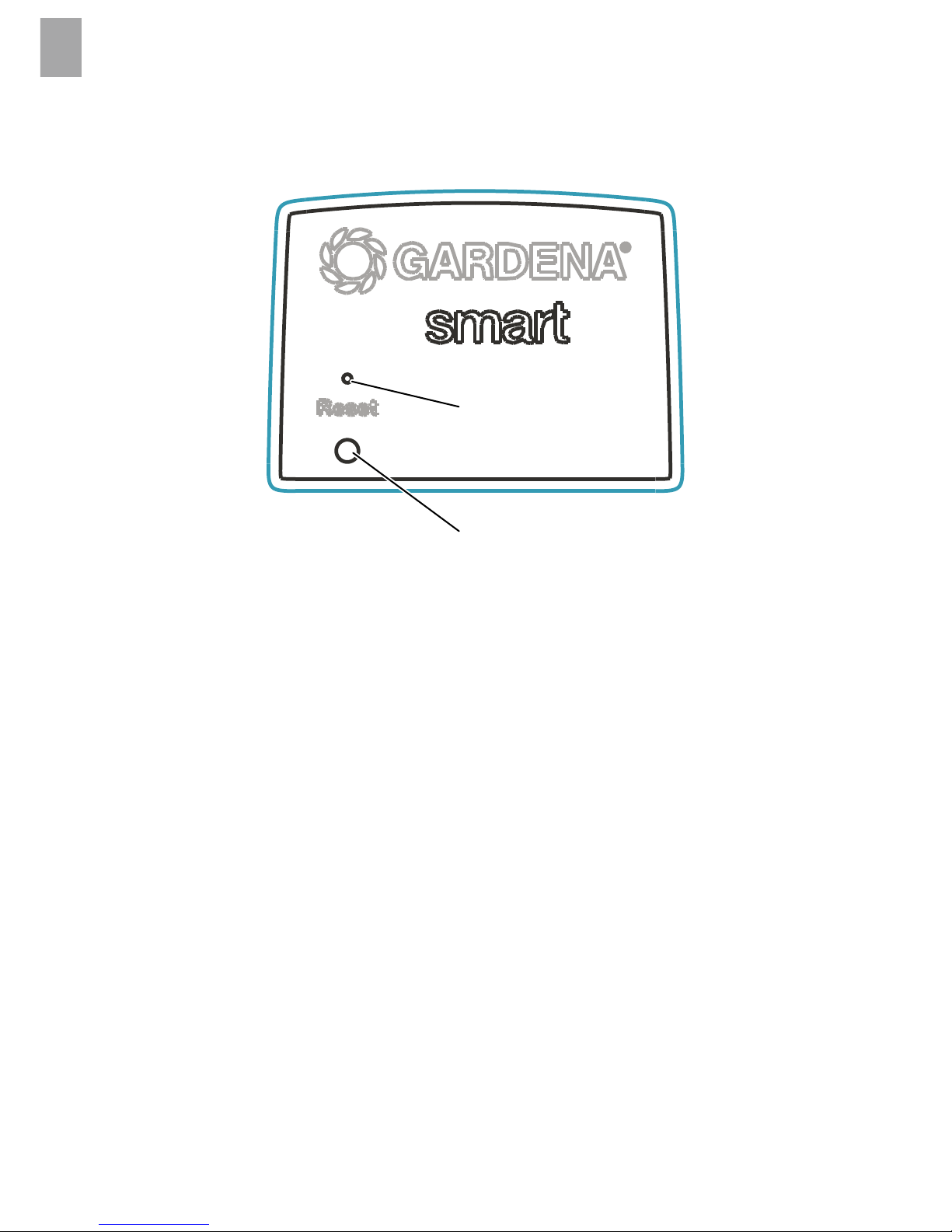

Factory Reset:
The smart Battery will be reset to the factory settings.
1
ß
L
vPush the Reset key 1for a short time.
New connection.
– or –
vPush and hold down the Reset key 1for at least 5 seconds.
Cancels the existing connection and allows a new connection
to be established, e. g. different Gateway.
12
EN

4. MAINTENANCE
To clean the battery:
Make sure that the surface and the contacts of the battery and the battery
charger always are clean and dry before you connect the battery charger.
Do not use running water.
vClean the contacts with a soft and dry cloth.
5. STORAGE
To put into storage:
The product must be stored away from children.
1. Charge the battery.
2. Store the battery in a dry, moisture-free and frost-free place.
Disposal of the battery:
Li-ion
The GARDENA battery contains lithium-ion cells that should not be disposed
of with normal household waste at the end of its life.
IMPORTANT!
Dispose of the batteries through or via your municipal recycling collection
centre.
1. Discharge the lithium-ion cells completely (contact the GARDENA Service).
2. Protect the contacts on the lithium-ion cells against short circuits.
3. Dispose of the lithium-ion cells properly.
13
EN

6. TROUBLESHOOTING
Error messages of the error-LED ¥/ ≈(see page 2).
Problem Possible Cause Remedy
Error-LED ¥on the
battery flashes
Under voltage. vCharge the battery.
Battery temperature is
out of range.
vUse the battery in sur-
roundings where tem-
peratures are between
0 °C and 40 °C.
Error-LED ¥on the
battery illuminates
Battery error / battery
defective.
vContact the GARDENA
Service.
Charging control lamp å
on the charger does not
illuminate
Battery charger or
charging cable are not
connected correctly.
vConnect the battery
charger and charging
cable correctly.
Charging control lamp å
on the charger flashes
rapidly
(4 times per second)
Battery temperature is
out of range.
vUse the battery in sur-
roundings where tem-
peratures are between
0 °C and 40 °C.
Error-LED ≈ on the
charger flashes
Battery error. vRemove the battery and
check that you use
an original GARDENA
battery.
Error-LED ≈on the
charger illuminates
Temperature inside the
charger is too high.
vContact the GARDENA
service.
NOTE: For any other malfunctions please contact the
GARDENA service department. Repairs must only be done
by GARDENA service departments or specialist dealers
approved by GARDENA.
14
EN

7. TECHNICAL DATA
Unit Value
(Art. 19090)
Value
(Art. 19091)
Max. Battery voltage V (DC) 40 * 40 *
Battery capacity Ah 2.6 4.2
Battery charging time 80 % / 100 %
(approx.) min. 65 / 90 105 / 140
* The maximum initial no-load voltage of the battery is 40 V, the nominal voltage
is 36 V.
EC Declaration of Conformity:
Hereby, GARDENA Manufacturing GmbH declares that the radio equipment
type (smart Battery Art. 19090) is in compliance with directive 2014/53/EU.
The full text of the EC declaration of conformity is available at the following
internet address:
http://www.gardena.com/int/support/safety-regulations
15
EN

8. SERVICE / WARRANTY
Service:
Please contact the address on the back page.
Warranty:
In the event of a warranty claim, no charge is levied to you for the services
provided.
GARDENA Manufacturing GmbH offers a 2-year warranty for this product
(from the date of purchase) if the product has been used exclusively for private
purposes. This manufacturer’s warranty does not apply to used products pur-
chased from a secondary market. This warranty includes all significant defects
of the product that can be proved to be material or manufacturing faults.
For Art. 19090: This warranty is fulfilled by supplying a fully functional replace-
ment product or by repairing the faulty product sent to us free of charge;
we reserve the right to choose between these options. This service is subject
to the following provisions:
For Art. 19091: The warranty will be fulfilled by the supply of a working
replacement product provided that the following conditions are met:
• The product was used for its intended purpose as per the recommendations
in the operating instructions.
• Neither the purchaser nor a third party has attempted to repair the product.
• Only original GARDENA spare and wear parts were used.
Normal wear and tear of parts and components, optical changes, as well as
wear parts and consumables, are excluded from the warranty.
This manufacturer’s warranty does not affect warranty entitlements against
the dealer / retailer.
For Art. 19090:
If problems arise with this product, please contactour Service depart-
ment. In the event of a warranty claim, please send the defective product
together with a copy of the purchase receipt and a description of the
defect, sufficiently stamped, to the GARDENA service address on the
back page.
For Art. 19091:
For troubleshooting, please contact our Service department (contact
details see back page). It is not permitted to send a product to us without
prior agreement.
16
EN

Product Liability:
In accordance with the German Product Liability Act, we hereby expressly
declare that we accept no liability for damage incurred from our products
where said products have not been properly repaired by a GARDENA-
approved service partner or where original GARDENA parts or parts author-
ised by GARDENA were not used.
17
EN

18
Deutschland / Germany
GARDENA
Manufacturing GmbH
Central Service
Hans
- Lorenser - Straße 40
D
- 89079 Ulm
Produktfragen:
([phone]
- 123
Reparaturen:
([phone]
- 290
[e-mail]
Albania
COBALT Sh.p.k.
Rr. Siri Kodra
1000 Tirana
Argentina
Husqvarna Argentina S.A.
Av.del Libertador 5954
–
Piso 11 – Torre B
(C1428ARP) Buenos Aires
Phone: [phone]
info.gardena@
ar.husqvarna.com
Armenia
Garden Land Ltd.
61 Tigran Mets
0005 Yerevan
Australia
Husqvarna Australia Pty. Ltd.
Locked Bag 5
Central Coast BC
NSW 2252
Phone: (+61) (0) 2 4352 7400
customer.service@
husqvarna.com.au
Austria / Österreich
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel.: (+ 43) 732 77 01 01
- 485
service.gardena@
husqvarnagroup.com
Azerbaijan
Firm Progress
a. Aliyev Str. 26A
1052 Baku
Belgium
Husqvarna België nv/sa
Gardena Division
Rue Egide Van Ophem 111
1180 Uccle / Ukkel
Tel.: [phone]
[e-mail]
Bosnia / Herzegovina
SILK TRADE d.o.o.
Industrijska zona Bukva bb
74260 Tešanj
Brazil
Husqvarna do Brasil Ltda
Av. Francisco Matarazzo,
1400
– 19º andar
São Paulo
– SP
CEP: 05001
- 903
Tel: 0800
- 112252
marketing.br.husqvarna@
husqvarna.com.br
Bulgaria
AGROLAND България АД
бул. 8 Декември, №13
Офис 5
1700 Студентски град
София
Тел.: [phone]
[e-mail]
Canada / USA
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: [phone]
[e-mail]
Chile
Maquinarias Agroforestales
Ltda. (Maga Ltda.)
Santiago, Chile
Avda. Chesterton
# 8355 comuna Las Condes
Phone: [phone]
[e-mail]
Zipcode: 7560330
China
Husqvarna (Shanghai)
Management Co., Ltd.
富世华（上海）管理有限公司
3F, Benq Square B,
No207, Song Hong Rd.,
Chang Ning District,
Shanghai, PRC. 200335
上海市长宁区淞虹路207号明
基广场B座3楼，邮编：200335
Colombia
Husqvarna Colombia S.A.
Calle 18 No. 68 D
- 31, zona
Industrial de Montevideo
Bogotá, Cundinamarca
Tel. [phone] ext. 105
jairo.salazar@
husqvarna.com.co
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis
– San José
Phone: [phone]
[e-mail]
Croatia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel.: (+ 43) 732 77 01 01
- 485
service.gardena@
husqvarnagroup.com
Cyprus
Med Marketing
17 Digeni Akrita Ave
P.O. Box 27017
1641 Nicosia
Czech Republic
Husqvarna Česko s.r.o.
Türkova 2319/5b
149 00 Praha 4 – Chodov
Bezplatná infolinka:
800 100 425
[e-mail]
Denmark
GARDENA DANMARK
Lejrvej 19, st.
3500 Værløse
Tlf.: ([phone]
[e-mail]
www.gardena.com/dk
Dominican Republic
BOSQUESA, S.R.L
Carretera Santiago Licey
Km. 5 ½
Esquina Copal II.
Santiago
Dominican Republic
Phone: (+809) 736 - 0333
[e-mail]
Ecuador
Husqvarna Ecuador S.A.
Arupos E1 - 181 y 10 de
Agosto
Quito, Pichincha
Tel. [phone]
francisco.jacome@
husqvarna.com.ec
Estonia
Husqvarna Eesti OÜ
Valdeku 132
EE-11216 Tallinn
[e-mail]
Finland
Oy Husqvarna Ab
Gardena Division
Lautatarhankatu 8 B / PL 3
00581 HELSINKI
www.gardena.fi
France
Husqvarna France
9/11 Allée des pierres mayettes
92635 Gennevilliers Cedex
France
http://www.gardena.com/ fr
N° AZUR: 0 810 00 78 23
(Prix d’un appel local)
Georgia
Transporter LLC
8/57 Beliashvili street
0159 Tbilisi, Georgia
Phone: [phone]
Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
info.gardena@
husqvarna.co.uk
Greece
Π.ΠΑΠΑΔΟΠΟΥΛΟΣ ΑΕΒΕ
Λεωφ. Αθηνών 92
Αθήνα
Τ.Κ.104 42
Ελλάδα
Τηλ. ([phone]
[e-mail]
Hungary
Husqvarna Magyarország Kft.
Ezred u. 1
- 3
1044 Budapest
Telefon: (+36) 1 251
- 4161
vevoszolgalat.husqvarna@
husqvarna.hu
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[e-mail]
Ireland
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
info.gardena@
husqvarna.co.uk
Italy
Husqvarna Italia S.p.A.
Via Santa Vecchia 15
23868 VALMADRERA (LC)
Phone: [phone]
assistenza.italia@
it.husqvarna.com
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F
5
- 1 Nibanncyo
Chiyoda
- ku
Tokyo 102
- 0084
Phone: [phone]
m_ishihara@kaku
- ichi.co.jp
Kazakhstan
LAMED Ltd.
155/1, Tazhibayevoi Str.
050060 Almaty
IP Schmidt
Abayavenue 3B
110 005 Kostanay
Korea
Kyung Jin Trading CO.,LTD.
107-4, SunDuk Bld.,
YangJae-dong,
Seocho-gu,
Seoul, (zipcode: 137-891)
Phone: (+82) (0)2 574-6300
Kyrgyzstan
Alye Maki
av. Moladaya Guardir J 3
720014
Bishkek
Latvia
Husqvarna Latvija SIA
Ulbrokas 19A
LV-1021 Rīga
[e-mail]
Lithuania
UAB Husqvarna Lietuva
Ateities pl. 77C
LT
- 52104 Kaunas
info
@
gardena.lt
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg
- Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: (+ 352) 40 14 01
[e-mail]
Mexico
AFOSA
Av. Lopez Mateos Sur # 5019
Col. La Calma 45070
Zapopan, Jalisco
Mexico
Phone: [phone]
- 3434
[e-mail]
Moldova
Convel S.R.L.
290A Muncesti Str.
2002 Chisinau
Netherlands
Husqvarna Nederland B.V.
GARDENA Division
Postbus 50131
1305 AC ALMERE
Phone: [phone]
[e-mail]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
Phone: (+ 599) 9 767 66 55
[e-mail]
New Zealand
Husqvarna New Zealand Ltd.
PO Box 76
- 437
Manukau City 2241
Phone: (+64) (0) 9 9202410
[e-mail]
Norway
Husqvarna Norge AS
Gardena Division
Trøskenveien 36
1708 Sarpsborg
[e-mail]
Peru
Husqvarna Perú S.A.
Jr. Ramón Cárcamo 710
Lima 1
Tel : [phone] ext.416
juan.remuzgo@
husqvarna.com
Poland
Husqvarna
Poland Spółka z o.o.
ul. Wysockiego 15 b
03
- 371 Warszawa
Phone: [phone]
[e-mail]
Portugal
Husqvarna Portugal, SA
Lagoa
- Albarraque
2635
- 595 Rio de Mouro
Tel.: [phone]
Fax : [phone]
[e-mail]
Romania
Madex International Srl
Soseaua Odaii 117
- 123,
RO 013603 Bucure
ş ti, S1
Phone: [phone]
[e-mail]
Russia / Россия
ООО „Хускварна“
141400, Московская обл.,
г. Химки,
улица Ленинградская,
владение 39, стр.6
Бизнес Центр
„Химки Бизнес Парк“,
помещение ОВ02_04
http: //www.gardena.ru
Serbia
Domel d.o.o.
Autoput za Novi Sad bb
11273 Belgrade
Phone: [phone]
miroslav.jejina
@
domel.rs
Singapore
Hy - Ray PRIVATE LIMITED
40 Jalan Pemimpin
#02
- 08 Tat Ann Building
Singapore 577185
Phone: [phone]
[e-mail]
Slovak Republic
Husqvarna Česko s.r.o.
Türkova 2319/5b
149 00 Praha 4 – Chodov
Bezplatná infolinka:
800 154 044
[e-mail]
Slovenia
Husqvarna Austria GmbH
Industriezeile 36
4010 Linz
Tel.: (+ 43) 732 77 01 01
- 485
service.gardena@
husqvarnagroup.com
South Africa
Husqvarna
South Africa (Pty) Ltd
Postnet Suite 250
Private Bag X6,
Cascades, 3202
South Africa
Phone: [phone]
[e-mail]
Spain
Husqvarna España S.A.
Calle de Rivas nº10
28052 Madrid
Phone: (+ 34) 91 708 05 00
[e-mail]
Suriname
Agrofix n.v.
Verlengde Hogestraat #22
Phone: [phone]
[e-mail]
Pobox : 2006
Paramaribo
Suriname
– South America
Sweden
Husqvarna AB
Gardena Division
S
- 561 82 Huskvarna
[e-mail]
Switzerland / Schweiz
Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+41) (0) 62 887 37 90
[e-mail]
Turkey
Dost Bahçe Dış Ticaret
Mümessillik A.Ş
Yunus Mah. Adil Sok. No:3
Ic Kapi No: 1 Kartal
34873 Istanbul
Phone: (+ 90) 216 38 93 939
[e-mail]
Ukraine / Україна
ТОВ «Хускварна Україна»
вул. Васильківська, 34,
офіс 204
- г
03022, м. Київ
Тел. [phone]
[e-mail]
Uruguay
FELI SA
Entre Ríos 1083 CP 11800
Montevideo
– Uruguay
Tel: (+ 598) 22 03 18 44
[e-mail]
Venezuela
C orporación Casa y Jardín C.A.
Av. Caroní, Edif. Trezmen, PB.
Colinas de Bello Monte.
1050 Caracas.
Tlf: ([phone]
[e-mail]
0000
- 20.960.08/0618
©GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.com
19090-20.960.02/1018
© GARDENA
Manufacturing GmbH
D-89070 Ulm
http://www.gardena.com
