Gardena FSP 5500 7868 User manual

GARDENA
®
DGebrauchsanweisung
Tauchpumpe für Teichfilter oder Bachlauf
GB Operating Instructions
Submersible Pump for Pond Filter or Stream
FMode d’emploi
Pompe submersible pour filtre de bassin ou cascade
NL Gebruiksaanwijzing
Dompelpomp voor vijverfilter of beekloop
SBruksanvisning
Dränkbar Pump för Dammfilter eller Bäck
IIstruzioni per l’uso
Pompa sommersa per filtro laghetto o per ruscello
EManual de instrucciones
Bomba sumergible para filtro de estanque o arroyo
DK Brugsanvisning
Undervandspumpe til bassinfilter eller vandløb
FSP 5500 Art. 7868
FSP 10000 Art. 7869
FSP 15000 Art. 7870

2
D
Bitte lesen Sie diese
Gebrauchsanweisung
vor Inbetriebnahme
Ihres Gerätes sorgfältig.
Seite
Gebrauchsanweisung 3 - 8
G
Please read these operating
instructions carefully before
using the unit.
Page
Operating instructions 9 - 13
F
Nous vous remercions de
bien vouloir lire attentive-
ment ce mode d’emploi
avant l’utilisation de votre
pompe.
Page
Mode d’emploi 14 - 18
N
Lees deze gebruiksaanwij-
zing voor ingebruikname
van het apparaat zorgvuldig
door.
Pagina
Gebruiksaanwijzing 19 - 23
S
Läs igenom bruksanvisnin-
gen noggrant innan Du tar
Din GARDENA Pump i bruk.
Sida
Bruksanvisning 24 - 28
I
Prima di mettere in uso
la nuova pompa, leggere
attentamente le istruzioni.
pagina
Istruzioni per l’uso 29 - 33
E
Antes de la puesta en
marcha del aparato, acon-
sejamos una atenta lectura
del presente manual de
instrucciones.
Página
Manual de
instrucciones 34 - 38
K
Læs venligst brugsanvis-
ningen omhyggeligt igen-
nem.
Side
Brugsanvisning 39 - 43

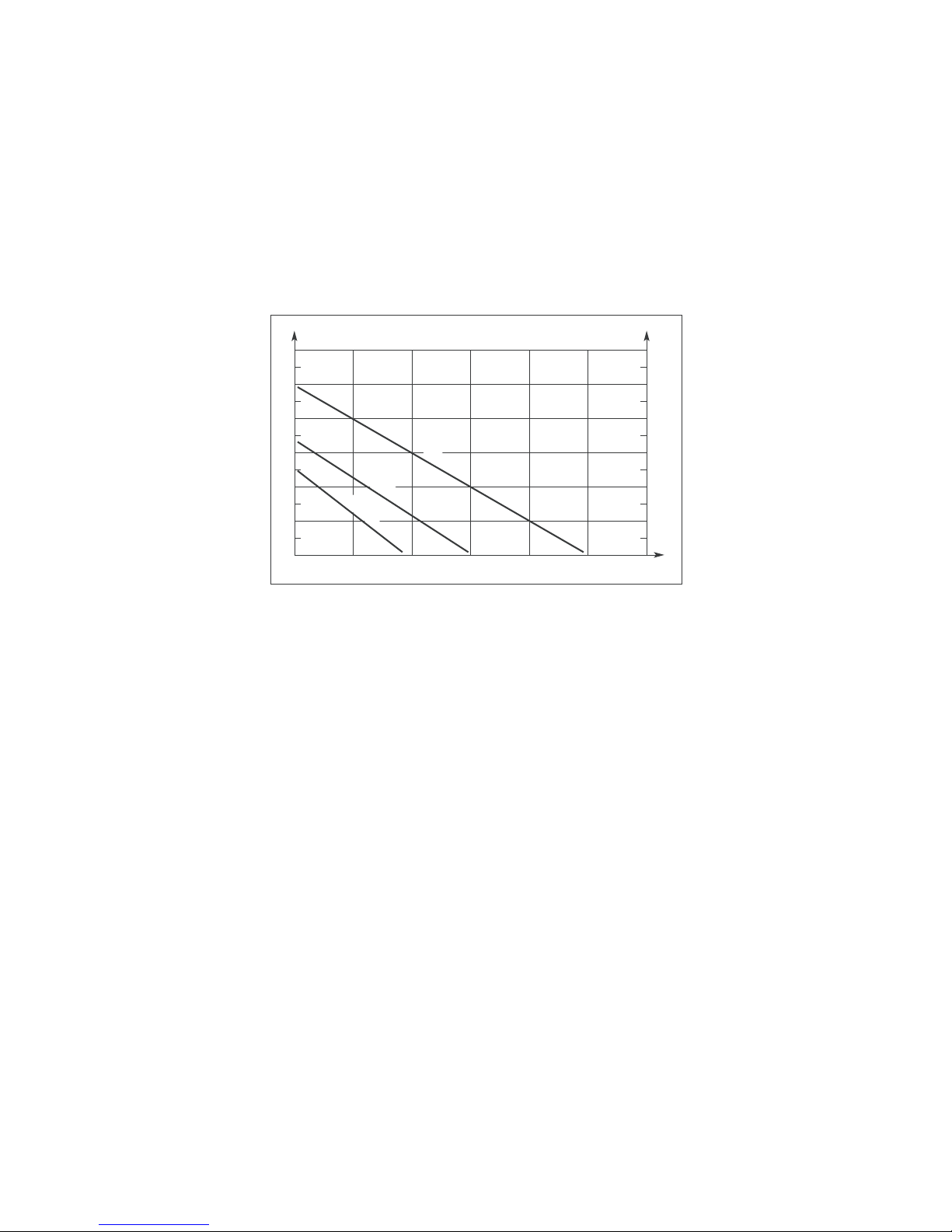

m
6
5
4
3
2
1
0
bar
0,6
0,5
0,4
0,3
0,2
0,1
0 50 100 150 200 250 300 l/min
FSP 5500
FSP 10000
FSP 15000

9
G
Intended purpose
Attention
GARDENA
Submersible Pump for Pond Filter or Stream
FSP 5500 / FSP 10000 / FSP 15000
Welcome to GARDENA aquamotion ...
Please read these operating instructions carefully and observe
the notes given.
Use the instructions to familiarise yourself with the equipment,
the operating controls, their correct use, and the notes on safety.
AFor safety reasons, children under 16 as well as persons not
familiar with these operating instructions should not use this pump.
Keep these operating instructions in a safe place.
The Applications Range of Your Pump
GARDENA Submersible Pumps for Pond Filter or Stream have
been designed for private use. They are not designed for operating
watering tools and systems. The pumps may be used indoors as
well as outdoors.
AGARDENA Submersible Pumps for Pond Filter or Stream
have not been designed for constant use in the industrial sector.
Corrosive, easily combustible, aggressive or explosive sub-
stances (e.g. petrol, petroleum, nitro thinner) as well as salt-
water or food / drinking water must not be pumped.
AFor Your Safety
The pump should be operated via a residual current device
with a residual current rating of ≤30 mA (DIN VDE 0100-702
and 0100-738). The pump must be placed on solid, even
ground. Please ask your electrician for his advice.
Mains power cables should not have a smaller cross-section
than a rubber sheathed cable of the designation H07 RNF.
Extension cables must meet the requirements of DIN VDE 0620.
In Austria power cables should correspond to ÖVE-EM 42,
T 2 (2000)/1979 § 22 according to § 2022.1. According to this
standard pumps used in swimming pools and ponds should
only be operated via an isolating transformer. Please contact
your electrician.
In Switzerland mobile appliances which are used outdoors,
must be connected via a residual-current device.
Before operating the pump, look to see if there is any damage
of the pump (esp. regarding power cable and plug). A damaged
pump must not be used. In case of damage, please have the
Operating the Pump
Mains power cables
For Austria
For Switzerland
Visual check

11
G
10
G
Fitting the universal
connector
Positioning the pump
Pay attention to
minimum water depth
Starting the pump
Avoid dry operation
1. Push the sleeve nut over the universal connector.
2. Place the sealing ring in the sleeve nut.
3. Screw the universal adapter and sleeve nut onto the pressure
joints of the pump.
Position the pump on a firm base so that it is at least 20 cm
immersed in water.
Please note the maximum submersion depth (see “Technical Data”).
Connect the power cable to a 230 V AC socket.
ACaution! Pump will start running immediately!
Avoid dry operation of the pump as dry running will produce
undesirable heat and destroy the pump.
System Extensions – Product Recommendations
To clean your pond you can connect an external filter such as the
GARDENA Pond Filter Art. No. 7904
GARDENA Pond Filter with UVC-light Art. No. 7905
For this purpose use a hose in order to connect the Pump
for Filters and Streams with the external filter.
APlease observe the information on safety in the relevant
operating instructions!
The pump has been designed for streams and waterfalls:
.Large streams and waterfalls
➔Connect a 38 mm (1 1/2 ”) GARDENA Pond Hose,
Art. No. 7898, and run it to the source of your stream.
.Smaller streams
➔Connect hoses with a smaller diameter correspondingly e.g.:
32 mm (5/4”)-GARDENA Pond Hose, Art. No. 7897
25 mm (1”)-GARDENA Pond Hose, Art. No. 7896.
Care Instructions
If you use your pump frequently in dirty water you should clean
your pump as follows:
1. Remove the mains plug.
2. Take the pump out of the water.
3. Rinse the housing of the pump thoroughly with water.
If necessary, also direct the water into the pressure outlet.
4. Put the pump back into your pond or stream.
Information: Do not use any hard objects or strong detergents!
Operation
The universal fitting provides you with various possibilities
to fit a hose:
➔Connection via graduated nipple of
.25 mm (1”)- or
.32 mm (5/4”)- or
.38 mm (1 1/2”)-hoses
➔Connection via GARDENA Water hose-Plug-in-system
fittings of
.13 mm (1/2”)- or
.16 mm (5/8”)- or
.19 mm (3/4”)-hoses
Recommendation:
Fix 38 mm (1 1/2”)-, 32 mm (5/4”)- and 25 mm (1”)-hoses
additionally with a hose clip.
Cut off the parts of the universal fitting that you do not need
with a saw.
Operating an external filter
Operating a stream
Cleaning the pump
pump checked by our GARDENA Service Centre or by an
authorised electrician.
Check line voltage. Data indicated on the type plate must match
technical data of the mains supply.
The pump must not be operated when there are people in the
water.
Swimming pools and garden ponds should be designed accord-
ing to international and national design regulations. Please
consult a professional electrician.
Do not use the power cable to carry the pump or to pull the plug
out of the socket. Protect the power cable from heat, oil and
sharp edges.
Please unplug the pump after operation and before carrying out
any maintenance works.
The temperature of the liquid used must not be below 4°C or
above 35 °C.
Sand and other abrasive substances in the liquid cause in-
creased wear and reduce the output of the pump.
Please observe the local noise prevention regulations.
Check line voltage
Do not operate pump
when there are people
in the water
Swimming pools
and garden ponds
Do not use power cable
to carry the pump
Disconnect plug
Temperature of the liquid
used
Wear and reduced
output
Observe local noise
prevention regulations
G 3/4
1”
G 1
5/4”
11/2”

13
G
12
G
Storage
AThe pump should be stored out of the reach of children.
1. Take the pump out of the water and store away from frost
before the first frost sets in.
2. Clean and check the pump carefully.
3. Store the pump in a container filled with water.
The mains plug must not be submerged.
Information
If you have any problems with your pump, please contact our
Service or return the defective unit together with a short descrip-
tion of the problem postage paid to one of the GARDENA Service
Centres listed on the back of these operating instructions.
We expressly point out that, in accordance with the product
liability law, we are not liable for any damage caused by our
units if it is due to improper repair or if parts exchanged are not
original GARDENA parts or parts approved by us, and, if the
repairs were not carried out by a GARDENA Service Centre or
an authorised specialist. The same applies to spare parts and
accessories.
Technical Data
Type FSP 5500 FSP 10000 FSP 15000
Art. No. 7868 7869 7870
Rated power 75 W 110 W 250 W
Flow 92 l/min 150 l/min 250 l/min
Max. delivery head 2.5 m 3.4 m 5.0 m
Max. submersion depth 4 m 4 m 4 m
Power cable 10 m H07 RNF 10 m H07 RNF 10 m H07 RNF
Max. particle size 8 mm 8 mm 8 mm
Max. media temperature 35 °C 35 °C 35 °C
Mains voltage 230 V 230 V 230 V
Frequency 50 Hz 50 Hz 50 Hz
Noise level LWA1) 48 dB(A) 48 dB(A) 48 dB(A)
1) Measuring method according to EN 60335-1
Complaints/Repairs
Product liability
EU Certificate of Conformity
The undersigned
GARDENA Kress + Kastner GmbH · Hans-Lorenser-Str. 40 · D-89079 Ulm
hereby certifies that, when leaving our factory, the units indicated below are in accordance with the
harmonised EU guidelines, EU standards of safety and product specific standards.
This certificate becomes void if the units are modified without our approval.
Description of the units:
Pumps for Pond Filter or
Stream
Type:
FSP 5500 / FSP 10000 /
FSP 15000
Art. No. :
7868 / 7869 / 7870
EU directives:
Machinery Directive 98/37/EC
Electromagnetic Compatibility
89/336/EC
Low Voltage Directive
73/23/EC
Directive 93/ 68 / EC
Harmonised
European standards:
EN 292-1
EN 292-2
EN 60335-1
EN 60335-2-41
Year of CE marking:
1999
Ulm, 01.06.1999
Thomas Heinl
Technical Dept. Manager
GARDENA guarantees this
product for 3 years (from date
of purchase). This guarantee
covers all serious defects
of the unit that can be proved
to be material or manufacturing
faults. Under warranty we will
either replace the unit or repair
it free of charge if the follow-
ing conditions apply:
.The unit must have been
handled properly and in
keeping with the require-
ments of the operating in-
structions.
.Neither the purchaser nor
a non-authorised third party
have attempted to repair
the unit.
The feed impeller is a wear-
ing part and is not covered
by the warranty.
This manufacturer’s guarantee
does not affect the user’s exist-
ing warranty claims against
the dealer/seller.
In the event of a fault, please
send the defective unit together
with the receipt and a descrip-
tion of the fault, postage paid,
to one of the GARDENA Ser-
vice Centres on the back
of this page.
Guarantee
Where to store

Deutschland
GARDENA Kress + Kastner GmbH
GARDENA Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen: (07 31) 490- 123
Reparaturen: (07 31) 490- 290
Argentina
Argensem S.A.
Venezuela 1075
(1618) El Talar - Buenos Aires
Australia
NYLEX Consumer Division
76-88 Mills Road
P.O. Box 722
Braeside 3195
Melbourne, Victoria
Austria
GARDENA Österreich Ges. m.b.H.
Stettnerweg 11-15
2100 Korneuburg
Belgium
MARKT (Belgium) NV/SA
Sterrebeekstraat 163
1930 Zaventem
Brazil
M. Cassab
Av. das Nações Unidas, 20.882
Santo Amaro, CEP 04795-000
São Paulo - S.P.
Bulgaria / България
ДЕНЕКС ООД
Бул. ”Г.М.Димитров” 16 ет.4
София 1797
Canada
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario
Canada L6T 4X3
Chile
Antonio Martinic Y CIA. LTDA.
Gilberto Fuenzalida 185 Loc.
Las Condes - Santiago de Chile
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Av. 12 bis Calle 16 y 18
Bodegas Keith y Ramirez
San José
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Czech Republic
GARDENA spol. s.r.o.
Шнpskб 20a, и.p. 1153
62700 Brno
Denmark
GARDENA Danmark A / S
Naverland 8
2600 Glostrup
Finland
Habitec Oy
Martinkyläntie 52
01720 Vantaa
France
GARDENA France
Service Après-Vente
BP 50080
95948 ROISSY CDG Cedex
Great Britain
GARDENA UK Ltd.
27-28 Brenkley Way
Blezard Business Park
Seaton Burn
Newcastle upon Tyne NE13 6DS
Greece
Agrokip G. Psomadopoulos & Co.
33a, Ifestou str.
Koropi 194 00
Athens
Hungary
GARDENA Magyarország Kft.
Késmárk utca 22
1158 Budapest
Iceland
Heimilistaeki hf
Saetun 8
P.O. Box 5340
125 Reykjavik
Republic of Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.r.l.
Via Donizetti 22
20020 Lainate (Mi)
Japan
KAKUDAI Mfg. Co. Ltd.
1-4-4, Itachibori Nishi-ku
Osaka 550
Luxembourg
Magasins Jules Neuberg
Grand Rue 30
Case Postale No. 12
Luxembourg 2010
Netherlands
GARDENA Nederland B.V.
Postbus 50176
1305 AD ALMERE
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200
Curaçao
New Zealand
NYLEX New Zealand Limited
Private Bag 94001
South Auckland Mail Centre
10 Offenhauser Drive
East Tamaki, Manukau
Norway
GARDENA Norge A/S
Postboks 214
2013 Skjetten
Poland
GARDENA Polska Sp. z o.o.
Szymanów 9 d
05-532 Baniocha
Portugal
GARDENA, Lda.
Recta da Granja do Marquês
Edif. GARDENA
Algueirão
2725-596 Mem Martins
Russia / Россия
АО АМИДА ТТЦ
ул. Моcфилмовcкая 66
117330 Моcква
Singapore
Variware
Holland Road Shopping Centre
227-A 1st Fl., Unit 29
Holland Avenue
Singapore 1027
Slowenia / Croatia
Silk d.o.o. Trgovina
Brodišče 15
1236 Trzin
South Africa
GARDENA South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Spain
ANMI Andreu y Miriam S.A.
Calle Pere IV, 111
08018 Barcelona
Sweden
GARDENA Svenska AB
Box 9003
20039 Malmö
Switzerland
GARDENA Kress + Kastner AG
Bitziberg 1
8184 Bachenbülach
Ukraine / Украина
АОЗТ АЛЬЦЕСТ
ул. Гайдара 50
г. Киев 01033
Turkey
Dost Diþ Ticaret Mümessillik A.Þ.
Yeþilbaðlar Mah. Baþkent
Cad. No. 26
Pendik - Ýstanbul
USA
GARDENA
3085 Shawnee Drive
Winchester, VA 22604
7868- 20.960.05 /0021
©GARDENA Kress + Kastner GmbH
Postfach 27 47, D-89070 Ulm
http: //www.gardena.com
T3055456221E /Id.22375/11K
